. If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be
displayed on the screen.
. If the file name is too long, some file names
may not be entirely displayed.
. When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when
selected.

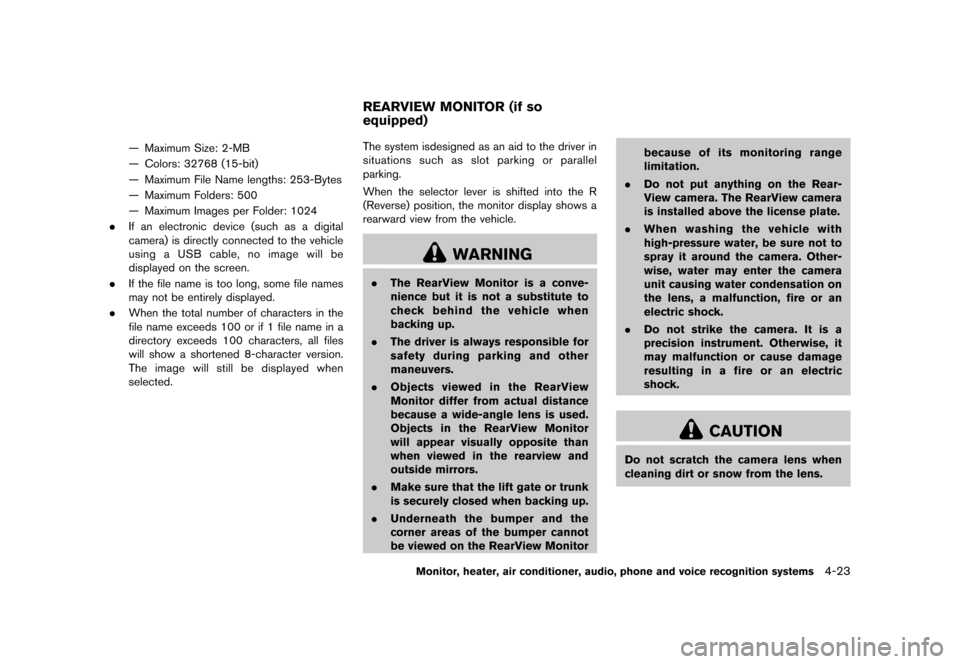

GUID-0DD20D16-8E9A-4618-974A-1790E9A356D9The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
When the selector lever is shifted into the R
(Reverse) position, the monitor display shows a
rearward view from the vehicle.
WARNING
.The RearView Monitor is a conve-
nience but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rearview and
outside mirrors.
. Make sure that the lift gate or trunk
is securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera. The RearView camera
is installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-23
REARVIEW MONITOR (if so
equipped)
Condition:

Black plate (230,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-24Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1896

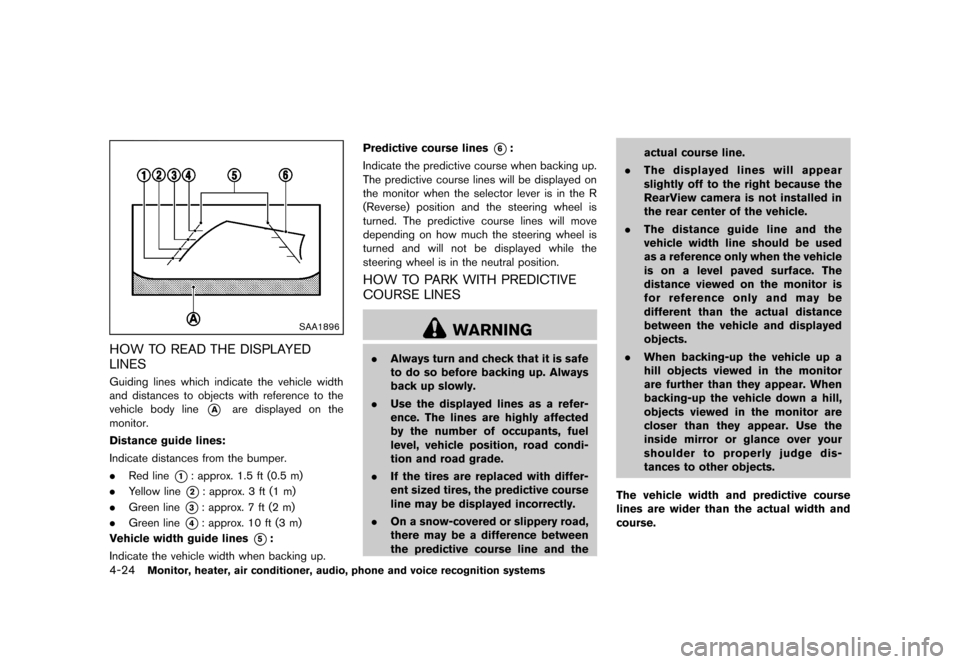

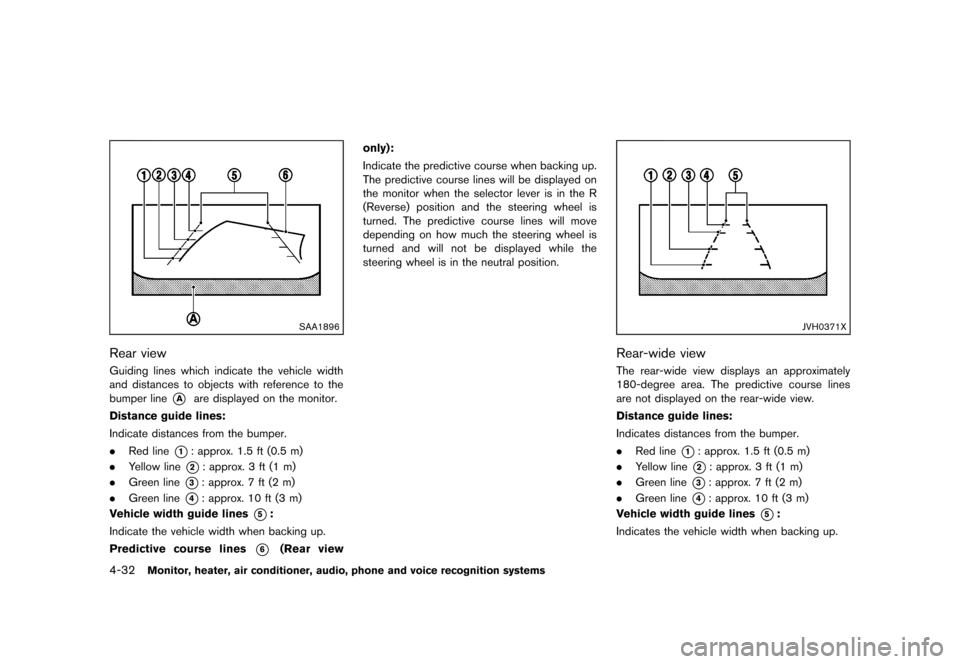

HOW TO READ THE DISPLAYED
LINES
GUID-A59A3275-24D0-4869-9185-75830F165CE3Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*Aare displayed on the
monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up. Predictive course lines
*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the selector lever is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-7197099F-6724-4863-82D4-E0646631D861
WARNING
. Always turn and check that it is safe
to do so before backing up. Always
back up slowly.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tion and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may be displayed incorrectly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the actual course line.
. The displayed lines will appear
slightly off to the right because the
RearView camera is not installed in
the rear center of the vehicle.
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing-up the vehicle up a
hill objects viewed in the monitor
are further than they appear. When
backing-up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
The vehicle width and predictive course
lines are wider than the actual width and
course.
Condition:

Black plate (231,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SAA1897

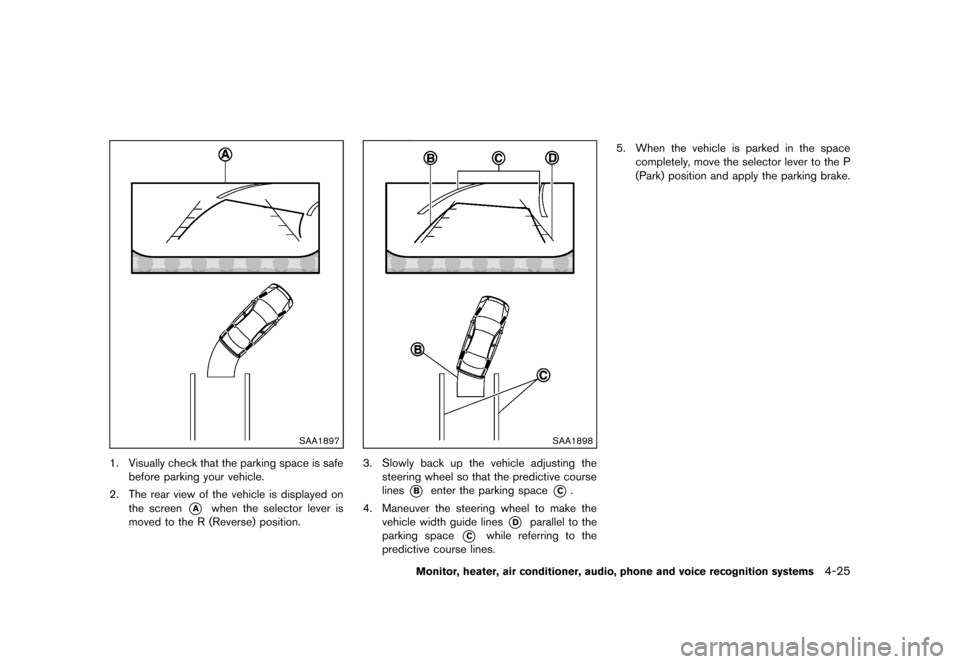

1. Visually check that the parking space is safebefore parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
*Awhen the selector lever is
moved to the R (Reverse) position.
SAA1898
3. Slowly back up the vehicle adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines. 5. When the vehicle is parked in the space
completely, move the selector lever to the P
(Park) position and apply the parking brake.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-25
Condition:

Black plate (232,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-26Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1978

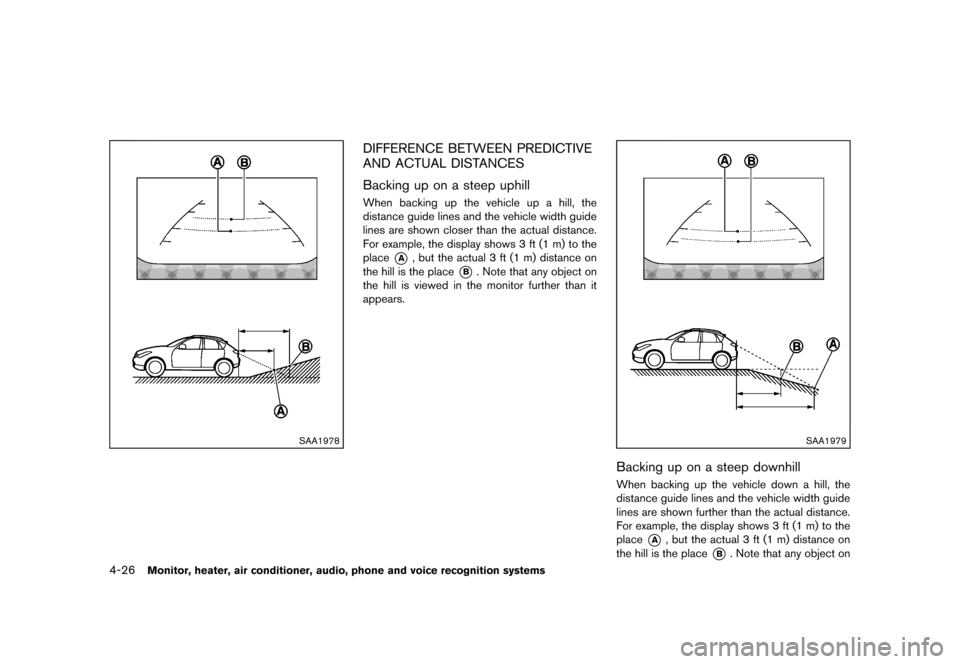

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-302A28CA-AC28-4AE5-B064-524507B0E06E
Backing up on a steep uphillGUID-9D4C9AE0-331F-46DC-A0F9-BCC442E7A25AWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
SAA1979
Backing up on a steep downhillGUID-70852630-5DC4-4BC9-A562-6761DFD00801When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
Condition:

Black plate (233,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
the hill is viewed in the monitor closer than it
appears.

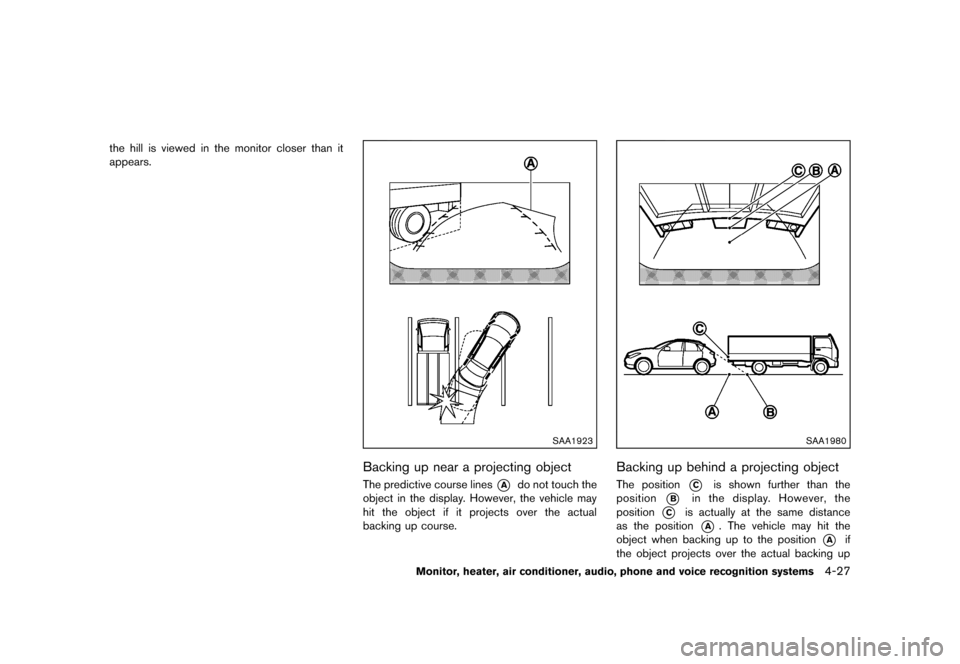

SAA1923
Backing up near a projecting objectGUID-9D6EBC33-935D-46A4-ACB3-53A6D833AE98The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
SAA1980
Backing up behind a projecting objectGUID-38876F5B-3001-41F9-8E1A-F9AAB88DE919The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-27
Condition:

Black plate (234,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-28Monitor, heater, air conditioner, audio, phone and voice recognition systems
course.

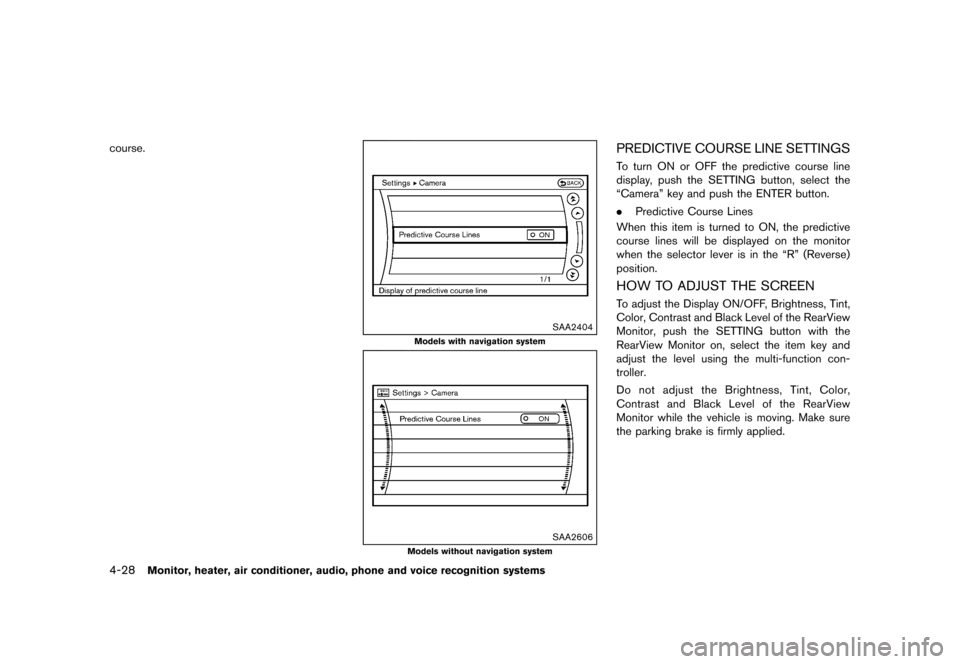

SAA2404
Models with navigation system
SAA2606
Models without navigation system
PREDICTIVE COURSE LINE SETTINGSGUID-68450C56-3780-4314-A535-6365AA7D2D8DTo turn ON or OFF the predictive course line
display, push the SETTING button, select the
“Camera” key and push the ENTER button.
.Predictive Course Lines
When this item is turned to ON, the predictive
course lines will be displayed on the monitor
when the selector lever is in the “R” (Reverse)
position.
HOW TO ADJUST THE SCREENGUID-EBE73AC0-2CFE-45F5-99BC-42FE5D8343D2To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor, push the SETTING button with the
RearView Monitor on, select the item key and
adjust the level using the multi-function con-
troller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
Condition:

Black plate (235,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

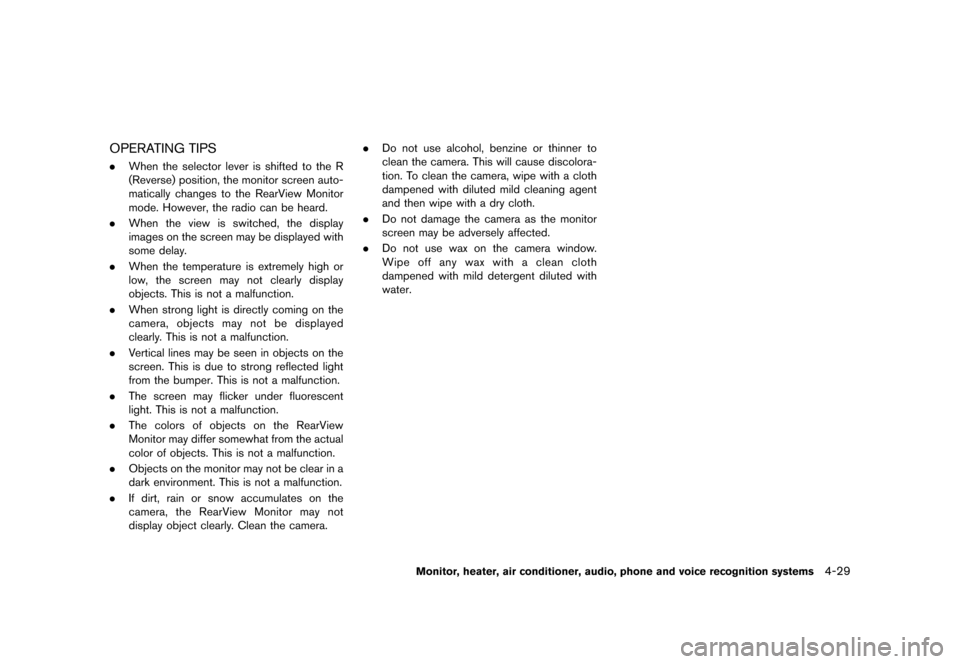

OPERATING TIPSGUID-2C7B18A8-765F-48EB-81F4-4527DA0D3E26.When the selector lever is shifted to the R
(Reverse) position, the monitor screen auto-
matically changes to the RearView Monitor
mode. However, the radio can be heard.
. When the view is switched, the display
images on the screen may be displayed with
some delay.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display object clearly. Clean the camera. .
Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
. Do not damage the camera as the monitor
screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-29
Condition:

Black plate (236,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-30Monitor, heater, air conditioner, audio, phone and voice recognition systems

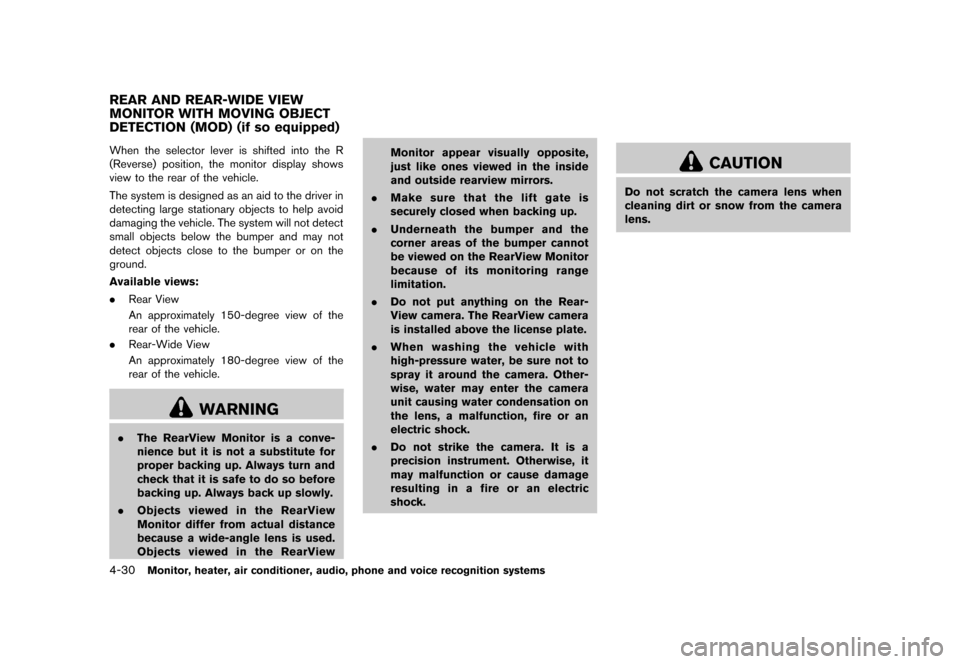

GUID-A5D5DA48-B530-4B9F-B496-6C708E6183ADWhen the selector lever is shifted into the R
(Reverse) position, the monitor display shows
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not detect
small objects below the bumper and may not
detect objects close to the bumper or on the
ground.
Available views:
.Rear View
An approximately 150-degree view of the
rear of the vehicle.
. Rear-Wide View
An approximately 180-degree view of the
rear of the vehicle.
WARNING
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing up. Always turn and
check that it is safe to do so before
backing up. Always back up slowly.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects viewed in the RearView Monitor appear visually opposite,
just like ones viewed in the inside
and outside rearview mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera. The RearView camera
is installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the camera
lens.
REAR AND REAR-WIDE VIEW
MONITOR WITH MOVING OBJECT
DETECTION (MOD) (if so equipped)
Condition:

Black plate (237,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVH0364X

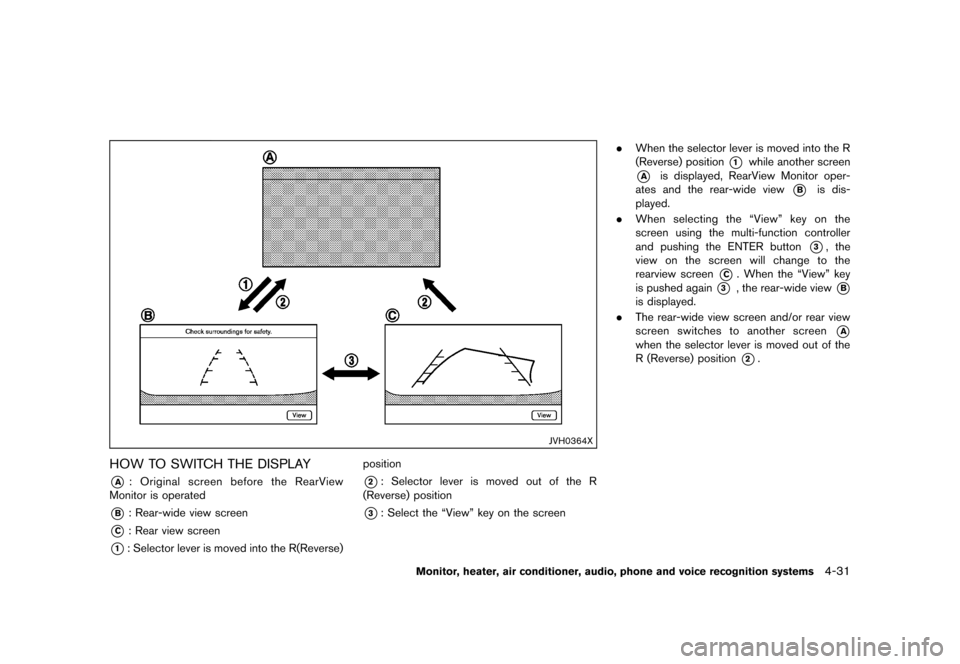

HOW TO SWITCH THE DISPLAYGUID-56F2AC44-586C-41C3-BB3D-E9CA84EEBBA1*A: Original screen before the RearView
Monitor is operated
*B: Rear-wide view screen
*C: Rear view screen
*1: Selector lever is moved into the R(Reverse) position
*2: Selector lever is moved out of the R
(Reverse) position
*3: Select the “View” key on the screen .
When the selector lever is moved into the R
(Reverse) position
*1while another screen
*Ais displayed, RearView Monitor oper-
ates and the rear-wide view
*Bis dis-
played.
. When selecting the “View” key on the
screen using the multi-function controller
and pushing the ENTER button
*3, the
view on the screen will change to the
rearview screen
*C. When the “View” key
is pushed again
*3, the rear-wide view*B
is displayed.
. The rear-wide view screen and/or rear view
screen switches to another screen
*A
when the selector lever is moved out of the
R (Reverse) position
*2.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-31
Condition:

Black plate (238,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-32Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1896
Rear viewGUID-13659AA8-05DC-480B-BA52-07DE39566B70Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6(Rear view only):
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the selector lever is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
JVH0371X
Rear-wide viewGUID-BCABBC8B-3F45-405F-9A7D-23F90D2BBA8AThe rear-wide view displays an approximately
180-degree area. The predictive course lines
are not displayed on the rear-wide view.
Distance guide lines:
Indicates distances from the bumper.
.
Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicates the vehicle width when backing up.
Condition:
