NISSAN MURANO 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: MURANO, Model: NISSAN MURANO 2013 2.GPages: 507, PDF Size: 4.61 MB
Page 271 of 507

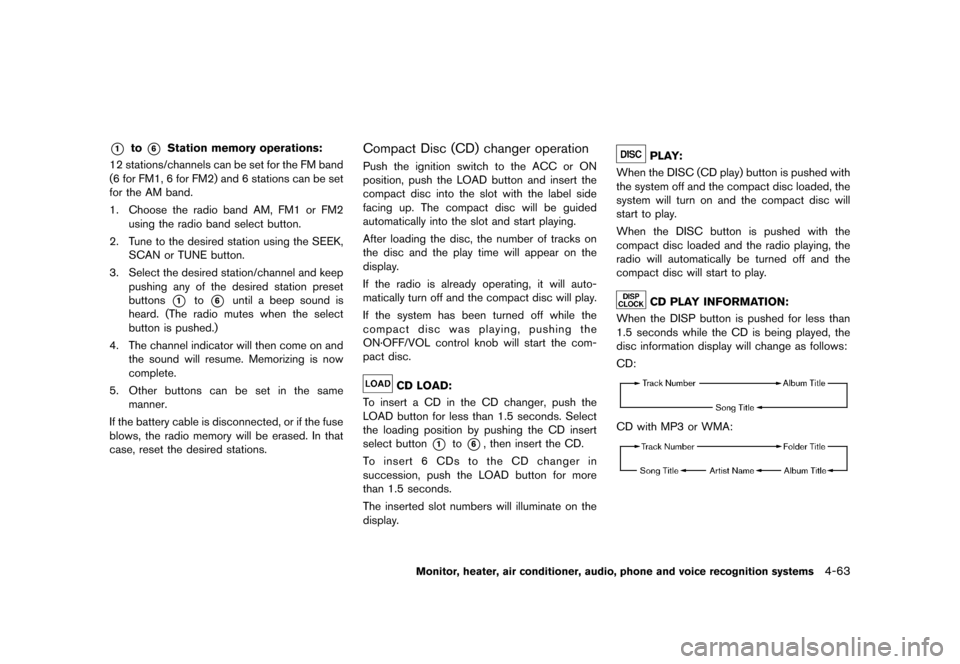

![NISSAN MURANO 2013 2.G Owners Manual Black plate (269,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
*1to*6Station memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 for FM1, 6 for FM2) a NISSAN MURANO 2013 2.G Owners Manual Black plate (269,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
*1to*6Station memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 for FM1, 6 for FM2) a](/img/5/332/w960_332-270.png)
Black plate (269,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
*1to*6Station memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 for FM1, 6 for FM2) and 6 stations can be set
for the AM band.
1. Choose the radio band AM, FM1 or FM2using the radio band select button.
2. Tune to the desired station using the SEEK, SCAN or TUNE button.
3. Select the desired station/channel and keep pushing any of the desired station preset
buttons
*1to*6until a beep sound is
heard. (The radio mutes when the select
button is pushed.)
4. The channel indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
blows, the radio memory will be erased. In that
case, reset the desired stations.
Compact Disc (CD) changer operationGUID-972EA4B9-3241-42FD-A4C3-A4F32FFBAE4DPush the ignition switch to the ACC or ON
position, push the LOAD button and insert the
compact disc into the slot with the label side
facing up. The compact disc will be guided
automatically into the slot and start playing.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio is already operating, it will auto-
matically turn off and the compact disc will play.
If the system has been turned off while the
compact disc was playing, pushing the
ON·OFF/VOL control knob will start the com-
pact disc.
CD LOAD:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. Select
the loading position by pushing the CD insert
select button
*1to*6, then insert the CD.
To insert 6 CDs to the CD changer in
succession, push the LOAD button for more
than 1.5 seconds.
The inserted slot numbers will illuminate on the
display.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC (CD play) button is pushed with
the system off and the compact disc loaded, the
system will turn on and the compact disc will
start to play.
When the DISC button is pushed with the
compact disc loaded and the radio playing, the
radio will automatically be turned off and the
compact disc will start to play.
CD PLAY INFORMATION:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISP button is pushed for less than
1.5 seconds while the CD is being played, the
disc information display will change as follows:
CD:
NOS2287
CD with MP3 or WMA:
NOS2288
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-63
Condition:
Page 272 of 507

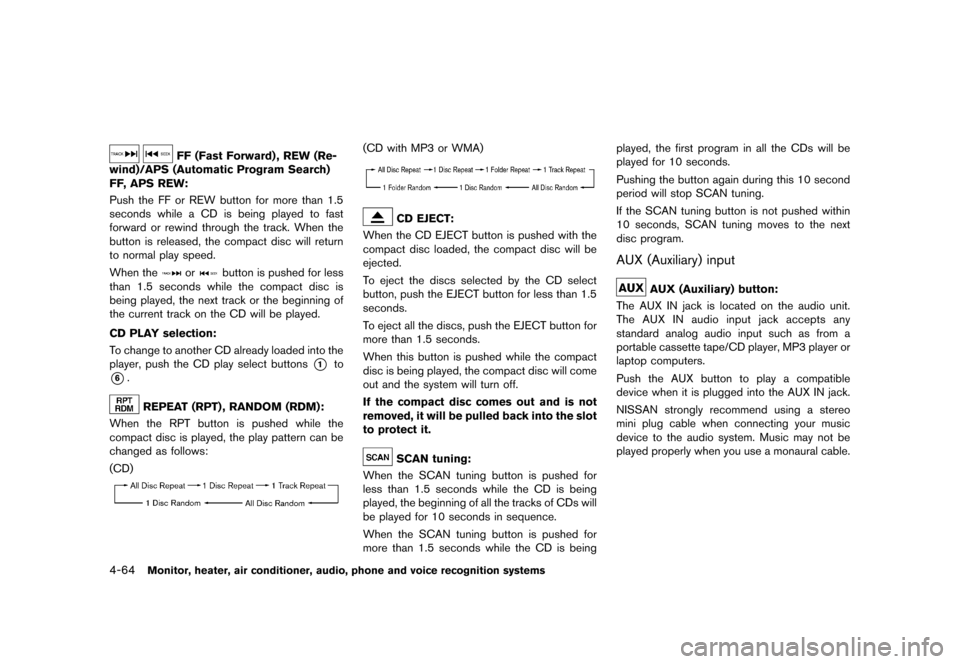

![NISSAN MURANO 2013 2.G Owners Manual Black plate (270,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-64Monitor, heater, air conditioner, audio, phone and voice recognition systems
FF (Fast Forward) , REW (Re-
wind)/APS (Automatic Program Search NISSAN MURANO 2013 2.G Owners Manual Black plate (270,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-64Monitor, heater, air conditioner, audio, phone and voice recognition systems
FF (Fast Forward) , REW (Re-
wind)/APS (Automatic Program Search](/img/5/332/w960_332-271.png)
Black plate (270,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-64Monitor, heater, air conditioner, audio, phone and voice recognition systems
FF (Fast Forward) , REW (Re-
wind)/APS (Automatic Program Search)
FF, APS REW:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the FF or REW button for more than 1.5
seconds while a CD is being played to fast
forward or rewind through the track. When the
button is released, the compact disc will return
to normal play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the compact disc is
being played, the next track or the beginning of
the current track on the CD will be played.
CD PLAY selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another CD already loaded into the
player, push the CD play select buttons
*1to
*6.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the
compact disc is played, the play pattern can be
changed as follows:
(CD)
NOS2285
(CD with MP3 or WMA)
NOS2286
CD EJECT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the discs selected by the CD select
button, push the EJECT button for less than 1.5
seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it.
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the SCAN tuning button is pushed for
less than 1.5 seconds while the CD is being
played, the beginning of all the tracks of CDs will
be played for 10 seconds in sequence.
When the SCAN tuning button is pushed for
more than 1.5 seconds while the CD is being played, the first program in all the CDs will be
played for 10 seconds.
Pushing the button again during this 10 second
period will stop SCAN tuning.
If the SCAN tuning button is not pushed within
10 seconds, SCAN tuning moves to the next
disc program.
AUX (Auxiliary) inputGUID-298EBF8C-8046-42B7-9748-7C48AA1F9988
AUX (Auxiliary) button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The AUX IN jack is located on the audio unit.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape/CD player, MP3 player or
laptop computers.
Push the AUX button to play a compatible
device when it is plugged into the AUX IN jack.
NISSAN strongly recommend using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not be
played properly when you use a monaural cable.
Condition:
Page 273 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (271,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SAA3474
1. CD EJECT button
2. ON·OFF/VOLUME control knob
3. Radio station and CD selector buttons
4. Radio tuning/AUDIO control knob
5. Radio SC NISSAN MURANO 2013 2.G Owners Manual Black plate (271,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SAA3474
1. CD EJECT button
2. ON·OFF/VOLUME control knob
3. Radio station and CD selector buttons
4. Radio tuning/AUDIO control knob
5. Radio SC](/img/5/332/w960_332-272.png)
Black plate (271,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

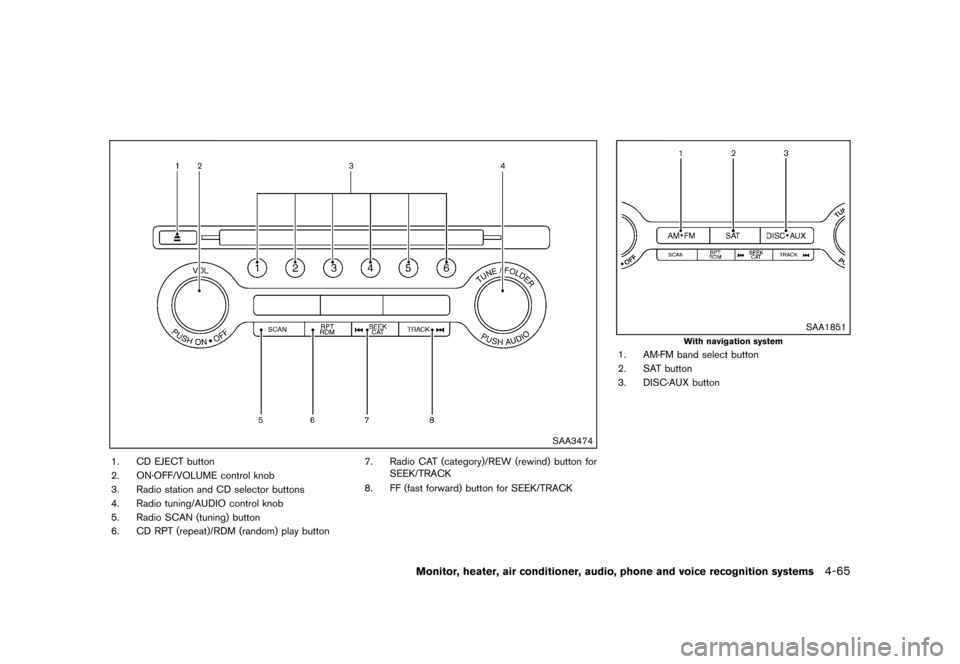

SAA3474
1. CD EJECT button
2. ON·OFF/VOLUME control knob
3. Radio station and CD selector buttons
4. Radio tuning/AUDIO control knob
5. Radio SCAN (tuning) button
6. CD RPT (repeat)/RDM (random) play button7. Radio CAT (category)/REW (rewind) button for
SEEK/TRACK
8. FF (fast forward) button for SEEK/TRACK
SAA1851
With navigation system
1. AM·FM band select button
2. SAT button
3. DISC·AUX button
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-65
Condition:
Page 274 of 507

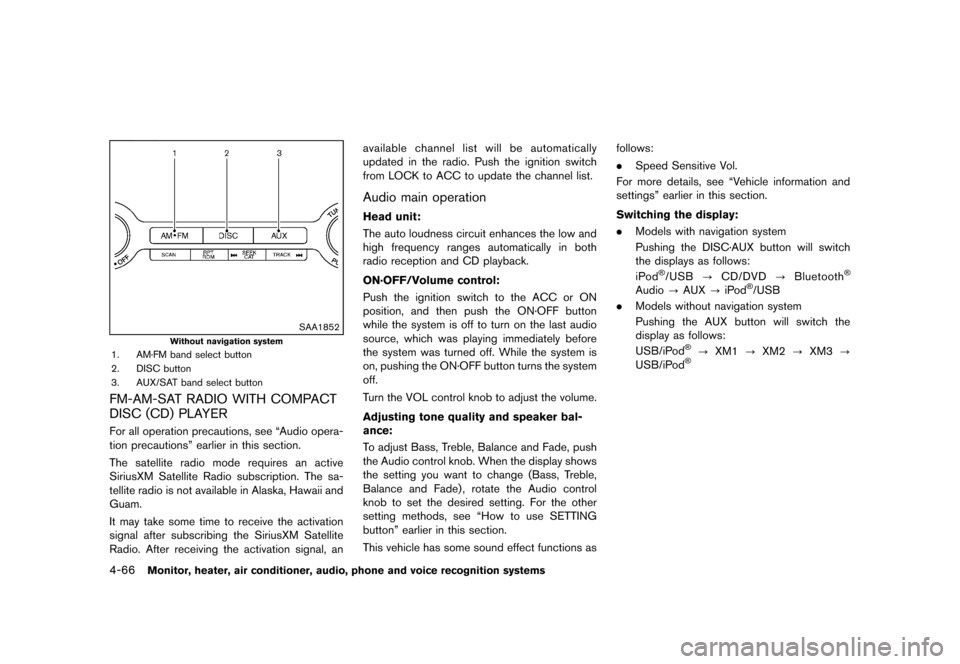

![NISSAN MURANO 2013 2.G Owners Manual Black plate (272,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-66Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1852
Without navigation system
1. AM·FM band select button
2 NISSAN MURANO 2013 2.G Owners Manual Black plate (272,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-66Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1852
Without navigation system
1. AM·FM band select button
2](/img/5/332/w960_332-273.png)
Black plate (272,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-66Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1852
Without navigation system
1. AM·FM band select button
2. DISC button
3. AUX/SAT band select button
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
GUID-C131FB44-F458-4E5F-863F-8282EA324CB7For all operation precautions, see “Audio opera-
tion precautions” earlier in this section.
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, anavailable channel list will be automatically
updated in the radio. Push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operationGUID-00A49DC2-4837-44E9-892D-DF21199AA14E
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ignition switch to the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON·OFF button turns the system
off.
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see “How to use SETTING
button” earlier in this section.
This vehicle has some sound effect functions as
follows:
.
Speed Sensitive Vol.
For more details, see “Vehicle information and
settings” earlier in this section.
Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Models with navigation system
Pushing the DISC·AUX button will switch
the displays as follows:
iPod
®/USB ?CD/DVD ?Bluetooth®
Audio ?AUX ?iPod®/USB
. Models without navigation system
Pushing the AUX button will switch the
display as follows:
USB/iPod
®?XM1 ?XM2 ?XM3 ?
USB/iPod®
Condition:
Page 275 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (273,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

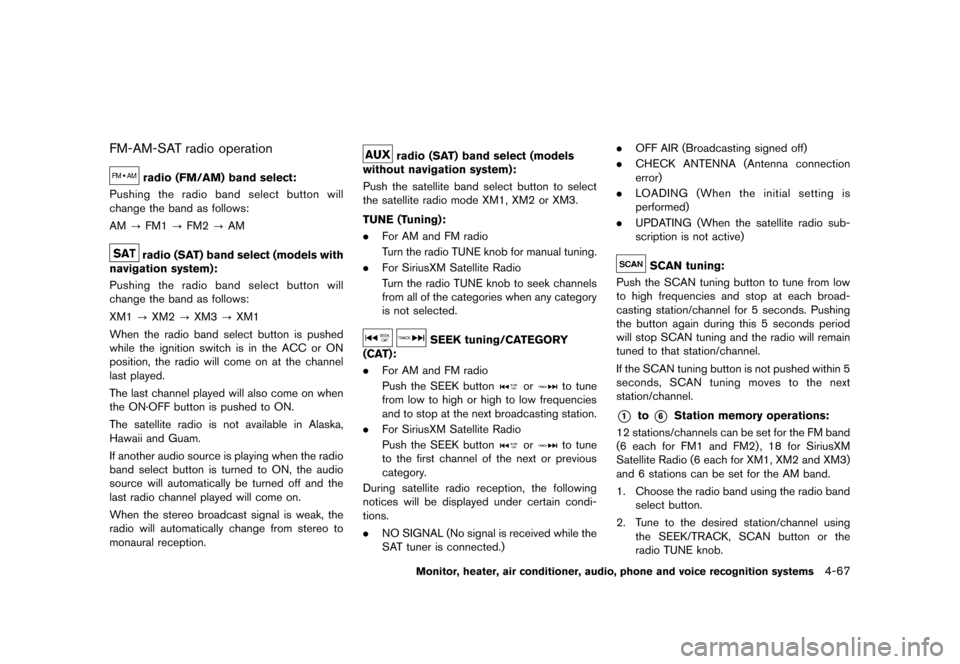

FM-AM-SAT radio operationGUID-EBA85A4A-0F33-4FFD-BE29-8039767BB0D9
radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the NISSAN MURANO 2013 2.G Owners Manual Black plate (273,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
FM-AM-SAT radio operationGUID-EBA85A4A-0F33-4FFD-BE29-8039767BB0D9
radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the](/img/5/332/w960_332-274.png)
Black plate (273,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
FM-AM-SAT radio operationGUID-EBA85A4A-0F33-4FFD-BE29-8039767BB0D9
radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the radio band select button will
change the band as follows:
AM?FM1 ?FM2 ?AM
radio (SAT) band select (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the radio band select button will
change the band as follows:
XM1 ?XM2 ?XM3 ?XM1
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the ON·OFF button is pushed to ON.
The satellite radio is not available in Alaska,
Hawaii and Guam.
If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
radio (SAT) band select (models
without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the satellite band select button to select
the satellite radio mode XM1, XM2 or XM3.
TUNE (Tuning):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. For AM and FM radio
Turn the radio TUNE knob for manual tuning.
. For SiriusXM Satellite Radio
Turn the radio TUNE knob to seek channels
from all of the categories when any category
is not selected.
SEEK tuning/CATEGORY
(CAT):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. For AM and FM radio
Push the SEEK button
orto tune
from low to high or high to low frequencies
and to stop at the next broadcasting station.
. For SiriusXM Satellite Radio
Push the SEEK button
orto tune
to the first channel of the next or previous
category.
During satellite radio reception, the following
notices will be displayed under certain condi-
tions.
. NO SIGNAL (No signal is received while the
SAT tuner is connected.) .
OFF AIR (Broadcasting signed off)
. CHECK ANTENNA (Antenna connection
error)
. LOADING (When the initial setting is
performed)
. UPDATING (When the satellite radio sub-
scription is not active)
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station/channel for 5 seconds. Pushing
the button again during this 5 seconds period
will stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station/channel.
*1to*6Station memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK/TRACK, SCAN button or the
radio TUNE knob.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-67
Condition:
Page 276 of 507

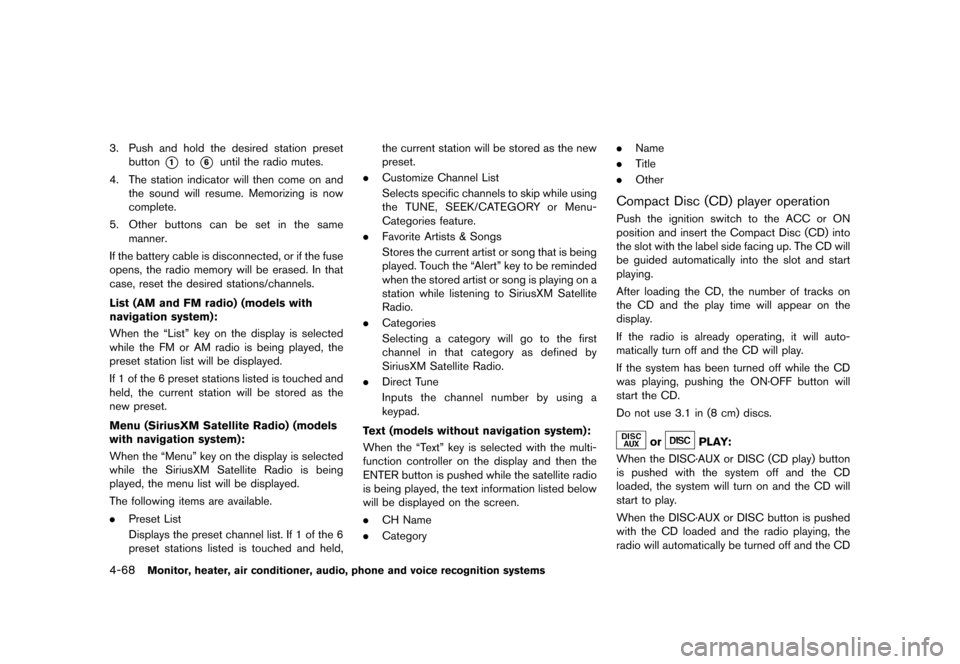

![NISSAN MURANO 2013 2.G Owners Manual Black plate (274,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-68Monitor, heater, air conditioner, audio, phone and voice recognition systems
3. Push and hold the desired station presetbutton
*1to*6until th NISSAN MURANO 2013 2.G Owners Manual Black plate (274,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-68Monitor, heater, air conditioner, audio, phone and voice recognition systems
3. Push and hold the desired station presetbutton
*1to*6until th](/img/5/332/w960_332-275.png)
Black plate (274,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-68Monitor, heater, air conditioner, audio, phone and voice recognition systems
3. Push and hold the desired station presetbutton
*1to*6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
List (AM and FM radio) (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “List” key on the display is selected
while the FM or AM radio is being played, the
preset station list will be displayed.
If 1 of the 6 preset stations listed is touched and
held, the current station will be stored as the
new preset.
Menu (SiriusXM Satellite Radio) (models
with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Menu” key on the display is selected
while the SiriusXM Satellite Radio is being
played, the menu list will be displayed.
The following items are available.
. Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held, the current station will be stored as the new
preset.
. Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.
. Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the “Alert” key to be reminded
when the stored artist or song is playing on a
station while listening to SiriusXM Satellite
Radio.
. Categories
Selecting a category will go to the first
channel in that category as defined by
SiriusXM Satellite Radio.
. Direct Tune
Inputs the channel number by using a
keypad.
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Text” key is selected with the multi-
function controller on the display and then the
ENTER button is pushed while the satellite radio
is being played, the text information listed below
will be displayed on the screen.
. CH Name
. Category .
Name
. Title
. Other
Compact Disc (CD) player operationGUID-F3F7ECB7-D20C-494A-9EAD-66D08C16AB2CPush the ignition switch to the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the ON·OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
orPLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC·AUX or DISC (CD play) button
is pushed with the system off and the CD
loaded, the system will turn on and the CD will
start to play.
When the DISC·AUX or DISC button is pushed
with the CD loaded and the radio playing, the
radio will automatically be turned off and the CD
Condition:
Page 277 of 507

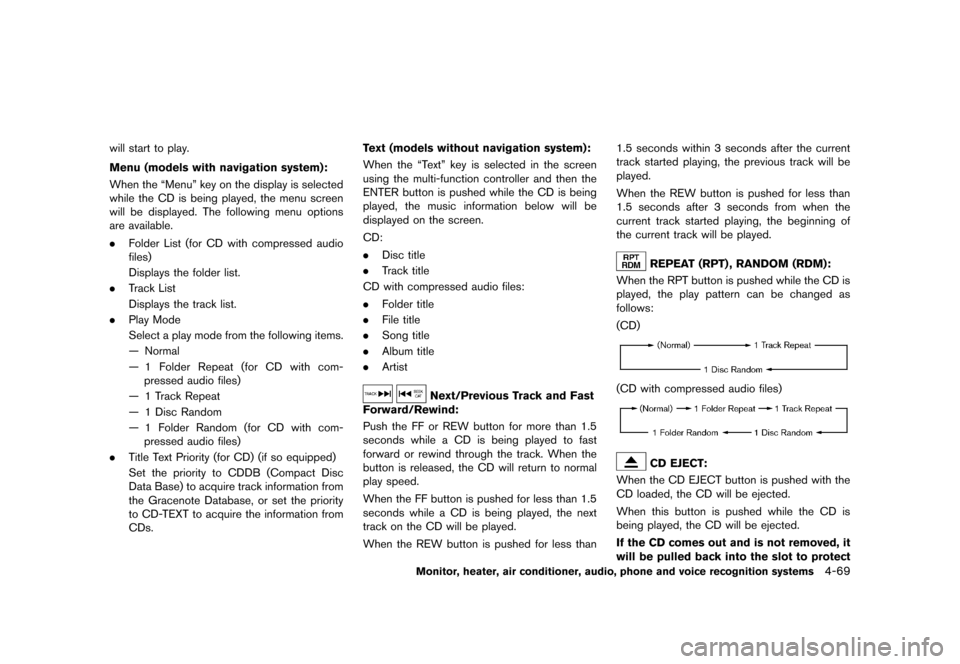

![NISSAN MURANO 2013 2.G Owners Manual Black plate (275,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
will start to play.
Menu (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Menu” key on the display is sele NISSAN MURANO 2013 2.G Owners Manual Black plate (275,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
will start to play.
Menu (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Menu” key on the display is sele](/img/5/332/w960_332-276.png)
Black plate (275,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
will start to play.
Menu (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Menu” key on the display is selected
while the CD is being played, the menu screen
will be displayed. The following menu options
are available.
.Folder List (for CD with compressed audio
files)
Displays the folder list.
. Track List
Displays the track list.
. Play Mode
Select a play mode from the following items.
— Normal
— 1 Folder Repeat (for CD with com-
pressed audio files)
— 1 Track Repeat
— 1 Disc Random
— 1 Folder Random (for CD with com- pressed audio files)
. Title Text Priority (for CD) (if so equipped)
Set the priority to CDDB (Compact Disc
Data Base) to acquire track information from
the Gracenote Database, or set the priority
to CD-TEXT to acquire the information from
CDs. Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Text” key is selected in the screen
using the multi-function controller and then the
ENTER button is pushed while the CD is being
played, the music information below will be
displayed on the screen.
CD:
.
Disc title
. Track title
CD with compressed audio files:
. Folder title
. File title
. Song title
. Album title
. Artist
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the FF or REW button for more than 1.5
seconds while a CD is being played to fast
forward or rewind through the track. When the
button is released, the CD will return to normal
play speed.
When the FF button is pushed for less than 1.5
seconds while a CD is being played, the next
track on the CD will be played.
When the REW button is pushed for less than 1.5 seconds within 3 seconds after the current
track started playing, the previous track will be
played.
When the REW button is pushed for less than
1.5 seconds after 3 seconds from when the
current track started playing, the beginning of
the current track will be played.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
NOS2606
(CD with compressed audio files)
NOS2607
CD EJECT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-69
Condition:
Page 278 of 507

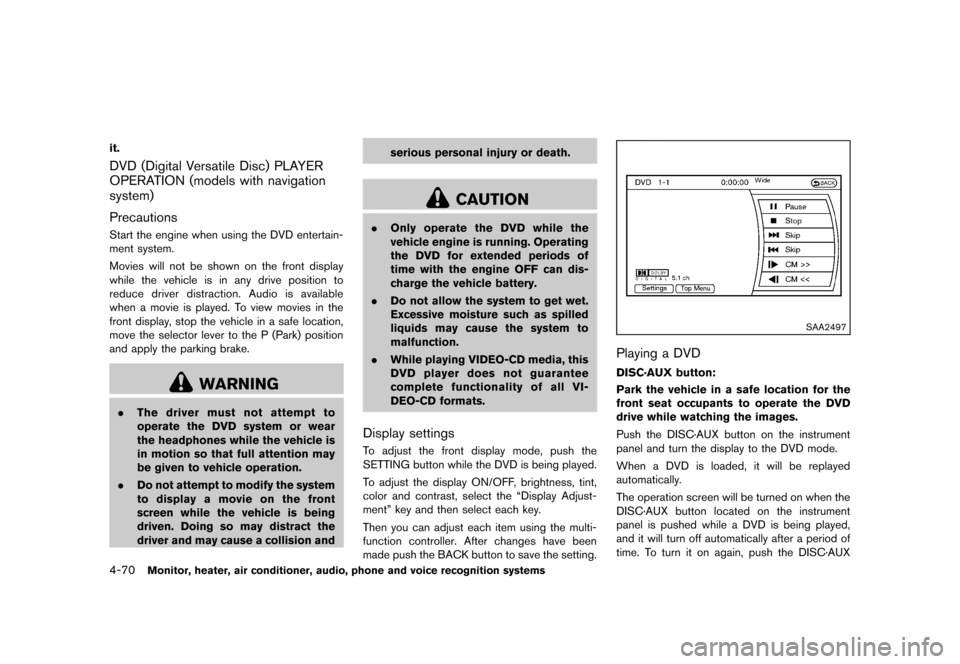

![NISSAN MURANO 2013 2.G Owners Manual Black plate (276,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-70Monitor, heater, air conditioner, audio, phone and voice recognition systems
it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (models with n NISSAN MURANO 2013 2.G Owners Manual Black plate (276,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-70Monitor, heater, air conditioner, audio, phone and voice recognition systems
it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (models with n](/img/5/332/w960_332-277.png)
Black plate (276,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-70Monitor, heater, air conditioner, audio, phone and voice recognition systems
it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (models with navigation
system)
GUID-EF98CC42-EAAD-4426-B294-DCA157F6C9EE
PrecautionsGUID-B37A835C-2698-4C52-A8FB-20146AE67DE8Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position
and apply the parking brake.
WARNING
.The driver must not attempt to
operate the DVD system or wear
the headphones while the vehicle is
in motion so that full attention may
be given to vehicle operation.
. Do not attempt to modify the system
to display a movie on the front
screen while the vehicle is being
driven. Doing so may distract the
driver and may cause a collision and serious personal injury or death.
CAUTION
.
Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction.
. While playing VIDEO-CD media, this
DVD player does not guarantee
complete functionality of all VI-
DEO-CD formats.
Display settingsGUID-2AF4320E-8689-441A-A759-33B7D1DB0309To adjust the front display mode, push the
SETTING button while the DVD is being played.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select each key.
Then you can adjust each item using the multi-
function controller. After changes have been
made push the BACK button to save the setting.
SAA2497
Playing a DVDGUID-E8CC217F-6D7F-4F38-96D5-04BF53DD1CF7
DISC·AUX button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Push the DISC·AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,
and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX
Condition:
Page 279 of 507

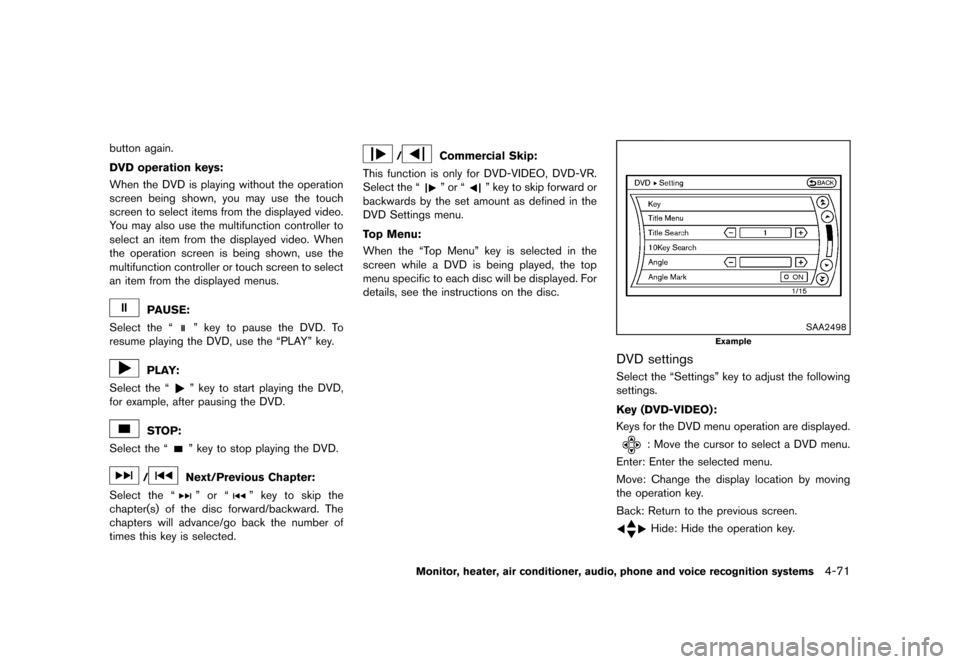

![NISSAN MURANO 2013 2.G Owners Manual Black plate (277,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
button again.
DVD operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DVD is playing without the operation
screen being shown, you NISSAN MURANO 2013 2.G Owners Manual Black plate (277,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
button again.
DVD operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DVD is playing without the operation
screen being shown, you](/img/5/332/w960_332-278.png)
Black plate (277,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
button again.
DVD operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the multifunction controller to
select an item from the displayed video. When
the operation screen is being shown, use the
multifunction controller or touch screen to select
an item from the displayed menus.
PAUSE:
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
PLAY:
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the “
” key to stop playing the DVD.
/Next/Previous Chapter:
Select the “
” or “” key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the “
” or “” key to skip forward or
backwards by the set amount as defined in the
DVD Settings menu.
Top Menu:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2498
Example
DVD settingsGUID-7B8B7A8C-B156-4DAE-929A-FD370C7ED7C3Select the “Settings” key to adjust the following
settings.
Key (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-71
Condition:
Page 280 of 507

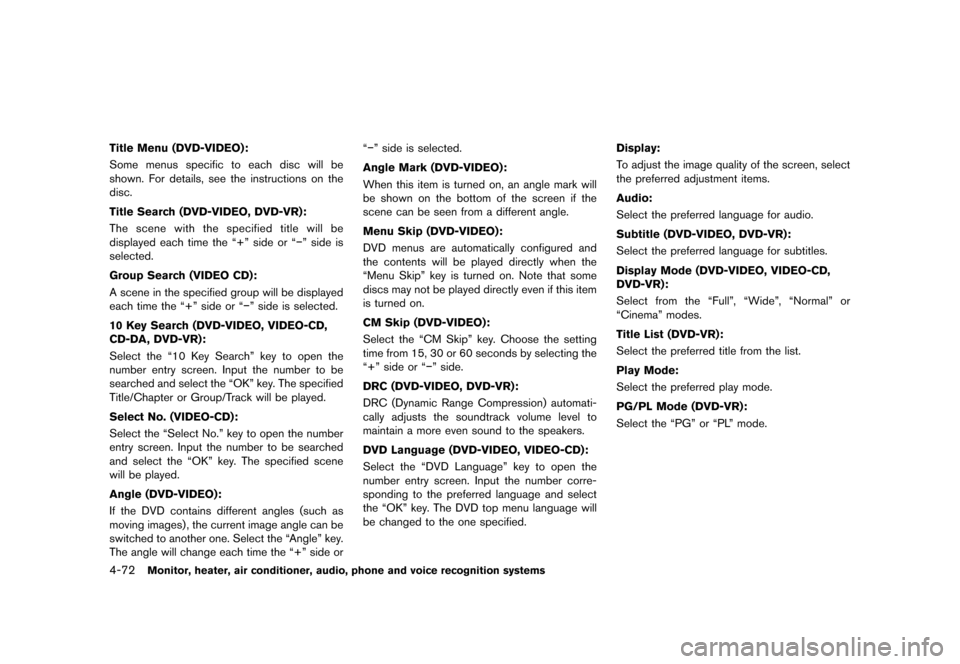

![NISSAN MURANO 2013 2.G Owners Manual Black plate (278,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-72Monitor, heater, air conditioner, audio, phone and voice recognition systems
Title Menu (DVD-VIDEO):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407 NISSAN MURANO 2013 2.G Owners Manual Black plate (278,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-72Monitor, heater, air conditioner, audio, phone and voice recognition systems
Title Menu (DVD-VIDEO):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407](/img/5/332/w960_332-279.png)
Black plate (278,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-72Monitor, heater, air conditioner, audio, phone and voice recognition systems
Title Menu (DVD-VIDEO):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The scene with the specified title will be
displayed each time the “+” side or “−” side is
selected.
Group Search (VIDEO CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407A scene in the specified group will be displayed
each time the “+” side or “−” side is selected.
10 Key Search (DVD-VIDEO, VIDEO-CD,
CD-DA, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “10 Key Search” key to open the
number entry screen. Input the number to be
searched and select the “OK” key. The specified
Title/Chapter or Group/Track will be played.
Select No. (VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select No.” key to open the number
entry screen. Input the number to be searched
and select the “OK” key. The specified scene
will be played.
Angle (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one. Select the “Angle” key.
The angle will change each time the “+” side or“−” side is selected.
Angle Mark (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this item
is turned on.
CM Skip (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “CM Skip” key. Choose the setting
time from 15, 30 or 60 seconds by selecting the
“+” side or “−” side.
DRC (DVD-VIDEO, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DRC (Dynamic Range Compression) automati-
cally adjusts the soundtrack volume level to
maintain a more even sound to the speakers.
DVD Language (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “DVD Language” key to open the
number entry screen. Input the number corre-
sponding to the preferred language and select
the “OK” key. The DVD top menu language will
be changed to the one specified.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the image quality of the screen, select
the preferred adjustment items.
Audio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the preferred language for audio.
Subtitle (DVD-VIDEO, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the preferred language for subtitles.
Display Mode (DVD-VIDEO, VIDEO-CD,
DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select from the “Full”, “Wide”, “Normal” or
“Cinema” modes.
Title List (DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the preferred title from the list.
Play Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the preferred play mode.
PG/PL Mode (DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “PG” or “PL” mode.
Condition:
