NISSAN MURANO 2013 2.G Owners Manual

Black plate (279,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

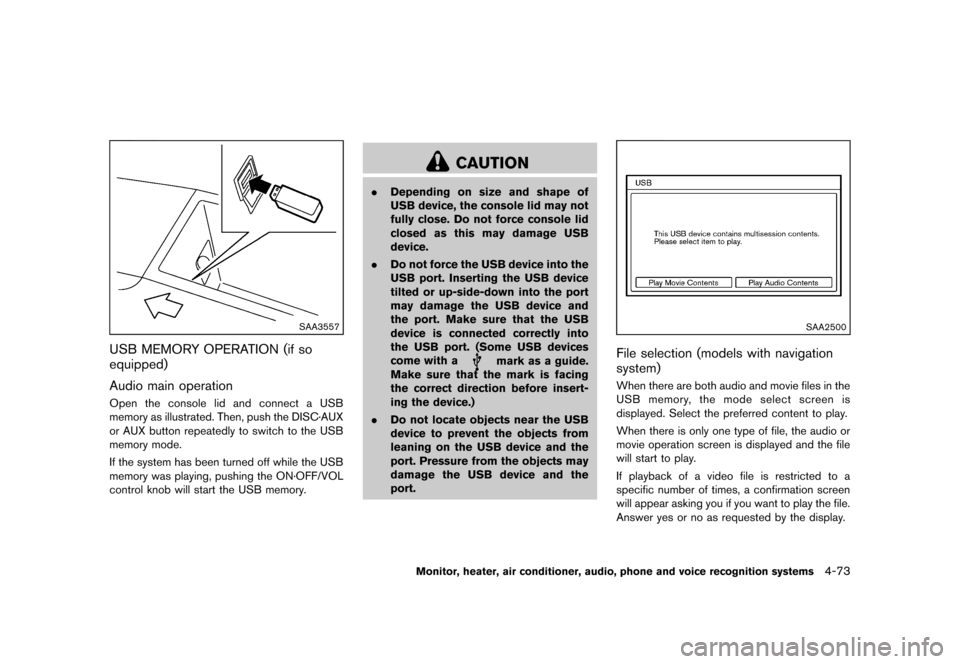

SAA3557
USB MEMORY OPERATION (if so
equipped)
GUID-1911C9E0-A85B-4796-B0E6-1983A3CCE23D
Audio main operationGUID-EC470606-27FA-41BF-8B6E-3F3D06147A2AOpen the console lid and connect a USB
memory as illustrated. Then, push the DISC·AUX
or AUX button repeatedly to switch to the USB
memory mode.
If the system has been turned off while the USB
memory was playing, pushing the ON·OFF/VOL
control knob will start the USB memory.
CAUTION
.Depending on size and shape of
USB device, the console lid may not
fully close. Do not force console lid
closed as this may damage USB
device.
. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the USB device and
the port. Make sure that the USB
device is connected correctly into
the USB port. (Some USB devices
come with a
mark as a guide.
Make sure that the mark is facing
the correct direction before insert-
ing the device.)
. Do not locate objects near the USB
device to prevent the objects from
leaning on the USB device and the
port. Pressure from the objects may
damage the USB device and the
port.
SAA2500
File selection (models with navigation
system)
GUID-8C3D41CC-4A4A-4890-99A6-A075C3299677When there are both audio and movie files in the
USB memory, the mode select screen is
displayed. Select the preferred content to play.
When there is only one type of file, the audio or
movie operation screen is displayed and the file
will start to play.
If playback of a video file is restricted to a
specific number of times, a confirmation screen
will appear asking you if you want to play the file.
Answer yes or no as requested by the display.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-73
Condition:

Black plate (280,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-74Monitor, heater, air conditioner, audio, phone and voice recognition systems

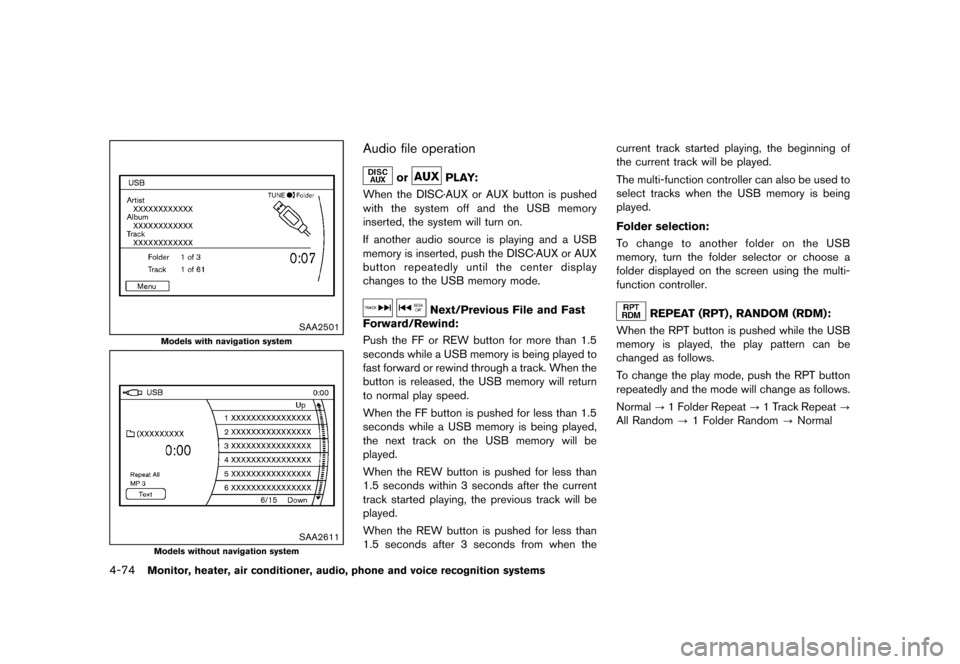

SAA2501
Models with navigation system
SAA2611
Models without navigation system
Audio file operationGUID-86A04B3E-66EC-408F-BFBC-198604AA6B80
orPLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC·AUX or AUX button is pushed
with the system off and the USB memory
inserted, the system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX or AUX
button repeatedly until the center display
changes to the USB memory mode.
Next/Previous File and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the FF or REW button for more than 1.5
seconds while a USB memory is being played to
fast forward or rewind through a track. When the
button is released, the USB memory will return
to normal play speed.
When the FF button is pushed for less than 1.5
seconds while a USB memory is being played,
the next track on the USB memory will be
played.
When the REW button is pushed for less than
1.5 seconds within 3 seconds after the current
track started playing, the previous track will be
played.
When the REW button is pushed for less than
1.5 seconds after 3 seconds from when the current track started playing, the beginning of
the current track will be played.
The multi-function controller can also be used to
select tracks when the USB memory is being
played.
Folder selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder on the USB
memory, turn the folder selector or choose a
folder displayed on the screen using the multi-
function controller.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the USB
memory is played, the play pattern can be
changed as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal
?1 Folder Repeat ?1 Track Repeat ?
All Random ?1 Folder Random ?Normal
Condition:

Black plate (281,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

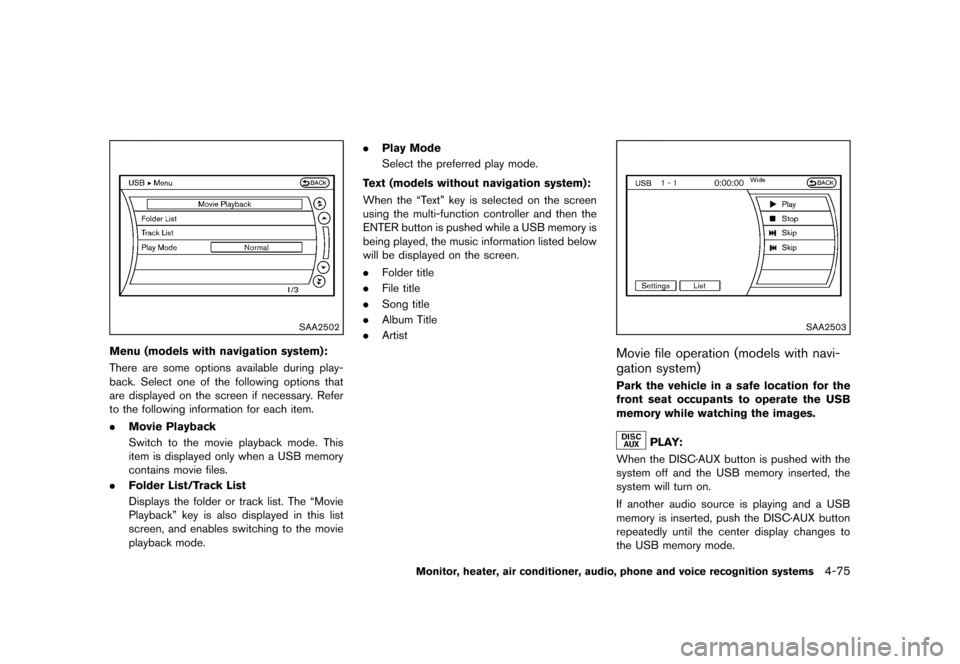

SAA2502
Menu (models with navigation system):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
.Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
. Folder List/Track List
Displays the folder or track list. The “Movie
Playback” key is also displayed in this list
screen, and enables switching to the movie
playback mode. .
Play Mode
Select the preferred play mode.
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the “Text” key is selected on the screen
using the multi-function controller and then the
ENTER button is pushed while a USB memory is
being played, the music information listed below
will be displayed on the screen.
. Folder title
. File title
. Song title
. Album Title
. Artist
SAA2503
Movie file operation (models with navi-
gation system)
GUID-457F5420-C299-43BB-8BF4-B9BDC6FFCBECPark the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-75
Condition:

Black plate (282,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-76Monitor, heater, air conditioner, audio, phone and voice recognition systems

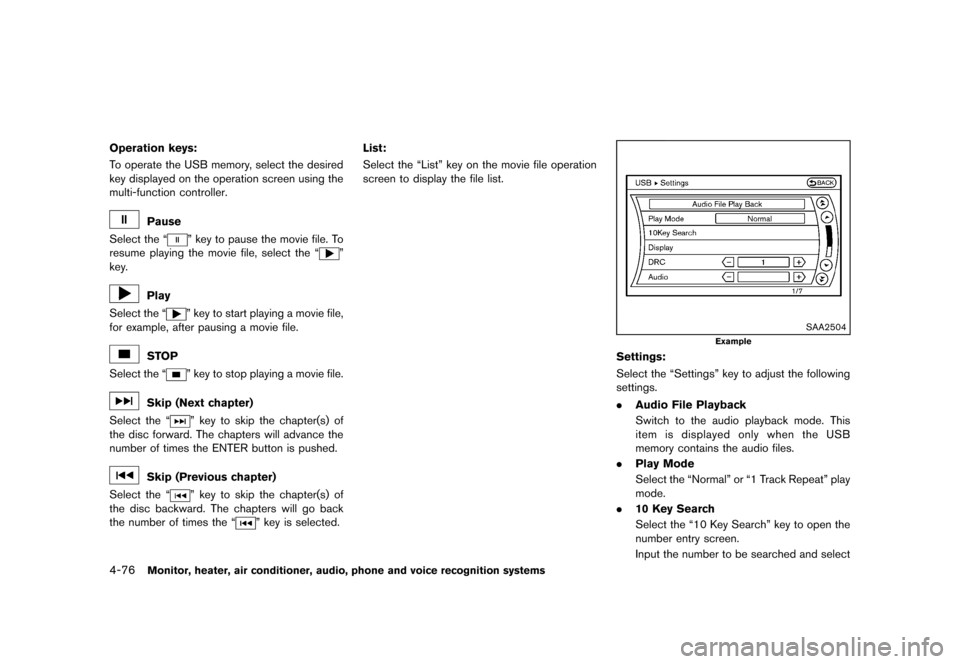

Operation keys:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.
Pause
Select the “
” key to pause the movie file. To
resume playing the movie file, select the “
”
key.
Play
Select the “
” key to start playing a movie file,
for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is selected. List:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “List” key on the movie file operation
screen to display the file list.
SAA2504
Example
Settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Settings” key to adjust the following
settings.
.
Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
. Play Mode
Select the “Normal” or “1 Track Repeat” play
mode.
. 10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
Condition:

Black plate (283,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

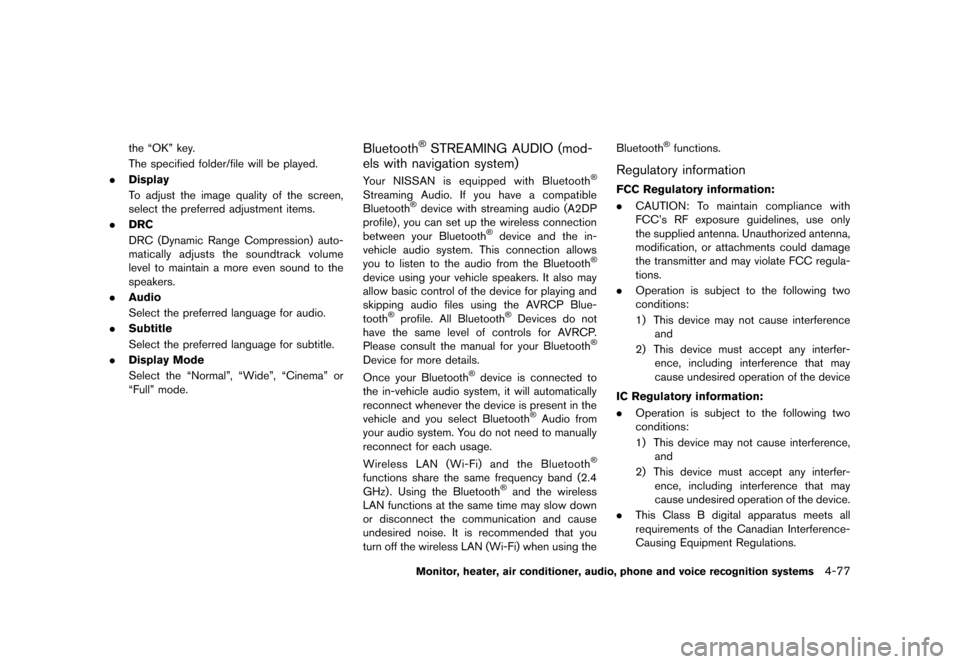

the “OK” key.
The specified folder/file will be played.
. Display
To adjust the image quality of the screen,
select the preferred adjustment items.
. DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
. Audio
Select the preferred language for audio.
. Subtitle
Select the preferred language for subtitle.
. Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.Bluetooth®STREAMING AUDIO (mod-
els with navigation system)
GUID-7C5387E1-2FFC-446A-8C32-80F22C893E68Your NISSAN is equipped with Bluetooth®
Streaming Audio. If you have a compatible
Bluetooth®device with streaming audio (A2DP
profile) , you can set up the wireless connection
between your Bluetooth
®device and the in-
vehicle audio system. This connection allows
you to listen to the audio from the Bluetooth
®
device using your vehicle speakers. It also may
allow basic control of the device for playing and
skipping audio files using the AVRCP Blue-
tooth
®profile. All Bluetooth®Devices do not
have the same level of controls for AVRCP.
Please consult the manual for your Bluetooth
®
Device for more details.
Once your Bluetooth®device is connected to
the in-vehicle audio system, it will automatically
reconnect whenever the device is present in the
vehicle and you select Bluetooth
®Audio from
your audio system. You do not need to manually
reconnect for each usage.
Wireless LAN (Wi-Fi) and the Bluetooth
®
functions share the same frequency band (2.4
GHz) . Using the Bluetooth®and the wireless
LAN functions at the same time may slow down
or disconnect the communication and cause
undesired noise. It is recommended that you
turn off the wireless LAN (Wi-Fi) when using the Bluetooth
®functions.
Regulatory informationGUID-E8BCBECC-3690-4404-A5A8-1565F8965F62
FCC Regulatory information:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1) This device may not cause interference
and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the device
IC Regulatory information:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Operation is subject to the following two
conditions:
1) This device may not cause interference,
and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-77
Condition:

Black plate (284,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-78Monitor, heater, air conditioner, audio, phone and voice recognition systems

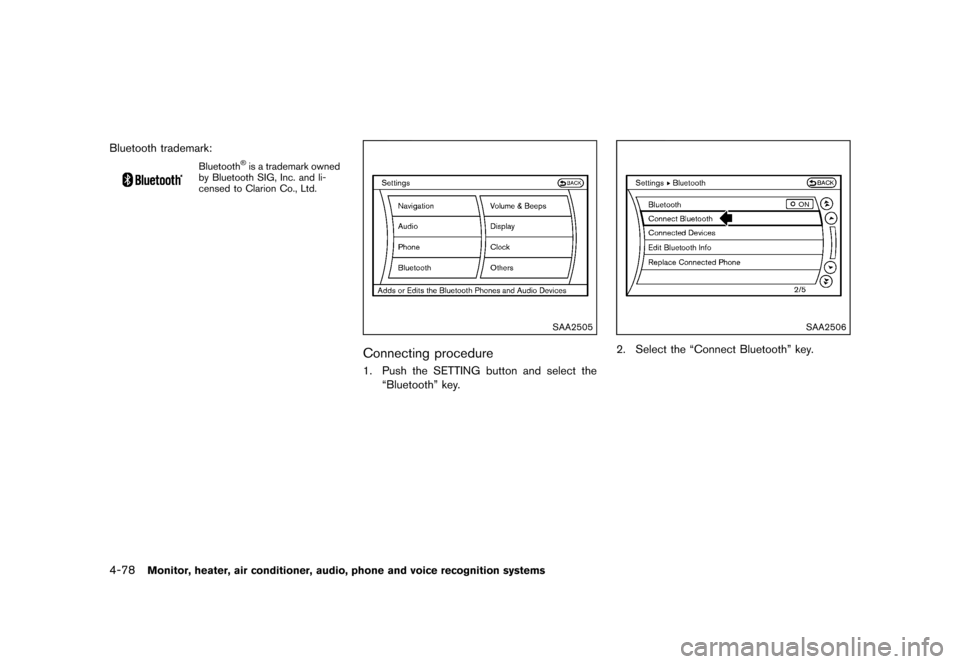

Bluetooth trademark:
Bluetooth®is a trademark owned
by Bluetooth SIG, Inc. and li-
censed to Clarion Co., Ltd.
SAA2505
Connecting procedureGUID-40491939-1EDD-4FA2-8C53-4CFE711B81161. Push the SETTING button and select the
“Bluetooth” key.
SAA2506
2. Select the “Connect Bluetooth” key.
Condition:

Black plate (285,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

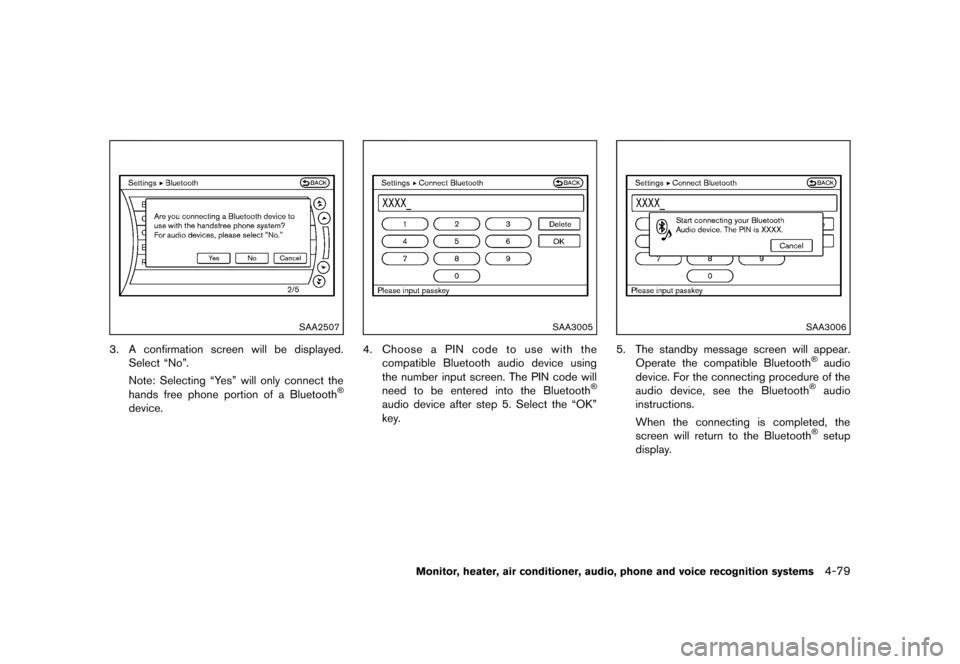

SAA2507
3. A confirmation screen will be displayed.Select “No”.
Note: Selecting “Yes” will only connect the
hands free phone portion of a Bluetooth
®
device.
SAA3005
4.Choose a PIN code to use with the
compatible Bluetooth audio device using
the number input screen. The PIN code will
need to be entered into the Bluetooth
®
audio device after step 5. Select the “OK”
key.
SAA3006
5. The standby message screen will appear.
Operate the compatible Bluetooth®audio
device. For the connecting procedure of the
audio device, see the Bluetooth
®audio
instructions.
When the connecting is completed, the
screen will return to the Bluetooth
®setup
display.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-79
Condition:

Black plate (286,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-80Monitor, heater, air conditioner, audio, phone and voice recognition systems

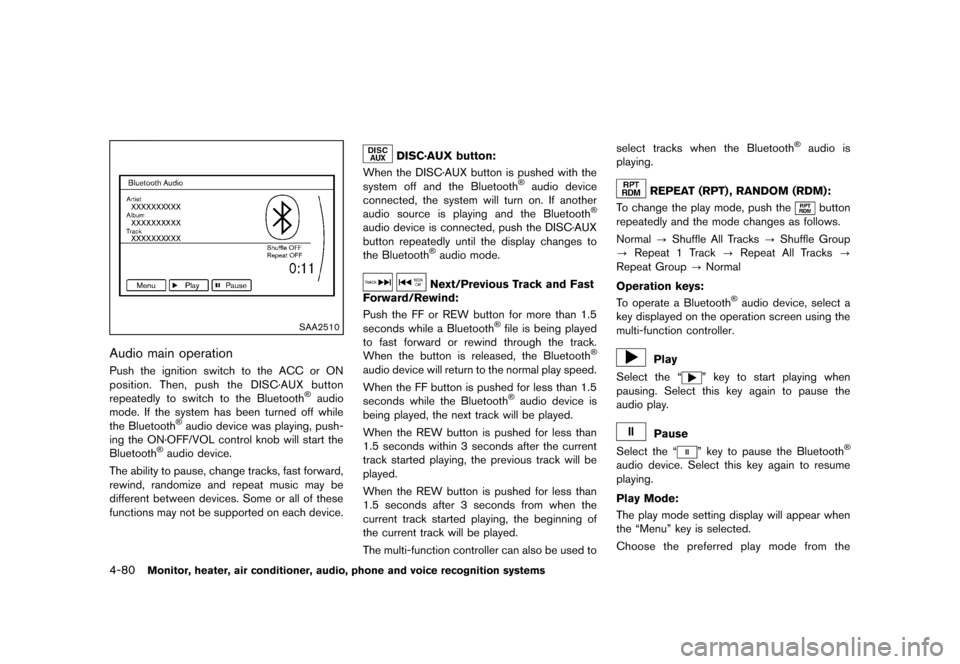

SAA2510
Audio main operationGUID-31F0400D-E6C9-437E-84A4-D3047932557BPush the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the Bluetooth
®audio
mode. If the system has been turned off while
the Bluetooth
®audio device was playing, push-
ing the ON·OFF/VOL control knob will start the
Bluetooth
®audio device.
The ability to pause, change tracks, fast forward,
rewind, randomize and repeat music may be
different between devices. Some or all of these
functions may not be supported on each device.
DISC·AUX button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC·AUX button is pushed with the
system off and the Bluetooth®audio device
connected, the system will turn on. If another
audio source is playing and the Bluetooth
®
audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth
®audio mode.
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the FF or REW button for more than 1.5
seconds while a Bluetooth®file is being played
to fast forward or rewind through the track.
When the button is released, the Bluetooth
®
audio device will return to the normal play speed.
When the FF button is pushed for less than 1.5
seconds while the Bluetooth
®audio device is
being played, the next track will be played.
When the REW button is pushed for less than
1.5 seconds within 3 seconds after the current
track started playing, the previous track will be
played.
When the REW button is pushed for less than
1.5 seconds after 3 seconds from when the
current track started playing, the beginning of
the current track will be played.
The multi-function controller can also be used to select tracks when the Bluetooth
®audio is
playing.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change the play mode, push thebutton
repeatedly and the mode changes as follows.
Normal ?Shuffle All Tracks ?Shuffle Group
? Repeat 1 Track ?Repeat All Tracks ?
Repeat Group ?Normal
Operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate a Bluetooth®audio device, select a
key displayed on the operation screen using the
multi-function controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the Bluetooth®
audio device. Select this key again to resume
playing.
Play Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The play mode setting display will appear when
the “Menu” key is selected.
Choose the preferred play mode from the
Condition:

Black plate (287,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
following items.
.Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
. Repeat
Choose from “Repeat OFF”, “Repeat 1
Track”, “Repeat All Tracks” and “Repeat
Group”.
SAA2511
Bluetooth®settingsGUID-A68ABD46-54A5-4F84-8427-C2EE07708F0FTo set up the Bluetooth®device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If this setting is turned off, the connection
between the Bluetooth®devices and the in-
vehicle Bluetooth®module will be canceled.
Connect Bluetooth:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Connects to the Bluetooth®device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered. Connected Devices:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Registered devices are shown on the list. Select
a Bluetooth®device from the list, the following
options will be available.
. Select
Select “Select” to connect the selected
device to the vehicle. If there is a different
device currently connected, the selected
device will replace the current device.
. Edit
Rename the selected Bluetooth
®device
using the keypad displayed on the screen.
(See “How to use touch screen (models
with navigation system)” earlier in this
section.)
. Delete
Delete the selected Bluetooth
®device.
Edit Bluetooth Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Change the name broadcasted by this system
over Bluetooth®. Change the PIN code that is
entered when connecting a hands free device to
this system.
Replace Connected Phone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Replace the Bluetooth®connection with a
connected Bluetooth®cellular phone. For de-
tails about Hands-Free Phone System, see
“Bluetooth
®Hands-Free Phone System (models
with navigation system)” later in this section.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-81
Condition:

Black plate (288,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-82Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3344
iPod®PLAYER OPERATION (if so
equipped)
GUID-FD80F47E-8BB4-4D68-986A-C5731080C4CF
Connecting iPod®GUID-A72BE860-589F-4B89-9C7B-C3DF3405040EOpen the console lid and connect the iPod®
cable to the USB connector. If compatible, the
battery of the iPod®is charged while the
connection to the vehicle.
Depending on the version of the iPod
®, the
display on the iPod®shows a NISSAN or
Accessory Attached screen when the connec-
tion is completed. When the iPod
®is connected
to the vehicle, the iPod®music library can only
be operated by the vehicle audio controls.
* iPod
®is a trademark of Apple Inc., registered in the U.S. and other countries.
CAUTION
.
Depending on size and shape of
iPod®and iPod®cable, the console
lid may not fully close. Do not force
console lid closed as this may
damage iPod
®and iPod®cable.
. Do not force the iPod®cable into
the USB port. Inserting the iPod®
cable tilted or up-side-down into the
port may damage the iPod®cable
and the port. Make sure that the
iPod
®cable is connected correctly
into the USB port. (Some iPod®
cable come with amark as a
guide. Make sure that the mark is
facing the correct direction before
inserting the iPod
®cable.)
. Do not locate objects near the iPod®
cable to prevent the objects from
leaning on the iPod®cable and the
port. Pressure from the objects may
damage the iPod
®cable and the
port.
CompatibilityGUID-EAD69E7A-4C90-4E6D-AABE-42D8D2DFEF93The following models are available:
Models with navigation system:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Fifth generation iPod®(firmware 1.2.3 or
later)
. iPod classic
®(firmware 1.1.1 or later)
. First generation iPod touch®(firmware 2.0.0
or later)
. Second generation iPod touch
®(firmware
1.2.3 or later)
. First generation iPod nano
®(firmware 1.3.1
or later)
. Second generation iPod nano
®(firmware
1.1.3 or later)
. Third generation iPod nano
®(firmware 1.1
or later)
. Fourth generation iPod nano
®(firmware
1.0.2 or later)
Models without navigation system:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Fifth generation iPod®(firmware version 1.3)
. First generation iPod classic®(firmware
version 1.1.2 PC)
. Second generation iPod classic
®(firmware
version 2.0 PC)
. First generation iPod touch
®(firmware ver-
sion 2.1)
Condition:
