NISSAN MURANO 2013 2.G Owners Manual

Black plate (289,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

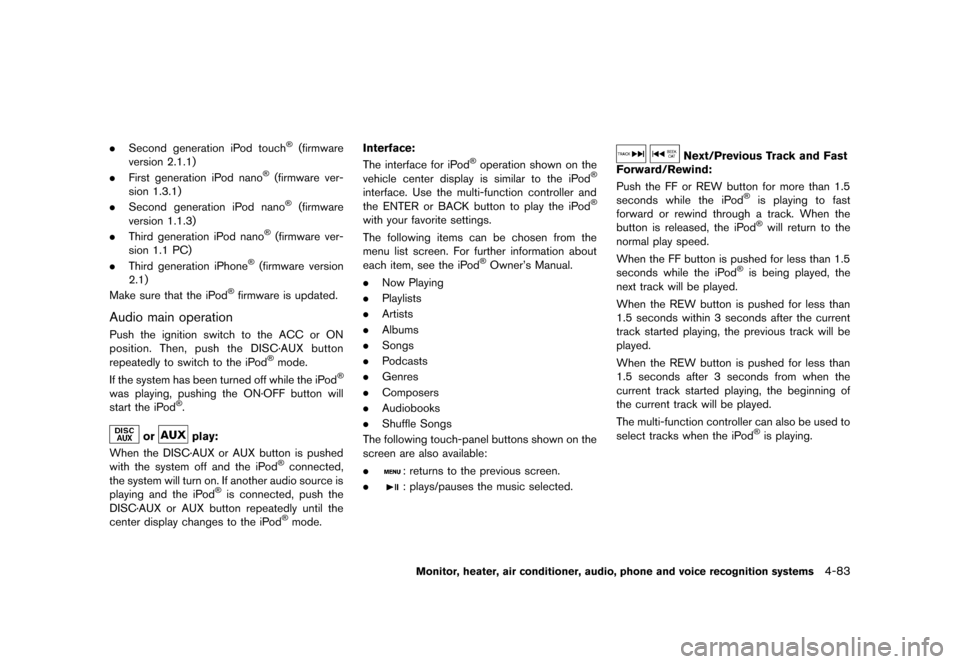

.Second generation iPod touch®(firmware
version 2.1.1)
. First generation iPod nano
®(firmware ver-
sion 1.3.1)
. Second generation iPod nano
®(firmware
version 1.1.3)
. Third generation iPod nano
®(firmware ver-
sion 1.1 PC)
. Third generation iPhone
®(firmware version
2.1)
Make sure that the iPod
®firmware is updated.
Audio main operationGUID-28472054-9448-47CD-BD59-B1639785F044Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the iPod
®mode.
If the system has been turned off while the iPod®
was playing, pushing the ON·OFF button will
start the iPod®.
orplay:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC·AUX or AUX button is pushed
with the system off and the iPod®connected,
the system will turn on. If another audio source is
playing and the iPod
®is connected, push the
DISC·AUX or AUX button repeatedly until the
center display changes to the iPod
®mode. Interface:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The interface for iPod®operation shown on the
vehicle center display is similar to the iPod®
interface. Use the multi-function controller and
the ENTER or BACK button to play the iPod®
with your favorite settings.
The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
®Owner’s Manual.
. Now Playing
. Playlists
. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
The following touch-panel buttons shown on the
screen are also available:
.
: returns to the previous screen.
.
: plays/pauses the music selected.
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the FF or REW button for more than 1.5
seconds while the iPod®is playing to fast
forward or rewind through a track. When the
button is released, the iPod
®will return to the
normal play speed.
When the FF button is pushed for less than 1.5
seconds while the iPod
®is being played, the
next track will be played.
When the REW button is pushed for less than
1.5 seconds within 3 seconds after the current
track started playing, the previous track will be
played.
When the REW button is pushed for less than
1.5 seconds after 3 seconds from when the
current track started playing, the beginning of
the current track will be played.
The multi-function controller can also be used to
select tracks when the iPod
®is playing.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-83
Condition:

Black plate (290,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-84Monitor, heater, air conditioner, audio, phone and voice recognition systems

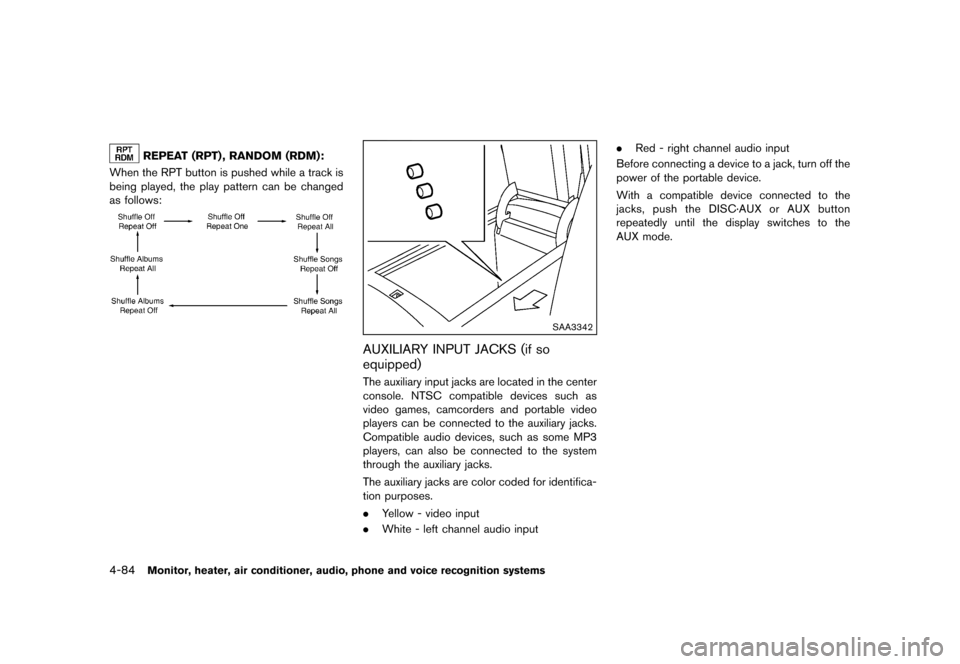

REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
NOS2652
SAA3342
AUXILIARY INPUT JACKS (if so
equipped)
GUID-031E6845-355E-4B94-AB0A-BC5D7A96E419The auxiliary input jacks are located in the center
console. NTSC compatible devices such as
video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.
The auxiliary jacks are color coded for identifica-
tion purposes.
.Yellow - video input
. White - left channel audio input .
Red - right channel audio input
Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the DISC·AUX or AUX button
repeatedly until the display switches to the
AUX mode.
Condition:

Black plate (291,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

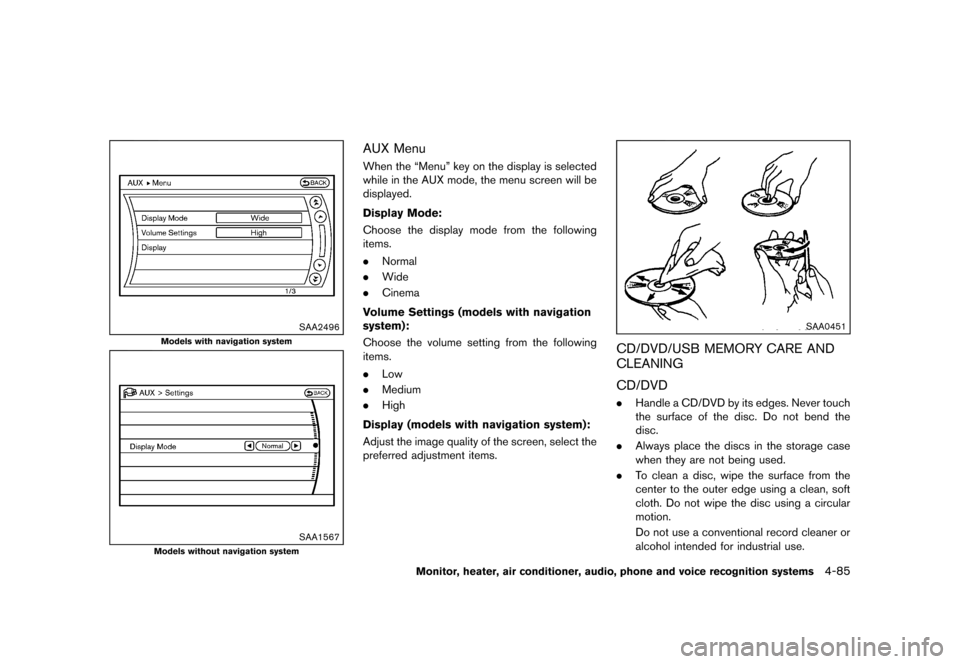

SAA2496
Models with navigation system
SAA1567
Models without navigation system
AUX MenuGUID-281DDB8B-E18B-41B6-9B6D-F3679632BC95When the “Menu” key on the display is selected
while in the AUX mode, the menu screen will be
displayed.
Display Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the display mode from the following
items.
.Normal
. Wide
. Cinema
Volume Settings (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the volume setting from the following
items.
. Low
. Medium
. High
Display (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items.
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-D99C5681-CCB2-4546-A032-DDF98A984F2C
CD/DVDGUID-76BF0595-4A07-4E1D-8EC4-AE66DFAB6A04. Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-85
Condition:

Black plate (292,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-86Monitor, heater, air conditioner, audio, phone and voice recognition systems

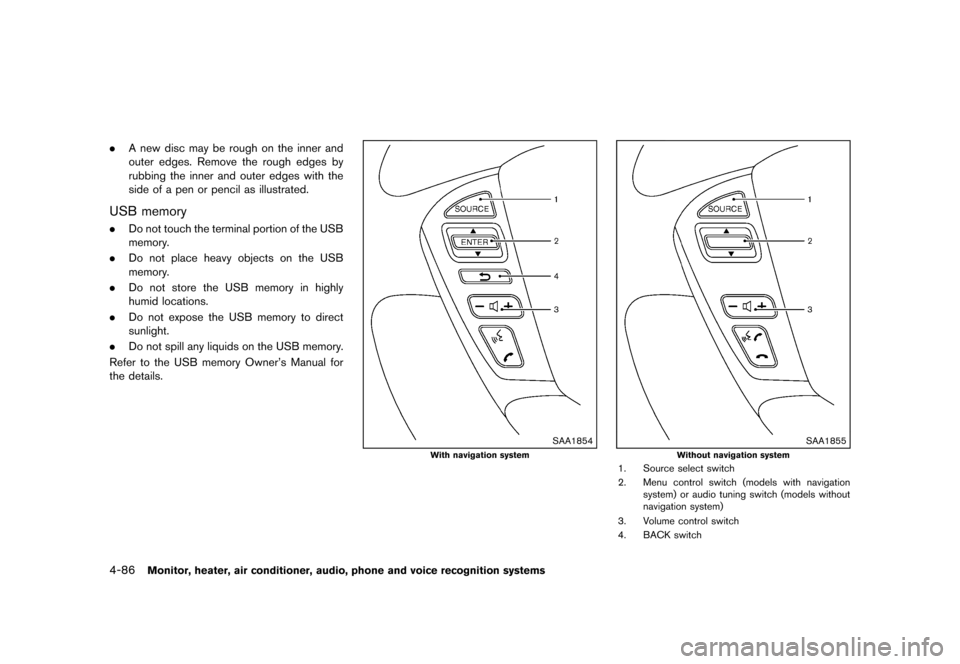

.A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-0EB7000F-0BEB-4820-848A-B72225B4910E.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.
SAA1854
With navigation system
SAA1855
Without navigation system
1. Source select switch
2. Menu control switch (models with navigation system) or audio tuning switch (models without
navigation system)
3. Volume control switch
4. BACK switch
Condition:

Black plate (293,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

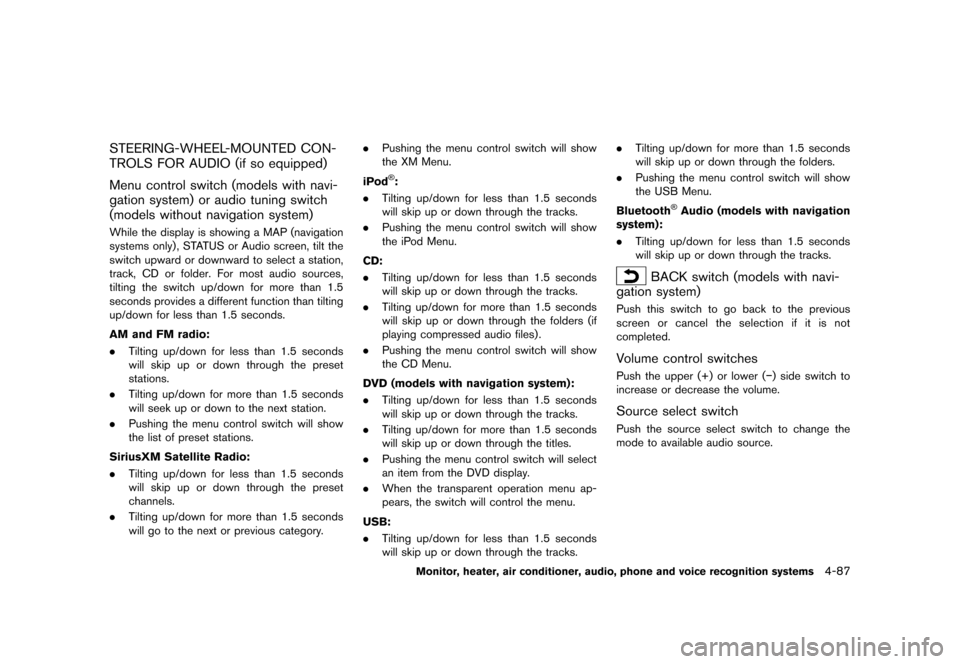

STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO (if so equipped)
GUID-22E2AF45-BCF1-486C-9E1E-D414FA4A5EDE
Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)
GUID-E19332CA-2DD3-40B8-A8C1-5572B6D8E8E7While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.
AM and FM radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
stations.
. Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
. Pushing the menu control switch will show
the list of preset stations.
SiriusXM Satellite Radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
channels.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category. .
Pushing the menu control switch will show
the XM Menu.
iPod
®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Pushing the menu control switch will show
the iPod Menu.
CD:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the folders (if
playing compressed audio files) .
. Pushing the menu control switch will show
the CD Menu.
DVD (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the titles.
. Pushing the menu control switch will select
an item from the DVD display.
. When the transparent operation menu ap-
pears, the switch will control the menu.
USB:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks. .
Tilting up/down for more than 1.5 seconds
will skip up or down through the folders.
. Pushing the menu control switch will show
the USB Menu.
Bluetooth
®Audio (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
BACK switch (models with navi-
gation system)
GUID-D26A857B-F9ED-42BC-B015-30869C5C67C8Push this switch to go back to the previous
screen or cancel the selection if it is not
completed.
Volume control switchesGUID-EB0D7B9F-6B05-45AE-9781-0D587A85C8F6Push the upper (+) or lower (−) side switch to
increase or decrease the volume.
Source select switchGUID-39EFE205-E1D7-4D56-AEC0-06037C87BC14Push the source select switch to change the
mode to available audio source.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-87
Condition:

Black plate (294,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-88Monitor, heater, air conditioner, audio, phone and voice recognition systems

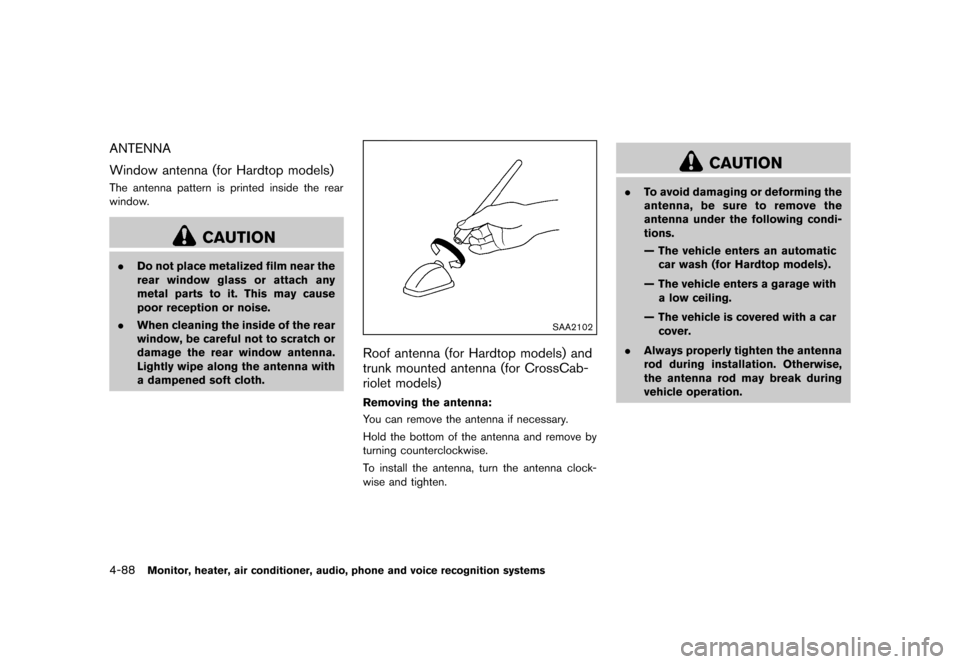

ANTENNAGUID-5D62EC7D-99A1-4040-9B31-8ACB3AC0CE76
Window antenna (for Hardtop models)GUID-CB119597-8559-44D0-B2B0-9B0667D091D0The antenna pattern is printed inside the rear
window.
CAUTION
.Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause
poor reception or noise.
. When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with
a dampened soft cloth.
SAA2102
Roof antenna (for Hardtop models) and
trunk mounted antenna (for CrossCab-
riolet models)
GUID-8AAFB5F9-D133-44F8-9018-430C3B61453D
Removing the antenna:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407You can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.
To install the antenna, turn the antenna clock-
wise and tighten.
CAUTION
.To avoid damaging or deforming the
antenna, be sure to remove the
antenna under the following condi-
tions.
— The vehicle enters an automatic
car wash (for Hardtop models) .
— The vehicle enters a garage with a low ceiling.
— The vehicle is covered with a car cover.
. Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.
Condition:

Black plate (295,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

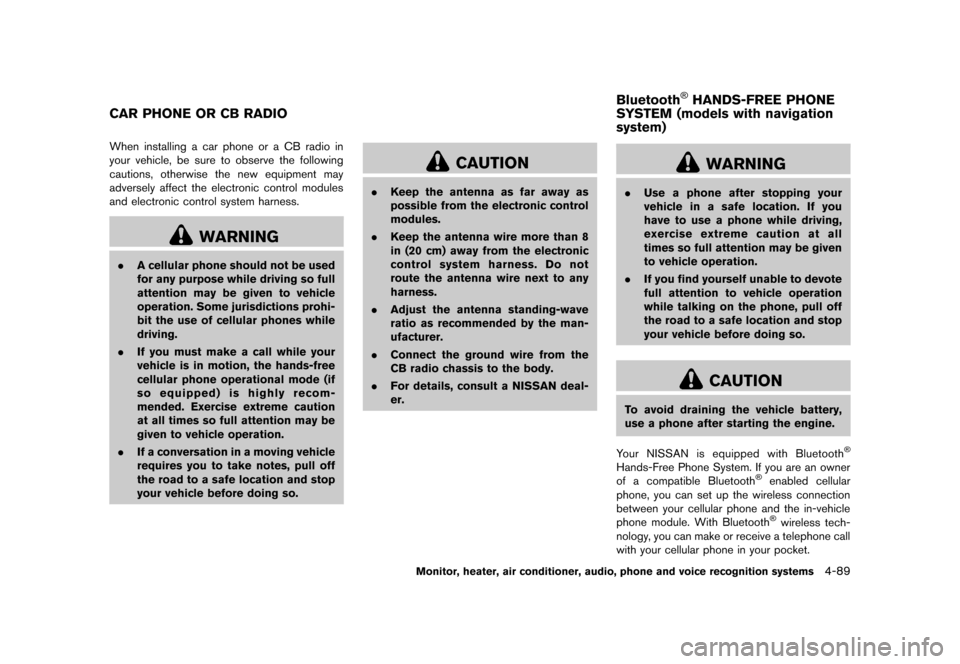

GUID-2FDA1809-0AE0-4716-B007-03F1D8BBE2C5When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-046E2123-C218-461B-98FE-4E62F9A355CF
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth
®
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth®enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth
®wireless tech-
nology, you can make or receive a telephone call
with your cellular phone in your pocket.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-89
CAR PHONE OR CB RADIO Bluetooth
®HANDS-FREE PHONE
SYSTEM (models with navigation
system)
Condition:

Black plate (296,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-90Monitor, heater, air conditioner, audio, phone and voice recognition systems

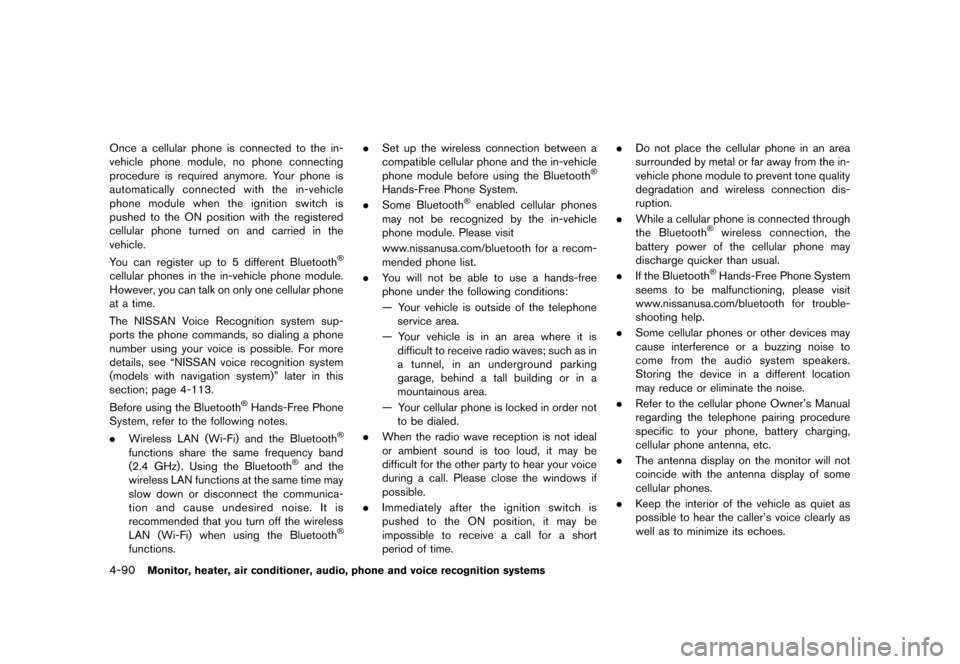

Once a cellular phone is connected to the in-
vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
®
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.
The NISSAN Voice Recognition system sup-
ports the phone commands, so dialing a phone
number using your voice is possible. For more
details, see “NISSAN voice recognition system
(models with navigation system)” later in this
section; page 4-113.
Before using the Bluetooth
®Hands-Free Phone
System, refer to the following notes.
. Wireless LAN (Wi-Fi) and the Bluetooth
®
functions share the same frequency band
(2.4 GHz) . Using the Bluetooth®and the
wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth
®
functions. .
Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
®
Hands-Free Phone System.
. Some Bluetooth®enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.nissanusa.com/bluetooth for a recom-
mended phone list.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the telephone
service area.
— Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, behind a tall building or in a
mountainous area.
— Your cellular phone is locked in order not to be dialed.
. When the radio wave reception is not ideal
or ambient sound is too loud, it may be
difficult for the other party to hear your voice
during a call. Please close the windows if
possible.
. Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time. .
Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
®wireless connection, the
battery power of the cellular phone may
discharge quicker than usual.
. If the Bluetooth
®Hands-Free Phone System
seems to be malfunctioning, please visit
www.nissanusa.com/bluetooth for trouble-
shooting help.
. Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
Condition:

Black plate (297,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
.If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.

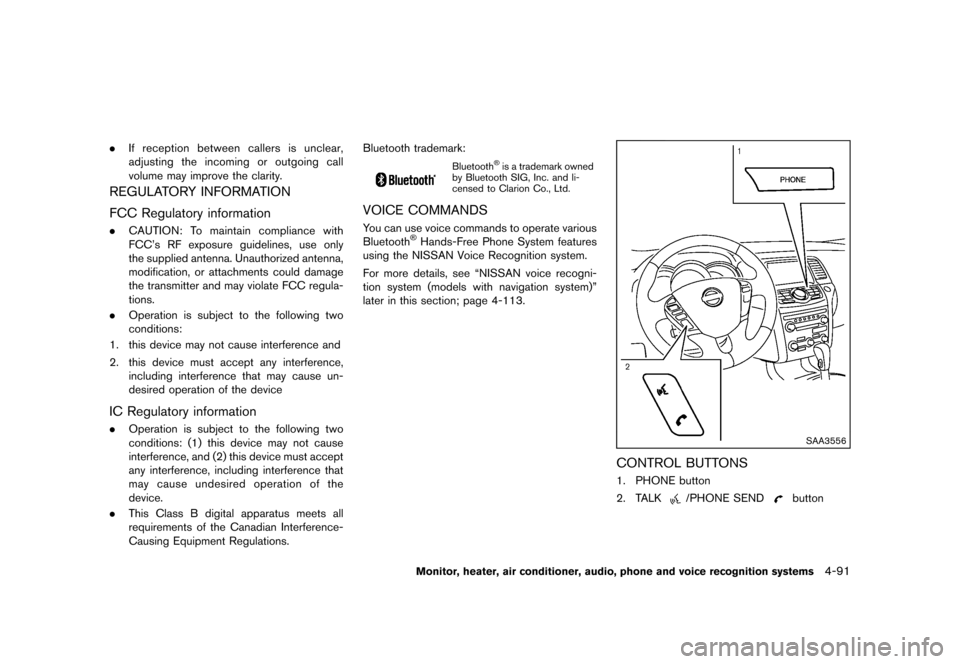

REGULATORY INFORMATIONGUID-637CD407-3A96-45DC-9EC2-138DF3AB3D59
FCC Regulatory informationGUID-980C0581-DEF4-49FF-B0B6-96D2C40F63F5.CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause un-
desired operation of the device
IC Regulatory informationGUID-01079428-1F15-46E5-849E-359B827B5F0D.Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth®is a trademark owned
by Bluetooth SIG, Inc. and li-
censed to Clarion Co., Ltd.
VOICE COMMANDSGUID-95F93972-653C-4AF6-9A16-78918A2B2EB1You can use voice commands to operate various
Bluetooth®Hands-Free Phone System features
using the NISSAN Voice Recognition system.
For more details, see “NISSAN voice recogni-
tion system (models with navigation system)”
later in this section; page 4-113.
SAA3556
CONTROL BUTTONSGUID-D680FAE6-FA84-4969-8AAB-FFD5526FA7721. PHONE button
2. TALK
/PHONE SENDbutton
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-91
Condition:

Black plate (298,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-92Monitor, heater, air conditioner, audio, phone and voice recognition systems

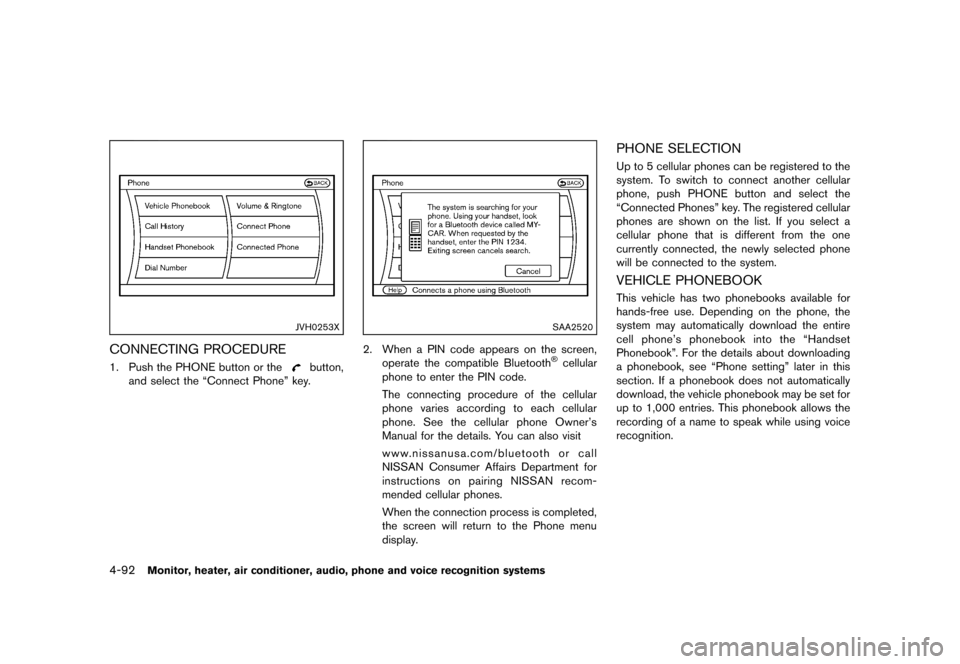

JVH0253X
CONNECTING PROCEDUREGUID-9BEACCEF-0959-46FA-A2F0-DCD12A86A6F31. Push the PHONE button or thebutton,
and select the “Connect Phone” key.
SAA2520
2. When a PIN code appears on the screen,
operate the compatible Bluetooth®cellular
phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.nissanusa.com/bluetooth or call
NISSAN Consumer Affairs Department for
instructions on pairing NISSAN recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTIONGUID-8BA5FDCF-9589-4449-AFFB-E0894E8FE4FAUp to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push PHONE button and select the
“Connected Phones” key. The registered cellular
phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOKGUID-68E4156D-4E14-426F-984D-7A594DCD82E8This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “Phone setting” later in this
section. If a phonebook does not automatically
download, the vehicle phonebook may be set for
up to 1,000 entries. This phonebook allows the
recording of a name to speak while using voice
recognition.
Condition:
