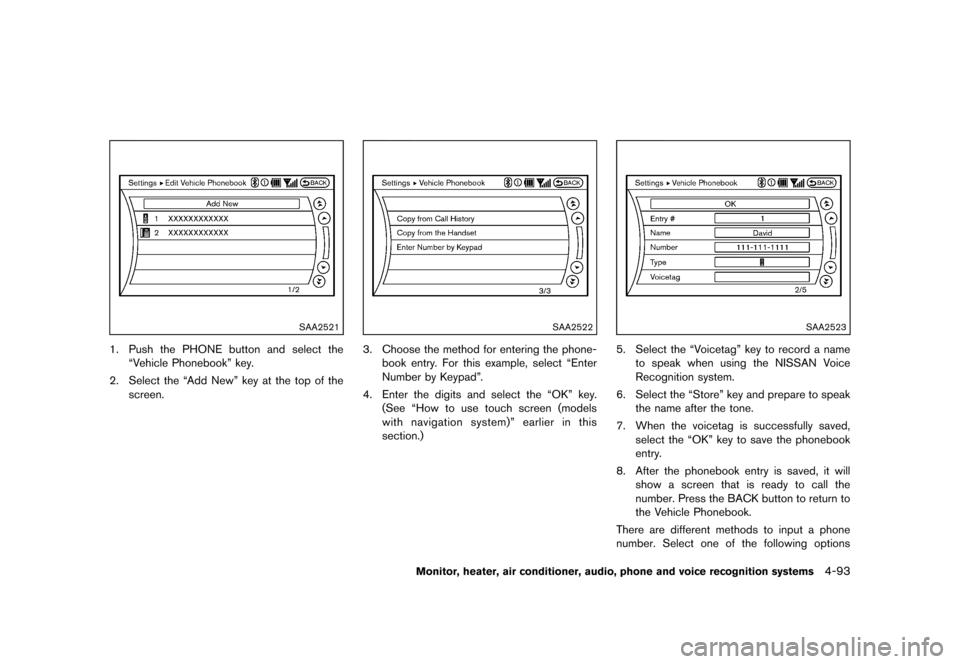

SAA2521
1. Push the PHONE button and select the“Vehicle Phonebook” key.
2. Select the “Add New” key at the top of the screen.
SAA2522
3. Choose the method for entering the phone-
book entry. For this example, select “Enter
Number by Keypad”.
4. Enter the digits and select the “OK” key. (See “How to use touch screen (models
with navigation system)” earlier in this
section.)
SAA2523
5. Select the “Voicetag” key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the “Store” key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the “OK” key to save the phonebook
entry.
8. After the phonebook entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return to
the Vehicle Phonebook.
There are different methods to input a phone
number. Select one of the following options
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-93
Condition:

Black plate (300,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

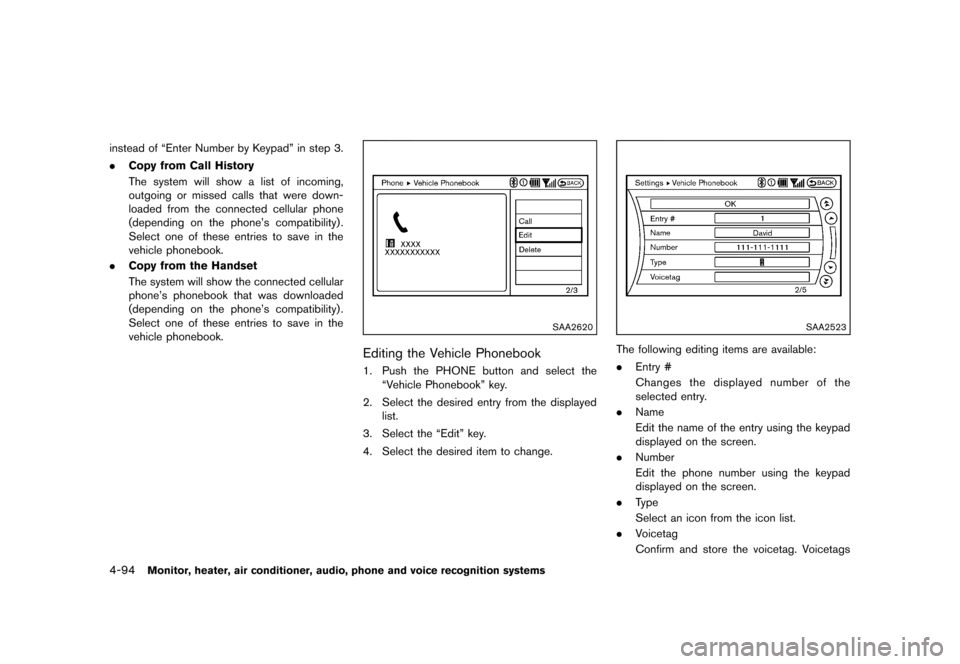

4-94Monitor, heater, air conditioner, audio, phone and voice recognition systems
instead of “Enter Number by Keypad” in step 3.
.Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone’s compatibility) .
Select one of these entries to save in the
vehicle phonebook.
. Copy from the Handset
The system will show the connected cellular
phone’s phonebook that was downloaded
(depending on the phone’s compatibility) .
Select one of these entries to save in the
vehicle phonebook.
SAA2620
Editing the Vehicle PhonebookGUID-38365816-D70D-4632-A234-FBF33135EF7E1. Push the PHONE button and select the
“Vehicle Phonebook” key.
2. Select the desired entry from the displayed list.
3. Select the “Edit” key.
4. Select the desired item to change.
SAA2523
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags
Condition:

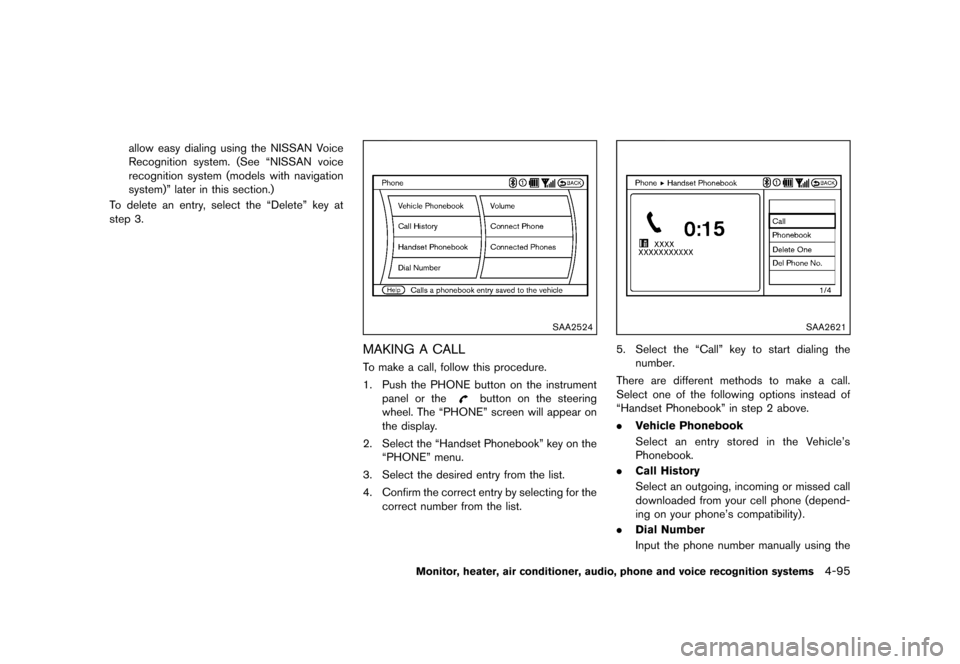

Black plate (301,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
allow easy dialing using the NISSAN Voice
Recognition system. (See “NISSAN voice
recognition system (models with navigation
system)” later in this section.)
To delete an entry, select the “Delete” key at
step 3.
SAA2524
MAKING A CALLGUID-268C7F12-43F5-442D-8D30-D077AC39D5F3To make a call, follow this procedure.
1. Push the PHONE button on the instrument panel or the
button on the steering
wheel. The “PHONE” screen will appear on
the display.
2. Select the “Handset Phonebook” key on the “PHONE” menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
SAA2621
5. Select the “Call” key to start dialing thenumber.
There are different methods to make a call.
Select one of the following options instead of
“Handset Phonebook” in step 2 above.
. Vehicle Phonebook
Select an entry stored in the Vehicle’s
Phonebook.
. Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone’s compatibility) .
. Dial Number
Input the phone number manually using the
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-95
Condition:

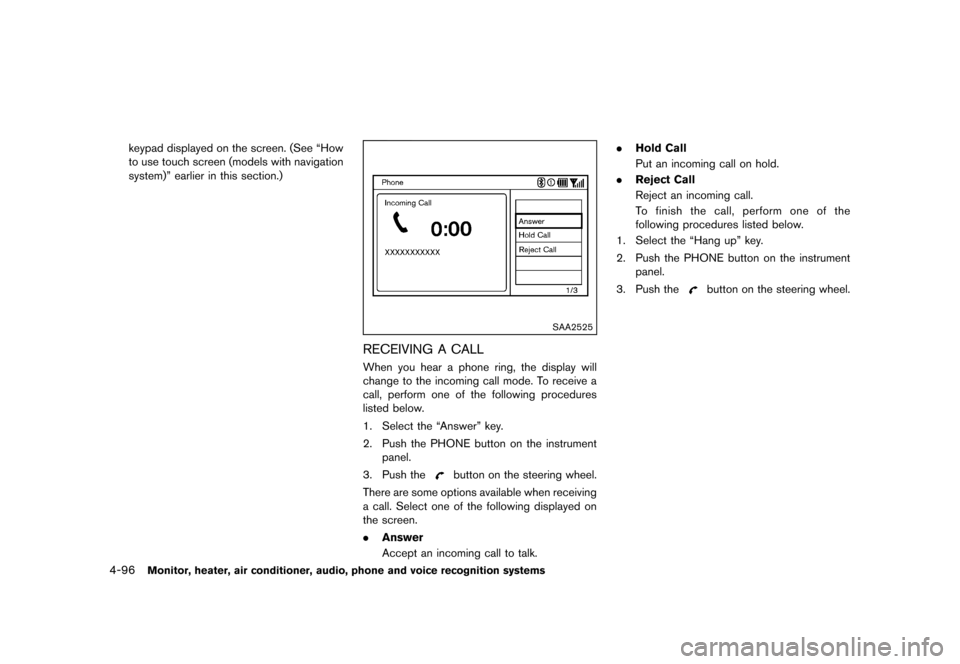

Black plate (302,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-96Monitor, heater, air conditioner, audio, phone and voice recognition systems
keypad displayed on the screen. (See “How
to use touch screen (models with navigation
system)” earlier in this section.)
SAA2525
RECEIVING A CALLGUID-42653916-6D28-452E-955E-41B0F21185E9When you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
1. Select the “Answer” key.
2. Push the PHONE button on the instrumentpanel.
3. Push the
button on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
. Answer
Accept an incoming call to talk. .
Hold Call
Put an incoming call on hold.
. Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
1. Select the “Hang up” key.
2. Push the PHONE button on the instrument panel.
3. Push the
button on the steering wheel.
Condition:

Black plate (303,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

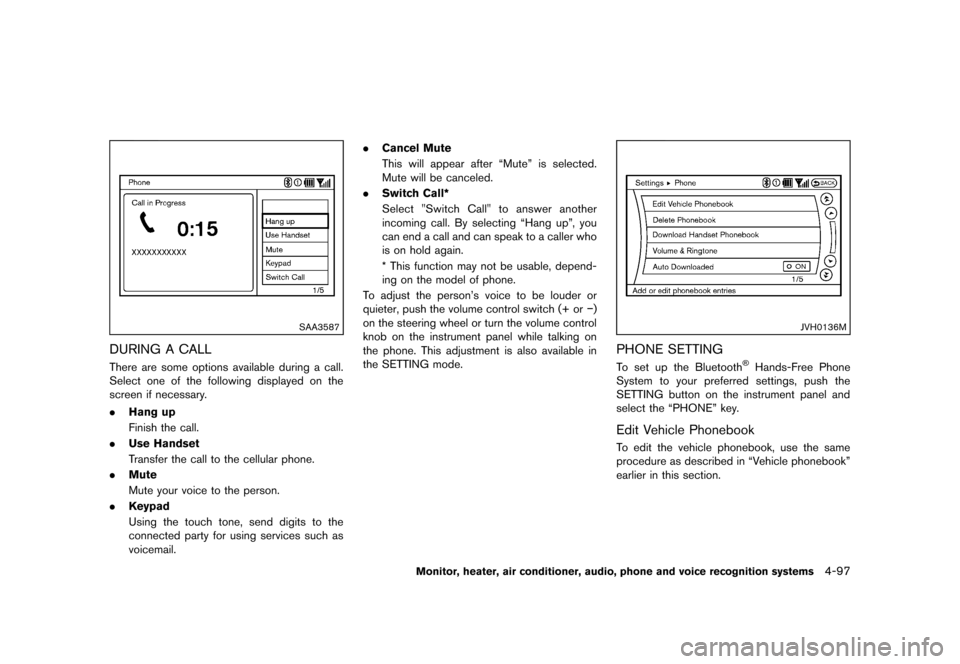

SAA3587
DURING A CALLGUID-D5E534B4-79AD-47EE-A712-C875FB7D0D2EThere are some options available during a call.
Select one of the following displayed on the
screen if necessary.
.Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail. .
Cancel Mute
This will appear after “Mute” is selected.
Mute will be canceled.
. Switch Call*
Select "Switch Call" to answer another
incoming call. By selecting “Hang up”, you
can end a call and can speak to a caller who
is on hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or −)
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
JVH0136M
PHONE SETTINGGUID-D54425C1-1203-405E-B905-91EAE449EB16To set up the Bluetooth®Hands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle PhonebookGUID-21A81C5C-FE0F-4748-BF7D-BEDE2E950243To edit the vehicle phonebook, use the same
procedure as described in “Vehicle phonebook”
earlier in this section.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-97
Condition:

Black plate (304,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

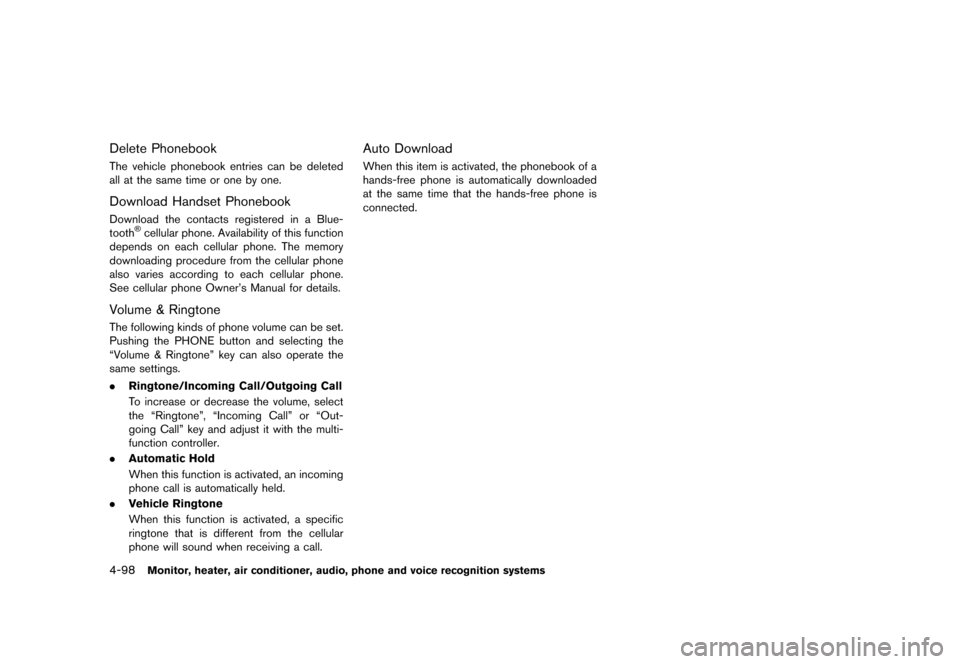

4-98Monitor, heater, air conditioner, audio, phone and voice recognition systems
Delete PhonebookGUID-B23F862F-A65E-4F95-84BC-9789833A1AA6The vehicle phonebook entries can be deleted
all at the same time or one by one.
Download Handset PhonebookGUID-AE3AE8DD-860B-4FC7-8661-BD338EBFDC9FDownload the contacts registered in a Blue-
tooth®cellular phone. Availability of this function
depends on each cellular phone. The memory
downloading procedure from the cellular phone
also varies according to each cellular phone.
See cellular phone Owner’s Manual for details.
Volume & RingtoneGUID-7FCE50D7-0C2F-486D-8F1D-A438FEC3D023The following kinds of phone volume can be set.
Pushing the PHONE button and selecting the
“Volume & Ringtone” key can also operate the
same settings.
. Ringtone/Incoming Call/Outgoing Call
To increase or decrease the volume, select
the “Ringtone”, “Incoming Call” or “Out-
going Call” key and adjust it with the multi-
function controller.
. Automatic Hold
When this function is activated, an incoming
phone call is automatically held.
. Vehicle Ringtone
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
Auto DownloadGUID-E06F2D7C-62BE-4F19-B524-E8D96A701FD2When this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
Condition:

Black plate (305,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

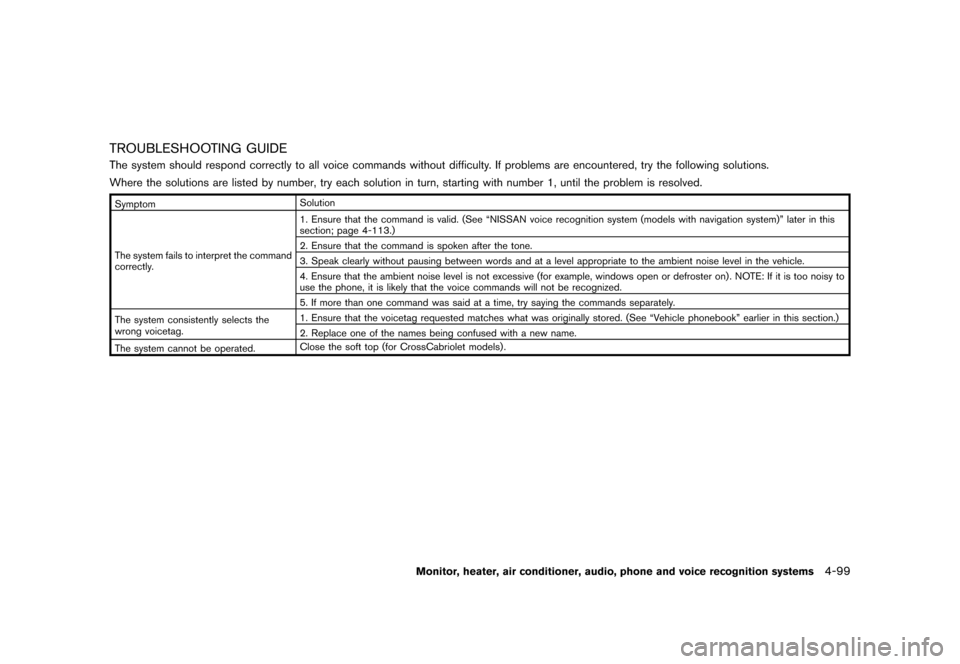

TROUBLESHOOTING GUIDEGUID-641DC97D-3665-4758-84C7-C9304D0F4562The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command
correctly. 1. Ensure that the command is valid. (See “NISSAN voice recognition system (models with navigation system)” later in this
section; page 4-113.)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too noisy to
use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the
wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See “Vehicle phonebook” earlier in this section.)
2. Replace one of the names being confused with a new name.
The system cannot be operated. Close the soft top (for CrossCabriolet models) .
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-99
Condition:

Black plate (306,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

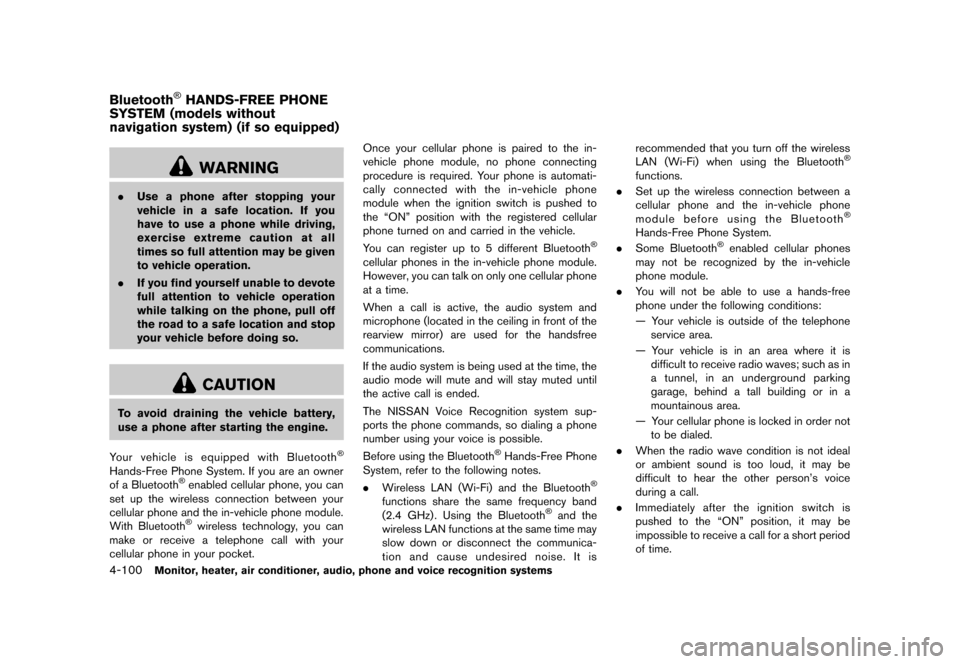

4-100Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-2E3BF6A6-4523-4285-8F92-0F4C9B6526E1
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your vehicle is equipped with Bluetooth
®
Hands-Free Phone System. If you are an owner
of a Bluetooth®enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone module.
With Bluetooth
®wireless technology, you can
make or receive a telephone call with your
cellular phone in your pocket. Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone
module when the ignition switch is pushed to
the “ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
®
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time, the
audio mode will mute and will stay muted until
the active call is ended.
The NISSAN Voice Recognition system sup-
ports the phone commands, so dialing a phone
number using your voice is possible.
Before using the Bluetooth
®Hands-Free Phone
System, refer to the following notes.
. Wireless LAN (Wi-Fi) and the Bluetooth
®
functions share the same frequency band
(2.4 GHz) . Using the Bluetooth®and the
wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth
®
functions.
. Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth
®
Hands-Free Phone System.
. Some Bluetooth®enabled cellular phones
may not be recognized by the in-vehicle
phone module.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the telephone
service area.
— Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, behind a tall building or in a
mountainous area.
— Your cellular phone is locked in order not to be dialed.
. When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
. Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
Bluetooth®HANDS-FREE PHONE
SYSTEM (models without
navigation system) (if so equipped)
Condition:

Black plate (307,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

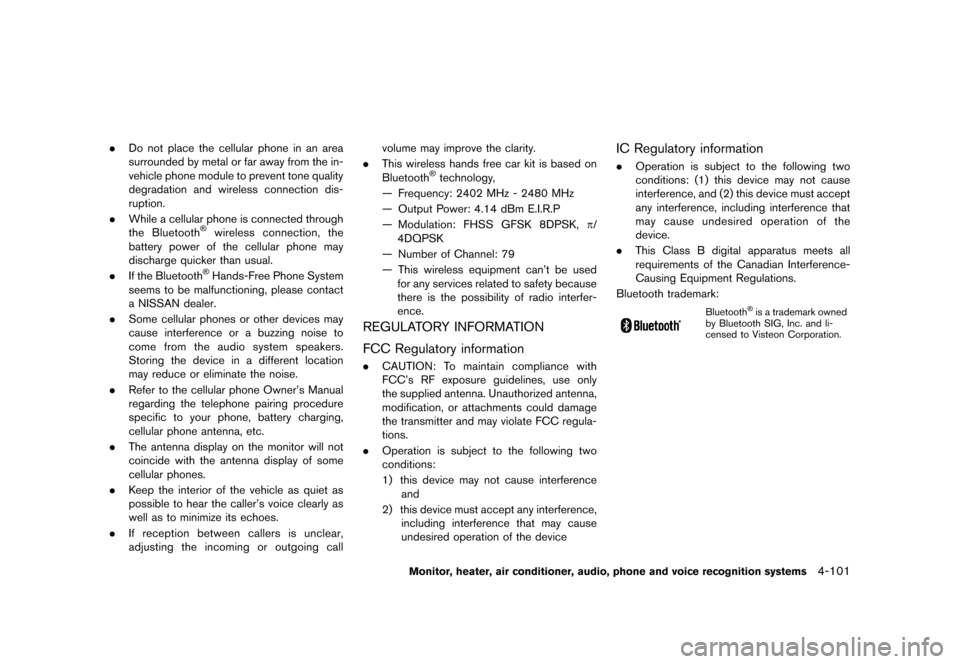

.Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
®wireless connection, the
battery power of the cellular phone may
discharge quicker than usual.
. If the Bluetooth
®Hands-Free Phone System
seems to be malfunctioning, please contact
a NISSAN dealer.
. Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
. If reception between callers is unclear,
adjusting the incoming or outgoing call volume may improve the clarity.
. This wireless hands free car kit is based on
Bluetooth
®technology,
— Frequency: 2402 MHz - 2480 MHz
— Output Power: 4.14 dBm E.I.R.P
— Modulation: FHSS GFSK 8DPSK, p/
4DQPSK
— Number of Channel: 79
— This wireless equipment can’t be used for any services related to safety because
there is the possibility of radio interfer-
ence.
REGULATORY INFORMATIONGUID-9DE078EF-726D-49EF-B39D-BF1565AB6772
FCC Regulatory informationGUID-FE63010D-70A5-414E-BEF2-21944E3AAE2E. CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1) this device may not cause interference
and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory informationGUID-E1B77E88-A855-4E2C-B642-6ECCDD8F6A9E.Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:
Bluetooth®is a trademark owned
by Bluetooth SIG, Inc. and li-
censed to Visteon Corporation.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-101
Condition:

Black plate (308,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-102Monitor, heater, air conditioner, audio, phone and voice recognition systems

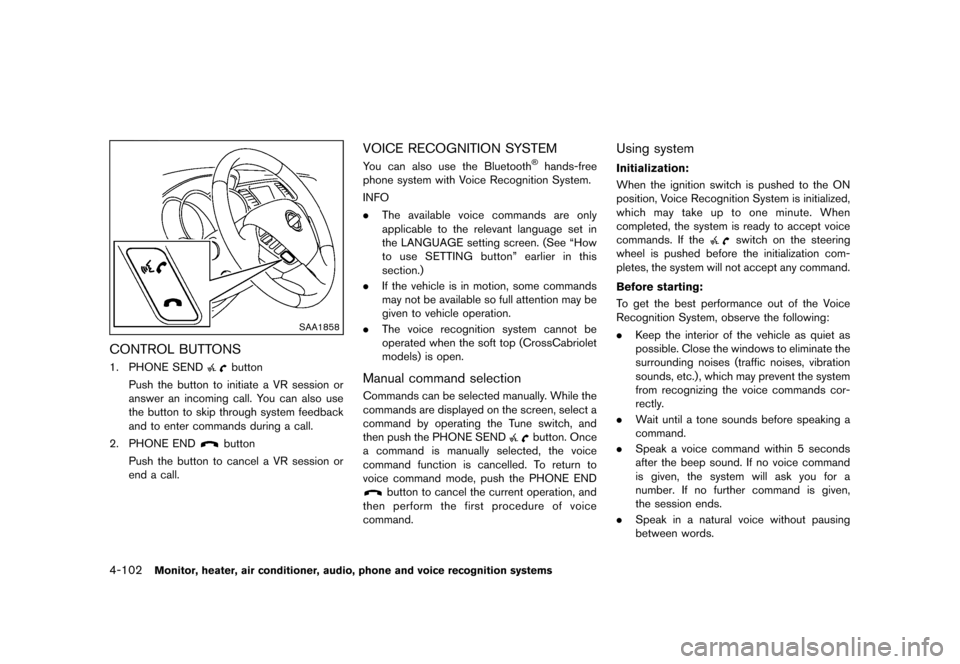

SAA1858
CONTROL BUTTONSGUID-97C1E7DF-2E99-4A06-9A42-9D6CE21376A61. PHONE SENDbutton
Push the button to initiate a VR session or
answer an incoming call. You can also use
the button to skip through system feedback
and to enter commands during a call.
2. PHONE END
button
Push the button to cancel a VR session or
end a call.
VOICE RECOGNITION SYSTEMGUID-9B7C908B-6C37-4AF6-881B-ED74B9733676You can also use the Bluetooth®hands-free
phone system with Voice Recognition System.
INFO
. The available voice commands are only
applicable to the relevant language set in
the LANGUAGE setting screen. (See “How
to use SETTING button” earlier in this
section.)
. If the vehicle is in motion, some commands
may not be available so full attention may be
given to vehicle operation.
. The voice recognition system cannot be
operated when the soft top (CrossCabriolet
models) is open.
Manual command selectionGUID-7A9C0620-4464-41D4-A48F-87414C8E0577Commands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the PHONE SEND
button. Once
a command is manually selected, the voice
command function is cancelled. To return to
voice command mode, push the PHONE END
button to cancel the current operation, and
then perform the first procedure of voice
command.
Using systemGUID-971AC84E-9C3B-4FD1-B89A-CAAB5B8FF18C
Initialization:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is pushed to the ON
position, Voice Recognition System is initialized,
which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the
switch on the steering
wheel is pushed before the initialization com-
pletes, the system will not accept any command.
Before starting:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To get the best performance out of the Voice
Recognition System, observe the following:
. Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
. Wait until a tone sounds before speaking a
command.
. Speak a voice command within 5 seconds
after the beep sound. If no voice command
is given, the system will ask you for a
number. If no further command is given,
the session ends.
. Speak in a natural voice without pausing
between words.
Condition:
