NISSAN NAVARA 2005 Repair Workshop Manual

SRS-42
FRONT PASSENGER AIR BAG MODULE
lBefore servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
lAlways work from the side of or under front passenger air bag module.
lAfter the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer toSRS-18, "
SRS Operation Check".
1. Locate the yellow and orange direct-connect passenger air bag module harness connectors.
2. Use wire cutters to cut back both previously used direct-connect passenger air bag module harness con-
nectors from the vehicle wiring harness approximately 50 mm (1.9 in) from the connectors.
3. Remove approximately 150 mm (5.9 in) of the vehicle harness covering from the cut end.
4. Slide a piece of dual-wall heat shrink tubing (provided in the pas-
senger air bag service kit) onto each wire of the previously used
vehicle wiring harness.
5. Fold each wire back and insert into the end of the heat shrink
tubing so that the end of the wire is approximately centered in
the heat shrink tubing.
6. Use a heat gun to shrink the heat shrink tubing and seal the wire.
7. Use electrical tape to secure the modified circuits to the outside of the wiring harness.
8. Locate the front passenger air bag service replacement connec-
tor that is taped back to the main harness. Unwrap the tape to
access the yellow service replacement connector and remove
the dust cover from the connector.
LHIA0017E
WHIA0062E
MHIB0108E

FRONT SIDE AIR BAG MODULE
SRS-43
C
D
E
F
G
I
J
K
L
MA
B
SRS
FRONT SIDE AIR BAG MODULEPFP:K8EH0
Removal and InstallationEHS001XV
REMOVAL
WARNING:
Removal of front side air bag module should only be done to allow deployment of front side air bag
module prior to disposal of seatback assembly.
Only complete seatback assemblies can be replaced. Refer toSE-26, "
SEATBACK (POWER AND MAN-
UAL SEAT)"andSE-27, "SEATBACK (FRAT FOLD SEAT)".
CAUTION:
lBefore servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at
least 3 minutes.
lWhen servicing the SRS, do not work from directly in front of air bag module.
1. Remove the front seat. Refer toSE-23, "
REMOVAL".
2. Remove the seatback trim and pad. Refer toSE-26, "
SEATBACK (POWER AND MANUAL SEAT)"and
SE-27, "
SEATBACK (FRAT FOLD SEAT)".
3. Remove the seatback rear finisher and remove the retainers securing the seat cushion trim. Refer toSE-
24, "SEAT CUSHION (POWER SEAT)"andSE-25, "SEAT CUSHION (MANUAL SEAT)".
4. Remove air bag module harness clips.
5. Remove the fasteners from the front side air bag module and remove the front side air bag module.
CAUTION:
lWhen using a clip removal tool to remove the seatback
board, take care not to damage the harness for front side air
bag module.
lWhen servicing the SRS, do not work from directly in front
of air bag module.

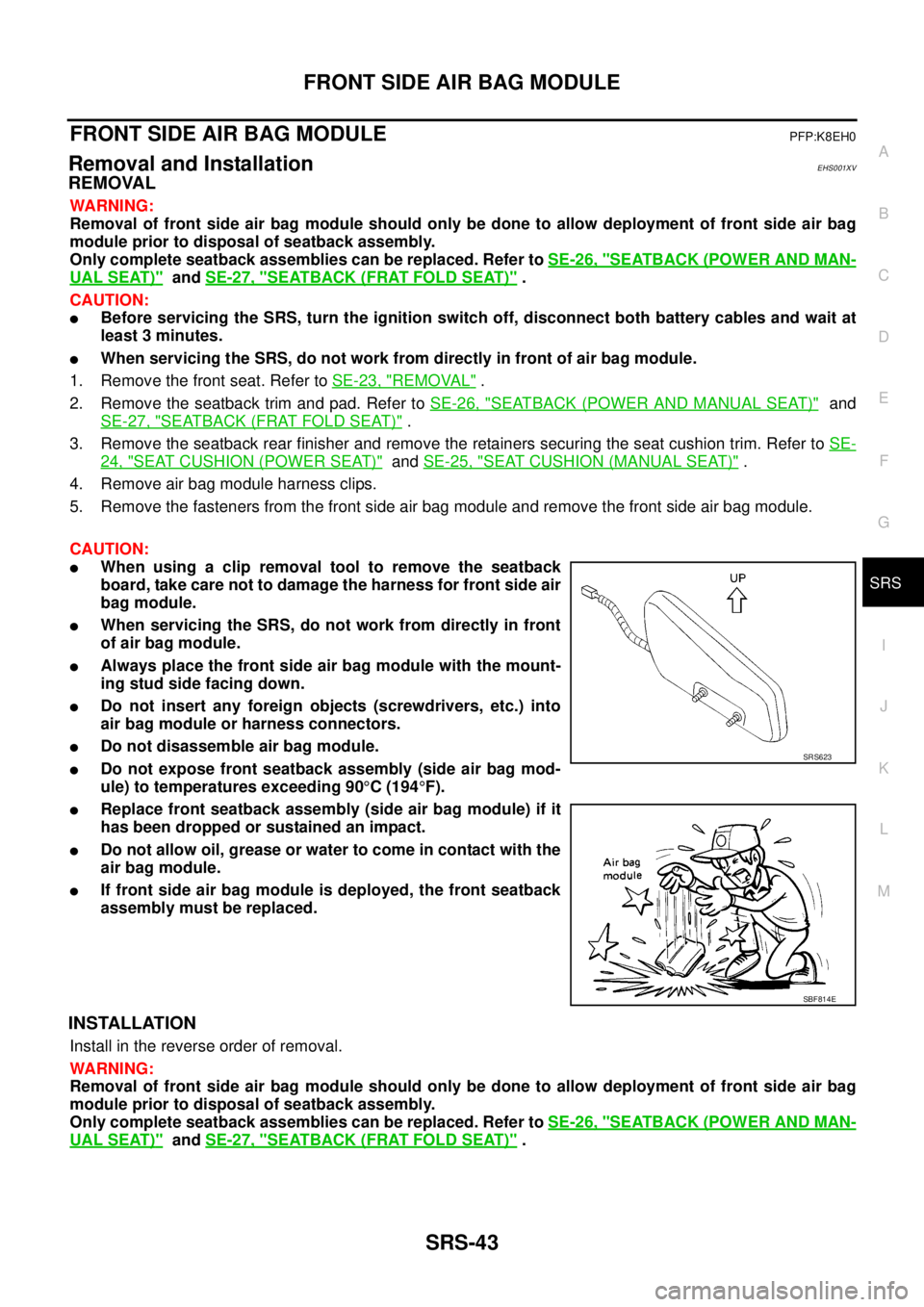

lAlways place the front side air bag module with the mount-
ing stud side facing down.
lDo not insert any foreign objects (screwdrivers, etc.) into
air bag module or harness connectors.
lDo not disassemble air bag module.
lDo not expose front seatback assembly (side air bag mod-
ule) to temperatures exceeding 90°C(194°F).
lReplace front seatback assembly (side air bag module) if it
has been dropped or sustained an impact.
lDo not allow oil, grease or water to come in contact with the
air bag module.
lIf front side air bag module is deployed, the front seatback
assembly must be replaced.
INSTALLATION
Install in the reverse order of removal.
WARNING:
Removal of front side air bag module should only be done to allow deployment of front side air bag
module prior to disposal of seatback assembly.
Only complete seatback assemblies can be replaced. Refer toSE-26, "
SEATBACK (POWER AND MAN-
UAL SEAT)"andSE-27, "SEATBACK (FRAT FOLD SEAT)".
SRS623
SBF814E

SRS-44
SIDE CURTAIN AIR BAG MODULE
SIDE CURTAIN AIR BAG MODULE
PFP:985P0
Removal and InstallationEHS001XW
REMOVAL
CAUTION:
lDo not attempt to repair or replace damaged direct-connect SRS component connectors. If a
direct-connect harness connector is damaged, the harness must be replaced.
lBefore servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at
least 3 minutes.
lWhen servicing the SRS, do not work from directly in front of air bag module.
1. Remove headlining. Refer toEI-40, "
Removal and Installation".
2. Disconnect side curtain air bag module connectors.
lFor removal/installation of the direct-connect SRS connectors, refer toSRS-8, "Direct-Connect SRS
Component Connectors".
3. Remove bolts, then remove the side curtain air bag module.
CAUTION:
lWhen servicing the SRS, do not work from directly in front of air bag module.
lDo not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
lDo not disassemble air bag module.
lDo not expose the air bag module to temperatures exceeding 90°C(194°F).
lReplace side curtain air bag module if it has been dropped
or sustained an impact.
lDo not allow oil, grease or water to come in contact with the
air bag module.
INSTALLATION
Install in the reverse order of removal.
MHIB0114E

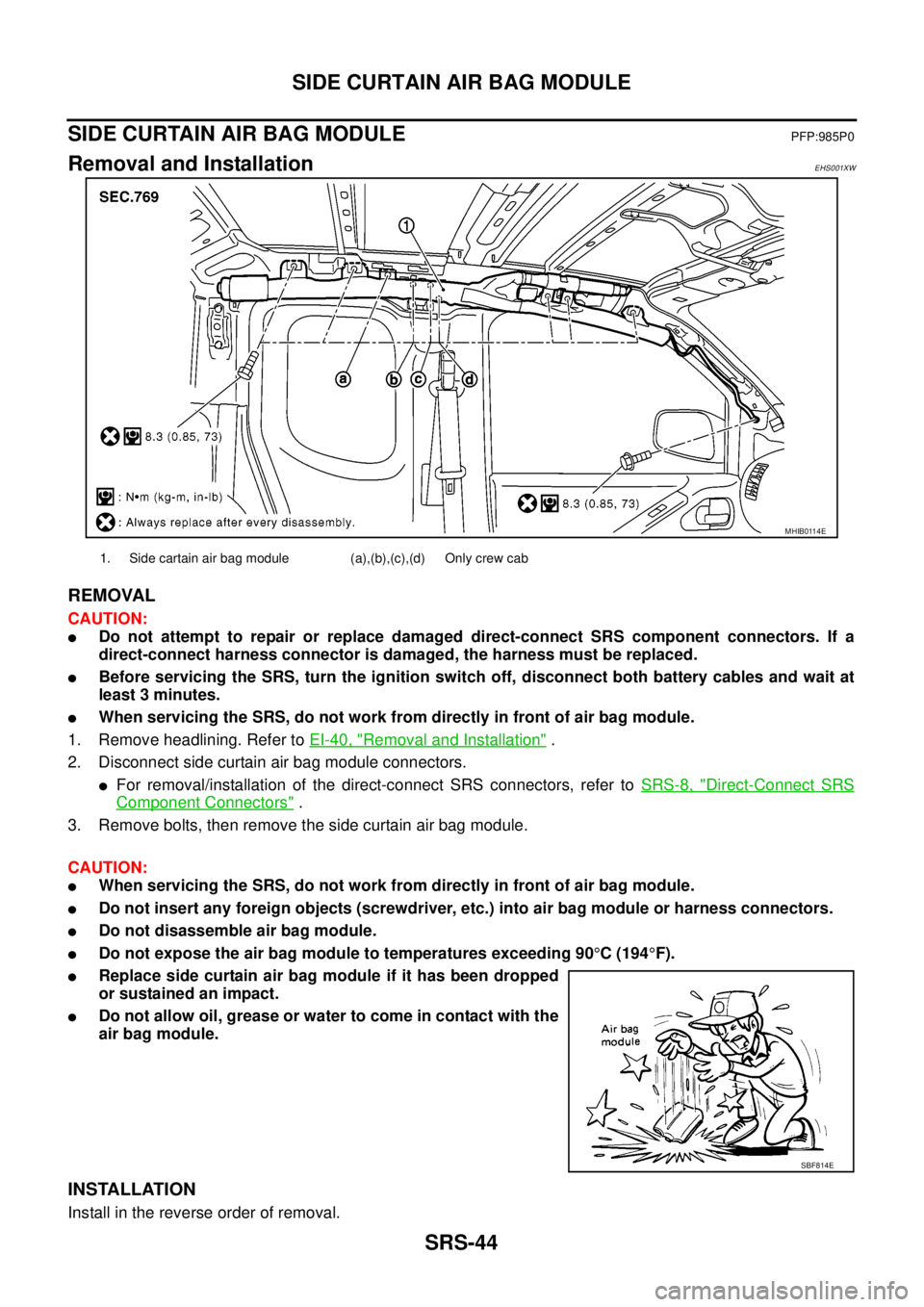

1. Side cartain air bag module (a),(b),(c),(d) Only crew cab
SBF814E

SIDE CURTAIN AIR BAG MODULE
SRS-45
C
D
E
F
G
I
J
K
L
MA
B
SRS
lFor removal/installation of the direct-connect SRS connectors, refer toSRS-8, "Direct-Connect SRS Com-
ponent Connectors".
lAfter replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is
detected. Refer toSRS-18, "
SRS Operation Check".

SRS-46
SIDE AIR BAG (SATELLITE) SENSOR
SIDE AIR BAG (SATELLITE) SENSOR
PFP:98830
Removal and InstallationEHS001XY
REMOVAL
CAUTION:
lBefore servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at
least 3 minutes.
1. Remove front door sill finisher and lift carpet.
2. Remove side air bag (satellite) sensor nuts and release the clip.
3. Disconnect the side air bag (satellite) sensor connector.
CAUTION:
lDo not use old nuts after removal; replace with new nuts.
lCheck side air bag (satellite) sensor to ensure it is free of deformities, dents, cracks or rust. If it
shows any visible signs of damage, replace it with new one.
lDo not disassemble side air bag (satellite) sensor.
lReplace side air bag (satellite) sensor if it has been dropped or sustained an impact.
INSTALLATION
Install in the reverse order of removal.
lAfter the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to
SRS-18, "
SRS Operation Check".
LHIA0091E

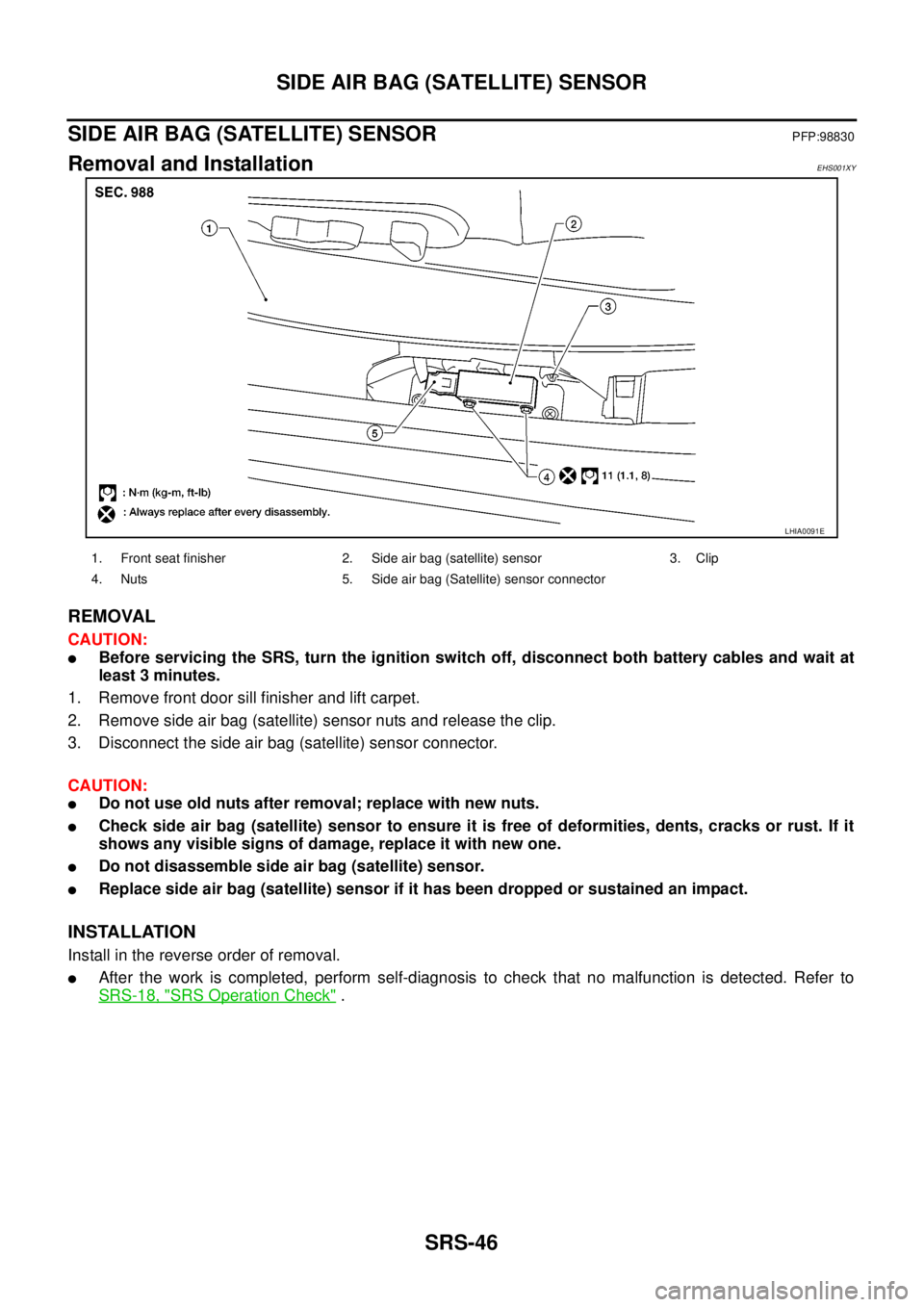

1. Front seat finisher 2. Side air bag (satellite) sensor 3. Clip
4. Nuts 5. Side air bag (Satellite) sensor connector

FRONT SEAT BELT PRE-TENSIONER
SRS-47
C
D
E
F
G
I
J
K
L
MA
B
SRS
FRONT SEAT BELT PRE-TENSIONERPFP:86884
Removal and InstallationEHS001XZ
For removal and installation procedures, refer toSB-3, "Removal and Installation of Front Seat Belt - King
Cab".andSB-5, "Removal and Installation of Front Seat Belt - Double Cab".

SRS-48
DIAGNOSIS SENSOR UNIT
DIAGNOSIS SENSOR UNIT
PFP:28556
Removal and InstallationEHS001Y0
REMOVAL
CAUTION:
lBefore servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at
least 3 minutes.
1. Disconnect the connectors for each air bag module and seat belt pre-tensioner.
2. Remove center console. Refer toIP-10, "
INSTRUMENT PANEL ASSEMBLY".
3. Disconnect diagnosis sensor unit connectors.
4. Remove bolts from the diagnosis sensor unit.
CAUTION:
lDo not use old bolts; replace with new bolts.
lCheck diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it
shows any visible signs of damage, replace with new one.
lReplace diagnosis sensor unit if it has been dropped or sustained an impact.
INSTALLATION
Install in the reverse order of removal.
lAfter the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to
SRS-18, "
SRS Operation Check".
CAUTION:

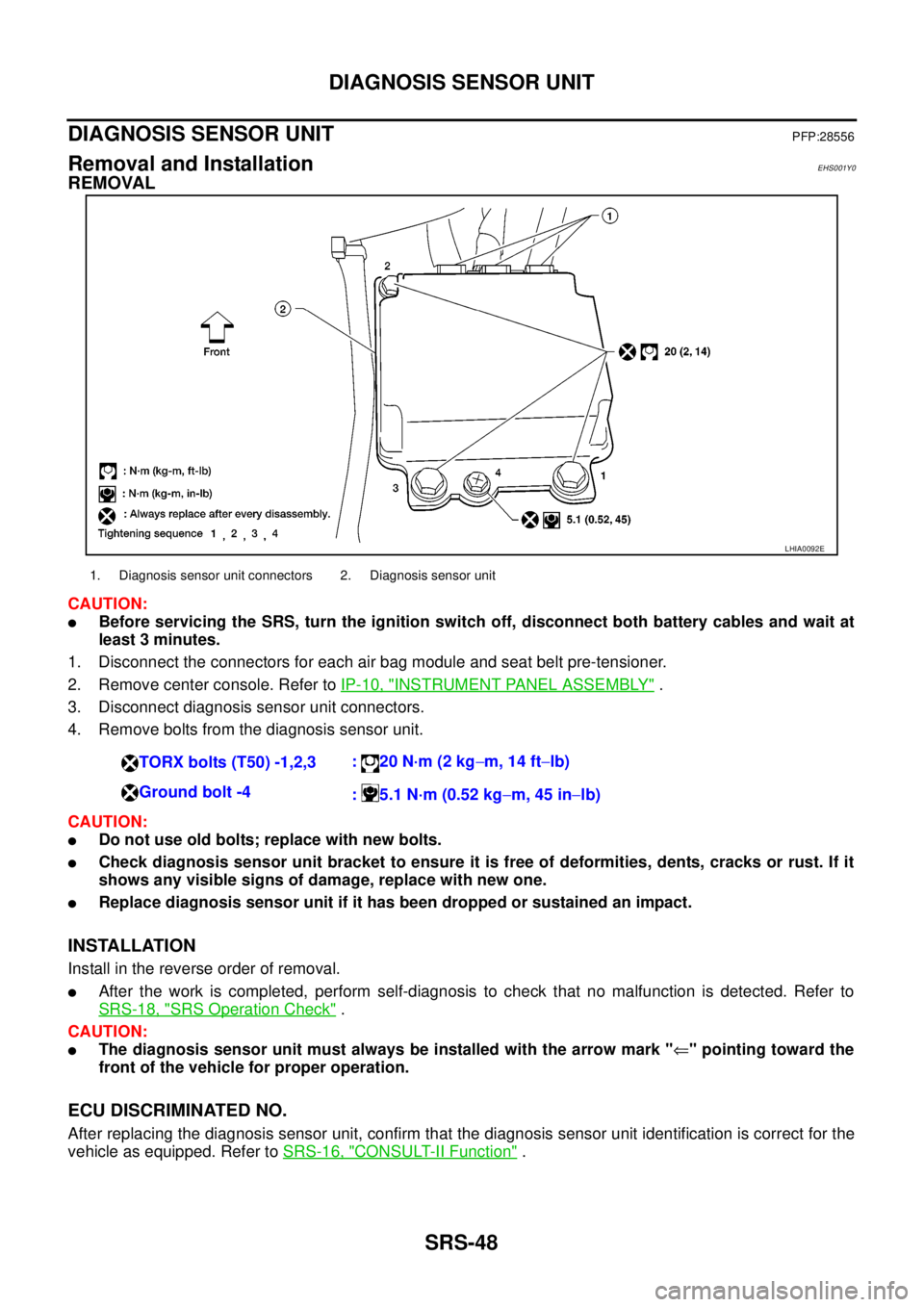

lThe diagnosis sensor unit must always be installed with the arrow mark "Ü" pointing toward the
front of the vehicle for proper operation.
ECU DISCRIMINATED NO.
After replacing the diagnosis sensor unit, confirm that the diagnosis sensor unit identification is correct for the
vehicle as equipped. Refer toSRS-16, "
CONSULT-II Function".
LHIA0092E
1. Diagnosis sensor unit connectors 2. Diagnosis sensor unit
TORX bolts (T50) -1,2,3:20N·m(2kg-m, 14 ft-lb)
Ground bolt -4
: 5.1 N·m (0.52 kg-m, 45 in-lb)

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-49
C
D
E
F
G
I
J
K
L
MA
B
SRS
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONERPFP:00014
Caution for Air Bag Module and Seat Belt Pre-tensionerEHS001Y2
lBefore disposing of air bag module, seat belt pre-tensioner or vehicle equipped with such systems, deploy
the systems. If such systems have already been deployed due to an accident, dispose of them as indi-
cated in “SRS-49, "
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER".
lWhen deploying the air bag module or seat belt pre-tensioner, always use the Special Service Tool
Deployment tool [KV99106400].
lWhen deploying the air bag module or seat belt pre-tensioner, stand at least 5 m (16 ft) away from the
component being deployed.
lWhen deploying air bag module or seat belt pre-tensioner, a fairly loud noise is made, followed by smoke
being released. The smoke is not poisonous, however, be careful not to inhale smoke since it irritates the
throat and can cause choking.
lOnly deploy one air bag module or seat belt pre-tensioner at a time.
lDue to heat, leave deployed air bag module unattended for at least 30 minutes after deployment. Leave
deployed seat belt pre-tensioner unattended for at least 10 minutes after deployment.
lBe sure to wear gloves when handling a deployed air bag module or seat belt pre-tensioner.
lNever apply water to the deployed air bag module or seat belt pre-tensioner.
lWash your hands thoroughly after finishing work.
lPlace the vehicle outdoors with an open space of at least 6 m (20 ft) on all sides when deploying air bag
module or seat belt pre-tensioner while mounted in vehicle.
lUse a voltmeter to make sure the vehicle battery is fully charged.
lDo not dispose of the air bag module or seat belt pre-tensioner undeployed.
CHECKING DEPLOYMENT TOOL

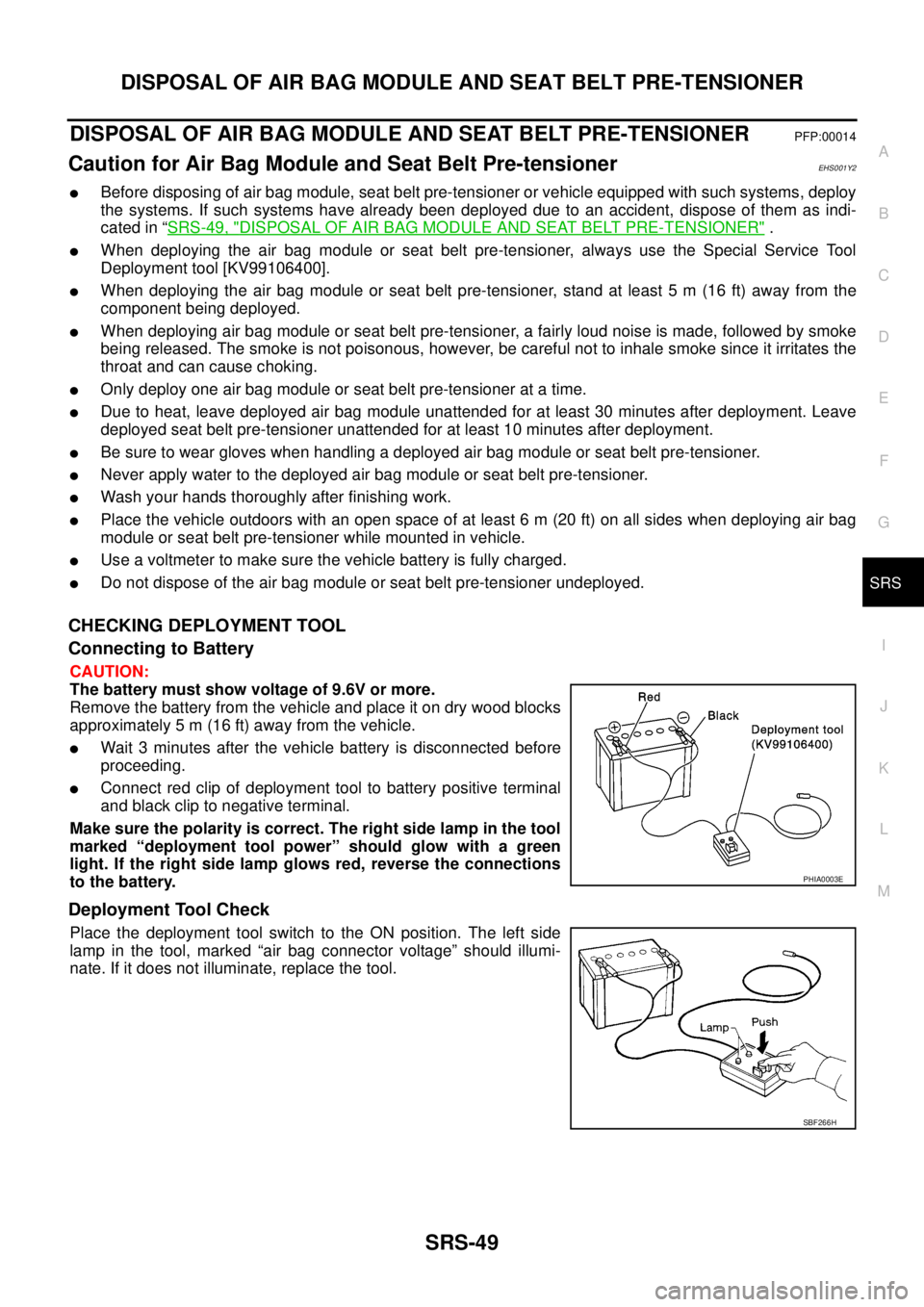

Connecting to Battery
CAUTION:
The battery must show voltage of 9.6V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5 m (16 ft) away from the vehicle.
lWait 3 minutes after the vehicle battery is disconnected before
proceeding.
lConnect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
Makesurethepolarityiscorrect.Therightsidelampinthetool
marked “deployment tool power” should glow with a green
light. If the right side lamp glows red, reverse the connections
to the battery.
Deployment Tool Check
Place the deployment tool switch to the ON position. The left side
lamp in the tool, marked “air bag connector voltage” should illumi-
nate. If it does not illuminate, replace the tool.
PHIA0003E
SBF266H

SRS-50
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Air Bag Deployment Tool Lamp Illumination Chart (Battery connected)
*: If this lamp glows red, the tool is connected to the battery incorrectly. Reverse the connections and make sure the lamp glows green.
DEPLOYMENT PROCEDURES FOR AIR BAG MODULE (OUTSIDE OF VEHICLE)
Unless the vehicle is being scrapped, deploying the air bag in the
vehicle is not recommended. This may cause damage to the vehicle
interior.
Anchor air bag module bracket in a vise secured to a firm foundation
during deployment.
Deployment of Driver Air Bag Module (Outside of vehicle)

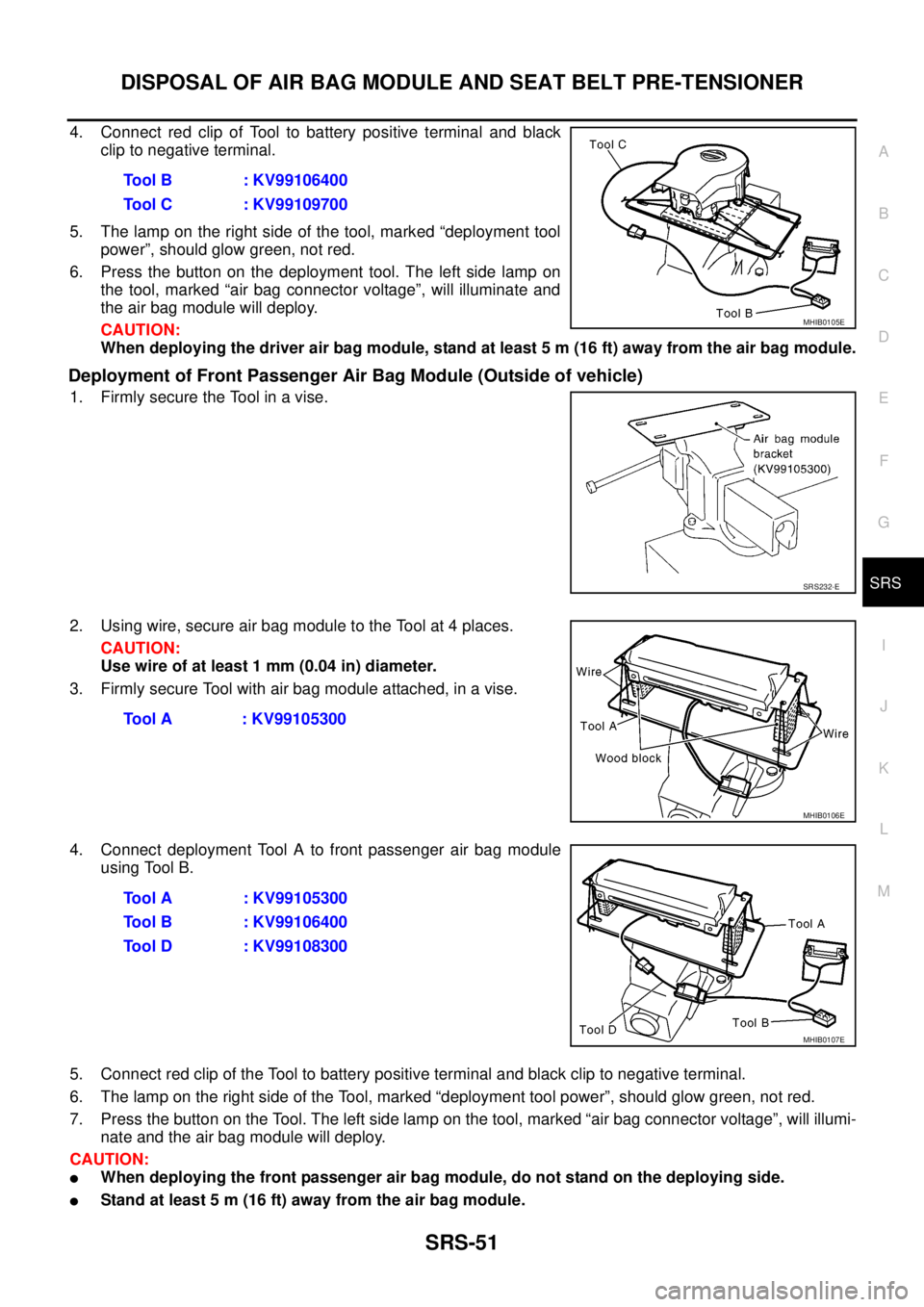

1. Using wire, secure air bag module to the Tool at 4 places.
CAUTION:
Use wire of at least 1 mm (0.04 in) diameter.
2. Firmly secure Tool with air bag module attached, in a vise.
3. Connect deployment Tool to air bag module connector using
To o l C .
Switch operationLeft side lamp, green
“AIR BAG CONNECTOR
VOLTAGE”Right side lamp, green*
“DEPLOYMENT TOOL
POWER”
OFF OFF ON
ON ON ON
SRS232-E
Tool A : KV99105300
MHIB0103E
Tool C : KV99109700
MHIB0104E

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-51
C
D
E
F
G
I
J
K
L
MA
B
SRS
4. Connect red clip of Tool to battery positive terminal and black
clip to negative terminal.
5. The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module will deploy.
CAUTION:
When deploying the driver air bag module, stand at least 5 m (16 ft) away from the air bag module.
Deployment of Front Passenger Air Bag Module (Outside of vehicle)
1. Firmly secure the Tool in a vise.
2. Using wire, secure air bag module to the Tool at 4 places.
CAUTION:
Usewireofatleast1mm(0.04in)diameter.
3. Firmly secure Tool with air bag module attached, in a vise.
4. Connect deployment Tool A to front passenger air bag module
using Tool B.
5. Connect red clip of the Tool to battery positive terminal and black clip to negative terminal.
6. The lamp on the right side of the Tool, marked “deployment tool power”, should glow green, not red.
7. Press the button on the Tool. The left side lamp on the tool, marked “air bag connector voltage”, will illumi-
nate and the air bag module will deploy.
CAUTION:
lWhen deploying the front passenger air bag module, do not stand on the deploying side.
lStand at least 5 m (16 ft) away from the air bag module.Tool B : KV99106400
Tool C : KV99109700
MHIB0105E
SRS232-E
Tool A : KV99105300
MHIB0106E
Tool A : KV99105300
Tool B : KV99106400
Tool D : KV99108300
MHIB0107E
