NISSAN NAVARA 2005  Repair Workshop Manual SRS-52
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Deployment of Front Side Air Bag Module (Outside of vehicle)
1. Make 6.5 mm (0.256 in) diameter holes in air bag module
bracket [SST: KV99

Page 2962 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-53
C
D
E
F
G
I
J
K
L
MA
B
SRS

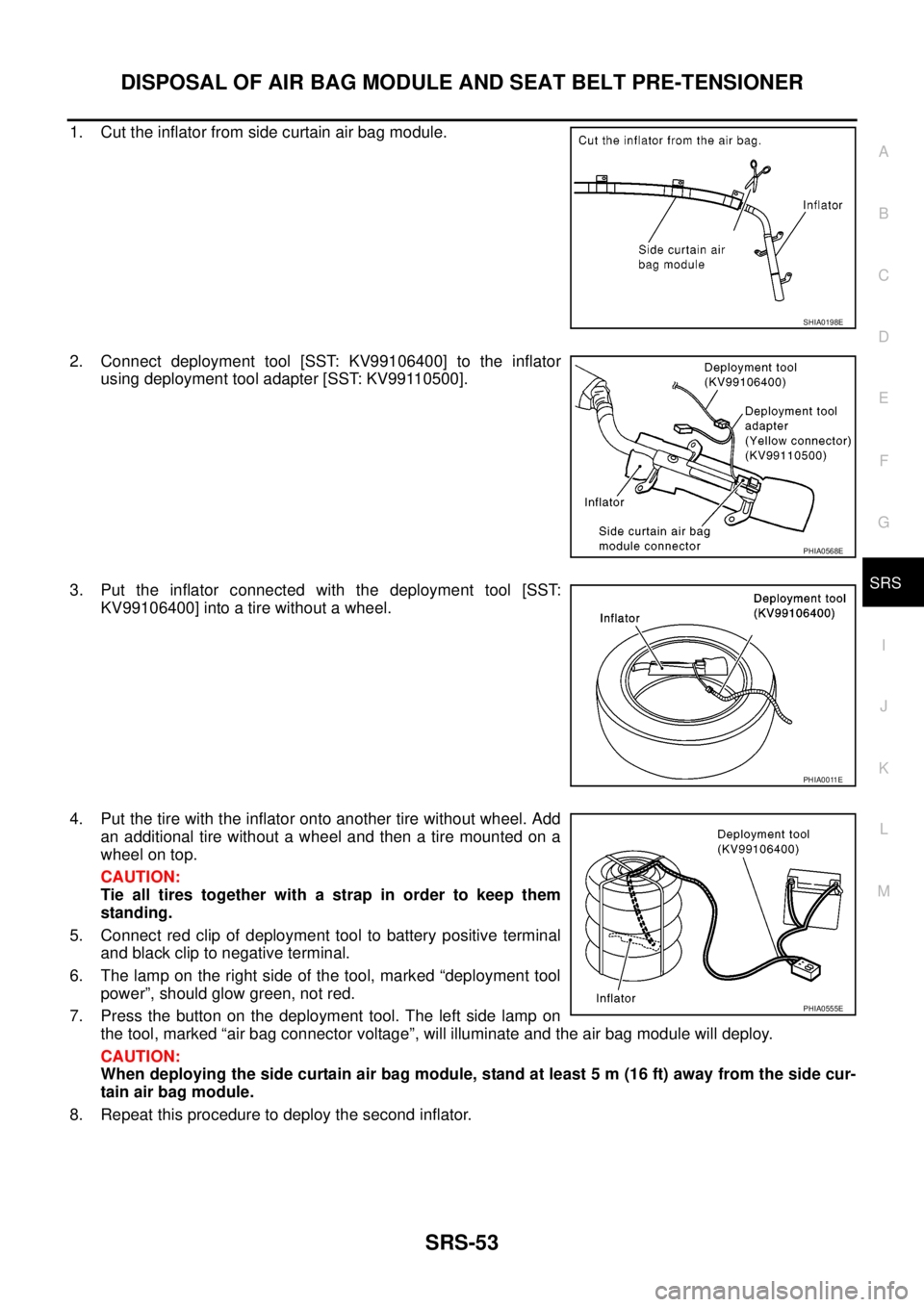

1. Cut the inflator from side curtain air bag module.
2. Connect deployment tool [SST: KV99106400] to the infla

Page 2963 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SRS-54
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

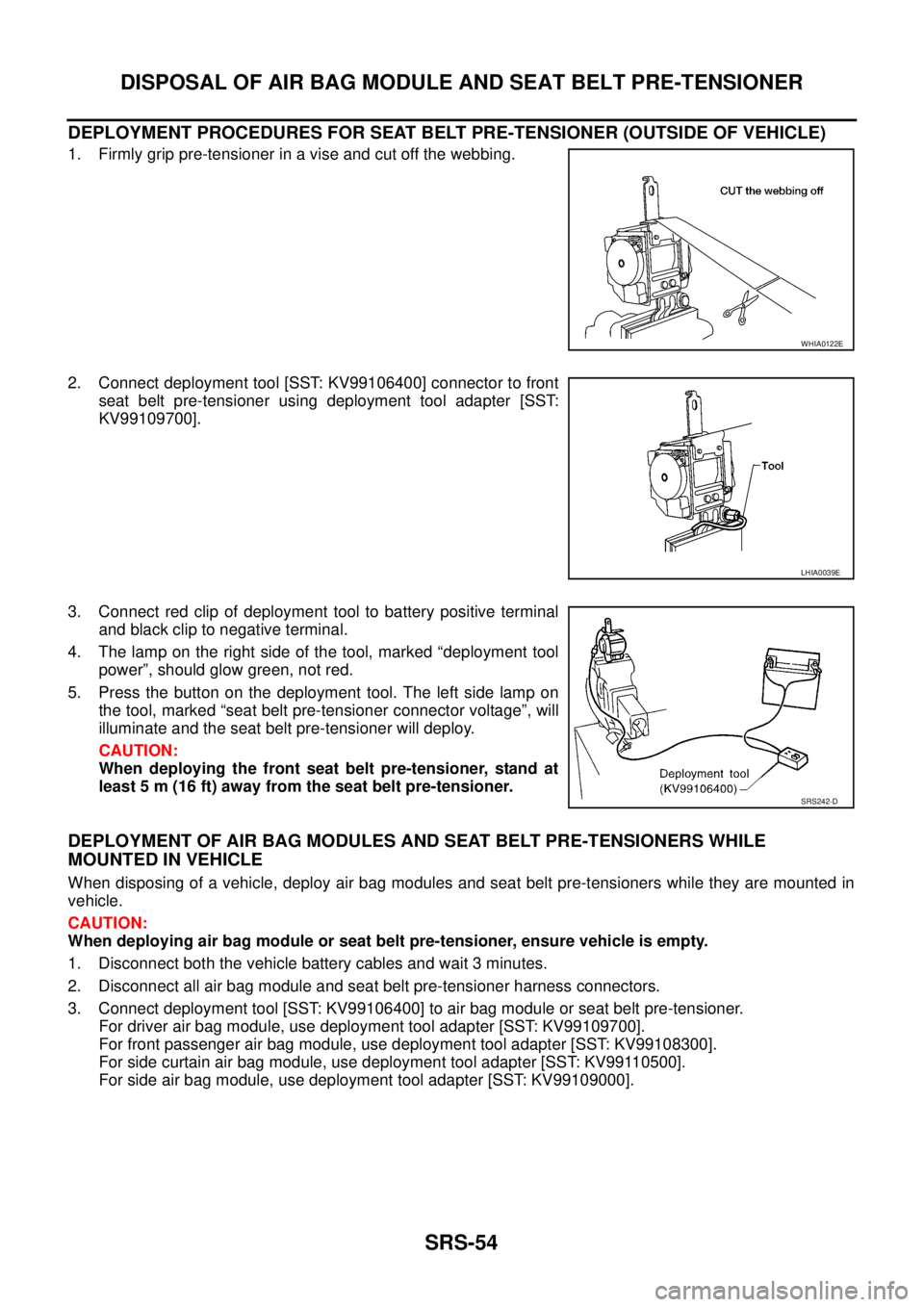

DEPLOYMENT PROCEDURES FOR SEAT BELT PRE-TENSIONER (OUTSIDE OF VEHICLE)
1. Firmly grip pre-tensioner in a vise and cut off the webbing.
2.

Page 2964 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-55
C
D
E
F
G
I
J
K
L
MA
B
SRS

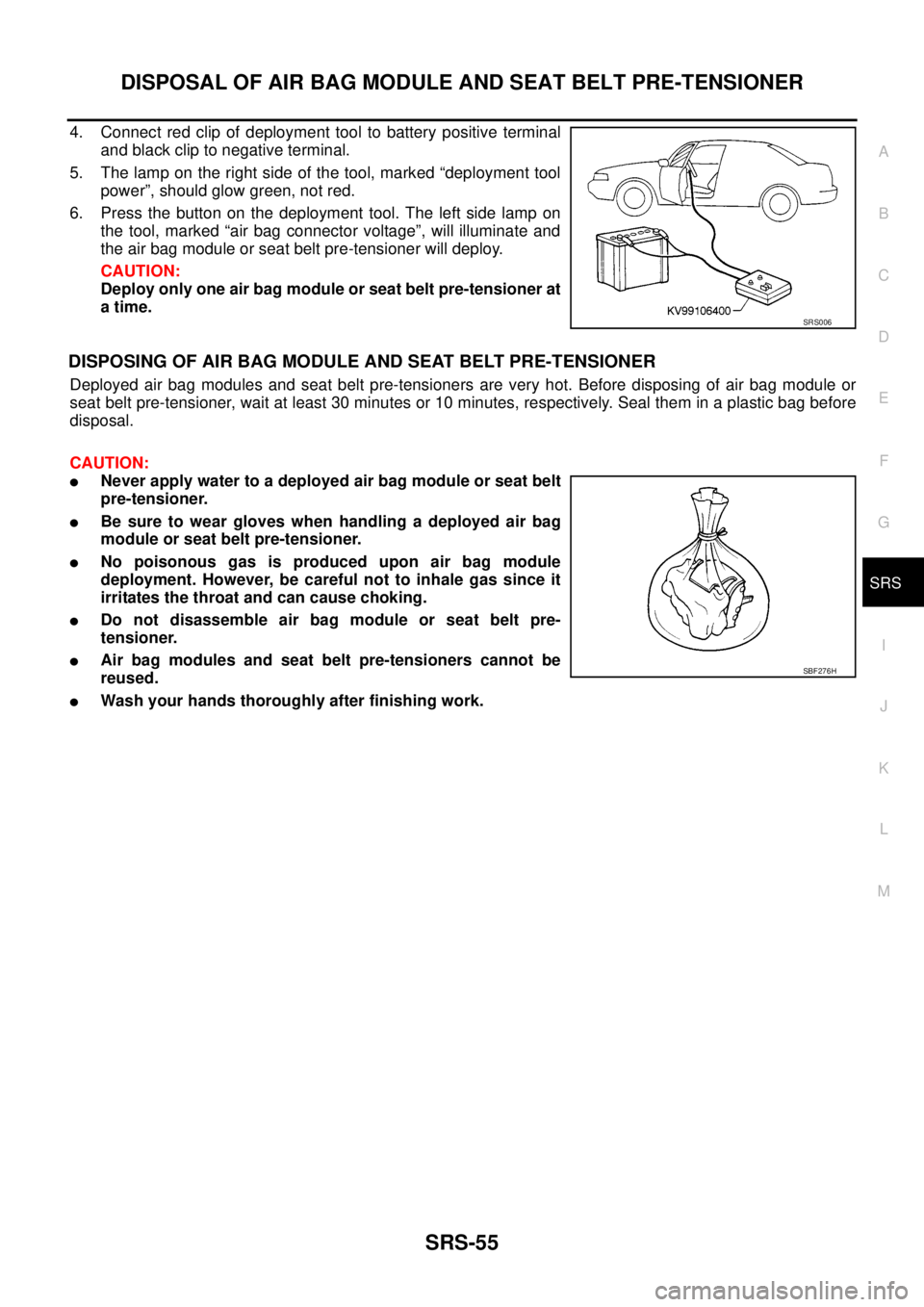

4. Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
5. The

Page 2965 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SRS-56
COLLISION DIAGNOSIS
COLLISION DIAGNOSIS
PFP:00015
For Frontal CollisionEHS001Y3
Check the SRS components using the following table.
lAfter the work is completed, perform self-diagnosis to check

Page 2966 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual COLLISION DIAGNOSIS
SRS-57
C
D
E
F
G
I
J
K
L
MA
B
SRS
lAfter the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to
SRS-18, "
SRS Operation Check".
WHEN SRS I

Page 2967 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SRS-58
COLLISION DIAGNOSIS
Seat belt pre-
tensioner assembly1. Check if the seat belt can be extended smoothly.
If the seat belt cannot be extended smoothly,
–Check for deformities of the center pil

Page 2968 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual TF-1
TRANSFER
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTIONTF
A
B
TF
TRANSFER
PRECAUTIONS .......................................................... 4
Precautions for Supplemental Restraint Sy

Page 2969 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual TF-2
DIAGNOSTIC PROCEDURE .............................. 53
COMPONENT INSPECTION .............................. 54
Transfer Control Unit .............................................. 54
DIAGNOSTIC PR

Page 2970 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual TF-3
C
E
F
G
H
I
J
K
L
MA
B
TF PLANETARY CARRIER ......................................... 129
Disassembly and Assembly ................................. 129
DISASSEMBLY ..............................
