NISSAN NOTE 2016 Service Repair Manual

EM-80
< REMOVAL AND INSTALLATION >[HR16DE]
CYLINDER HEAD
8. Remove valve collet, valve spring retainer, and valve spring
using Tools.
CAUTION:
• Do not damage valve lifter holes.
• Install Tool (A) in the center of valve spring retainer topress it.
9. Install valve lifter.
10. Install spark plug with a suitable tool.
InspectionINFOID:0000000012431730
INSPECTION AFTER REMOVAL
Cylinder Head Bolt s Outer Diameter
• Cylinder head bolts are tightened by plastic zone tightening
method. Whenever the size difference between “d1” and “d2”
exceeds the limit, replace them with a new one.
• If reduction of outer diameter appear s in a position other than “d2”,
use it as “d2” point.
Cylinder Head Distortion
NOTE:
When performing this inspection, cylinder block distortion should be also checking. Refer to EM-102, "
Inspec-
tion".
1. Wipe off engine oil and remove water scale (like deposit), gasket, sealant, carbon, etc. using scraper. CAUTION:
Use utmost care not to allow gasket debris to enter passages for engine oil or engine coolant.
Tool number (A) : KV1016200 (J-26336-A)
(B) : KV10109220 ( — )
(C) : KV10115900 (J-26336-20)
JPBIA1365ZZ
(1) : Valve spring retainer
Tool number (A) : KV10115900 (J-26336-20)
AWBIA1422ZZ
Limit (“d1”–“d2”): 0.15 mm (0.0059 in)
PBIC3717E
Revision: August 2015 2016 Versa Note

cardiagn.com

CYLINDER HEADEM-81
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
2. At each of several locations on bottom surface of cylinder head,
measure the distortion in six directions using suitable tools (A/
B).
• If it exceeds the limit, replace cylinder head.
INSPECTION AFTER DISASSEMBLY
VALVE DIMENSIONS
• Check the dimensions of each valv e. For the dimensions, refer to EM-119, "Cylinder head".
• If dimensions are out of the standard, replace valv e and check valve seat contact. Refer to “VALVE SEAT
CONTACT”.
VALVE GUIDE CLEARANCE
Valve Stem Diameter• Measure the diameter of valve stem using suitable tool (A).
Valve Guide Inner Diameter• Measure the inner diameter of valve guide using suitable tool (A).
Valve Guide Clearance• (Valve guide clearance) = (Valve guide inner diameter) – (Valve stem diameter)
• If the calculated value exceeds the limit, replace valve and/or valve guide. Refer to EM-78, "
Disassembly
and Assembly".
VALVE GUIDE REPLACEMENT
When valve guide is removed, replace with oversized [0.2 mm (0.008 in)] valve guide.
1. To remove valve guide, heat cylinder head to 110 to 130°C (230
to 266 °F) by soaking in heated oil.
Limit : Refer to
EM-119, "
Cylinder head".
PBIC3207J
Standard : Refer to EM-119, "Cylinder head".
Standard : Refer to EM-119, "
Cylinder head".
Standard and Limit : Refer to EM-119, "
Cylinder head".
PBIC3213J
SEM008A
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-82
< REMOVAL AND INSTALLATION >[HR16DE]
CYLINDER HEAD
2. Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US
ton, 2.0 lmp ton) force] or suitable tool.
WARNING:
Cylinder head contains heat; when working, wear protective
equipment to avoid getting burned.
3. Ream cylinder head valve guide hole with a suitable tool.
4. Heat cylinder head to 110 to 130 °C (230 to 266 °F) by soaking in
heated oil.
5. Using a suitable tool, press valve guide (1) from camshaft side of cylinder head (2) to dimensions as shown.
WARNING:
Cylinder head contains heat; when working, wear protective
equipment to avoid getting burned.
6. Apply reamer finish to valve guide with a suitable tool.
SEM931C
Valve guide hole diameter (for service parts): Intake and exhaust: 9.175 - 9.201 mm (0.3612 - 0.3622 in)
SEM932C
SEM008A
Projection “H” : 11.4 - 11.8 mm (0.448 - 0.464 in)
PBIC3217J
Standard : 5.000 - 5.018 mm (0.1968 - 0.1975 in)
SEM932C
Revision: August 2015 2016 Versa Note

cardiagn.com

CYLINDER HEADEM-83
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
VALVE SEAT CONTACT
• After confirming that the dimensions of valve guides
and valves are within the specifications, perform this
procedure.
• Apply prussian blue (or white lead) onto contacting surfac e of valve seat to check the condition of the valve
contact on the surface.
• Check if the contact area band is continuous all around the circum- ference.
• If not, grind to adjust valve fitting and check again. If the contacting surface still has “NG” conditions (B) even after the recheck,
replace valve seat. Refer to EM-78, "
Disassembly and Assembly".
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring shoul d not continue beyond the bottom face of the seat recess
in cylinder head. Set the machine depth stop to ensure this.
CAUTION:
Prevent scoring cylinder head by excessive boring.
2. Ream cylinder head recess diameter for service valve seat.
• Be sure to ream in circles concentric to the valve guide center.This will enable valve seat to fit correctly.
3. Heat cylinder head to 110 to 130 °C (230 to 266 °F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Press-fit valve seats into cylinder head. WARNING:
Cylinder head contains heat; when working, wear protective equipment to avoid getting burned.
CAUTION:
Avoid directly touching cold valve seats.
(A) : OK
JPBIA0187ZZ
Oversize [0.5 mm (0.020 in)]
Intake : 32.500 - 32.527 mm (1.2795 - 1.2805 in)
Exhaust : 26.400 - 26.427 mm (1.0393 - 1.0404 in)
SEM795A
SEM008A
Revision: August 2015 2016 Versa Note

cardiagn.com

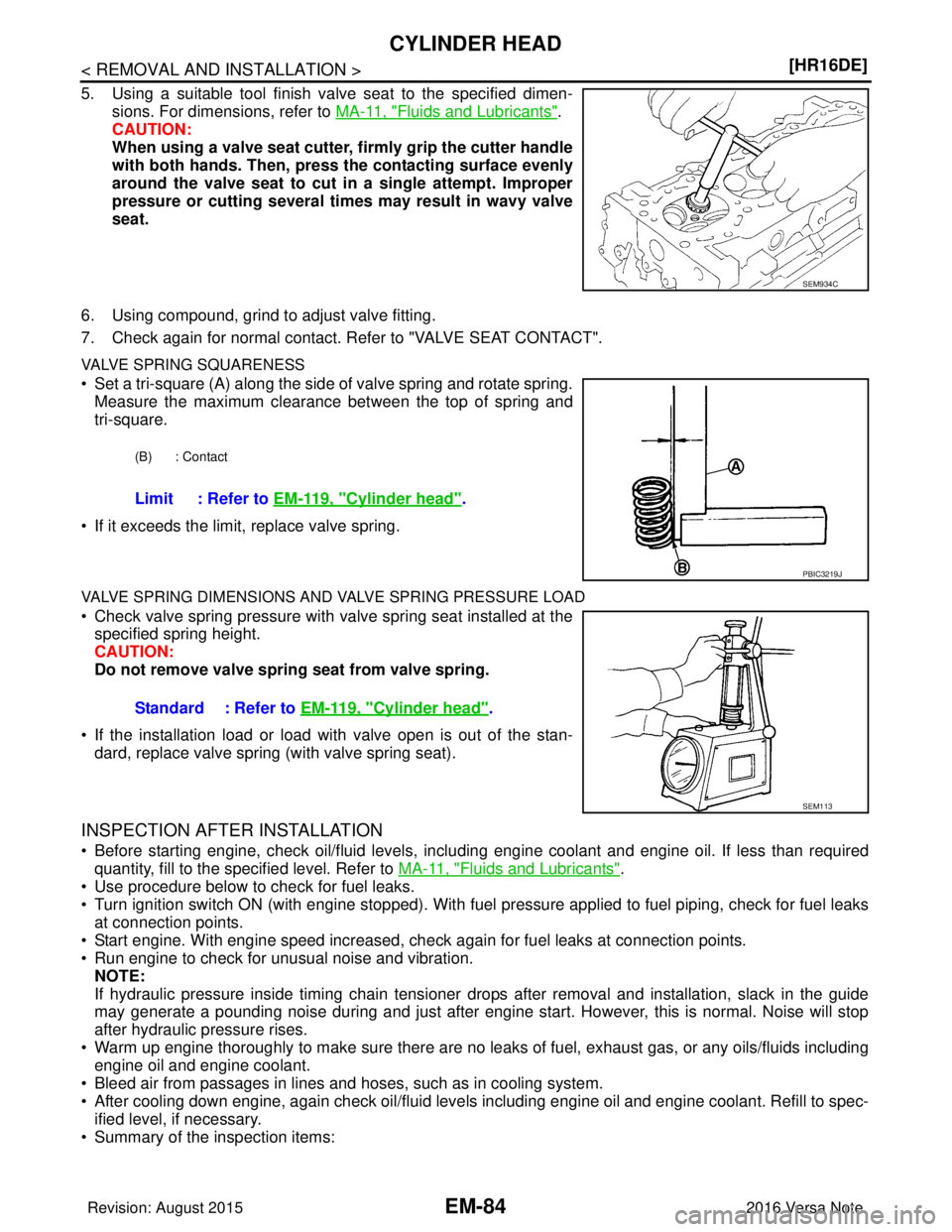

EM-84
< REMOVAL AND INSTALLATION >[HR16DE]
CYLINDER HEAD
5. Using a suitable tool finish valve seat to the specified dimen-
sions. For dimensions, refer to MA-11, "
Fluids and Lubricants".
CAUTION:
When using a valve seat cutter, firmly grip the cutter handle
with both hands. Then, pr ess the contacting surface evenly
around the valve seat to cut in a single attempt. Improper
pressure or cutting several times may result in wavy valve
seat.
6. Using compound, grind to adjust valve fitting.
7. Check again for normal contact. Refer to "VALVE SEAT CONTACT".
VALVE SPRING SQUARENESS
• Set a tri-square (A) along the side of valve spring and rotate spring. Measure the maximum clearance between the top of spring and
tri-square.
• If it exceeds the limit, replace valve spring.
VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD
• Check valve spring pressure with valve spring seat installed at the specified spring height.
CAUTION:
Do not remove valve spring seat from valve spring.
• If the installation load or load with valve open is out of the stan- dard, replace valve spring (with valve spring seat).
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels, incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "
Fluids and Lubricants".
• Use procedure below to check for fuel leaks.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leaks
at connection points.
• Start engine. With engine speed increased, che ck again for fuel leaks at connection points.
• Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop
after hydraulic pressure rises.
• Warm up engine thoroughly to make sure there are no l eaks of fuel, exhaust gas, or any oils/fluids including
engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec- ified level, if necessary.
• Summary of the inspection items:
SEM934C
(B) : Contact
Limit : Refer to EM-119, "Cylinder head".
PBIC3219J
Standard : Refer to EM-119, "Cylinder head".
SEM113
Revision: August 2015 2016 Versa Note

cardiagn.com

CYLINDER HEADEM-85
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
*Power steering fluid, brake fluid, etc. Item
Before starting engine Engine runningAfter engine stopped
Engine coolant LevelLeaks Level
Engine oil LevelLeaks Level
Transmission/
transaxle fluid CVT Models
LeaksLevel/Leaks Leaks
M/T Models Level/Leaks LeaksLevel/Leaks
Other oils and fluids* LevelLeaks Level
Fuel LeaksLeaks Leaks
Exhaust gas —Leaks —
Revision: August 2015 2016 Versa Note

cardiagn.com

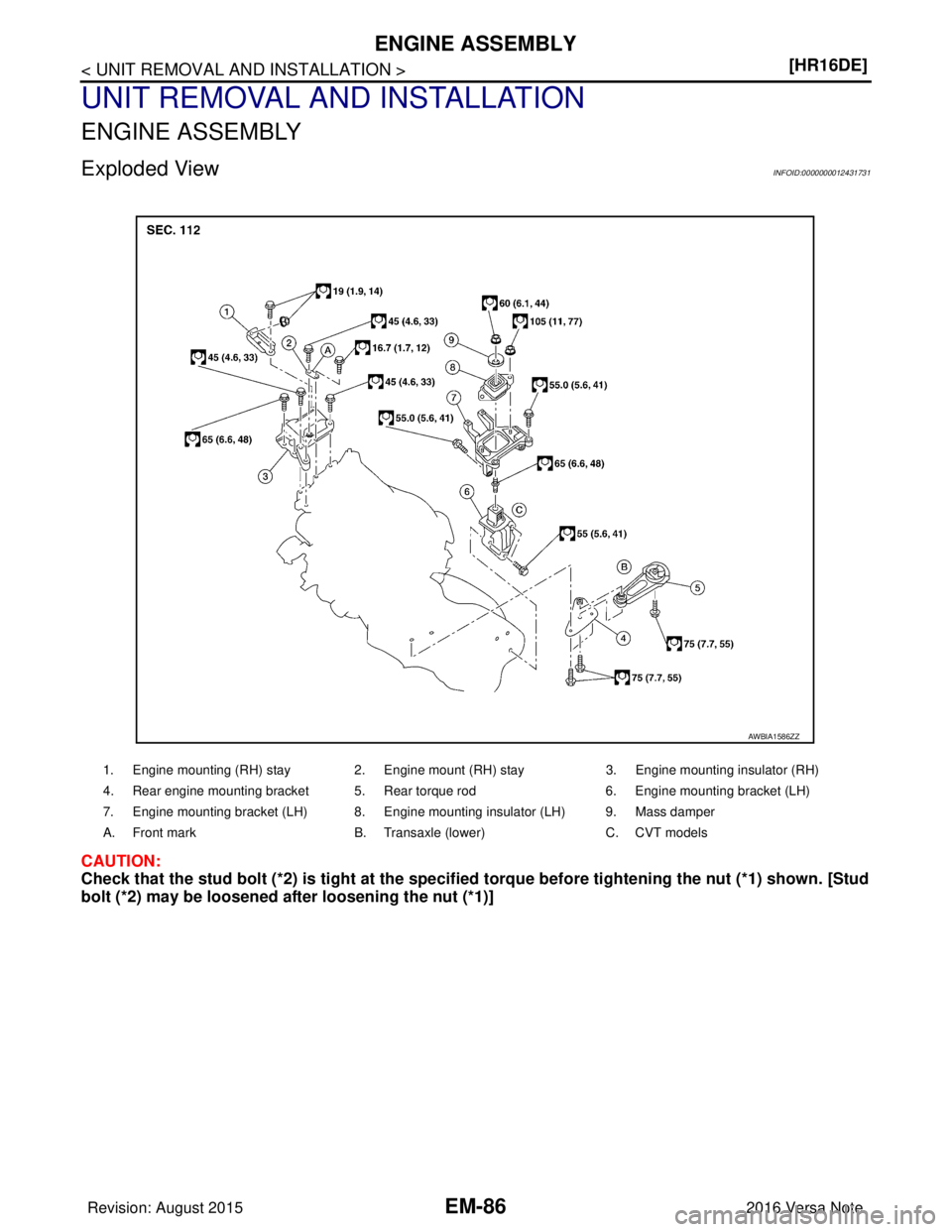

EM-86
< UNIT REMOVAL AND INSTALLATION >[HR16DE]
ENGINE ASSEMBLY
UNIT REMOVAL AND INSTALLATION
ENGINE ASSEMBLY
Exploded ViewINFOID:0000000012431731
CAUTION:
Check that the stud bolt (*2) is tight at the specified torque before tightening the nut (*1) shown. [Stud
bolt (*2) may be loosened after loosening the nut (*1)]
1. Engine mounting (RH) stay 2. Engine mount (RH) stay
3. Engine mounting insulator (RH)
4. Rear engine mounting bracket 5. Rear torque rod 6. Engine mounting bracket (LH)
7. Engine mounting bracket (LH) 8. Engine mounting insulator (LH) 9. Mass damper
A. Front mark B. Transaxle (lower) C. CVT models
AWBIA1586ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

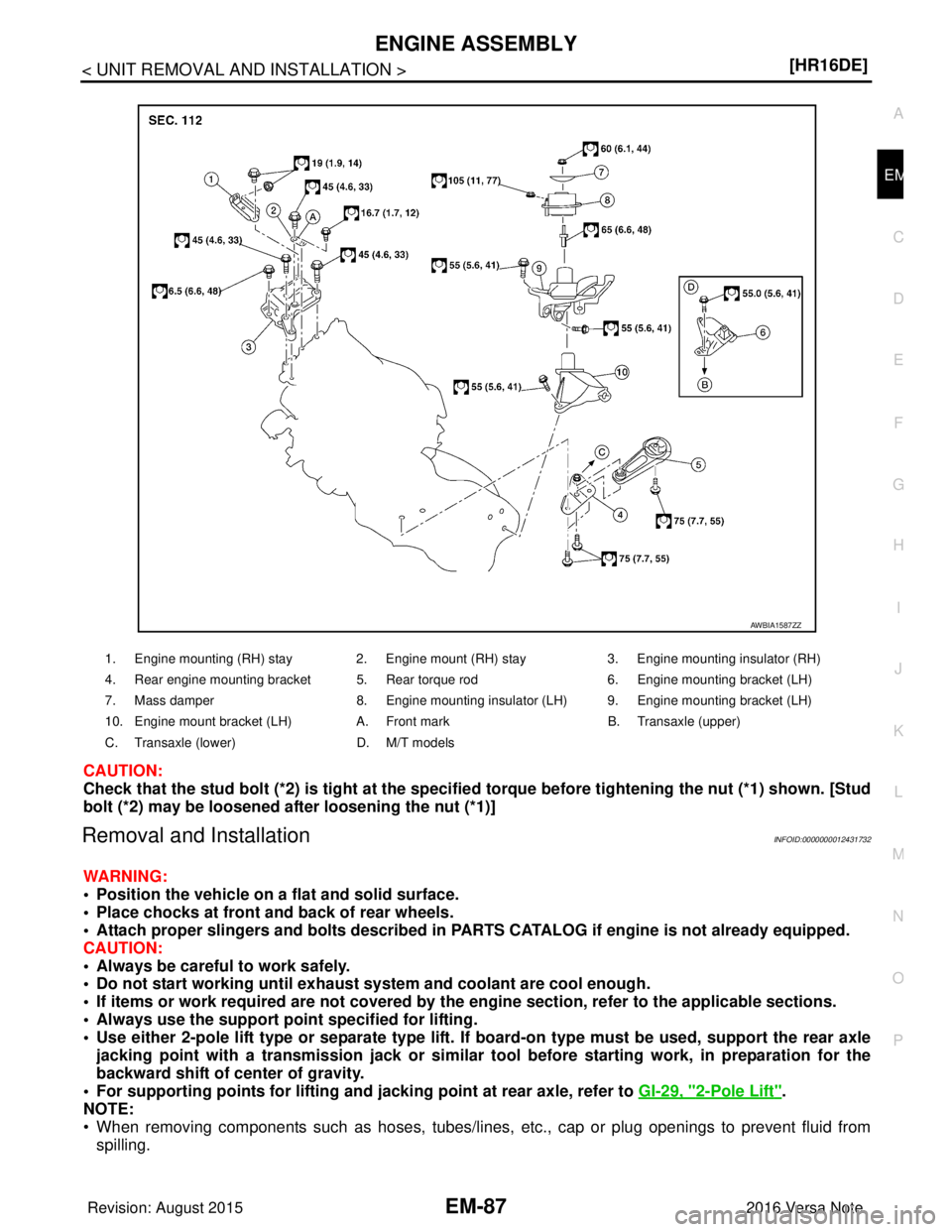

ENGINE ASSEMBLYEM-87
< UNIT REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CAUTION:
Check that the stud bolt (*2) is tigh
t at the specified torque before tightening the nut (*1) shown. [Stud
bolt (*2) may be loosened after loosening the nut (*1)]
Removal and InstallationINFOID:0000000012431732
WARNING:
• Position the vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• Attach proper slingers and bolts described in PARTS CATALOG if engine is not already equipped.
CAUTION:
• Always be careful to work safely.
• Do not start working until exhaust system and coolant are cool enough.
• If items or work required are not covered by th e engine section, refer to the applicable sections.
• Always use the support poin t specified for lifting.
• Use either 2-pole lift type or separate type lift. If board-on type must be used, support the rear axle
jacking point with a transmission jack or similar to ol before starting work, in preparation for the
backward shift of center of gravity.
• For supporting points for lifting and j acking point at rear axle, refer to GI-29, "
2-Pole Lift".
NOTE:
• When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from
spilling.
1. Engine mounting (RH) stay 2. Engine mount (RH) stay 3. Engine mounting insulator (RH)
4. Rear engine mounting bracket 5. Rear torque rod 6. Engine mounting bracket (LH)
7. Mass damper 8. Engine mounting insulator (LH) 9. Engine mounting bracket (LH)
10. Engine mount bracket (LH) A. Front mark B. Transaxle (upper)
C. Transaxle (lower) D. M/T models
AWBIA1587ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-88
< UNIT REMOVAL AND INSTALLATION >[HR16DE]
ENGINE ASSEMBLY
• Remove the engine and the transaxle assembly from the vehicle downward. Separate the engine and the
transaxle.
REMOVAL
1. Release fuel pressure. Refer to EC-137, "Work Procedure".
2. Drain engine coolant from radiator. Refer to CO-8, "
Draining Engine Coolant".
CAUTION:
• Perform this step when the engine is cold.
• Do not spill engine coolant on drive belts.
3. Remove the following parts: • Front wheels and tires (RH/LH). Refer to WT-48, "
Removal and Installation".
• Front fender protector (RH/LH). Refer to EXT-38, "
Exploded View".
• Drive belt. Refer to EM-16, "
Removal and Installation".
• Battery and battery tray. Refer to PG-70, "
Exploded View".
• Air duct (inlet), air duct, and air cleaner case assembly. Refer to EM-26, "
Removal and Installation".
• Radiator hose (upper and lower). Refer to CO-13, "
Exploded View".
• Exhaust front tube. Refer to EX-5, "
Exploded View".
4. Disconnect engine room harness connector at the ECM and CVT (if equipped). CAUTION:
Protect connectors against foreign materials during the operation by wrapping in a plastic bag.
5. Disconnect heater hoses. Refer to CO-13, "
Exploded View".
6. Disconnect fuel feed hose at engine side. Refer to EM-40, "
Exploded View".
7. Disconnect control linkage cable from transaxle. Refer to TM-20, "
Exploded View" (M/T models) and TM-
234, "Exploded View" (CVT models).
8. Disconnect clutch tube on transaxle side from clutch damper (M/T models). Refer to CL-15, "
Exploded
View".
9. Remove generator. Refer to CHG-29, "
Exploded View".
10. Disconnect vacuum hose at engine side.
11. Remove EVAP hoses at engine side.
12. Remove A/C compressor from the engine with the piping connected. Temporarily position the A/C com-
pressor on the vehicle side with a rope without placing a heavy load on the piping.
13. Remove ground cable at transaxle side.
14. Remove drive shafts (RH/LH). Refer to FAX-19, "
Removal and Installation".
15. Remove rear torque rod (1).
16. When engine can be hoisted, install engine slinger to cylinder head front left side (A) and rear right side (B) and support the
engine position with a suitable tool.
(2) : Rear engine mounting bracket
: Front
JSBIA0643ZZ
: Engine front
Slinger (A) bolts : 65 N·m (6.6 kg-m, 48 ft-lb)
Slinger (B) bolts : 25 N·m (2.6 kg-m, 18 ft-lb)
AWBIA1134GB
Revision: August 2015 2016 Versa Note

cardiagn.com

ENGINE ASSEMBLYEM-89
< UNIT REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
17. Use a suitable jack (A) to securely support the bottom of the
engine and the transaxle assembly.
CAUTION:
Put a piece of wood or an equivalent as the supporting sur-
face and secure in a stable condition.
18. Remove engine mounting insulator (RH) (1).
19. Remove engine through bolt-securing nut (C).
20. Carefully lower suitable jack, or raise lift to remove the engine and the transaxle assembly. Observe the following cautions:
CAUTION:
• Check that no part interferes with the vehicle side.
• Before and during lifting, always check if any harnesses are left connected.
• During removal, always be careful to prevent the vehic le from falling off the lift due to changes in
the center of gravity.
• If necessary, support the vehicle by setting jack or suitable tool at the rear.
21. Remove starter motor. Refer to STR-31, "
Exploded View".
22. Lift with a hoist and separate the engine from the transaxle assembly. Refer to TM-24, "
Exploded View"
(M/T models) and TM-259, "Exploded View" (CVT models).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not allow engine oil to get on engine mounting insulator. Be careful not to damage engine mount-
ing insulator.
• Check that each mounting insulator is seated properly, and tighten nuts and bolts.
• When installation directions are specified, instal l parts according to the direction marks on them,
referring to the figure of components. Refer to EM-86, "
Exploded View".
• Inspect vehicle alignment and adjust (If necessary). Refer to FSU-8, "
Adjustment".
Engine Mounting Insulator (RH)
• Tighten bolts include spec table showing installation torque for
engine mounting bracket in the numerical order as shown.
INSPECTION AFTER INSTALLATION
PBIC3223J
(2) : Engine mounting insulator (LH)
(A) : Engine front side
(B) : Transaxle side
JSBIA1223ZZ
: Front
JPBIA2809ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com
