NISSAN NOTE 2016 Service Repair Manual

EM-110
< UNIT DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
• Measure the deflection of flywheel contact surface to torque with a
suitable tool (A).
• Measure the deflection at 210 mm (8.27 in) diameter.
• If measured value is out of the standard, replace flywheel.
• If a trace of burn or discoloration is found on the surface, clean it with sandpaper.
CAUTION:
When measuring, keep magnetic fields (such as dial indicator
stand) away from signal plate of the rear end of crankshaft.
Limit : 0.45 mm (0.0177 in) or less.
PBIC4006E
Revision: August 2015
2016 Versa Note

cardiagn.com

HOW TO SELECT PISTON AND BEARINGEM-111
< UNIT DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
HOW TO SELECT PISTON AND BEARING
DescriptionINFOID:0000000012431739
• The identification grade stamped on each part is the
grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
• For reused or repaired parts, measure the dimens ion accurately. Determine the grade by comparing the
measurement with the values of each selection table.
• For details of the measurement method of each part , the reuse standards and the selection method of the
selective fitting parts, refer to the text for the appropriate part.
Connecting Rod BearingINFOID:0000000012431740
WHEN NEW CONNECTING ROD AND CRANKSHAFT ARE USED
1. Apply connecting rod big end diameter grade stamped (C) on connecting rod side face to the row in the “Connecting Rod
Bearing Selection Table”.
2. Apply crankshaft pin journal diameter grade stamped on crank-
shaft front side to the column in the “Connecting Rod Bearing
Selection Table”.
3. Read the symbol at the cross point of selected ro w and column in the “Connecting Rod Bearing Selection
Table”.
4. Apply the symbol obtained to the “Connecting Rod Bearing Grade Table” to select connecting rod bearing.
WHEN CONNECTING ROD AND CRANKSHAFT ARE REUSED
1. Measure the dimensions of the connecting rod big end diameter and crankshaft pin journal diameter indi-
vidually. Refer to EM-102, "
Inspection".
Selection points Selection parts Selection itemsSelection methods
Between cylinder block and
crankshaft Main bearing Main bearing grade (bearing
thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rod Connecting rod bearing Connecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer di-
ameter determine connecting
rod bearing selection.
(A) : Oil hole
(B) : Cylinder number
(D) : Front mark
PBIC3756E
(A) : Main journal diameter grade (No. 1 to 5 from left)
(B) : Crankshaft pin journal diameter grade (No. 1 to 4 from left)
PBIC3757E
Revision: August 2015
2016 Versa Note

cardiagn.com

EM-112
< UNIT DISASSEMBLY AND ASSEMBLY >[HR16DE]
HOW TO SELECT PISTON AND BEARING
2. Apply the measured dimension to the “Connecting Rod Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Connecting Rod Bearing Selection
Table”.
4. Apply the symbol obtained to the “Connecting Rod Bearing Grade Table” to select connecting rod bearing.
Connecting Rod Bearing Selection Table
Connecting Rod Bearing Grade Table
Undersize Bearings Usage Guide
• When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod bearings, use undersize (US) bearings.
• When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing
installed, and grind the crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
CAUTION:
JPBIA4823GB
Connecting Rod Bearing Grade Table : Refer to EM-125, "Connecting Rod Bearing".
Revision: August 2015 2016 Versa Note

cardiagn.com

HOW TO SELECT PISTON AND BEARINGEM-113
< UNIT DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
In grinding crankshaft pin to
use undersize bearings, keep the
fillet R (A) [0.8 - 1.2 mm (0.031 - 0.047 in)].
Main BearingINFOID:0000000012431741
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft Are Used
1. “Main Bearing Selection Table” rows correspond to main bearing
housing grade on left side of cylinder block.
• If there is a corrected stamp mark (B) on cylinder block, use itas a correct reference.
2. Apply main journal diameter grade stamped on crankshaft front side to column in the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
4. Apply the symbol obtained to the “Main B earing Grade Table” to select main bearing.
NOTE:
Service part is available as a set of both upper and lower.
When Cylinder Block and Crankshaft Are Reused
1. Measure the dimensions of the cylinder block ma in bearing housing inner diameter and crankshaft main
journal diameter individually. Refer to EM-102, "
Inspection".
2. Apply the measured dimension to the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
4. Apply the symbol obtained to the “Main B earing Grade Table” to select main bearing.
Bearing undersize table:
Refer to EM-125, "
Connecting Rod Bearing".

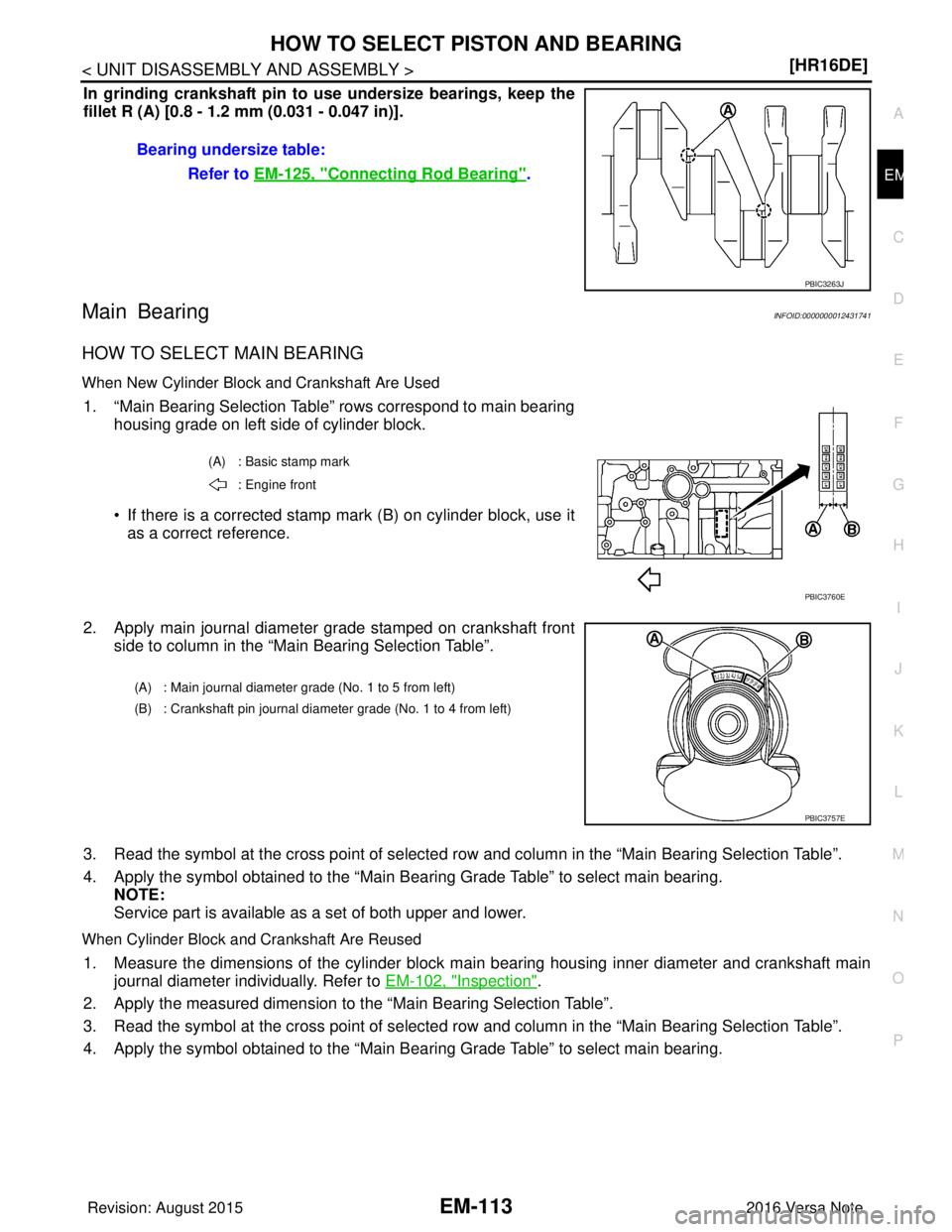

PBIC3263J
(A) : Basic stamp mark
: Engine front
PBIC3760E
(A) : Main journal diameter grade (No. 1 to 5 from left)
(B) : Crankshaft pin journal diameter grade (No. 1 to 4 from left)
PBIC3757E
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-114
< UNIT DISASSEMBLY AND ASSEMBLY >[HR16DE]
HOW TO SELECT PISTON AND BEARING

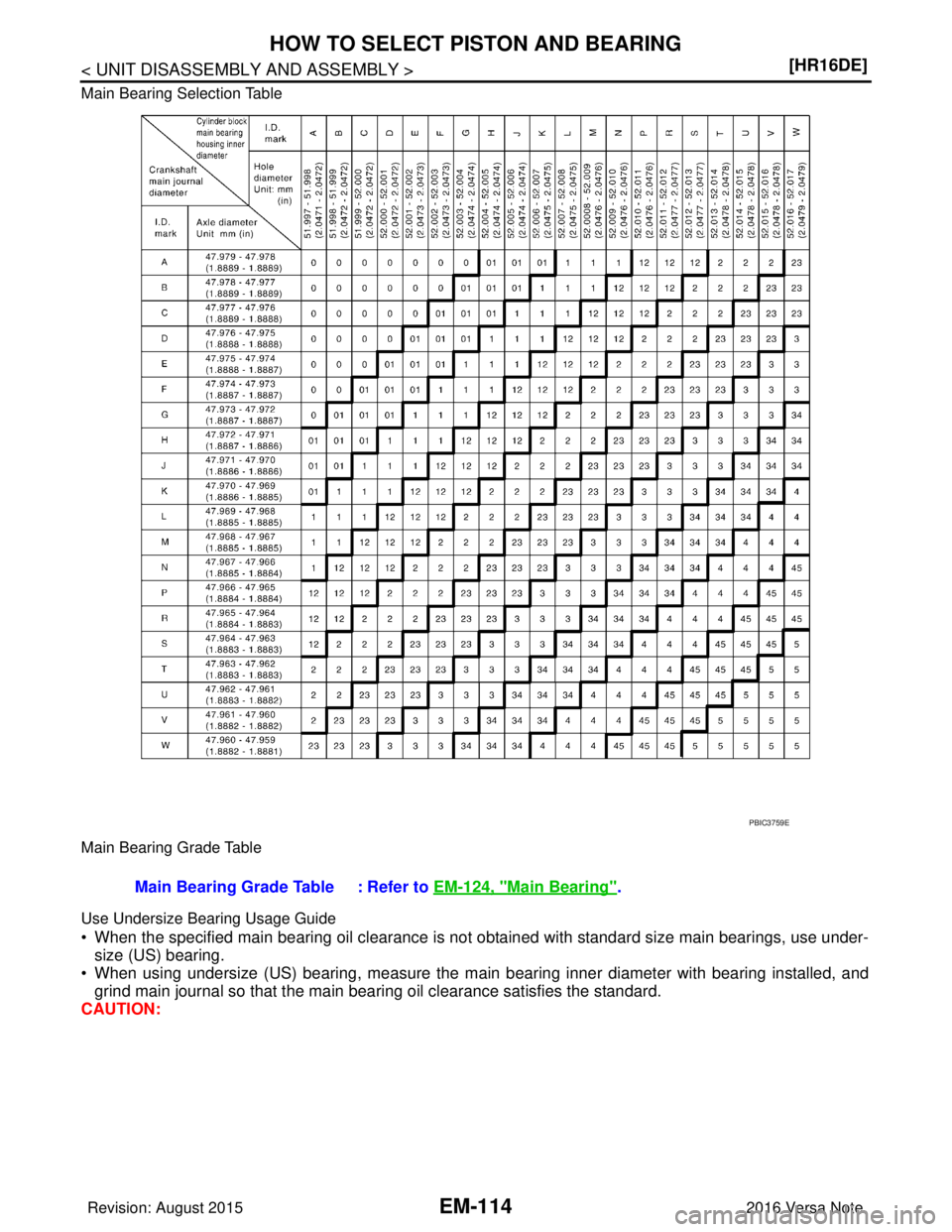

Main Bearing Selection Table
Main Bearing Grade Table
Use Undersize Bearing Usage Guide
• When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-
size (US) bearing.
• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and
grind main journal so that the main bearing oil clearance satisfies the standard.
CAUTION:
PBIC3759E
Main Bearing Grade Table : Refer to EM-124, "Main Bearing".
Revision: August 2015 2016 Versa Note

cardiagn.com

HOW TO SELECT PISTON AND BEARINGEM-115
< UNIT DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
In grinding crankshaft main jour
nal to use undersize bearings,
keep fillet (A) [0.8 - 1.2 mm (0.031 - 0.047 in)].
Bearing undersize table: Refer to EM-124, "
Main Bear-
ing".
PBIC3263J
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-116
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000012431742
GENERAL SPECIFICATIONS
Va l v e Ti m i n g
Unit: degree
( ): Valve timing control “ON”
Drive BeltINFOID:0000000012431743
DRIVE BELT
Belt Deflection
*: When engine is cold.Engine type
HR16DE
Cylinder arrangement In-line 4
Displacement cm
3 (cu in)1,598 (97.51)
Bore and stro ke mm (in)78.0× 83.6 (3.071 × 3.291)
Valve arrangement DOHC
Firing order 1-3-4-2
Number of piston rings Compression
2
Oil 1
Compression ratio 9.8:1
Compression pressure
kPa (kg/cm
2, psi) / 200 rpm Standard 1,510 (15.4, 219)
Minimum
1,270 (12.95, 184)
Differential limit between cylinders 100 (1.0, 14.5)

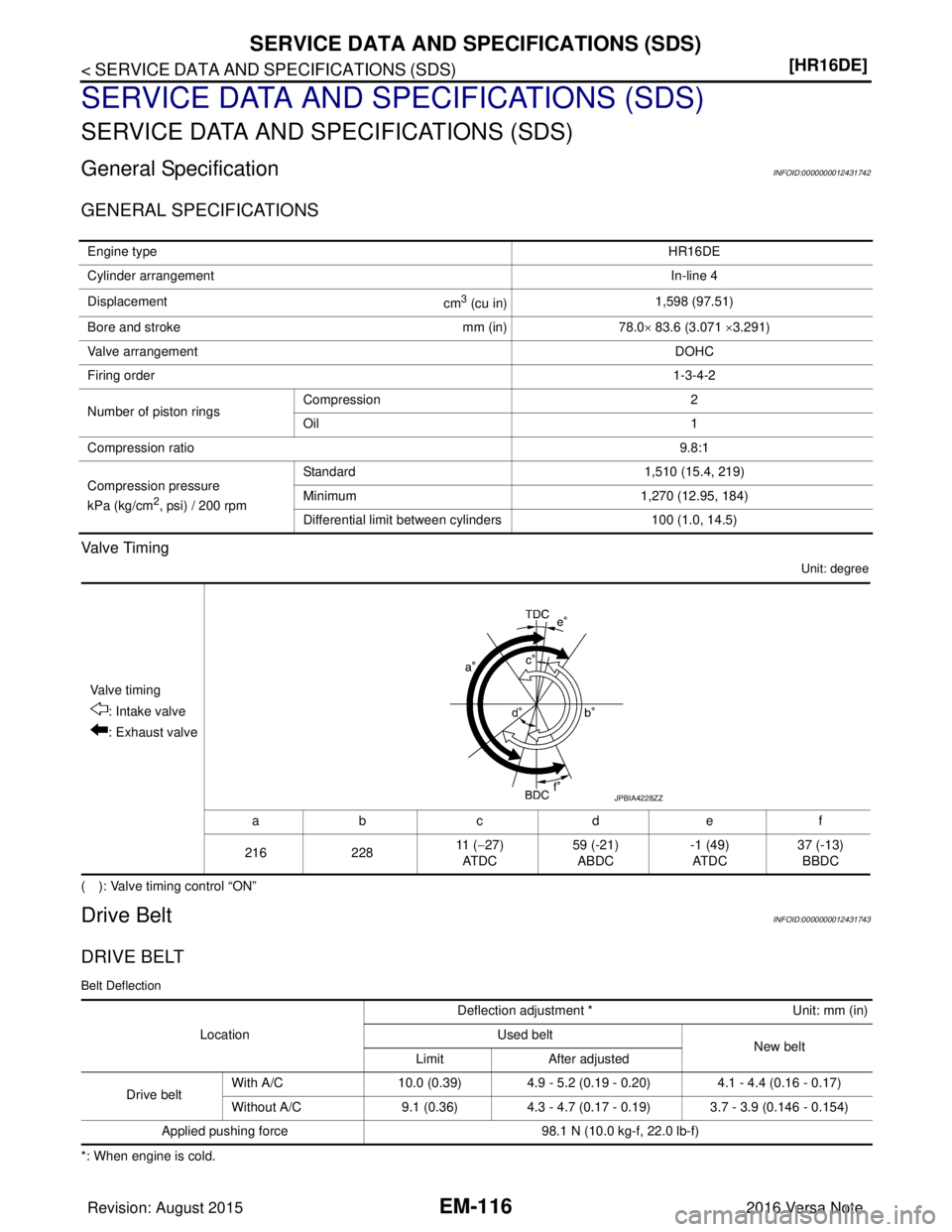

Va l v e t i m i n g
: Intake valve
: Exhaust valve
ab c d e f
216 228 11 (
−27)
AT D C 59 (-21)
ABDC -1 (49)
AT D C 37 (-13)
BBDC
JPBIA4228ZZ
Location Deflection adjustment *
Unit: mm (in)
Used belt New belt
Limit After adjusted
Drive belt With A/C
10.0 (0.39) 4.9 - 5.2 (0.19 - 0.20) 4.1 - 4.4 (0.16 - 0.17)
Without A/C 9.1 (0.36)4.3 - 4.7 (0.17 - 0.19) 3.7 - 3.9 (0.146 - 0.154)
Applied pushing force 98.1 N (10.0 kg-f, 22.0 lb-f)
Revision: August 2015 2016 Versa Note

cardiagn.com

SERVICE DATA AND SPECIFICATIONS (SDS)EM-117
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Belt Tension and Frequency
*: When engine is cold.
Spark PlugINFOID:0000000012431744
SPARK PLUG (PLATINUM-TIPPED TYPE)
*: Always check with the Parts Department for the latest parts information.
Exhaust ManifoldINFOID:0000000012431745
EXHAUST MANIFOLD
Unit: mm (in)
CamshaftINFOID:0000000012431746
CAMSHAFT
Unit: mm (in)
Location
Tension adjustment *
Unit: N (kg-f,
lb-f) Frequency adjustment * Unit: Hz
Used belt New beltUsed belt
New belt
Limit After adjusted Limit After adjusted
Drive belt With A/C
350 (35.7, 78.7)881 - 951
(89.9 - 97.0,
198.0 - 213.8)
1070 - 1138
(109.1 - 116.1, 240.5 - 255.8) 145.5 230.5 - 239.5 254 - 262
Without A/C 876 - 964
(89.4 - 98.3,
196.9 - 216.7)1064 - 1152
(108.5 - 117.5,
239.2 - 259.0)
162 256.5 - 268.5 282.5 - 293.5
Make
NGK
Standard type* PLZKAR6A-11
Gap (nominal) 1.1 mm (0.043 in)
Items Limit
Surface distortion 0.3 (0.012)
ItemsStandardLimit
Camshaft runout [TIR*] 0.02 (0.0008)0.1 (0.0039)
Camshaft cam height “A” Intake
41.705 - 41.895 (1.6419 - 1.6494) 41.505 (1.6341)
Exhaust 40.915 - 41.105 (1.6108 - 1.6183) 40.715 (1.6029)
Camshaft journal outer diameter No. 1
27.935 - 27.955 (1.0998 - 1.1006) —
No. 2, 3, 4, 5 24.950 - 24.970 (0.9822 - 0.9830) —
Camshaft bracket inner diameter No. 1
28.000 - 28.021 (1.1024 - 1.1032) —
No. 2, 3, 4, 5 25.000 - 25.021 (0.9842 - 0.9850) —
SEM671
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-118
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: Total indicator reading
VALVE LIFTER
Unit: mm (in)
VALVE CLEARANCE
Unit: mm (in)
1:Approximately 20
°C (68 °F)
2:Approximately 80 °C (176 °F)
AVAILABLE VALVE LIFTER
Unit: mm (in)
Camshaft journal oil clearance No. 1
0.045 - 0.086 (0.0018 - 0.0034) —
No. 2, 3, 4, 5 0.030 - 0.071 (0.0011 - 0.0027) —
Camshaft end play 0.075 - 0.153 (0.0029 - 0.0060)0.2 (0.0078)
Camshaft sprocket runout [TIR*] —0.1 (0.0039)
Items
StandardLimit
Items Standard
Valve lifter outer diameter 29.977 - 29.987 (1.1802 - 1.1806)
Valve lifter hole diameter 28 - 28.4 (1.024 - 1.1181)
Valve lifter clearance 0.013 - 0.044 (0.0005 - 0.0017)
Cold1Hot 2
Intake 0.26 - 0.34 (0.010 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.29 - 0.37 (0.011 - 0.015) 0.308 - 0.432 (0.012 - 0.017)
Identification mark (A) Thickness (B)
300 3.00 (0.1181)
302 3.02 (0.1189)
304 3.04 (0.1197)
306 3.06 (0.1205)
308 3.08 (0.1213)
310 3.10 (0.1220)
312 3.12 (0.1228)
314 3.14 (0.1236)
316 3.16 (0.1244)
318 3.18 (0.1252)
320 3.20 (0.1260)
322 3.22 (0.1268)
324 3.24 (0.1276)
JPBIA0170ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SERVICE DATA AND SPECIFICATIONS (SDS)EM-119
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Cylinder headINFOID:0000000012431747
CYLINDER HEAD
Unit: mm (in)
VALVE DIMENSIONS
Unit: mm (in)
326
3.26 (0.1283)
328 3.28 (0.1291)
330 3.30 (0.1299)
332 3.32 (0.1307)
334 3.34 (0.1315)
336 3.36 (0.1323)
338 3.38 (0.1331)
340 3.40 (0.1339)
342 3.42 (0.1346)
344 3.44 (0.1354)
346 3.46 (0.1362)
348 3.48 (0.1370)
350 3.50 (0.1378)
Identification mark (A)
Thickness (B)
ItemsLimit
Head surface distortion 0.1 (0.004)
Valve head diameter “D”Intake
31.6 - 31.9 (1.244 - 1.256)
Exhaust 25.3 - 25.6 (0.996 - 1.007)
Valve length “a” Intake
101.73 (4.01)
Exhaust 102.49 (4.04)
“b” Intake
1.0 (0.0393)
Exhaust 1.0 (0.0393)
“c” Intake
2.1 - 2.8 (0.0826 - 0.1102)
Exhaust 2.3 - 3.0 (0.0905 - 0.1181)
“c ′ ” Intake
3.0 (0.1181)
Exhaust –
“d ” Intake
4.965 - 4.980 (0.1954 - 0.1960)
Exhaust 4.955 - 4.970 (0.1950 - 0.1956)
Valve seat angle “ α” Intake
45°15 ′ - 45 °45 ′
Exhaust
PBIC3878E
Revision: August 2015 2016 Versa Note

cardiagn.com
