NISSAN NOTE 2016 Service Repair Manual

AV-126
< PRECAUTION >[NAVIGATION]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012432992
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Cautions in Removing Battery Terminal and AV Control Unit (Models with AV Control
Unit)
INFOID:0000000012432993
CAUTION:
Remove battery terminal and AV control unit 30 seconds or more after turning the ignition switch OFF.
NOTE:
After the ignition switch is turned OFF, the AV cont rol unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.
Precaution for Trouble DiagnosisINFOID:0000000012432994
AV COMMUNICATION SYSTEM
• Do not apply voltage of 7.0 V or higher to the measurement terminals.
• Use the tester with its open terminal voltage being 7.0 V or less.
• Be sure to turn ignition switch OFF and disconnect the battery cable from\
the negative terminal before checking the circuit.
Precaution for Harness RepairINFOID:0000000012432995
AV COMMUNICATION SYSTEM
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
PRECAUTIONSAV-127
< PRECAUTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
• Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in).]
• Do not perform bypass wire connections for the repair parts. (The spliced wire will become separated and the characteristics of
twisted line will be lost.)
Precaution for WorkINFOID:0000000012432996
• When removing or disassembling each component, be ca reful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusabl e part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
-Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
PKIA0306E
PKIA0307E
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-128
< PREPARATION >[NAVIGATION]

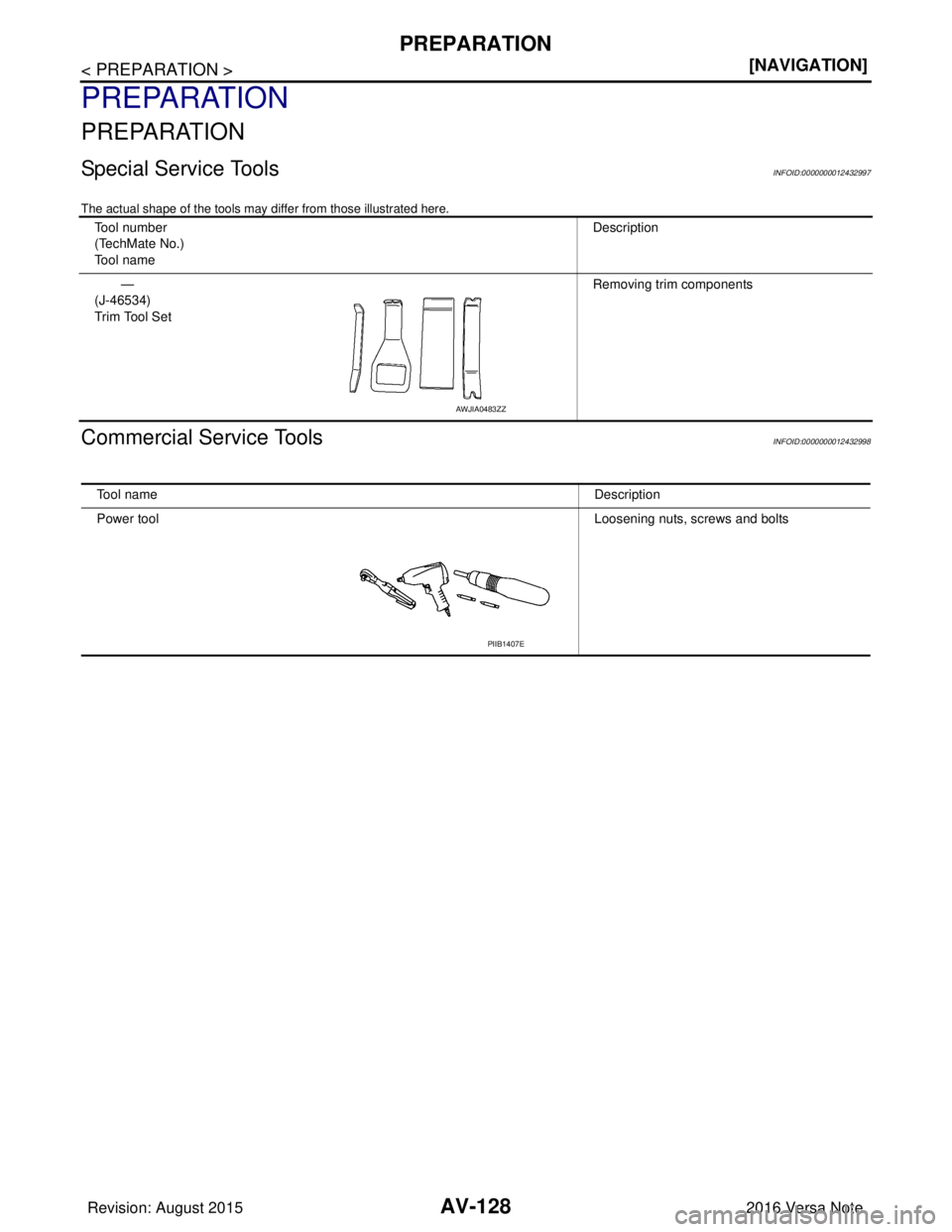

PREPARATION
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000012432997
The actual shape of the tools may differ from those illustrated here.
Commercial Service ToolsINFOID:0000000012432998
Tool number
(TechMate No.)
Tool nameDescription
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Tool name
Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
COMPONENT PARTSAV-129
< SYSTEM DESCRIPTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000012432999
A. Front of headliner B. View with passenger seat removed C. Center of back door
AWNIA3648ZZ
No.Component Function
1. Rod antenna Refer to AV- 1 3 2 , "
Rod Antenna, Antenna Amp., Satellite Antenna and Antenna
Feeder".
2. Antenna base (antenna amp. and satellite
antenna)
3. Rear door speaker RH Refer to AV- 1 3 0 , "
Spe ak ers".
4. Front door speaker RH
5. Front camera Refer to AV- 1 3 2 , "
Front Camera".
6. Front door speaker LH Refer to AV- 1 3 0 , "
Spe ak ers".
7. Side camera Refer to AV- 1 3 2 , "
Side Cameras".
8. Rear door speaker LH Refer to AV- 1 3 0 , "
Spe ak ers".
9. AV control unit Refer to AV- 1 3 0 , "
AV Control Unit".
10. GPS antenna Refer to AV- 1 3 4 , "
GPS Antenna".
11. Steering wheel audio control switches Refer to AV- 1 3 1 , "
Steering Wheel Audio Control Switches".
12. Steering angle sensor Refer to AV- 1 3 2 , "
Steering Angle Sensor".
13. USB interface and AUX in jack Refer to AV- 1 3 1 , "
USB Interface and AUX In Jack".
14. Microphone Refer to AV- 1 3 1 , "
Microphone".
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-130
< SYSTEM DESCRIPTION >[NAVIGATION]
COMPONENT PARTS
*: Around View Monitor is a parking aid/convenience feature. Around View Monitor cannot completely eliminate
blind spots. Around View Monitor may not detect ever y object and does not warn of moving objects. Always
check surroundings before moving vehicle. Around View Monitor is not a substitute for proper backing proce-
dures. Always turn to check what is behind you before backing up.
AV Control UnitINFOID:0000000012433000
Description
• A 5.8-inch QVGA display, an AM/FM electronic tuner radio, CD
drive, audio amplifier, Bluetooth
® module, camera controller and
navigation unit are integrated into the AV control unit.
• The 5.8-inch display is a high resolution monitor that includes touch panel functions.
• Music files stored in iPod
®*/USB memory can be played using the
separate USB interface.
*: iPod® is a registered trademark of Apple, Inc. All rights reserved.
SpeakersINFOID:0000000012433001
FRONT DOOR SPEAKER
• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.
• Sound signals are input from the AV control unit to output high, mid and low range sounds.
REAR DOOR SPEAKER
• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.
• Sound signals are input from the AV control unit to output high, midand low range sounds.
15. Around View®* Monitor control unit (if
equipped) Refer to AV- 1 3 1 , "Around View Monitor Control Unit".
16. Rear view camera Refer to AV- 1 3 2 , "
Rear View Camera".
No.
Component Function
ALNIA1524ZZ
JPNIA1454ZZ
JPNIA1454ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
COMPONENT PARTSAV-131
< SYSTEM DESCRIPTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
USB Interface and AUX In JackINFOID:0000000012433002
• USB Interface and AUX in jack is installed in the console.
•iPod
® and USB memory can be connected to the AV control unit
through the USB interface.
• An external audio device can be connected to the AV control unit through the AUX in jack.
Steering Wheel Audio Control SwitchesINFOID:0000000012433003
• Steering wheel audio control switches are installed in the steering
wheel.
• Operations for audio and hands-free phone are possible.
• Switch is connected to the AV control unit.
MicrophoneINFOID:0000000012433004
• The microphone is installed in the roof in front of the map lamp
assembly.
• Power is supplied from the AV control unit.
Around View Monitor Control UnitINFOID:0000000012433005
• The around view monitor control unit is installed underneath the passenger seat.
• Vehicle width guide lines, predicted course line, vehicle front guid- ing line and vehicle side line, and vehicle icon are displayed and
combined with camera images.
ALNIA1523ZZ
ALNIA1659ZZ
JPNIA1448ZZ
JSNIA5395ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-132
< SYSTEM DESCRIPTION >[NAVIGATION]
COMPONENT PARTS
Rear View Camera
INFOID:0000000012433006
• The rear view camera is installed in the back door finisher.
• Power is supplied from the around view monitor control unit (with around view monitor).
• Power is supplied from the AV control unit (without around view monitor).
Side CamerasINFOID:0000000012433007
• The side cameras are installed in the door mirrors.
• Power is supplied from the around view monitor control unit.
Front Camera INFOID:0000000012433008
• The front camera is installed in the front grille.
• Power is supplied from the around view monitor control unit.
Steering Angle SensorINFOID:0000000012433009
• Steering sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictivecourse line via CAN communication.
Rod Antenna, Antenna Amp., Sate llite Antenna and Antenna FeederINFOID:0000000012433010
RADIO ANTENNA AND SATELLITE ANTENNA
JPNIA1452ZZ
JSNIA5397ZZ
JSNIA5398ZZ
JSNIA1571ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
COMPONENT PARTSAV-133
< SYSTEM DESCRIPTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna
amp. and satellite antenna are built into the antenna base.
ANTENNA FEEDER LAYOUT
AWNIA3133GB
1. Antenna base (antenna amp. and
satellite antenna) 2. Rod Antenna 3. M351
4. M352 5. M110, M3536. M67, M350
7. M111 8. M73
ALNIA1520ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-134
< SYSTEM DESCRIPTION >[NAVIGATION]
COMPONENT PARTS
GPS Antenna
INFOID:0000000012433011
• GPS antenna is installed in the instrument panel, behind the com- bination meter.
• Power is supplied from the AV control unit.
SD CardINFOID:0000000012433012
• Map data is memorized in the SD card.
• Map data is sent to the AV control unit from the SD slot.
JSNIA3303ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
SYSTEMAV-135
< SYSTEM DESCRIPTION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
SYSTEM
System DescriptionINFOID:0000000012433013
SYSTEM DIAGRAM
AUDIO SYSTEM
The audio system consists of the following component:
• AV control unit
• Front door speakers
• Rear door speakers
• Steering wheel audio control switches
• USB interface and AUX in jack
• Antenna base (antenna amp. and satellite antenna)
• Rod antenna
When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.
and sent to the AV control unit. The AV control unit then sends audio signals to the front door speakers and
rear door speakers.
Refer to Owner's Manual for audio system operating instructions.
NAVIGATION SYSTEM
Description
• The navigation system can be operated by control panel of the AV control unit and display (touch panel) of
the AV control unit.
• Guide sound during the operation of the navigation system is output from AV control unit to front speakers.
AWNIA4136GB
