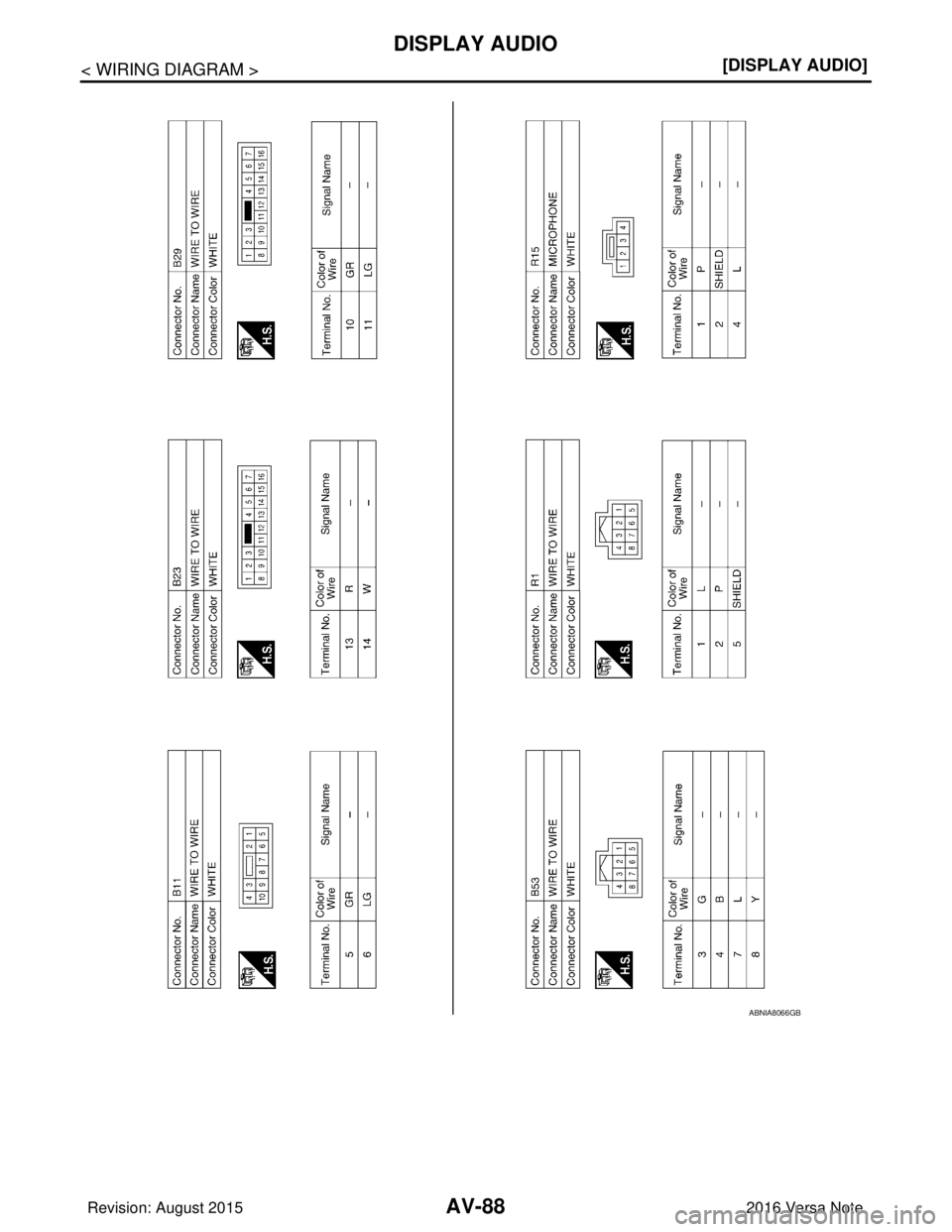

ABNIA8066GB
Revision: August 2015
2016 Versa Note

cardiagn.com

AV
DISPLAY AUDIOAV-89

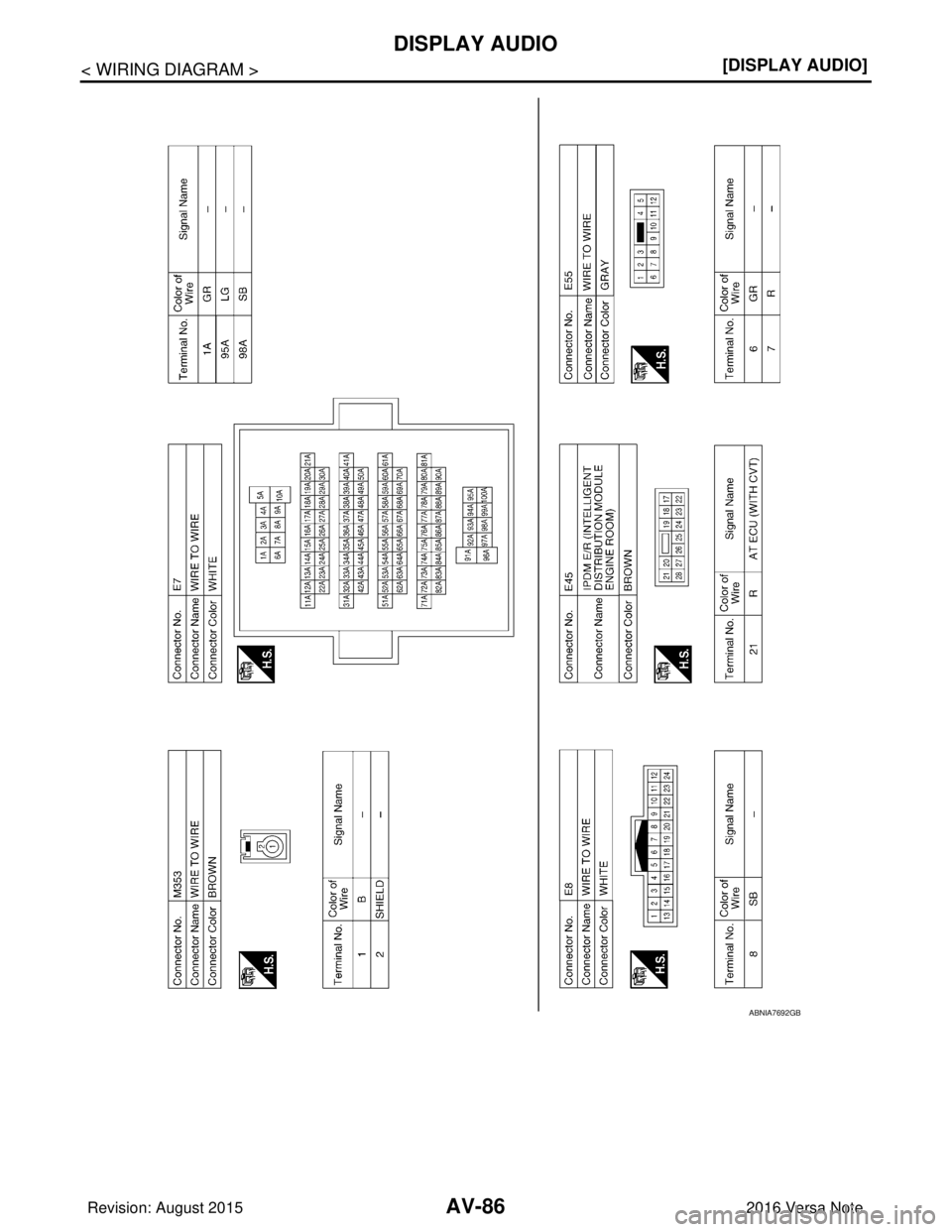

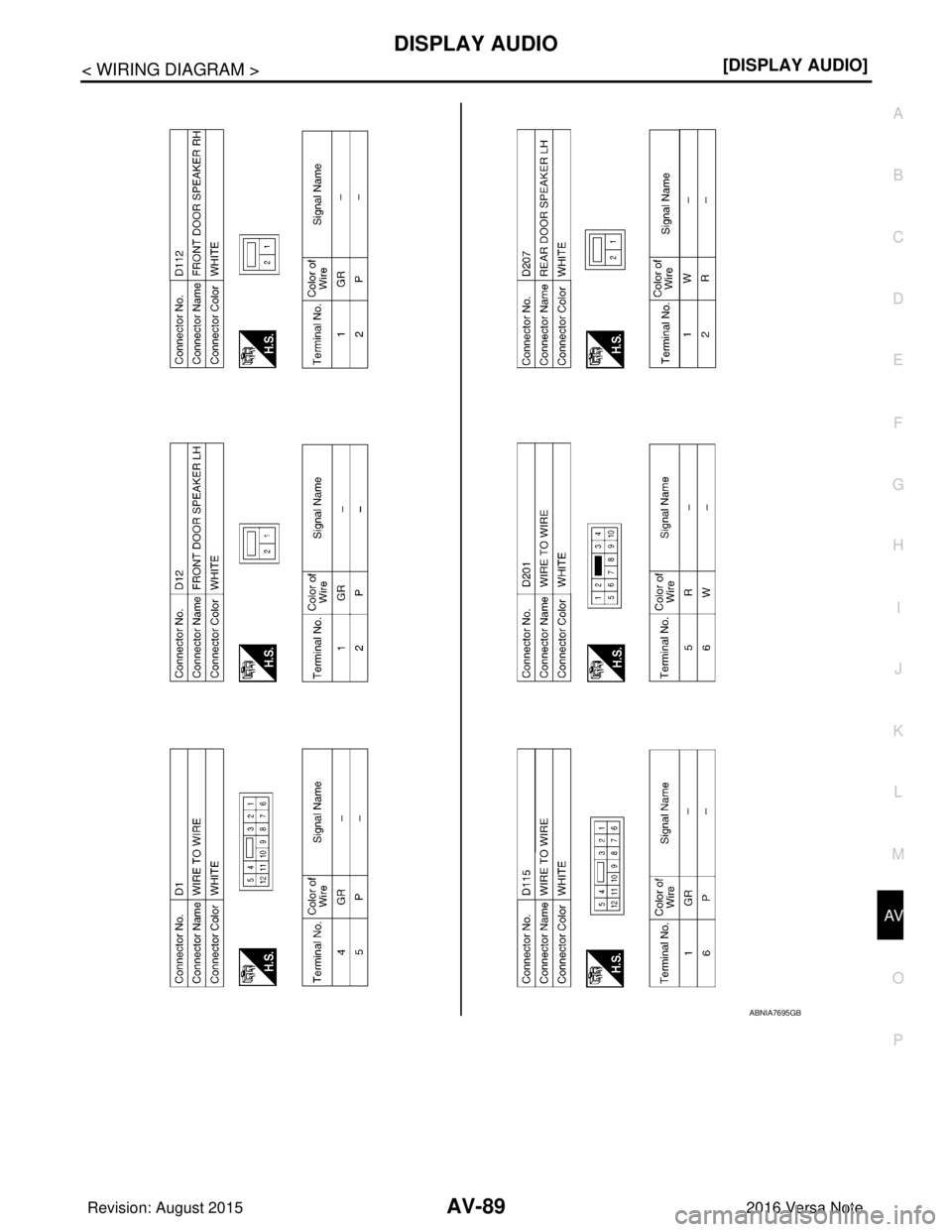

< WIRING DIAGRAM > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA7695GB
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-90

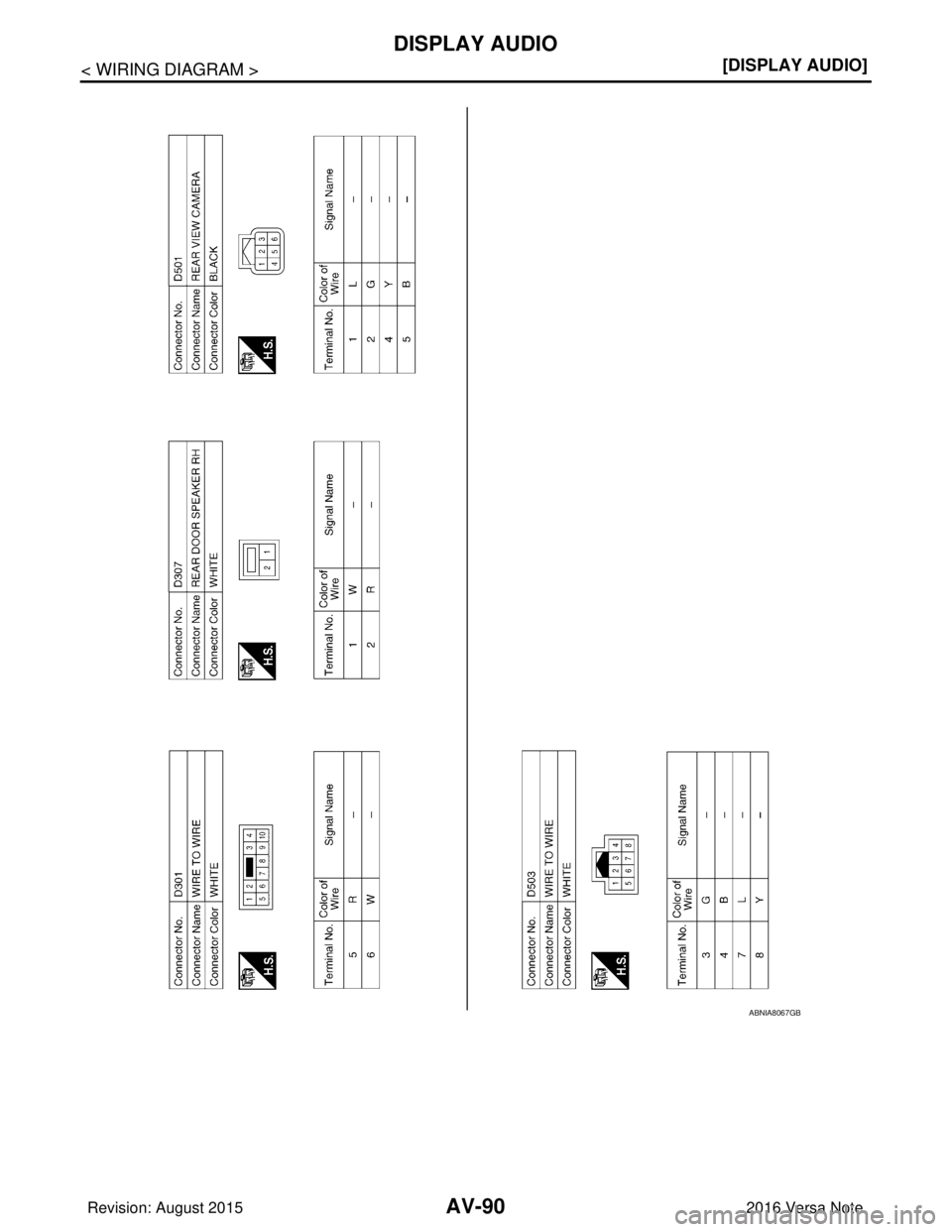

< WIRING DIAGRAM >[DISPLAY AUDIO]
DISPLAY AUDIO
ABNIA8067GB
Revision: August 2015
2016 Versa Note

cardiagn.com

AV
DIAGNOSIS AND REPAIR WORKFLOWAV-91
< BASIC INSPECTION > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000012432964
OVERALL SEQUENCE
DETAILED FLOW

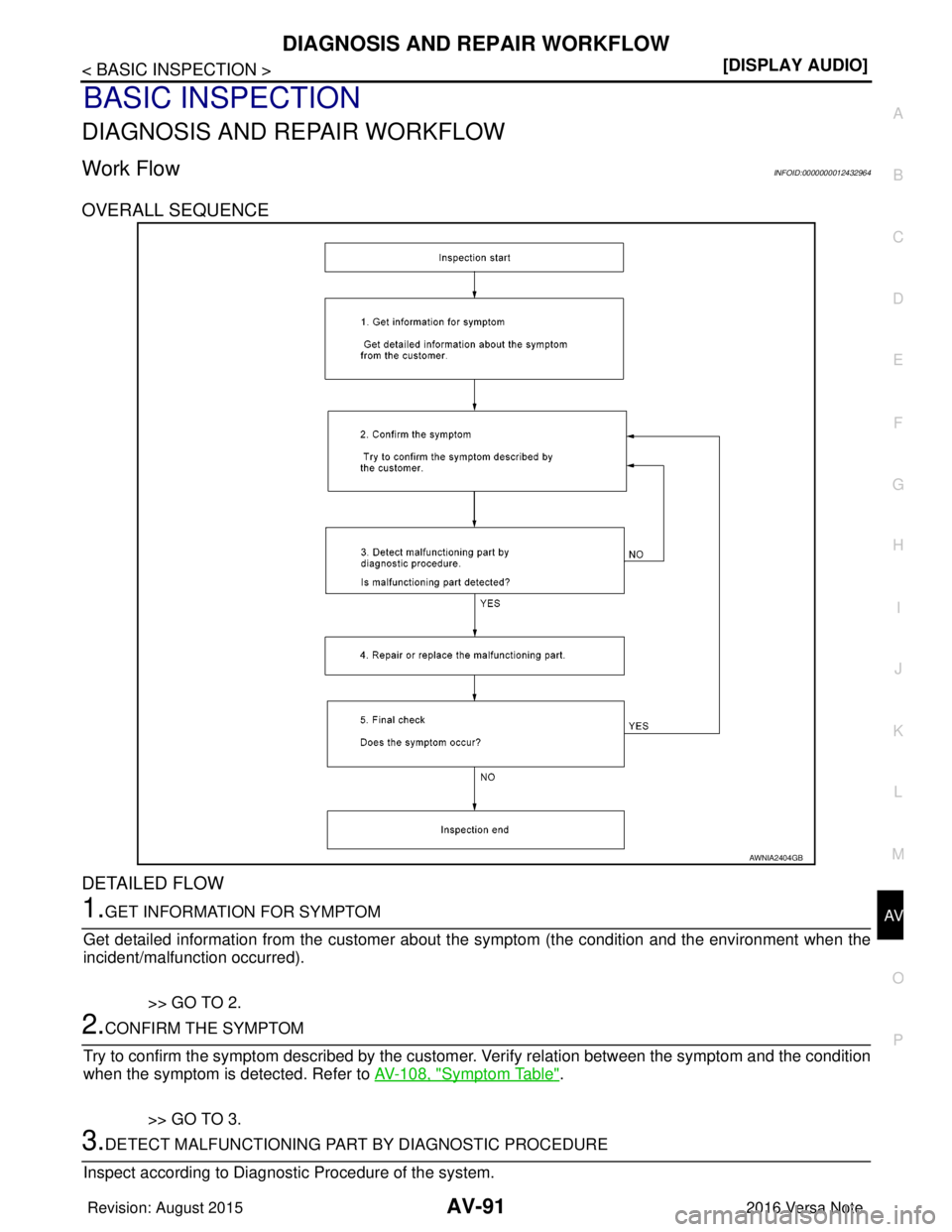

1.GET INFORMATION FOR SYMPTOM
Get detailed information from the customer about t he symptom (the condition and the environment when the
incident/malfunction occurred).
>> GO TO 2.
2.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition
when the symptom is detected. Refer to AV-108, "
Symptom Table".
>> GO TO 3.
3.DETECT MALFUNCTIONING PA RT BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
AWNIA2404GB
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-92
< BASIC INSPECTION >[DISPLAY AUDIO]
DIAGNOSIS AND REPAIR WORKFLOW
Is malfunctioning part detected?
YES >> GO TO 4.
NO >> GO TO 2.
4.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors di sconnected during Diagnostic Procedure.
>> GO TO 5.
5.FINAL CHECK
Refer to confirmed symptom in step 2, and ma ke sure that the symptom is not detected.
Was the repair confirmed?
YES >> Inspection End.
NO >> GO TO 2.
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
INSPECTION AND ADJUSTMENTAV-93
< BASIC INSPECTION > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
INSPECTION AND ADJUSTMENT
REGISTRATION (AUDIO UNIT)
REGISTRATION (AUDIO UNIT) : DescriptionINFOID:0000000012432965
AFTER REPLACEMENT
If the audio unit is replaced with a new audio unit, the new audio unit must be registered using the Bluetooth D/
C(serial #).
CAUTION:
If the new audio unit Bluetooth D/C(serial #) is not registered, the “APPS” mode will not function.
REGISTRATION (AUDIO UN IT) : Work ProcedureINFOID:0000000012432966
1.RECORD BLUETOOTH D/C(SERIAL #) FOR REPLACEMENT AUDIO UNIT
1. Turn ignition switch ON.
2. Turn audio unit OFF.

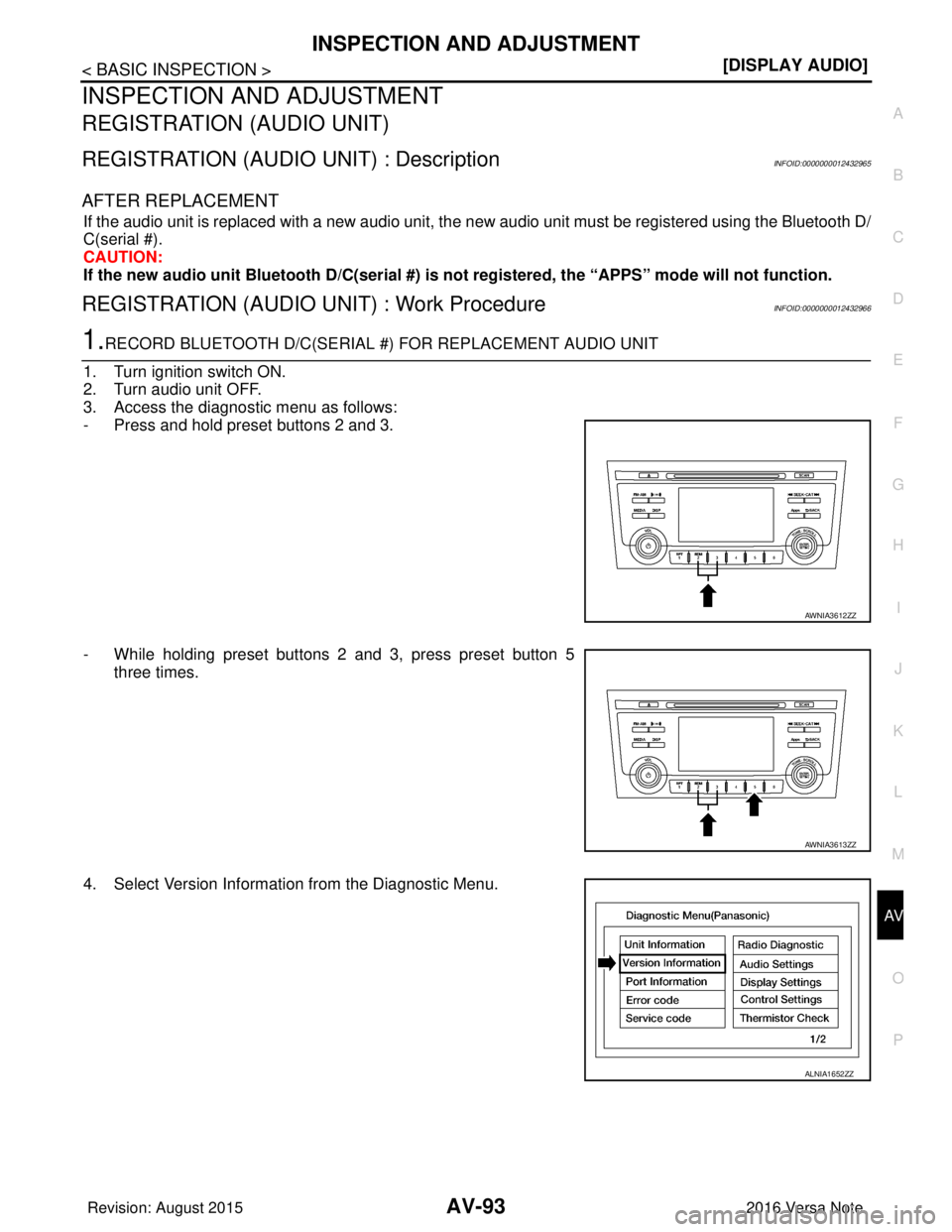

3. Access the diagnostic menu as follows:
- Press and hold preset buttons 2 and 3.
- While holding preset buttons 2 and 3, press preset button 5 three times.
4. Select Version Information from the Diagnostic Menu.
AWNIA3612ZZ
AWNIA3613ZZ
ALNIA1652ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-94
< BASIC INSPECTION >[DISPLAY AUDIO]
INSPECTION AND ADJUSTMENT
5. Scroll through the menu pages to Bluetooth D/C(serial #) and
record the number displayed.
>> GO TO 2.
2.REGISTER REPLACEMENT AUDIO UNIT
Register the replacement audio unit by contac ting NISSAN Owner Services. Refer to TSB.
>> GO TO 3.
3.OPERATION CHECK
Verify that the audio unit “APP S” function operates normally.
>> Work End.
ALNIA1653ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
POWER SUPPLY AND GROUND CIRCUITAV-95
< DTC/CIRCUIT DIAGNOSIS > [DISPLAY AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
DTC/CIRCUIT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
AUDIO UNIT
AUDIO UNIT : Diagnosis ProcedureINFOID:0000000012432967
Regarding Wiring Diagram information, refer to AV-80, "Wiring Diagram".
1.CHECK FUSE
Check that the following fuses are not blown.
Are the fuses blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect audio unit connector M45.
3. Check voltage between audio unit connector M45 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connectors.
3.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect audio unit connector M40.
3. Check continuity between audio unit connectors and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connectors.
Terminal No. Signal name Fuse No.
7 ACC power supply 18 (10A)
19 Battery power supply 29 (20A)
Audio unit
GroundCondition Vo l ta g e
(Approx.)
Connector Terminal
M45 7
—Ignition switch: ON
Battery voltage
19 Ignition switch: OFF
Audio unit
GroundContinuity
Connector Terminal
M45 20
—Y es
M40 44
46
48
