EXT-4
< PRECAUTION >
PRECAUTIONS
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirtyarea.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note

cardiagn.com

PREPARATIONEXT-5
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
PREPARATION
PREPARATION

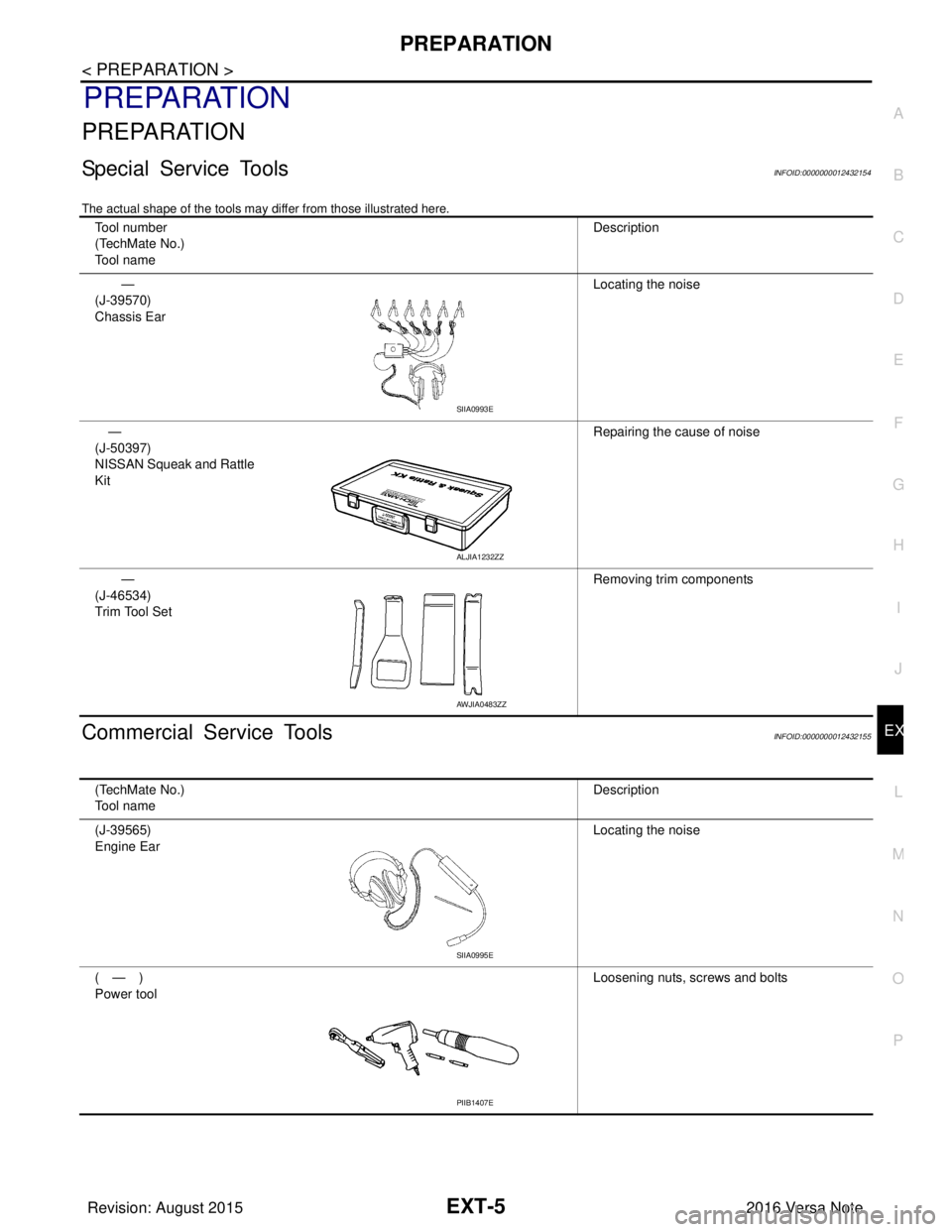

Special Service ToolsINFOID:0000000012432154
The actual shape of the tools may di ffer from those illustrated here.
Commercial Service ToolsINFOID:0000000012432155
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-50397)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
—
(J-46534)
Trim Tool Set Removing trim components
SIIA0993E
ALJIA1232ZZ
AWJIA0483ZZ
(TechMate No.)
Tool name
Description
(J-39565)
Engine Ear Locating the noise
(—)
Power tool Loosening nuts, screws and bolts
SIIA0995E
PIIB1407E
Revision: August 2015
2016 Versa Note

cardiagn.com

EXT-6
< PREPARATION >
CLIP LIST
CLIP LIST

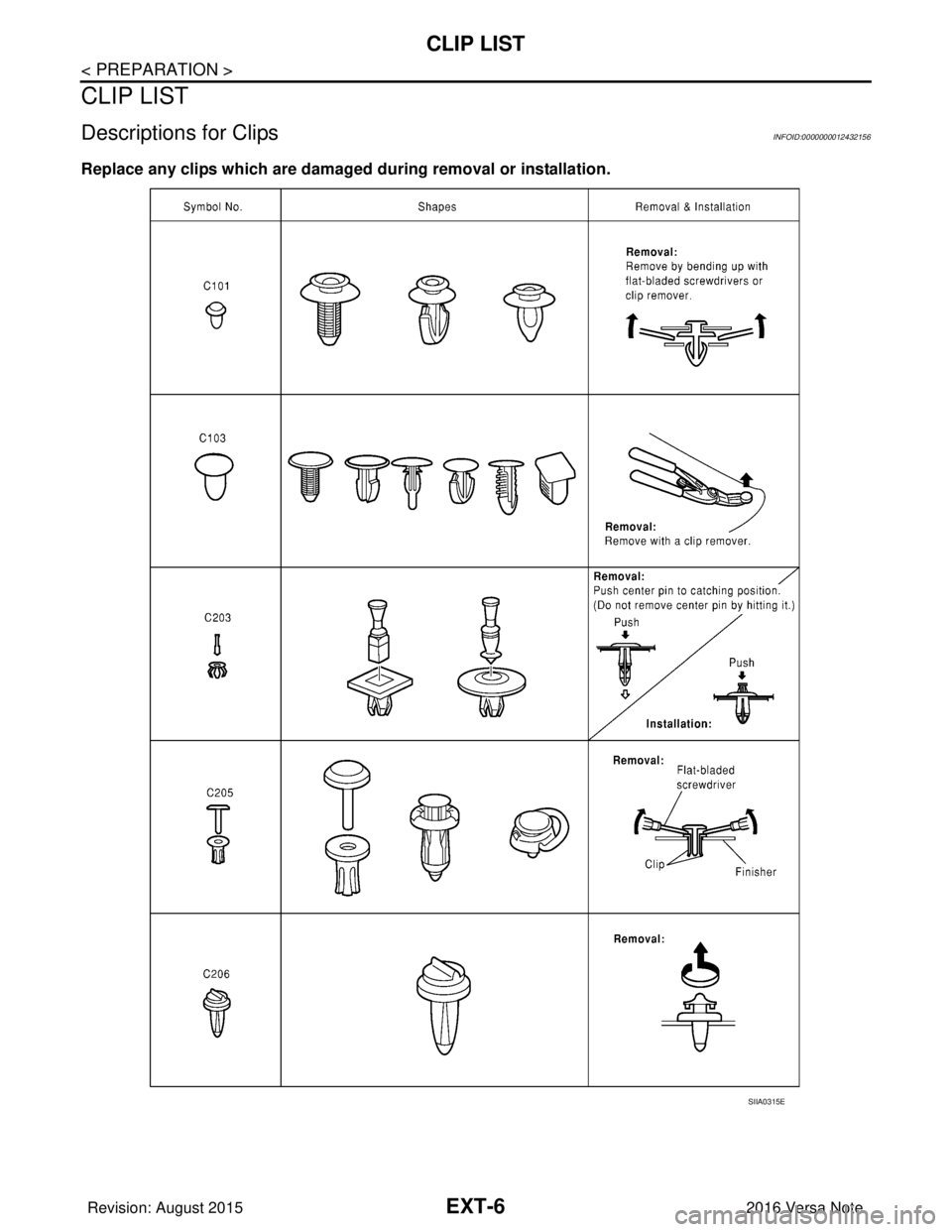

Descriptions for ClipsINFOID:0000000012432156
Replace any clips which are damaged during removal or installation.
SIIA0315E
Revision: August 2015 2016 Versa Note

cardiagn.com

CLIP LISTEXT-7
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
SIIA0316E
Revision: August 2015 2016 Versa Note

cardiagn.com

EXT-8
< PREPARATION >
CLIP LIST

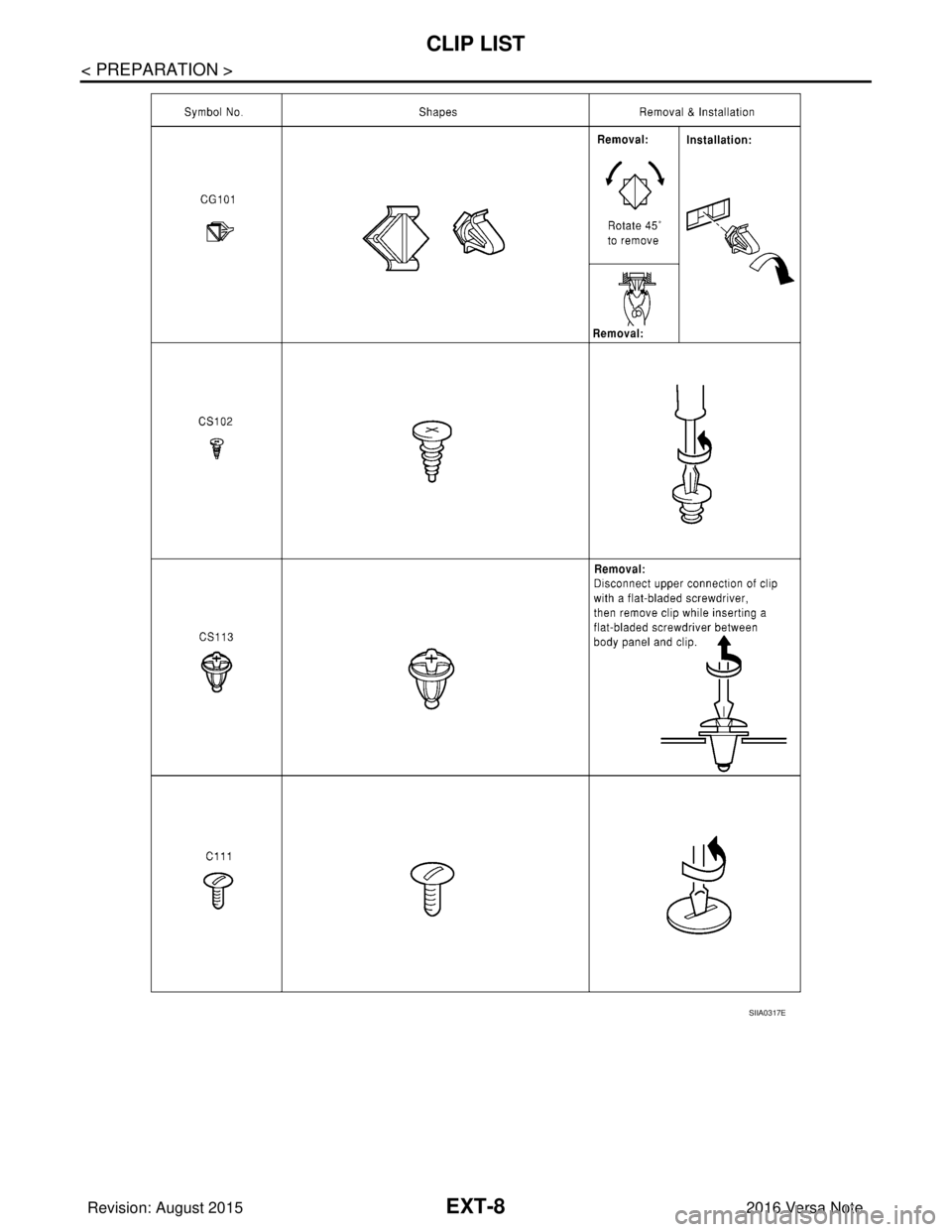

SIIA0317E
Revision: August 20152016 Versa Note

cardiagn.com

CLIP LISTEXT-9
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P

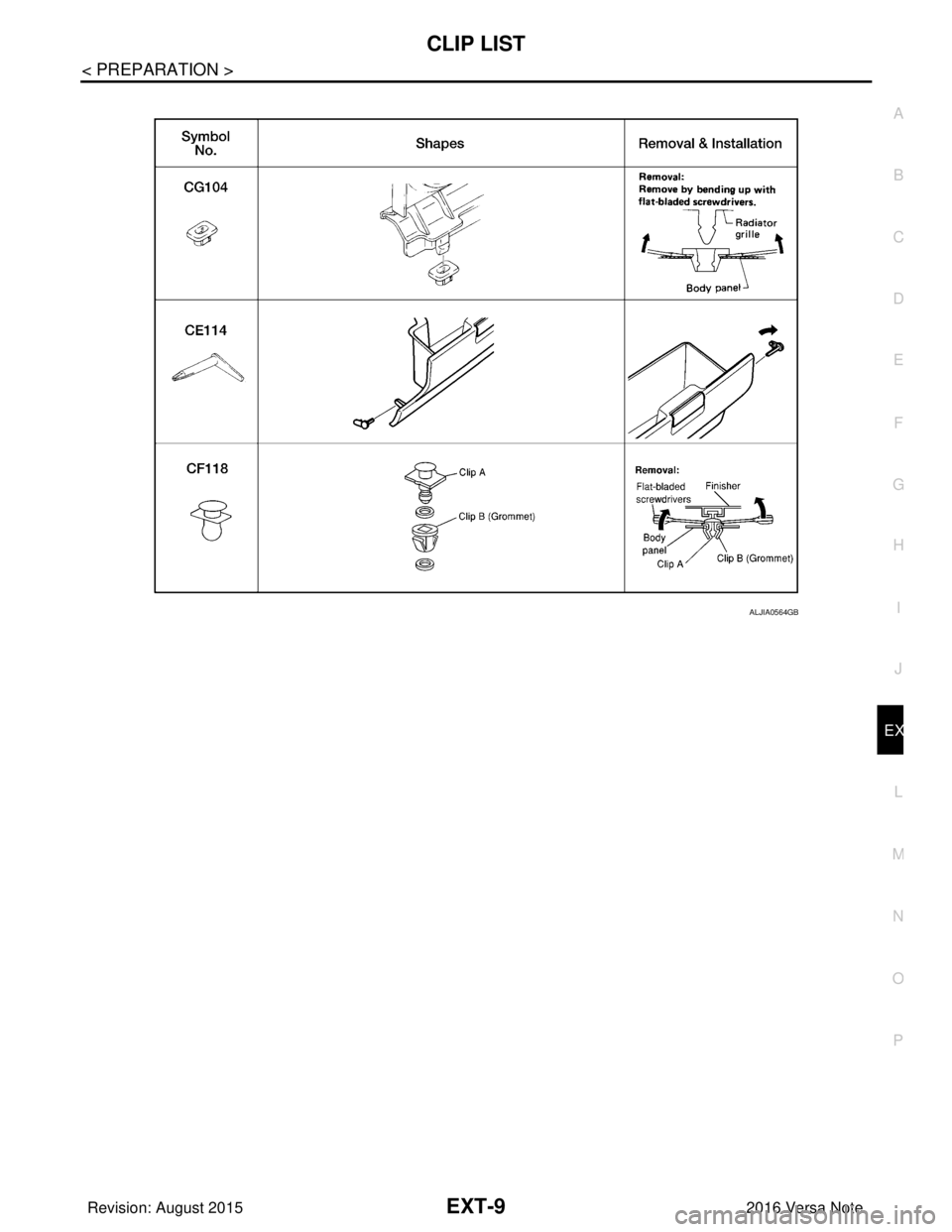

ALJIA0564GB
Revision: August 2015 2016 Versa Note

cardiagn.com

EXT-10
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS

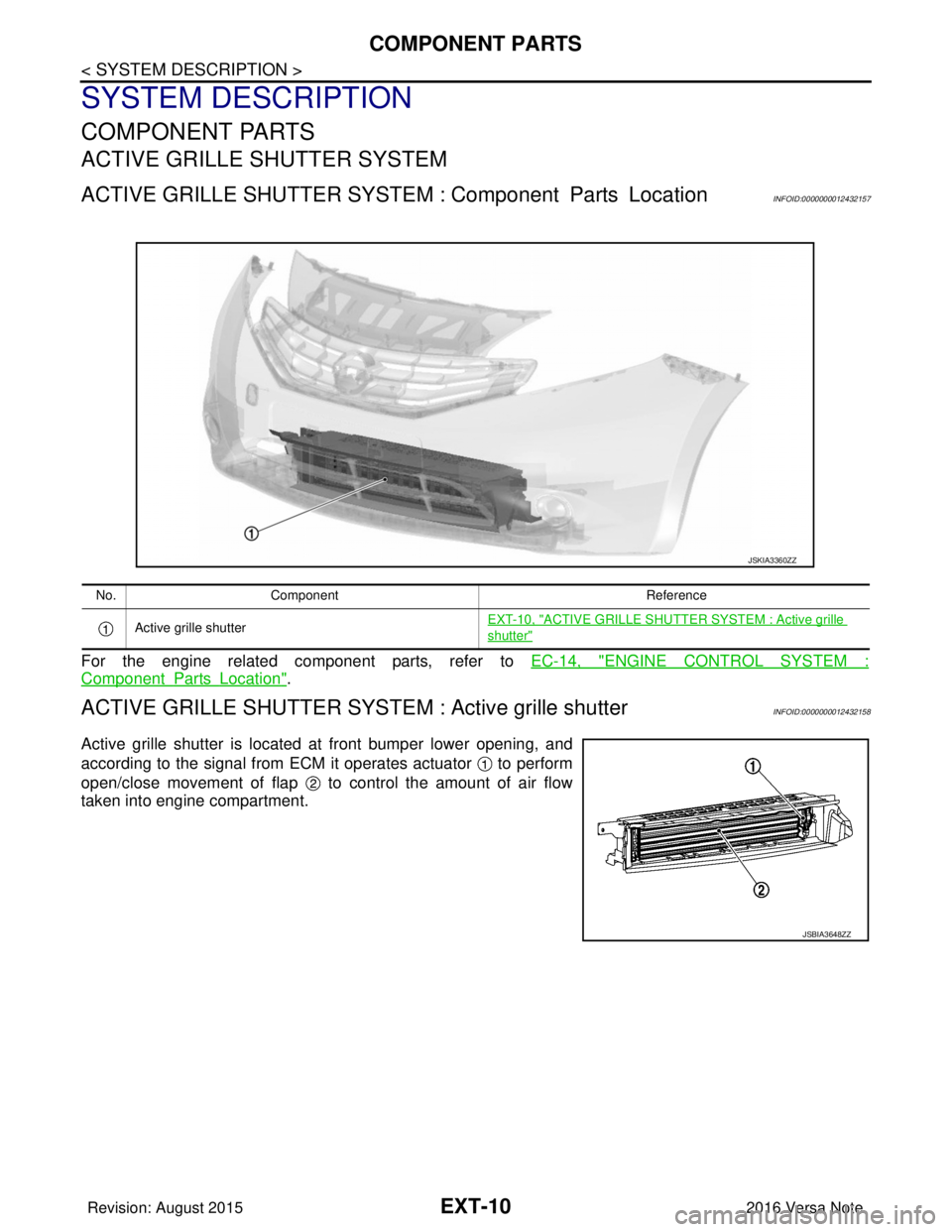

ACTIVE GRILLE SHUTTER SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM : Component Parts LocationINFOID:0000000012432157
For the engine related component parts, refer to EC-14, "ENGINE CONTROL SYSTEM :
ComponentPartsLocation".
ACTIVE GRILLE SHUTTER SYSTEM : Active grille shutterINFOID:0000000012432158
Active grille shutter is located at front bumper lower opening, and
according to the signal from ECM it operates actuator to perform
open/close movement of flap to control the amount of air flow
taken into engine compartment.
JSKIA3360ZZ
No.Component Reference
Active grille shutter EXT-10, "
ACTIVE GRILLE SHUTTER SYSTEM : Active grille
shutter"
JSBIA3648ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

SYSTEMEXT-11
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM

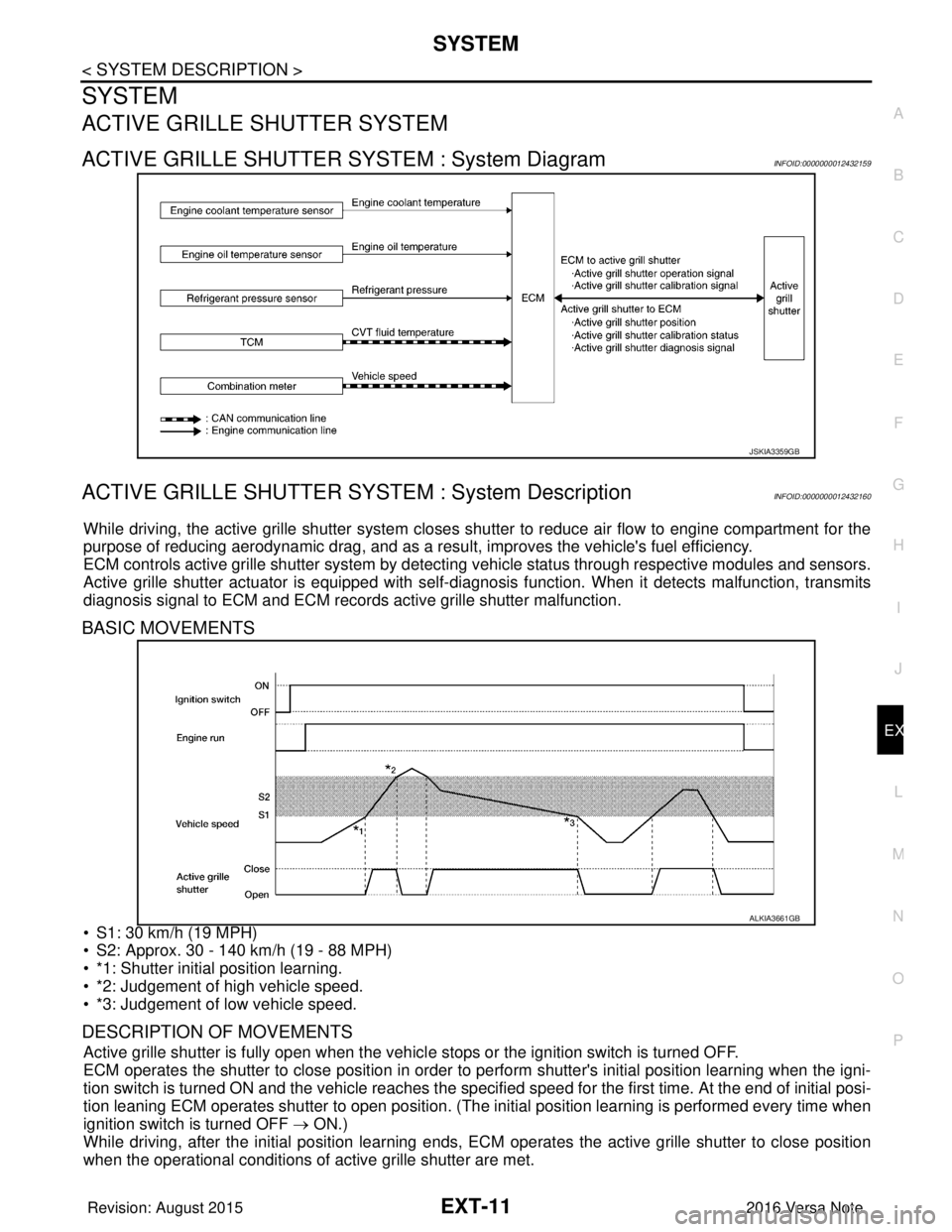

ACTIVE GRILLE SHUTTER SYSTEM : System DiagramINFOID:0000000012432159
ACTIVE GRILLE SHUTTER SYSTEM : System DescriptionINFOID:0000000012432160
While driving, the active grille shutter system closes shutter to reduce air flow to engine compartment for the
purpose of reducing aerodynamic drag, and as a resu lt, improves the vehicle's fuel efficiency.
ECM controls active grille shutter system by detecting vehicle status through respective modules and sensors.
Active grille shutter actuator is equipped with self-d iagnosis function. When it detects malfunction, transmits
diagnosis signal to ECM and ECM records active grille shutter malfunction.
BASIC MOVEMENTS
• S1: 30 km/h (19 MPH)
• S2: Approx. 30 - 140 km/h (19 - 88 MPH)
• *1: Shutter initial position learning.
• *2: Judgement of high vehicle speed.
• *3: Judgement of low vehicle speed.
DESCRIPTION OF MOVEMENTS
Active grille shutter is fully open when the vehicl e stops or the ignition switch is turned OFF.
ECM operates the shutter to close position in order to perform shutter's initial position learning when the igni-
tion switch is turned ON and the vehicle reaches the specified speed for the first time. At the end of initial posi-
tion leaning ECM operates shutter to open position. (The in itial position learning is performed every time when
ignition switch is turned OFF → ON.)
While driving, after the initial position learning ends, EC M operates the active grille shutter to close position
when the operational conditions of active grille shutter are met.
JSKIA3359GB
ALKIA3661GB
Revision: August 2015 2016 Versa Note

cardiagn.com

EXT-12
< SYSTEM DESCRIPTION >
SYSTEM
While driving at high speed, ECM operates the shutter to open position when the vehicle reaches the specified
speed in order to prevent the shutte r from shutting up by wind resistance.
When the vehicle speed is reduced below the specified speed ECM operates active grille shutter to open posi-
tion.
ACTIVE GRILLE SHUTTER OPERATIONAL CONDITIONS
ECM operates active grille shutter to close position when following a ll conditions are met.
ECM operates active grille shutter to open positi on when one of the following conditions is met.
Item Status
Active grille shutter initial position learning Complete
Vehicle speed Approx. 30 - 140 km/h (19 - 88 MPH)
Engine coolant temperature Approx. less than 95°C (203 °F)
Engine oil temperature Approx. less than 140°C (284 °F)
CVT fluid temperature Approx. less than 135°C (275 °F)
Cooling fan OFF
Refrigerant pressure 0.78 MPa (7.95 kg/cm
2, 113.1 psi) or less
Malfunction of engine coolant temperature sensor system Not detected
Malfunction of engine oil temperature sensor system Not detected
Malfunction of vehicle speed sensor system Not detected
Malfunction of CAN communication system Not detected
ItemStatus
Vehicle speed • 22 km/h (14 MPH) or less
• 140 km/h (88 MPH) or more
Engine coolant temperature Approx. 95°C (203 °F) or more
Engine oil temperature Approx. 140°C (284 °F) or more
CVT fluid temperature Approx. 135°C (275 °F) or more
Cooling fan ON
Refrigerant pressure 1.18 MPa (12.04 kg/cm
2, 171.1 psi) or more
Malfunction of engine coolant temperature sensor system Detected
Malfunction of engine oil temperature sensor system Detected
Malfunction of vehicle speed sensor system Detected
Malfunction of CAN communication system Detected
Revision: August 2015 2016 Versa Note

cardiagn.com

ACTIVE GRILLE SHUTTEREXT-13
< WIRING DIAGRAM >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
WIRING DIAGRAM
ACTIVE GRILLE SHUTTER
Wiring DiagramINFOID:0000000012432161
AAKWA0932GB
