CORROSION PROTECTIONBRM-17
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.
UndercoatingINFOID:0000000012430800
The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or re paired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibr ation-proof, shock-resistant, adhesive, and durable.
Precautions in Undercoating
1. Do not apply undercoating to any place unless specif ied (such as the areas above the muffler and three
way catalyst which are subjected to heat).
2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
Indicates anti-corrosive wax coated portions
Front
AWKIA2529ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REPLACEMENT OPERATIONSBRM-35
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
RoofINFOID:0000000012430808
Replacement parts z Roof panel
Front
ALKIA3148ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BODY ALIGNMENTBRM-41
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Body Center MarksINFOID:0000000012430814
A mark has been placed on each part of the body to indi cate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (me mbers, pillars, etc.), more accurate and effective
repair will be possible by using these marks t ogether with body alignment specifications.
Front
Point Portion Mark
A Cowl top extension Hole
B Front roof position mark for alignment Raised dimple
C Rear roof position mark for alignment Raised dimple
D Rear panel upper Cut out
AWKIA2546ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BODY ALIGNMENTBRM-49
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
Front
Point Description PointDescription
A. Roof flange end of center positioning mark B. Back pillar main joggle
C. Upper rear panel joggle D.Edge of rear panel between back door striker installing
holes
ALKIA3133ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-1
BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
DE
F
G H
I
J
L
M
SECTION DLK
A
B
DLK
N
O P
CONTENTS
DOOR & LOCK
WITH INTELLIGENT KEY SYSTEM
PRECAUTION ....... ........................................
9
PRECAUTIONS .............................................. .....9
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
9
Procedure without Cowl Top Cover .......................9
Precaution for Servicing Doors and Locks .......... ......9
Precaution for Work ............................................ ....10
PREPARATION ...........................................11
PREPARATION .............................................. ....11
Special Service Tools .......................................... ....11
Commercial Service Tools ......................................12
SYSTEM DESCRIPTION .............................13
COMPONENT PARTS ................................... ....13
INTELLIGENT KEY SYSTEM ...................................13
INTELLIGENT KEY SYSTEM : Component Parts
Location ............................................................... ....
13
INTELLIGENT KEY SYSTEM : Inside Key Anten-
na (Instrument Center) ............................................
15
INTELLIGENT KEY SYSTEM : Inside Key Anten-
na (Console) ............................................................
16
INTELLIGENT KEY SYSTEM : Inside Key Anten-
na (Trunk Room) .....................................................
16
INTELLIGENT KEY SYSTEM : Outside Key An-
tenna (Rear Bumper) ..............................................
16
INTELLIGENT KEY SYSTEM : Outside Key An-
tenna (Driver Side) ..................................................
16
INTELLIGENT KEY SYSTEM : Outside Key An-
tenna (Passenger Side) ..........................................
17
INTELLIGENT KEY SYSTEM : Front Door Lock
Assembly (Driver Side) ...........................................
17
INTELLIGENT KEY SYSTEM : Remote Keyless
Entry Receiver .........................................................
17
INTELLIGENT KEY SYSTEM : Intelligent Key
Warning Buzzer ................................................... ....
17
INTELLIGENT KEY SYSTEM : Back Door Lock
Assembly .................................................................
18
INTELLIGENT KEY SYSTEM : Door Lock and Un-
lock Switch ........................................................... ....
18
INTELLIGENT KEY SYSTEM : Front Door Re-
quest Switch (Driver Side) .......................................
18
INTELLIGENT KEY SYSTEM : Front Door Re-
quest Switch (Passenger Side) ...............................
18
INTELLIGENT KEY SYSTEM : Door Switch ...........19
INTELLIGENT KEY SYSTEM : Back Door Re-
quest Switch ............................................................
19
SYSTEM (POWER DOOR LOCK SYSTEM) ....20
System Diagram .................................................. ....20
System Description ..................................................20
SYSTEM (INTELLIGENT KEY SYSTEM) .........22
INTELLIGENT KEY SYSTEM ......................... ...........22
INTELLIGENT KEY SYSTEM : System Descrip-
tion ....................................................................... ....
22
DOOR LOCK FUNCTION ...................................... ....23
DOOR LOCK FUNCTION : System Description .....23
REMOTE KEYLESS ENTRY FUNCTION ..................25
REMOTE KEYLESS ENTRY FUNCTION : Sys-
tem Description .................................................... ....
25
KEY REMINDER FUNCTION ................................ ....26
KEY REMINDER FUNCTION : System Descrip-
tion ...........................................................................
27
WARNING FUNCTION .......................................... ....27
WARNING FUNCTION : System Description ..........27
DIAGNOSIS SYSTEM (BCM) ...........................30
COMMON ITEM ..................................................... ....30
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................
30
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-136
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
1. Cluster lid A and the instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar finisher
4. Instrument panel to windshield
5. Instrument panel pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or
moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the ar ea with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shift selector assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation pr ocedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them wh ile driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-50397) to repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, se curing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area c an often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
OVERHEAD CONSOLE (FRONT AND REAR)
Overhead console noises are often caused by the c onsole panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the c onsole at the clip locations until the clips engage.
In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lens loose.
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOORDLK-161
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

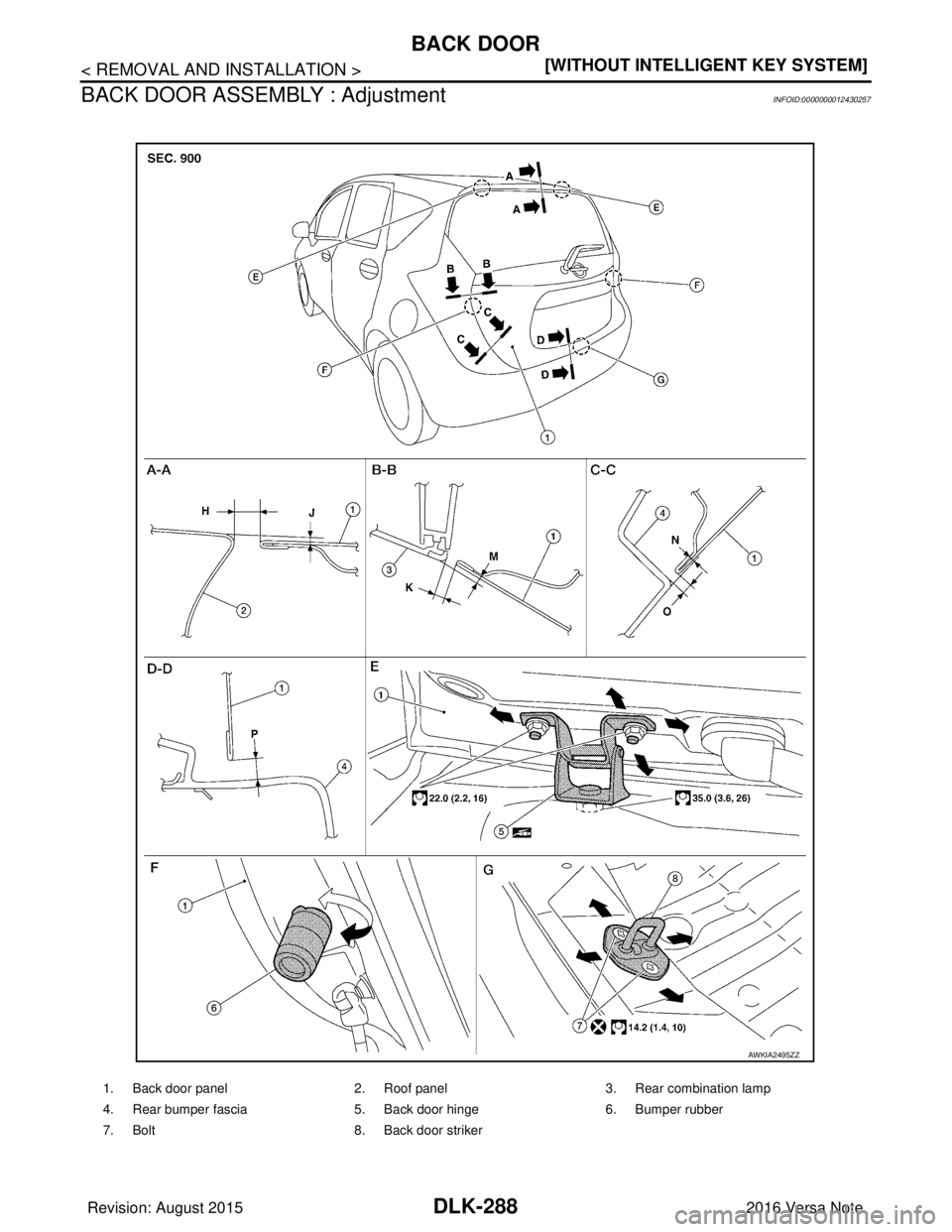

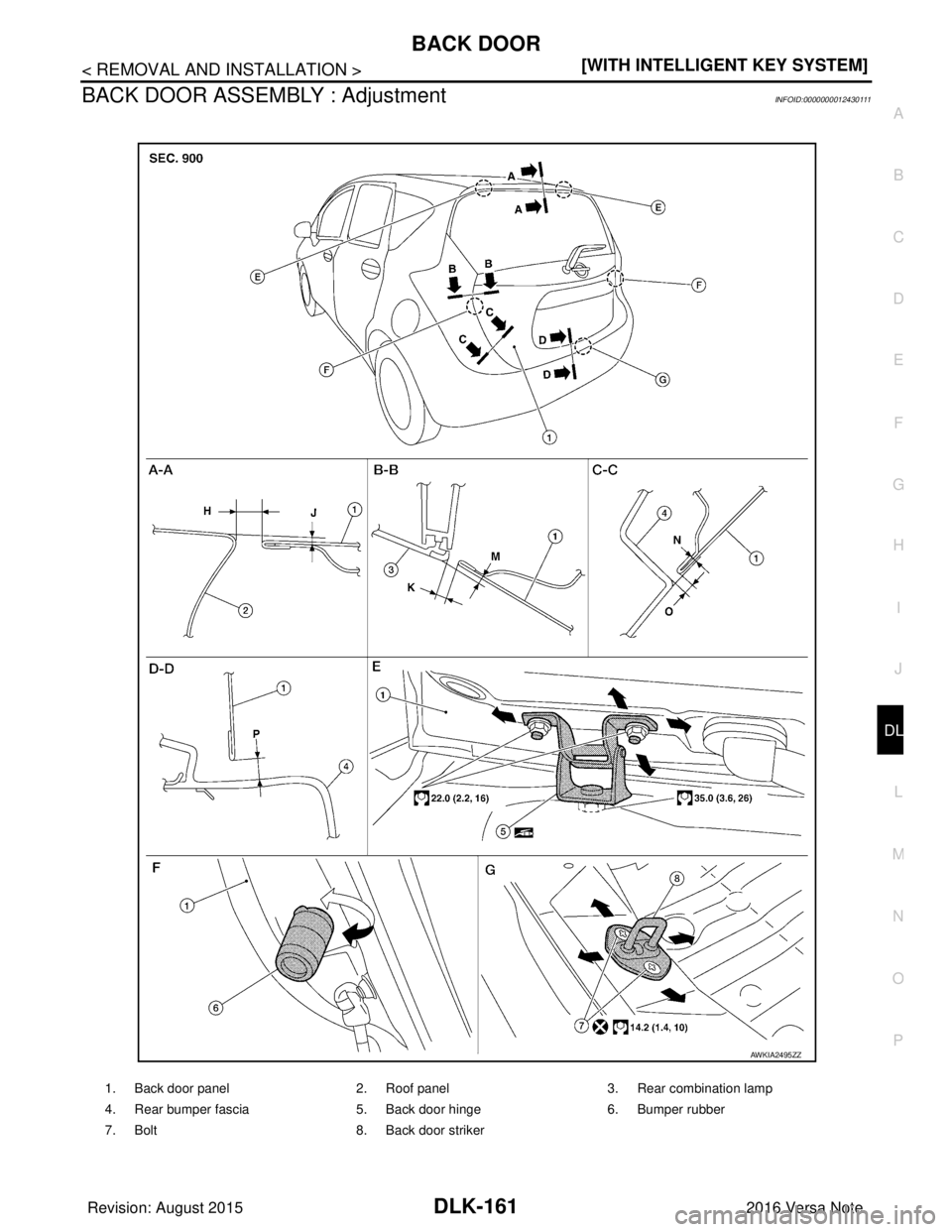

BACK DOOR ASSEMBLY : AdjustmentINFOID:0000000012430111
1. Back door panel 2. Roof panel3. Rear combination lamp
4. Rear bumper fascia 5. Back door hinge6. Bumper rubber
7. Bolt 8. Back door striker
AWKIA2495ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-162
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR
Check the clearance and the surface height between back
door and each part by visual inspection and tactile
feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment
procedure.
Unit: mm (in)
1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5. 91 in) height then close it lightly and check that it
is engaged firmly with back door closed.
3. Check the clearance and surface height and adjust back door as necessary.
4. Tighten back door hinge nuts to specified torque.
CAUTION:
• After installation, check back door open/close, lock/ unlock operation.
• Check back door hinge rotating point for poor lubrication. If necessary, appl y a suitable multi-pur-
pose grease.
• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.
BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and InstallationINFOID:0000000012430112
REMOVAL
1. Remove back door kicking plate using a suitable tool.
2. Remove bolts and back door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse back door striker bolts.
• After installation, check back door open/close, lock/ unlock operation.
• After installation, perform the back door assembly adjustment procedure. Refer to DLK-161, "
BACK
DOOR ASSEMBLY : Adjustment".
BACK DOOR STRIKER : AdjustmentINFOID:0000000012430113
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with back door
lock insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-159, "
Exploded View".
PortionSection Item Measurement Standard
Back door panel – Roof panel A – A H
Clearance 6.0 ± 1.0 (0.24 ± 0.04)
I Surface height 0.0 +0.5, -1.5 (0.00 +0.02, -0.06)
Rear combination lamp – Back door panel B – B J
Clearance 5.0 ± 2.0 (0.20 ± 0.08)
K Surface height -2.0 ± 2.0 (-0.08 ± 0.08)
Rear bumper fascia – Back-door panel C – CL C
le a ra n ce 5 .0 ± 2.0 (0.20 ± 0.08)
M Surface height 0.0 +0.5, -2.0 (0.0 +0.02, -0.08)
D – D M Clearance7.0 ± 2.0 (0.28 ± 0.08)
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-264
< SYMPTOM DIAGNOSIS >[WITHOUT INTELLIGENT KEY SYSTEM]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
1. Cluster lid A and the instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar finisher
4. Instrument panel to windshield
5. Instrument panel pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or
moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the ar ea with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shift selector assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation pr ocedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them wh ile driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-50397) to repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, se curing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area c an often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
OVERHEAD CONSOLE (FRONT AND REAR)
Overhead console noises are often caused by the c onsole panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the c onsole at the clip locations until the clips engage.
In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lens loose.
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-288
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BACK DOOR
BACK DOOR ASSEMBLY : Adjustment
INFOID:0000000012430257
1. Back door panel 2. Roof panel3. Rear combination lamp
4. Rear bumper fascia 5. Back door hinge6. Bumper rubber
7. Bolt 8. Back door striker
AWKIA2495ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com
