NISSAN NOTE 2016 Service Repair Manual

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)INL-17
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
DOOR LOCK
DOOR LOCK : CONSULT Func tion (BCM - DOOR LOCK)INFOID:0000000012542975
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
* : Initial setting
INT LAMP
Monitor Item [Unit] Description
IGN ON SW [On/Off] Indicates condition of ignition switch ON position.
KEY ON SW [On/Off] Indicates condition of key switch.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off] Indicates condition of back door switch.
ACC ON SW [On/Off] Indicates condition of ignition switch ACC position.
KEYLESS LOCK [On/Off] Indicates condition of lock signal from keyfob.
KEYLESS UNLOCK [On/Off] Indicates condition of unlock signal from keyfob.
KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch.
VEHICLE SPEED [km/h/mph] Indicates vehicle speed signal received from combination meter on CAN communication line.
Test Item Description
DOOR LOCK This test is able to check door lock operation [OTR ULK/DR UNLK/ALL UNLK/ALL LCK].
Support ItemSetting Description
DOOR LOCK-UNLOCK SET ON*
Automatic door locks function ON.
OFF Automoatic door locks function OFF.
AUTOMATIC DOOR LOCK SELECT P RANGE Doors lock automatically when shifted out of Park (P).
VH SPD* Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).
AUTOMATIC DOOR UNLOCK
SELECT MODE6* Drivers door unlocks automatically when key is removed.
MODE5 Drivers door unlocks automatically when shifted into Park (P).
MODE4 Drivers door unlocks automatically when ignition is switched from ON to OFF.
MODE3 Doors unlock automatically when key is removed.
MODE2 Doors unlock automatically when shifted into Park (P).
MODE1 Doors unlock automatically when ignition is switched from ON to OFF.
AUTOMATIC LOCK/UNLOCK
SELECT Lock/Unlock* Automatic door locks function operates in lock and unlock.
Lock Only Automatic door locks function operates in lock only.
Unlock Only Automatic door locks function operates in unlock only.
Off
Automatic door locks function OFF.
Revision: August 2015 2016 Versa Note

cardiagn.com

INL-18
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)
INT LAMP : CONSULT Func tion (BCM - INT LAMP)
INFOID:0000000012542976
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
Monitor Item [Unit] Description
IGN ON SW [On/Off] Indicates condition of ignition switch ON position.
KEY ON SW [On/Off] Indicates condition of key switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off] Indicates condition of back door switch.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch.
KEYLESS LOCK [On/Off] Indicates condition of lock signal from keyfob.
KEYLESS UNLOCK [On/Off] Indicates condition of unlock signal from keyfob.
KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch.
ACC SW [On/Off] Indicates condition of ignition switch ACC position.
Te s t I t e m D e s c r i p t i o n
INT LAMP This test is able to check interior room lamp operation [On/Off].
Support ItemSetting Description
SET I/L D-UNLCK INTCON On*
Interior room lamp timer function ON.
Off Interior room lamp timer function OFF.
ROOM LAMP TIMER SET MODE 4 30 sec.
Sets the interior room lamp ON time. (Timer operating time).
MODE 3* 15 sec.
MODE 2 7.5 sec.
MODE 1 OFF
ROOM LAMP ON TIME SET MODE7 0 sec.
Sets the interior room lamp gradual brightening time.
MODE6 5 sec.
MODE5 4 sec.
MODE4 3 sec.
MODE3 2 sec.
MODE2* 1 sec.
MODE1 0.5 sec.
ROOM LAMP OFF TIME SET MODE7 0 sec.
Sets the interior room lamp gradual dimming time.
MODE6 5 sec.
MODE5 4 sec.
MODE4 3 sec.
MODE3 2 sec.
MODE2* 1 sec.
MODE1 0.5 sec.
Revision: August 2015
2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)INL-19
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
* : Initial setting
BATTERY SAVER
BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)INFOID:0000000012542977
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
* : Initial setting R LAMP TIMER LOGIC SET
MODE 2
Interior room lamp timer activates with all doors.
MODE 1* Interior room lamp timer activates with the driver door only.
Support Item
Setting Description
Monitor Item [Unit] Description
IGN ON SW [On/Off] Indicates condition of ignition switch ON position.
KEY ON SW [On/Off] Indicates condition of key switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off] Indicates condition of back door switch.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch.
KEYLESS LOCK [On/Off] Indicates condition of lock signal from keyfob.
KEYLESS UNLOCK [On/Off] Indicates condition of unlock signal from keyfob.
KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch.
ACC SW [On/Off] Indicates condition of ignition switch ACC position.
Test item Description
BATTERY SAVER This test is able to check battery saver operation [On/Off].
Support ItemSetting Description
ROOM LAMP TIMER SET MODE 3* 10 min.
Sets interior room lamp battery saver timer operating time.
MODE 2 60 min.
MODE 1 15 min.
Revision: August 2015 2016 Versa Note

cardiagn.com

INL-20
< ECU DIAGNOSIS INFORMATION >
BCM
ECU DIAGNOSIS INFORMATION
BCM
List of ECU ReferenceINFOID:0000000012432733
ECUReference
BCM (with Intelligent Key system) BCS-30, "
Reference Value"
BCS-48, "Fail-safe"
BCS-49, "DTCInspectionPriorityChart"
BCS-50, "DTCIndex"
BCM (without Intelligent Key system)BCS-101, "
Reference Value"
BCS-115, "Fail-safe"
BCS-115, "DTCInspectionPriorityChart"
BCS-115, "DTCIndex"
Revision: August 2015
2016 Versa Note

cardiagn.com

INTERIOR ROOM LAMP CONTROL SYSTEMINL-21
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

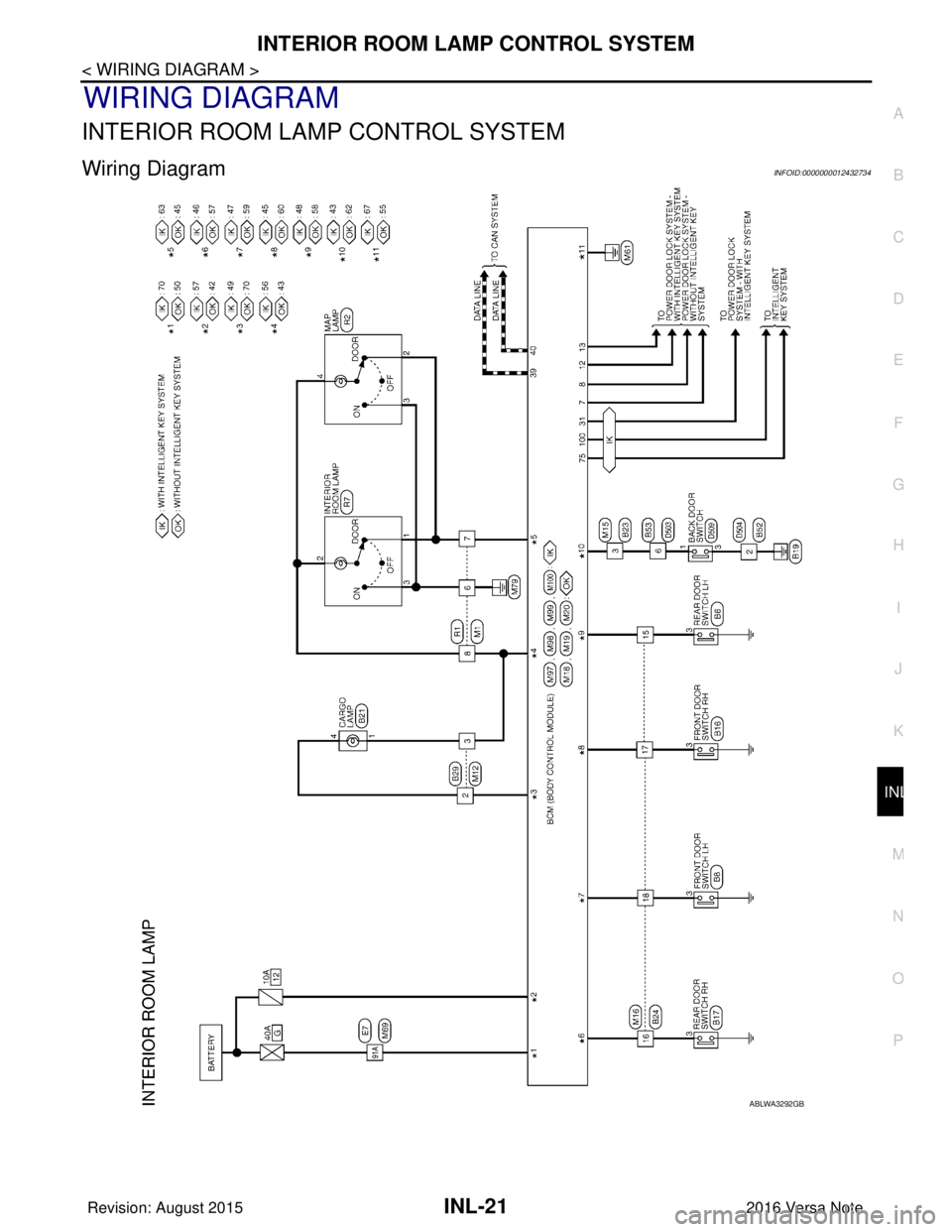

WIRING DIAGRAM
INTERIOR ROOM LAMP CONTROL SYSTEM
Wiring DiagramINFOID:0000000012432734
ABLWA3292GB
Revision: August 2015 2016 Versa Note

cardiagn.com

INL-22
< WIRING DIAGRAM >
INTERIOR ROOM LAMP CONTROL SYSTEM
ABLIA8125GB
Revision: August 20152016 Versa Note

cardiagn.com

INTERIOR ROOM LAMP CONTROL SYSTEMINL-23
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

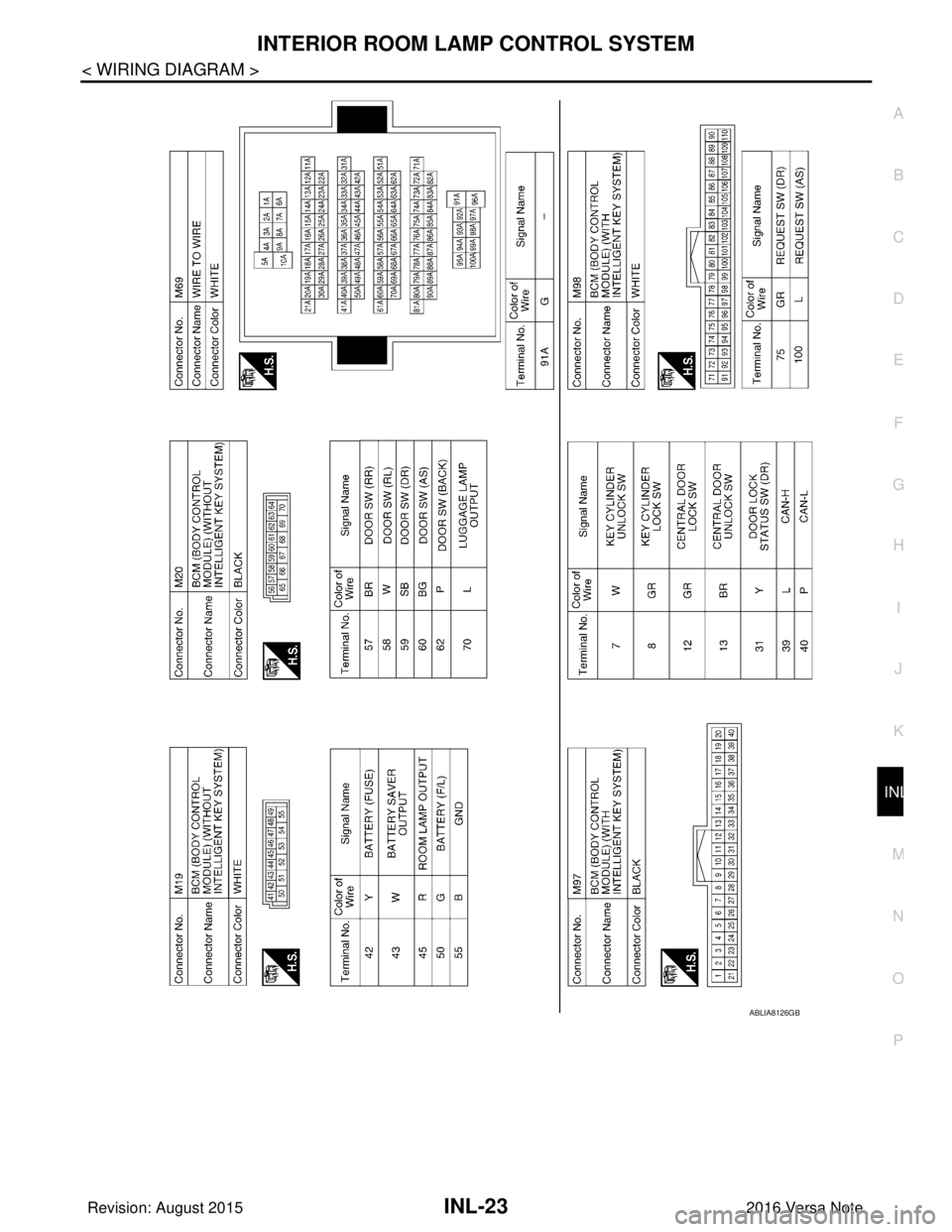

ABLIA8126GB
Revision: August 2015 2016 Versa Note

cardiagn.com

INL-24
< WIRING DIAGRAM >
INTERIOR ROOM LAMP CONTROL SYSTEM

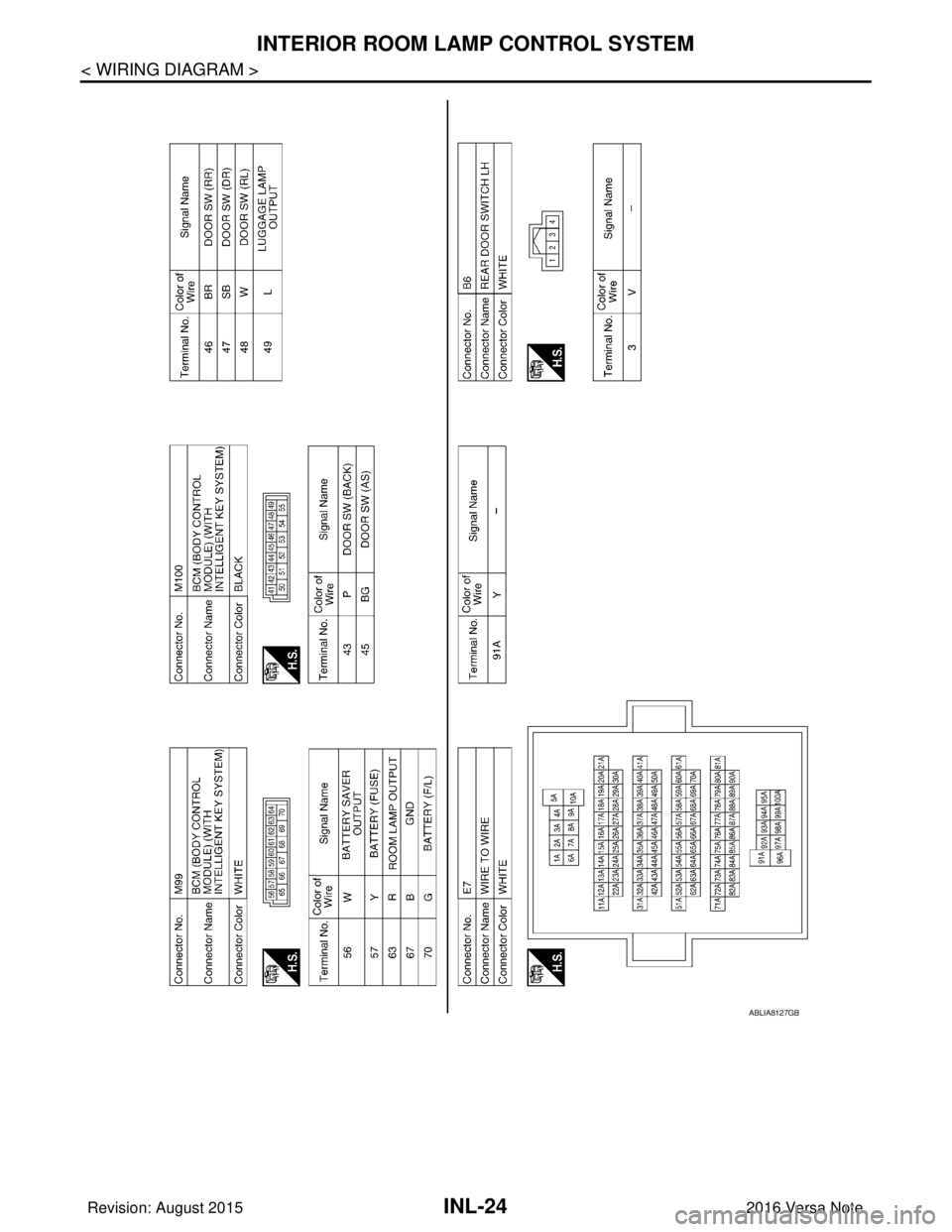

ABLIA8127GB
Revision: August 20152016 Versa Note

cardiagn.com

INTERIOR ROOM LAMP CONTROL SYSTEMINL-25
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

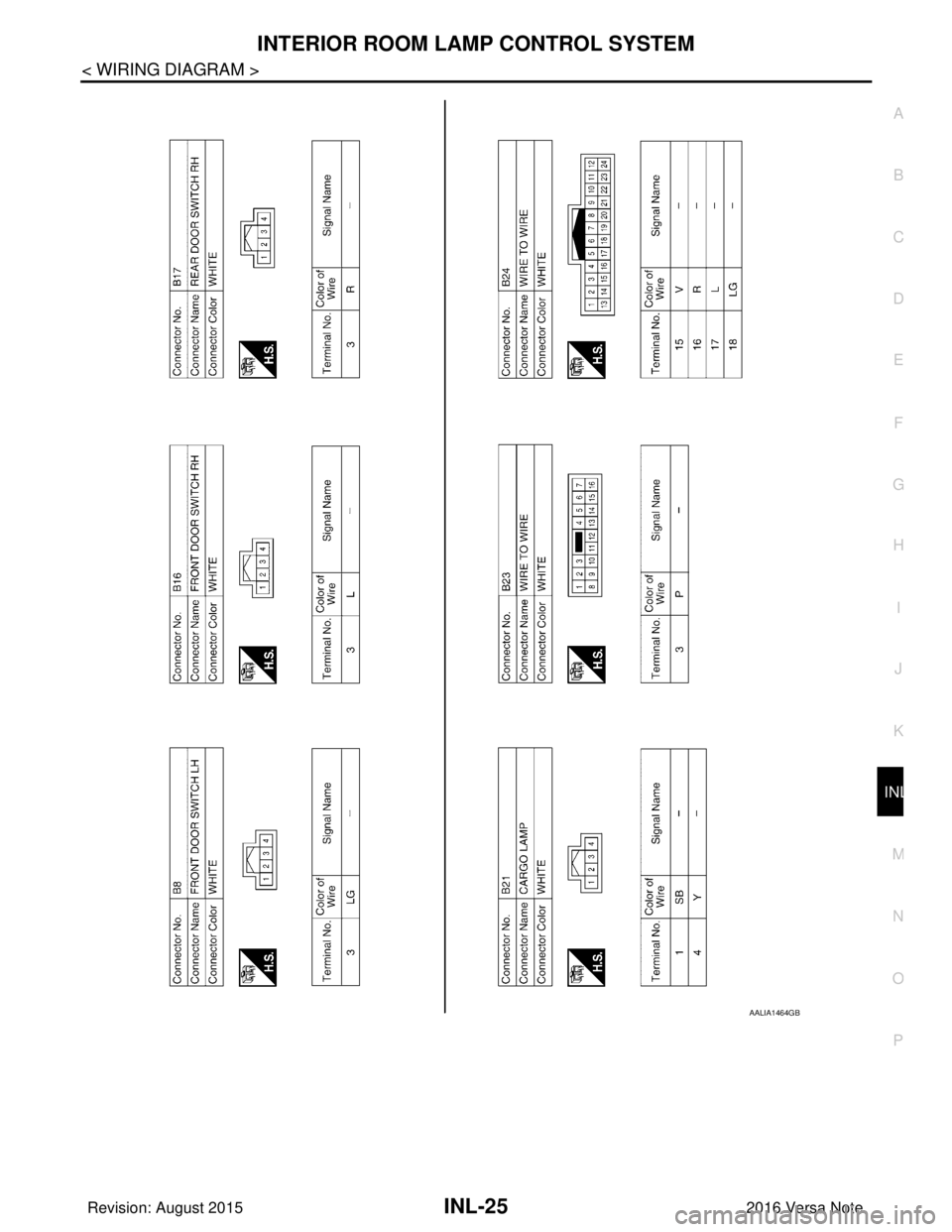

AALIA1464GB
Revision: August 2015 2016 Versa Note

cardiagn.com

INL-26
< WIRING DIAGRAM >
INTERIOR ROOM LAMP CONTROL SYSTEM

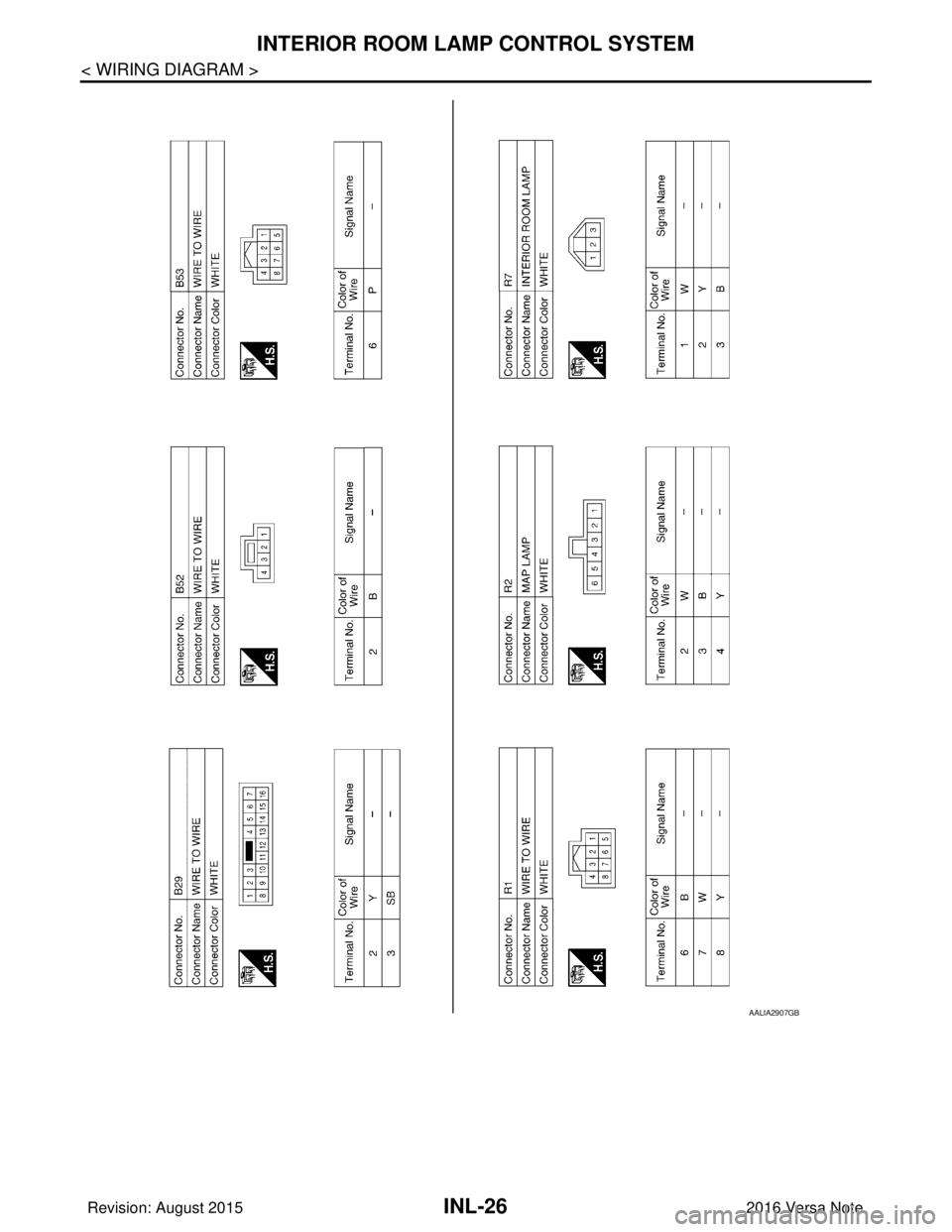

AALIA2907GB
Revision: August 20152016 Versa Note
