COMBINATION METERMWI-23
< ECU DIAGNOSIS INFORMATION > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
*1:For Canada
Fail-safeINFOID:0000000012432555
The combination meter activates the fail-safe contro l if CAN communication with each unit is malfunctioning.
Te r m i n a l
No. Wire
color Item Condition
Reference value (V)
(Approx.)
Ignition
switch Operation or condition
1 L CAN high —— —
2 P CAN low —— —
3SB2P/R — — —
4LG8P/R — — —
6 W Fuel level sensor signal (+) — —Refer to MWI-46, "
Component Inspec-
tion".
7VAir bag — — —
8 P O/D OFF switch ONO/D OFF switch pressed
0
O/D OFF switch released Battery voltage
9 V Seat belt buckle switch LH ON Unfastened (ON)
0
Fastened (OFF) Battery voltage
10 SB Parking Brake switch ONParking brake is inactive
Battery voltage
Parking brake is active 0
11 BR Brake fluid level switch ON Brake fluid level low
0
Brake fluid level normal Battery voltage
13 B Illumination control —— —
15 R Ignition switch ON or ACC — —Battery voltage
17
*1V Washer fluid level switch ON Washer fluid level low 0
Washer fluid level normal
Battery voltage
18 GR Security —— —
21 B Ground —— 0
22 B
23 B
24 GR Fuel level sensor ground (-) ON —0
27 R/W Battery power supply OFF— Battery voltage
28 GR Ignition switch ON or START ON —Battery voltage
29 G Seat belt buckle switch RH ON Unfastened (ON)
0
Fastened (OFF) Battery voltage
38 Y Generator ONGenerator voltage low
0
Generator voltage normal Battery voltage
Function Specifications
Speedometer Reset to zero by suspending communication.
Tachometer
Illumination control When suspending communication, changes to nighttime mode.
Shift position indicator When suspending communication, not indicate.
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-24
< ECU DIAGNOSIS INFORMATION >[TYPE A]
COMBINATION METER
DTC Index
INFOID:0000000012432556
Information display Trip com-
puterCurrent fuel consump-
tion
• When reception time of an abnormal signal is 2 seconds or
less, the last received datum is used for calculation to indi-
cate the result.
• When reception time of an abnormal signal is more than two seconds, the last result calculated during normal condition is
indicated.
Average fuel consump-
tion
Distance to empty
Engine coolant temperature gauge Reset to zero by suspending communication.
Odo/trip meter An indicated value is maintained at communications blackout.
Buzzer The buzzer turns OFF by suspending communication.
Warning lamp/indicator lamp ABS warning lamp
The lamp turns ON by suspending communication.
Slip indicator lamp
Malfunction indicator lamp (MIL)
VDC OFF indicator lamp
EPS warning lamp
Brake warning lamp
High beam indicator lamp
The lamp turns OFF by suspending communication.
Turn signal indicator lamp
Door warning lamp
Light indicator lamp
Engine oil pressure warning lamp
O/D OFF indicator lamp
Function
Specifications
Display contents of CONSULTDiagnostic item is detected when... Refer to
CAN COMM CIRCUIT
[U1000] When combination meter is not transmitting or receiving CAN communication signal for
2 seconds or more.
MWI-38
CONTROL UNIT (CAN)
[U1010]When detecting error during the initial diagnosis of the CAN controller of combination
meter.
MWI-39
VEHICLE SPEED
[B2205]The abnormal vehicle speed signal is input from the ABS actuator and electric unit (con-
trol unit) for 2 seconds or more.
MWI-40
ENGINE SPEED
[B2267]If ECM continuously transmits abnormal engine speed signals for 2 seconds or more.
MWI-41
WATER TEMP
[B2268]If ECM continuously transmits abnormal engine coolant temperature signals for 60 sec-
onds or more.
MWI-42
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
BCM (BODY CONTROL MODULE)MWI-25
< ECU DIAGNOSIS INFORMATION > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
BCM (BODY CONTROL MODULE)
List of ECU ReferenceINFOID:0000000012432557
ECU Reference
BCM BCS-101, "
Reference Value"
BCS-115, "Fail-safe"
BCS-115, "DTCInspectionPriorityChart"
BCS-115, "DTCIndex"
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI-26
< WIRING DIAGRAM >[TYPE A]
METER SYSTEM
WIRING DIAGRAM
METER SYSTEM

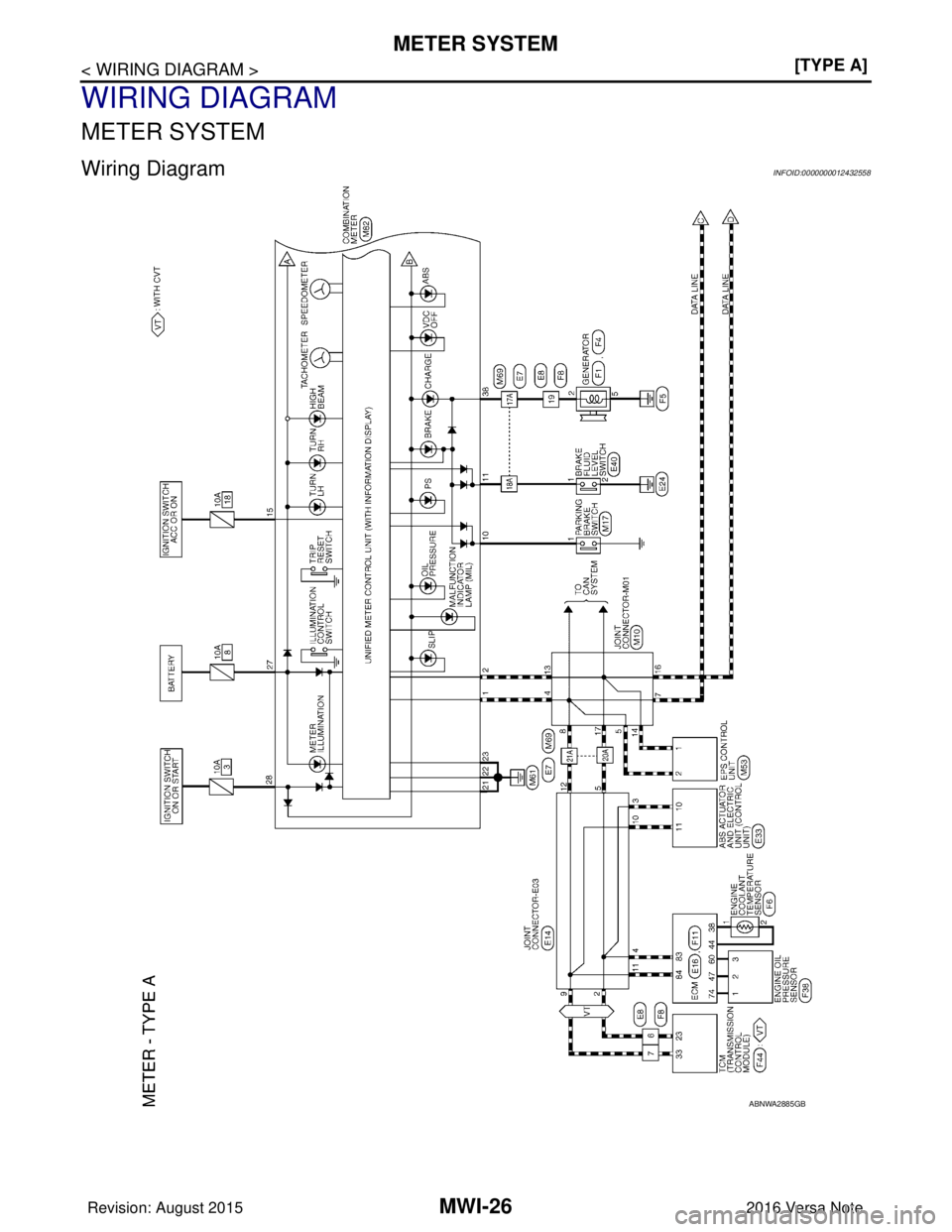

Wiring DiagramINFOID:0000000012432558
ABNWA2885GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-27
< WIRING DIAGRAM > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P

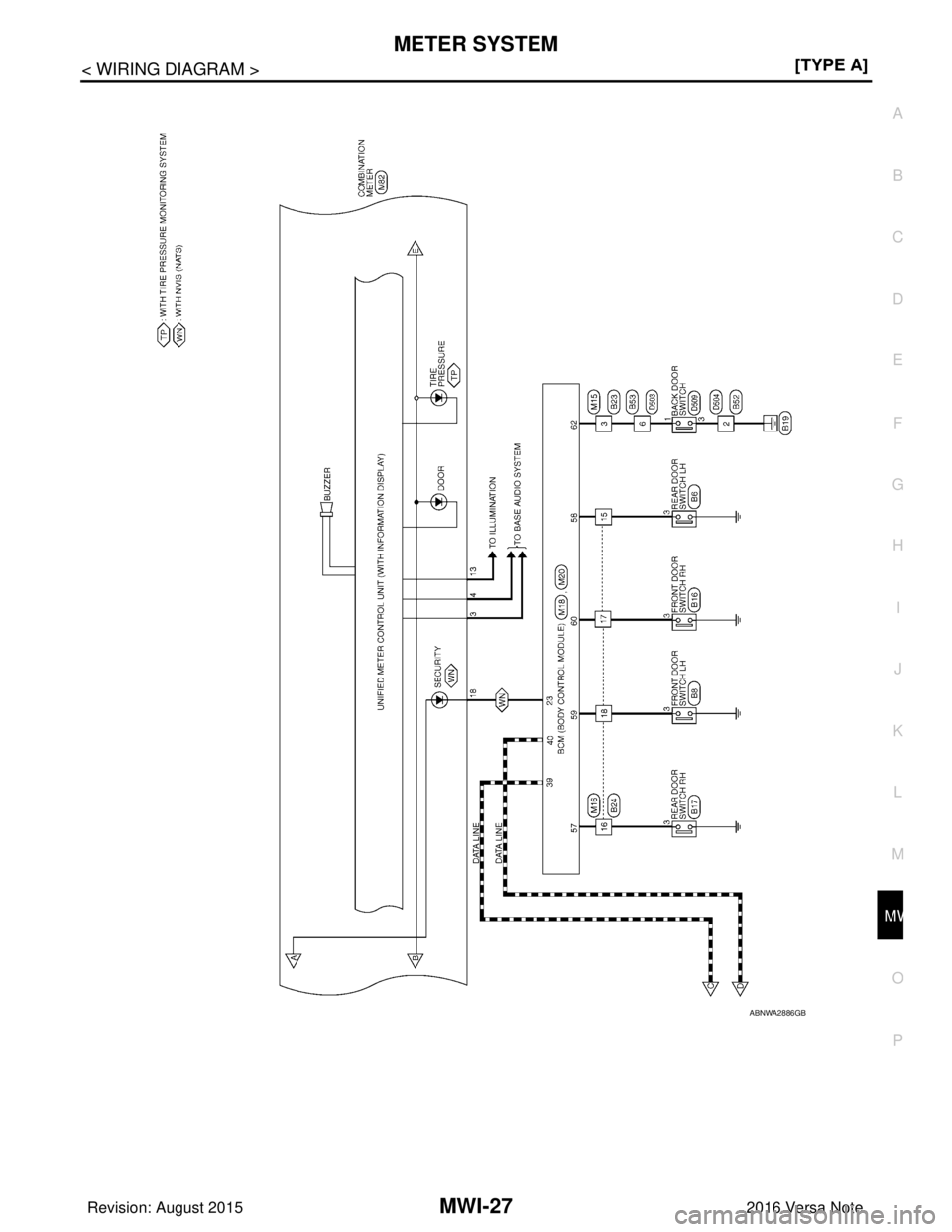

ABNWA2886GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-28
< WIRING DIAGRAM >[TYPE A]
METER SYSTEM

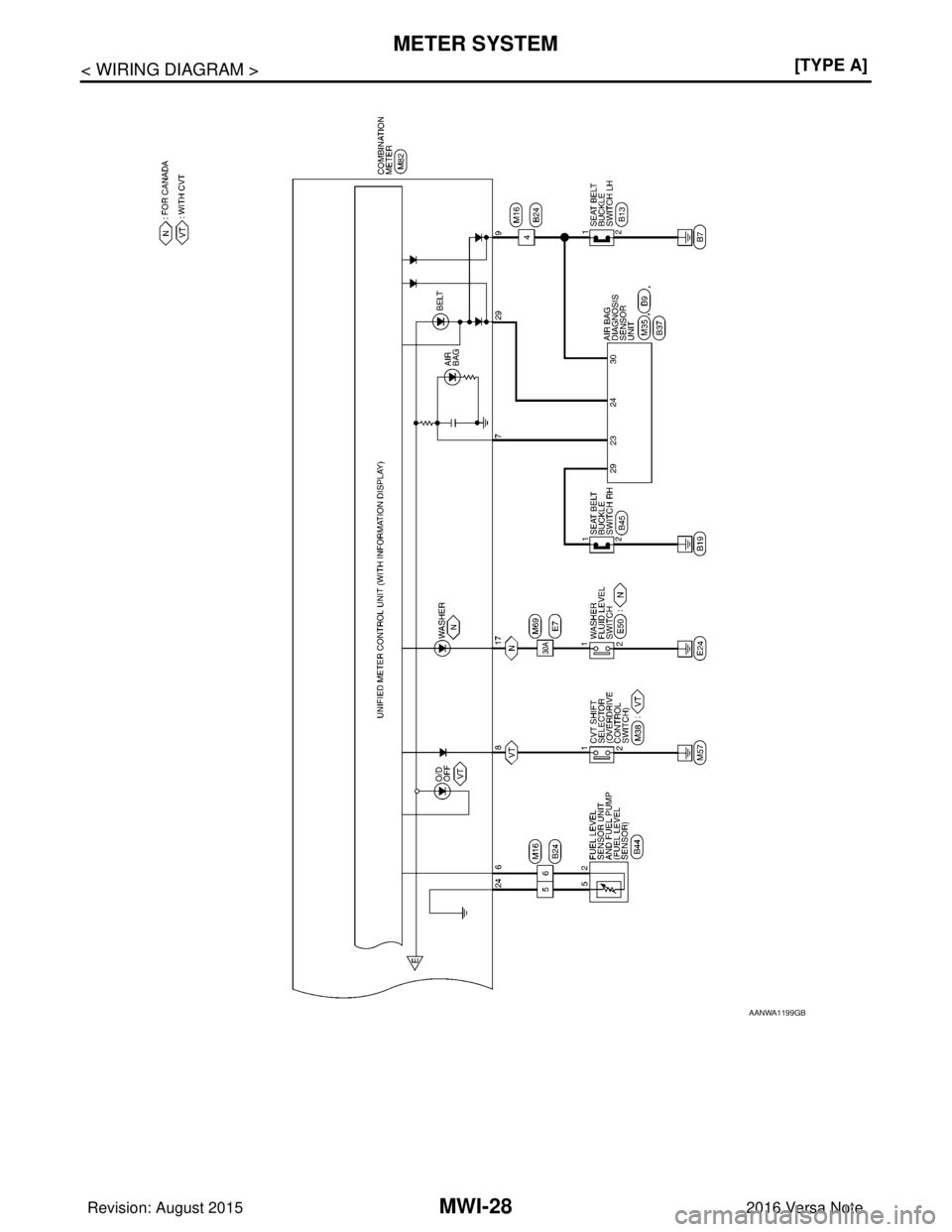

AANWA1199GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-29
< WIRING DIAGRAM > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P

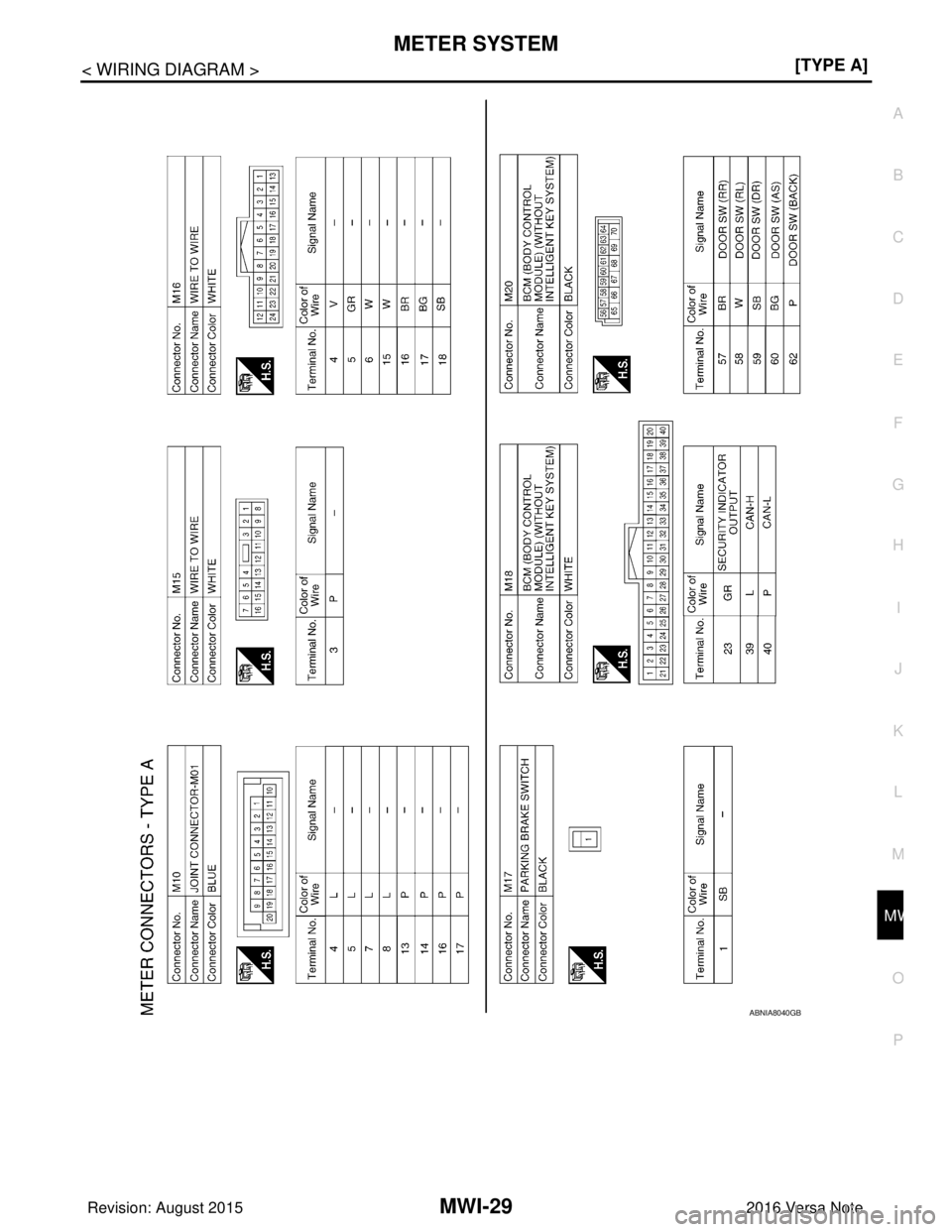

ABNIA8040GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-30
< WIRING DIAGRAM >[TYPE A]
METER SYSTEM

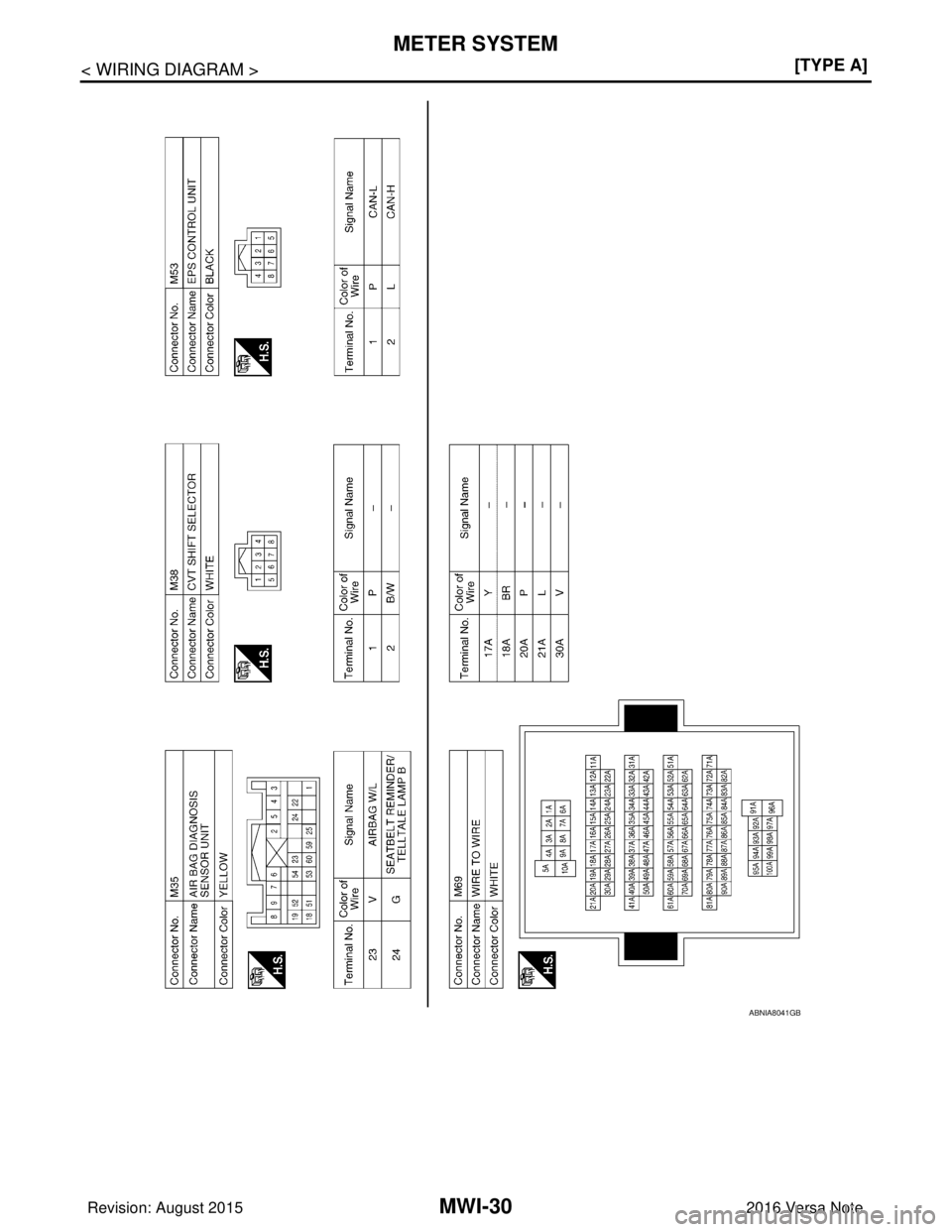

ABNIA8041GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-31
< WIRING DIAGRAM > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P

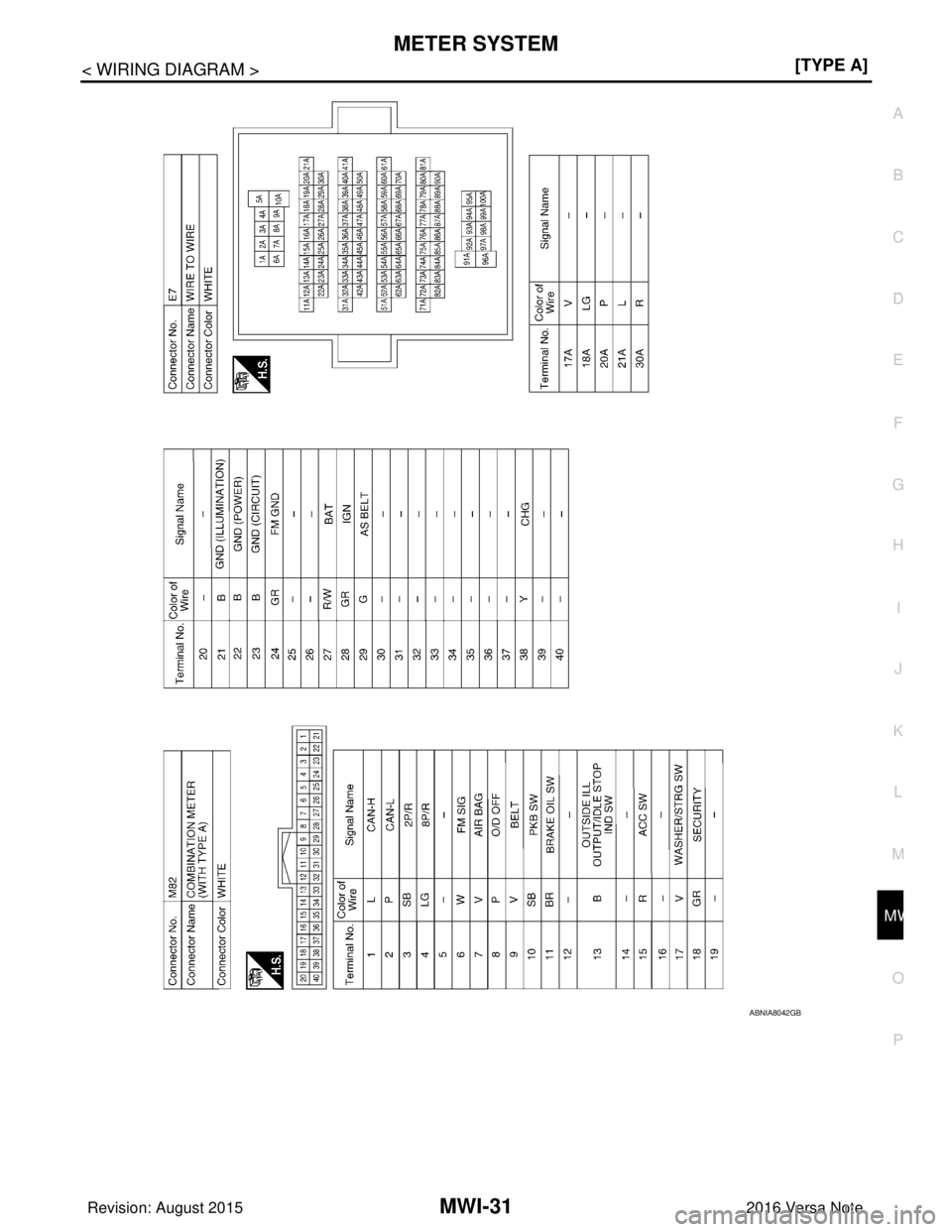

ABNIA8042GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-32
< WIRING DIAGRAM >[TYPE A]
METER SYSTEM

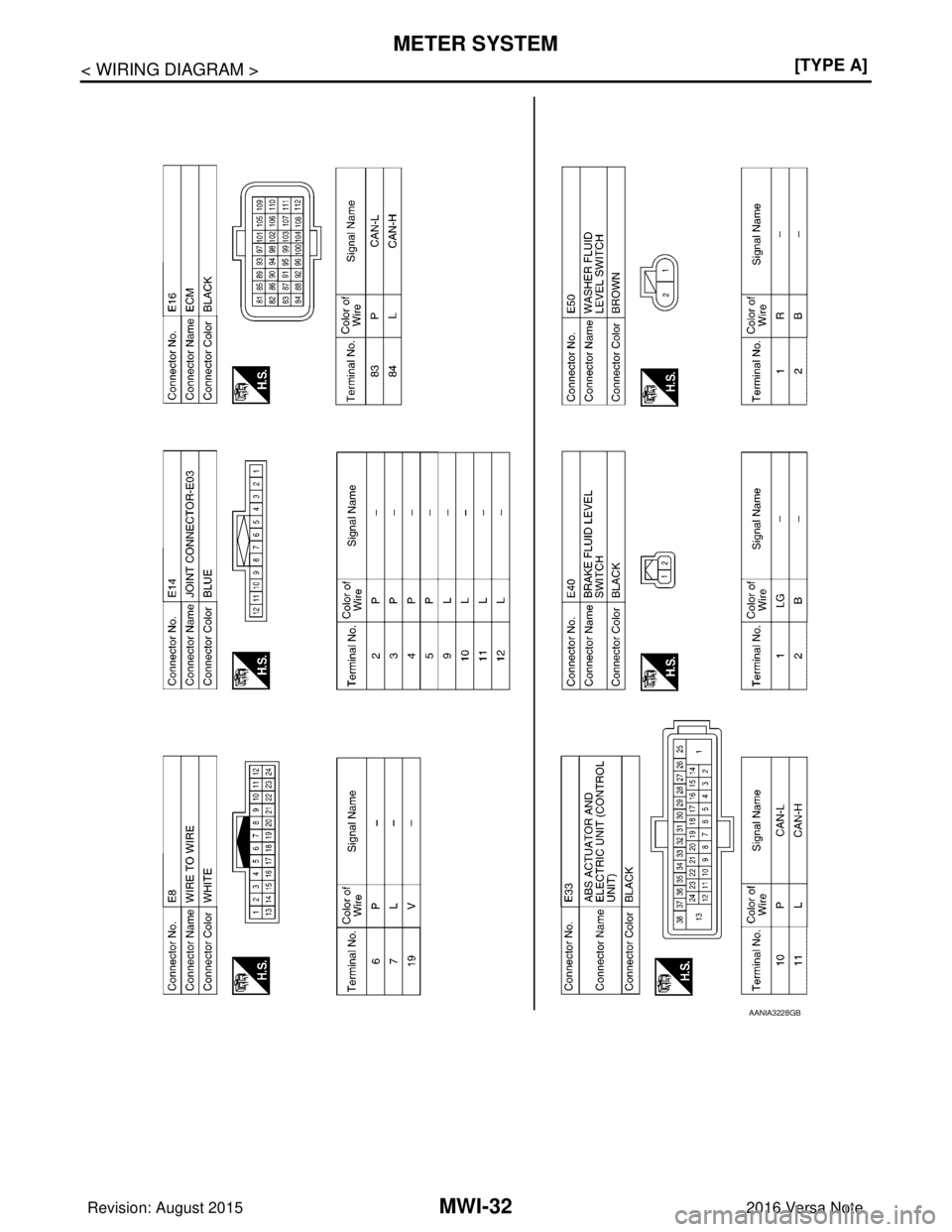

AANIA3228GB
