NISSAN NOTE 2016 Service Repair Manual

MWI
DIAGNOSIS SYSTEM (COMBINATION METER)MWI-73
< SYSTEM DESCRIPTION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
NOTE:
Some items are not available according to vehicle specification.
WORK SUPPORT
WARNING HISTORY
W/L ON HISTORY
• Stores histories when warning/indicator lamp is turned on.
• “W/L ON HISTORY” indicates the “TIME” when the warning/ indicator lamp is turned on.
• The “TIME” above is:
- 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine and waiting for 30 seconds.
- 1 - 39: The number of times the engi ne was restarted after the 0 condition.
- NO W/L ON HISTORY: Stores NO (0) turning on history of warning/indicator lamp.
NOTE:
• W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.
• Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets
low.
FR FOG IND
[On/Off] Displays [ON/OFF] condition of front fog lamp indicator.
TPMS PRESS L
[On/Off] Displays [ON/OFF] condition of check tire pressure warning message.
Display item [Unit]
MAIN
SIGNALS Description
Work support item
Description
Outside air temperature diagnosis A possible malfunction can be narrowed down by following the displayed instructions.
Fuel meter diagnosis(Analog pointer)
Warning lamp diagnosis
Display item Description
W/L ON HISTORY Lighting history of warning lamp and indicator lamp can be checked.
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-74
< ECU DIAGNOSIS INFORMATION >[TYPE B]
COMBINATION METER
ECU DIAGNOSIS INFORMATION
COMBINATION METER
Reference ValueINFOID:0000000012432613
VALUES ON THE DIAGNOSIS TOOL
Monitor Item Display contentData monitor
Condition Reference value in normal operation
SPEED METER
[mph or km/h] Speed meter
operation
While driving
Vehicle speed matches speed meter
SPEED OUTPUT
[mph or km/h] Vehicle speed While driving The speed output signal value via CAN
communication is approx. value of ve-
hicle speed.
ODO OUTPUT
[mph or km/h] ODO meter op-
eration
Driving
Distance driven
TACHO METER
[rpm] Ta c h o m e t e r
operation
Engine running The tacho meter is approx. value of en-
gine speed via CAN communication.
FUEL METER
[L] Fuel level Ignition ON Fuel level is approx. value of fuel
gauge.
W TEMP METER
[ ° F] or [ °C] Engine coolant
temperature
Engine running Input value of engine coolant tempera-
ture signal via CAN communication.
ABS W/L ABS warning
lampWhen ABS warning lamp is ON
On
When ABS warning lamp is OFF Off
VDC/TCS IND VDC indicator
lampWhen VDC indicator lamp is ON
On
When VDC indicator lamp is OFF OFF
SLIP IND Slip indicator
lampWhen SLIP indicator lamp is ON
On
When SLIP indicator lamp is OFF Off
BRAKE W/L Brake warning
lamp When Brake warning lamp is ON
On
*
When Brake warning lamp is OFF Off
DOOR W/L Door open
warning lampWhen Door warning lamp is ON
On
When Door warning lamp is OFF Off
HI-BEAM IND HI-Beam indi-
cator lampWhen High-beam indicator lamp is ON
On
When High-beam indicator lamp is OFF Off
TURN IND Turn signal in-
dicatorWhen Turn signal indicator lamp is ON
On
When Turn signal indicator lamp is OFF Off
LIGHT IND Light indicatorWhen Tail lamp indicator lamp is ON
On
When Tail lamp indicator lamp is OFF Off
FR FOG IND Front fog lamp
indicatorFront fog lamp indicator lamp ON
On
Front fog lamp indicator lamp OFF Off
OIL W/L Engine oil pres-
sure warning
light When engine oil pressure warning lamp is
ON
On
When engine oil pressure warning lamp is
OFF Off
MIL MIL warning
lampWhen Malfunction indi
cator lamp (MIL) is
ON On
When Malfunction indi cator lamp (MIL) is
OFF Off
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
COMBINATION METERMWI-75
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*: Displays “Off” if the brake warning lamp is illumi nated when the valve check starts, the parking brake switch
is turned ON or the brake fluid level switch is turned ON.
CRUISE IND Cruise indicator
lampWhen cruise indicator lamp is ON.
ON
When cruise indicator lamp is OFF. Off
O/D OFF IND O/D OFF indi-
cator When O/D OFF indicator lamp is OFF.
Off
When O/D OFF indicator lamp is ON. On
FUEL W/L Low fuel warn-
ingWhen low fuel warning is ON
On
When low fuel warning is Off Off
AIR PRES W/L Tire pressure
warning lamp
operationWhen tire pressure warning lamp is ON
ON
When tire pressure warning lamp is OFF Off
EPS W/L EPS warning
lamp EPS warning lamp ON
On
EPS warning lamp OFF Off
KEY G/Y W/L Key warning
lamp When key warning lamp is ON
On
When key warning lamp is OFF Off
CHG SIG Charge warn-
ing lampEngine running
Off
PASS BUCKLE SW Seat belt buck-
le switch RHWhen seat belt buckle RH is unfastened
On
When seat belt buckle RH is fastened Off
FUEL CAP W/L Loose fuel cap
warningLoose fuel filler cap warning is ON
On
Loose fuel filler cap warning is OFF Off
PKB SW Parking brake
switchWhen parking brake is active
On
When parking brake is inactive Off
BUCKLE SW Seat belt buck-
le switch LHWhen seat belt buckle is unfastened LH.
On
When seat belt buckle is fastened LH. Off
BRAKE OIL SW Brake fluid level
switchWhen brake fluid level switch ON
On
When brake fluid level switch OFF Off
OUTSIDE TEMP
[ ° F] or [ °C] Outside tem-
perature
Ignition ON Displays the ambient air temperature
which is input from the ambient sensor.
DISTANCE Distance to
empty
While driving
[mph or km/h]
FUEL LOW SIG Low fuel warn-
ingWhen low fuel warning is On
On
When low fuel warning is Off Off
BUZZER Buzzer opera-
tionWhen Buzzer is ON
On
When Buzzer is OFF Off
TPMS PRESS L Low tire pres-
sure warningWhen check tire pressure warning mes-
sage is On
On
When check tire pressure warning mes-
sage is OFF Off
Monitor Item Display content
Data monitor
Condition Reference value in normal operation
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-76
< ECU DIAGNOSIS INFORMATION >[TYPE B]
COMBINATION METER
TERMINAL LAYOUT
PHYSICAL VALUES
JSNIA5390ZZ
Te r m i n a l
No. Wire
color Item Condition
Reference value (V)
(Approx.)
Ignition
switch Operation or condition
1 L CAN high —— —
2 P CAN low —— —
4LG8P/R — — —
6 W Fuel level sensor signal (+) — —Refer to
MWI-102, "
Component Inspec-
tion".
7VAir bag — — —
8 P O/D OFF switch ONO/D OFF switch pressed
0
O/D OFF switch released Battery voltage
9 V Seat belt buckle switch LH ON Unfastened (ON)
0
Fastened (OFF) Battery voltage
10 SB Parking Brake switch ONParking brake is inactive
Battery voltage
Parking brake is active 0
11 BR Brake fluid level switch ON Brake fluid level low
0
Brake fluid level normal Battery voltage
15 R Ignition switch ON or ACC — —Battery voltage
16 B Illumination control switch (-) — ——
17
*1V Washer fluid level switch ON Washer fluid level low 0
Washer fluid level normal
Battery voltage
18 GR Security —— —
19 V Ambient sensor signal (+) ON ——
20 R Ambient sensor ground (-) — —0
21 B Ground —— 0
22 B
23 B
24 GR Fuel level sensor ground (-) ON —0
27 R/W Battery power supply OFF— Battery voltage
28 GR Ignition switch ON or START ON —Battery voltage
29 G Seat belt buckle switch RH ON Unfastened (ON)
0
Fastened (OFF) Battery voltage
36 LG Steering switch
(meter control switch)
——
—
38 Y Generator ONGenerator voltage low
0
Generator voltage no rmalBattery voltage
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI
COMBINATION METERMWI-77
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*1:For Canada
Fail-safeINFOID:0000000012432614
The combination meter activates the fail-safe contro l if CAN communication with each unit is malfunctioning.
DTC IndexINFOID:0000000012432615
Function Specifications
Speedometer Reset to zero by suspending communication.
Tachometer
Illumination control When suspending communication, changes to nighttime mode.
Shift position indicator When suspending communication, not indicate.
Information display Trip com-
puterCurrent fuel consump-
tion
• When reception time of an abnormal signal is 2 seconds or
less, the last received datum is used for calculation to indi-
cate the result.
• When reception time of an abnormal signal is more than two seconds, the last result calculated during normal condition is
indicated.
Average fuel consump-
tion
Distance to empty
Odo/trip meter An indicated value is maintained at communications blackout.
Buzzer The buzzer turns OFF by suspending communication.
Warning lamp/indicator lamp ABS warning lamp
The lamp turns ON by suspending communication.
Slip indicator lamp
Malfunction indicator lamp (MIL)
VDC OFF indicator lamp
EPS warning lamp
Brake warning lamp
High beam indicator lamp
The lamp turns OFF by suspending communication.
Turn signal indicator lamp
Door warning lamp
Light indicator lamp
Engine oil pressure warning lamp
High water temperature warning
lamp
Key warning lamp
O/D OFF indicator lamp
Shift P warning lamp
Engine start operation indicator lamp
Display contents of CONSULT
Diagnostic item is detected when... Refer to
CAN COMM CIRCUIT
[U1000] When combination meter is not transmitting or receiving CAN communication signal for
2 seconds or more.
MWI-93
CONTROL UNIT (CAN)
[U1010]When detecting error during the initial diagnosis of the CAN controller of combination
meter.
MWI-94
VEHICLE SPEED
[B2205]The abnormal vehicle speed signal is input from the ABS actuator and electric unit (con-
trol unit) for 2 seconds or more.
MWI-95
ENGINE SPEED
[B2267]If ECM continuously transmits abnormal engine speed signals for 2 seconds or more.
MWI-96
WATER TEMP
[B2268]If ECM continuously transmits abnormal engine coolant temperature signals for 60 sec-
onds or more.
MWI-97
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI-78
< ECU DIAGNOSIS INFORMATION >[TYPE B]
BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE)
List of ECU ReferenceINFOID:0000000012432616
ECU
Reference
BCM (with Intelligent Key system) BCS-30, "
Reference Value"
BCS-48, "Fail-safe"
BCS-49, "DTCInspectionPriorityChart"
BCS-50, "DTCIndex"
BCM (without Intelligent Key system)BCS-101, "
Reference Value"
BCS-115, "Fail-safe"
BCS-115, "DTCInspectionPriorityChart"
BCS-115, "DTCIndex"
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-79
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P

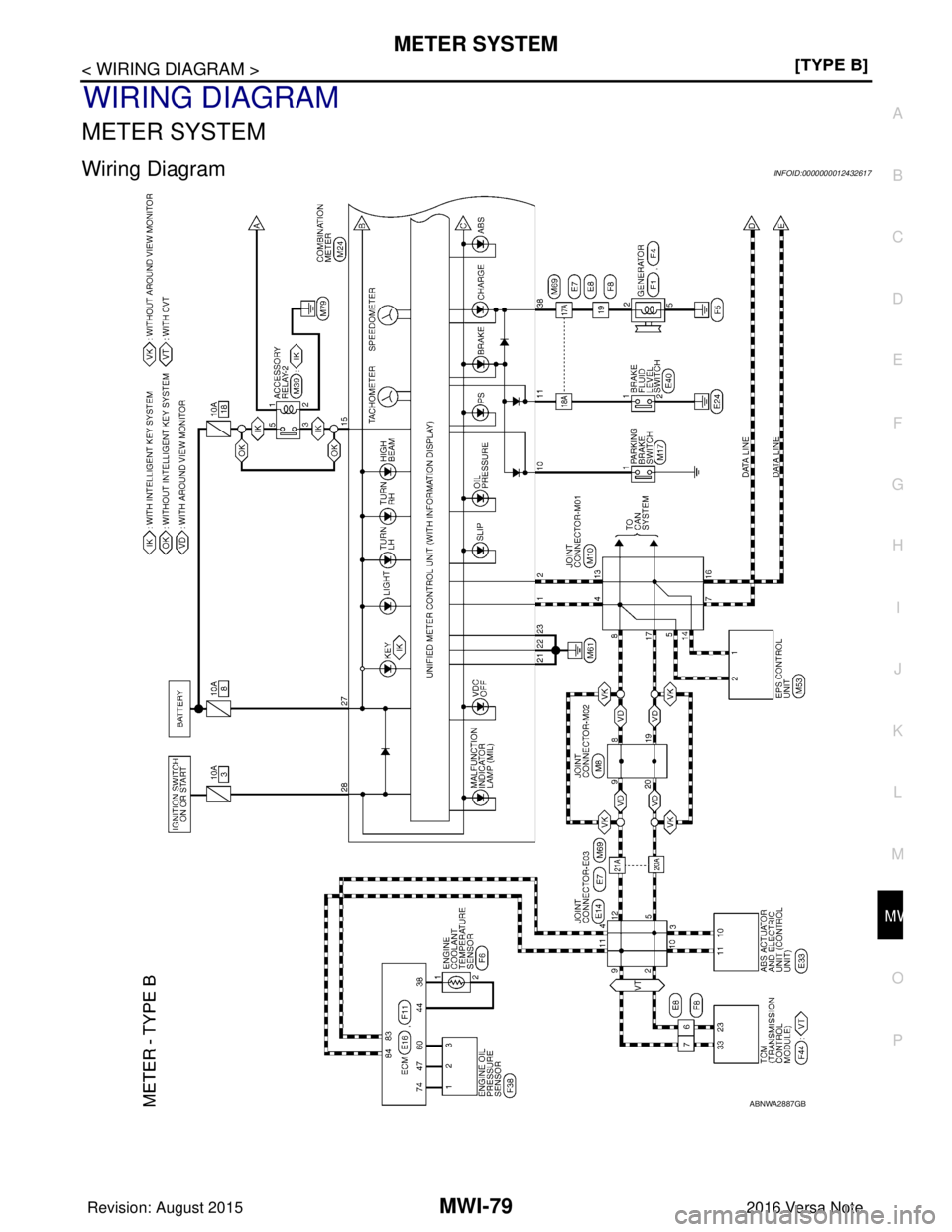

WIRING DIAGRAM
METER SYSTEM
Wiring DiagramINFOID:0000000012432617
ABNWA2887GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-80
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM

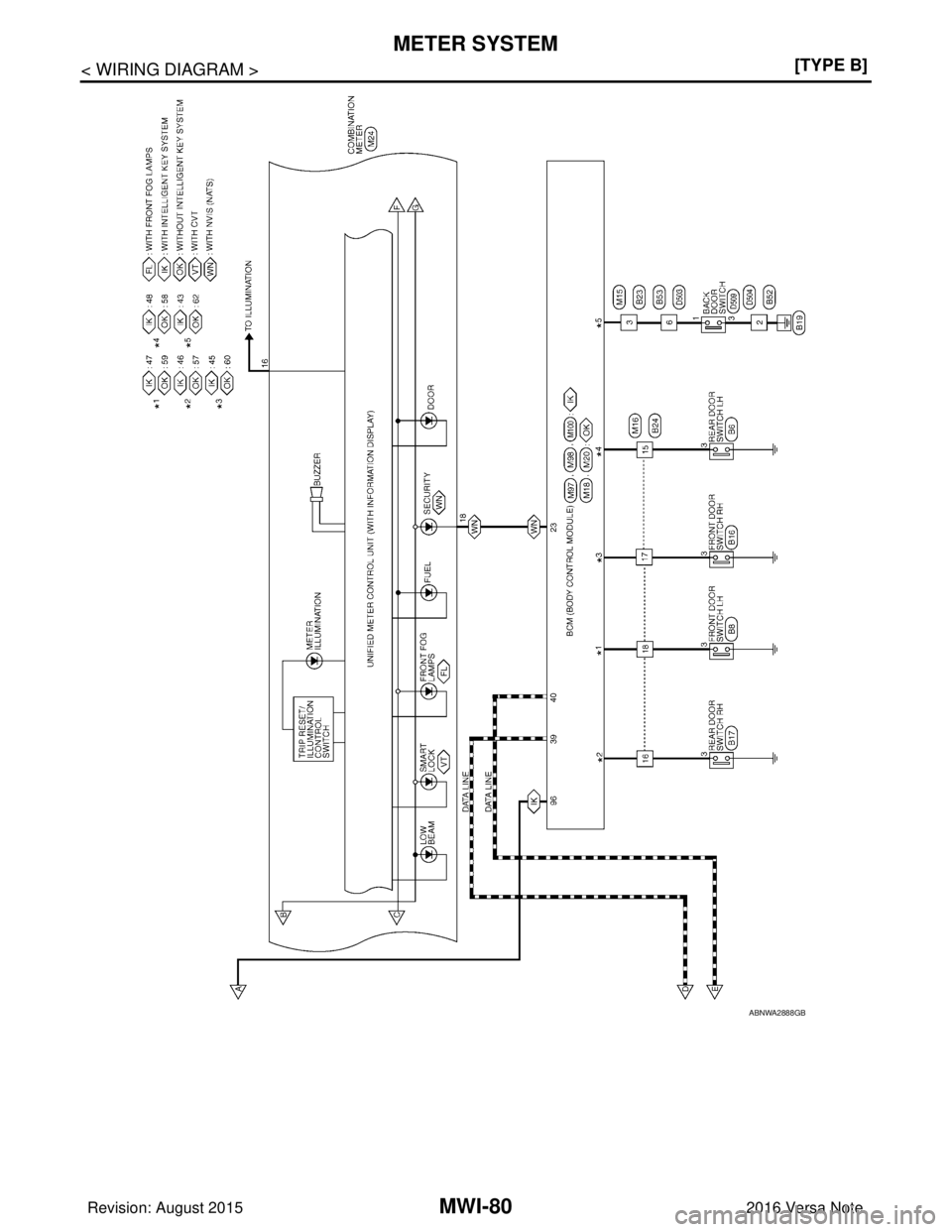

ABNWA2888GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-81
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P

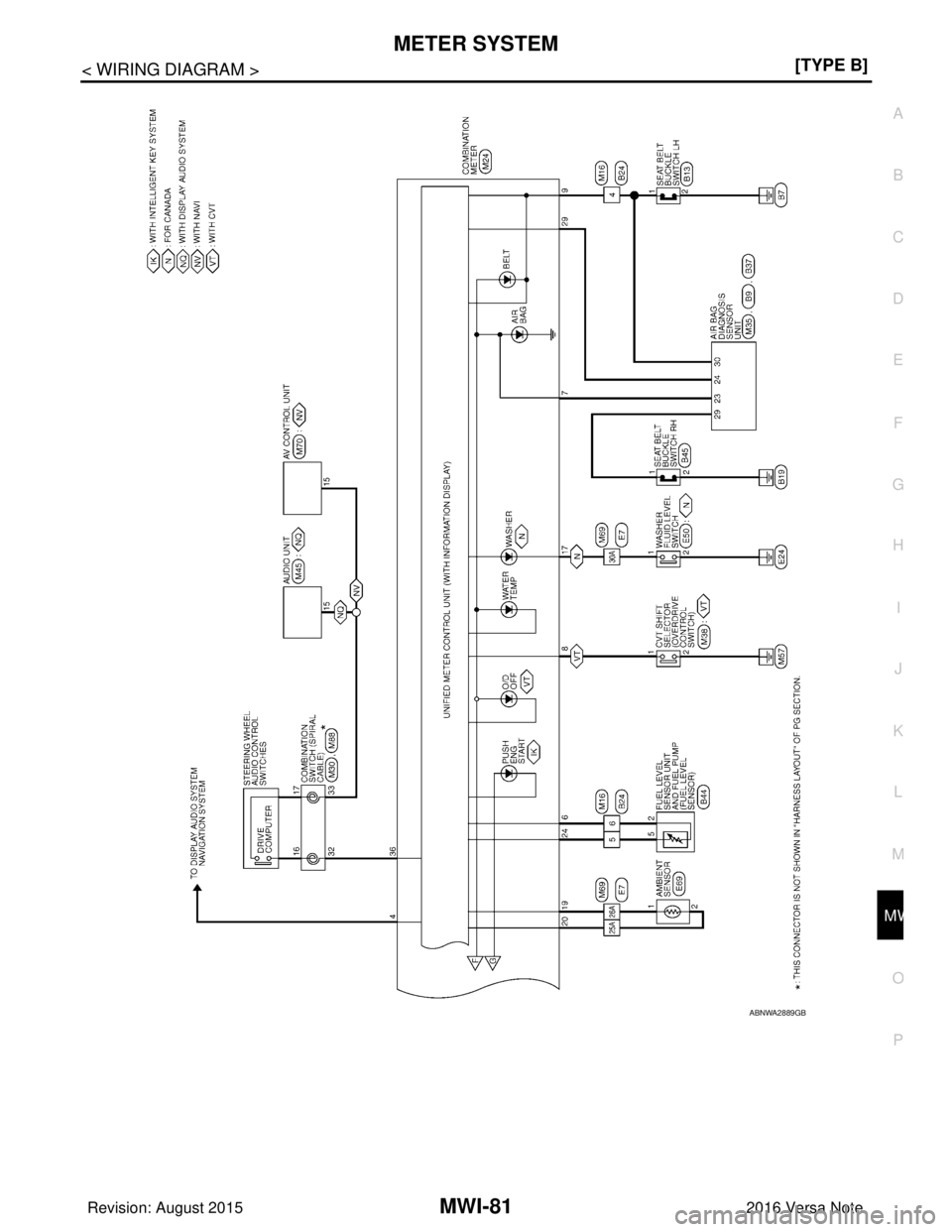

ABNWA2889GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-82
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM

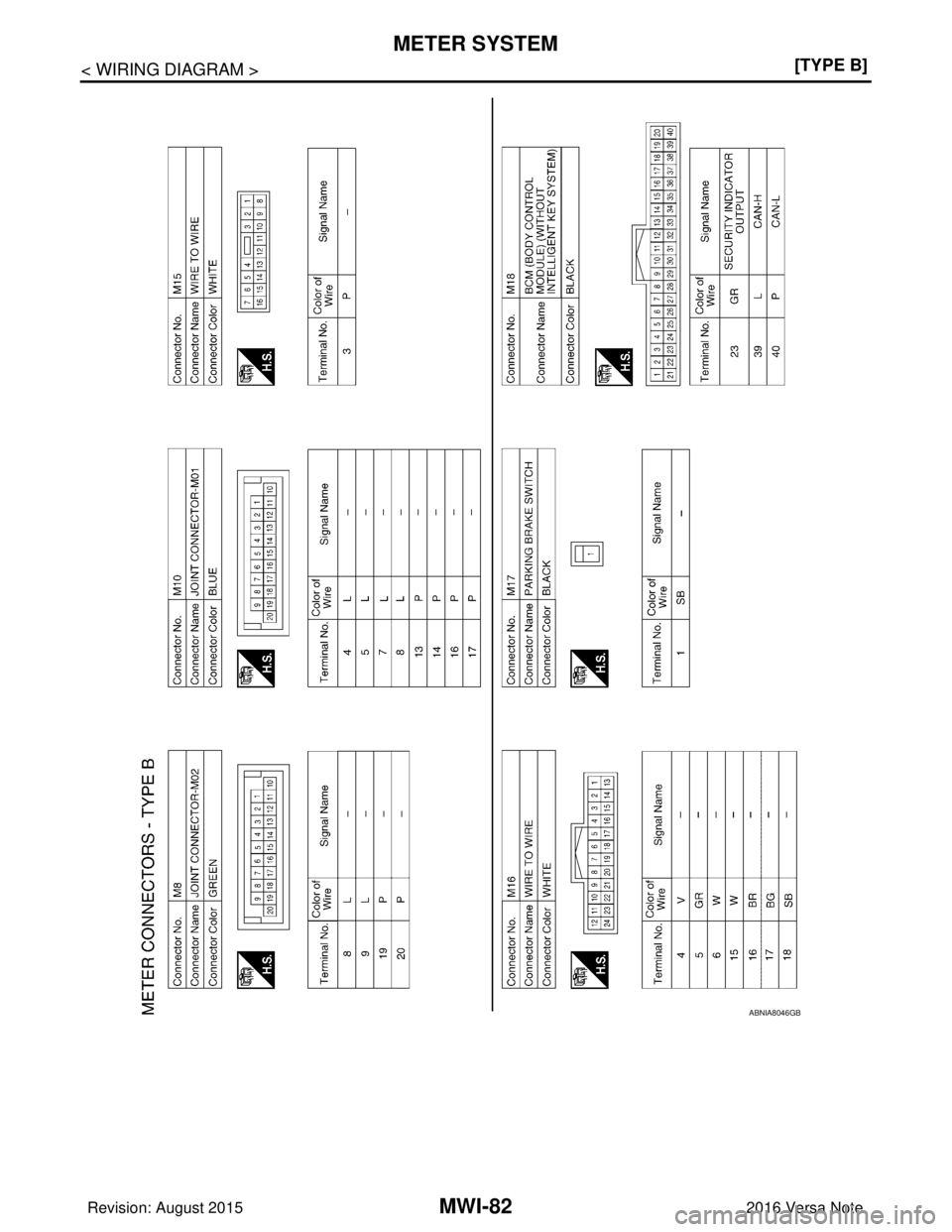

ABNIA8046GB
Revision: August 2015
