NISSAN NOTE 2016 Service Repair Manual

MWI
METER SYSTEMMWI-83
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA8047GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-84
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM
ABNIA8048GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-85
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA8049GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-86
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM
ABNIA8050GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-87
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA8051GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-88
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM
ABNIA8052GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-89
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA8053GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-90
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM
ABNIA8054GB
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI
METER SYSTEMMWI-91
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA8055GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-92
< BASIC INSPECTION >[TYPE B]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012432618

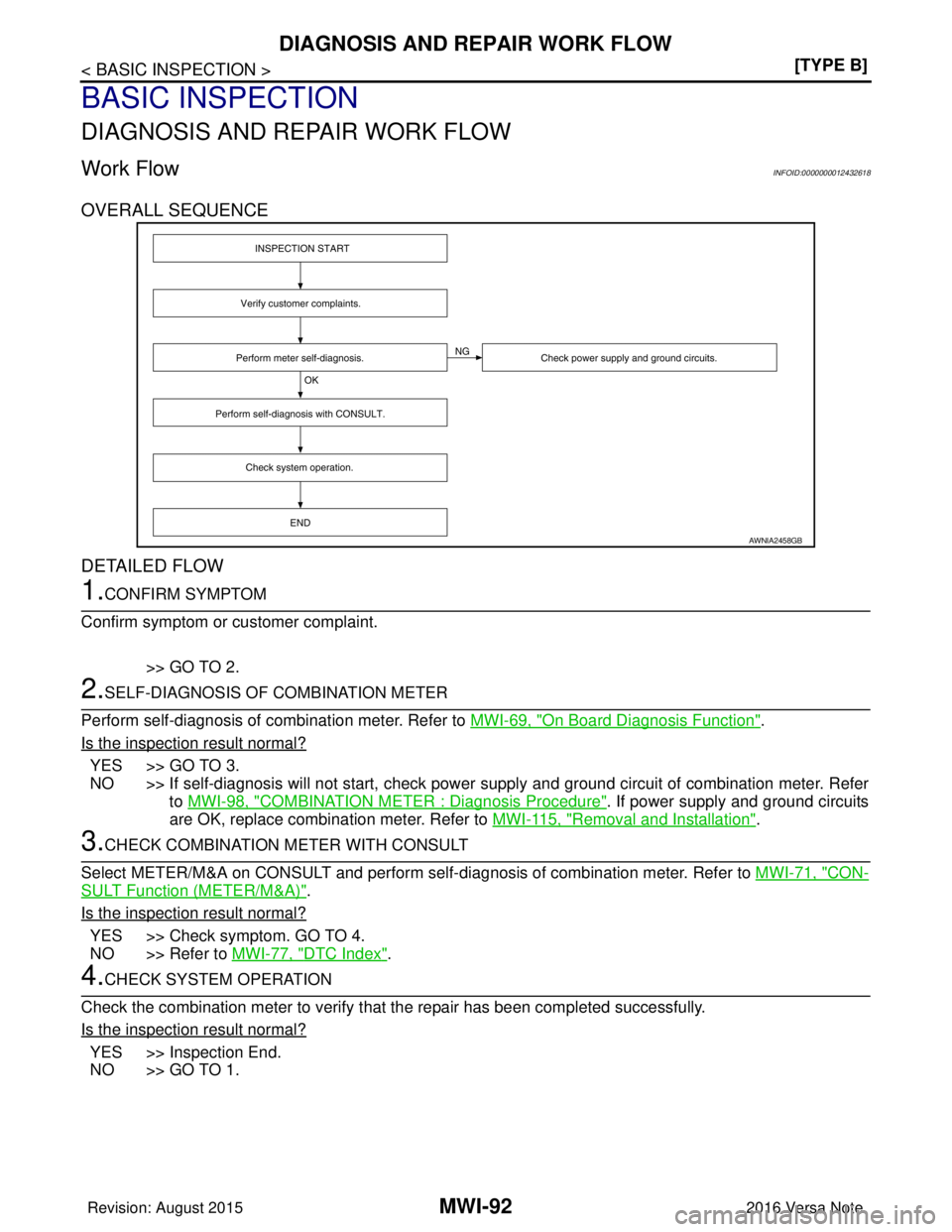

OVERALL SEQUENCE
DETAILED FLOW
1.CONFIRM SYMPTOM
Confirm symptom or customer complaint.
>> GO TO 2.
2.SELF-DIAGNOSIS OF COMBINATION METER
Perform self-diagnosis of combination meter. Refer to MWI-69, "
On Board Diagnosis Function".
Is the inspection result normal?
YES >> GO TO 3.
NO >> If self-diagnosis will not start, check power supply and ground circuit of combination meter. Refer to MWI-98, "
COMBINATION METER : Diagnosis Procedure". If power supply and ground circuits
are OK, replace combination meter. Refer to MWI-115, "
Removal and Installation".
3.CHECK COMBINATION METER WITH CONSULT
Select METER/M&A on CONSULT and perform self-d iagnosis of combination meter. Refer to MWI-71, "
CON-
SULT Function (METER/M&A)".
Is the inspection result normal?
YES >> Check symptom. GO TO 4.
NO >> Refer to MWI-77, "
DTC Index".
4.CHECK SYSTEM OPERATION
Check the combination meter to verify that the repair has been completed successfully.
Is the inspection result normal?
YES >> Inspection End.
NO >> GO TO 1.
AWNIA2458GB
Revision: August 2015 2016 Versa Note
