AUXILIARY INPUT JACK
AUXILIARY INPUT JACK
Removal and InstallationINFOID:0000000012433098
REMOVAL
1. Remove the center console assembly. Refer to
IP-18, "Removal and Installation".
2. Release the pawls (A) from the back of the center console assembly (2) using a suitable tool and remove the auxiliary input
jack (1).
INSTALLATION
Installation is in the reverse order of removal.
AWNIA3069ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
STEERING SWITCHAV-247
< REMOVAL AND INSTALLATION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
STEERING SWITCH
Removal and InstallationINFOID:0000000012433099
REMOVAL
1. Remove the steering wheel. Refer to ST-8, "Removal and Installation".
2. Remove the steering wheel rear finisher (1) by releasing pawls (A).
3. Remove the steering wheel audio control switch screws (A) from the back of the steering wheel.
4. Remove the steering wheel audio control switches from the steering wheel.
INSTALLATION
Installation is in the reverse order of removal.
AWNIA3063ZZ
AWNIA3064ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-248
< REMOVAL AND INSTALLATION >[NAVIGATION]
MICROPHONE
MICROPHONE
Removal and InstallationINFOID:0000000012433100
REMOVAL
1. Remove the microphone finisher from the headlining by releas-
ing pawls (A) using a suitable tool.
2. Disconnect the harness connector from microphone and remove.
3. Separate the microphone from the finisher by releasing pawls (A) using a suitable tool.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
• Make sure to align the rib on the finisher with the slot in the microphone.
• Make sure to install the microphone with the arro ws pointing toward the RH side of the vehicle.
AWNIA3153ZZ
AWNIA3154ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
AROUND VIEW MONITOR CONTROL UNITAV-249
< REMOVAL AND INSTALLATION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
AROUND VIEW MONITOR CONTROL UNIT
Removal and InstallationINFOID:0000000012433101
REMOVAL
1. Remove the front passenger seat. Refer to SE-22, "PASSENGER SIDE : Removal and Installation".
2. Remove the floor trim. Refer to INT-27, "
Removal and Installation".

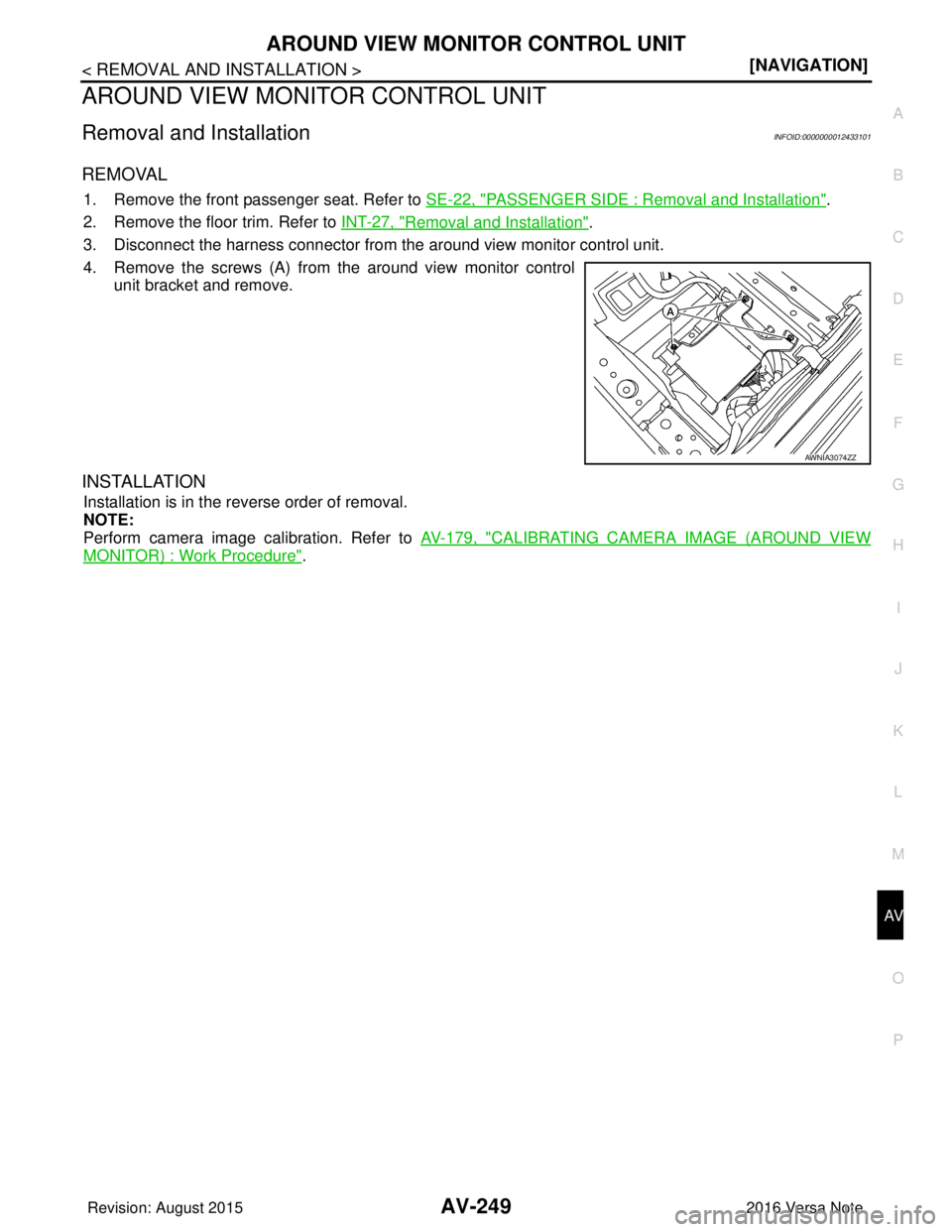

3. Disconnect the harness connector from the around view monitor control unit.
4. Remove the screws (A) from the around view monitor control unit bracket and remove.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Perform camera image calibration. Refer to AV- 1 7 9 , "
CALIBRATING CAMERA IMAGE (AROUND VIEW
MONITOR) : Work Procedure".
AWNIA3074ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-250
< REMOVAL AND INSTALLATION >[NAVIGATION]
FRONT CAMERA
FRONT CAMERA
Removal and InstallationINFOID:0000000012433102
REMOVAL
1. Remove the front grille. Refer to
EXT-32, "Removal and Installation".
2. Remove the front camera screws (A) and remove.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Perform camera image calibration. Refer to AV-179, "
CALIBRATING CAMERA IMAGE (AROUND VIEW
MONITOR) : Work Procedure".
AWNIA3075ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
REAR VIEW CAMERAAV-251
< REMOVAL AND INSTALLATION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
REAR VIEW CAMERA
Removal and InstallationINFOID:0000000012433103
REMOVAL
1. Remove the back door outer finisher. Refer to EXT-48, "Removal and Installation".
2. Disconnect the harness connector from rear view camera.

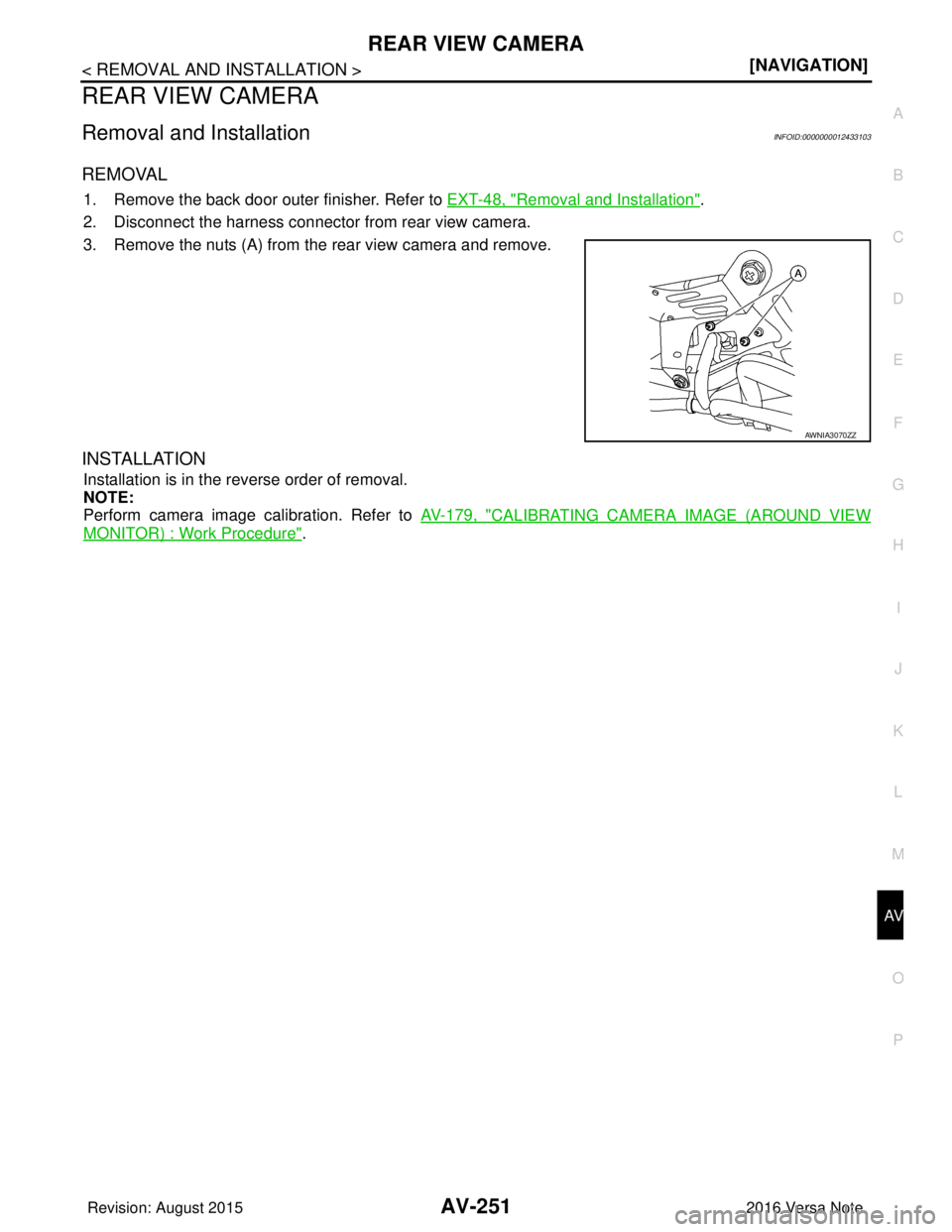

3. Remove the nuts (A) from the rear view camera and remove.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Perform camera image calibration. Refer to AV- 1 7 9 , "
CALIBRATING CAMERA IMAGE (AROUND VIEW
MONITOR) : Work Procedure".
AWNIA3070ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

A V -252
< REMOVAL AND INSTALLATION >[NAVIGATION]
SIDE CAMERA
SIDE CAMERA
Exploded ViewINFOID:0000000012433104
Removal and InstallationINFOID:0000000012433105
REMOVAL
1. Remove the door mirror. Refer to
MIR-15, "Removal and Installation".
2. Remove the door mirror glass.
3. Remove the door mirror actuator.
4. Disconnect the harness connector from the side camera.
5. Remove the side camera screws and remove.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Perform camera image calibration. Refer to AV-179, "
CALIBRATING CAMERA IMAGE (AROUND VIEW
MONITOR) : Description".
1. Door mirror rear finisher 2.Side turn signal lamp (if
equipped)
3. Door mirror
4. Door mirror glass 5. Side camera 6. Door mirror base finisher
Pawl
AWLIA2708ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
GPS ANTENNAAV-253
< REMOVAL AND INSTALLATION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
GPS ANTENNA
Removal and InstallationINFOID:0000000012433106
REMOVAL
1. Remove the combination meter. Refer to MWI-54, "Removal and Installation".
2. Remove the AV control unit in order to disconnect the GPS antenna harne ss connector. Refer to AV-241,
"Removal and Installation".
3. Remove the GPS antenna screw (A) from the GPS antenna.
4. Disconnect the harness clip (B) and remove the GPS antenna.
INSTALLATION
Installation is in the reverse order of removal.
AWNIA3076ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-254
< REMOVAL AND INSTALLATION >[NAVIGATION]
SATELLITE RADIO ANTENNA
SATELLITE RADIO ANTENNA
Removal and InstallationINFOID:0000000012433107
The satellite radio antenna is part of the rod antenna. Refer to
AV-255, "Removal and Installation".
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
ROD ANTENNAAV-255
< REMOVAL AND INSTALLATION > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O P
ROD ANTENNA

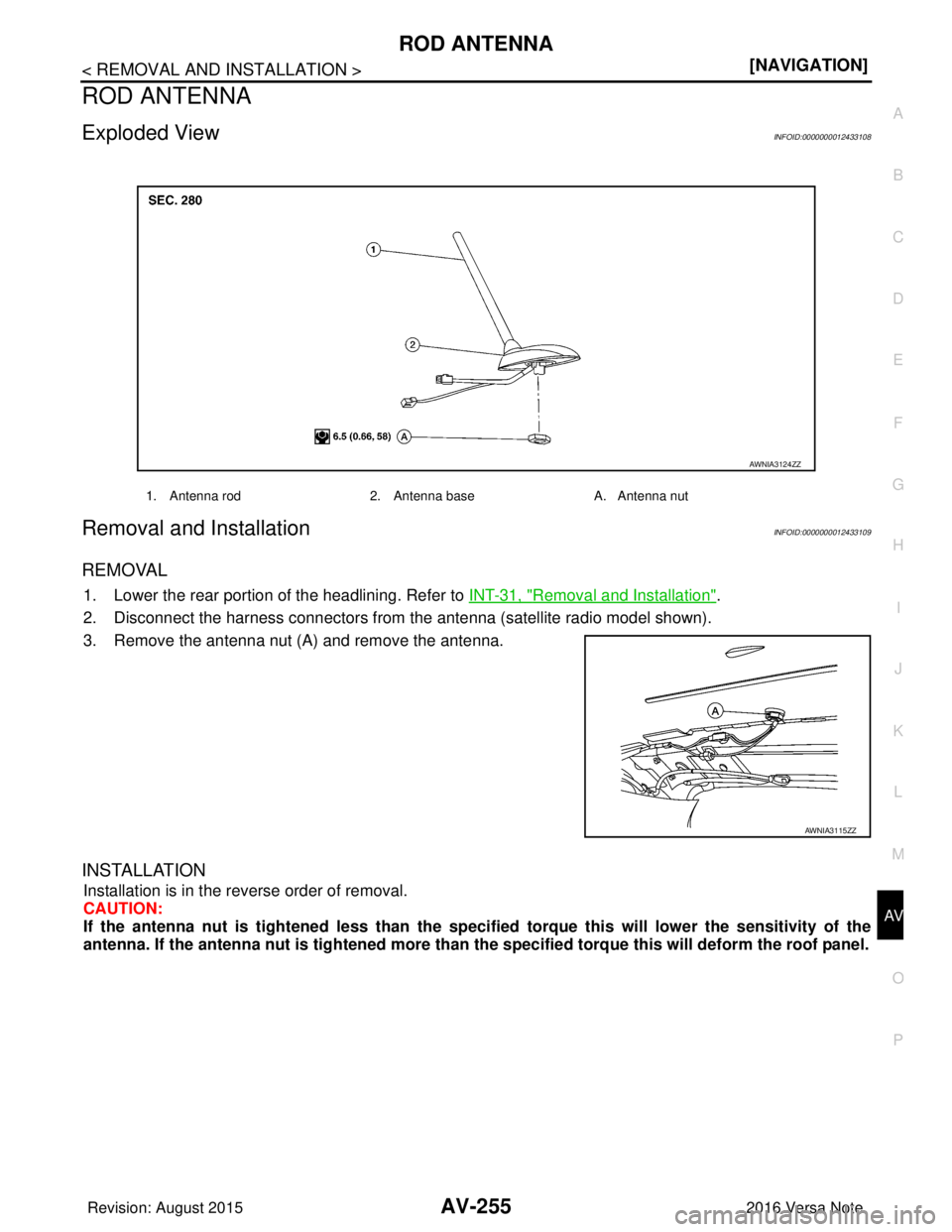

Exploded ViewINFOID:0000000012433108
Removal and InstallationINFOID:0000000012433109
REMOVAL
1. Lower the rear portion of the headlining. Refer to INT-31, "Removal and Installation".
2. Disconnect the harness connectors from the antenna (satellite radio model shown).
3. Remove the antenna nut (A) and remove the antenna.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If the antenna nut is tightened l ess than the specified torque this will lower the sensitivity of the
antenna. If the antenna nut is tight ened more than the specified torque this will deform the roof panel.
AWNIA3124ZZ
1. Antenna rod 2. Antenna baseA. Antenna nut
AWNIA3115ZZ
Revision: August 2015 2016 Versa Note
