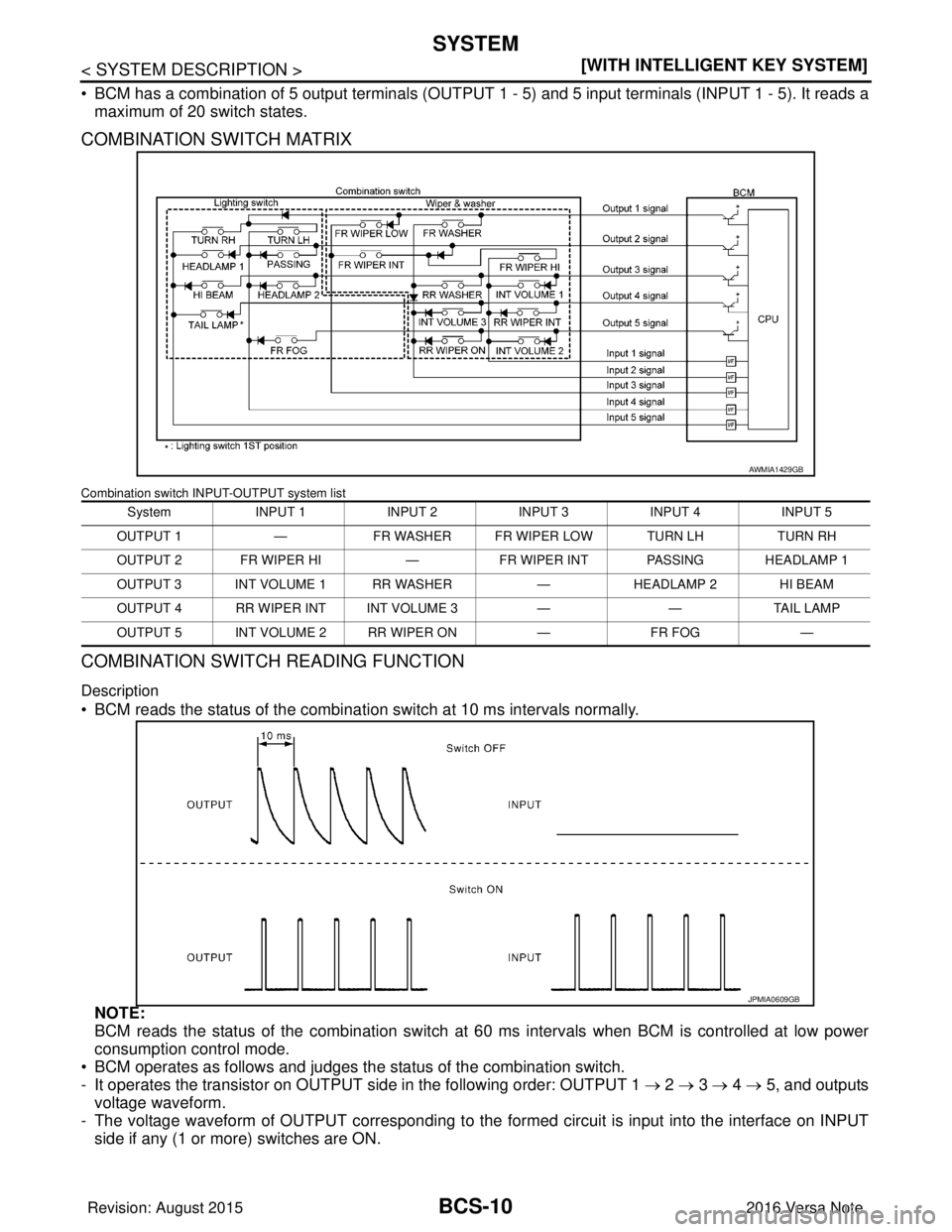

![NISSAN NOTE 2016 Service Repair Manual BCS-10
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM has a combination of 5 output terminals (OUTPUT
1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a
maximum of 20 switch s](/img/5/57363/w960_57363-270.png "NISSAN NOTE 2016 Service Repair Manual BCS-10
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM has a combination of 5 output terminals (OUTPUT
1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a
maximum of 20 switch s")
BCS-10
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM has a combination of 5 output terminals (OUTPUT
1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a
maximum of 20 switch states.
COMBINATION SWITCH MATRIX
Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH READING FUNCTION
Description
• BCM reads the status of the combination switch at 10 ms intervals normally.
NOTE:
BCM reads the status of the combination switch at 60 ms intervals when BCM is controlled at low power
consumption control mode.
• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 1 → 2 → 3 → 4 → 5, and outputs
voltage waveform.
- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT
side if any (1 or more) switches are ON.
System INPUT 1 INPUT 2INPUT 3INPUT 4 INPUT 5
OUTPUT 1 —FR WASHER FR WIPER LOW TURN LH TURN RH
OUTPUT 2 FR WIPER HI —FR WIPER INT PASSING HEADLAMP 1
OUTPUT 3 INT VOLUME 1 RR WASHER —HEADLAMP 2 HI BEAM
OUTPUT 4 RR WIPER INT INT VOLUME 3 ——TAIL LAMP
OUTPUT 5 INT VOLUME 2 RR WIPER ON —FR FOG —
AWMIA1429GB
JPMIA0609GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 272 of 3641

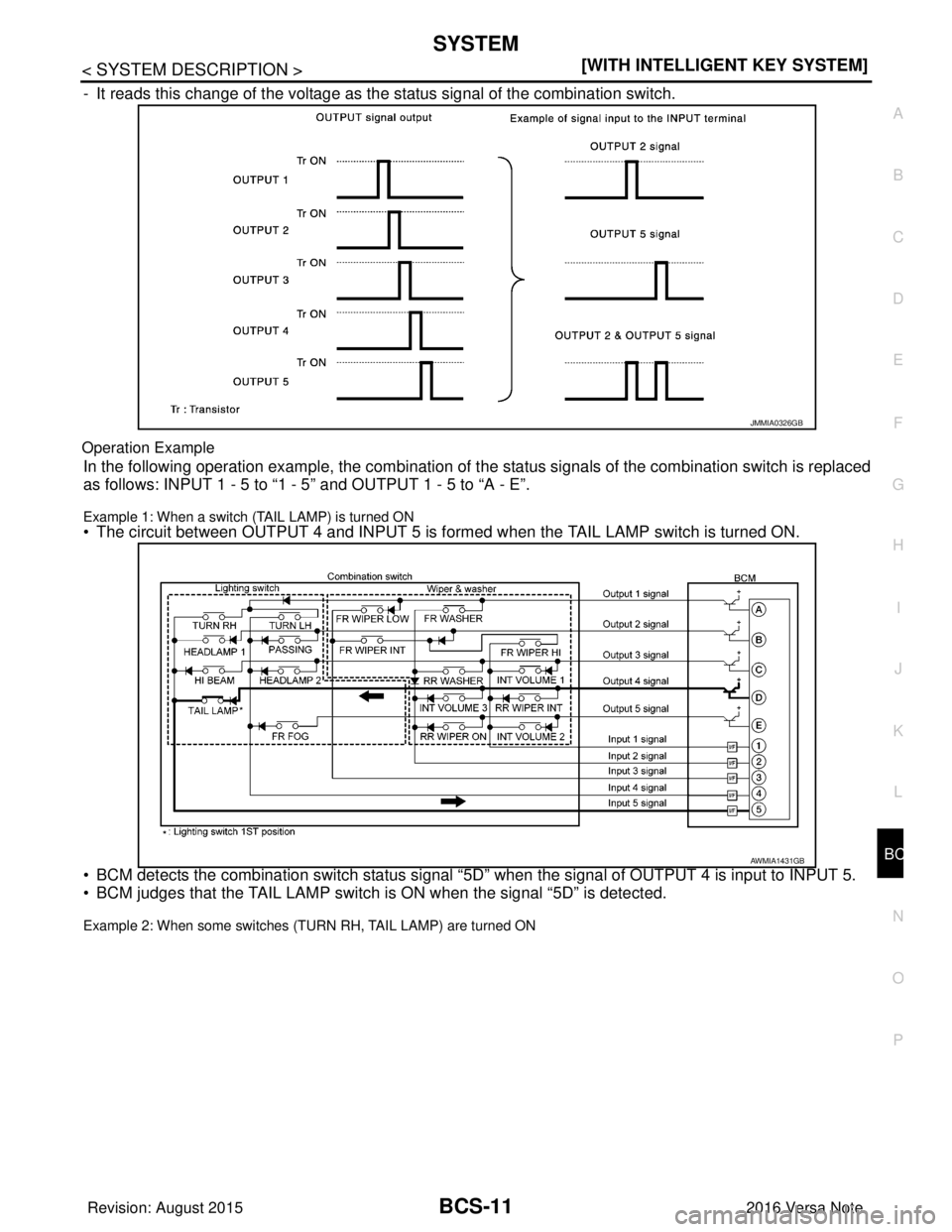

![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-11
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
- It reads this change of the voltage as the status signal of the combination switch.
Operation Exam](/img/5/57363/w960_57363-271.png "NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-11
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
- It reads this change of the voltage as the status signal of the combination switch.
Operation Exam")
BCS
SYSTEMBCS-11
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
- It reads this change of the voltage as the status signal of the combination switch.
Operation Example
In the following operation example, the combination of t
he status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.
Example 1: When a switch (TAIL LAMP) is turned ON• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.
• BCM detects the combination switch status signal “5 D” when the signal of OUTPUT 4 is input to INPUT 5.
• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.
Example 2: When some switches (TURN RH, TAIL LAMP) are turned ON
JMMIA0326GB
AWMIA1431GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 273 of 3641

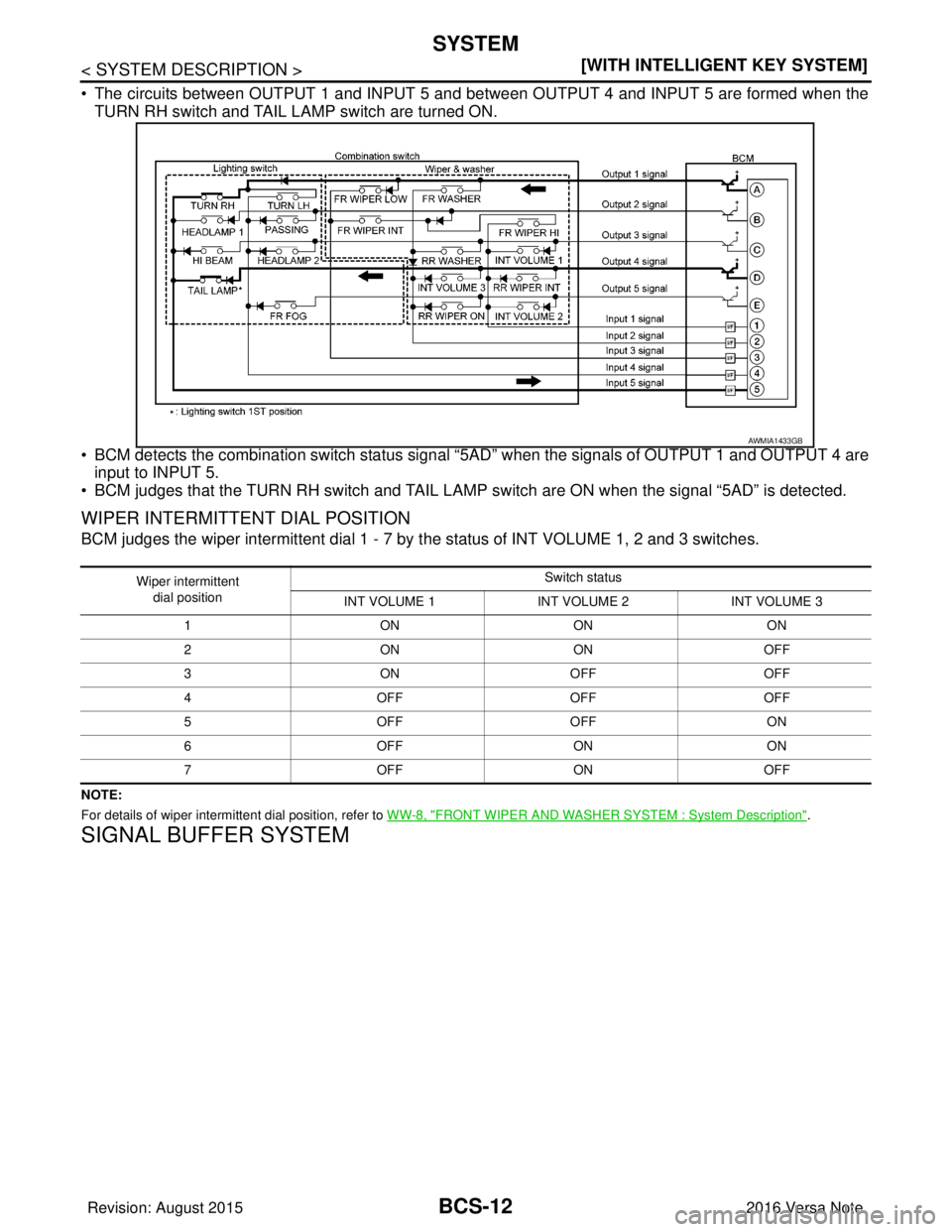

![NISSAN NOTE 2016 Service Repair Manual BCS-12
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the
TURN RH switch and TAIL LAMP switch](/img/5/57363/w960_57363-272.png "NISSAN NOTE 2016 Service Repair Manual BCS-12
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the
TURN RH switch and TAIL LAMP switch")
BCS-12
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the
TURN RH switch and TAIL LAMP switch are turned ON.
• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are
input to INPUT 5.
• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.
WIPER INTERMITTENT DIAL POSITION
BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.
NOTE:
For details of wiper intermittent dial position, refer to WW-8, "
FRONT WIPER AND WASHER SYSTEM : System Description".
SIGNAL BUFFER SYSTEM
AWMIA1433GB
Wiper intermittent
dial position Switch status
INT VOLUME 1 INT VOLUME 2INT VOLUME 3
1O NONO N
2O NONOFF
3O NOFFO FF
4 OFF OFFOFF
5O FFO FFO N
6 OFF ONON
7 OFF ONOFF
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 274 of 3641

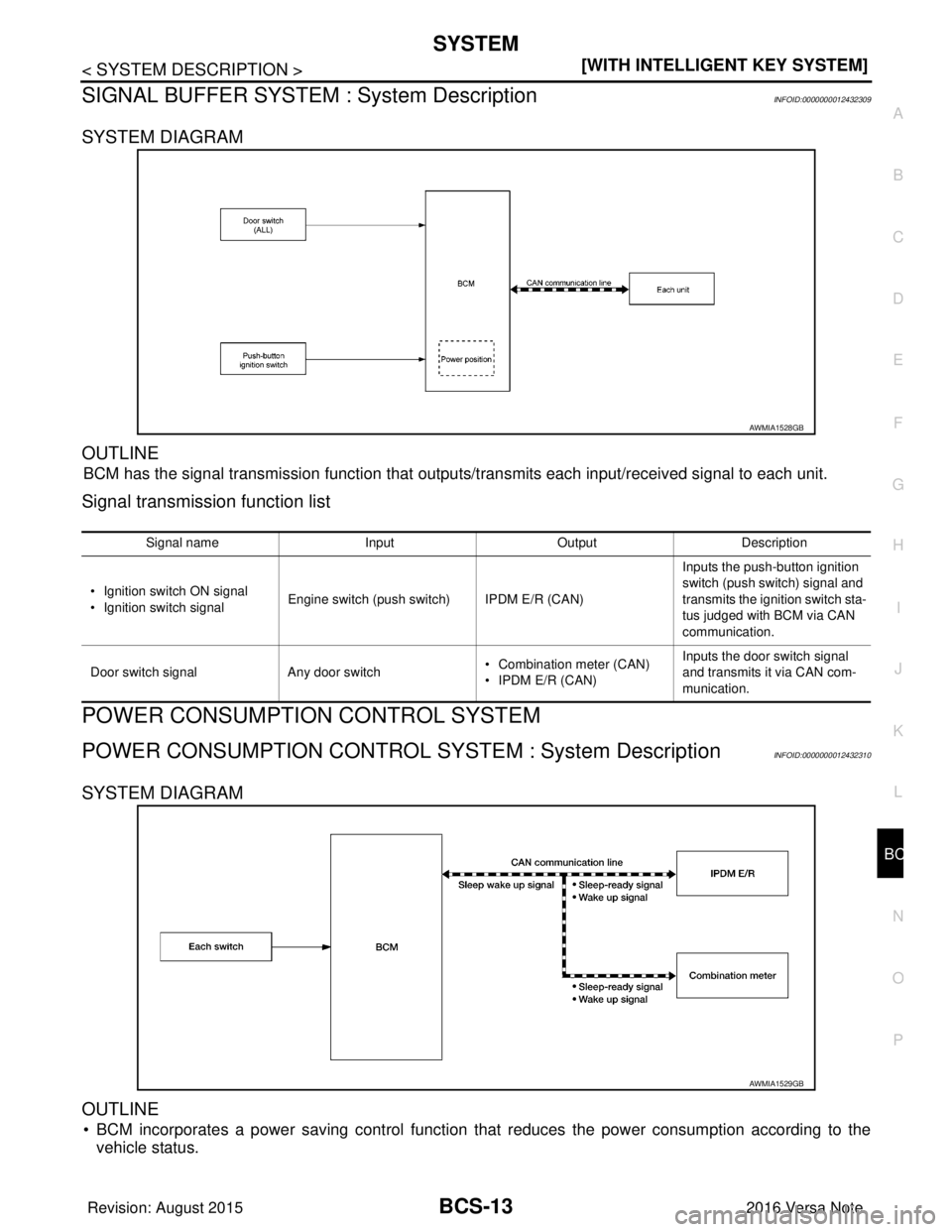

![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-13
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SIGNAL BUFFER SYSTEM : System DescriptionINFOID:0000000012432309
SYSTEM DIAGRAM
OUTLINE
BCM has the](/img/5/57363/w960_57363-273.png "NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-13
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SIGNAL BUFFER SYSTEM : System DescriptionINFOID:0000000012432309
SYSTEM DIAGRAM
OUTLINE
BCM has the")
BCS
SYSTEMBCS-13
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SIGNAL BUFFER SYSTEM : System DescriptionINFOID:0000000012432309
SYSTEM DIAGRAM
OUTLINE
BCM has the signal transmission function that output
s/transmits each input/received signal to each unit.
Signal transmission function list
POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYSTEM : System DescriptionINFOID:0000000012432310
SYSTEM DIAGRAM
OUTLINE
• BCM incorporates a power saving control function t hat reduces the power consumption according to the
vehicle status.
AWMIA1528GB
Signal name InputOutputDescription
• Ignition switch ON signal
• Ignition switch signal Engine switch (push switch) IPDM E/R (CAN) Inputs the push-button ignition
switch (push switch) signal and
transmits the ignition switch sta-
tus judged with BCM via CAN
communication.
Door switch signal Any door switch • Combination meter (CAN)
• IPDM E/R (CAN)Inputs the door switch signal
and transmits it via CAN com-
munication.
AWMIA1529GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 275 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-14
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM switches the status (control mode) by itself wit
h the power saving control function. It performs the sleep
request to each un](/img/5/57363/w960_57363-274.png "NISSAN NOTE 2016 Service Repair Manual BCS-14
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM switches the status (control mode) by itself wit
h the power saving control function. It performs the sleep
request to each un")
BCS-14
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM switches the status (control mode) by itself wit
h the power saving control function. It performs the sleep
request to each unit (IPDM E/R and combination mete r) that operates with the ignition switch OFF.
Normal mode (wake-up)- CAN communication is normally performed with other units
- Each control with BCM is operating properly
CAN communication sleep mode (CAN sleep)- CAN transmission is stopped
- Control with BCM only is operating
Low power consumption mode (BCM sleep)- Low power consumption control is active
- CAN transmission is stopped
LOW POWER CONSUMPTION CONTROL WITH BCM
BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of each switch changes from 10 ms interval to 60 ms interval.
Sleep mode activation
• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-
tion.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful- filled.
• Each unit stops the transmission of CAN communication with the sleep wakeup signal. BCM is in CAN com- munication sleep mode.
• BCM is in the low power consumption mode and perform s the low power consumption control when all of the
BCM sleep conditions are fulfilled with CAN sleep condition.
Sleep condition
Wake-up operation
• BCM transmits the sleep wake up signal (wake up) to each unit when any of the CAN wake-up conditions are fulfilled. It changes from the low power consumption mode or the CAN communication sleep mode to the
normal mode.
• Each unit starts the transmission of CAN communication with the sleep wake up signal. In addition, the com- bination meter transmits the wake up signal to BCM via CAN communication to report the CAN communica-
tion start.
CAN sleep condition BCM sleep condition
• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm: No operation
• Warning lamp: Not operation
• Intelligent Key system buzzer: No operation
• Brake switch: OFF
• Turn signal indicator lamp: No operation
•Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: No communication
• Meter display signal: Non-transmission
• Door switch status: No change
• Rear window defogger: OFF • Interior room lamp battery saver: Time out
• RAP system: OFF
• Push-button ignition switch (push switch) illumination: OFF
• NATS: No operation
• Remote keyless entry receiver communication status: No com-
munication
• Tire pressure monitoring system:Stop
BCM wake-up condition CAN wake-up condition
• Front door lock assembly LH (key cylinder switch): Lock or unlock
• Door lock switch: OFF →ON
• Door unlock switch: OFF→ON
• Remote keyless entry receiver: Receiving valid keyfob • Receiving the sleep-ready signal (Not-ready) from any units
• Push-button ignition switch (push switch): OFF
→ON
• Hazard switch: OFF →ON
• PASSING switch: OFF →ON, ON →OFF
• TAIL LAMP switch: OFF →ON
• Front door switch LH: OFF →ON, ON→OFF
• Front door switch RH: OFF → ON, ON → OFF
• Front outside handle LH request switch: OFF →ON
• Front outside handle RH request switch: OFF→ON
• Stop lamp switch 2 signal: ON
• Remote keyless entry receiver: Receiving valid keyfob
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 276 of 3641

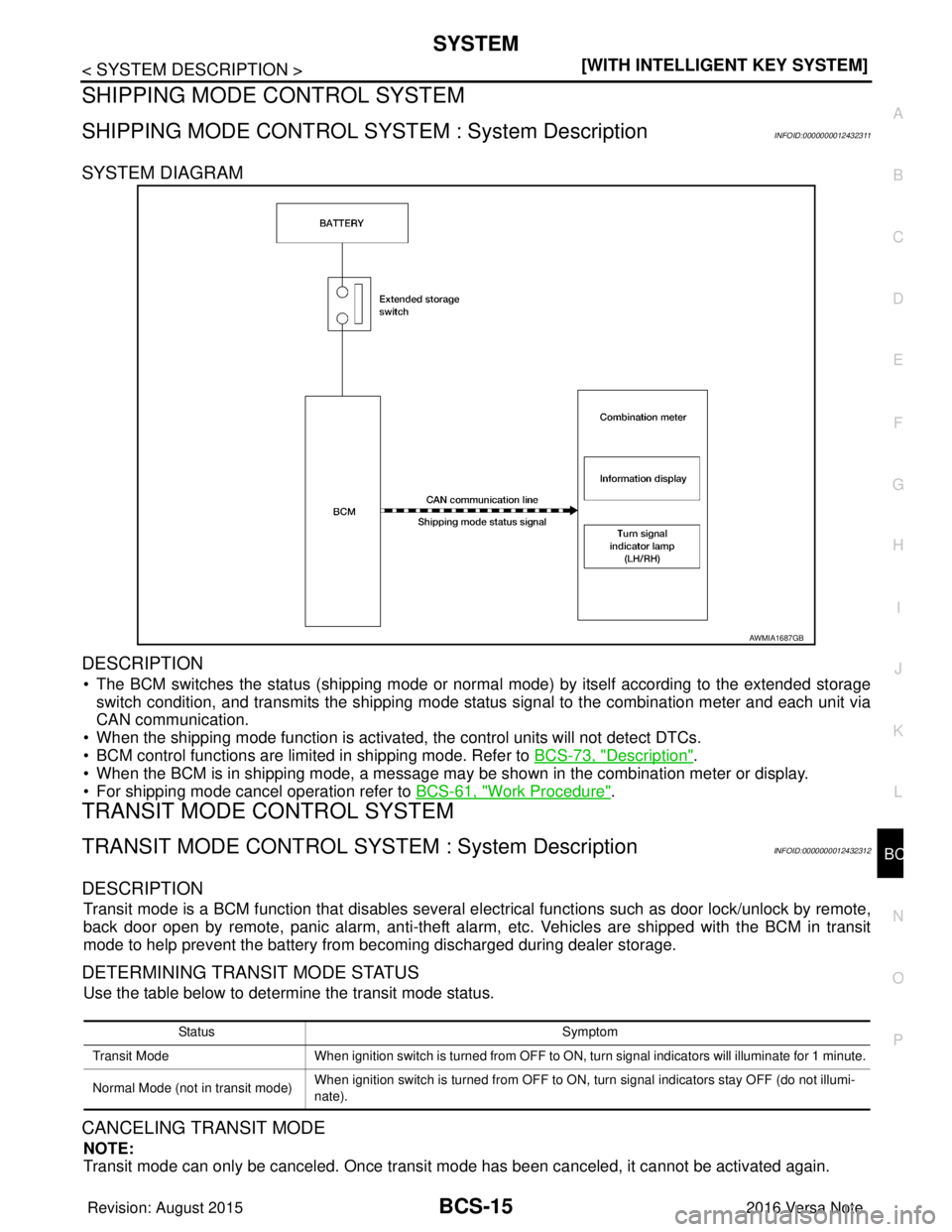

![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-15
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:000000001243231](/img/5/57363/w960_57363-275.png "NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-15
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:000000001243231")
BCS
SYSTEMBCS-15
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:0000000012432311
SYSTEM DIAGRAM
DESCRIPTION
• The BCM switches the status (shipping mode or norma
l mode) by itself according to the extended storage
switch condition, and transmits the shipping mode status signal to the combination meter and each unit via
CAN communication.
• When the shipping mode function is activated, the control units will not detect DTCs.
• BCM control functions are limited in shipping mode. Refer to BCS-73, "
Description".
• When the BCM is in shipping mode, a message may be shown in the combination meter or display.
• For shipping mode cancel operation refer to BCS-61, "
Work Procedure".
TRANSIT MODE CONTROL SYSTEM
TRANSIT MODE CONTROL SYSTEM : System DescriptionINFOID:0000000012432312
DESCRIPTION
Transit mode is a BCM function that disables several el ectrical functions such as door lock/unlock by remote,
back door open by remote, panic alarm, anti-theft alarm, etc. Vehicles are shipped with the BCM in transit
mode to help prevent the battery from becoming discharged during dealer storage.
DETERMINING TRANSIT MODE STATUS
Use the table below to determine the transit mode status.
CANCELING TRANSIT MODE
NOTE:
Transit mode can only be canceled. Once transit mode has been canceled, it cannot be activated again.
AWMIA1687GB
Sta tus Sy mp tom
Transit Mode When ignition switch is turned from OFF to ON, turn signal indicators will illuminate for 1 minute.
Normal Mode (not in transit mode) When ignition switch is turned from OFF to ON,
turn signal indicators stay OFF (do not illumi-
nate).
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 277 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-16
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
To cancel transit mode, refer to
BCS-62, "Work Procedure".
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-276.png "NISSAN NOTE 2016 Service Repair Manual BCS-16
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
To cancel transit mode, refer to
BCS-62, \"Work Procedure\".
Revision: August 2015 2016 Versa Note
cardiagn.com")
BCS-16
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
To cancel transit mode, refer to
BCS-62, "Work Procedure".
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 278 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
DIAGNOSIS SYSTEM (BCM)BCS-17
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM](/img/5/57363/w960_57363-277.png "NISSAN NOTE 2016 Service Repair Manual BCS
DIAGNOSIS SYSTEM (BCM)BCS-17
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM")
BCS
DIAGNOSIS SYSTEM (BCM)BCS-17
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000012432313
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode
Description
ECU Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
ECU Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN DIAG SUPPORT MNTR
Door lock
DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ×××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM× × ×××
Immobilizer IMMU ××××
Interior room lamp battery saver BATTERY SAVER ×××
Vehicle security system THEFT ALM ××
RAP system RETAINED PWR ×
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
Panic alarm system PANIC ALARM ×
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 279 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-18
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK
DOOR LOCK : CONSULT Func
tion (BCM - DOOR LOCK)INFOID:0000000012432314
DATA MONITOR
ACTIVE TEST
WORK SUPPORT](/img/5/57363/w960_57363-278.png "NISSAN NOTE 2016 Service Repair Manual BCS-18
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK
DOOR LOCK : CONSULT Func
tion (BCM - DOOR LOCK)INFOID:0000000012432314
DATA MONITOR
ACTIVE TEST
WORK SUPPORT")
BCS-18
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK
DOOR LOCK : CONSULT Func
tion (BCM - DOOR LOCK)INFOID:0000000012432314
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
*: Initial setting
REAR DEFOGGER
REAR DEFOGGER : CONSULT Func tion (BCM - REAR DEFOGGER)INFOID:0000000012432315
DATA MONITOR
Monitor Item [Unit] Description
REQ SW -DR [On/Off] Indicates condition of door request switch LH.
REQ SW -AS [On/Off] Indicates condition of door request switch RH.
REQ SW -BD/TR [On/Off] Indicates condition of back door request switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off] Indicates condition of back door switch.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch.
KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch.
Test Item Description
DOOR LOCK This test is able to check door lock operation [OTR ULK/AS UNLK/DR UNLK/ALL UNLK/ALL
LOCK].
Support Item
Setting Description
DOOR LOCK-UNLOCK SET On*
Automatic door locks function ON.
Off Automatic door locks function OFF.
AUTOMATIC LOCK/UNLOCK
SELECT Lock/Unlock* Automatic door locks function operates in lock and unlock.
Lock Only Automatic door locks function operates in lock only.
Unlock Only Automatic door locks function operates in unlock only.
Off
Automatic door locks function OFF.
AUTOMATIC DOOR LOCK SELECT P RANGE Doors lock automatically when shifted out of Park (P).
VH SPD* Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).
AUTOMATIC DOOR UNLOCK
SELECT MODE6* Drivers door unlocks automatically when key is removed.
MODE5 Drivers door unlocks automatically when shifted into Park (P).
MODE4 Drivers door unlocks automatically when ignition is switched from ON to OFF.
MODE3 Doors unlock automatically when key is removed.
MODE2 Doors unlock automatically when shifted into Park (P).
MODE1 Doors unlock automatically when ignition is switched from ON to OFF.
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 280 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
DIAGNOSIS SYSTEM (BCM)BCS-19
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ACTIVE TEST
BUZZER
BUZZER : CONSULT Func
tion (BCM - BUZZER)INFOID:0000000012432316](/img/5/57363/w960_57363-279.png "NISSAN NOTE 2016 Service Repair Manual BCS
DIAGNOSIS SYSTEM (BCM)BCS-19
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ACTIVE TEST
BUZZER
BUZZER : CONSULT Func
tion (BCM - BUZZER)INFOID:0000000012432316")
BCS
DIAGNOSIS SYSTEM (BCM)BCS-19
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ACTIVE TEST
BUZZER
BUZZER : CONSULT Func
tion (BCM - BUZZER)INFOID:0000000012432316
DATA MONITOR
ACTIVE TEST
INT LAMP
INT LAMP : CONSULT Func tion (BCM - INT LAMP)INFOID:0000000012432317
DATA MONITOR
Monitor Item [Unit] Description
PUSH SW [On/Off] Indicates condition of push-button ignition switch.
REAR DEF SW [On/Off] Indicates condition of rear window defogger switch.
Test Item Description
REAR DEFOGGER This test is able to check rear window defogger operation [Off/On].
Monitor Item [Unit] Description
PUSH SW [On/Off] Indicates condition of push-button ignition switch.
UNLK SEN -DR [On/Off] Indicates condition of door unlock sensor.
VEH SPEED 1 [km/h] Indicates vehicle speed signal received from ABS on CAN communication line.
TAIL LAMP SW [On/Off] Indicates condition of combination switch.
FR FOG SW [On/Off] Indicates condition of front fog lamp switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
Test Item Description
ID REGIST WARNING This test is able to check TPMS transmitter ID regist warning chime operation [On/Off].
SEAT BELT WARN TEST This test is able to check seat belt warning chime operation [On/Off].
LIGHT WARN ALM This test is able to check light warning chime operation [On/Off].
Monitor Item [Unit] Description
REQ SW -DR [On/Off] Indicates condition of door request switch LH.
REQ SW -AS [On/Off] Indicates condition of door request switch RH.
PUSH SW [On/Off] Indicates condition of push-button ignition switch.
UNLK SEN -DR [On/Off] Indicates condition of door unlock sensor.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off] Indicates condition of back door switch.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch.
KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch.
Revision: August 2015 2016 Versa Note
cardiagn.com
