SYSTEMSTR-9
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
STARTING SYSTEM (WITH INTELL
IGENT KEY) : System DiagramINFOID:0000000012432066
STARTING SYSTEM (WITH INTELLIG ENT KEY) : System DescriptionINFOID:0000000012432067
• When the selector lever is in the P or N position, power is supplied to starter relay and starter control relay by
the transmission range switch. The BCM and IPDM E/R (C PU) will detect the selector lever position by the
input signal.
• When the starter operating condition is met, the IPDM E/R will turn the starter control relay ON by starter
control relay control signal.
• When engine cranking condition is met, the BCM turns ON the starter relay by starter control relay signal.
• Then battery power is supplied to starter motor (“S” terminal) through the starter control relay and starter
relay.
ALBIA1231GB
Revision: August 2015 2016 Versa Note

cardiagn.com

STR-10
< WIRING DIAGRAM >
STARTING SYSTEM
WIRING DIAGRAM
STARTING SYSTEM
Wiring Diagram - With Intelligent Key SystemINFOID:0000000012432068
ABBWA1633GB
Revision: August 2015 2016 Versa Note

cardiagn.com

STARTING SYSTEMSTR-11
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
ABBIA3067GB
Revision: August 2015
2016 Versa Note

cardiagn.com

STR-12
< WIRING DIAGRAM >
STARTING SYSTEM
AABIA1424GB
Revision: August 20152016 Versa Note

cardiagn.com

STARTING SYSTEMSTR-13
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
AABIA1425GB
Revision: August 2015
2016 Versa Note

cardiagn.com

STR-14
< WIRING DIAGRAM >
STARTING SYSTEM
ABBIA3068GB
Revision: August 20152016 Versa Note

cardiagn.com

STARTING SYSTEMSTR-15
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
AABIA1111GB
Revision: August 2015
2016 Versa Note

cardiagn.com

STR-16
< WIRING DIAGRAM >
STARTING SYSTEM

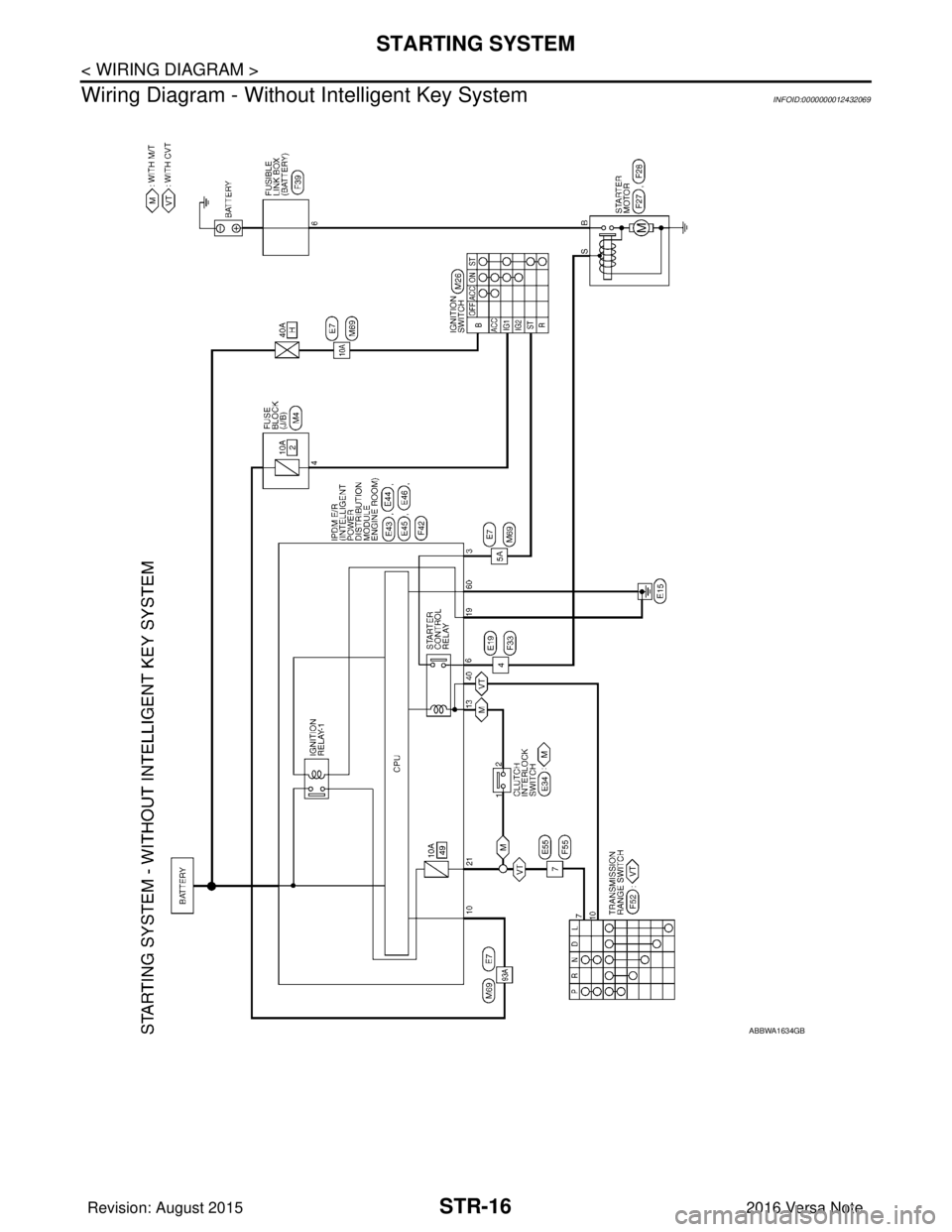

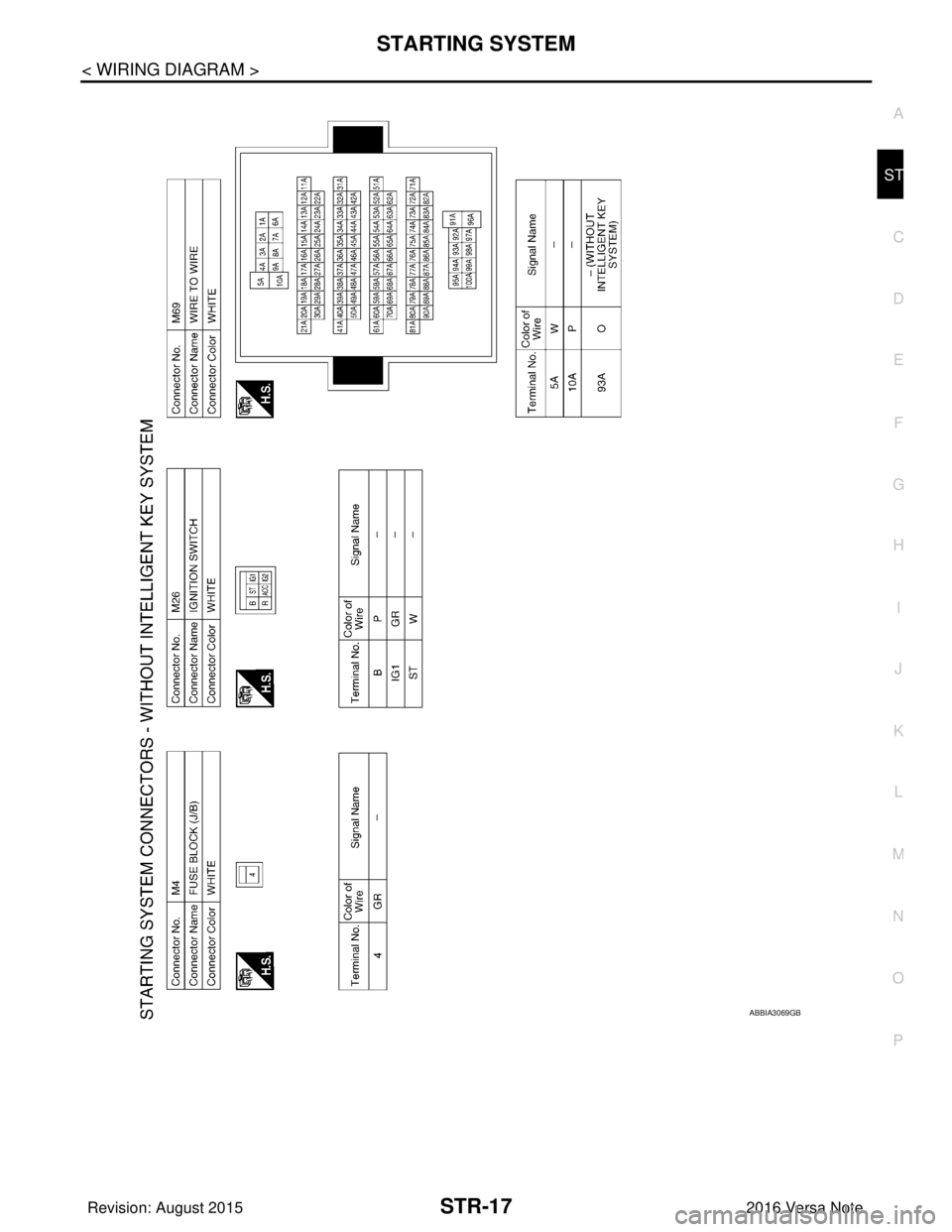

Wiring Diagram - Without Intelligent Key System
INFOID:0000000012432069
ABBWA1634GB
Revision: August 2015 2016 Versa Note

cardiagn.com

STARTING SYSTEMSTR-17
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M A
STR
NP
O
ABBIA3069GB
Revision: August 2015
2016 Versa Note

cardiagn.com

STR-18
< WIRING DIAGRAM >
STARTING SYSTEM
ABBIA3070GB
Revision: August 20152016 Versa Note
