NISSAN NOTE 2016 Service Repair Manual
Page 731 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-42
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
POWER DOOR LOCK SYSTEM
AAKIA2300GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-730.png "NISSAN NOTE 2016 Service Repair Manual DLK-42
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
POWER DOOR LOCK SYSTEM
AAKIA2300GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 732 of 3641

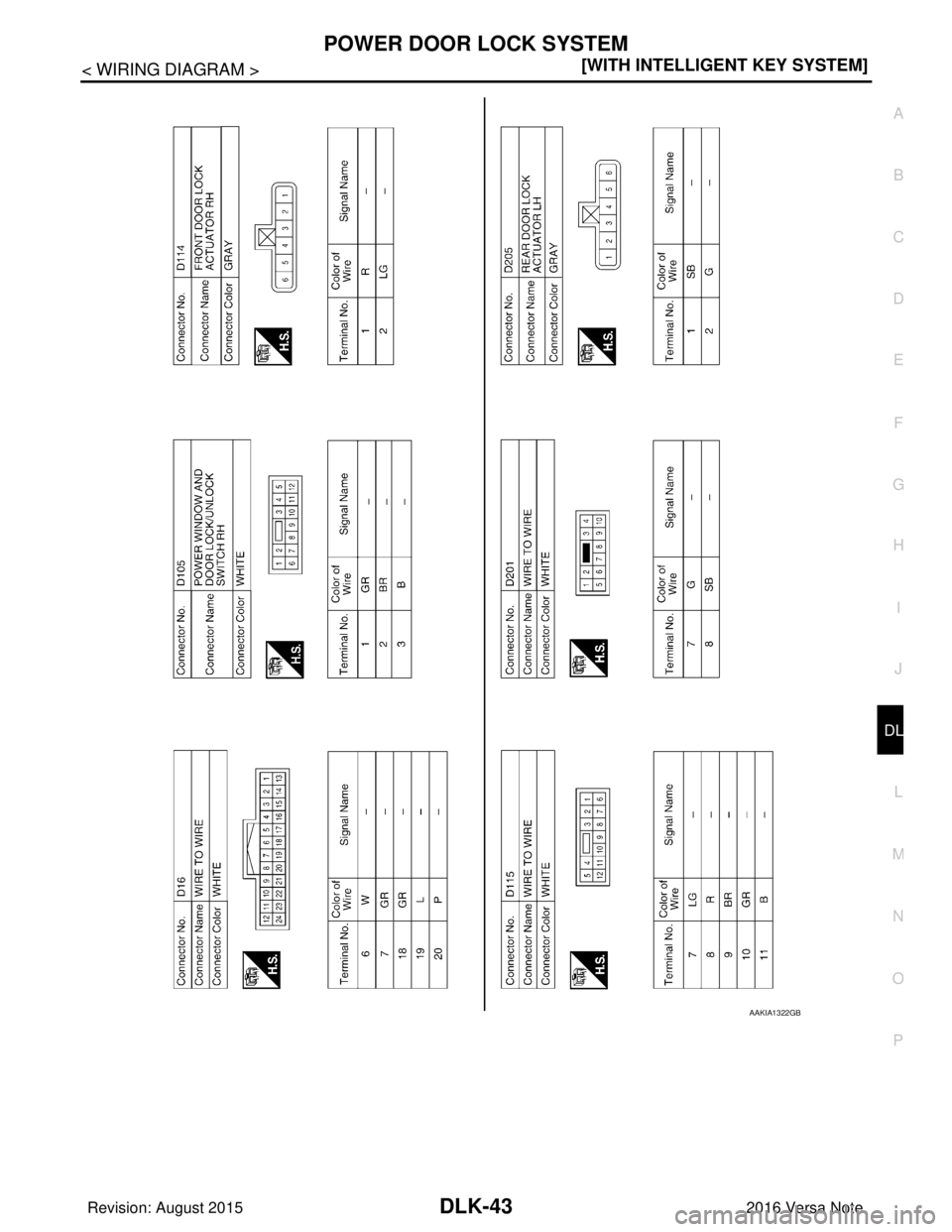

![NISSAN NOTE 2016 Service Repair Manual POWER DOOR LOCK SYSTEMDLK-43
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKIA1322GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-731.png "NISSAN NOTE 2016 Service Repair Manual POWER DOOR LOCK SYSTEMDLK-43
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKIA1322GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 733 of 3641

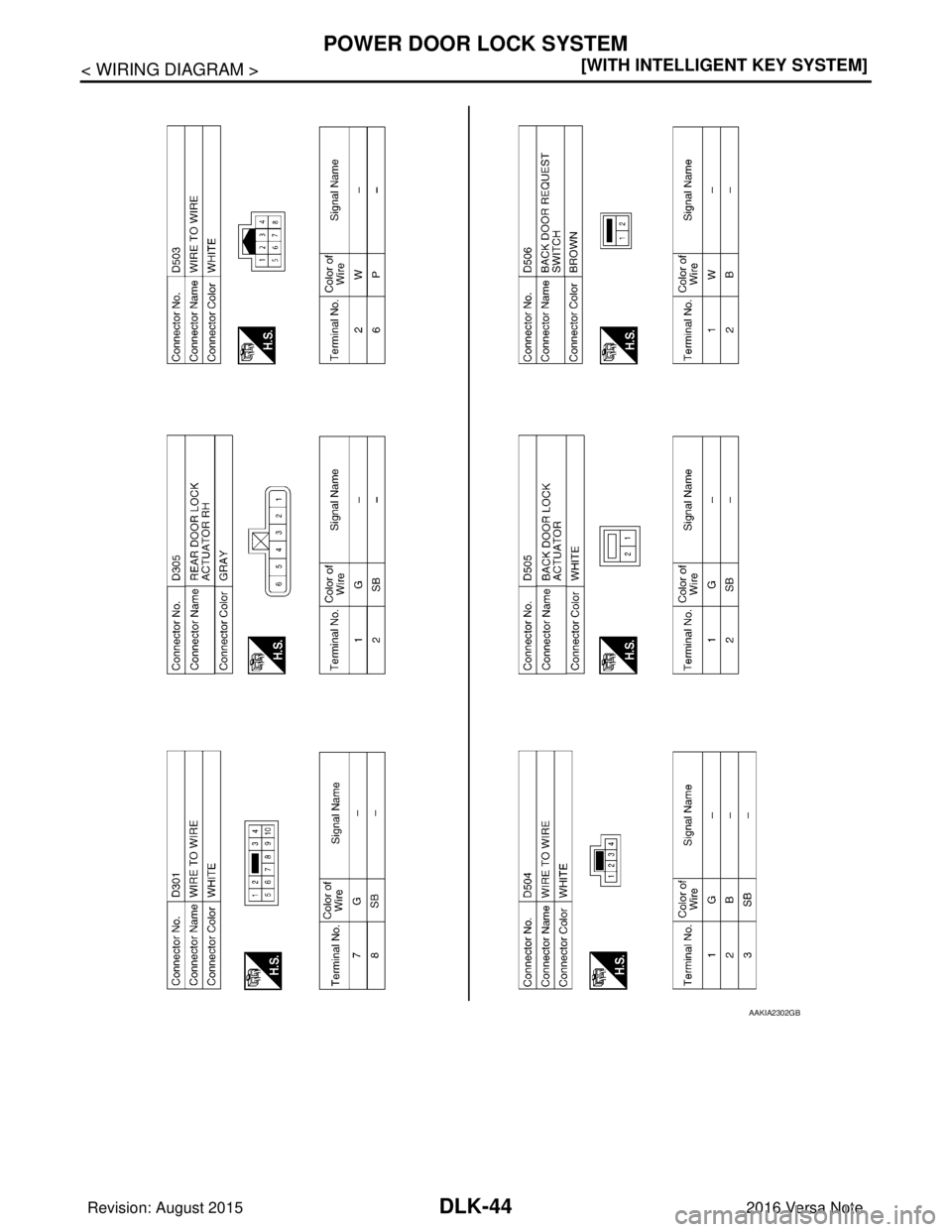

![NISSAN NOTE 2016 Service Repair Manual DLK-44
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
POWER DOOR LOCK SYSTEM
AAKIA2302GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-732.png "NISSAN NOTE 2016 Service Repair Manual DLK-44
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
POWER DOOR LOCK SYSTEM
AAKIA2302GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 734 of 3641
![NISSAN NOTE 2016 Service Repair Manual POWER DOOR LOCK SYSTEMDLK-45
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKIA2303GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-733.png "NISSAN NOTE 2016 Service Repair Manual POWER DOOR LOCK SYSTEMDLK-45
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKIA2303GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 735 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-46
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM
Wiring DiagramINFOID:0000000012429992
ABKWA3089GB
Revision: August 2015
2016 Versa Note
cardiagn.c](/img/5/57363/w960_57363-734.png "NISSAN NOTE 2016 Service Repair Manual DLK-46
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM
Wiring DiagramINFOID:0000000012429992
ABKWA3089GB
Revision: August 2015
2016 Versa Note
cardiagn.c")
Page 736 of 3641
![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-47
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKWA0957GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-735.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-47
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKWA0957GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 737 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-48
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
ABKWA3090GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-736.png "NISSAN NOTE 2016 Service Repair Manual DLK-48
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
ABKWA3090GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 738 of 3641
![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-49
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
ABKWA3103GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-737.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-49
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
ABKWA3103GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 739 of 3641
![NISSAN NOTE 2016 Service Repair Manual DLK-50
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
ABKIA7072GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-738.png "NISSAN NOTE 2016 Service Repair Manual DLK-50
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
ABKIA7072GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 740 of 3641
![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-51
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
ABKIA7073GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-739.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-51
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
ABKIA7073GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
