HARNESS LAYOUT

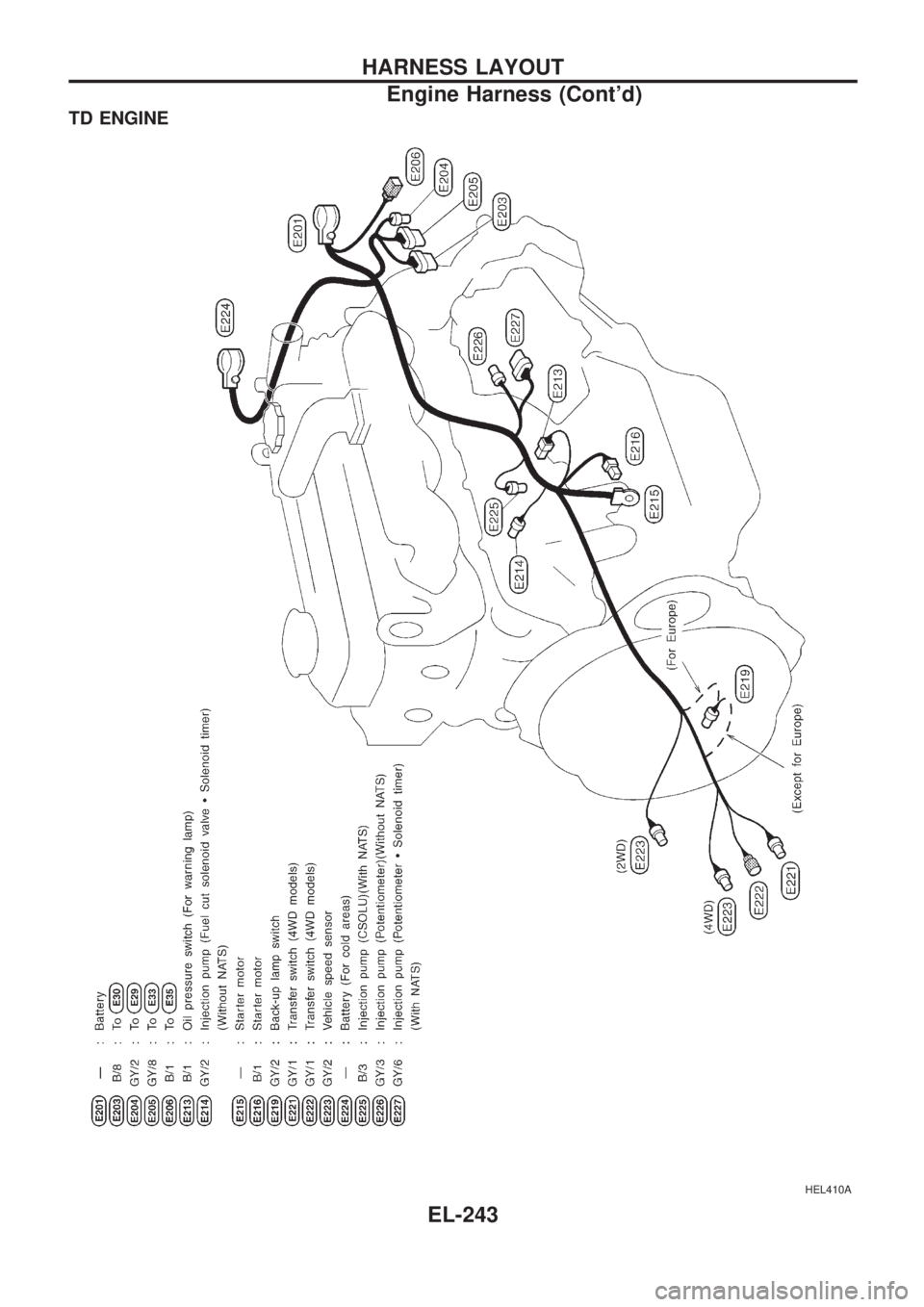

Engine Harness (Cont'd)
EL-243

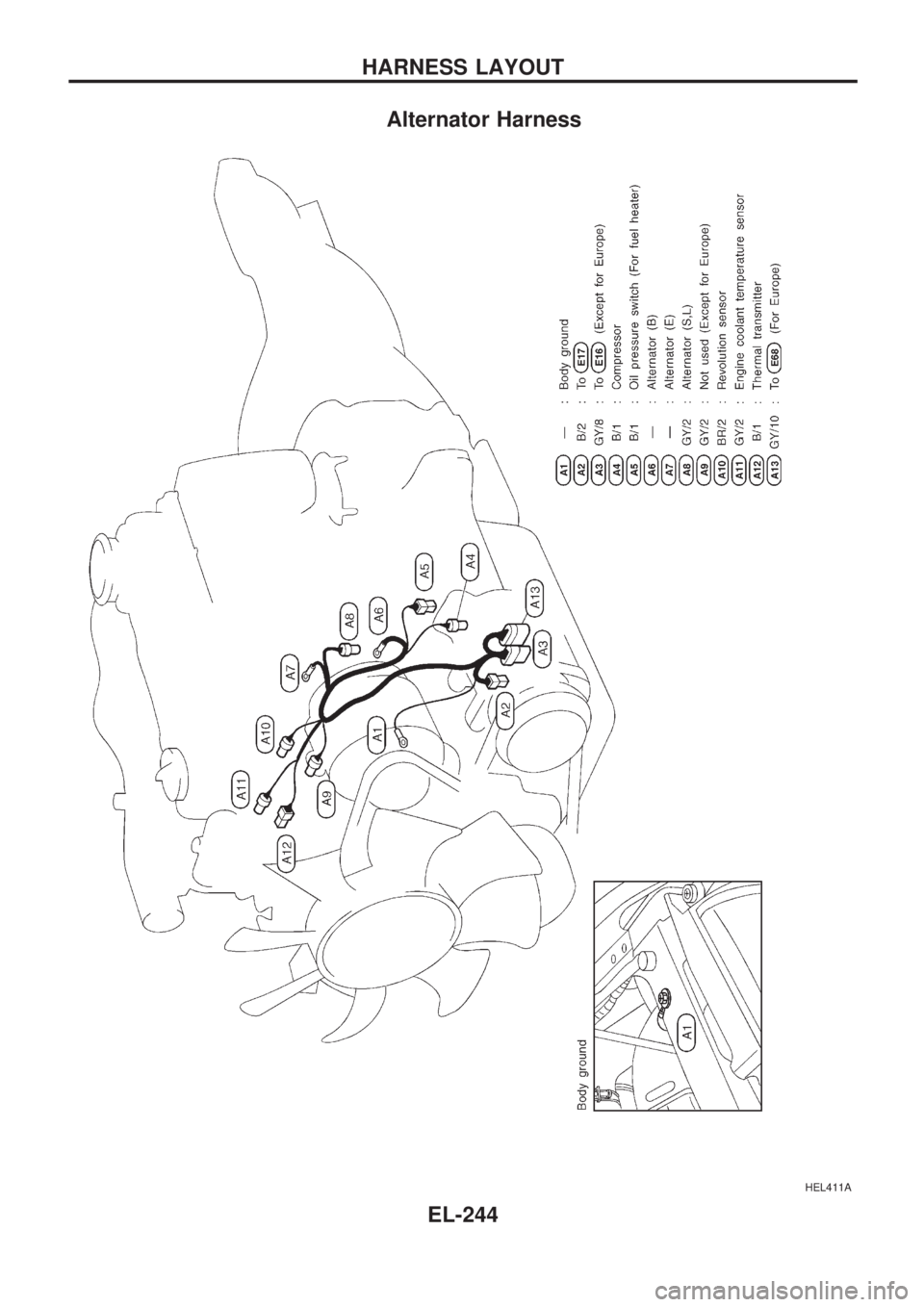

Alternator Harness
HEL411A
HARNESS LAYOUT
EL-244

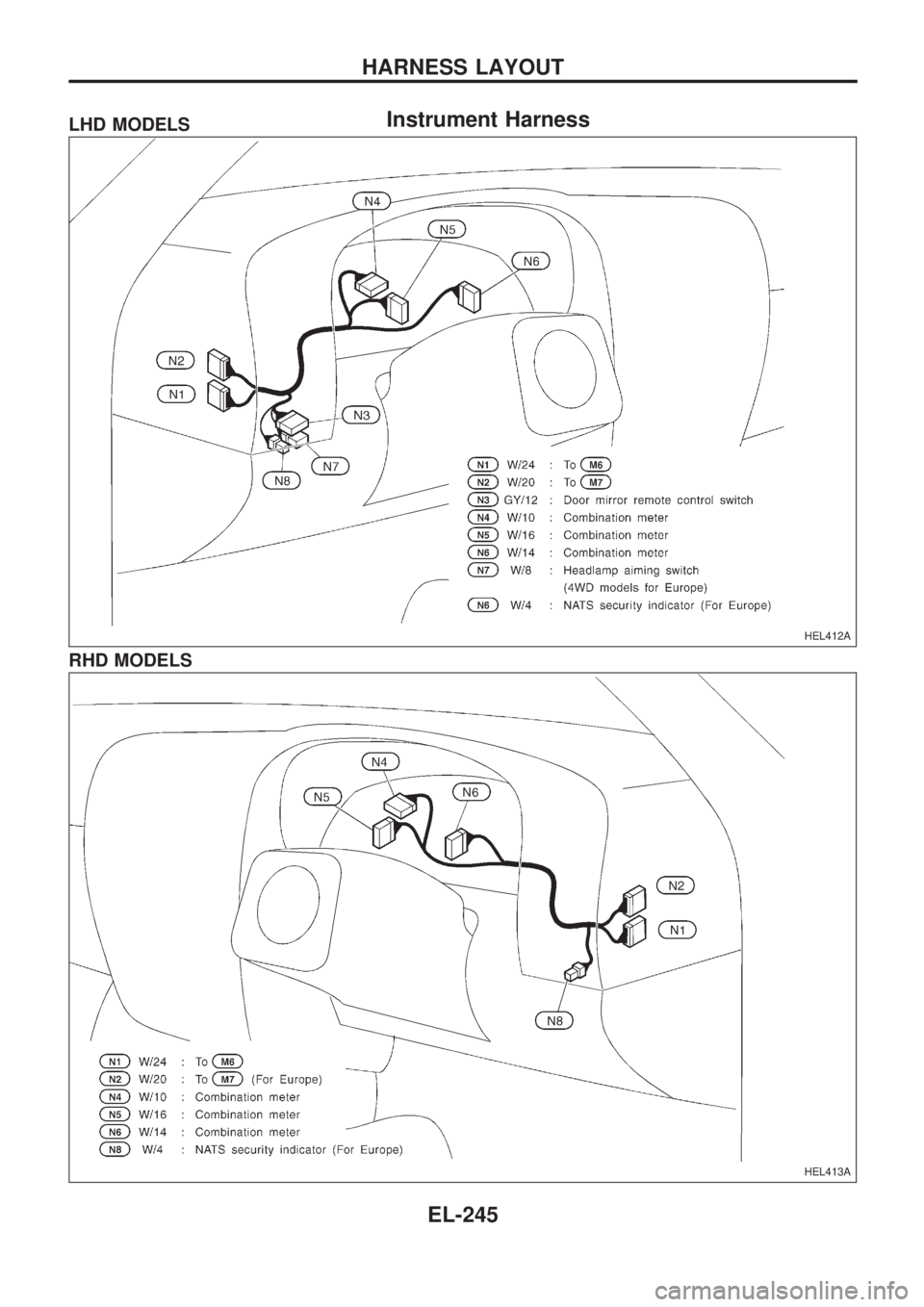

Instrument HarnessLHD MODELS
RHD MODELS
HEL412A
HEL413A
HARNESS LAYOUT
EL-245

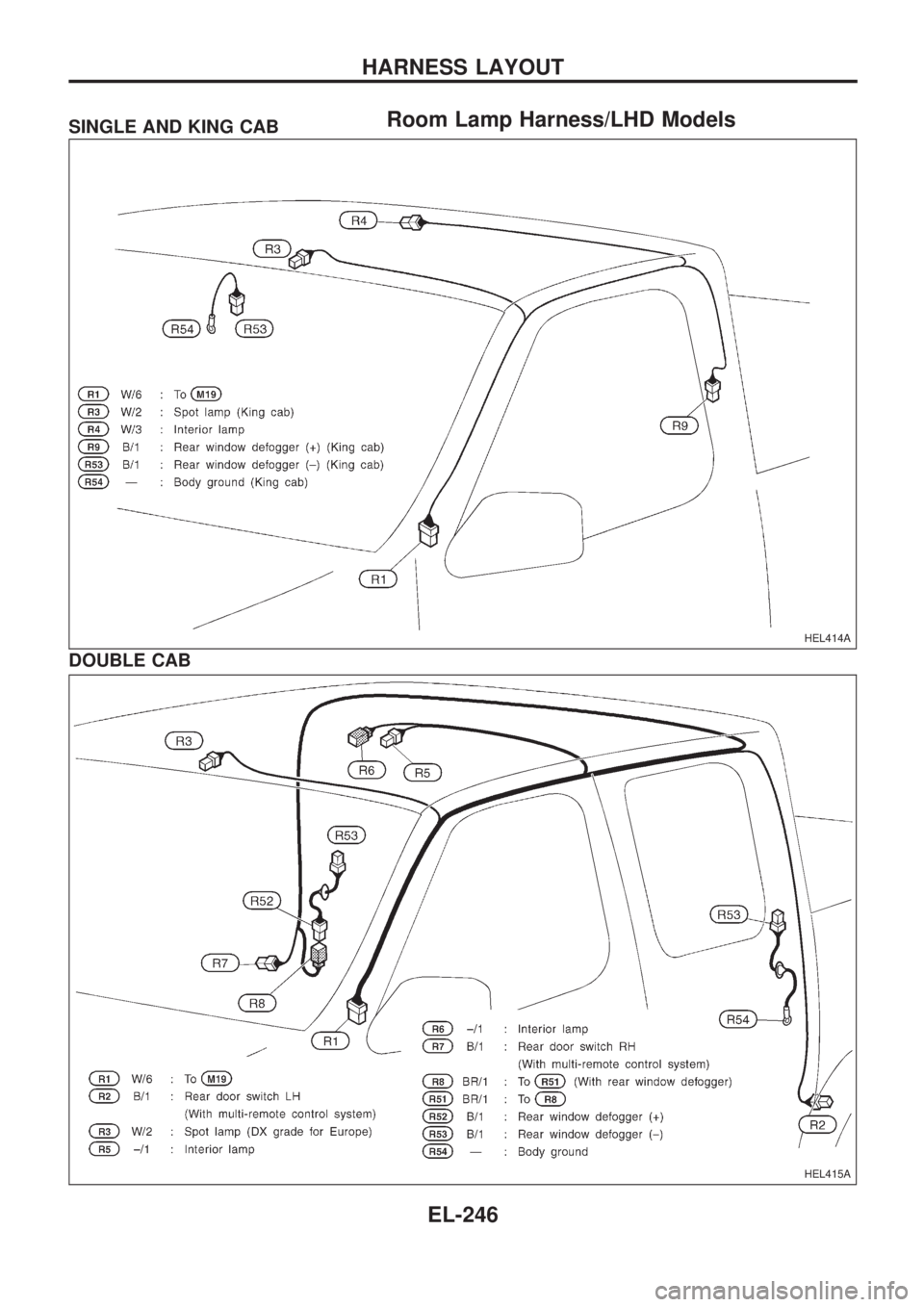

Room Lamp Harness/LHD ModelsSINGLE AND KING CAB
DOUBLE CAB
HEL414A
HEL415A
HARNESS LAYOUT
EL-246

Room Lamp Harness/RHD ModelsSINGLE AND KING CAB
DOUBLE CAB
HEL416A
HEL417A
HARNESS LAYOUT
EL-247

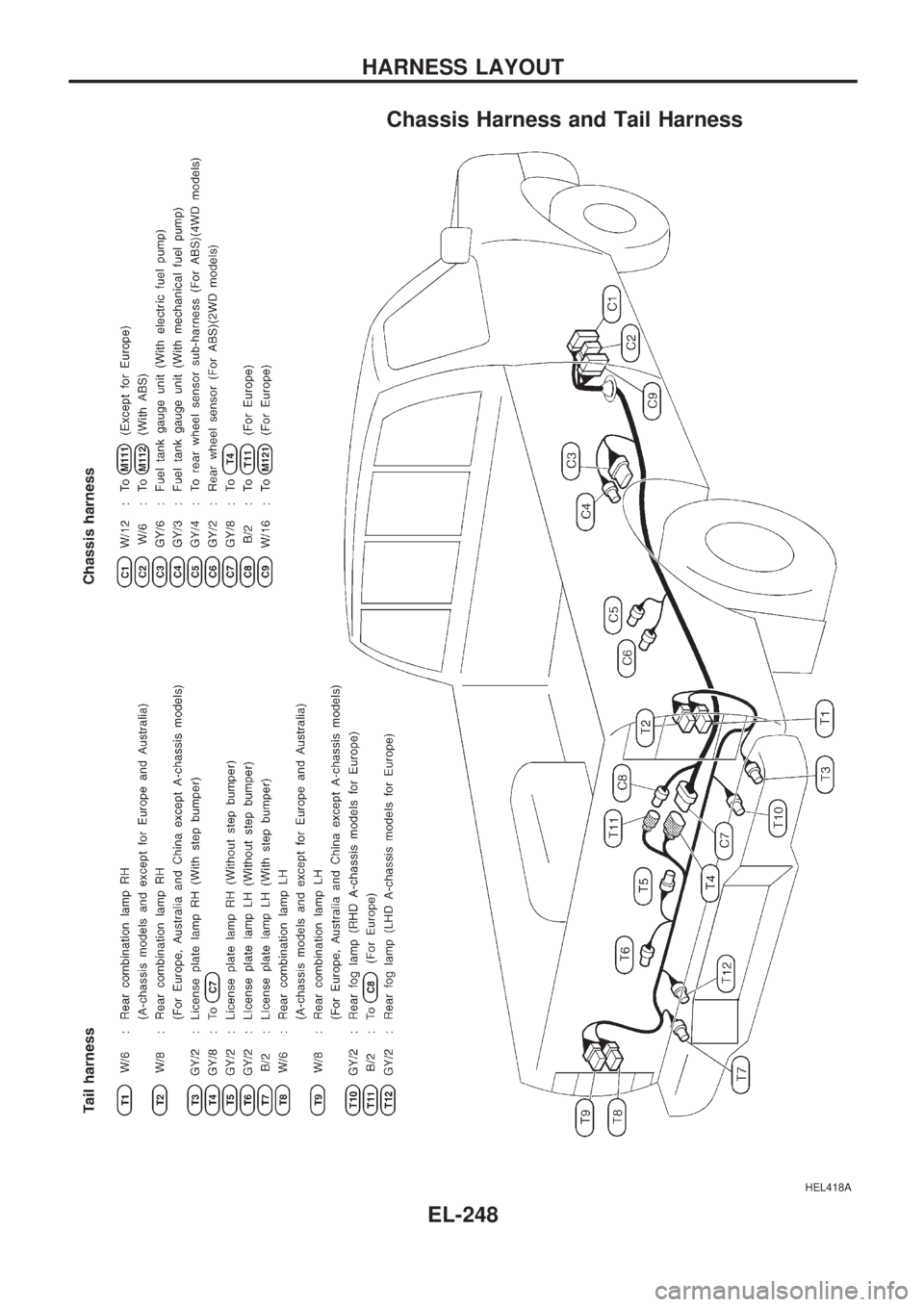

Chassis Harness and Tail Harness
HEL418A
HARNESS LAYOUT
EL-248

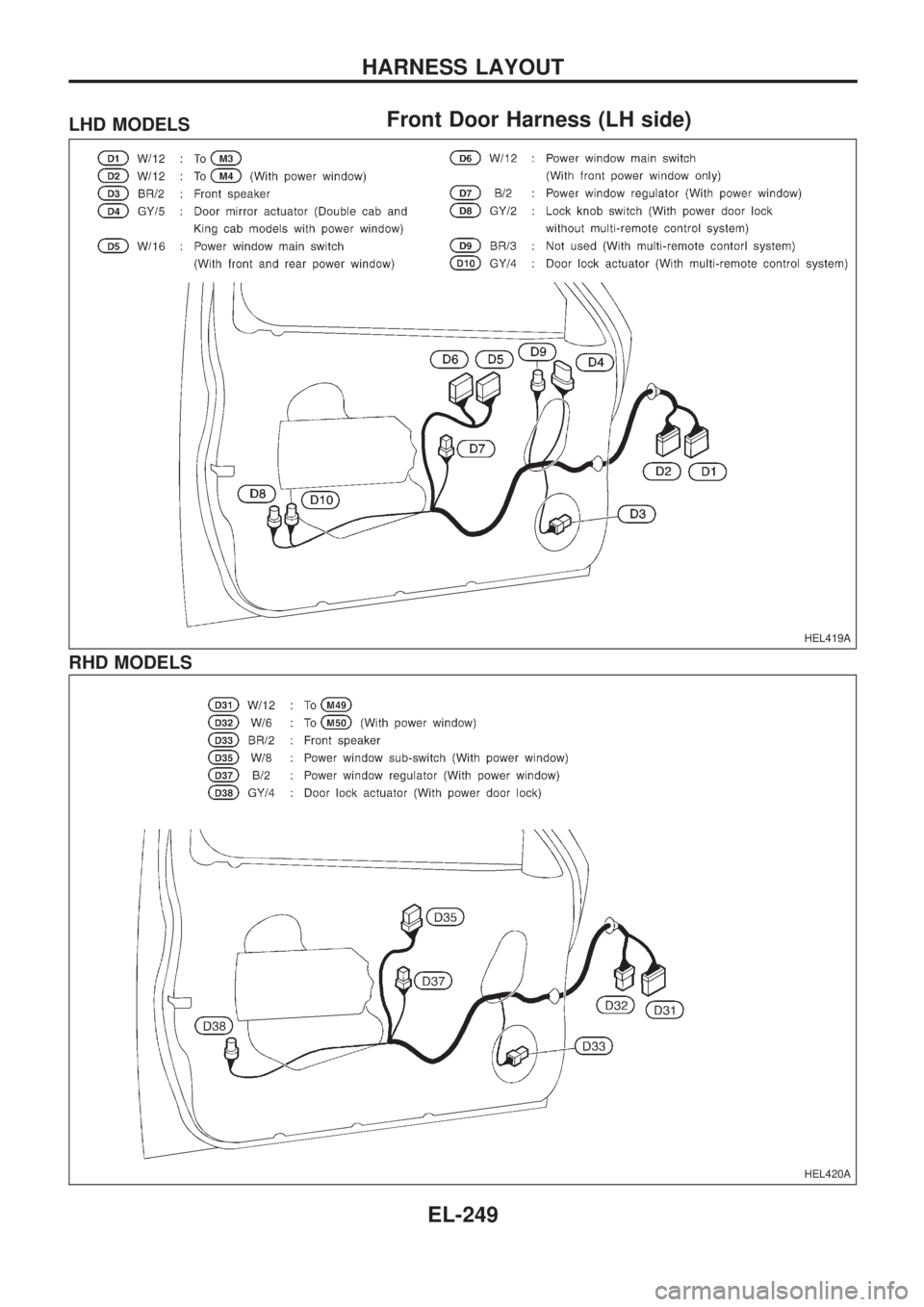

Front Door Harness (LH side)LHD MODELS
RHD MODELS
HEL419A
HEL420A
HARNESS LAYOUT
EL-249

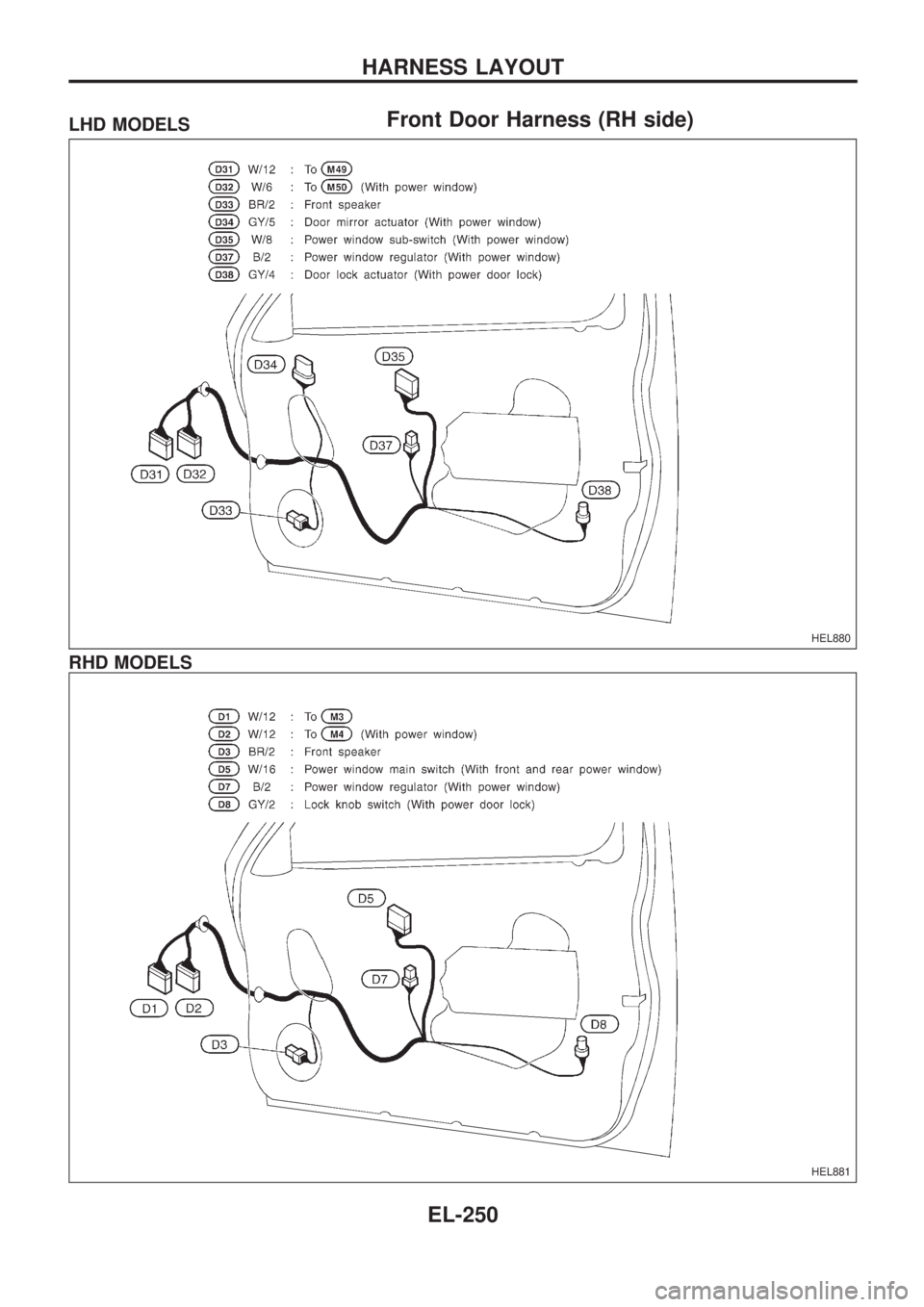

Front Door Harness (RH side)LHD MODELS
RHD MODELS
HEL880
HEL881
HARNESS LAYOUT
EL-250

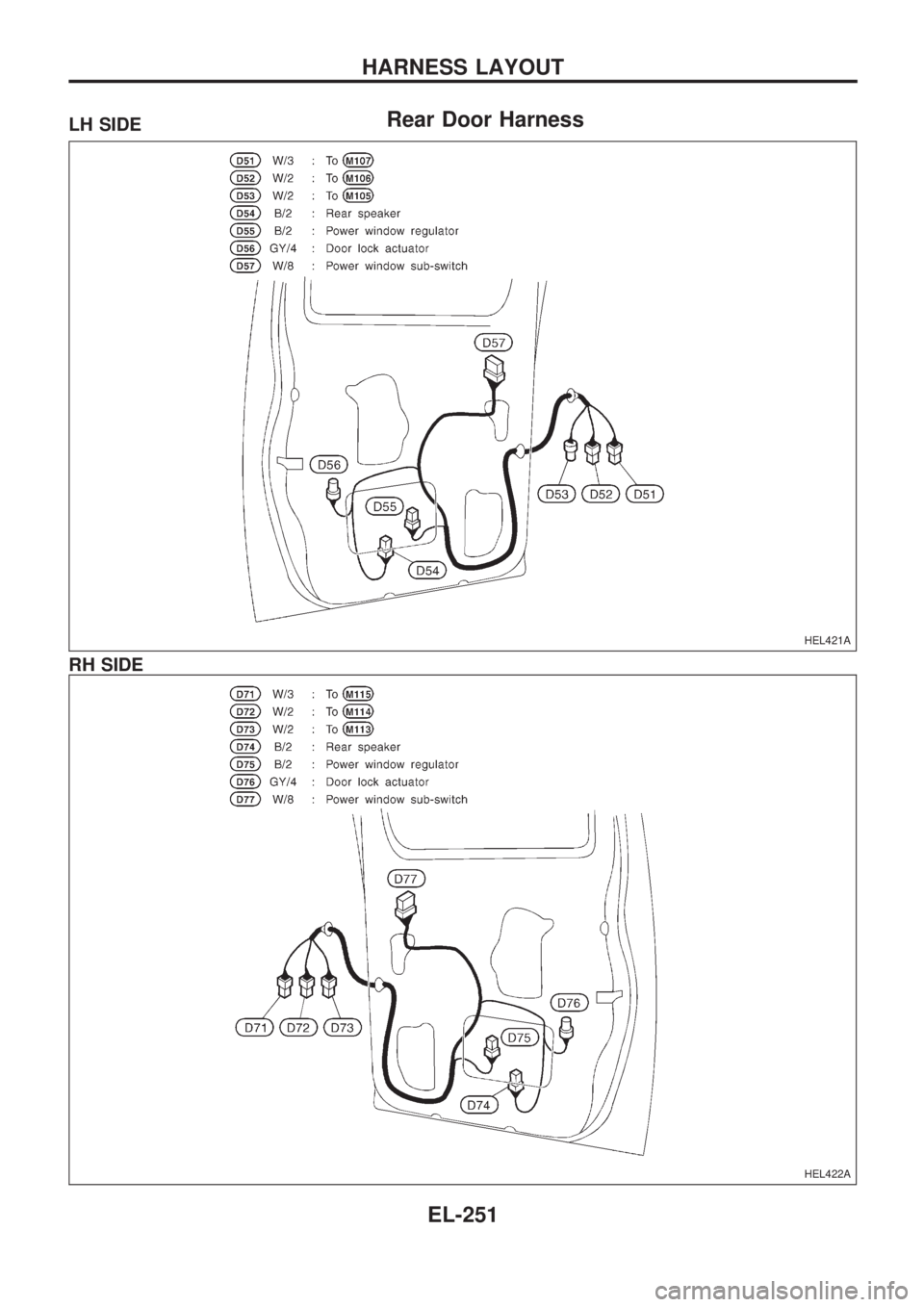

Rear Door HarnessLH SIDE
RH SIDE
HEL421A
HEL422A
HARNESS LAYOUT
EL-251

Headlamp
Wattage (W)
High/low (Semi-sealed beam) 60/55 (H4)
Exterior Lamp
Wattage (W)
Front combination lampFront turn signal 21
Parking 5
Side turn signal lamp 5
Rear combination lampTurn signal 21
Stop/Tail 21/5
Back-up 21
Fog (Except A-chassis) 21
Rear fog lamp (A-chassis) 21
License plate lampStandard bumper 5
Step bumper 21
Interior Lamp
Wattage (W)
Interior room lamp 10
Spot lamp 8

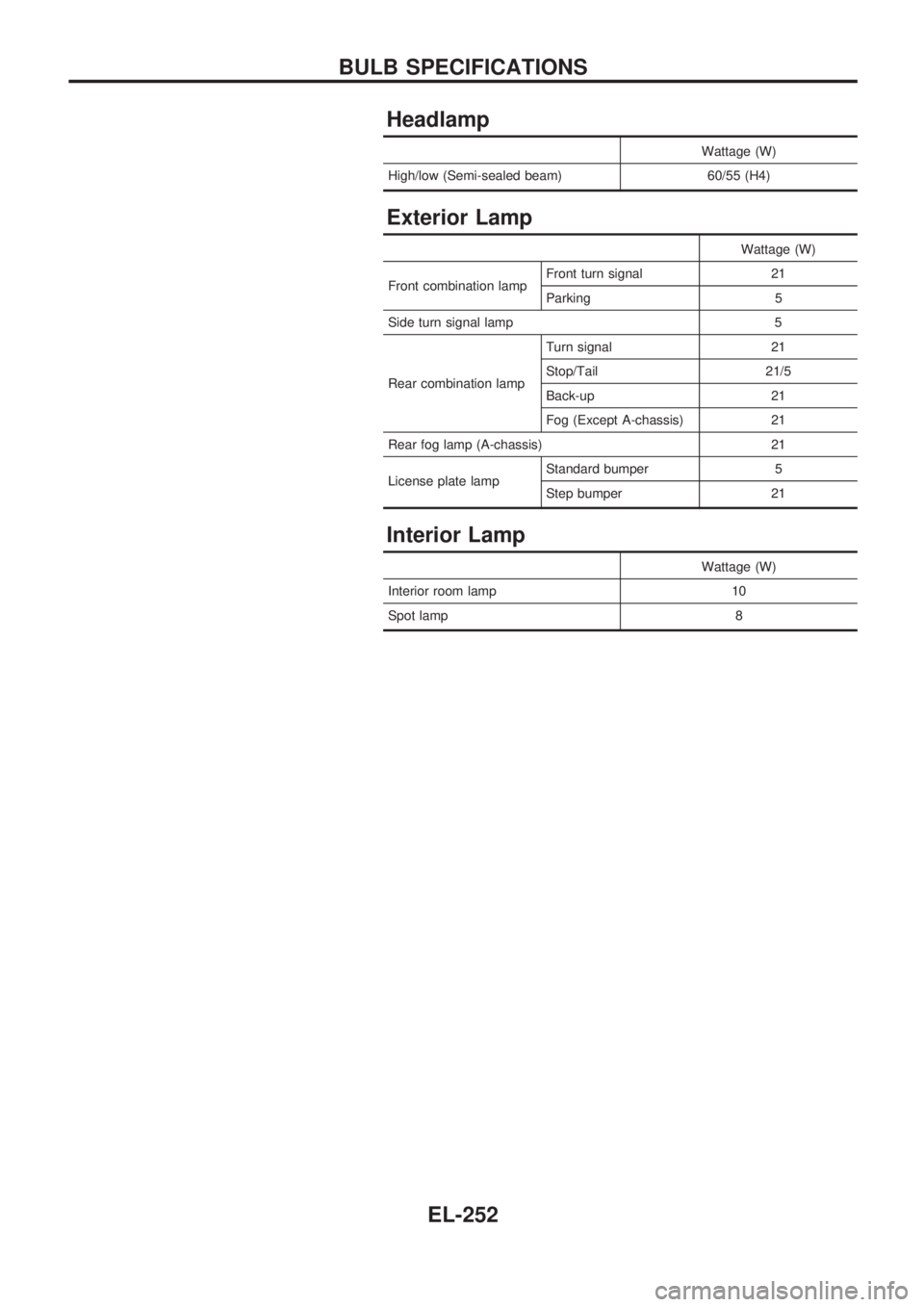

BULB SPECIFICATIONS
