NISSAN PICK-UP 1998 Repair Manual

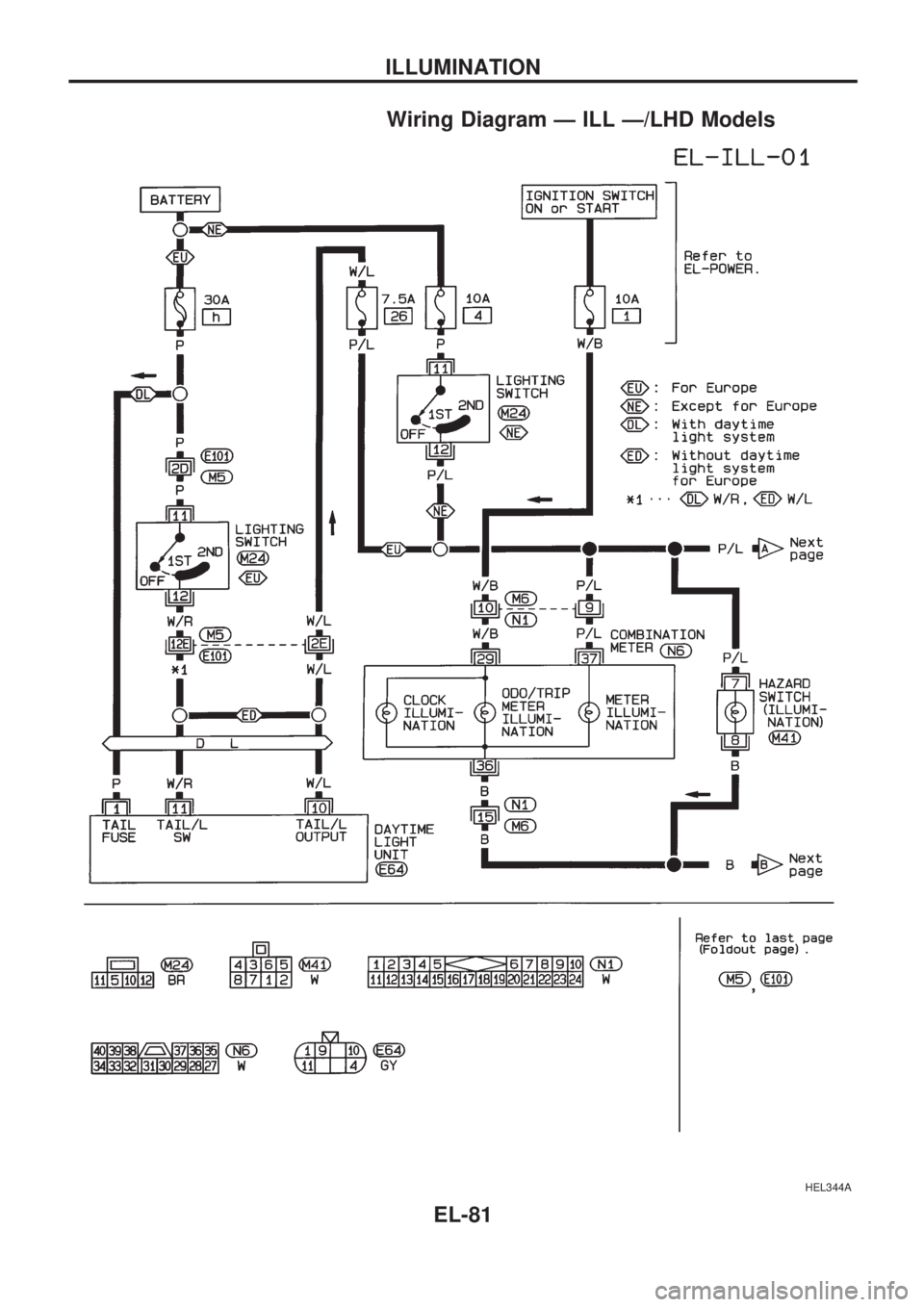

Wiring Diagram Ð ILL Ð/LHD Models
HEL344A
ILLUMINATION
EL-81

HEL345A
ILLUMINATION

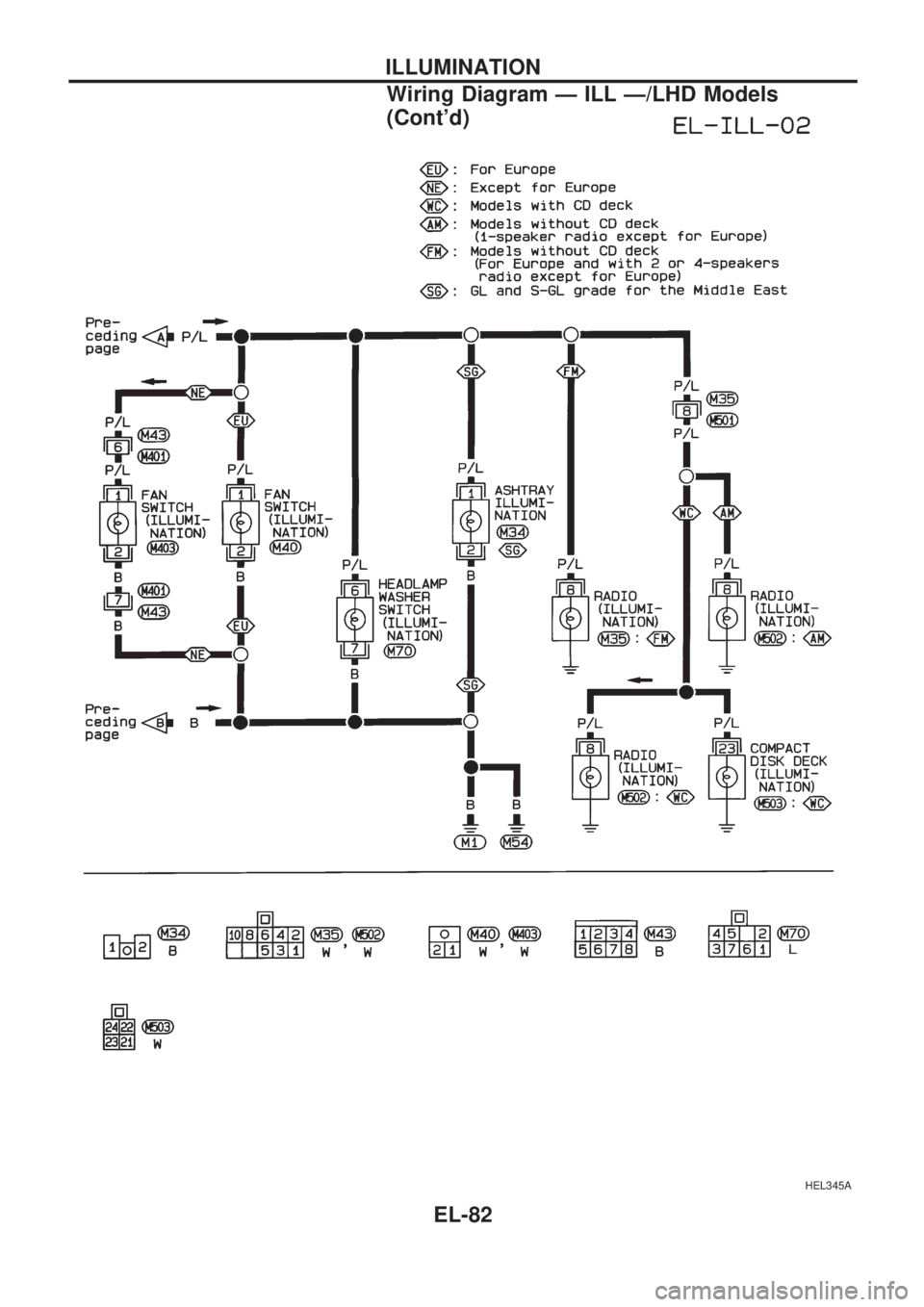

Wiring Diagram Ð ILL Ð/LHD Models
(Cont'd)
EL-82

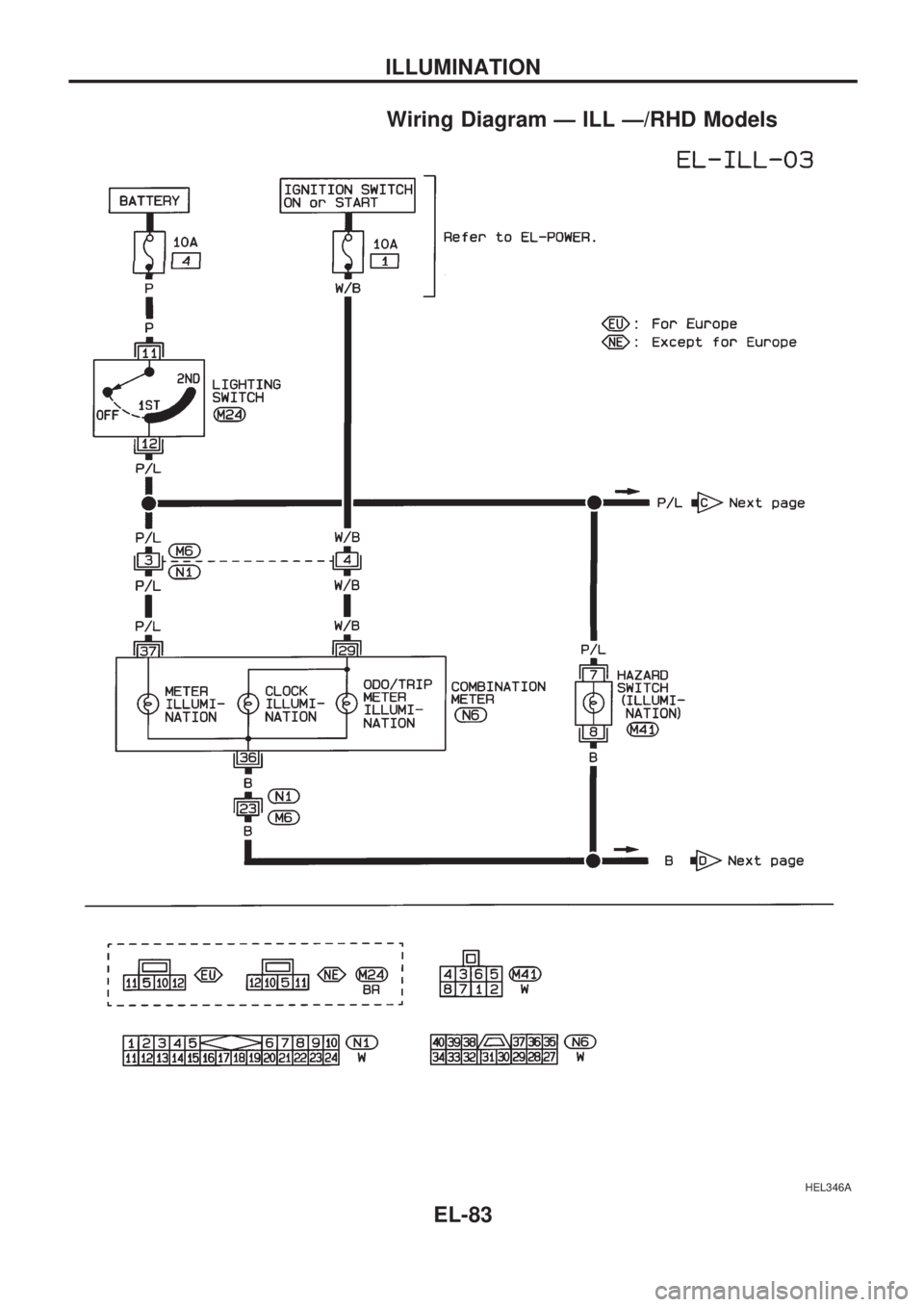

Wiring Diagram Ð ILL Ð/RHD Models
HEL346A
ILLUMINATION
EL-83

HEL347A
ILLUMINATION

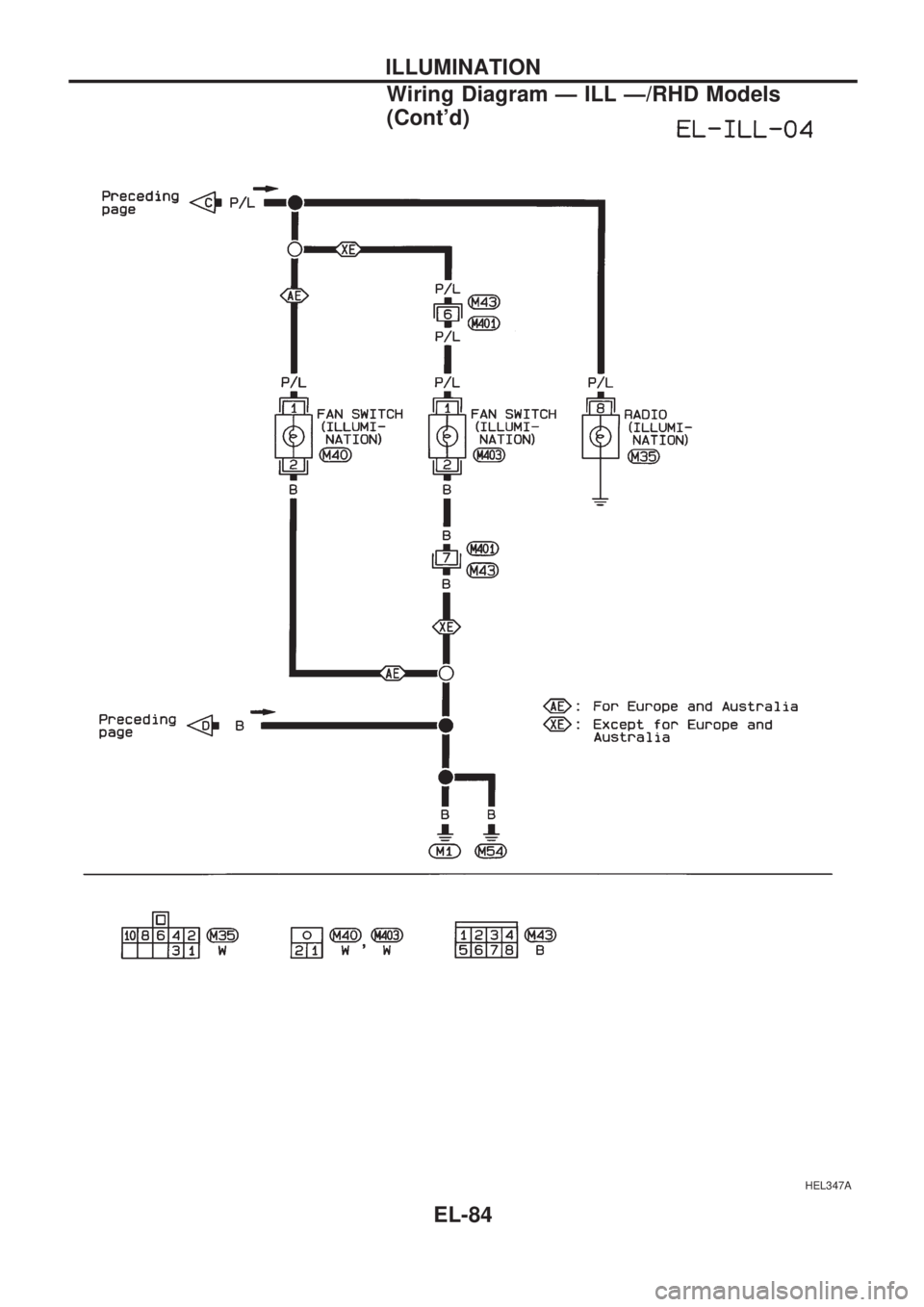

Wiring Diagram Ð ILL Ð/RHD Models
(Cont'd)
EL-84

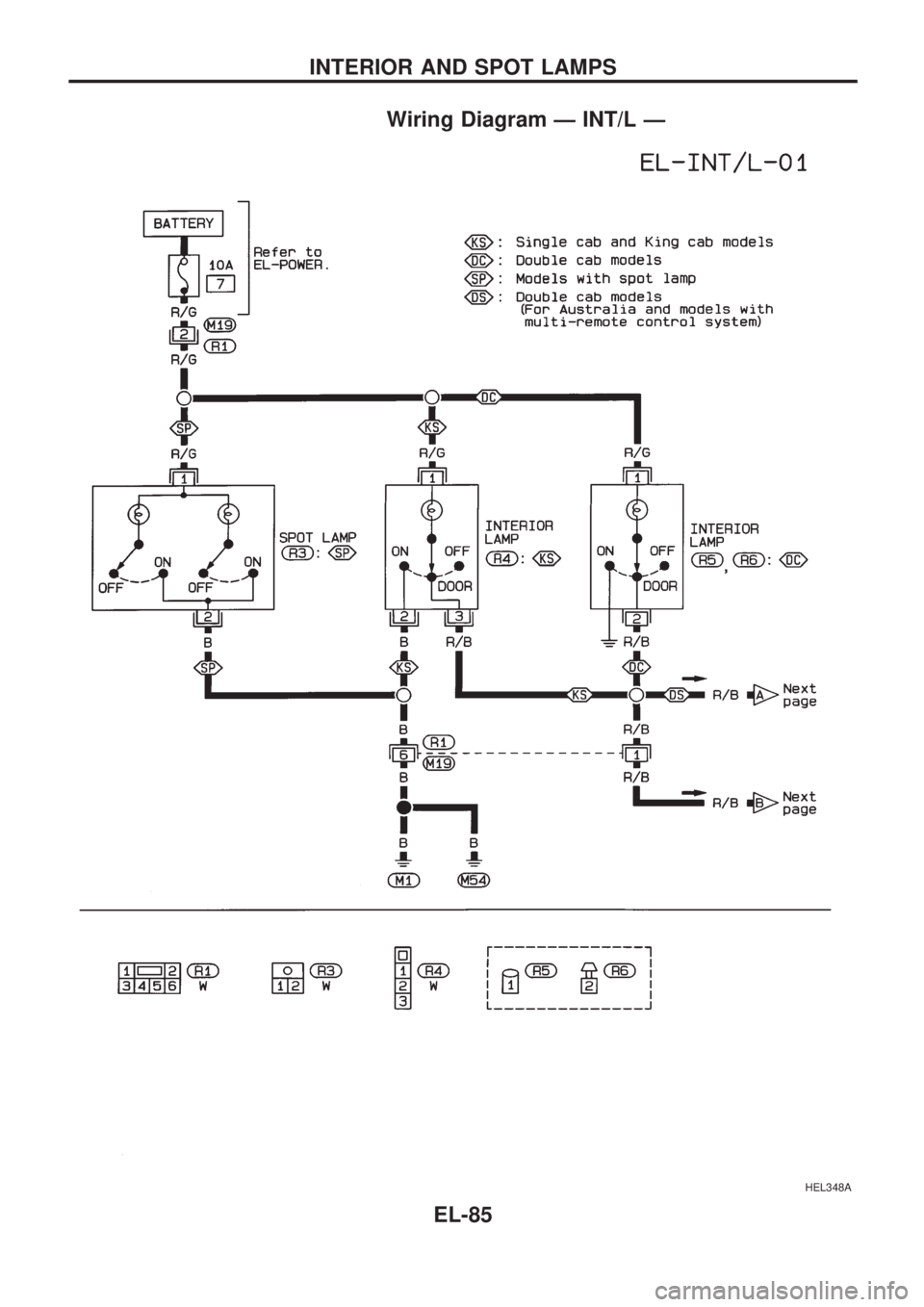

Wiring Diagram Ð INT/L Ð
HEL348A
INTERIOR AND SPOT LAMPS
EL-85

HEL349A
INTERIOR AND SPOT LAMPS
Wiring Diagram Ð INT/L Ð (Cont'd)
EL-86

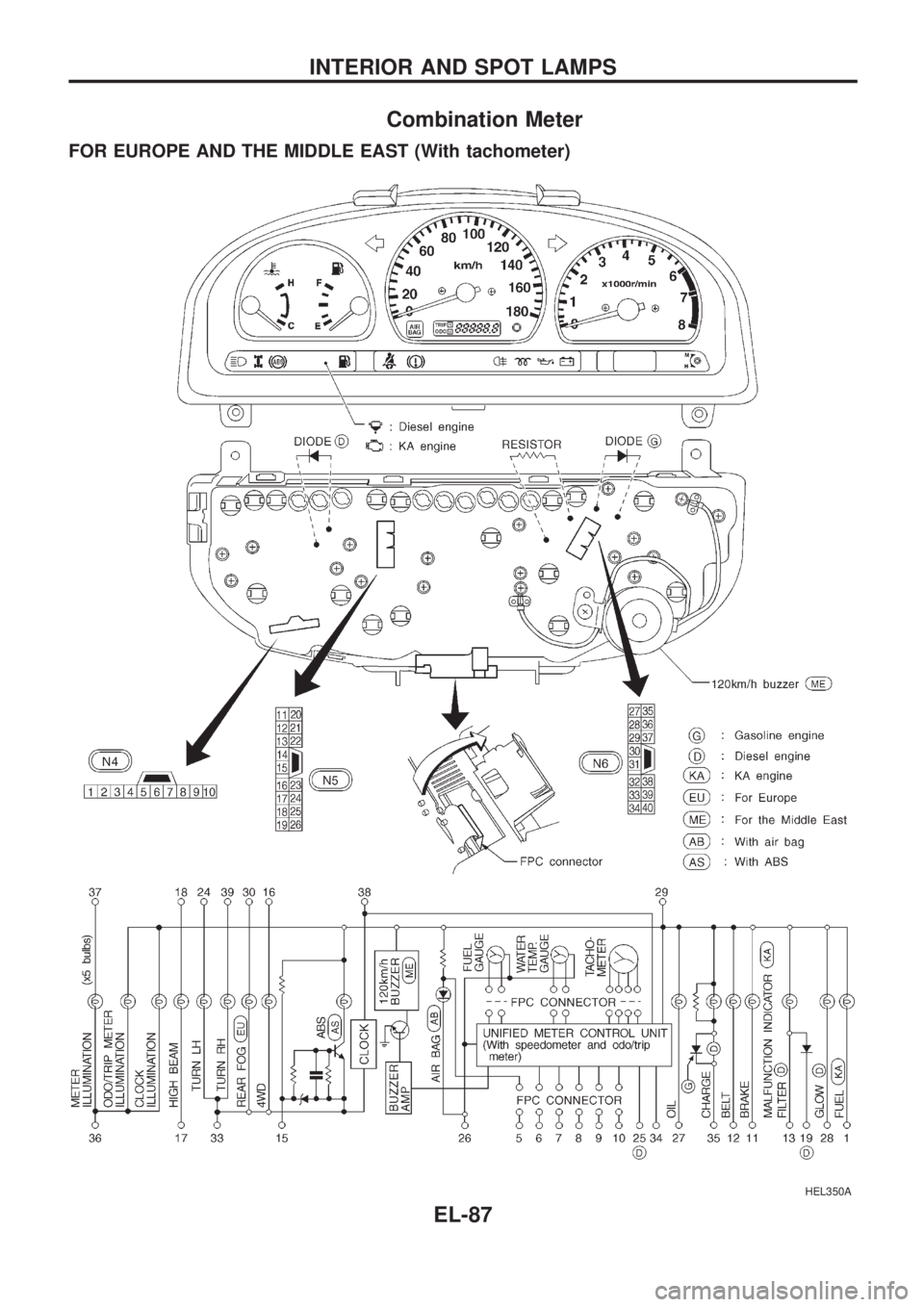

Combination Meter
FOR EUROPE AND THE MIDDLE EAST (With tachometer)
HEL350A
INTERIOR AND SPOT LAMPS
EL-87

FOR EUROPE AND THE MIDDLE EAST (Without tachometer)
HEL351A
INTERIOR AND SPOT LAMPS
Combination Meter (Cont'd)
EL-88

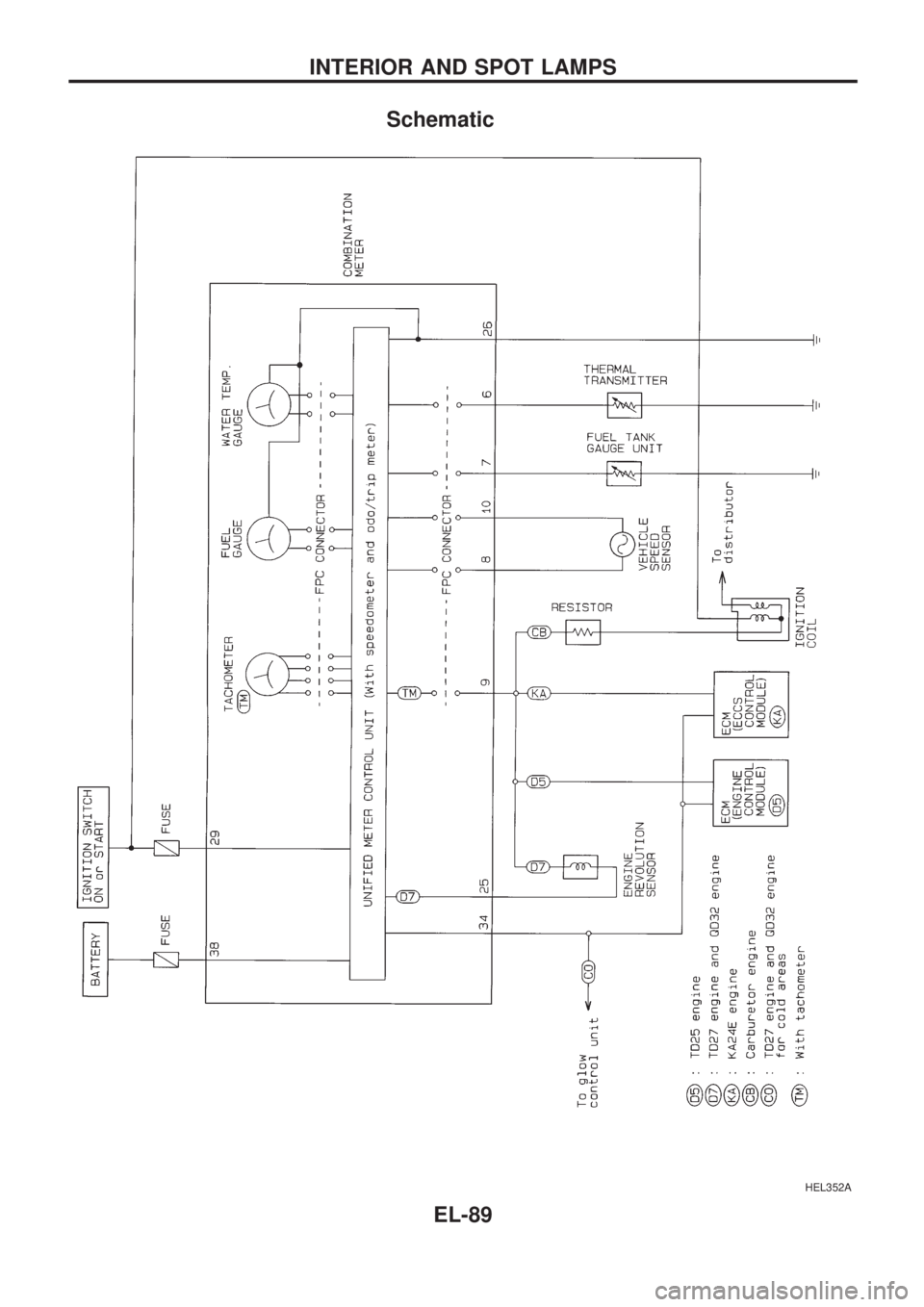

Schematic
HEL352A
INTERIOR AND SPOT LAMPS
EL-89

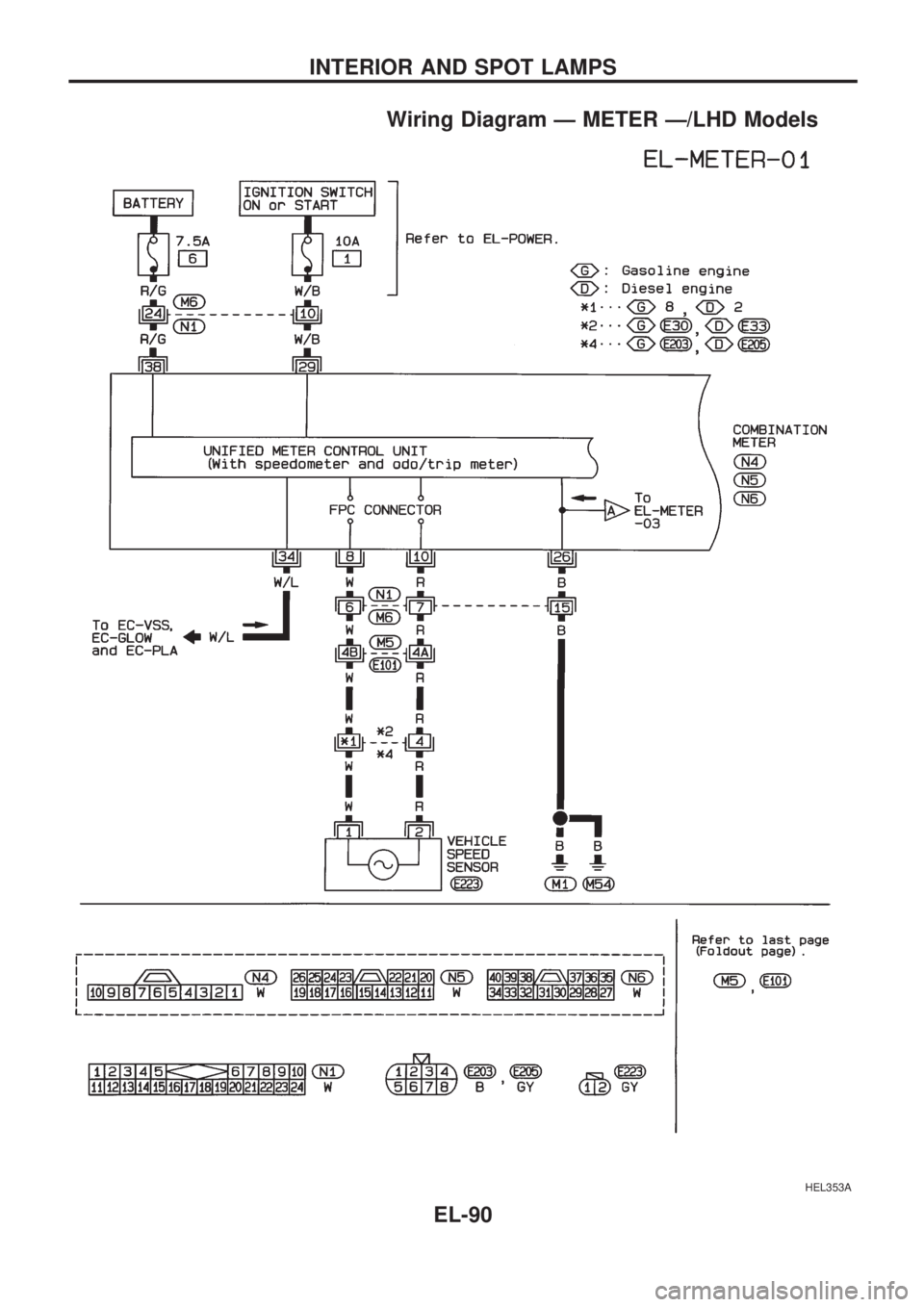

Wiring Diagram Ð METER Ð/LHD Models
HEL353A
INTERIOR AND SPOT LAMPS
EL-90
