NISSAN PICK-UP 1998 Repair Manual

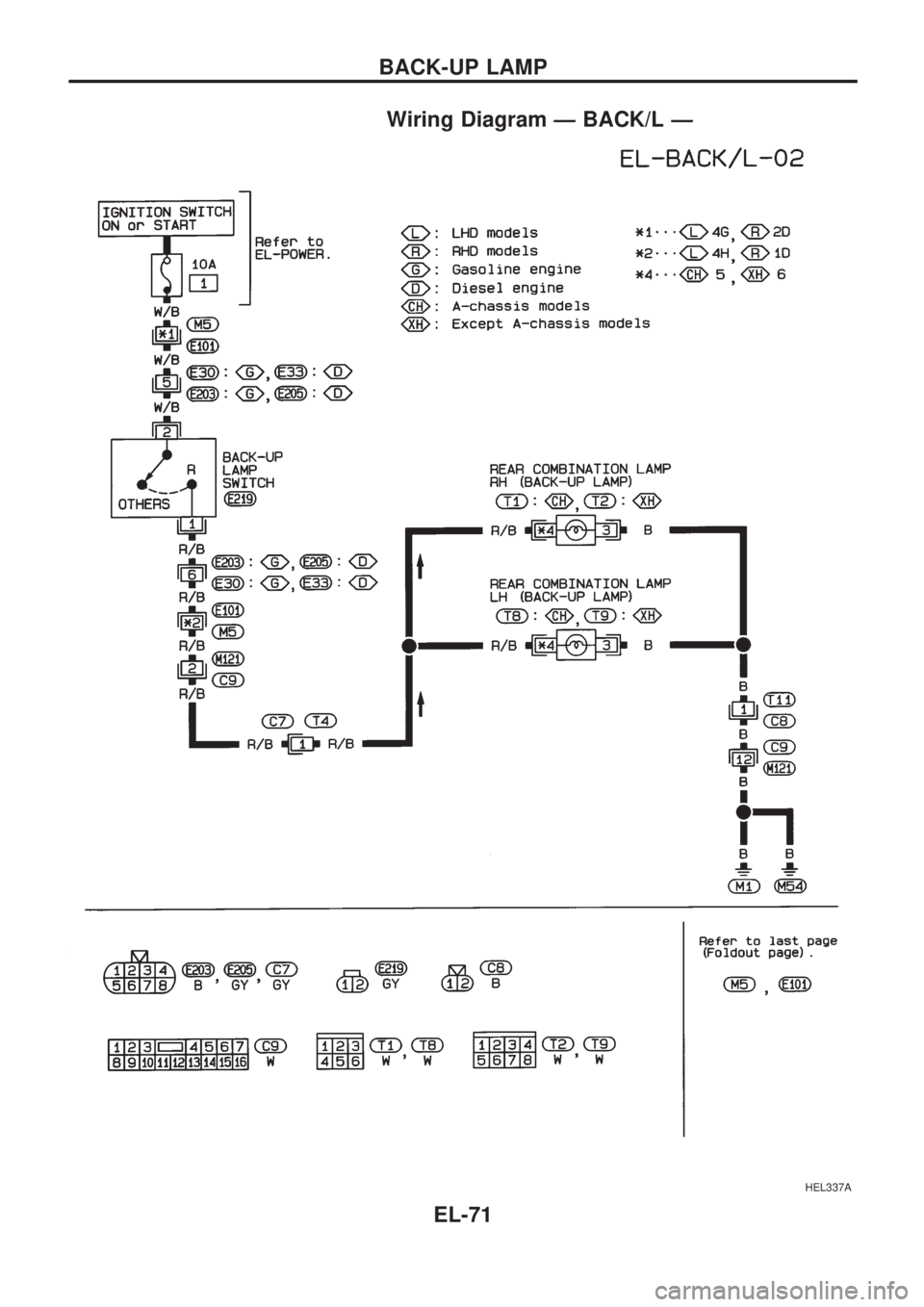

Wiring Diagram Ð BACK/L Ð
HEL337A
BACK-UP LAMP
EL-71

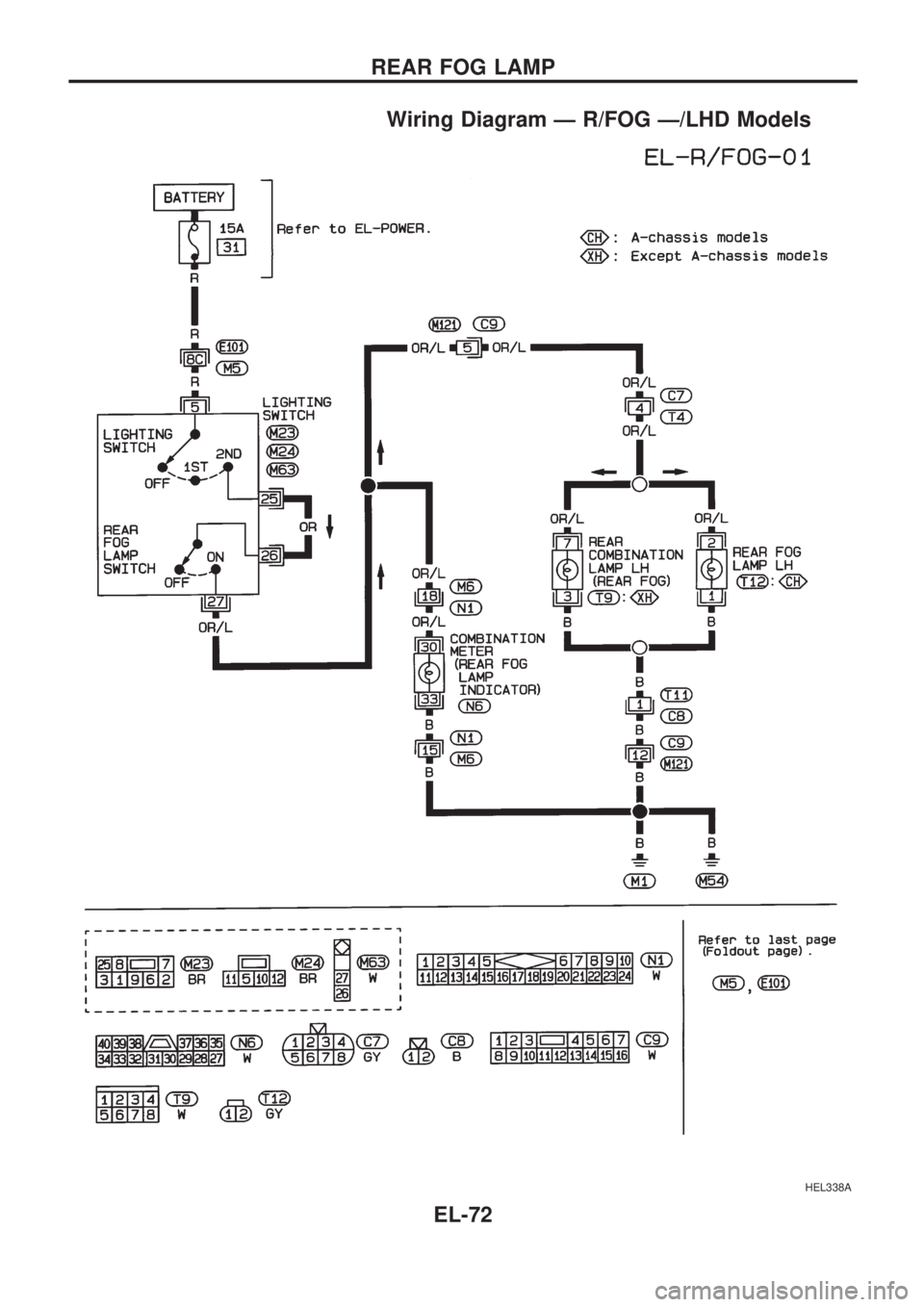

Wiring Diagram Ð R/FOG Ð/LHD Models
HEL338A
REAR FOG LAMP
EL-72

Wiring Diagram Ð R/FOG Ð/RHD Models
HEL339A
REAR FOG LAMP
EL-73

Schematic
HEL340A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-74

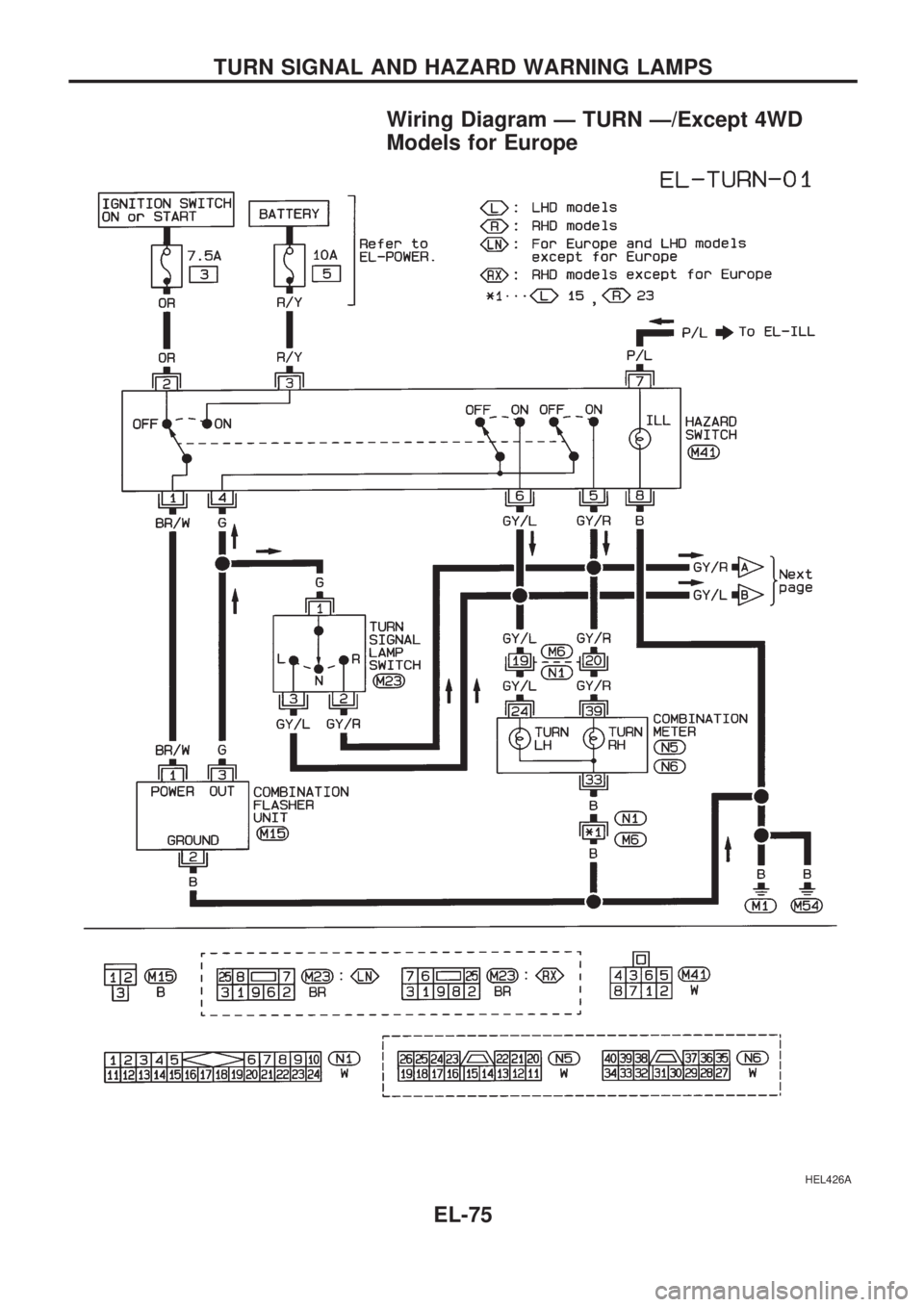

Wiring Diagram Ð TURN Ð/Except 4WD
Models for Europe
HEL426A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-75

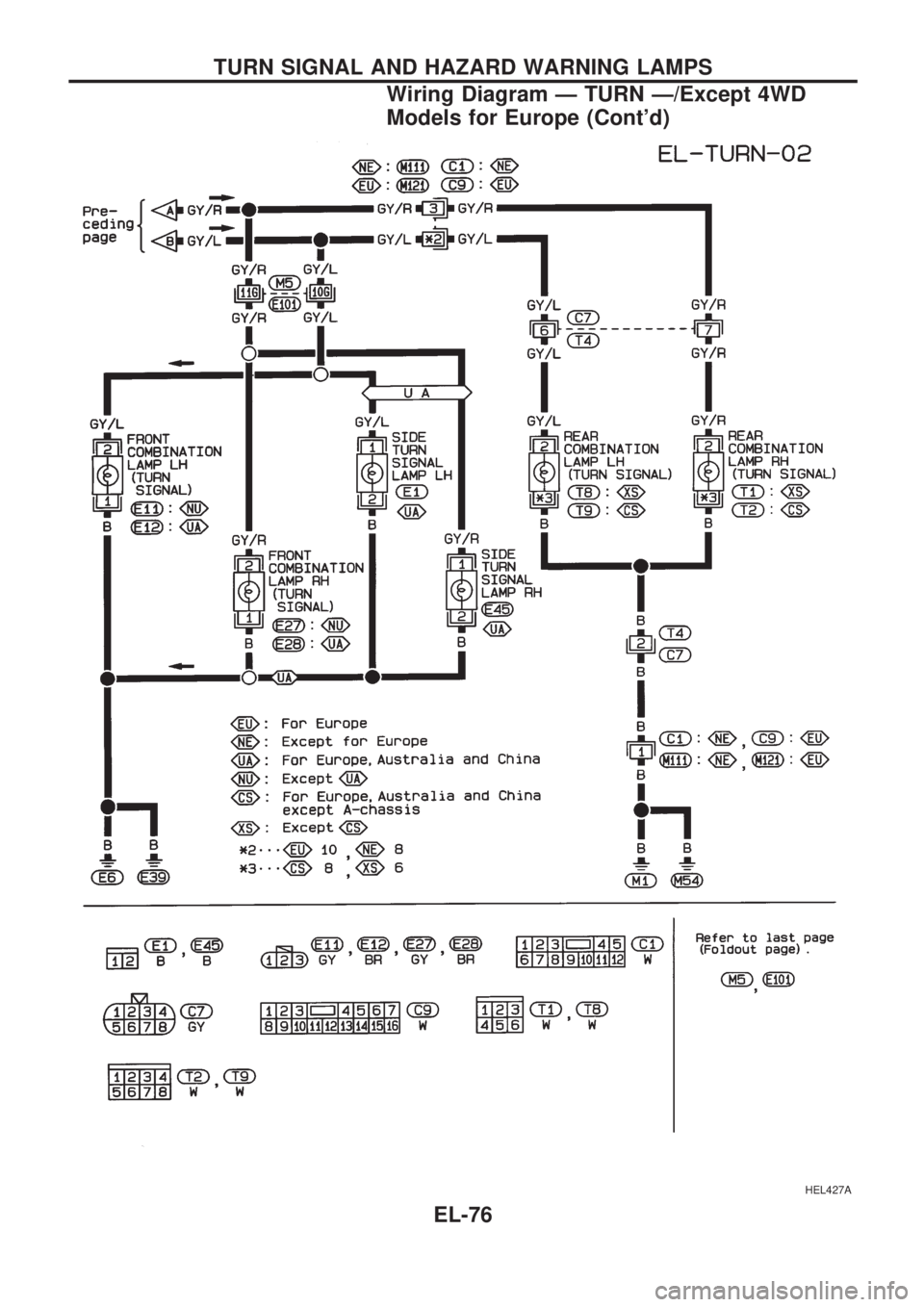

HEL427A
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Except 4WD
Models for Europe (Cont'd)
EL-76

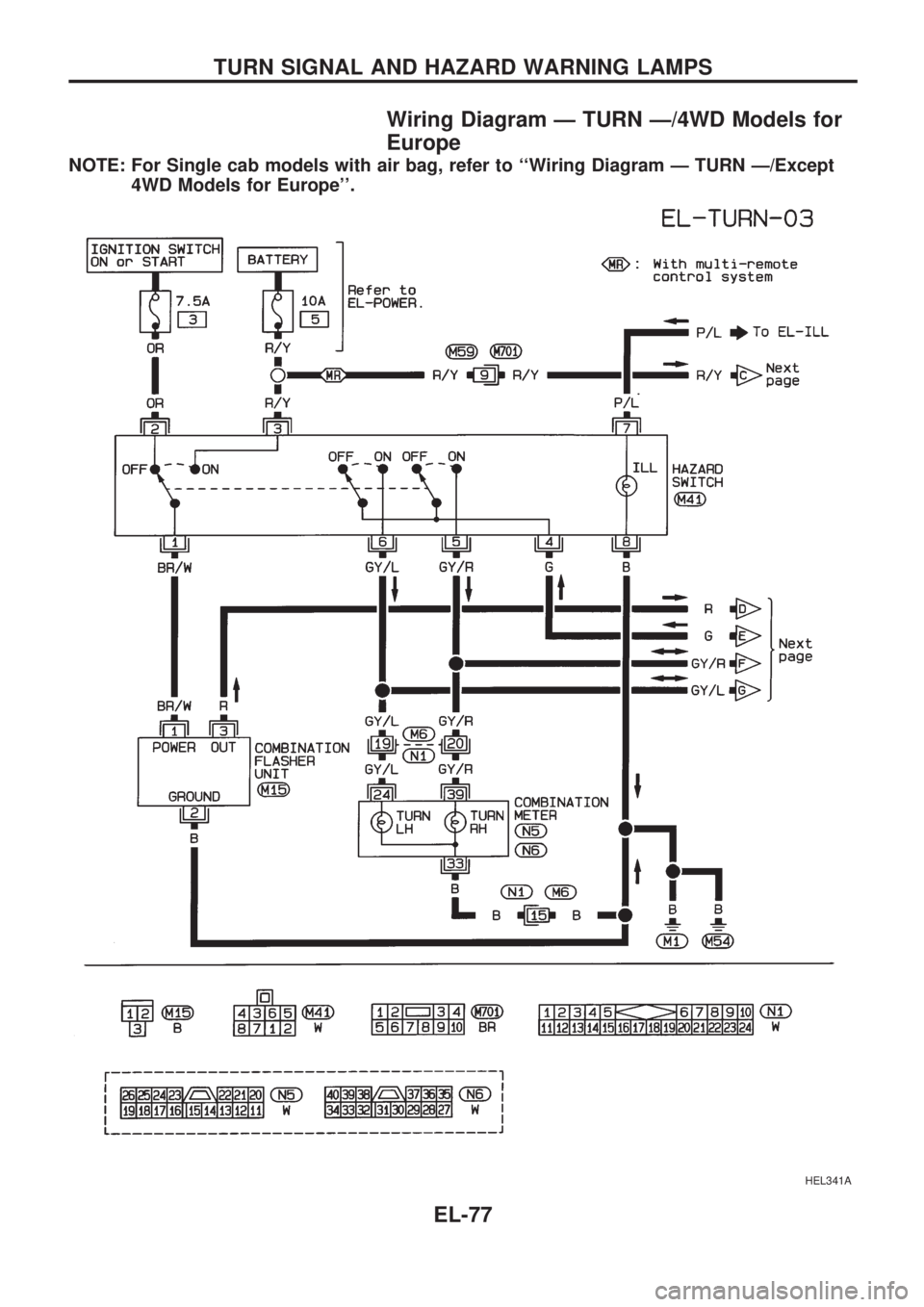

Wiring Diagram Ð TURN Ð/4WD Models for
Europe
NOTE: For Single cab models with air bag, refer to ``Wiring Diagram Ð TURN Ð/Except
4WD Models for Europe''.
HEL341A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-77

HEL342A
TURN SIGNAL AND HAZARD WARNING LAMPS

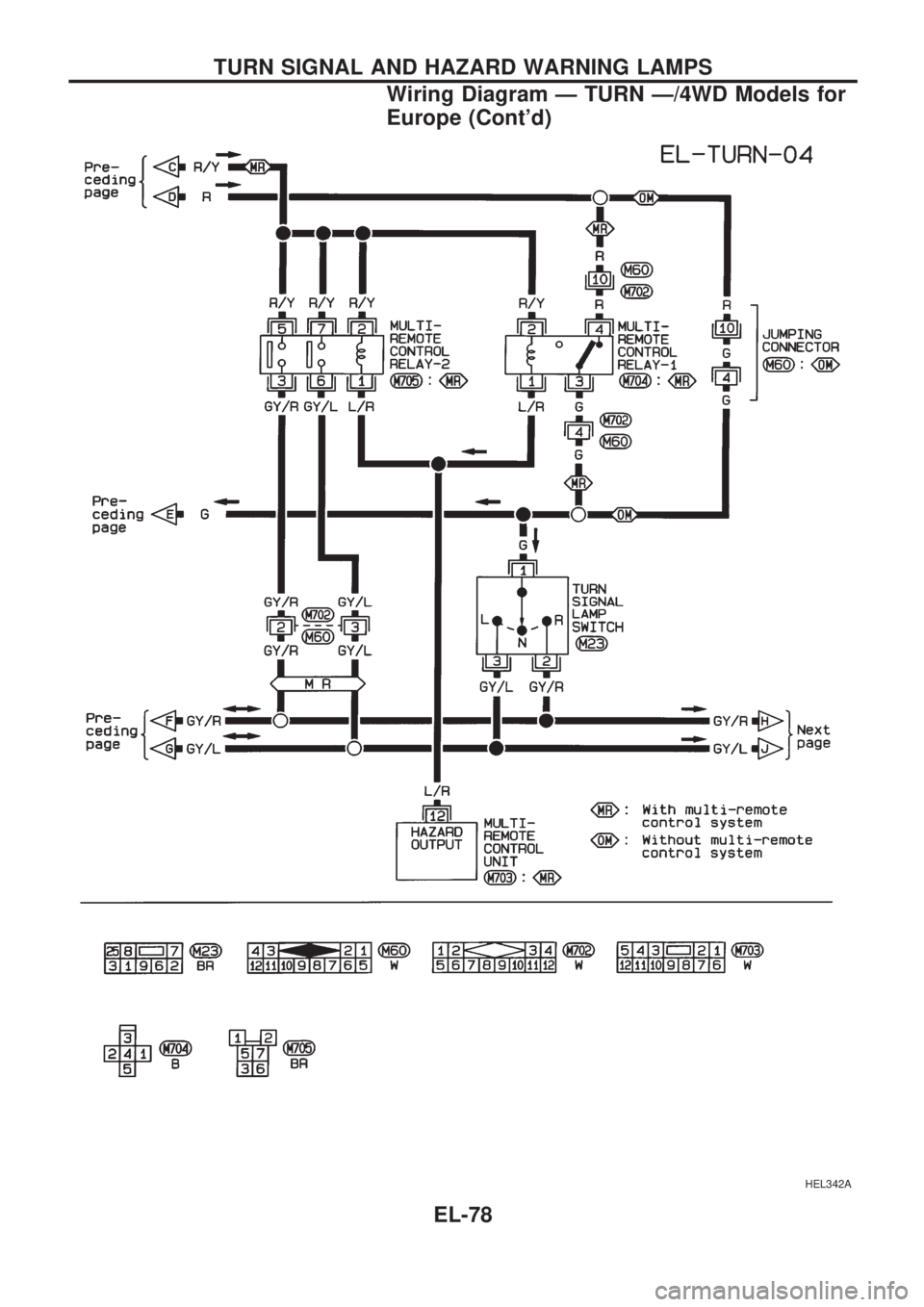

Wiring Diagram Ð TURN Ð/4WD Models for
Europe (Cont'd)
EL-78

HEL343A
TURN SIGNAL AND HAZARD WARNING LAMPS

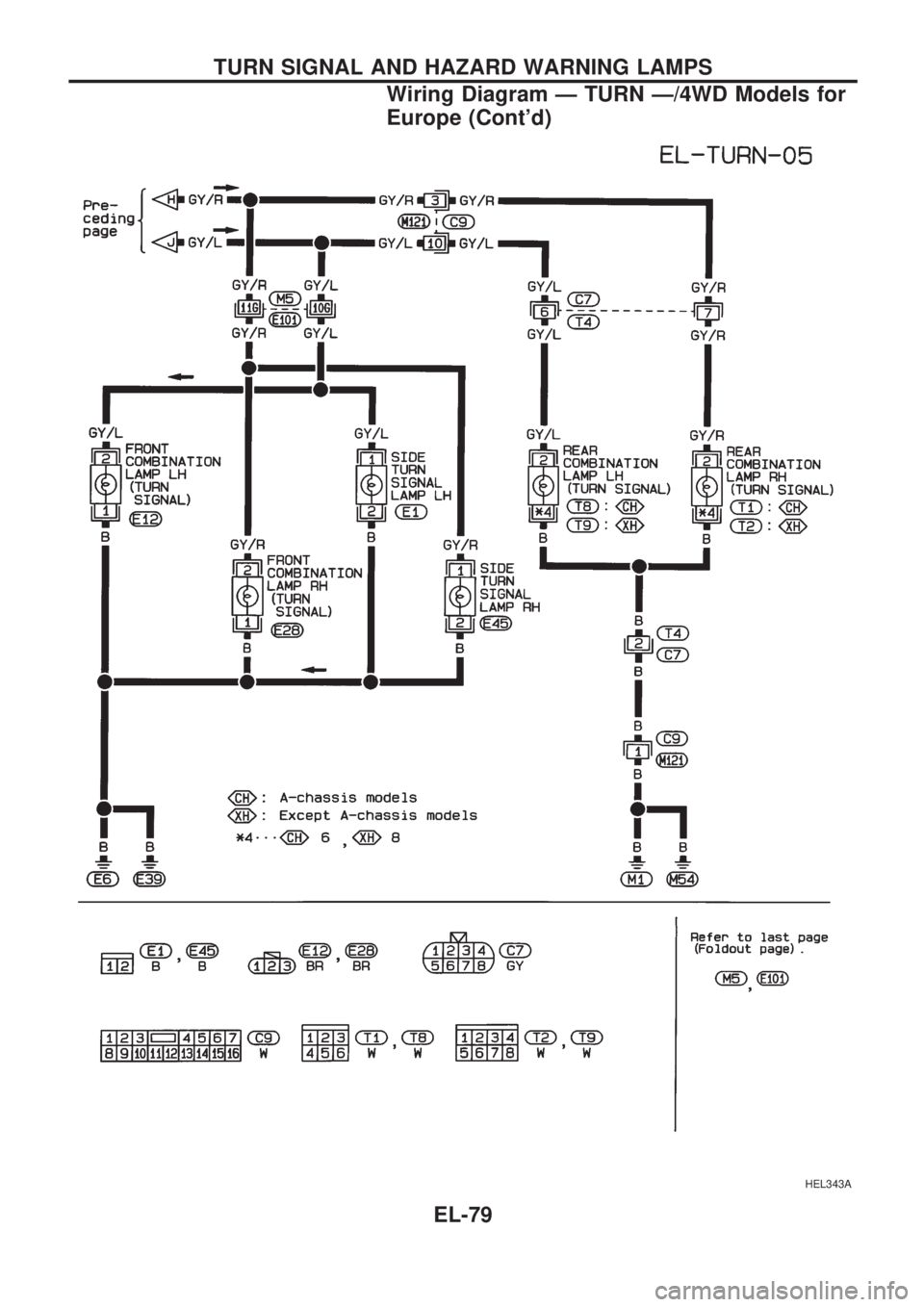

Wiring Diagram Ð TURN Ð/4WD Models for
Europe (Cont'd)
EL-79

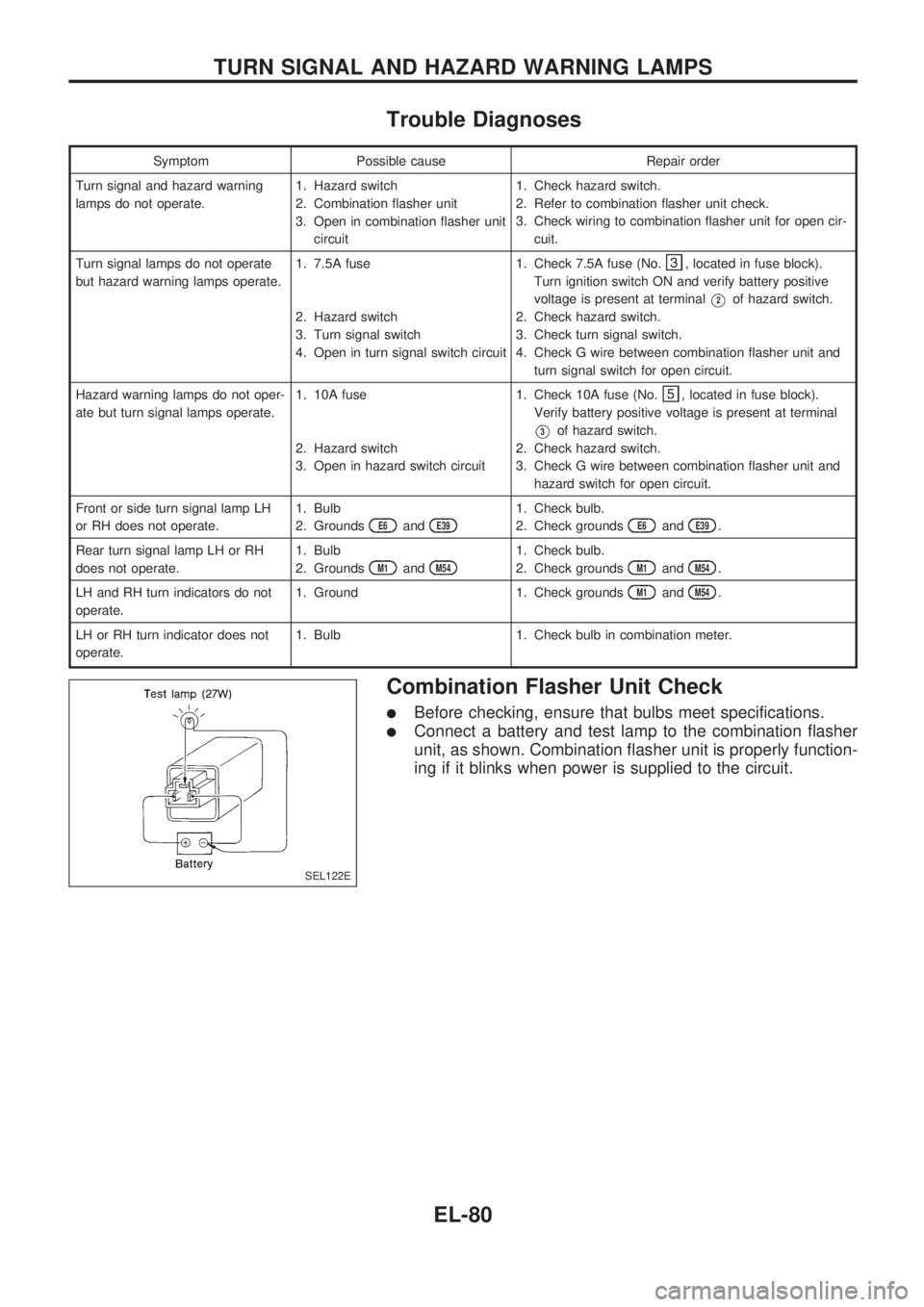

Trouble Diagnoses
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit
circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit for open cir-
cuit.
Turn signal lamps do not operate
but hazard warning lamps operate.1. 7.5A fuse
2. Hazard switch
3. Turn signal switch
4. Open in turn signal switch circuit1. Check 7.5A fuse (No.
, located in fuse block).
Turn ignition switch ON and verify battery positive
voltage is present at terminal
V2of hazard switch.
2. Check hazard switch.
3. Check turn signal switch.
4. Check G wire between combination flasher unit and
turn signal switch for open circuit.
Hazard warning lamps do not oper-
ate but turn signal lamps operate.1. 10A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 10A fuse (No.
, located in fuse block).
Verify battery positive voltage is present at terminal
V3of hazard switch.
2. Check hazard switch.
3. Check G wire between combination flasher unit and
hazard switch for open circuit.
Front or side turn signal lamp LH
or RH does not operate.1. Bulb
2. Grounds
E6andE39
1. Check bulb.
2. Check grounds
E6andE39.
Rear turn signal lamp LH or RH
does not operate.1. Bulb
2. Grounds
M1andM54
1. Check bulb.
2. Check grounds
M1andM54.
LH and RH turn indicators do not
operate.1. Ground 1. Check grounds
M1andM54.
LH or RH turn indicator does not
operate.1. Bulb 1. Check bulb in combination meter.
Combination Flasher Unit Check
lBefore checking, ensure that bulbs meet specifications.
lConnect a battery and test lamp to the combination flasher
unit, as shown. Combination flasher unit is properly function-
ing if it blinks when power is supplied to the circuit.
SEL122E
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-80
