NISSAN PICK-UP 1999 Repair Manual

HEL762A

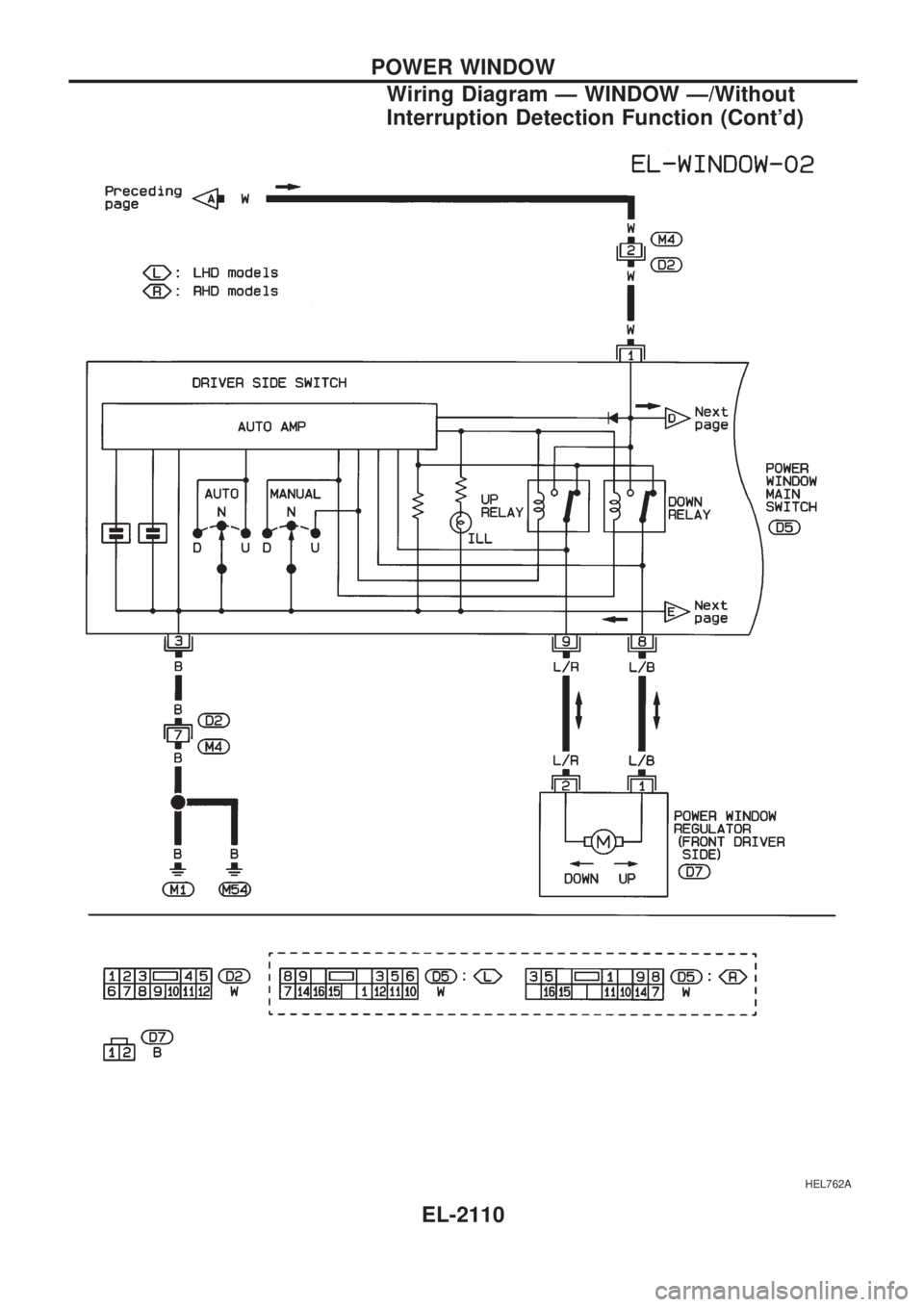

POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Without
Interruption Detection Function (Cont'd)
EL-2110

HEL763A
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Without
Interruption Detection Function (Cont'd)
EL-2111

HEL764A

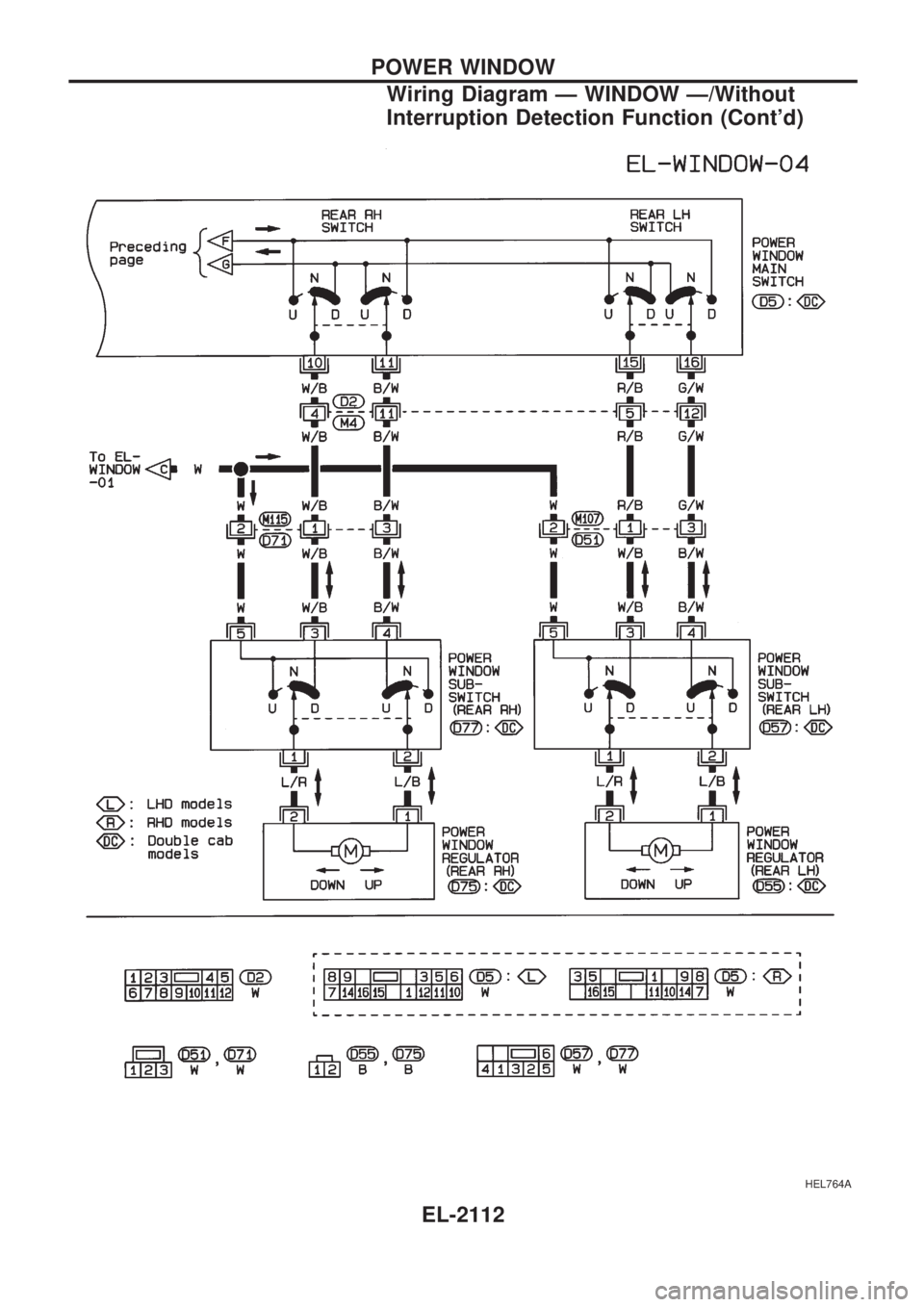

POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Without
Interruption Detection Function (Cont'd)
EL-2112

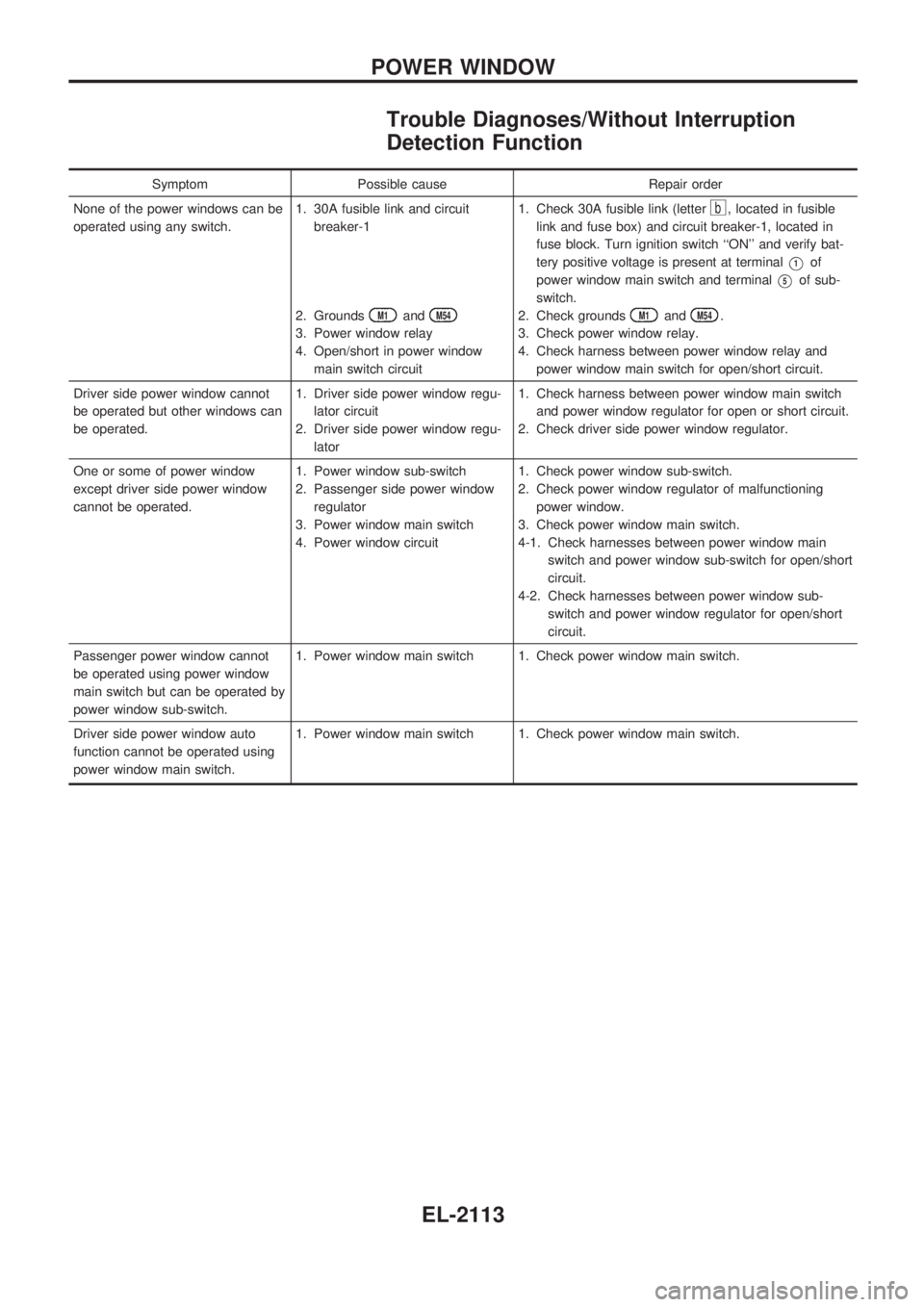

Trouble Diagnoses/Without Interruption
Detection Function
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 30A fusible link and circuit
breaker-1
2. Grounds
M1andM54
3. Power window relay
4. Open/short in power window
main switch circuit1. Check 30A fusible link (letter
b, located in fusible
link and fuse box) and circuit breaker-1, located in
fuse block. Turn ignition switch ``ON'' and verify bat-
tery positive voltage is present at terminal
V1of
power window main switch and terminal
V5of sub-
switch.
2. Check grounds
M1andM54.
3. Check power window relay.
4. Check harness between power window relay and
power window main switch for open/short circuit.
Driver side power window cannot
be operated but other windows can
be operated.1. Driver side power window regu-
lator circuit
2. Driver side power window regu-
lator1. Check harness between power window main switch
and power window regulator for open or short circuit.
2. Check driver side power window regulator.
One or some of power window
except driver side power window
cannot be operated.1. Power window sub-switch
2. Passenger side power window
regulator
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window regulator of malfunctioning
power window.
3. Check power window main switch.
4-1. Check harnesses between power window main
switch and power window sub-switch for open/short
circuit.
4-2. Check harnesses between power window sub-
switch and power window regulator for open/short
circuit.
Passenger power window cannot
be operated using power window
main switch but can be operated by
power window sub-switch.1. Power window main switch 1. Check power window main switch.
Driver side power window auto
function cannot be operated using
power window main switch.1. Power window main switch 1. Check power window main switch.
POWER WINDOW
EL-2113

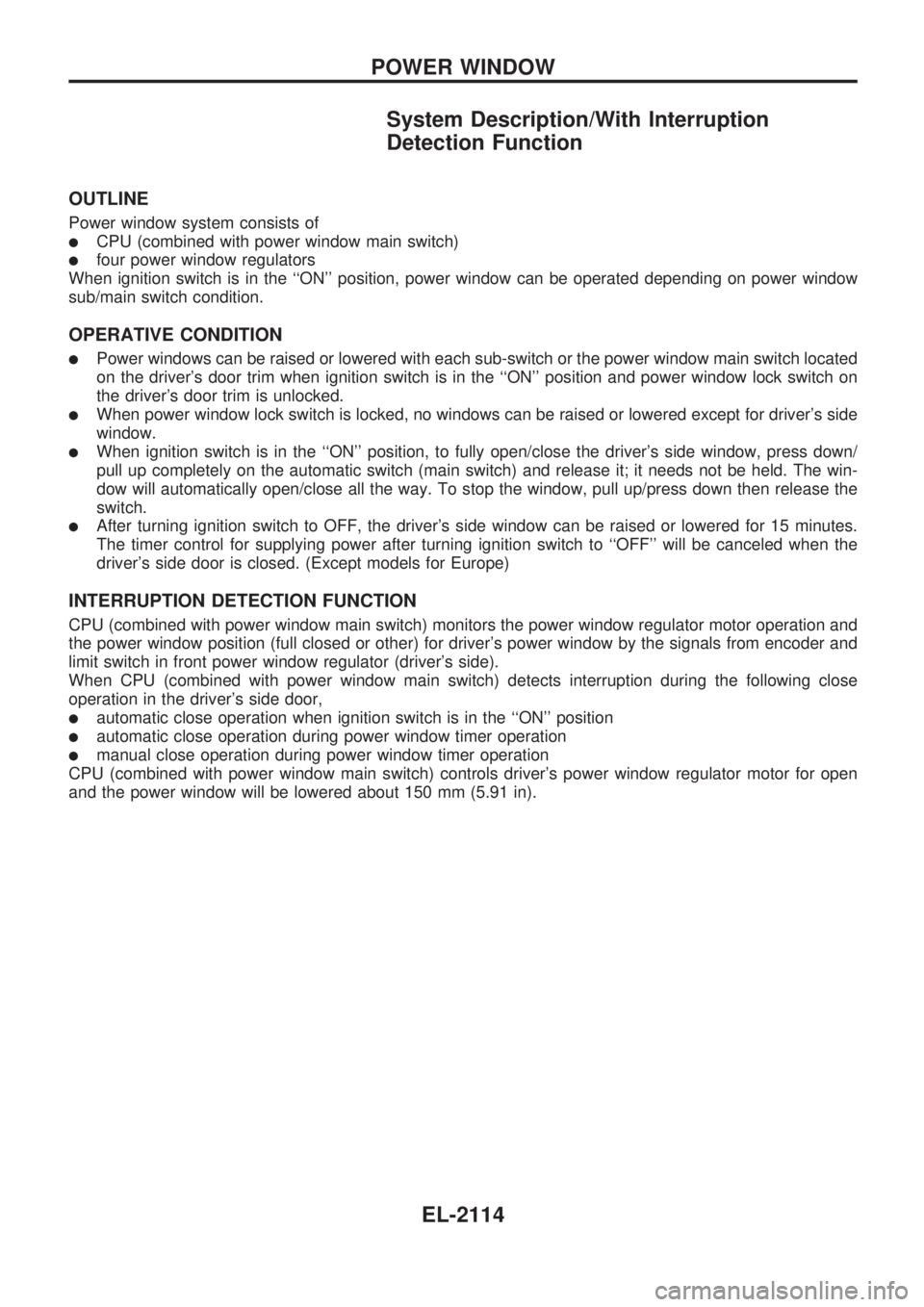

System Description/With Interruption
Detection Function
OUTLINE
Power window system consists of
lCPU (combined with power window main switch)
lfour power window regulators
When ignition switch is in the ``ON'' position, power window can be operated depending on power window
sub/main switch condition.
OPERATIVE CONDITION
lPower windows can be raised or lowered with each sub-switch or the power window main switch located
on the driver's door trim when ignition switch is in the ``ON'' position and power window lock switch on
the driver's door trim is unlocked.
lWhen power window lock switch is locked, no windows can be raised or lowered except for driver's side
window.
lWhen ignition switch is in the ``ON'' position, to fully open/close the driver's side window, press down/
pull up completely on the automatic switch (main switch) and release it; it needs not be held. The win-
dow will automatically open/close all the way. To stop the window, pull up/press down then release the
switch.
lAfter turning ignition switch to OFF, the driver's side window can be raised or lowered for 15 minutes.
The timer control for supplying power after turning ignition switch to ``OFF'' will be canceled when the
driver's side door is closed. (Except models for Europe)
INTERRUPTION DETECTION FUNCTION
CPU (combined with power window main switch) monitors the power window regulator motor operation and
the power window position (full closed or other) for driver's power window by the signals from encoder and
limit switch in front power window regulator (driver's side).
When CPU (combined with power window main switch) detects interruption during the following close
operation in the driver's side door,
lautomatic close operation when ignition switch is in the ``ON'' position
lautomatic close operation during power window timer operation
lmanual close operation during power window timer operation
CPU (combined with power window main switch) controls driver's power window regulator motor for open
and the power window will be lowered about 150 mm (5.91 in).
POWER WINDOW
EL-2114

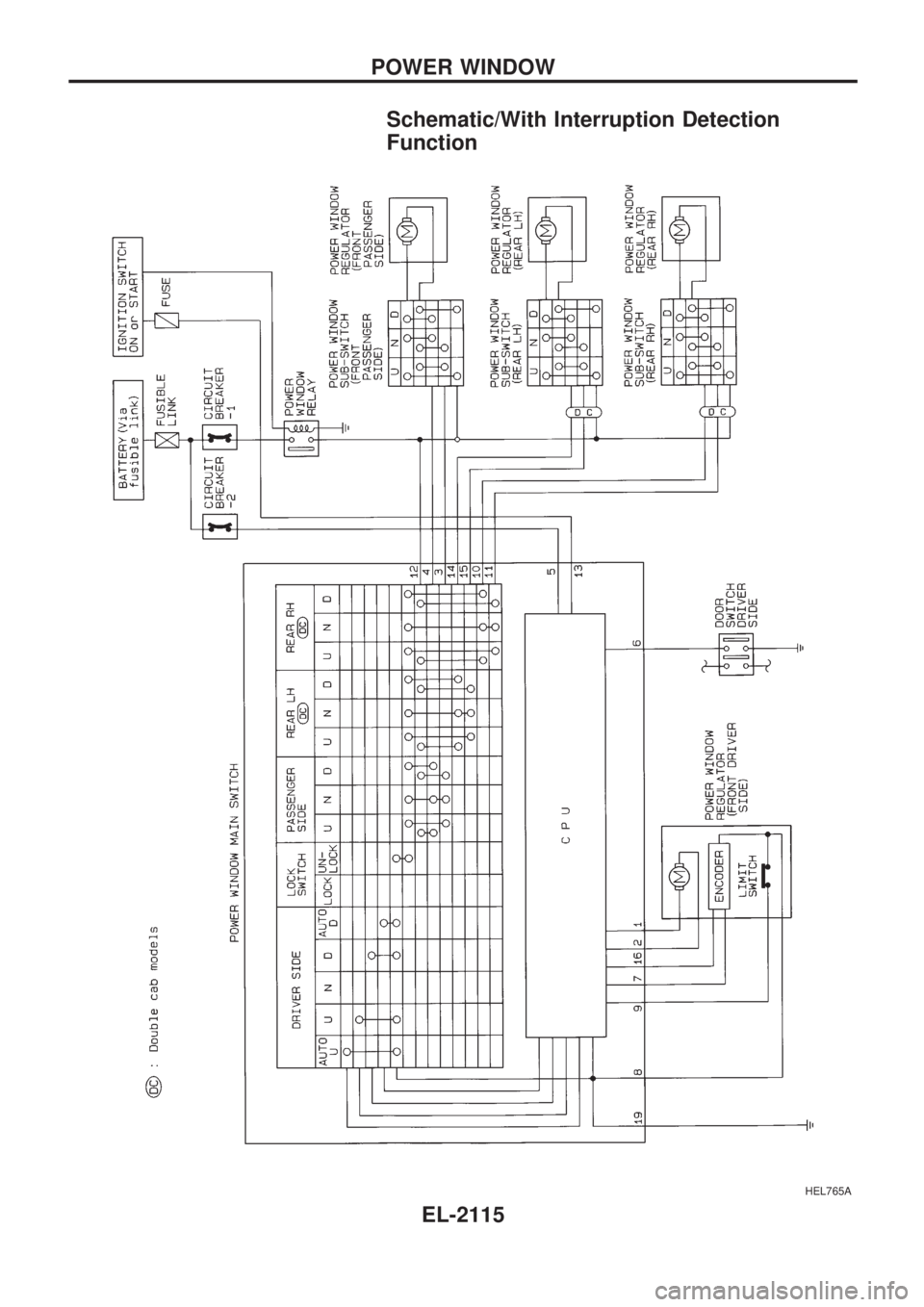

Schematic/With Interruption Detection
Function
HEL765A
POWER WINDOW
EL-2115

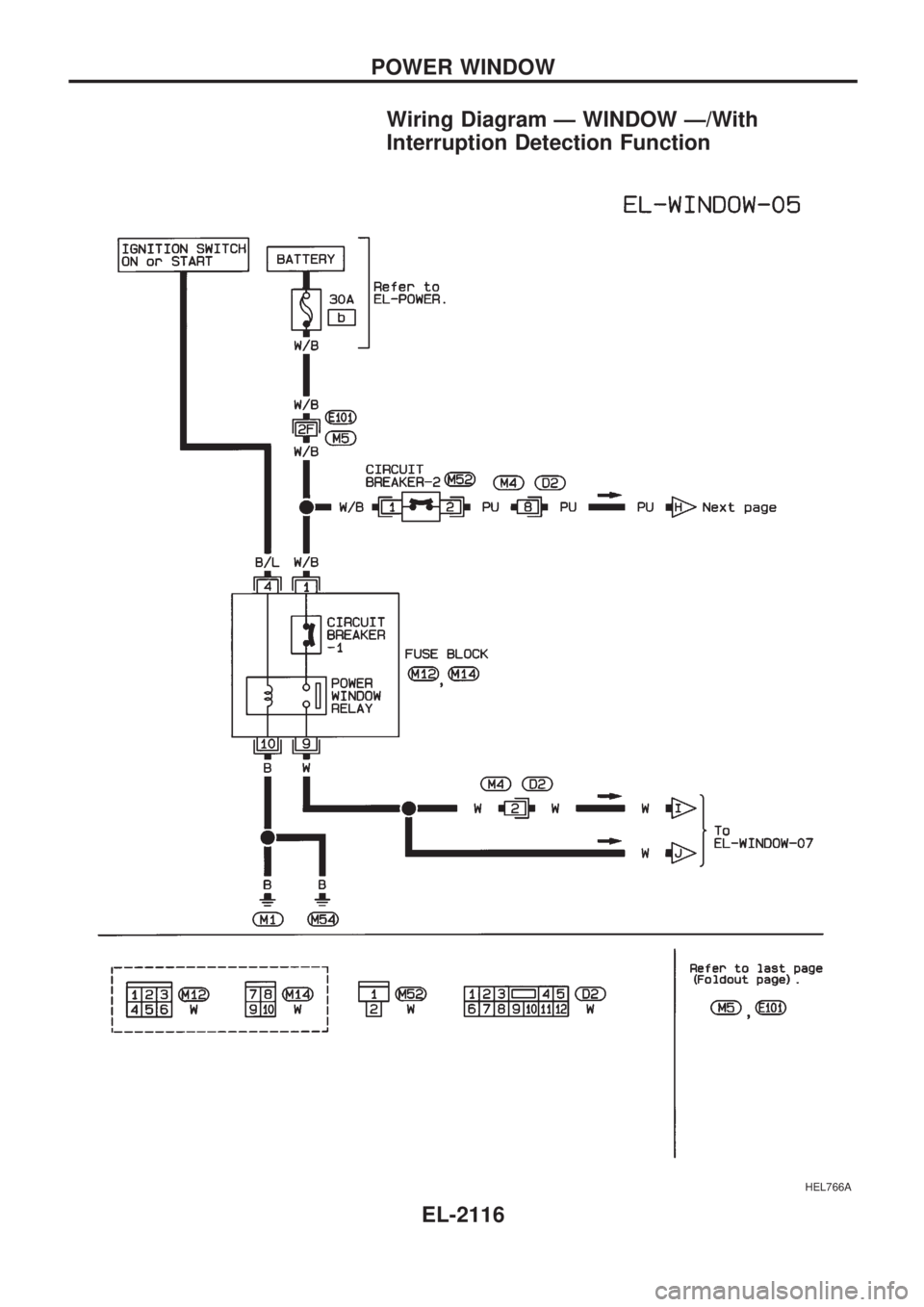

Wiring Diagram Ð WINDOW Ð/With
Interruption Detection Function
HEL766A
POWER WINDOW
EL-2116

HEL767A

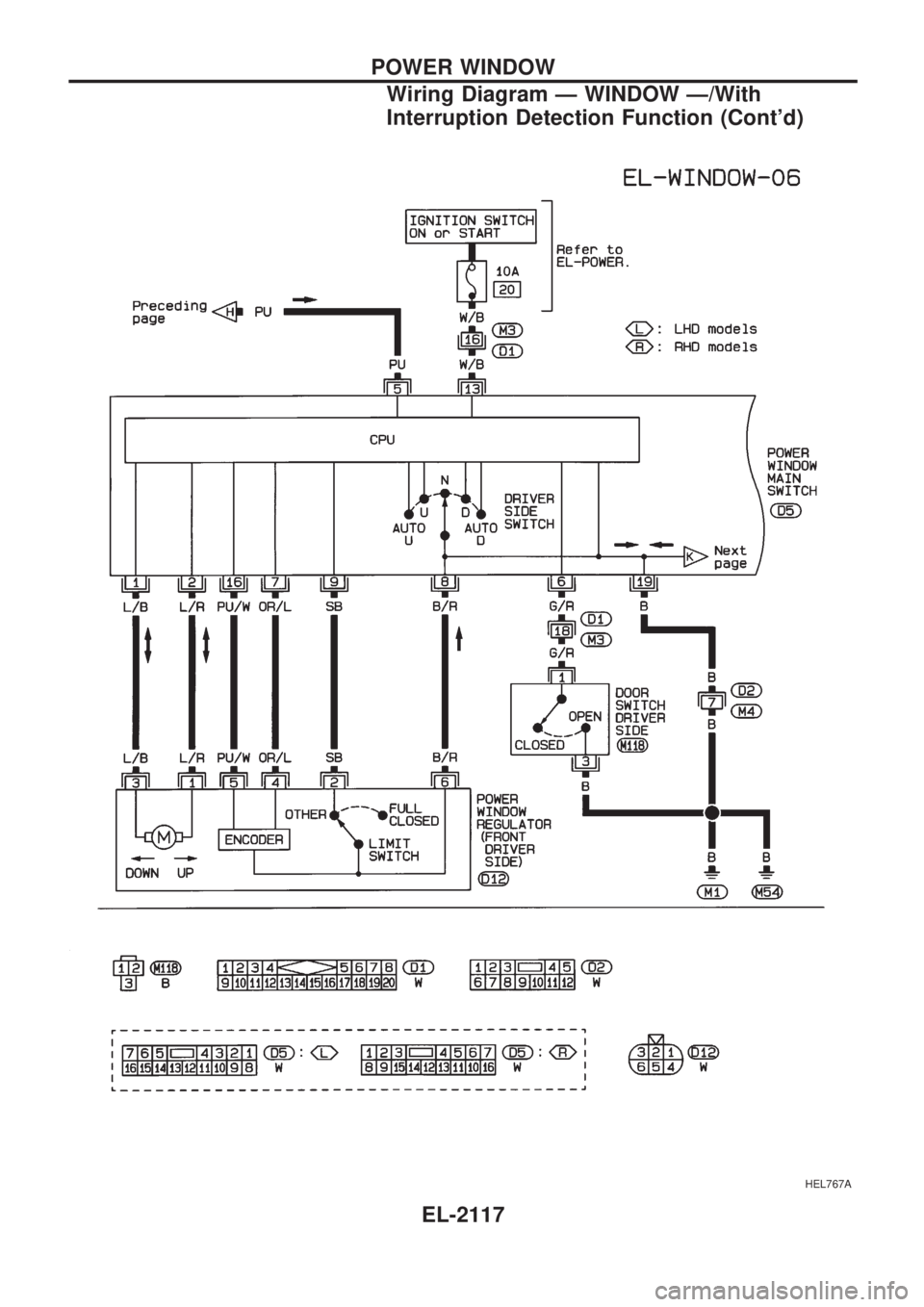

POWER WINDOW
Wiring Diagram Ð WINDOW Ð/With
Interruption Detection Function (Cont'd)
EL-2117

HEL768A

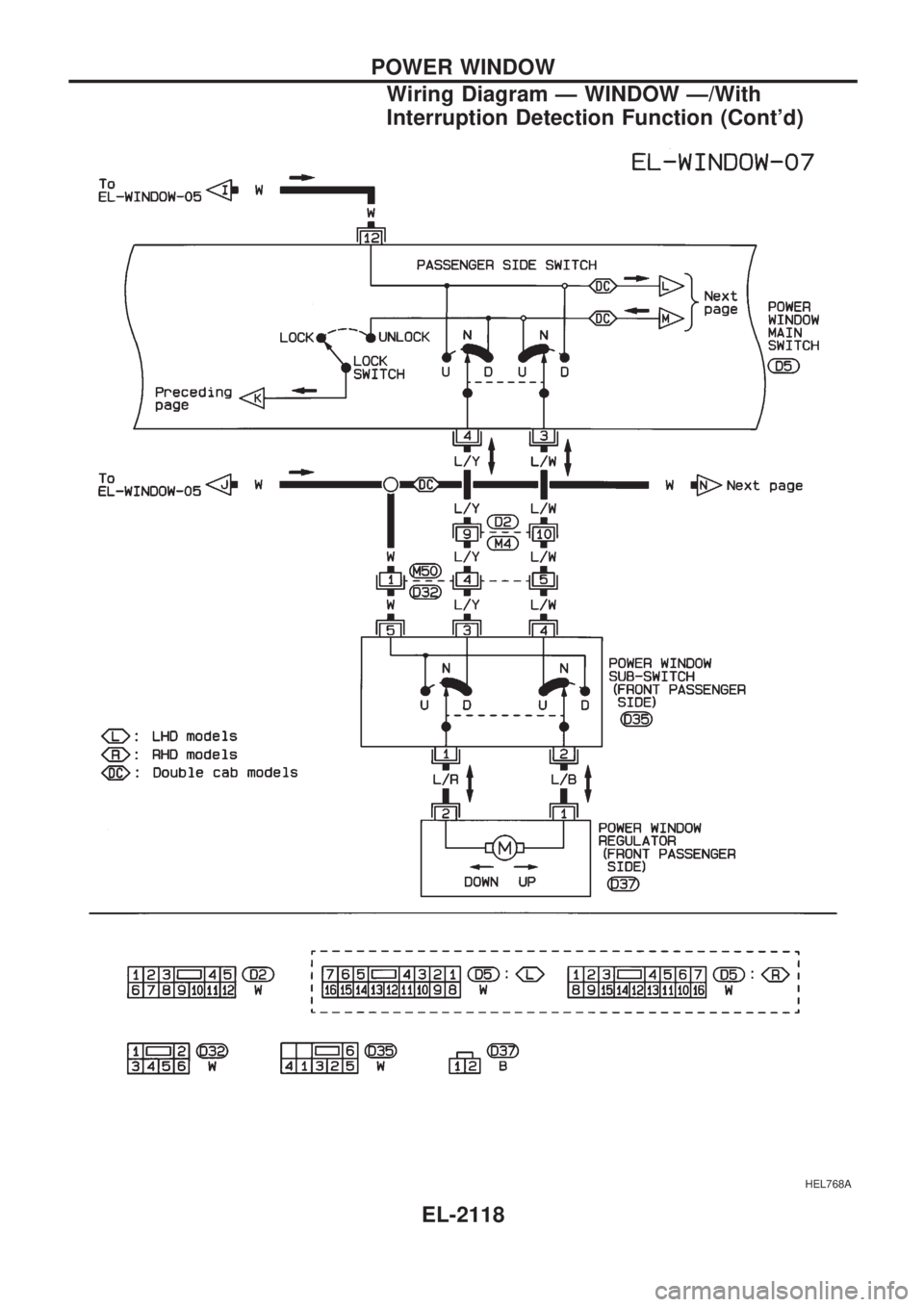

POWER WINDOW
Wiring Diagram Ð WINDOW Ð/With
Interruption Detection Function (Cont'd)
EL-2118

HEL769A
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/With
Interruption Detection Function (Cont'd)
EL-2119
