NISSAN PRIMERA 1999 Electronic Repair Manual

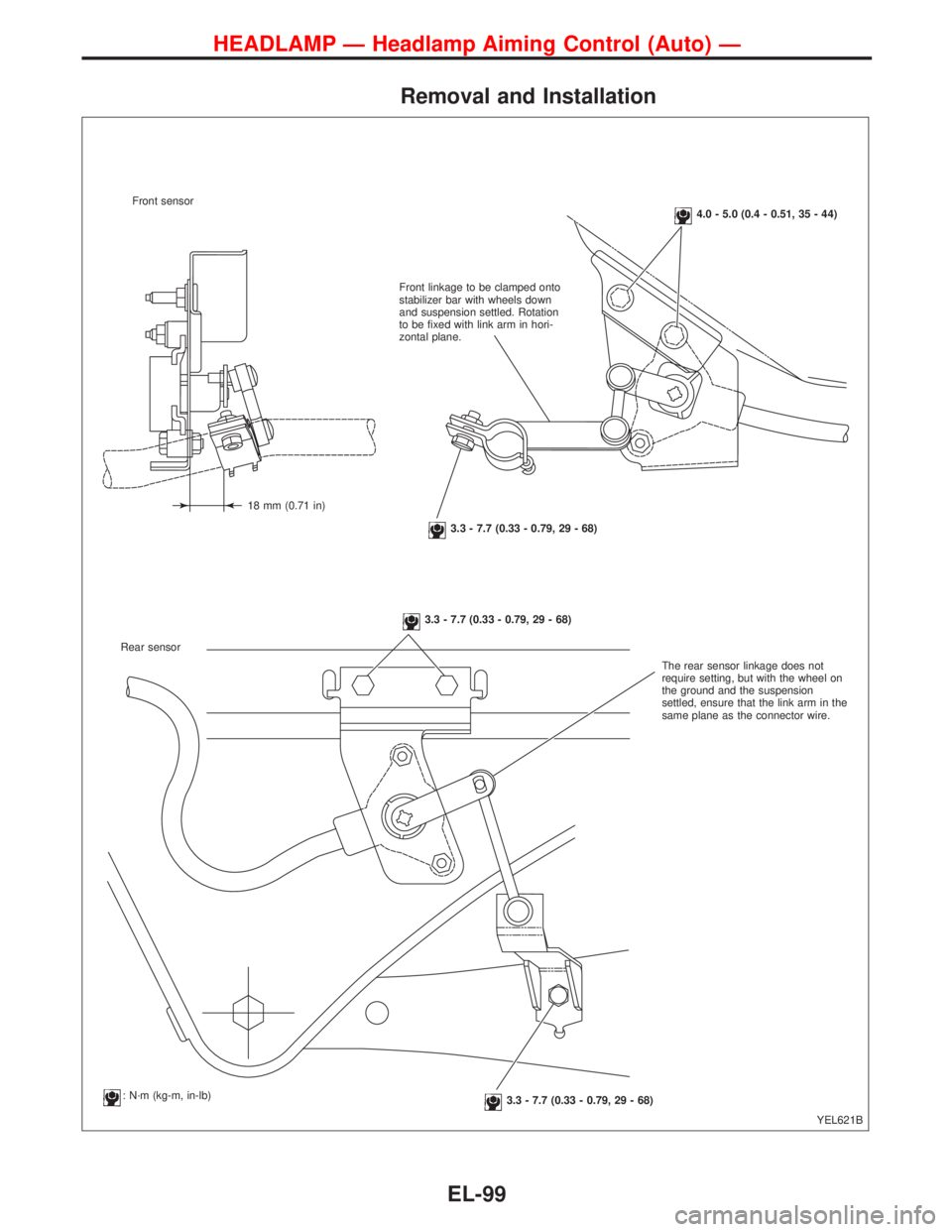

Removal and Installation
Front sensor
YEL621B
4.0 - 5.0 (0.4 - 0.51, 35 - 44)
Front linkage to be clamped onto
stabilizer bar with wheels down
and suspension settled. Rotation
to be fixed with link arm in hori-
zontal plane.
18 mm (0.71 in)
3.3 - 7.7 (0.33 - 0.79, 29 - 68)
Rear sensor
3.3 - 7.7 (0.33 - 0.79, 29 - 68)
:N·m (kg-m, in-lb)3.3 - 7.7 (0.33 - 0.79, 29 - 68)The rear sensor linkage does not
require setting, but with the wheel on
the ground and the suspension
settled, ensure that the link arm in the
same plane as the connector wire.
HEADLAMP—Headlamp Aiming Control (Auto)—
EL-99

Wiring Diagram—TAIL/L—
YEL838C
PARKING, LICENSE AND TAIL LAMPS
EL-100

4-DOOR MODELS
YEL839C
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram—TAIL/L—(Cont’d)
EL-101

5-DOOR HATCH-BACK MODELS
YEL840C
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram—TAIL/L—(Cont’d)
EL-102

WAGON MODELS
YEL841C
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram—TAIL/L—(Cont’d)
EL-103

Wiring Diagram—STOP—
YEL842C
STOP LAMP
EL-104

4-DOOR MODELS AND 5-DOOR HATCH-BACK MODELS
YEL843C
STOP LAMP
Wiring Diagram—STOP—(Cont’d)
EL-105

WAGON MODELS
YEL844C
STOP LAMP
Wiring Diagram—STOP—(Cont’d)
EL-106

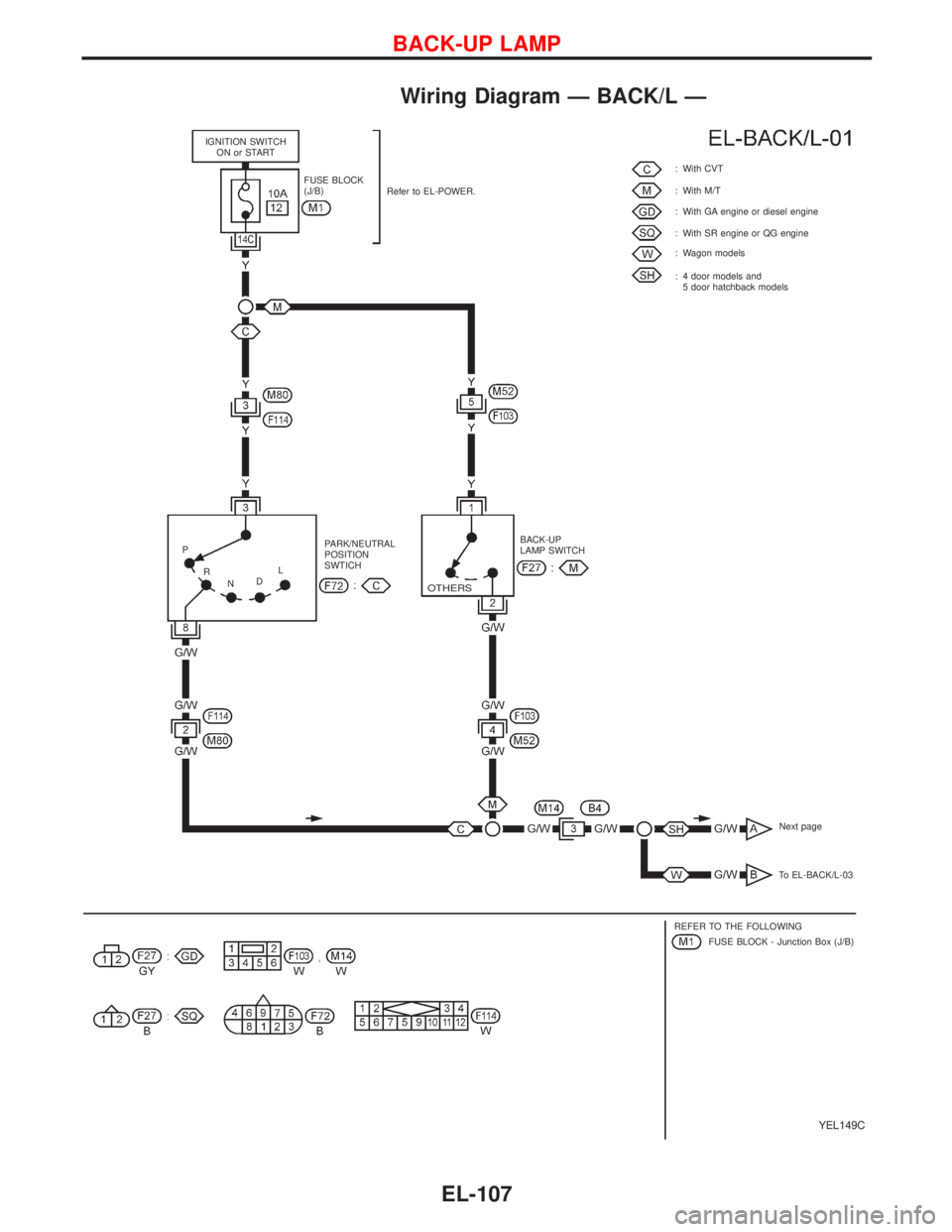

Wiring Diagram—BACK/L—
YEL149C
IGNITION SWITCH
ON or START
FUSE BLOCK
(J/B)
Refer to EL-POWER.: With CVT
: With M/T
: With GA engine or diesel engine
: With SR engine or QG engine
: Wagon models
: 4 door models and
5 door hatchback models
PARK/NEUTRAL
POSITION
SWTICH
OTHERS
BACK-UP
LAMP SWITCH
Next page
To EL-BACK/L-03
REFER TO THE FOLLOWING
FUSE BLOCK - Junction Box (J/B) P
R
NDL
BACK-UP LAMP
EL-107

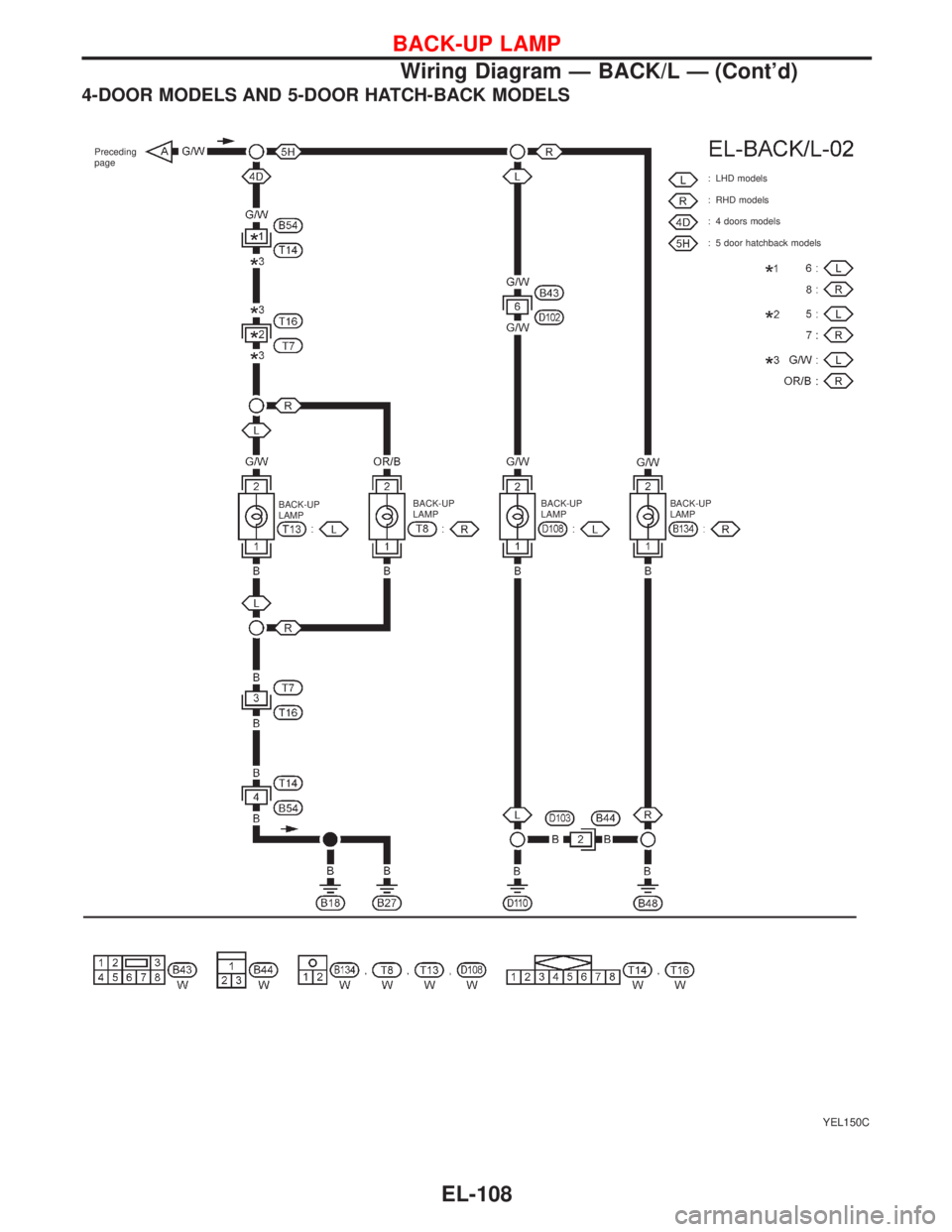

4-DOOR MODELS AND 5-DOOR HATCH-BACK MODELS
YEL150C
Preceding
page
: LHD models
: RHD models
: 4 doors models
: 5 door hatchback models
BACK-UP
LAMPBACK-UP
LAMPBACK-UP
LAMPBACK-UP
LAMP
BACK-UP LAMP
Wiring Diagram—BACK/L—(Cont’d)
EL-108
