NISSAN PRIMERA 1999 Electronic Repair Manual

YEL860C
ILLUMINATION
Wiring Diagram—ILL—(Cont’d)
EL-129

System Description
INTERIOR LAMP TIMER OPERATION
The time control unit keeps the interior lamp illuminated for about 30 seconds when:

the ignition key is turned from“ON”to“Acc”to“LOCK”

the driver’s door is unlocked

a door is opened and then closed while the ignition switch is in the“OFF”position. (Interior lamp switch
in the“DOOR”position).
The timer is canceled when:

driver’s door is locked, or

ignition switch is turned“ON”.
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
EL-130

Schematic
YEL861C
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
EL-131

Wiring Diagram—INT/L—
MODELS BEFORE VIN - P11U0548750
YEL862C
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
EL-132

YEL865C
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram—INT/L—(Cont’d)
EL-133

MODELS AFTER VIN - P11U0548750
YEL863C
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram—INT/L—(Cont’d)
EL-134

YEL866C
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram—INT/L—(Cont’d)
EL-135

YEL864C
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram—INT/L—(Cont’d)
EL-136

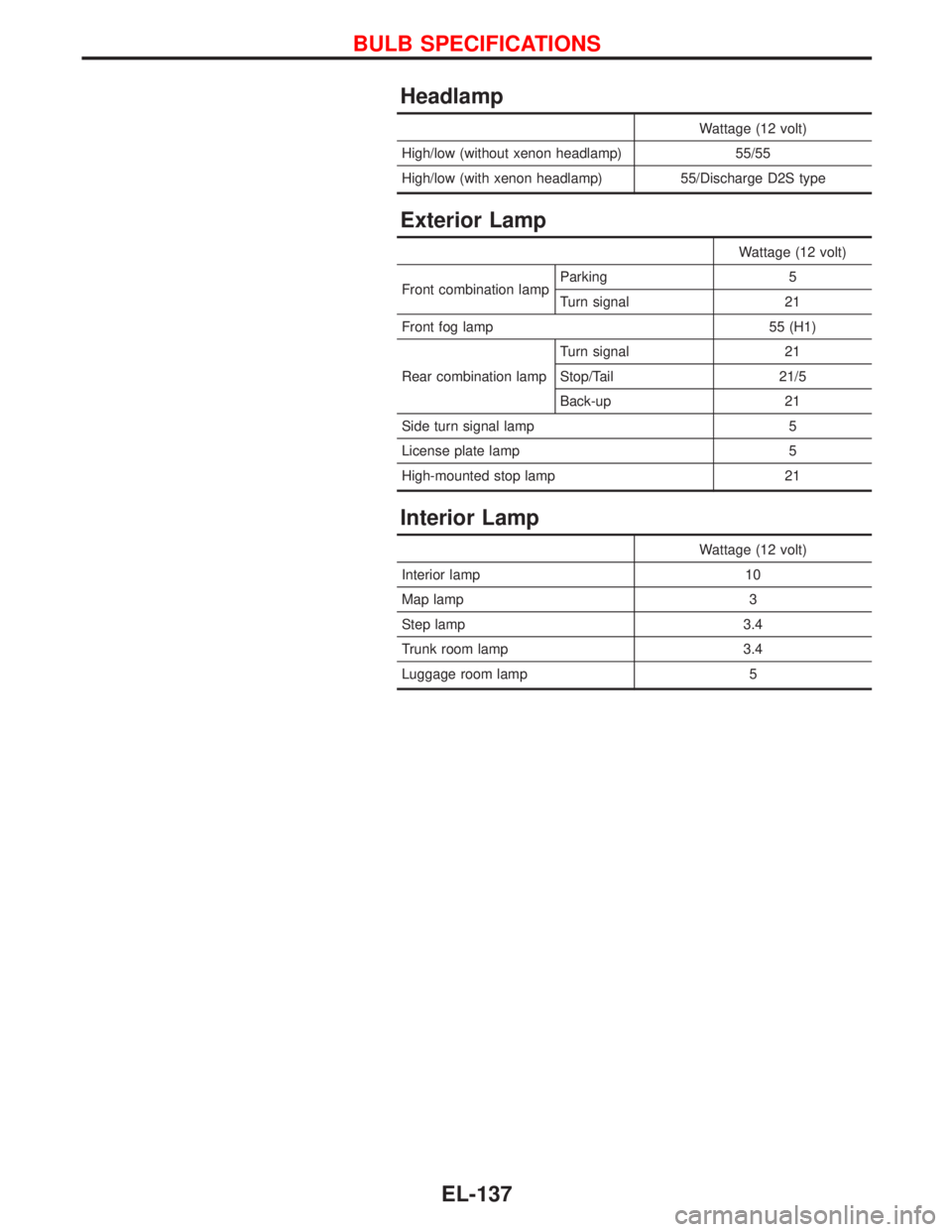

Headlamp
Wattage (12 volt)
High/low (without xenon headlamp) 55/55
High/low (with xenon headlamp) 55/Discharge D2S type
Exterior Lamp
Wattage (12 volt)
Front combination lampParking 5
Turn signal 21
Front fog lamp 55 (H1)
Rear combination lampTurn signal 21
Stop/Tail 21/5
Back-up 21
Side turn signal lamp 5
License plate lamp 5
High-mounted stop lamp 21
Interior Lamp
Wattage (12 volt)
Interior lamp 10
Map lamp 3
Step lamp 3.4
Trunk room lamp 3.4
Luggage room lamp 5
BULB SPECIFICATIONS
EL-137

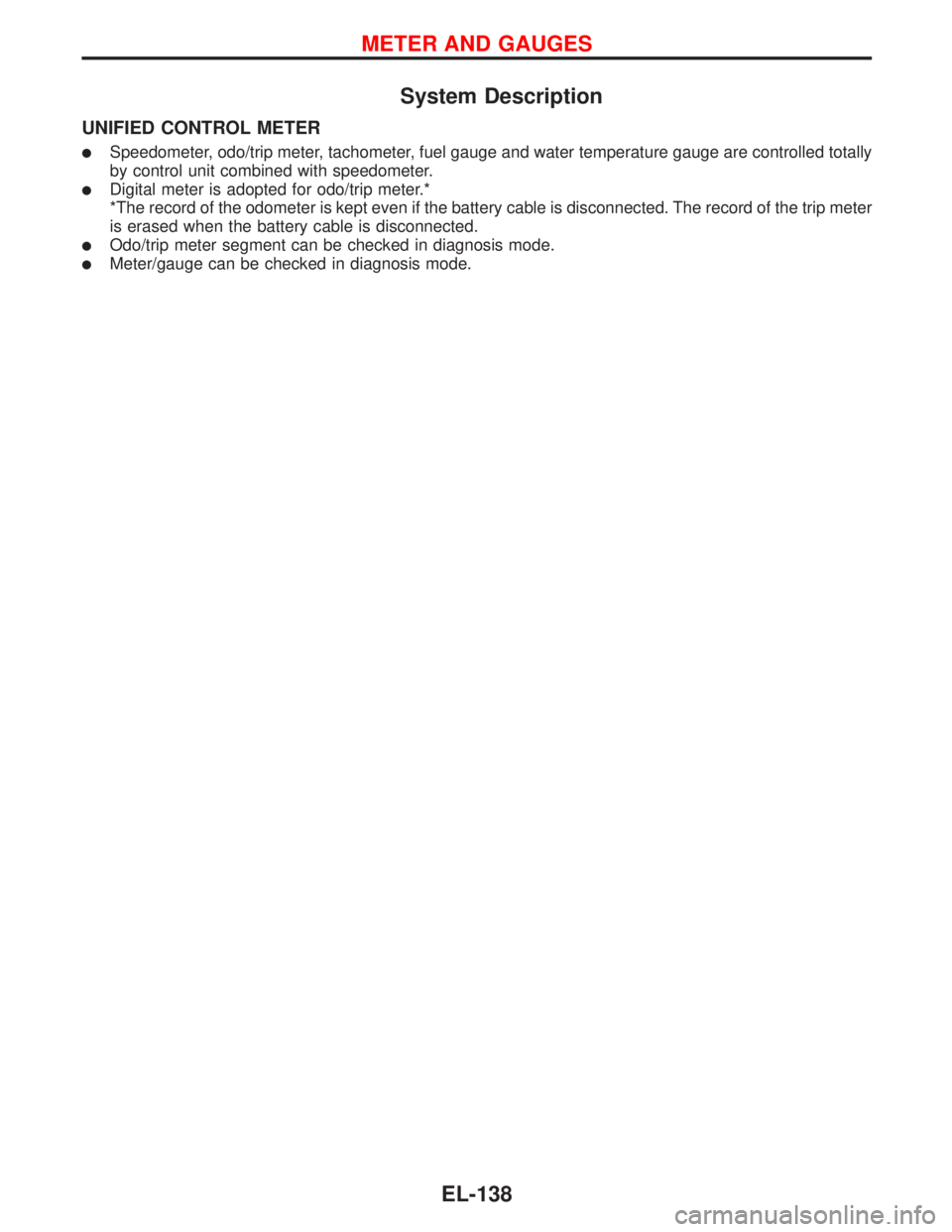

System Description
UNIFIED CONTROL METER

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled totally
by control unit combined with speedometer.

Digital meter is adopted for odo/trip meter.*
*The record of the odometer is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Odo/trip meter segment can be checked in diagnosis mode.

Meter/gauge can be checked in diagnosis mode.
METER AND GAUGES
