NISSAN PRIMERA 1999 Electronic Repair Manual

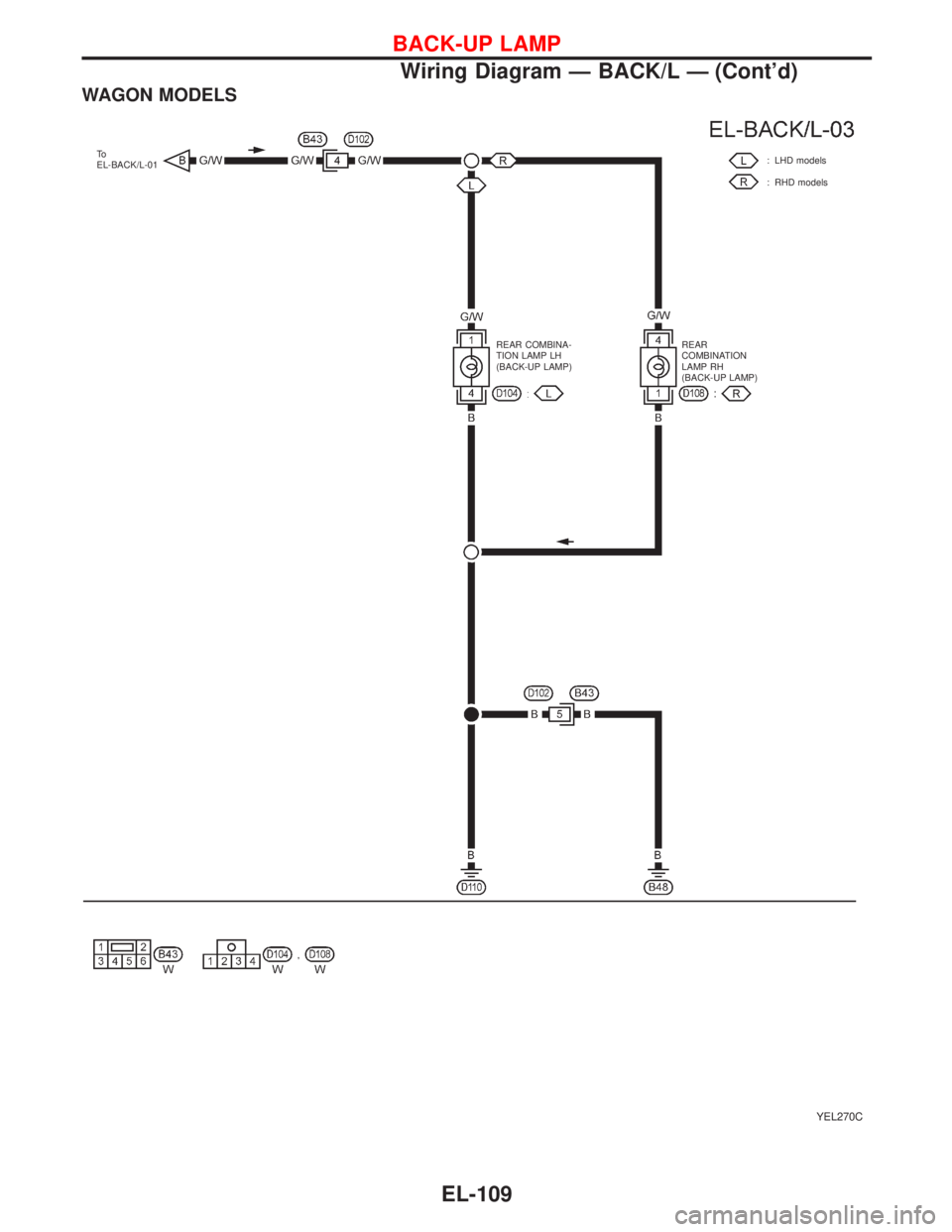

WAGON MODELS
YEL270C
To
EL-BACK/L-01
REAR COMBINA-
TION LAMP LH
(BACK-UP LAMP)REAR
COMBINATION
LAMP RH
(BACK-UP LAMP): LHD models
: RHD models
BACK-UP LAMP
Wiring Diagram—BACK/L—(Cont’d)
EL-109

Wiring Diagram—F/FOG—
YEL845C
FRONT FOG LAMP
EL-110

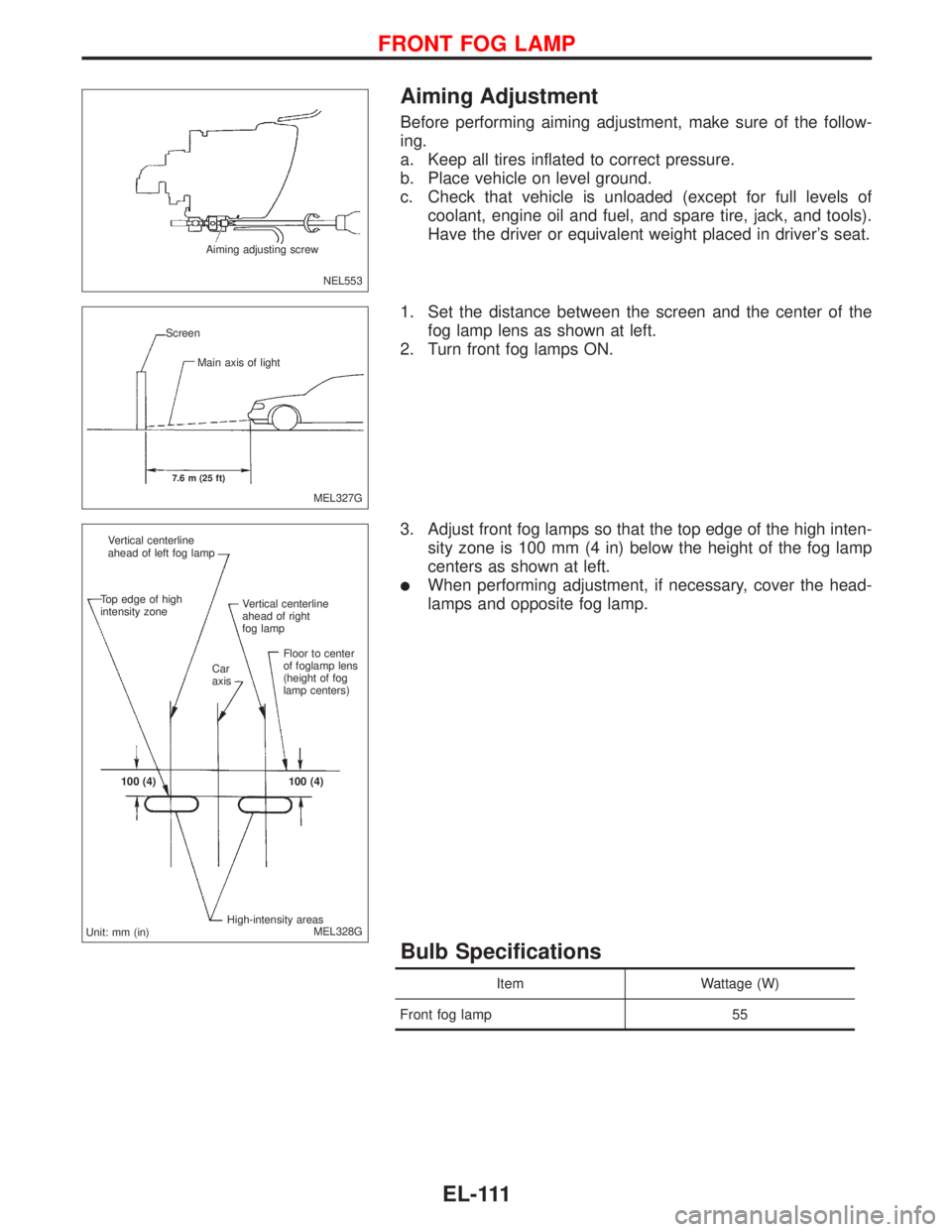

Aiming Adjustment
Before performing aiming adjustment, make sure of the follow-
ing.
a. Keep all tires inflated to correct pressure.
b. Place vehicle on level ground.
c. Check that vehicle is unloaded (except for full levels of
coolant, engine oil and fuel, and spare tire, jack, and tools).
Have the driver or equivalent weight placed in driver’s seat.
1. Set the distance between the screen and the center of the
fog lamp lens as shown at left.
2. Turn front fog lamps ON.
3. Adjust front fog lamps so that the top edge of the high inten-
sity zone is 100 mm (4 in) below the height of the fog lamp
centers as shown at left.

When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
Bulb Specifications
Item Wattage (W)
Front fog lamp 55
NEL553 Aiming adjusting screw
MEL327G
7.6 m (25 ft)
Screen
Main axis of light
MEL328G Vertical centerline
ahead of left fog lamp
Car
axis Top edge of high
intensity zoneVertical centerline
ahead of right
fog lamp
Floor to center
of foglamp lens
(height of fog
lamp centers)
.100 (4).100 (4)
High-intensity areas
Unit: mm (in)
FRONT FOG LAMP
EL-111

Wiring Diagram—R/FOG—
MODELS BEFORE VIN - P11U0548750
YEL846C
REAR FOG LAMP
EL-112

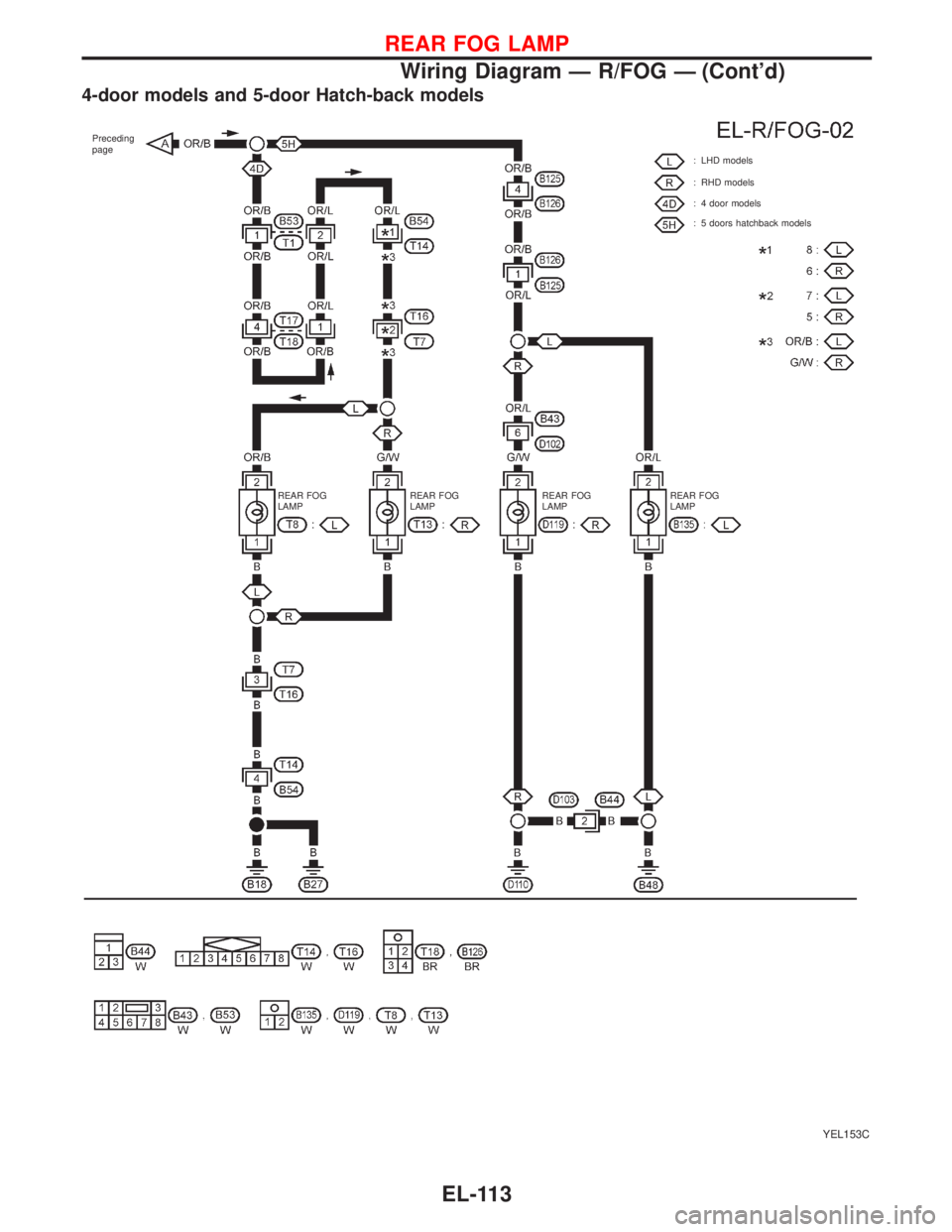

4-door models and 5-door Hatch-back models
YEL153C
Preceding
page
REAR FOG
LAMPREAR FOG
LAMPREAR FOG
LAMPREAR FOG
LAMP: LHD models
: RHD models
: 4 door models
: 5 doors hatchback models
REAR FOG LAMP
Wiring Diagram—R/FOG—(Cont’d)
EL-113

MODELS AFTER VIN - P11U0548750
YEL847C
REAR FOG LAMP
Wiring Diagram—R/FOG—(Cont’d)
EL-114

4-door models and 5-door Hatch-back models
YEL848C
REAR FOG LAMP
Wiring Diagram—R/FOG—(Cont’d)
EL-115

WAGON MODELS
YEL849C
REAR FOG LAMP
Wiring Diagram—R/FOG—(Cont’d)
EL-116

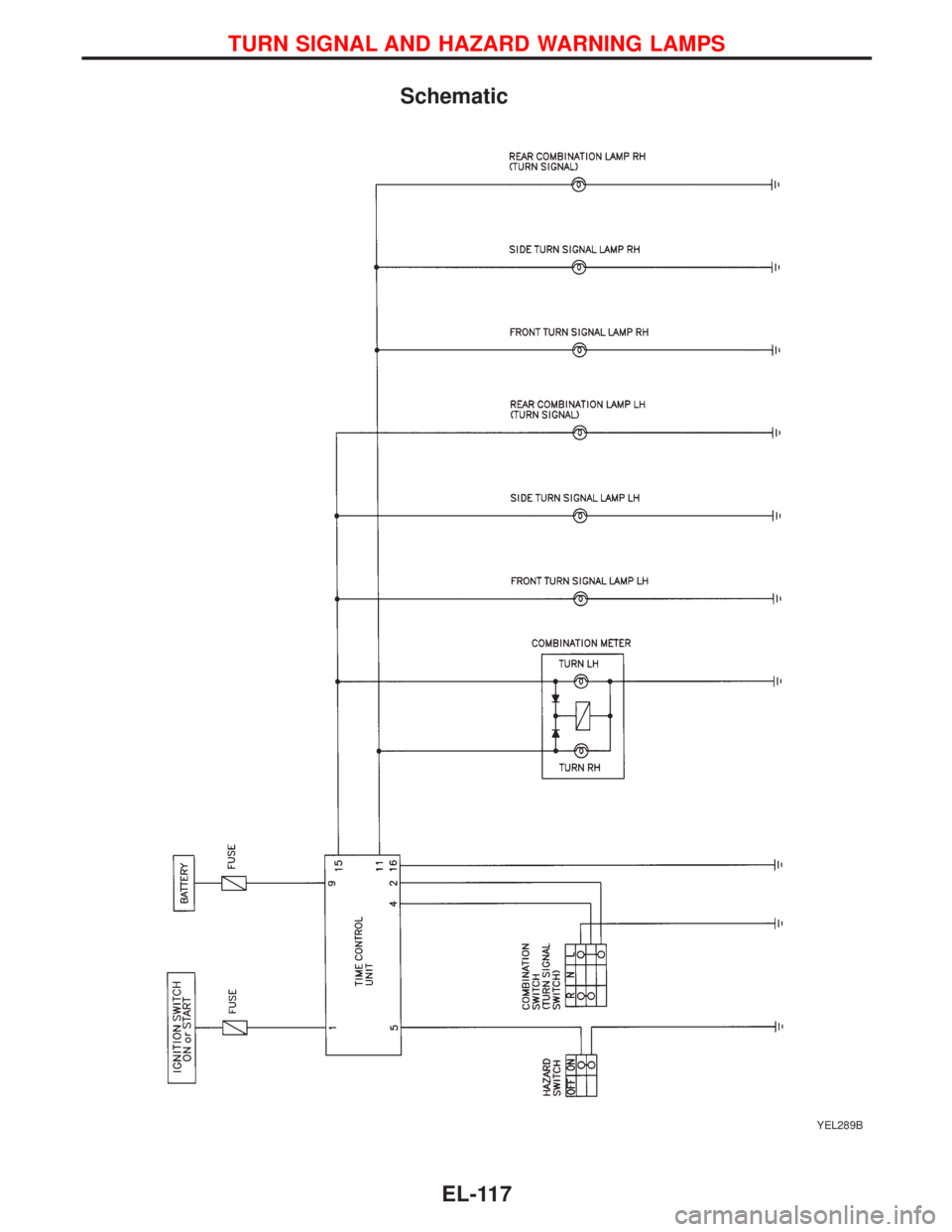

Schematic
YEL289B
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-117

Wiring Diagram—TURN—
YEL850C
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-118
