NISSAN TEANA 2008 Service Manual

BRC-70
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
VDC
Component Description
INFOID:0000000003766888

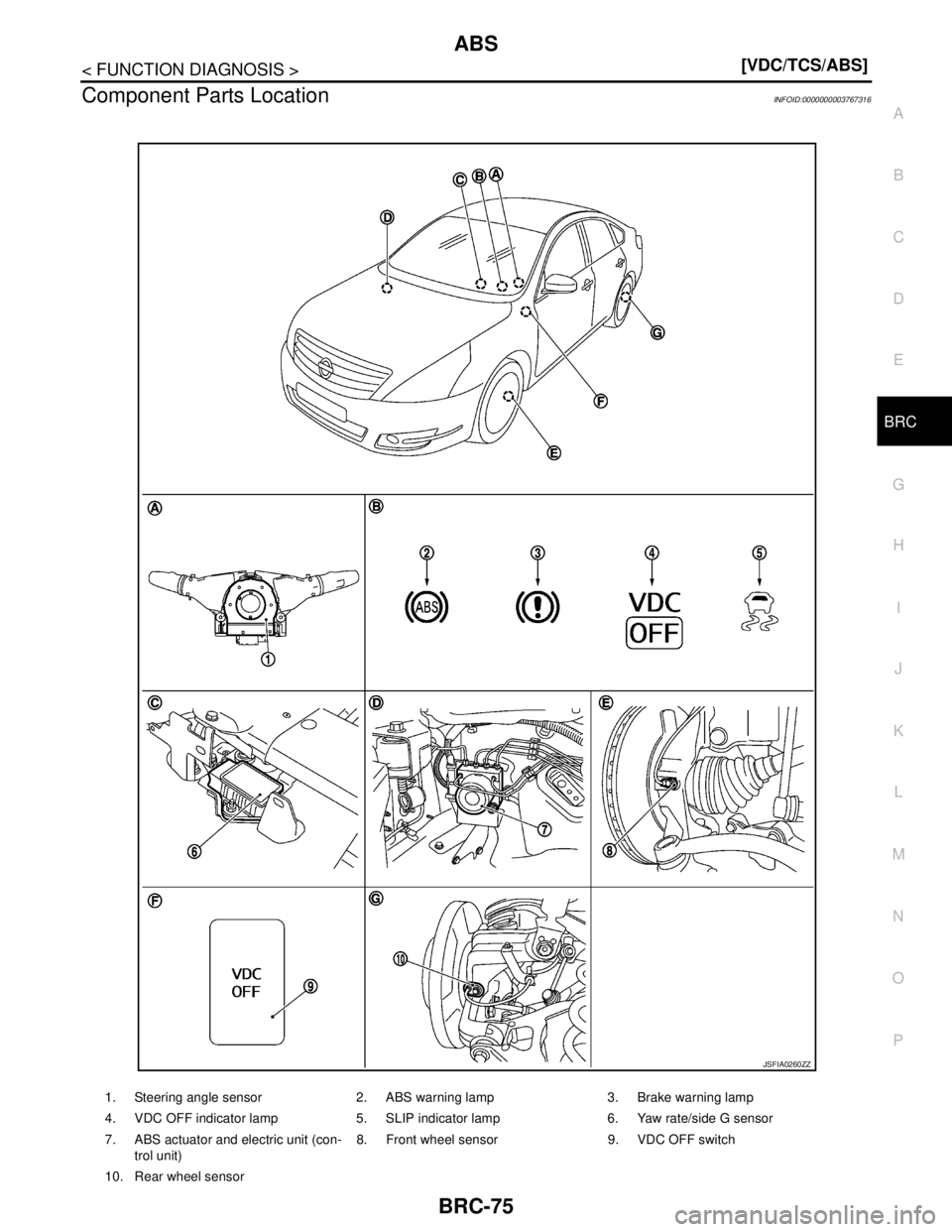

A. Back of spiral cable assembly B. Combination meter C. Under center console
D. Engine room right side E. Steering knuckle F. Instrument driver lower panel
G. Rear axle
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-94, "
Description"Motor
Actuator relay (main relay)BRC-106, "
Description"
Solenoid valveBRC-101, "Description"
Pressure sensorBRC-108, "Description"
VDC switch-over valve (USV1, USV2)BRC-118, "Description"
VDC switch-over valve (HSV1, HSV2)BRC-120, "Description"
Wheel sensorBRC-85, "Description"
Yaw rate/side G sensorBRC-113, "Description"
Steering angle sensorBRC-110, "Description"
VDC OFF switchBRC-126, "Description"
ABS warning lampBRC-128, "Description"
Brake warning lampBRC-129, "Description"
VDC OFF indicator lampBRC-130, "Description"
SLIP indicator lampBRC-131, "Description"

TCS
BRC-71
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
TCS

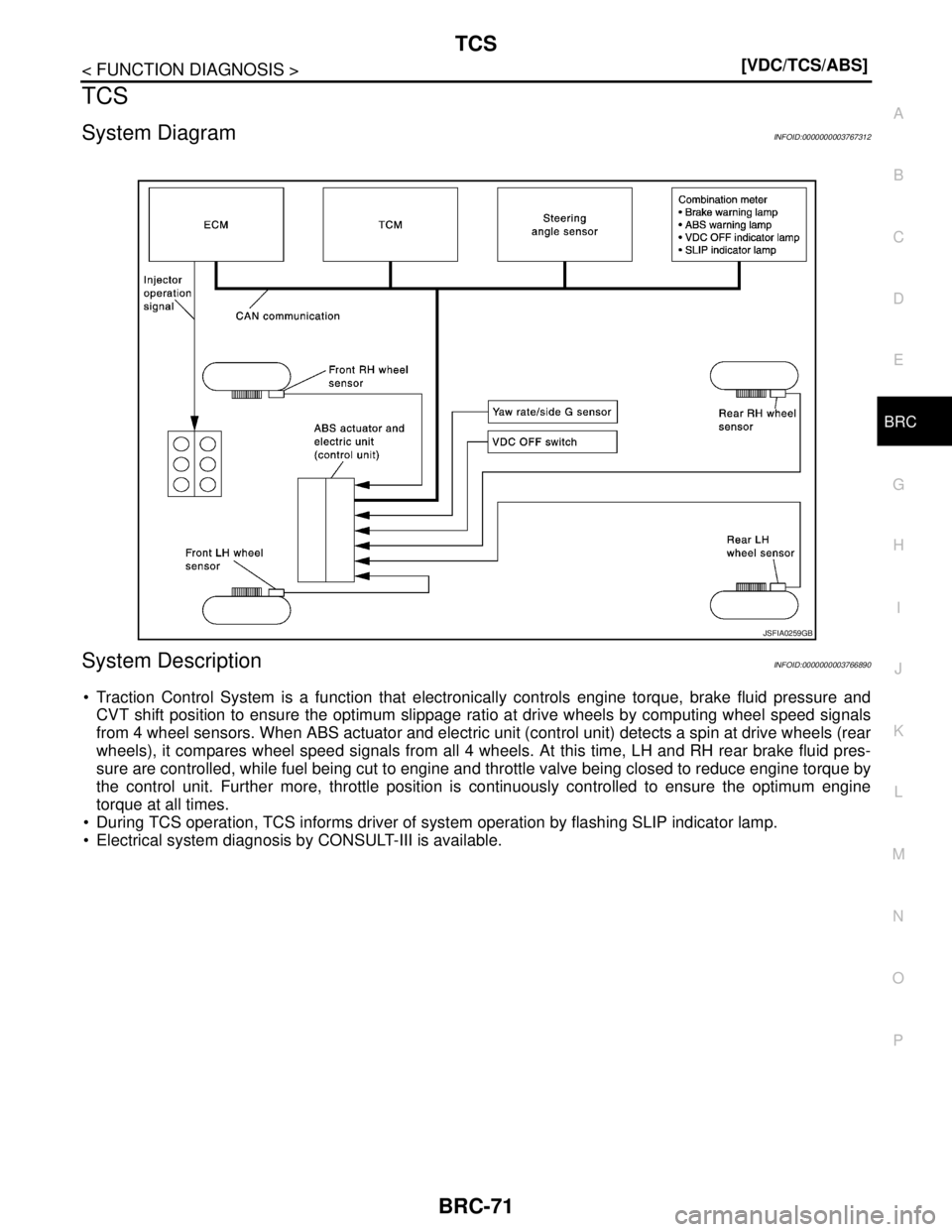

System DiagramINFOID:0000000003767312
System DescriptionINFOID:0000000003766890
 Traction Control System is a function that electronically controls engine torque, brake fluid pressure and
CVT shift position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals
from 4 wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear
wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-
sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by
the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine
torque at all times.
 During TCS operation, TCS informs driver of system operation by flashing SLIP indicator lamp.
 Electrical system diagnosis by CONSULT-III is available.
JSFIA0259GB

BRC-72
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
TCS
Component Parts Location
INFOID:0000000003767313

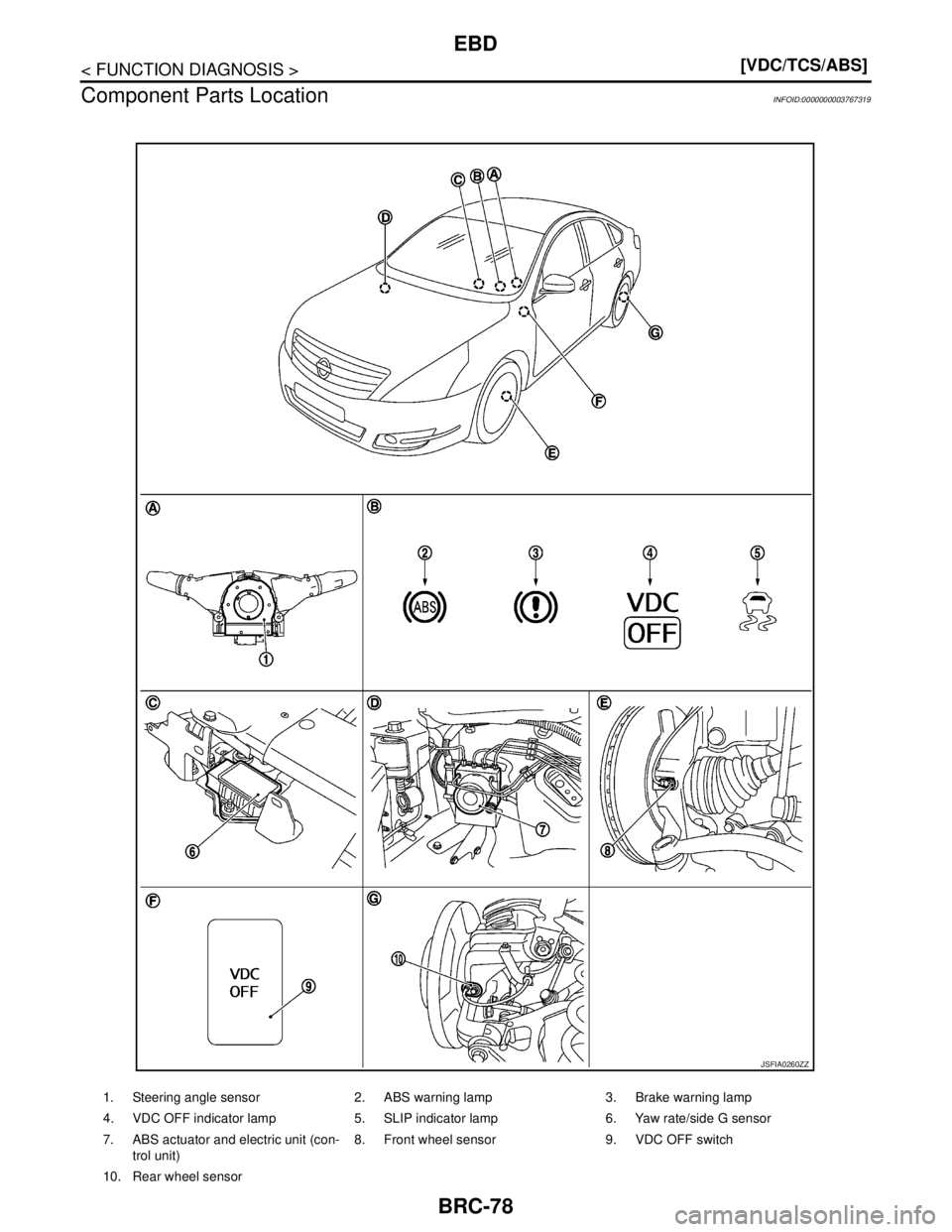

1. Steering angle sensor 2. ABS warning lamp 3. Brake warning lamp
4. VDC OFF indicator lamp 5. SLIP indicator lamp 6. Yaw rate/side G sensor
7. ABS actuator and electric unit (con-
trol unit)8. Front wheel sensor 9. VDC OFF switch
10. Rear wheel sensor
JSFIA0260ZZ

TCS
BRC-73
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Component DescriptionINFOID:0000000003767314
A. Back of spiral cable assembly B. Combination meter C. Under center console
D. Engine room right side E. Steering knuckle F. Instrument driver lower panel
G. Rear axle
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-94, "
Description"Motor
Actuator relay (main relay)BRC-106, "
Description"
Solenoid valveBRC-103, "Description"
Pressure sensorBRC-108, "Description"
VDC switch-over valve (USV1, USV2)BRC-118, "Description"
VDC switch-over valve (HSV1, HSV2)BRC-120, "Description"
Wheel sensorBRC-96, "Description"
Yaw rate/side G sensorBRC-113, "Description"
Steering angle sensorBRC-110, "Description"
VDC OFF switchBRC-126, "Description"
ABS warning lampBRC-128, "Description"
Brake warning lampBRC-129, "Description"
VDC OFF indicator lampBRC-130, "Description"
SLIP indicator lampBRC-131, "Description"

BRC-74
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
ABS
ABS

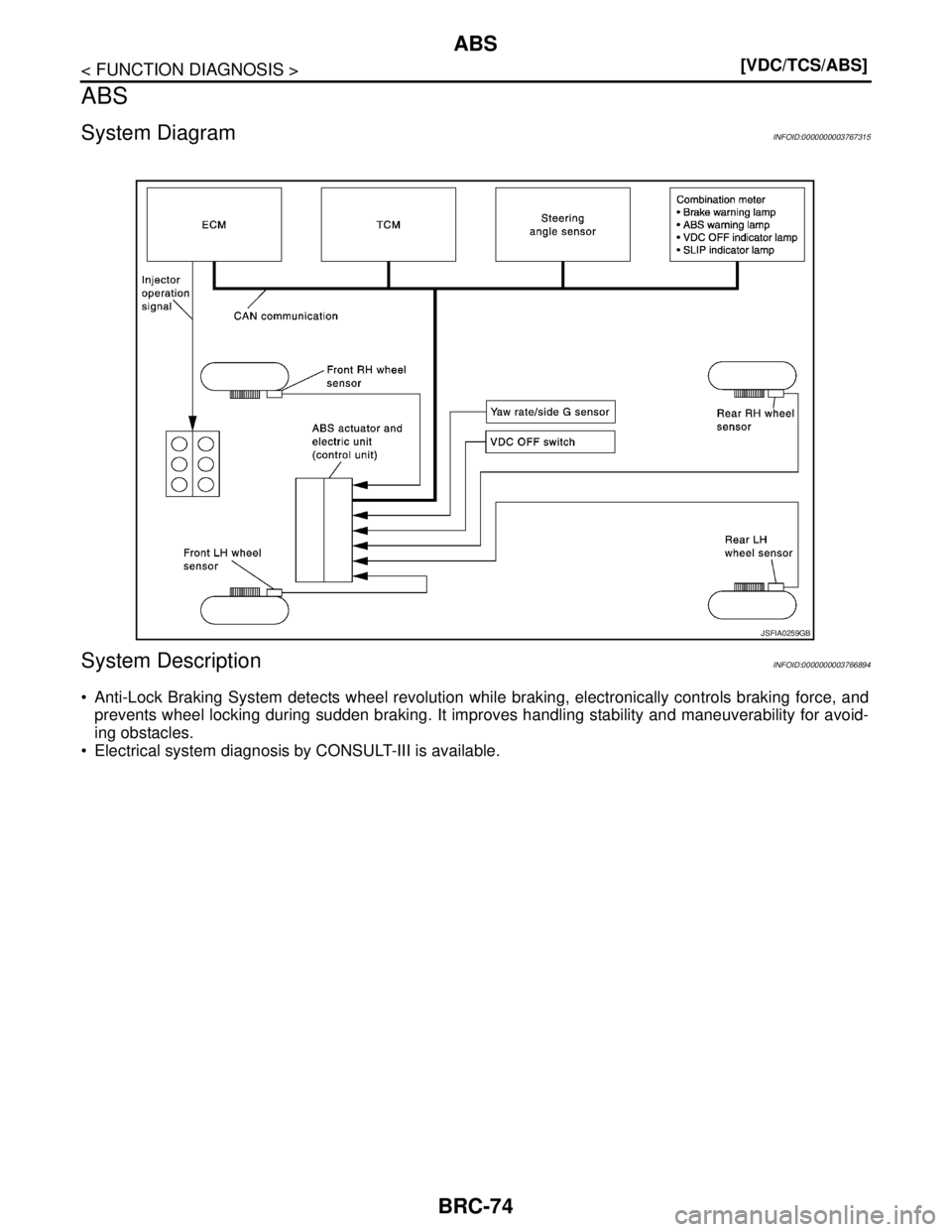

System DiagramINFOID:0000000003767315
System DescriptionINFOID:0000000003766894
 Anti-Lock Braking System detects wheel revolution while braking, electronically controls braking force, and
prevents wheel locking during sudden braking. It improves handling stability and maneuverability for avoid-
ing obstacles.
 Electrical system diagnosis by CONSULT-III is available.
JSFIA0259GB

ABS
BRC-75
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Component Parts LocationINFOID:0000000003767316
1. Steering angle sensor 2. ABS warning lamp 3. Brake warning lamp
4. VDC OFF indicator lamp 5. SLIP indicator lamp 6. Yaw rate/side G sensor
7. ABS actuator and electric unit (con-
trol unit)8. Front wheel sensor 9. VDC OFF switch
10. Rear wheel sensor
JSFIA0260ZZ

BRC-76
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
ABS
Component Description
INFOID:0000000003767317
A. Back of spiral cable assembly B. Combination meter C. Under center console
D. Engine room right side E. Steering knuckle F. Instrument driver lower panel
G. Rear axle
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-94, "
Description"Motor
Actuator relay (main relay)BRC-106, "
Description"
Solenoid valveBRC-103, "Description"
Pressure sensorBRC-108, "Description"
VDC switch-over valve (USV1, USV2)BRC-118, "Description"
VDC switch-over valve (HSV1, HSV2)BRC-120, "Description"
Wheel sensorBRC-96, "Description"
Yaw rate/side G sensorBRC-113, "Description"
Steering angle sensorBRC-110, "Description"
VDC OFF switchBRC-126, "Description"
ABS warning lampBRC-128, "Description"
Brake warning lampBRC-129, "Description"
VDC OFF indicator lampBRC-130, "Description"
SLIP indicator lampBRC-131, "Description"

EBD
BRC-77
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
EBD
System DiagramINFOID:0000000003767318
System DescriptionINFOID:0000000003766898
 Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects
subtle slippages between the front and rear wheels during braking. Then is electronically controls the rear
braking force (brake fluid pressure) to reducing and reduces rear wheel slippage. Accordingly it improves
vehicle stability.
 Electrical system diagnosis by CONSULT-III is available.
JSFIA0259GB

BRC-78
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
EBD
Component Parts Location
INFOID:0000000003767319
1. Steering angle sensor 2. ABS warning lamp 3. Brake warning lamp
4. VDC OFF indicator lamp 5. SLIP indicator lamp 6. Yaw rate/side G sensor
7. ABS actuator and electric unit (con-
trol unit)8. Front wheel sensor 9. VDC OFF switch
10. Rear wheel sensor
JSFIA0260ZZ

EBD
BRC-79
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Component DescriptionINFOID:0000000003767320
A. Back of spiral cable assembly B. Combination meter C. Under center console
D. Engine room right side E. Steering knuckle F. Instrument driver lower panel
G. Rear axle
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-94, "
Description"Motor
Actuator relay (main relay)BRC-106, "
Description"
Solenoid valveBRC-103, "Description"
Pressure sensorBRC-108, "Description"
VDC switch-over valve (USV1, USV2)BRC-118, "Description"
VDC switch-over valve (HSV1, HSV2)BRC-120, "Description"
Wheel sensorBRC-96, "Description"
Yaw rate/side G sensorBRC-113, "Description"
Steering angle sensorBRC-110, "Description"
VDC OFF switchBRC-126, "Description"
ABS warning lampBRC-128, "Description"
Brake warning lampBRC-129, "Description"
VDC OFF indicator lampBRC-130, "Description"
SLIP indicator lampBRC-131, "Description"
