AV CONTROL UNIT
AV-267
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

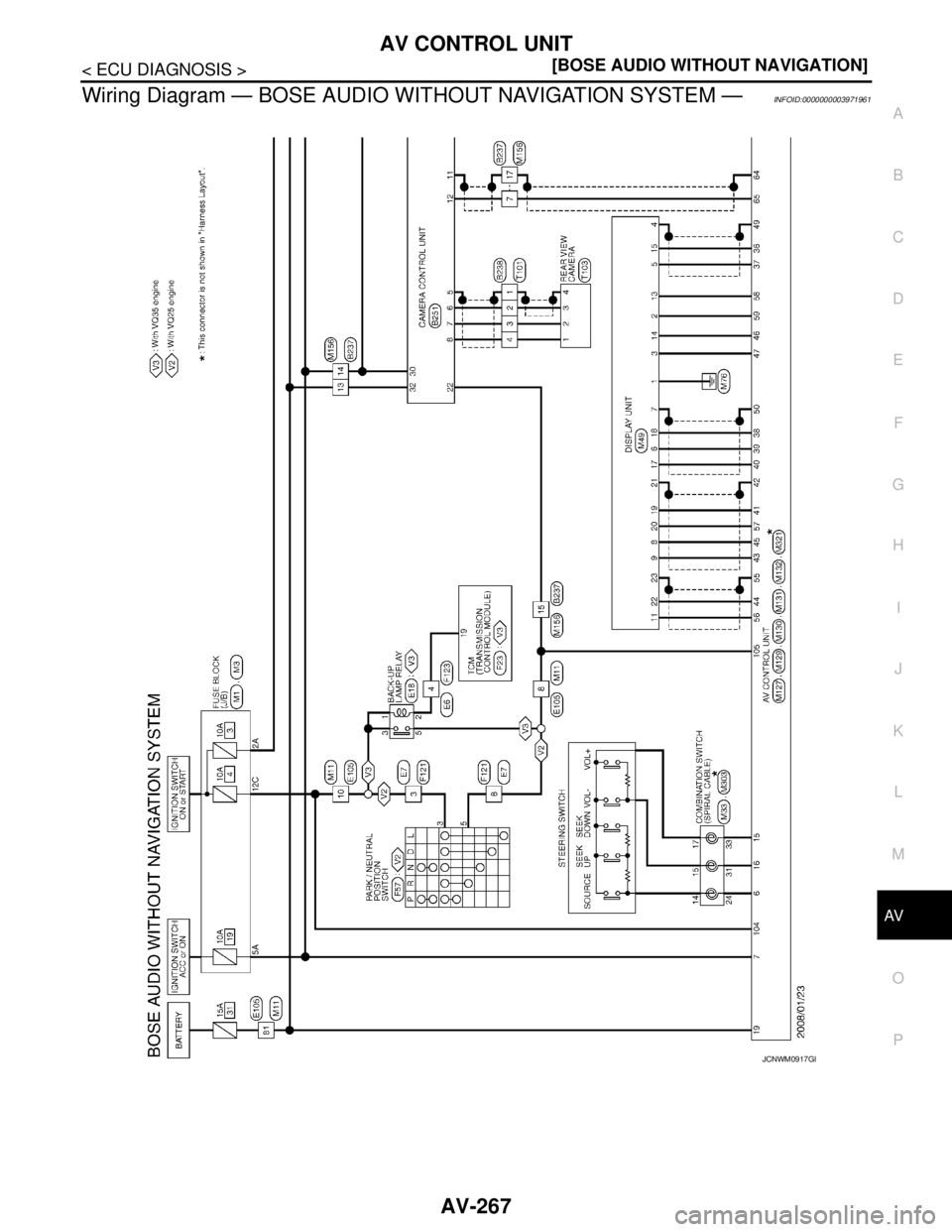

Wiring Diagram — BOSE AUDIO WITHOUT NAVIGATION SYSTEM —INFOID:0000000003971961
JCNWM0917GB](/img/5/57391/w960_57391-410.png "NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-267
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
Wiring Diagram — BOSE AUDIO WITHOUT NAVIGATION SYSTEM —INFOID:0000000003971961
JCNWM0917GB")
Page 412 of 5121

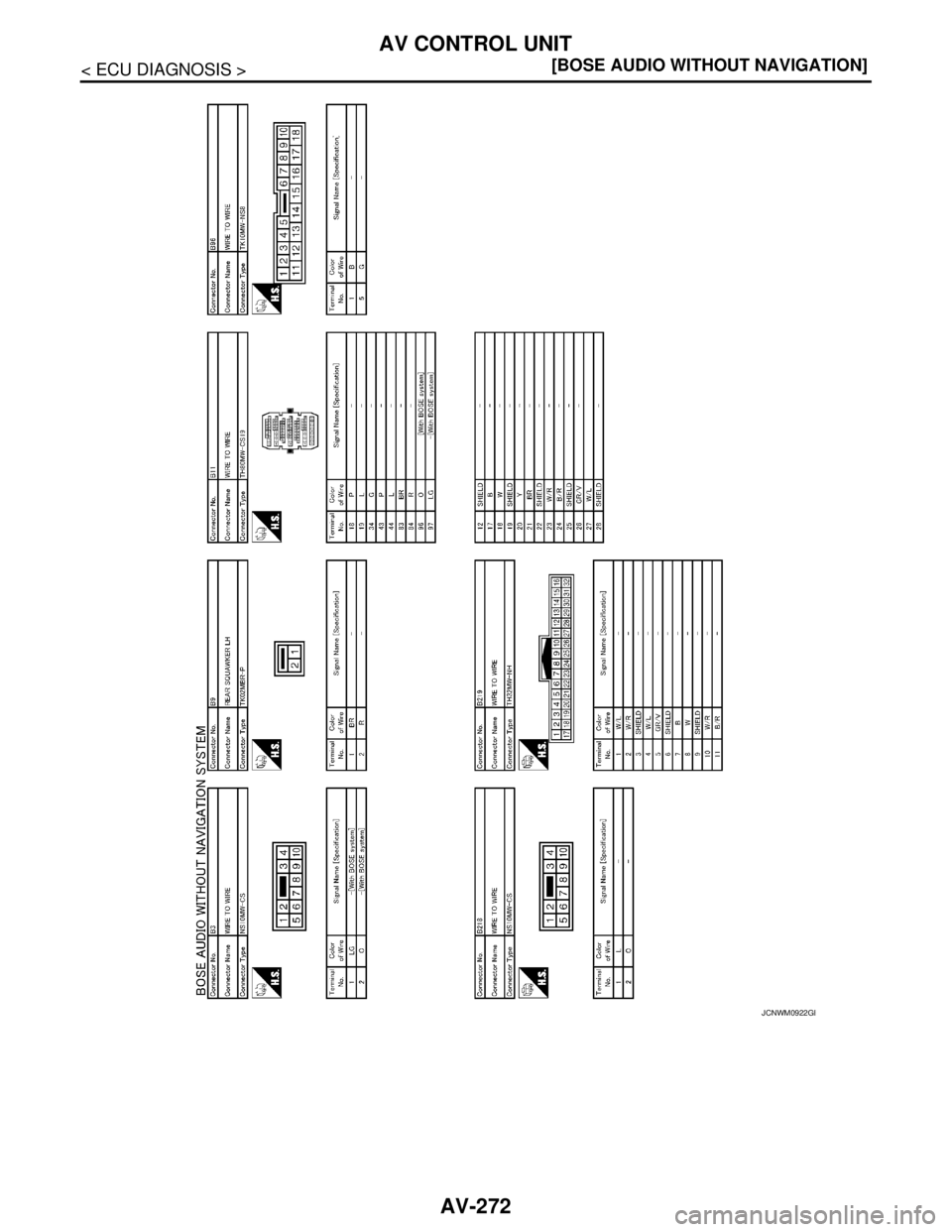

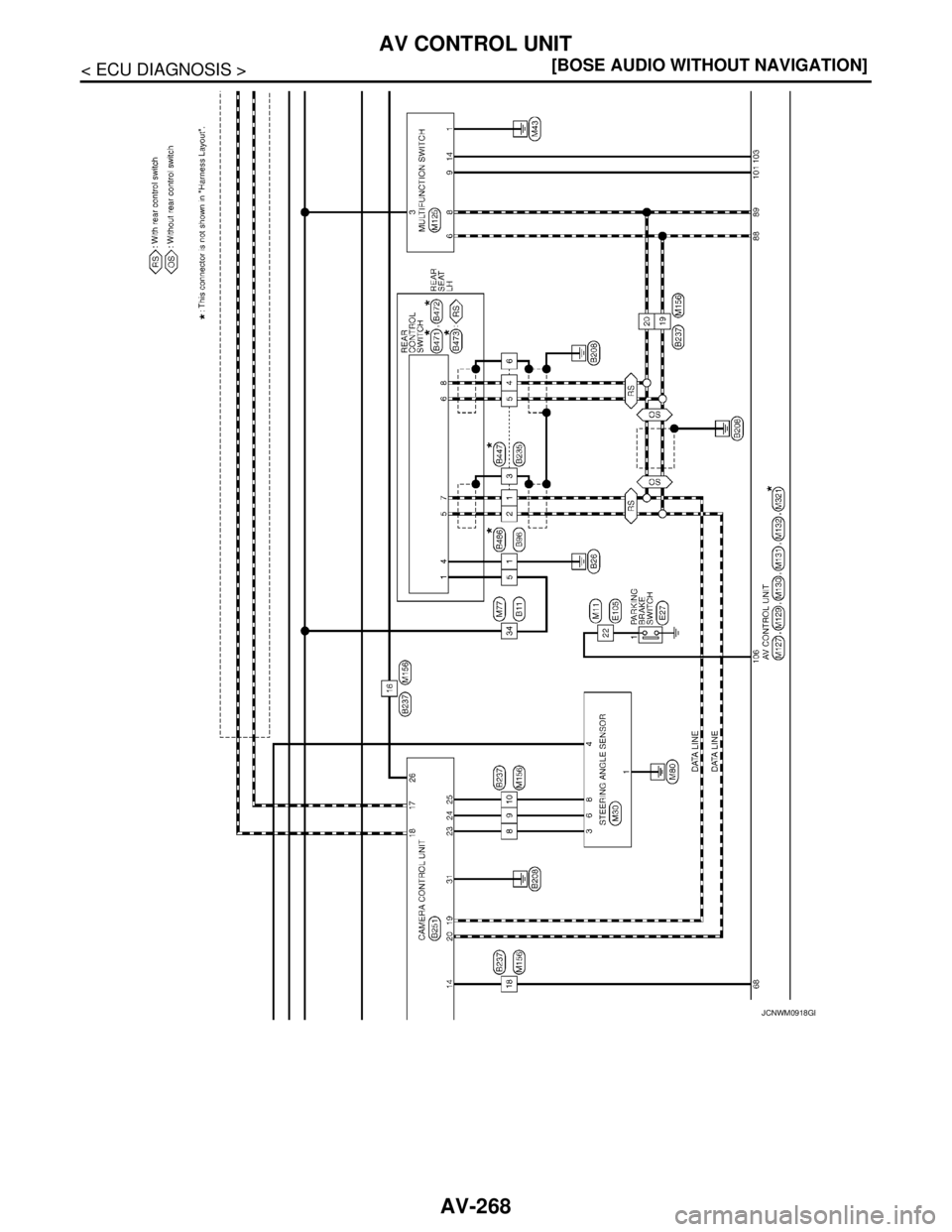

![NISSAN TEANA 2008 Service Manual AV-268
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0918GB](/img/5/57391/w960_57391-411.png "NISSAN TEANA 2008 Service Manual AV-268
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0918GB")
Page 413 of 5121
![NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-269
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

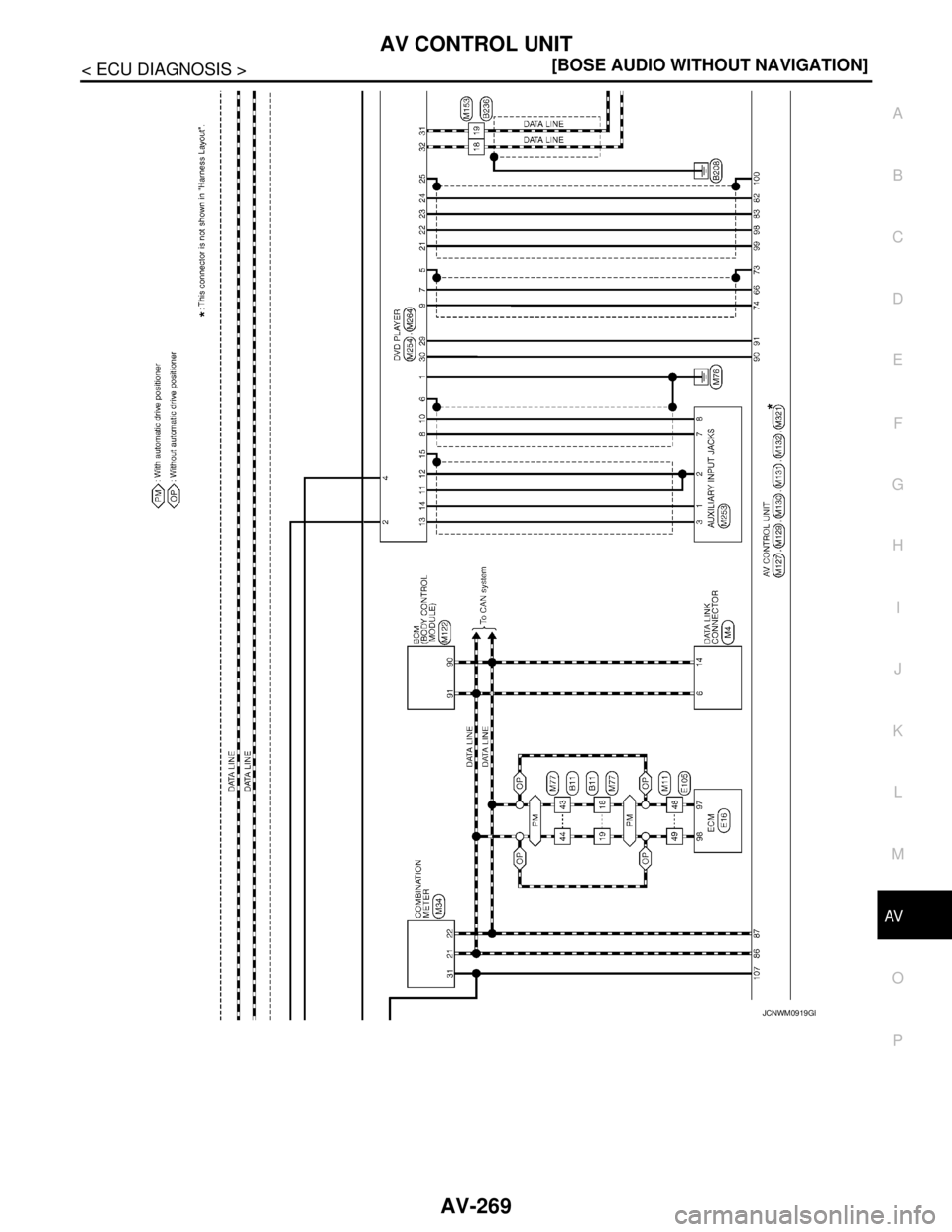

JCNWM0919GB](/img/5/57391/w960_57391-412.png "NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-269
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0919GB")
Page 414 of 5121
![NISSAN TEANA 2008 Service Manual AV-270
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0920GB](/img/5/57391/w960_57391-413.png "NISSAN TEANA 2008 Service Manual AV-270
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0920GB")
Page 415 of 5121
![NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-271
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0921GB](/img/5/57391/w960_57391-414.png "NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-271
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0921GB")
Page 416 of 5121
![NISSAN TEANA 2008 Service Manual AV-272
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0922GB](/img/5/57391/w960_57391-415.png "NISSAN TEANA 2008 Service Manual AV-272
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0922GB")
Page 417 of 5121
![NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-273
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0923GB](/img/5/57391/w960_57391-416.png "NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-273
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0923GB")
Page 418 of 5121
![NISSAN TEANA 2008 Service Manual AV-274
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0924GB](/img/5/57391/w960_57391-417.png "NISSAN TEANA 2008 Service Manual AV-274
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0924GB")
Page 419 of 5121
![NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-275
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0925GB](/img/5/57391/w960_57391-418.png "NISSAN TEANA 2008 Service Manual AV
AV CONTROL UNIT
AV-275
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0925GB")
Page 420 of 5121
![NISSAN TEANA 2008 Service Manual AV-276
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0926GB](/img/5/57391/w960_57391-419.png "NISSAN TEANA 2008 Service Manual AV-276
< ECU DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AV CONTROL UNIT
JCNWM0926GB")
