NISSAN TEANA 2008 Service Manual

TM-318
< ON-VEHICLE REPAIR >[CVT: RE0F10A]

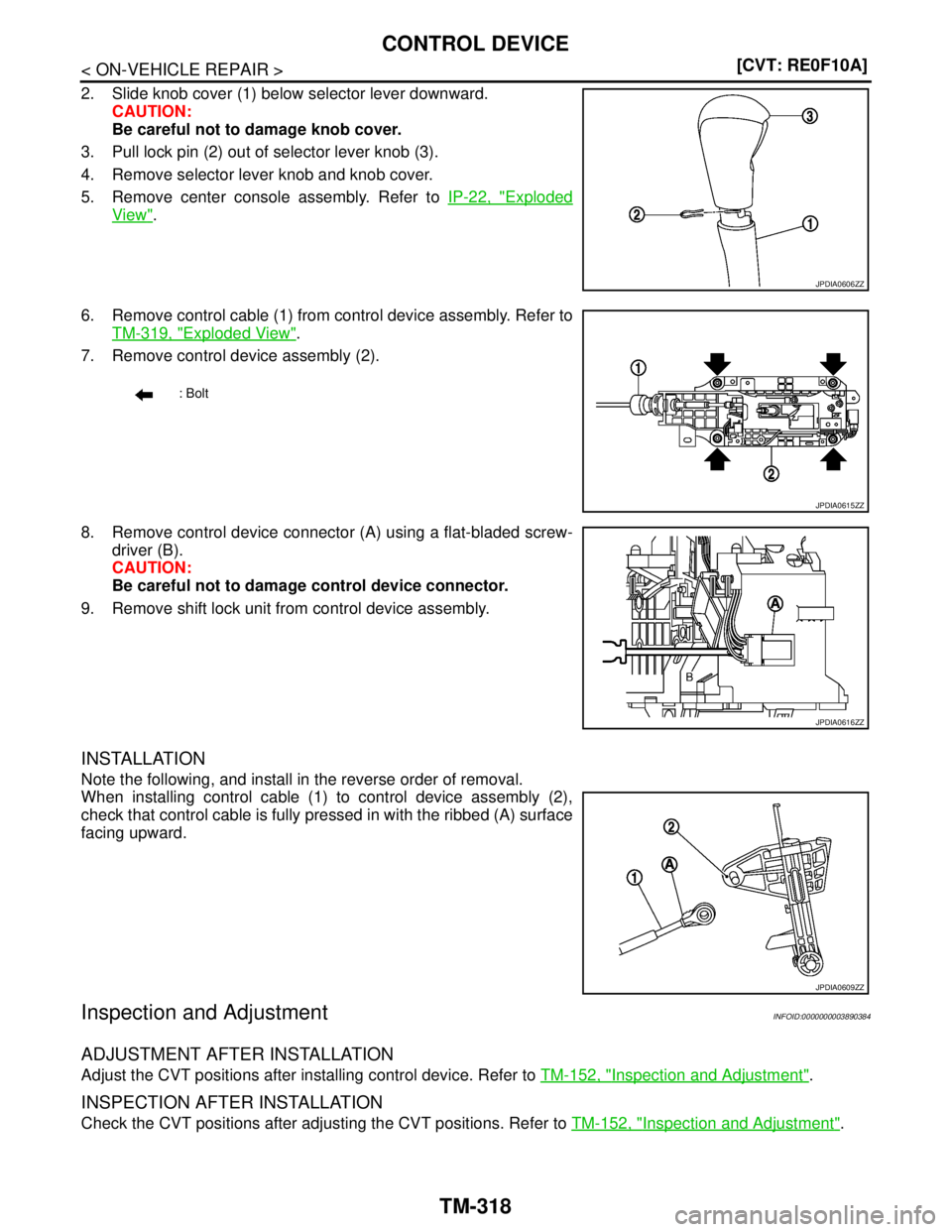

CONTROL DEVICE
2. Slide knob cover (1) below selector lever downward.
CAUTION:
Be careful not to damage knob cover.
3. Pull lock pin (2) out of selector lever knob (3).
4. Remove selector lever knob and knob cover.
5. Remove center console assembly. Refer to IP-22, "
Exploded
View".
6. Remove control cable (1) from control device assembly. Refer to
TM-319, "
Exploded View".
7. Remove control device assembly (2).
8. Remove control device connector (A) using a flat-bladed screw-
driver (B).
CAUTION:
Be careful not to damage control device connector.
9. Remove shift lock unit from control device assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
When installing control cable (1) to control device assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.
Inspection and AdjustmentINFOID:0000000003890384
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT positions after installing control device. Refer to TM-152, "Inspection and Adjustment".
INSPECTION AFTER INSTALLATION
Check the CVT positions after adjusting the CVT positions. Refer to TM-152, "Inspection and Adjustment".
JPDIA0606ZZ
: Bolt
JPDIA0615ZZ
JPDIA0616ZZ
JPDIA0609ZZ

CONTROL CABLE
TM-319
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

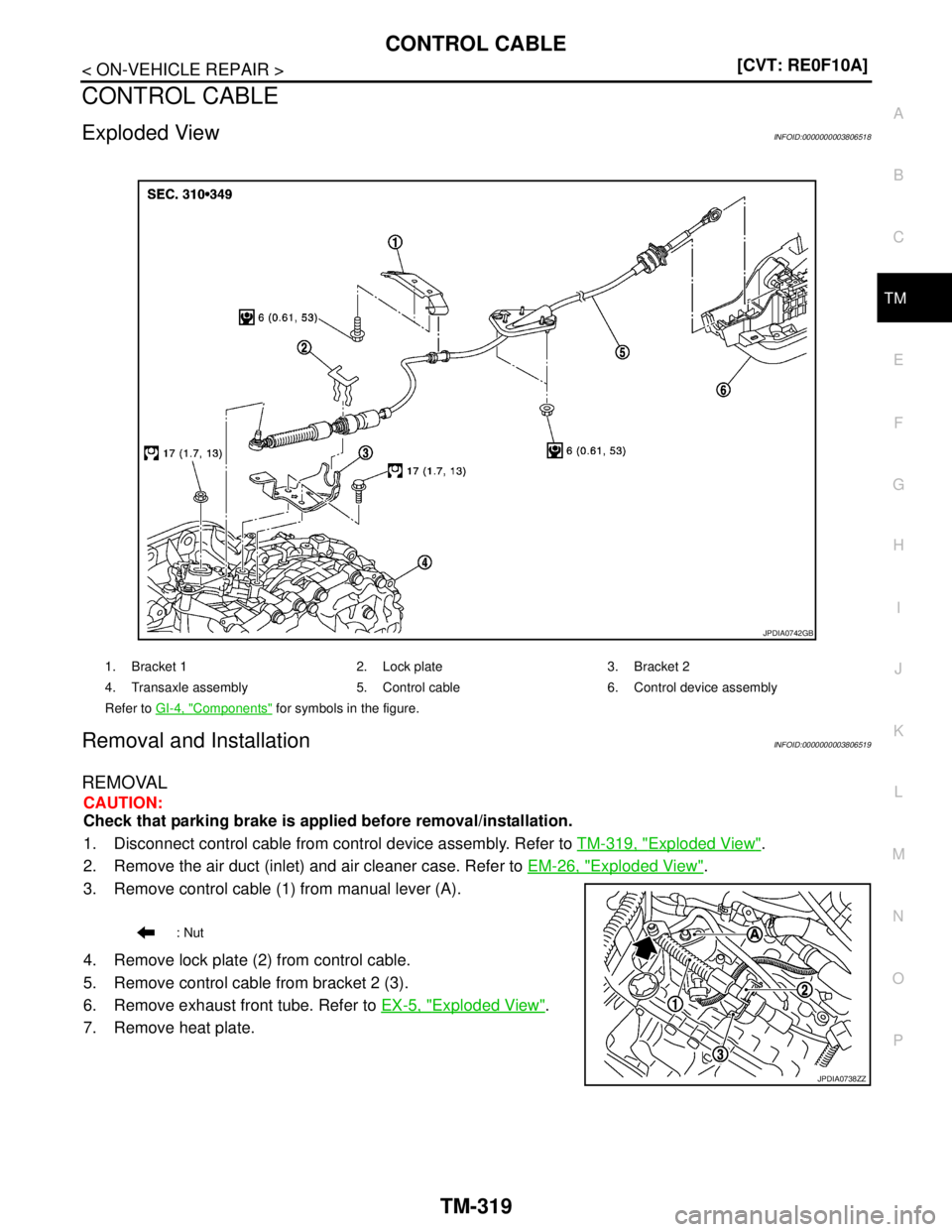

CONTROL CABLE
Exploded ViewINFOID:0000000003806518
Removal and InstallationINFOID:0000000003806519
REMOVAL
CAUTION:
Check that parking brake is applied before removal/installation.
1. Disconnect control cable from control device assembly. Refer to TM-319, "
Exploded View".
2. Remove the air duct (inlet) and air cleaner case. Refer to EM-26, "
Exploded View".
3. Remove control cable (1) from manual lever (A).
4. Remove lock plate (2) from control cable.
5. Remove control cable from bracket 2 (3).
6. Remove exhaust front tube. Refer to EX-5, "
Exploded View".
7. Remove heat plate.
1. Bracket 1 2. Lock plate 3. Bracket 2
4. Transaxle assembly 5. Control cable 6. Control device assembly
Refer to GI-4, "
Components" for symbols in the figure.
JPDIA0742GB
: Nut
JPDIA0738ZZ

TM-320
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
CONTROL CABLE

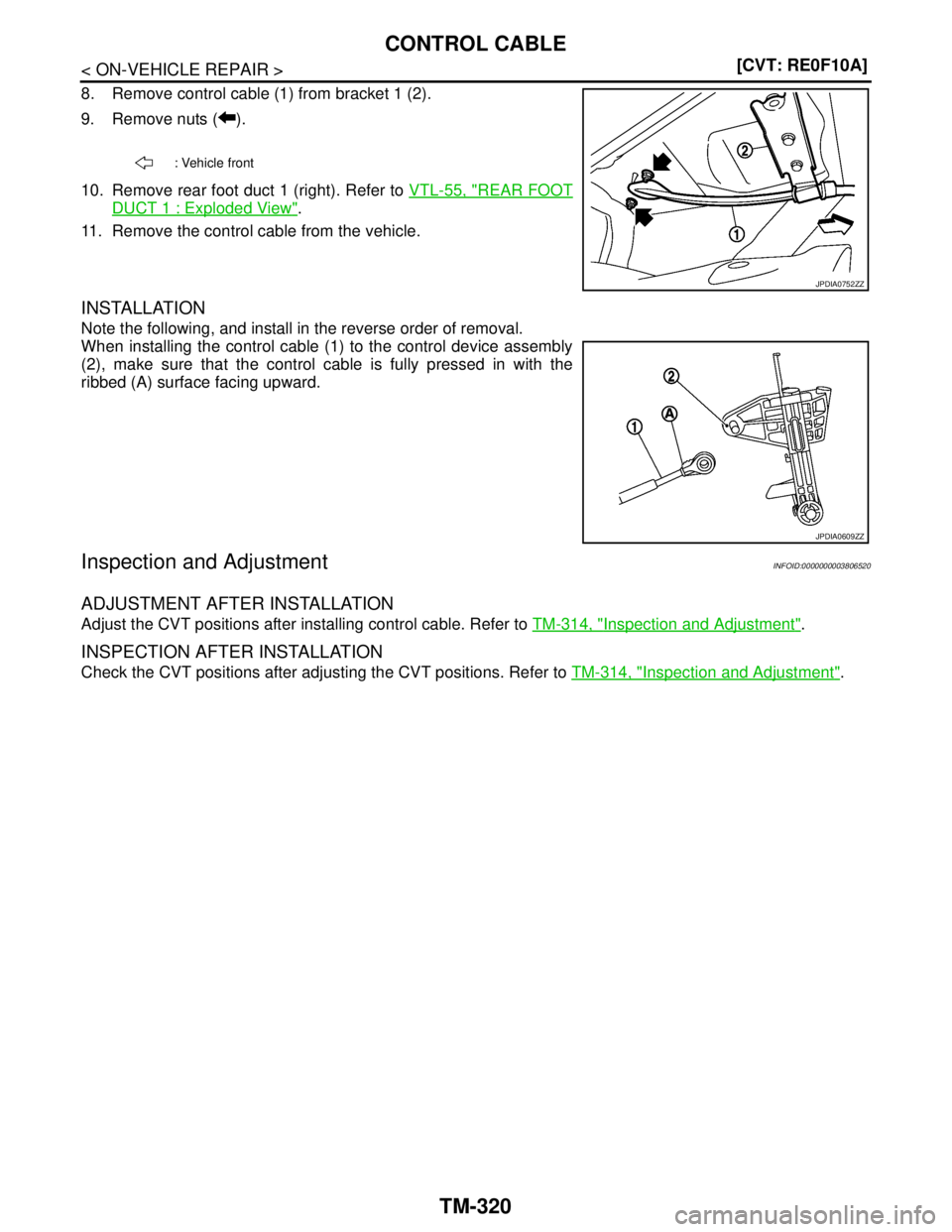

8. Remove control cable (1) from bracket 1 (2).
9. Remove nuts ( ).
10. Remove rear foot duct 1 (right). Refer to VTL-55, "
REAR FOOT
DUCT 1 : Exploded View".
11. Remove the control cable from the vehicle.
INSTALLATION
Note the following, and install in the reverse order of removal.
When installing the control cable (1) to the control device assembly
(2), make sure that the control cable is fully pressed in with the
ribbed (A) surface facing upward.
Inspection and AdjustmentINFOID:0000000003806520
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT positions after installing control cable. Refer to TM-314, "Inspection and Adjustment".
INSPECTION AFTER INSTALLATION
Check the CVT positions after adjusting the CVT positions. Refer to TM-314, "Inspection and Adjustment".
: Vehicle front
JPDIA0752ZZ
JPDIA0609ZZ

OIL PAN
TM-321
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

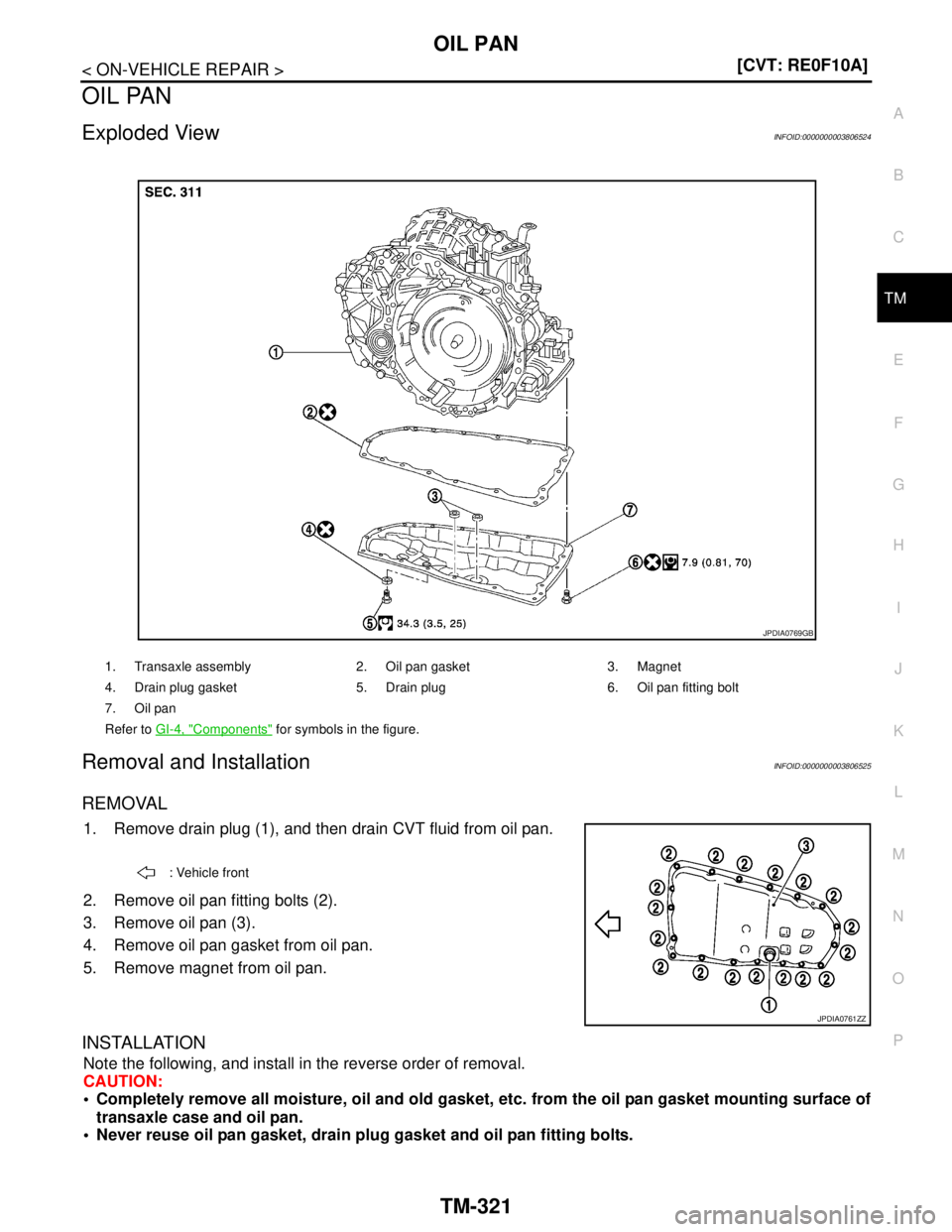

OIL PAN
Exploded ViewINFOID:0000000003806524
Removal and InstallationINFOID:0000000003806525
REMOVAL
1. Remove drain plug (1), and then drain CVT fluid from oil pan.
2. Remove oil pan fitting bolts (2).
3. Remove oil pan (3).
4. Remove oil pan gasket from oil pan.
5. Remove magnet from oil pan.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
 Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of
transaxle case and oil pan.
 Never reuse oil pan gasket, drain plug gasket and oil pan fitting bolts.
1. Transaxle assembly 2. Oil pan gasket 3. Magnet
4. Drain plug gasket 5. Drain plug 6. Oil pan fitting bolt
7. Oil pan
Refer to GI-4, "
Components" for symbols in the figure.
JPDIA0769GB
: Vehicle front
JPDIA0761ZZ

TM-322
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
OIL PAN
Inspection
INFOID:0000000003806526
Check foreign materials in oil pan to help determine causes of malfunction. If the CVT fluid is very dark, smells
burned, or contains foreign particles, frictional material (clutches) may need replacement. A tacky film that will
not wipe clean indicates varnish build up. Varnish can cause valves and clutches to stick and can inhibit pump
pressure.
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage and check CVT fluid level. Refer to TM-304, "Inspection".

PRIMARY SPEED SENSOR
TM-323
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
PRIMARY SPEED SENSOR
Exploded ViewINFOID:0000000003806530
Removal and InstallationINFOID:0000000003806531
REMOVAL
1. Remove the air duct (inlet) and air cleaner case. Refer to EM-26, "Exploded View".
2. Remove the battery.
3. Disconnect ECM connector and TCM connector.
4. Remove battery bracket.
5. Remove CVT fluid level gauge and CVT fluid charging pipe. Refer to TM-332, "
Exploded View".
6. Disconnect primary speed sensor connector.
7. Remove primary speed sensor.
8. Remove O-ring from primary speed sensor.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
 Never reuse O-ring.
 Apply CVT fluid to O-ring.
InspectionINFOID:0000000003806532
After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to TM-304, "Inspec-
tion".
1. Primary speed sensor 2. O-ring 3. Transaxle assembly
: Apply CVT Fluid NS-2.
Refer to GI-4, "
Components" for symbols not described above.
JPDIA0770GB

TM-324
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
SECONDARY SPEED SENSOR

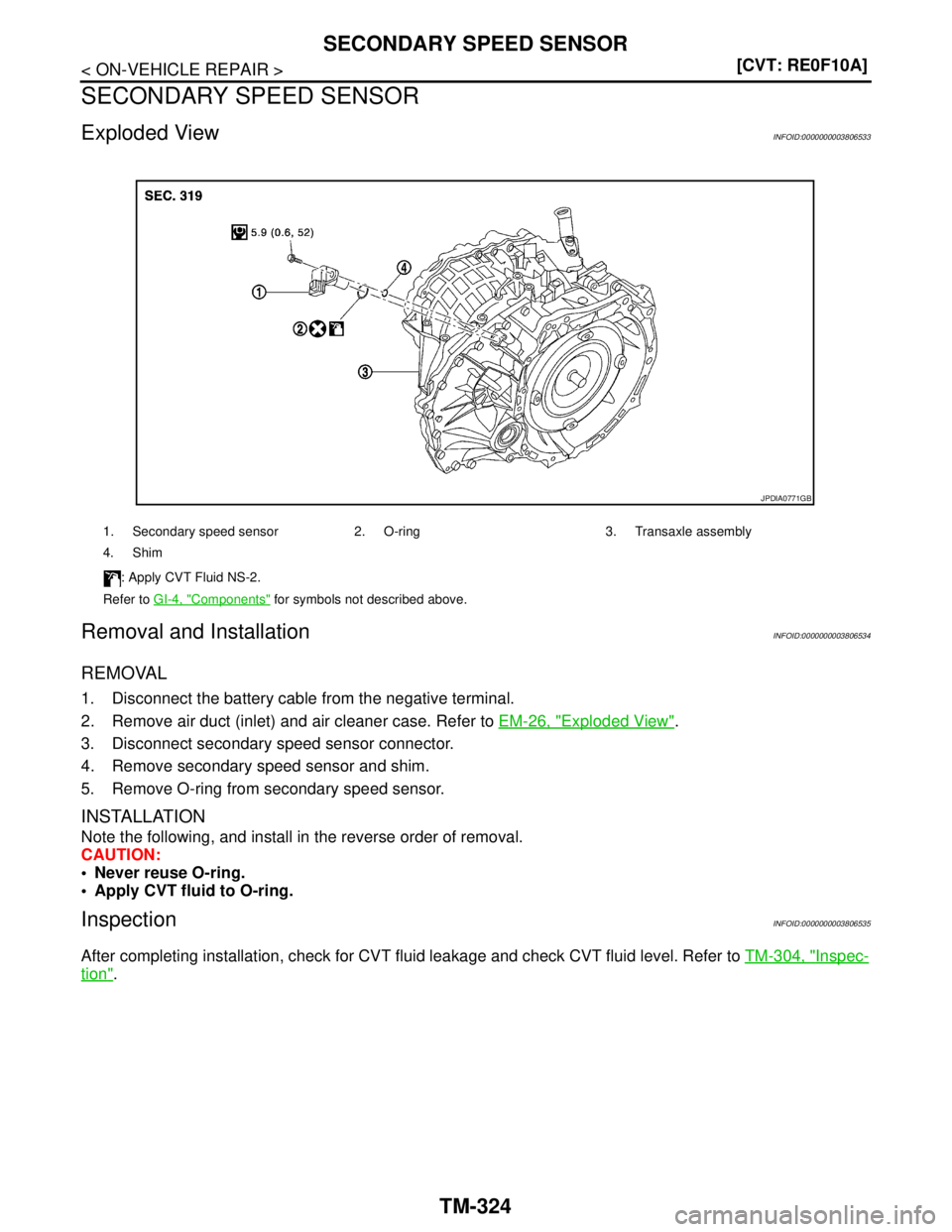

SECONDARY SPEED SENSOR
Exploded ViewINFOID:0000000003806533
Removal and InstallationINFOID:0000000003806534
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct (inlet) and air cleaner case. Refer to EM-26, "
Exploded View".
3. Disconnect secondary speed sensor connector.
4. Remove secondary speed sensor and shim.
5. Remove O-ring from secondary speed sensor.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
 Never reuse O-ring.
 Apply CVT fluid to O-ring.
InspectionINFOID:0000000003806535
After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to TM-304, "Inspec-
tion".
1. Secondary speed sensor 2. O-ring 3. Transaxle assembly
4. Shim
: Apply CVT Fluid NS-2.
Refer to GI-4, "
Components" for symbols not described above.
JPDIA0771GB

DIFFERENTIAL SIDE OIL SEAL
TM-325
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

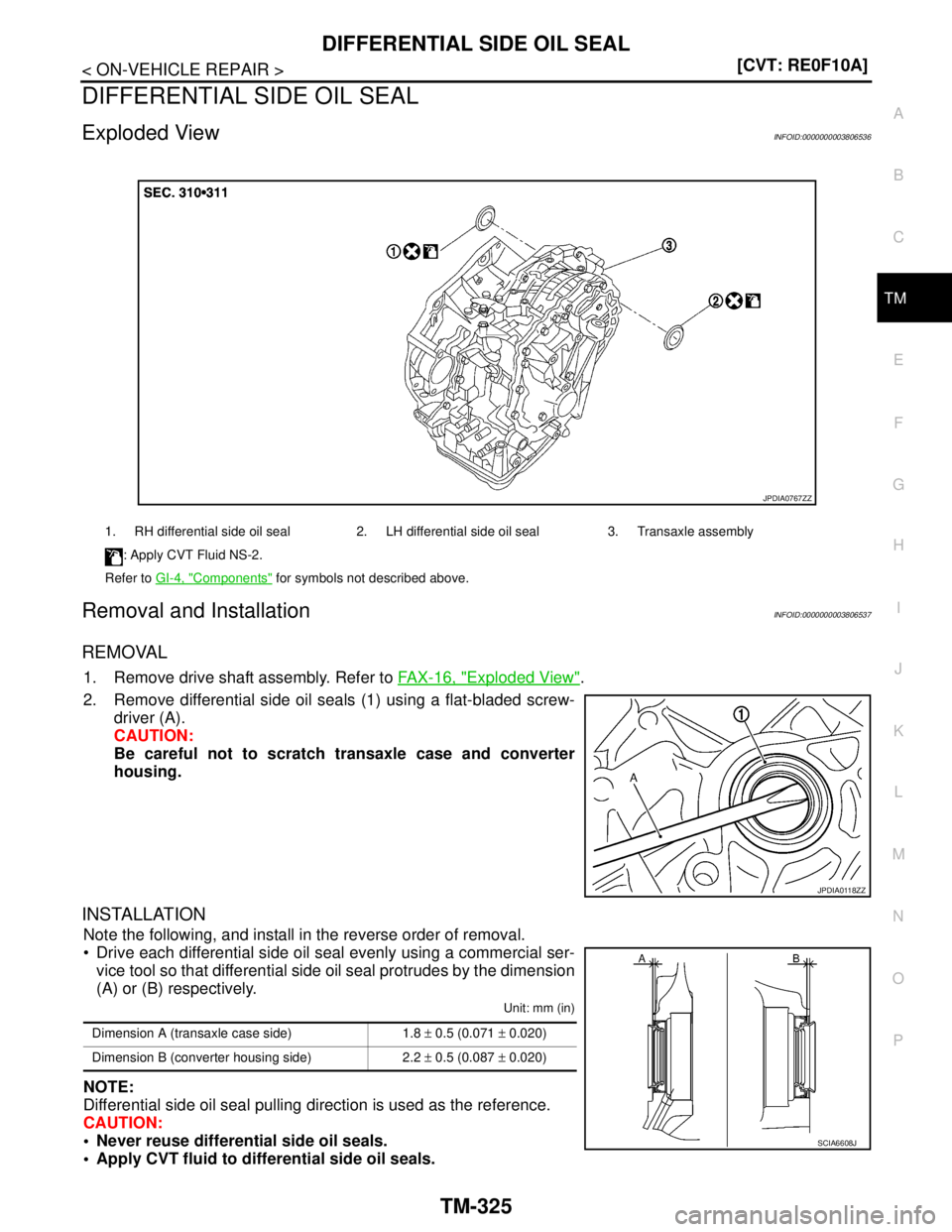

DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000003806536
Removal and InstallationINFOID:0000000003806537
REMOVAL
1. Remove drive shaft assembly. Refer to FAX-16, "Exploded View".
2. Remove differential side oil seals (1) using a flat-bladed screw-
driver (A).
CAUTION:
Be careful not to scratch transaxle case and converter
housing.
INSTALLATION
Note the following, and install in the reverse order of removal.
 Drive each differential side oil seal evenly using a commercial ser-
vice tool so that differential side oil seal protrudes by the dimension
(A) or (B) respectively.
Unit: mm (in)
NOTE:
Differential side oil seal pulling direction is used as the reference.
CAUTION:
 Never reuse differential side oil seals.
 Apply CVT fluid to differential side oil seals.
1. RH differential side oil seal 2. LH differential side oil seal 3. Transaxle assembly
: Apply CVT Fluid NS-2.
Refer to GI-4, "
Components" for symbols not described above.
JPDIA0767ZZ
JPDIA0118ZZ
Dimension A (transaxle case side) 1.8 ± 0.5 (0.071 ± 0.020)
Dimension B (converter housing side) 2.2 ± 0.5 (0.087 ± 0.020)
SCIA6608J

TM-326
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
DIFFERENTIAL SIDE OIL SEAL
Drift to be used:
InspectionINFOID:0000000003806538
After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to TM-304, "Inspec-
tion".
Location Tool number
Transaxle case side
Commercial service tool [Outer diameter: 54 mm (2.13 in), inner di-
ameter: 47 mm (1.85 in)]
Converter housing side

OIL PUMP FITTING BOLT
TM-327
< ON-VEHICLE REPAIR >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

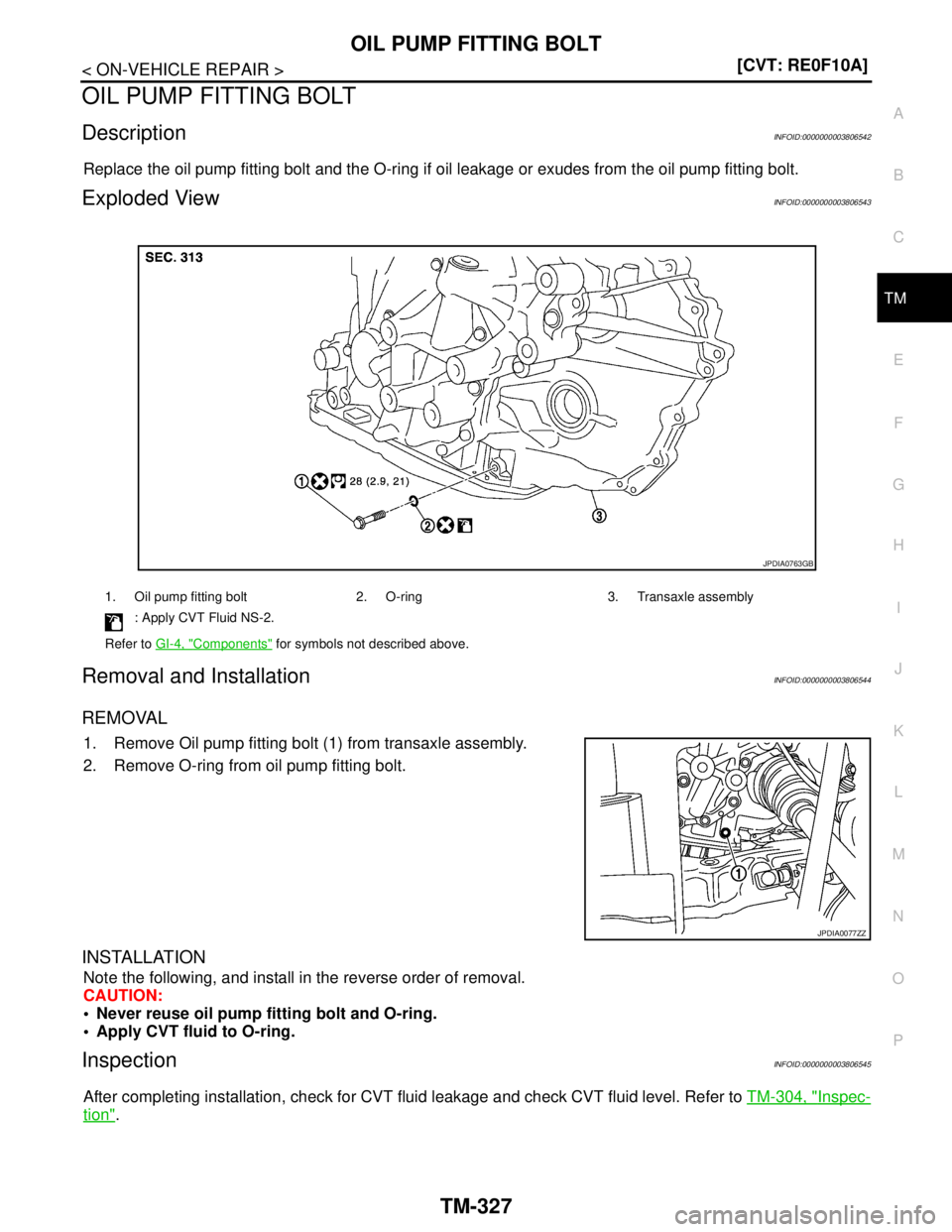

OIL PUMP FITTING BOLT
DescriptionINFOID:0000000003806542
Replace the oil pump fitting bolt and the O-ring if oil leakage or exudes from the oil pump fitting bolt.
Exploded ViewINFOID:0000000003806543
Removal and InstallationINFOID:0000000003806544
REMOVAL
1. Remove Oil pump fitting bolt (1) from transaxle assembly.
2. Remove O-ring from oil pump fitting bolt.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
 Never reuse oil pump fitting bolt and O-ring.
 Apply CVT fluid to O-ring.
InspectionINFOID:0000000003806545
After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to TM-304, "Inspec-
tion".
1. Oil pump fitting bolt 2. O-ring 3. Transaxle assembly
: Apply CVT Fluid NS-2.
Refer to GI-4, "
Components" for symbols not described above.
JPDIA0763GB
JPDIA0077ZZ
