7.CHECK EVAP CANISTER PURGE VO
LUME CONTROL SOLENOID VALVE
Check the EVAP canister purge volume control solenoid valve. Refer to EC-345, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
8.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check that water is not inside connectors.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Replace EVAP control system pressure sensor. Refer to FL-18, "Removal and Installation"
.
9.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR FUNCTION
Refer to EC-362, "DTC Logic"
for DTC P0452, EC-366, "DTC Logic" for DTC P0453.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace EVAP control system pressure sensor. Refer to FL-18, "Removal and Installation"
.
10.CHECK RUBBER TUBE FOR CLOGGING
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging.
Is the inspection result normal?
YES >> GO TO 11.
NO >> Clean the rubber tube using an air blower.
11 .CHECK EVAP CANISTER VENT CONTROL VALVE
Check the EVAP canister vent control valve. Refer to EC-352, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 12.
NO >> Replace EVAP canister vent control valve. Refer to FL-17, "Removal and Installation"
.
12.CHECK EVAP PURGE LINE
Inspect EVAP purge line (pipe and rubber tube). Check for evidence of leaks.
Refer to EC-537, "Inspection"
.
Is the inspection result normal?
YES >> GO TO 13.
NO >> Repair or replace malfunctioning part.
13.CLEAN EVAP PURGE LINE
Clean EVAP purge line (pipe and rubber tube) using air blower.
>> GO TO 14.
14.CHECK INTERMITTENT INCIDENT
Perform GI-43, "Intermittent Incident"
.
>> INSPECTION END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-342
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
P0443 EVAP CANISTER PURGE VOLU
ME CONTROL SOLENOID VALVE
DTC LogicINFOID:0000000009462272
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
• Perform DTC CONFIRMATION PROCEDURE when the fu el is between 1/4 and 3/4 full, and vehicle is
placed on flat level surface.
• Always perform test at a temperature of 5 to 60 °C (41 to 140 °F).
• Cool the vehicle so that engine coolant temp erature becomes same level as ambient temperature.
Do you have CONSULT
YES >> GO TO 2.
NO >> GO TO 4.
2.PERFORM DTC CONFIRMATION PROCEDURE A
With CONSULT
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
3. Check that the following condition are met.
FUEL T/TMP SE: 0 - 35 °C (32 - 95 °F)
4. Start engine and wait at least 60 seconds.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-343, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE B
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “PURG VOL CN/V P1444” of “EVAPORATI VE SYSTEM” in “DTC WORK SUPPORT” mode of
“ENGINE” using CONSULT.
5. Touch “START”.
6. Start engine and let it idle until “TESTING” on CONS ULT changes to “COMPLETED”. (It will take approxi-
mately 10 seconds.)
If “TESTING” is not displayed afte r 5 minutes, retry from step 2.
7. Touch “SELF-DIAG RESULT”.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0443 PURG VOLUME CONT/V
(Evaporative emission system
purge control valve circuit) A
The canister purge flow is detected during
the vehicle is stopped while the engine is
running, even when EVAP canister purge
volume control solenoid valve is com-
pletely closed. • EVAP control system pressure sensor
• EVAP canister purge volume control
solenoid valve
(The valve is stuck open.)
• EVAP canister vent control valve
• EVAP canister
• Hoses (Hoses are connected incorrectly or
clogged.)
B The canister purge flow is detected during
the specified driving conditions, even
when EVAP canister purge volume control
solenoid valve is completely closed.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-343
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Which is displayed on CONSULT?
OK >> INSPECTION END
NG >> Proceed to EC-343, "Diagnosis Procedure"
.
4.PERFORM DTC CONFIRMATION PROCEDURE A
With GST
1. Turn ignition switch ON.
2. Check the voltage between ECM harness connector and ground.
*1: Except for California
*2: For California
3. Start engine and wait at least 60 seconds.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-343, "Diagnosis Procedure".
NO >> GO TO 5.
5.PERFORM DTC CONFIRMATION PROCEDURE
With GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 20 seconds.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-343, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462273
1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK EVAP CANISTER PURG E VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
IPDM E/R harness connector.
+
−Vo l ta g e
ECM
Connector Terminal
E10
*1
E31*2125 Ground 3.1 - 4.0 V
+
−Vo l ta g e
EVAP canister purge volume
control solenoid valve
Connector Terminal F29 2 Ground Battery voltage
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-344
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
ECM harness connector.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace EVAP control system pressure sensor. Refer to FL-18, "Removal and Installation"
.
5.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Check the EVAP control system pressure sensor. Refer to EC-345, "Component Inspection"
.
Is the inspection result normal?
YES-1 >> With CONSULT: GO TO 6.
YES-2 >> Without CONSULT: GO TO 7.
NO >> Replace EVAP control system pressure sensor. Refer to FL-18, "Removal and Installation"
.
6.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT
1. Turn ignition switch OFF.
2. Reconnect harness connectors disconnected.
3. Start engine.
4. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT. Check that
engine speed varies according to the valve opening.
Is the inspection result normal?
+ −
Continuity
EVAP canister purge volume
control solenoid valve IPDM E/R
Connector Terminal Connector Terminal F29 2 E18 13 Existed
+ −
Continuity
EVAP canister purge volume
control solenoid valve ECM
Connector Terminal Connector Terminal
F29 1 F14
*1
F91*217 Existed
Water should not exist.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-345
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 8.
NO >> GO TO 7.
7.CHECK EVAP CANISTER PURGE VO LUME CONTROL SOLENOID VALVE
Check the EVAP canister purge volume control solenoid valve. Refer to EC-345, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
8.CHECK RUBBER TUBE FOR CLOGGING
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Clean the rubber tube using an air blower.
9.CHECK EVAP CANISTER VENT CONTROL VALVE
Check the EVAP canister vent control valve. Refer to EC-352, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace EVAP canister vent control valve. Refer to FL-17, "Removal and Installation"
.

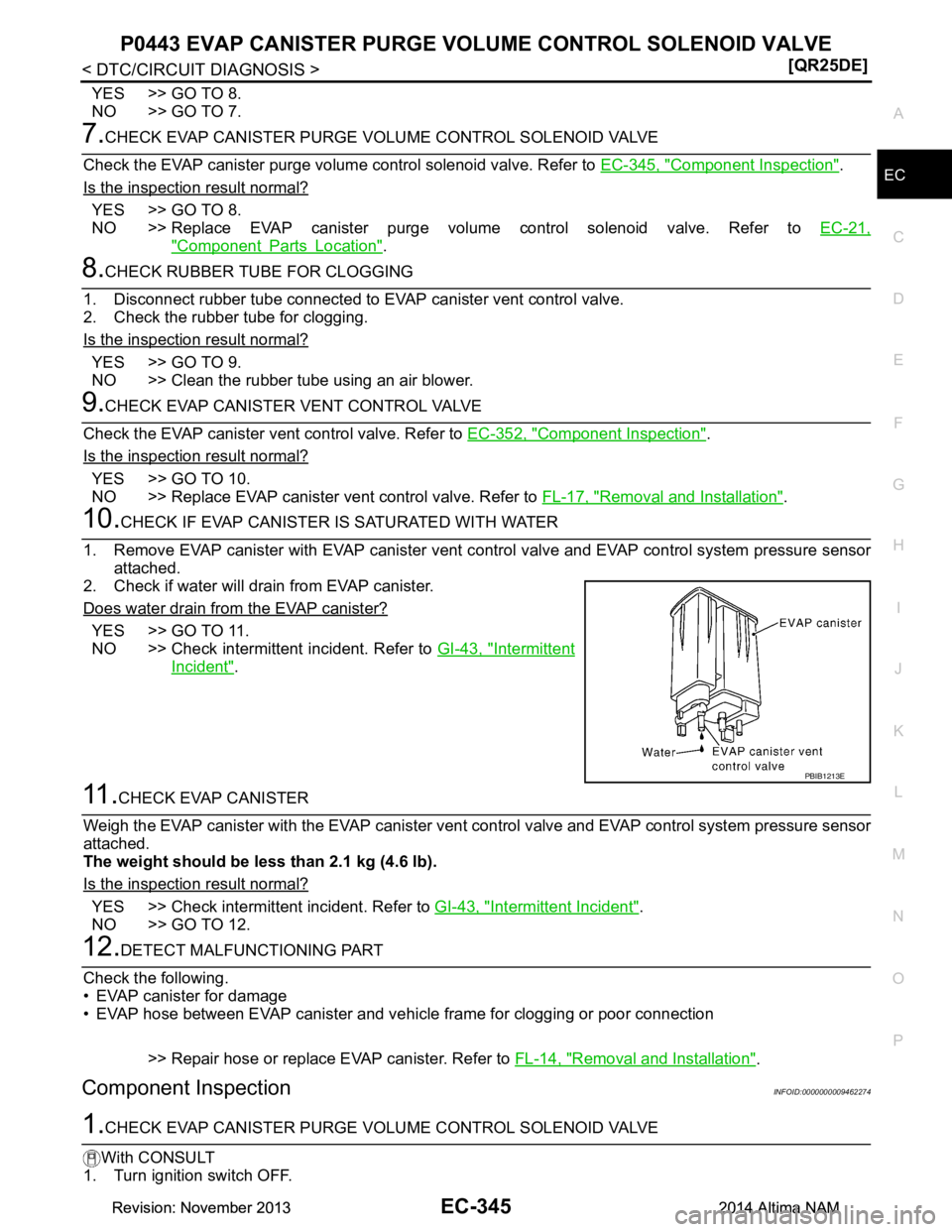

10.CHECK IF EVAP CANISTER IS SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent c ontrol valve and EVAP control system pressure sensor
attached.
2. Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?
YES >> GO TO 11.
NO >> Check intermittent incident. Refer to GI-43, "Intermittent
Incident".
11 .CHECK EVAP CANISTER
Weigh the EVAP canister with the EV AP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehi cle frame for clogging or poor connection
>> Repair hose or replace EVAP canister. Refer to FL-14, "Removal and Installation"
.
Component InspectionINFOID:0000000009462274
1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT
1. Turn ignition switch OFF.

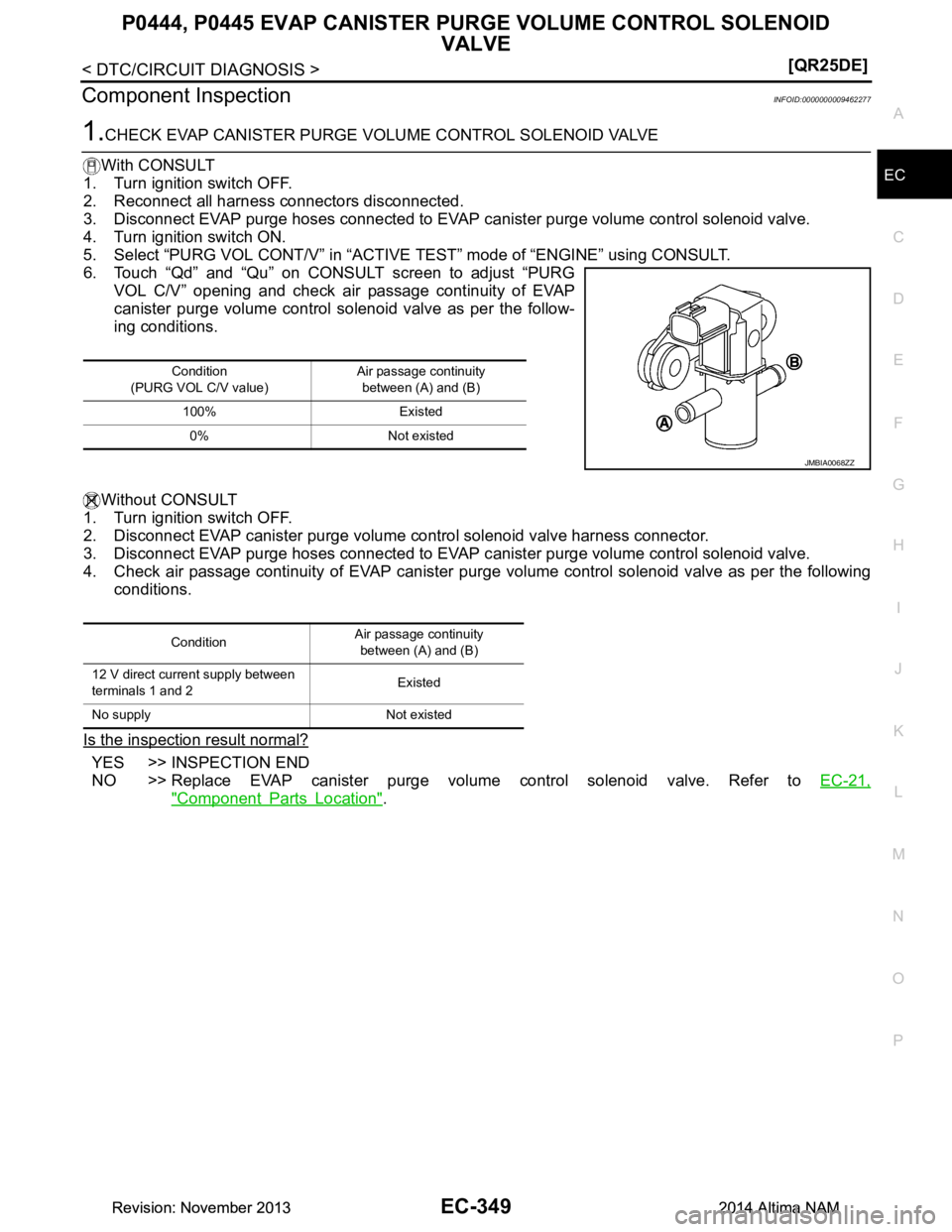

PBIB1213E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-346
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Turn ignition switch ON.
5. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
6. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG VOL C/V” opening and check air passage continuity of EVAP
canister purge volume control solenoid valve as per the follow-
ing conditions.
Without CONSULT
1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Check air passage continuity of EVAP canister purge volume control solenoid valve as per the following
conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
Condition
(PURG VOL C/V value) Air passage continuity
between (A) and (B)
100% Existed 0% Not existed
JMBIA0068ZZ
Condition Air passage continuity
between (A) and (B)
12 V direct current supply between
terminals 1 and 2 Existed
No supply Not existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-347
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P0444, P0445 EVAP CANISTER PU
RGE VOLUME CONTROL SOLENOID
VA LV E
DTC LogicINFOID:0000000009462275
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confi rm battery voltage is more than 11 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for at least 13 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-347, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462276
1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0444 PURG VOLUME CONT/V
(Evaporative emission system
purge control valve circuit open) An excessively low voltage signal is sent to
ECM through the EVAP canister purge vol-
ume control solenoid valve. • Harness or connectors
(EVAP canister purge volume control
solenoid valve circuit is open or short-
ed.)
• EVAP canister purge volume control solenoid valve
P0445 PURG VOLUME CONT/V
(Evaporative emission system
purge control valve circuit short-
ed) An excessively high voltage signal is sent
to ECM through the valve • Harness or connectors
(EVAP canister purge volume control
solenoid valve circuit is shorted.)
• EVAP canister purge volume control solenoid valve
+
−Vo l ta g e
EVAP canister purge volume
control solenoid valve
Connector Terminal F29 2 Ground Battery voltage
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-348
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
NO >> GO TO 2.
2.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
IPDM E/R harness connector.
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
ECM harness connector.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES-1 >> With CONSULT: GO TO 4.
YES-2 >> Without CONSULT: GO TO 5.
NO >> Repair or replace error-detected parts.
4.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT
1. Reconnect all harness connectors disconnected.
2. Start engine.
3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
4. Check that engine speed varies according to the valve opening.
Does engine speed vary according to the valve opening?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 5.
5.CHECK EVAP CANISTER PURGE VO LUME CONTROL SOLENOID VALVE
Check the EVAP canister purge volume control solenoid valve. Refer to EC-345, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
+−
Continuity
EVAP canister purge volume
control solenoid valve IPDM E/R
Connector Terminal Connector Terminal F29 2 E18 13 Existed
+ −
Continuity
EVAP canister purge volume
control solenoid valve ECM
Connector Terminal Connector Terminal
F29 1 F14
*1
F91*217 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-349
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Component InspectionINFOID:0000000009462277
1.CHECK EVAP CANISTER PURGE VO
LUME CONTROL SOLENOID VALVE
With CONSULT
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP c anister purge volume control solenoid valve.
4. Turn ignition switch ON.
5. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
6. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG VOL C/V” opening and check air passage continuity of EVAP
canister purge volume control solenoid valve as per the follow-
ing conditions.
Without CONSULT
1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Disconnect EVAP purge hoses connected to EVAP c anister purge volume control solenoid valve.
4. Check air passage continuity of EVAP canister purge volume control solenoid valve as per the following
conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
Condition
(PURG VOL C/V value) Air passage continuity
between (A) and (B)
100% Existed 0% Not existed
JMBIA0068ZZ
Condition Air passage continuity
between (A) and (B)
12 V direct current supply between
terminals 1 and 2 Existed
No supply Not existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-350
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0447 EVAP CANISTER VENT CONTROL VALVE
P0447 EVAP CANISTER VENT CONTROL VALVE
DTC LogicINFOID:0000000009462278
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confi rm battery voltage is more than 11 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and wait at least 8 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-350, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462279
1.INSPECTION START
Do you have CONSULT?
Do you have CONSULT?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK EVAP CANISTER VE NT CONTROL VALVE CIRCUIT
With CONSULT
1. Turn ignition switch OFF and then turn ON.
2. Select “VENT CONTROL/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
3. Touch “ON/OFF” on CONSULT screen.
4. Check for operating sound of the valve.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 3.
3.CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect EVAP canister vent control valve harness connector.
3. Turn ignition switch ON.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0447 VENT CONTROL VALVE
(Evaporative emission system vent
control circuit open) An improper voltage signal is sent to
ECM through EVAP canister vent control
valve. • Harness or connectors
(EVAP canister vent control valve
circuit is open or shorted.)
• EVAP canister vent control valve
Clicking sound should be heard.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
