P0524 ENGINE OIL PRESSUREEC-391
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P0524 ENGINE OIL PRESSURE
DTC LogicINFOID:0000000009462318
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
CAUTION:
If “ EC-392, "Diagnosis Procedure"
” is unfinished, be sure to perform Step 3 and 4.
1.PRECONDITIONING-1
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TEST CONDITION:
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
>> GO TO 2.
2.PRECONDITIONING-2
Is
“Diagnosis Procedure” of DTC P0524 finished?
YES >> GO TO 3.
NO >> GO TO 4.
3.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperature.
2. Maintain the following conditions for about 10 consecutive seconds.
NOTE:
With engine speed set around 4,000 rpm, the phenomenon can be reproduced more easily.
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-392, "Diagnosis Procedure".
NO >> INSPECTION END
4.CHECK ENGINE OIL LEVEL
Check engine oil pressure. Refer to LU-9, "Inspection"
.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Proceed to EC-392, "Diagnosis Procedure"
.
5.CHECK ENGINE OIL PRESSURE
With CONSULT
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0524 ENGINE OIL PRESSURE
(Engine oil pressure too low) An EOP sensor signal voltage applied to
ECM remains lower than the specified value
continuously for 10 seconds or more when
the engine speed is 1,000 rpm or more. • Decrease in engine oil pressure
• Decrease in engine oil level
• Engine oil condition
• EOP sensor
• Engine body
Selector lever P or N position
Engine coolant temperature 70 °C (158 °F) or more
Engine speed 1,000 rpm or more
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-392
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0524 ENGINE OIL PRESSURE
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
3. Start the engine and check that “EOP SENSOR” changes, according to engine speeds.
Without CONSULT
Check engine oil level. Refer to LU-9, "Inspection"
.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Proceed to EC-392, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009462319
1.CHECK ENGINE OIL LEVEL
1. Turn ignition switch OFF.
2. Check engine oil pressure level. Refer to LU-9, "Inspection"
.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK ENGINE OIL PRESSURE
With CONSULT
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
3. Start the engine and check that “EOP SENSOR” changes, according to engine speeds.
Without CONSULT
Check engine oil pressure. Refer to LU-9, "Inspection"
.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check oil pump. Refer to LU-14, "Inspection"
.
3.CHECK EOP SENSOR
Check EOP sensor. Refer to EC-390, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Repair or replace error-detected parts.
4.CHECK ENGINE OIL LEAKAGE
Check engine oil leakage. Refer to LU-7, "Lubrication Circuit"
.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
Monitor item Condition Va l u e
(Approx.)
EOP SENSOR • Engine oil temperature: 80
°C (176 °F)
• Selector lever: P or N position
• Air conditioner switch: OFF
•No load Engine speed:
Idle 1,450 mV or more
Engine speed:
2,000 rpm 2,850 mV or more
Monitor item Condition Va l u e
(Approx.)
EOP SENSOR • Engine oil temperature: 80
°C (176 °F)
• Selector lever: P or N position
• Air conditioner switch: OFF
•No load Engine speed:
Idle 1,450 mV or more
Engine speed:
2,000 rpm 2,850 mV or more
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0524 ENGINE OIL PRESSUREEC-393
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
5.CHECK CAUSE OF ENGINE OIL CONSUMPTION
Check the following item.
>> Repair or replace error-detected parts.
Component InspectionINFOID:0000000009462320
1.CHECK EOP SENSOR
1. Turn ignition switch OFF.
2. Disconnect EOP sensor harness connector.
3. Check resistance between EOP sensor connector terminals.
Is the inspection result normal?
YES >> INSPECTION END.
NO >> Replace EOP sensor. Refer to EC-21, "Component Parts Location"
.
Step Inspection item Equipment Standard Reference
1PCV valve EC-539, "Inspection"
2 Exhaust front tube Visual • No blocking
• No abnormal sounds —
3Oil pump Visual
• No blocking
• No abnormal sounds —
LU-14, "Inspection"
4 •Piston
•Piston pin
• Piston ring • Piston to piston pin oil clearance
• Piston ring side clearance
• Piston ring end gap EM-105, "How to Select Piston and Bearing"
5 Cylinder block
• Cylinder block top surface distortion
• Piston to cylinder bore clearance EM-96, "Inspection After Disassembly"
EOP sensor
Condition Resistance (k Ω)
+ −
Te r m i n a l
1 2
None 4 k
Ω – 10 k Ω
32 k Ω – 8 k Ω
2 14 k
Ω – 10 k Ω
31 k Ω – 3 k Ω
3 12 k
Ω – 8 k Ω
21 k Ω – 3 k Ω
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-394
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL
P052A, P052B INTAKE VALVE TIMING CONTROL
DTC LogicINFOID:0000000009462321
DTC DETECTION LOGIC
NOTE:
If DTC P052A or P052B is displayed with DTC P 0075, perform the trouble diagnosis for DTC P0075.
Refer to EC-221, "DTC Logic"
.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is 10 V or more at idle.
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. On the CONSULT screen, select “ENGINE” >> “DATA MONITOR” >> “COOLAN TEMP/S”.
6. Check “COOLAN TEMP/S” indication value.
With GST
Follow the procedure “With CONSULT” above.
Is the value of
“COOLAN TEMP/S”−5°C (23°F) and 45°C (11 3°F)?
YES >> GO TO 2.
NO-1 [if it is below − 5 °C (23 °F)]>>Warm up the engine until the value of “COOLAN TEMP/S” indicates −5 °C
(23 °F) and 45 °C (113 °F). And then GO TO 2.
NO-2 [if it is above 45 °C (113 °F)]>>Cool the engine down to the val ue of “COOLAN TEMP/S” indicates −5 °C
(23 °F) and 45 °C (113 °F). And then GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Turn ignition switch OFF and wait at 10 seconds.
2. Turn ignition switch ON.
3. Set the selector lever in N range.
4. Start the engine and let it idle for 20 seconds or more.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-394, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462322
1.INSPECTION START
DTC No.Trouble diagnosis
(Trouble diagnosis content) Detecting condition Possible cause
P052A CAMSHAFT POSITION TIM-
ING B1
(Cold start “A” camshaft posi-
tion timing over-advanced
bank 1) There is a gap between angle of target
and phase-control angle degree when
the engine is in a cold condition. • Crankshaft position sensor
• Camshaft position sensor
• Intake valve timing control solenoid valve
• Intake valve timing intermediate lock control solenoid valve
• Accumulation of debris to the signal pick-up portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for in- take valve timing control
P052B CAMSHAFT POSITION TIM-
ING B1
(Cold start “A” camshaft posi-
tion timing over-retarded
bank 1)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P052A, P052B INTAKE VALVE TIMING CONTROLEC-395
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
With CONSULT>>GO TO 2.
Without CONSULT>>GO TO 3.
2.CHECK VTC POSITION
With CONSULT
1. Turn ignition switch ON.
2. On the CONSULT screen, select “ENGINE” >> “DATA MONITOR” >> “COOLAN TEMP/S”.
3. Check that the “COOLAN TEMP/S” indication value is between −5 °C (23 °F) and 45 °C (113 °F).
4. Start engine and wait at least 5 seconds.
5. On the CONSULT screen, select “ENGINE” >> “DATA MONITOR” >> “INT/V TIM (B1)”.
6. Check that the data monitor item indicates as follows:
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 3.

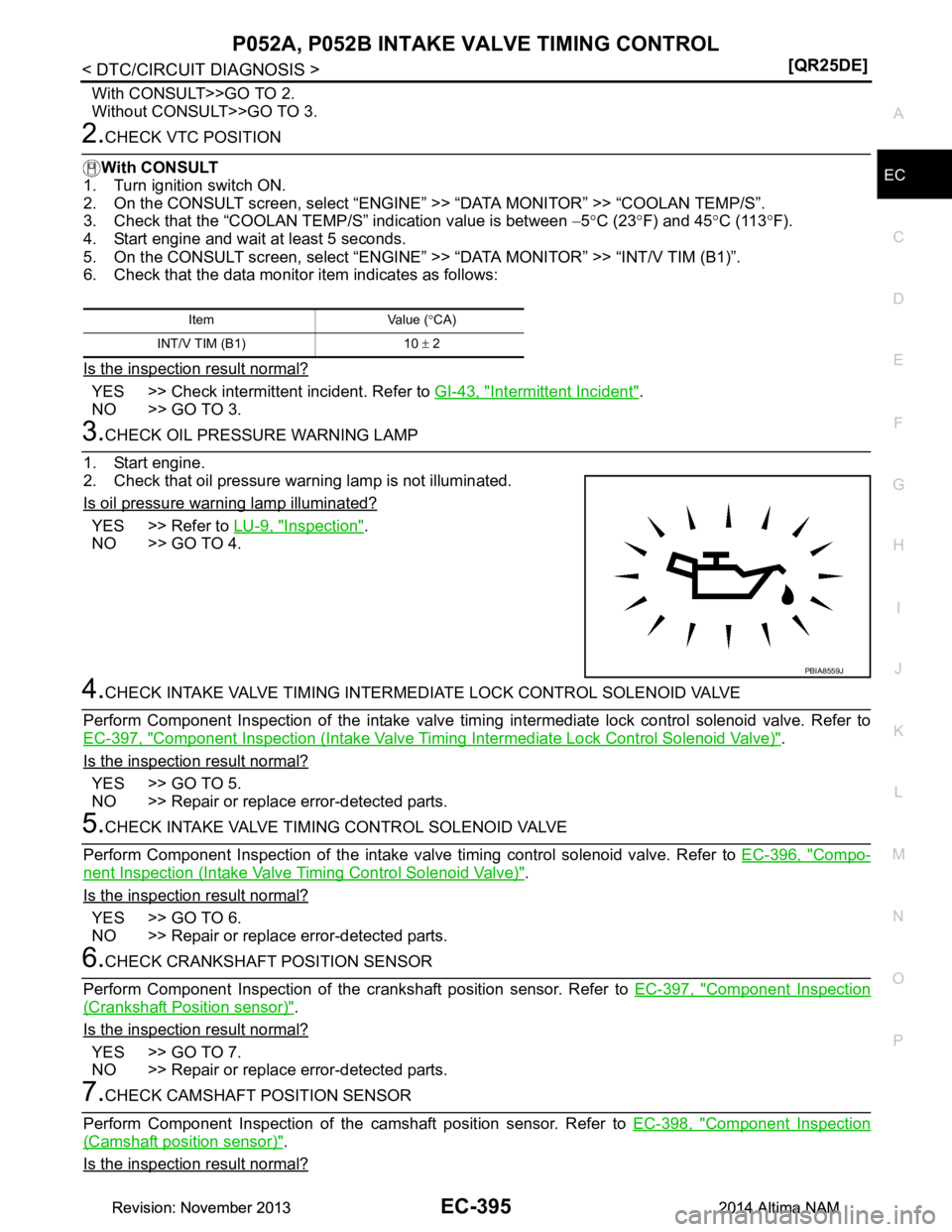

3.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check that oil pressure warning lamp is not illuminated.
Is oil pressure warning lamp illuminated?
YES >> Refer to LU-9, "Inspection".
NO >> GO TO 4.
4.CHECK INTAKE VALVE TIMING INTERMEDIA TE LOCK CONTROL SOLENOID VALVE
Perform Component Inspection of the intake valve timi ng intermediate lock control solenoid valve. Refer to
EC-397, "Component Inspection (Intake Valve Timing Intermediate Lock Control Solenoid Valve)"
.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Perform Component Inspection of the intake va lve timing control solenoid valve. Refer to EC-396, "Compo-
nent Inspection (Intake Valve Timing Control Solenoid Valve)".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace error-detected parts.
6.CHECK CRANKSHAFT POSITION SENSOR
Perform Component Inspection of the cr ankshaft position sensor. Refer to EC-397, "Component Inspection
(Crankshaft Position sensor)".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace error-detected parts.
7.CHECK CAMSHAFT PO SITION SENSOR
Perform Component Inspection of the camshaft position sensor. Refer to EC-398, "Component Inspection
(Camshaft position sensor)".
Is the inspection result normal?
Item Value ( °CA)
INT/V TIM (B1) 10 ± 2
PBIA8559J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-396
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL
YES >> GO TO 8.
NO >> Repair or replace error-detected parts.

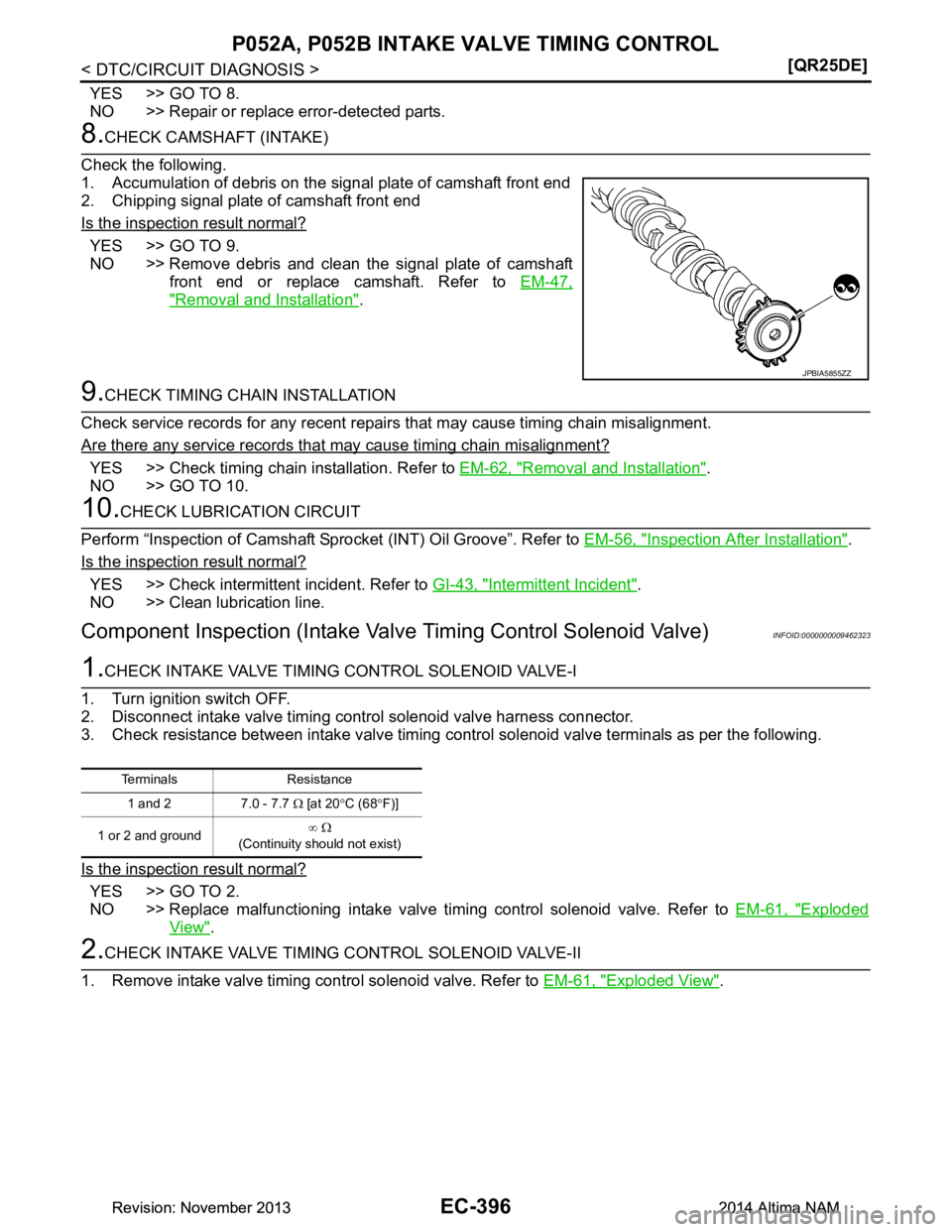

8.CHECK CAMSHAFT (INTAKE)
Check the following.
1. Accumulation of debris on the signal plate of camshaft front end
2. Chipping signal plate of camshaft front end
Is the inspection result normal?
YES >> GO TO 9.
NO >> Remove debris and clean the signal plate of camshaft
front end or replace camshaft. Refer to EM-47,
"Removal and Installation".
9.CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repair s that may cause timing chain misalignment.
Are there any service records that may cause timing chain misalignment?
YES >> Check timing chain installation. Refer to EM-62, "Removal and Installation".
NO >> GO TO 10.
10.CHECK LUBRICATION CIRCUIT
Perform “Inspection of Camshaft Spro cket (INT) Oil Groove”. Refer to EM-56, "Inspection After Installation"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Clean lubrication line.
Component Inspection (Intake Valv e Timing Control Solenoid Valve)INFOID:0000000009462323
1.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I
1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Check resistance between intake valve timing control solenoid valve terminals as per the following.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning intake valve timing control solenoid valve. Refer to EM-61, "Exploded
View".
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II
1. Remove intake valve timing control solenoid valve. Refer to EM-61, "Exploded View"
.
JPBIA5855ZZ
Terminals Resistance
1 and 2 7.0 - 7.7 Ω [at 20 °C (68 °F)]
1 or 2 and ground ∞
Ω
(Continuity should not exist)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P052A, P052B INTAKE VALVE TIMING CONTROLEC-397
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

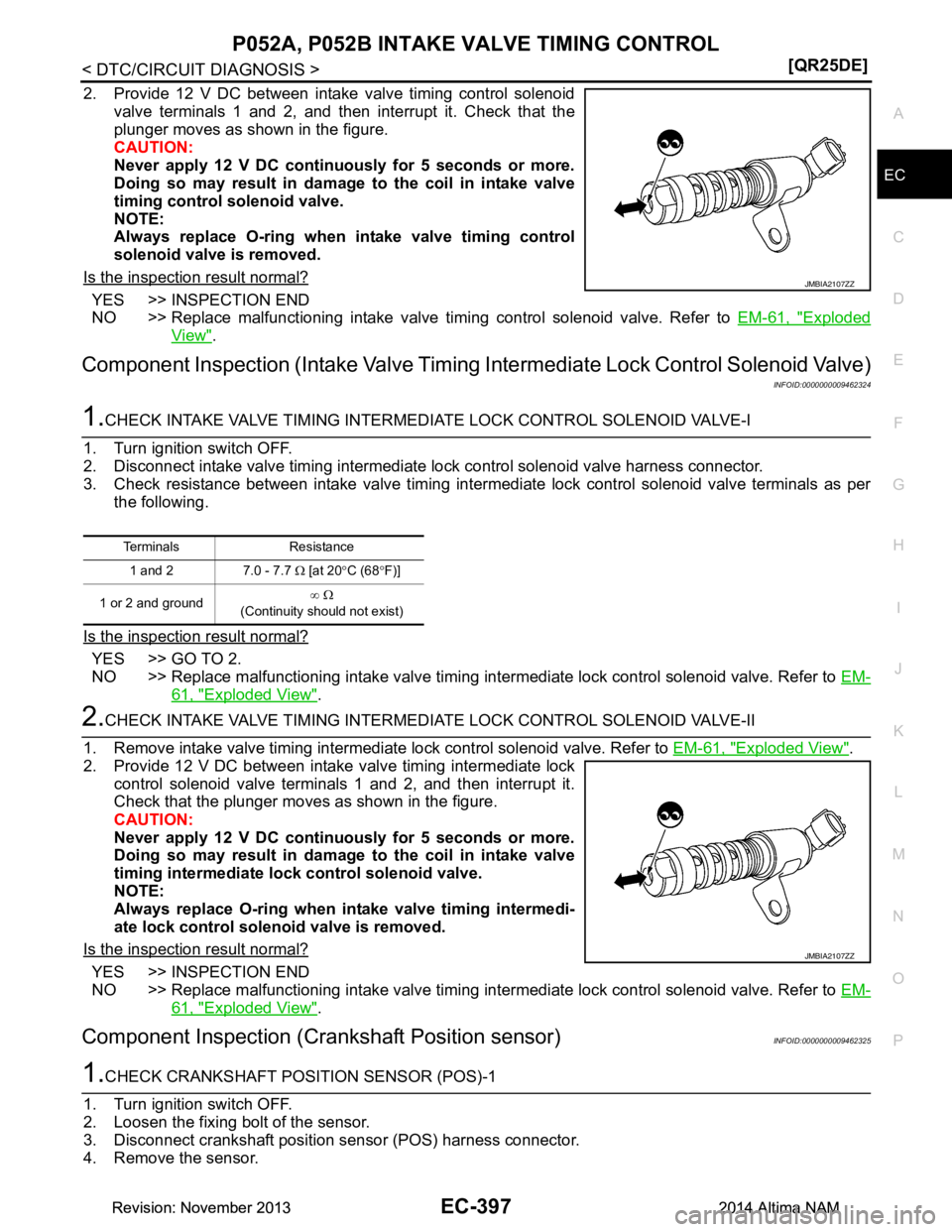

2. Provide 12 V DC between intake valve timing control solenoid
valve terminals 1 and 2, and then interrupt it. Check that the
plunger moves as shown in the figure.
CAUTION:
Never apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning intake valve timing control solenoid valve. Refer to EM-61, "Exploded
View".
Component Inspection (Intake Valve Timing Intermediate Lock Control Solenoid Valve)
INFOID:0000000009462324
1.CHECK INTAKE VALVE TIMING INTERMEDIA TE LOCK CONTROL SOLENOID VALVE-I
1. Turn ignition switch OFF.
2. Disconnect intake valve timing intermediate lock control solenoid valve harness connector.
3. Check resistance between intake valve timing intermediate lock control solenoid valve terminals as per the following.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning intake valve timing intermediate lock control solenoid valve. Refer to EM-
61, "Exploded View".
2.CHECK INTAKE VALVE TIMING INTERMEDIATE LOCK CONTROL SOLENOID VALVE-II
1. Remove intake valve timing intermediate lock control solenoid valve. Refer to EM-61, "Exploded View"
.
2. Provide 12 V DC between intake valve timing intermediate lock control solenoid valve terminals 1 and 2, and then interrupt it.
Check that the plunger moves as shown in the figure.
CAUTION:
Never apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing intermediate lock control solenoid valve.
NOTE:
Always replace O-ring when in take valve timing intermedi-
ate lock control solenoid valve is removed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning intake valve timing intermediate lock control solenoid valve. Refer to EM-
61, "Exploded View".
Component Inspection (Crankshaft Position sensor)INFOID:0000000009462325
1.CHECK CRANKSHAFT POSI TION SENSOR (POS)-1
1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect crankshaft position sensor (POS) harness connector.
4. Remove the sensor.
JMBIA2107ZZ
Terminals Resistance
1 and 2 7.0 - 7.7 Ω [at 20 °C (68 °F)]
1 or 2 and ground ∞
Ω
(Continuity should not exist)
JMBIA2107ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-398
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P052A, P052B INTAKE VALVE TIMING CONTROL

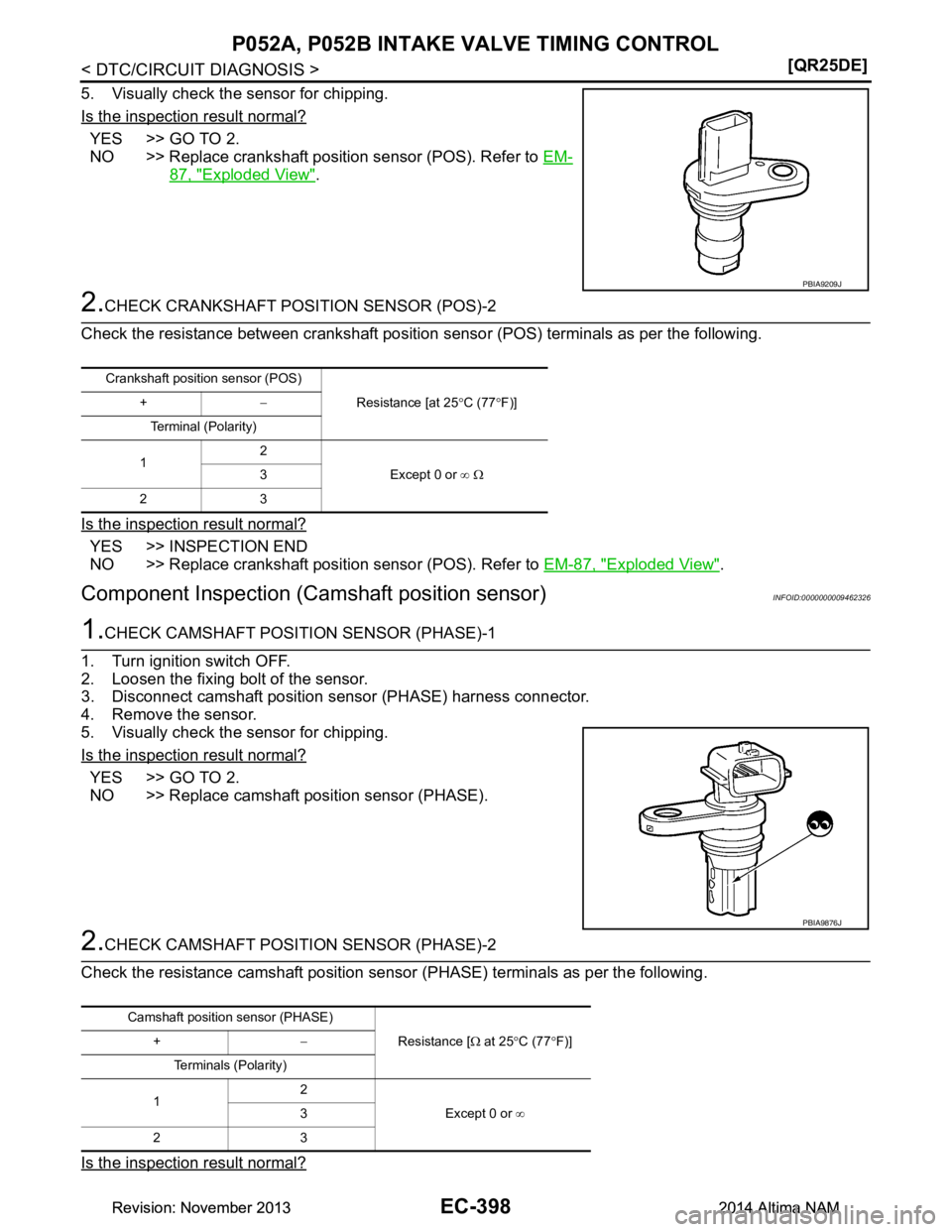

5. Visually check the sensor for chipping.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace crankshaft position sensor (POS). Refer to EM-
87, "Exploded View".
2.CHECK CRANKSHAFT POSITION SENSOR (POS)-2
Check the resistance between crankshaft position s ensor (POS) terminals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace crankshaft position sensor (POS). Refer to EM-87, "Exploded View"
.
Component Inspection (Camshaft position sensor)INFOID:0000000009462326
1.CHECK CAMSHAFT POSI TION SENSOR (PHASE)-1
1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect camshaft position s ensor (PHASE) harness connector.
4. Remove the sensor.
5. Visually check the sensor for chipping.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace camshaft position sensor (PHASE).
2.CHECK CAMSHAFT POSI TION SENSOR (PHASE)-2
Check the resistance camshaft position sensor (PHASE) terminals as per the following.
Is the inspection result normal?
PBIA9209J
Crankshaft position sensor (POS) Resistance [at 25°C (77 °F)]
+ −
Terminal (Polarity)
1 2
Except 0 or ∞ Ω
3
23
PBIA9876J
Camshaft position sensor (PHASE) Resistance [Ω at 25 °C (77 °F)]
+ −
Terminals (Polarity)
1 2
Except 0 or ∞
3
23
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P052A, P052B INTAKE VALVE TIMING CONTROLEC-399
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> INSPECTION END
NO >> Replace camshaft position sensor (PHASE). Refer to EM-47, "Removal and Installation"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-400
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0603 ECM
P0603 ECM
DTC LogicINFOID:0000000009462327
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING CONDITION:
Before performing the following procedure, confirm th at battery voltage is 11 V or more with ignition
switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Repeat step 1 and 2 for 10 times.
4. Turn ignition switch ON.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-400, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462328
1.CHECK ECM POWER SUPPLY AND GROUND CIRCUIT
Perform trouble diagnosis for ECM power supply and ground circuit. Refer to EC-203, "Diagnosis Procedure"
.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace error-detected parts.
2.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to GI-43, "Intermittent Incident"
.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace error-detected parts.
3.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC.
3. Perform DTC confirmation procedure. Refer to EC-400, "DTC Logic"
.
Is the 1st trip DTC
P0603 displayed again?
YES >> Replace ECM. Refer to EC-540, "Removal and Installation".
NO >> INSPECTION END
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0603 ECM BACK UP CIRCUIT
[Internal control module keep
alive memory (KAM) error] • Malfunction in the internal back up RAM of ECM.
• Malfunction in the inte rnal EEP-ROM system of
ECM. •ECM power supply
•ECM
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
