NISSAN TEANA 2014 Service Manual

P0850 PNP SWITCHEC-411
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-411, "Diagnosis Procedure".
NO >> INSPECTION END
5.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-411, "Component Function Check"
.
NOTE:
Use component function check the overal l function of the transmission range switch circuit. During this check,
a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Proceed to EC-411, "Diagnosis Procedure"
.
Component Function CheckINFOID:0000000009462340
1.PERFORM COMPONENT FUNCTION CHECK
1. Turn ignition switch ON.
2. Check the voltage between ECM harness connector and ground as per the following conditions.
*1: Except for California
*2: For California
Is the inspection result normal?
YES >> INSPECTION END
NO >> Proceed to EC-411, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009462341
1.CHECK TRANSMISSION RA NGE SWITCH POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect transmission range switch harness connector.
3. Turn ignition switch ON.
4. Check the voltage between transmission range switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
ENG SPEED 1,000 - 6,375 rpm
COOLAN TEMP/S More than 65 °C (149 °F)
B/FUEL SCHDL 3.25 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 mph)
Selector lever Suitable position
ECM ConditionVol tag e
(Approx.)
Connector +
−
Te r m i n a l
E10
*1
E31*2117 128 Selector lever P or N 0 V
Except above Battery voltage
+ −Vo l ta g e
Transmission range switch
Connector Terminal F85 1 Ground Battery voltage
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-412
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0850 PNP SWITCH
2.CHECK TRANSMISSION RANGE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between transmission range switch harness connector and IPDM E/R harness con-
nector.
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK TRANSMISSION RANGE SWITCH SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between transmission range switch harness connector and ECM harness connector.
*1: Except for California
*2: For California
4. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK TRANSMISSION RANGE SWITCH
Check the transmission range switch. Refer to TM-101, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace transmission range switch. Refer to TM-206, "Removal and Installation"
.
+−
Continuity
Transmission range switch IPDM E/R
Connector Terminal Connector Terminal F851F8361Existed
+ −
Continuity
Transmission range switch ECM
Connector Terminal Connector Terminal
F85 2 E10
*1
E31*2117 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P1078 EVT CONTROL POSITION SENSOREC-413
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P1078 EVT CONTROL POSITION SENSOR
DTC LogicINFOID:0000000009462342
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 10 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-413, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462343
1.CHECK EXHAUST VALVE TIMING (EVT) CO NTROL POSITION SENSOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect exhaust valve timing (EVT) c ontrol position sensor harness connector.
3. Turn ignition switch ON.
4. Check the voltage between EVT control position sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK SENSOR POWER SUPPLY 2 CIRCUIT
Perform EC-525, "Diagnosis Procedure"
.
Is inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK EVT CONTROL POSITI ON SENSOR GROUND CIRCUIT
DTC No.CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P1078 EXH TIM SEN/CIRC-B1
(EXH TIM SEN/CIRC-B1) An excessively high or low
voltage from the sensor is
sent to ECM. • Harness or connectors
(Exhaust valve timing control position sensor circuit is open
or shorted)
• Accumulation of debris to the signal pick-up portion of the camshaft
• Exhaust valve timing control position sensor
• Sensor power supply 2 circuit
+
−Vo l ta g e
(Approx.)
EVT sensor
Connector Terminal F58 1 Ground 5 V
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-414
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P1078 EVT CONTROL POSITION SENSOR
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVT control posit ion sensor harness connector and ECM harness connec-
tor.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK EVT CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check the continuity between EVT control posit ion sensor harness connector and ECM harness connec-
tor.
*1: Except for California
*2: For California
3. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK EVT CONTROL POSITION SENSOR
Check the EVT control position sensor. Refer to EC-415, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Replace EVT control position sensor. Refer to EM-47, "Exploded View"
.
6.CHECK CAMSHAFT (EXT)
Check the following.
• Accumulation of debris to the signal plate of camshaft rear end
• Chipping signal plate of camshaft rear end
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent
Incident".
NO >> Remove debris and clean the signal plate of camshaft rear end or replace camshaft. Refer to EM-47, "Removal
and Installation".
+−
Continuity
EVT control position sensor ECM
Connector Terminal Connector Terminal
F58 2 F14
*1
F91*242 Existed
+
−
Continuity
EVT control position sensor ECM
Connector Terminal Connector Terminal
F58 3 F14
*1
F91*243 Existed
JPBIA5856ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P1078 EVT CONTROL POSITION SENSOREC-415
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Component InspectionINFOID:0000000009462344
1.EXHAUST VALVE TIMING (EVT)
CONTROL POSITION SENSOR-1
1. Turn ignition switch OFF.
2. Disconnect EVT control posit ion sensor harness connector.
3. Loosen the fixing bolt of the sensor.
4. Remove the sensor.
5. Visually check the sensor for chipping.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace EVT control position sensor. Refer to EM-47,
"Exploded View".
2.EVT CONTROL POSITION SENSOR-2
Check resistance EVT control positi on sensor terminals as shown below.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace EVT control position sensor. Refer to EM-47, "Exploded View"
.
JMBIA0065ZZ
EVT control position sensor
Resistance
+ −
Te r m i n a l
1 2
Except 0 or ∞ Ω [at 25 °C (77 °F)]
3
23
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-416
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P1148 CLOSED LOOP CONTROL
P1148 CLOSED LOOP CONTROL
DTC LogicINFOID:0000000009462345
DTC DETECTION LOGIC
NOTE:
DTC P1148 is displayed with DTC for A/F sensor 1.
When the DTC is detected, perform the trouble di agnosis of DTC corresponding to A/F sensor 1.
Diagnosis ProcedureINFOID:0000000009462346
DTC P1148 is displayed with DTC for A/F sensor 1.
When the DTC is detected, perform the trouble di agnosis of DTC corresponding to A/F sensor 1.
Refer to EC-105, "DTC Index"
.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P1148 CLOSED LOOP-B1
(CLOSED LOOP-B1) The closed loop control function does not
operate even when vehicle is being driven in
the specified condition. • Harness or connectors
(A/F sensor 1 circuit is open or shorted.)
• A/F sensor 1
• A/F sensor 1 heater
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P117A AIR FUEL RATIOEC-417
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P117A AIR FUEL RATIO
DTC LogicINFOID:0000000009462347
DTC DETECTION LOGIC
NOTE:
If DTC P117A is displayed with other DTC, first perf orm the trouble diagnosis for the other DTC. Refer
to EC-105, "DTC Index"
.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING-1
If DTC Confirmation Procedure has been previously conduc ted, always perform the following before conduct-
ing the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
NOTE:
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
>> GO TO 2.
2.PRECONDITIONING-2
1. Turn ignition switch ON.
2. Clear the mixture ratio self-learning value. Refer to EC-181, "Work Procedure"
.
Will CONSULT be used?
YES >> GO TO 3.
NO >> GO TO 6.
3.PERFORM DTC CONFIRMATION PROCEDURE-1
1. Turn ignition switch ON.
2. Select “COOLAN TEMP/S” in “DATA MONI TOR” mode of “ENGINE” using CONSULT.
3. Start engine.
4. Make sure that “COOLAN TEMP/S” indicates more than 80 °C (176 °F).
>> GO TO 4.
4.PERFORM DTC CONFIRMATION PROCEDURE-2
With CONSULT
1. Select “SYSTEM 1 DIAGNOSIS B B1” and “SYSTEM 1 DIAGNOSIS A B1” in “DATA MONITOR” mode of
“ENGINE” using CONSULT.
2. Drive vehicle under the following conditions for at least 5 consecutive seconds.
CAUTION:
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P117A AIR FUEL RATIO B1
(AIR FUEL RATIO B1) ECM detects a lean/rich air fuel ratio state in any
cylinder for a specified length of time. • Fuel injector
• Exhaust gas leaks
• Incorrect fuel pressure
• Mass air flow sensor
• Intake air leaks
• Lack of fuel
• Incorrect PCV hose connection
• Improper spark plug
• Insufficient compression
• The fuel injector circuit is open or shorted
• ignition coil
• The ignition signal circuit is open or shorted
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

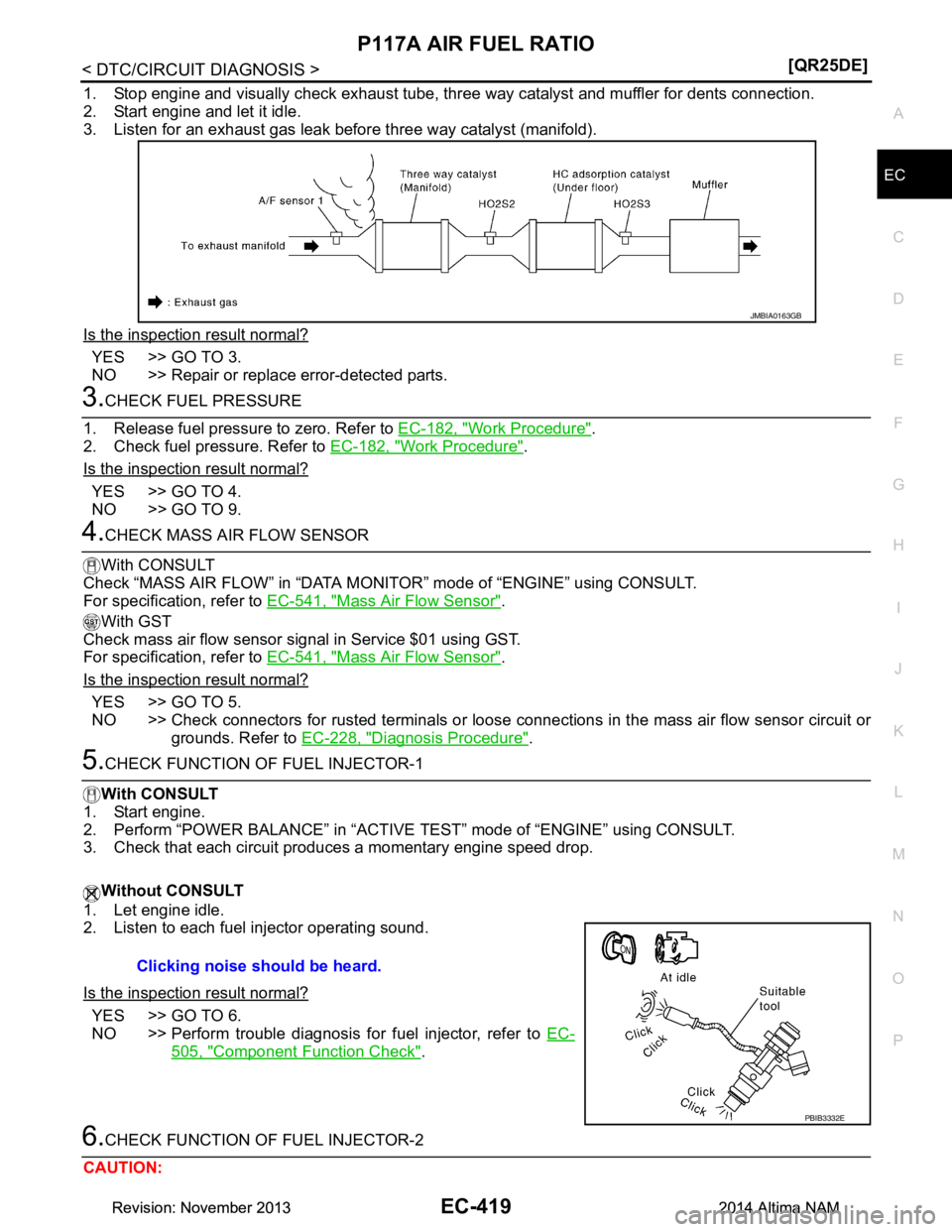

EC-418
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P117A AIR FUEL RATIO
• Always drive vehicle at a safe speed.
NOTE:
• Drive the vehicle at approximately 88 km/h (55MPH) allows easy diagnosis.
• Keep the accelerator pedal as possible during crusing.
3. Check “SYSTEM 1 DIAGNOSIS A B1” indication.
Is
“CMPLT” displayed?
YES >> GO TO 5.
NO >> GO TO 2.
5.PERFORM DTC CONFIRMATION PROCEDURE-3
Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-418, "Diagnosis Procedure".
NO >> INSPECTION END
6.PERFORM DTC CONFIRMATION PROCEDURE-4
Without CONSULT
1. Start the engine and warm it up to normal operating temperature.
2. Drive vehicle under the following conditions for at least 5 consecutive seconds. CAUTION:
• Always drive vehicle at a safe speed.
NOTE:
• Drive the vehicle at approximately 88 km/h (55MPH) allows easy diagnosis.
• Keep the accelerator pedal as possible during crusing.
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-418, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462348
1.CHECK FOR INTAKE AIR LEAK
1. Stop engine and check the following for connection.
-Air duct
- Vacuum hoses
- PCV hose
- Intake air passage between air duct to intake manifold
2. Start engine and let it idle.
3. Listen for an intake air leak after the mass air flow sensor.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace error-detected parts.
2.CHECK EXHAUST GAS LEAK
ENG SPEED 1,000 – 1,250rpm
COOLAN TEMP/S More than 80 °C (176 °F)
B/FUEL SCHDL 4 – 7 ms
Selector lever D position
SYSTEM 1 DIAGNOSIS B B1 PRSENT
Engine speed 1,000 – 1,250 rpm
Calculated load value 26 – 35 %
Selector lever D position
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P117A AIR FUEL RATIOEC-419
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
1. Stop engine and visually check exhaust tube, three way catalyst and muffler for dents connection.
2. Start engine and let it idle.
3. Listen for an exhaust gas leak before three way catalyst (manifold).
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace error-detected parts.
3.CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-182, "Work Procedure"
.
2. Check fuel pressure. Refer to EC-182, "Work Procedure"
.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 9.
4.CHECK MASS AIR FLOW SENSOR
With CONSULT
Check “MASS AIR FLOW” in “DATA MONITO R” mode of “ENGINE” using CONSULT.
For specification, refer to EC-541, "Mass Air Flow Sensor"
.
With GST
Check mass air flow sensor signal in Service $01 using GST.
For specification, refer to EC-541, "Mass Air Flow Sensor"
.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Check connectors for rusted terminals or loose c onnections in the mass air flow sensor circuit or
grounds. Refer to EC-228, "Diagnosis Procedure"
.
5.CHECK FUNCTION OF FUEL INJECTOR-1
With CONSULT
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
3. Check that each circuit produces a momentary engine speed drop.
Without CONSULT
1. Let engine idle.
2. Listen to each fuel injector operating sound.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Perform trouble diagnosis for fuel injector, refer to EC-
505, "Component Function Check".
6.CHECK FUNCTION OF FUEL INJECTOR-2
CAUTION:
JMBIA0163GB
Clicking noise should be heard.
PBIB3332E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-420
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P117A AIR FUEL RATIO

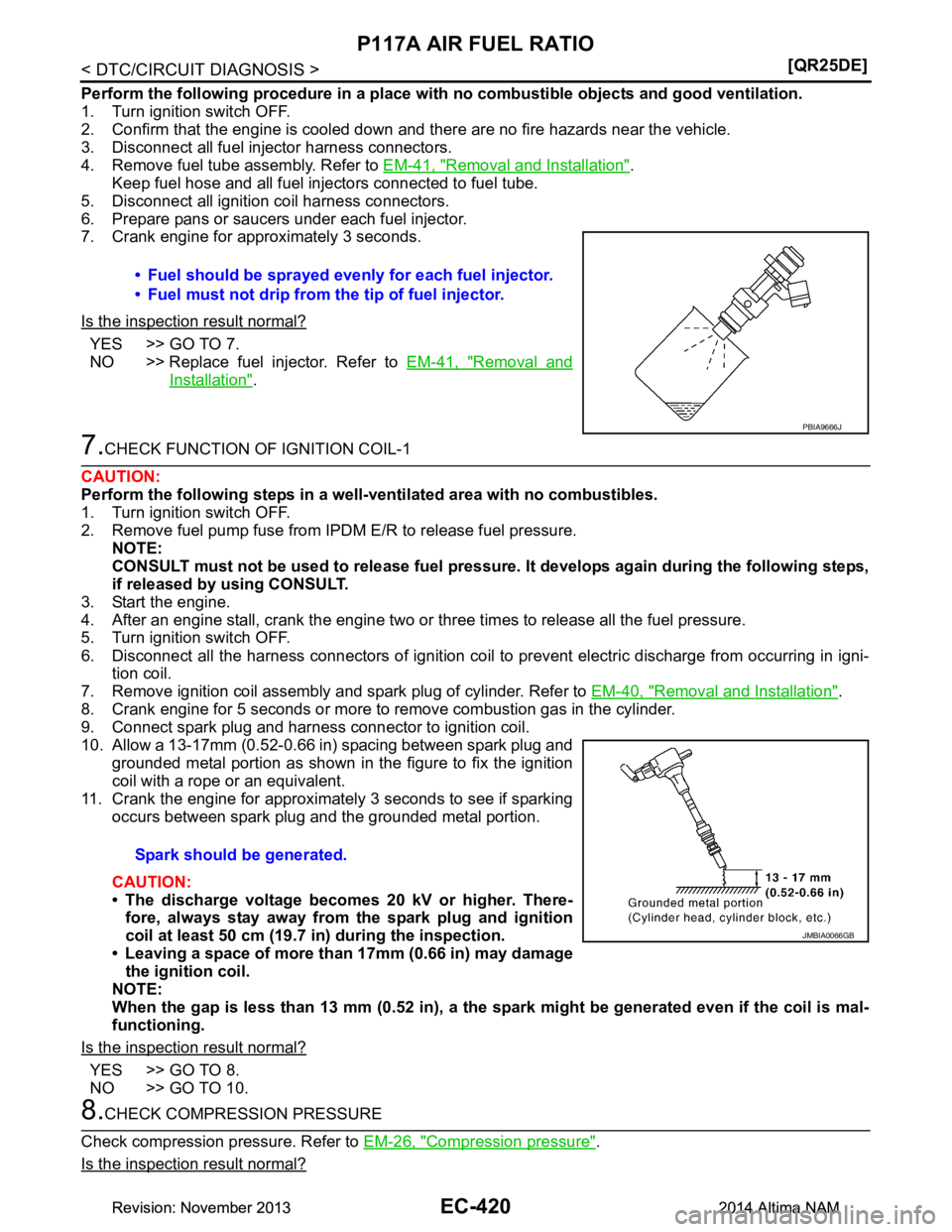

Perform the following procedure in a place with
no combustible objects and good ventilation.
1. Turn ignition switch OFF.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Disconnect all fuel injector harness connectors.
4. Remove fuel tube assembly. Refer to EM-41, "Removal and Installation"
.
Keep fuel hose and all fuel injectors connected to fuel tube.
5. Disconnect all ignition coil harness connectors.
6. Prepare pans or saucers under each fuel injector.
7. Crank engine for approximately 3 seconds.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace fuel injector. Refer to EM-41, "Removal and
Installation".
7.CHECK FUNCTION OF IGNITION COIL-1
CAUTION:
Perform the following steps in a well -ventilated area with no combustibles.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse from IPDM E/R to release fuel pressure.
NOTE:
CONSULT must not be used to release fuel pressu re. It develops again during the following steps,
if released by using CONSULT.
3. Start the engine.
4. After an engine stall, crank the engine two or three times to release all the fuel pressure.
5. Turn ignition switch OFF.
6. Disconnect all the harness connectors of ignition coil to prevent electric discharge from occurring in igni-
tion coil.
7. Remove ignition coil assembly and spark plug of cylinder. Refer to EM-40, "Removal and Installation"
.
8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.
10. Allow a 13-17mm (0.52-0.66 in) spacing between spark plug and
grounded metal portion as shown in the figure to fix the ignition
coil with a rope or an equivalent.
11. Crank the engine for approximately 3 seconds to see if sparking occurs between spark plug and the grounded metal portion.
CAUTION:
• The discharge voltage becomes 20 kV or higher. There- fore, always stay away from the spark plug and ignition
coil at least 50 cm (19.7 in) during the inspection.
• Leaving a space of more than 17mm (0.66 in) may damage the ignition coil.
NOTE:
When the gap is less than 13 mm (0.52 in), a the sp ark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 10.
8.CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-26, "Compression pressure"
.
Is the inspection result normal?
• Fuel should be sprayed evenly for each fuel injector.
• Fuel must not drip from the tip of fuel injector.
PBIA9666J
Spark should be generated.
JMBIA0066GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
