NISSAN TEANA 2014  Service Manual
WHEEL SENSORBRC-125
< REMOVAL AND INSTALLATION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
Installation is in the reverse order of removal.
CAUTION:
Do not twist front wheel sensor  harness

Page 272 of 4801

NISSAN TEANA 2014  Service Manual
BRC-126
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
WHEEL SENSOR
caught in the surface of the mating surface for the
sensor rotor. Fix as necessary and then install the
wheel sensor.
REMOVAL
1. Remove

Page 273 of 4801

NISSAN TEANA 2014  Service Manual
SENSOR ROTORBRC-127
< REMOVAL AND INSTALLATION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
SENSOR ROTOR
Removal and Installation - Front Sensor RotorINFOID:0000000009463850
The front wheel se

Page 274 of 4801

NISSAN TEANA 2014  Service Manual
BRC-128
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
ABS ACTUATOR AND ELECTRIC
 UNIT (CONTROL UNIT)
Exploded ViewINFOID:0000000009463852
Removal and Install

Page 275 of 4801

NISSAN TEANA 2014  Service Manual

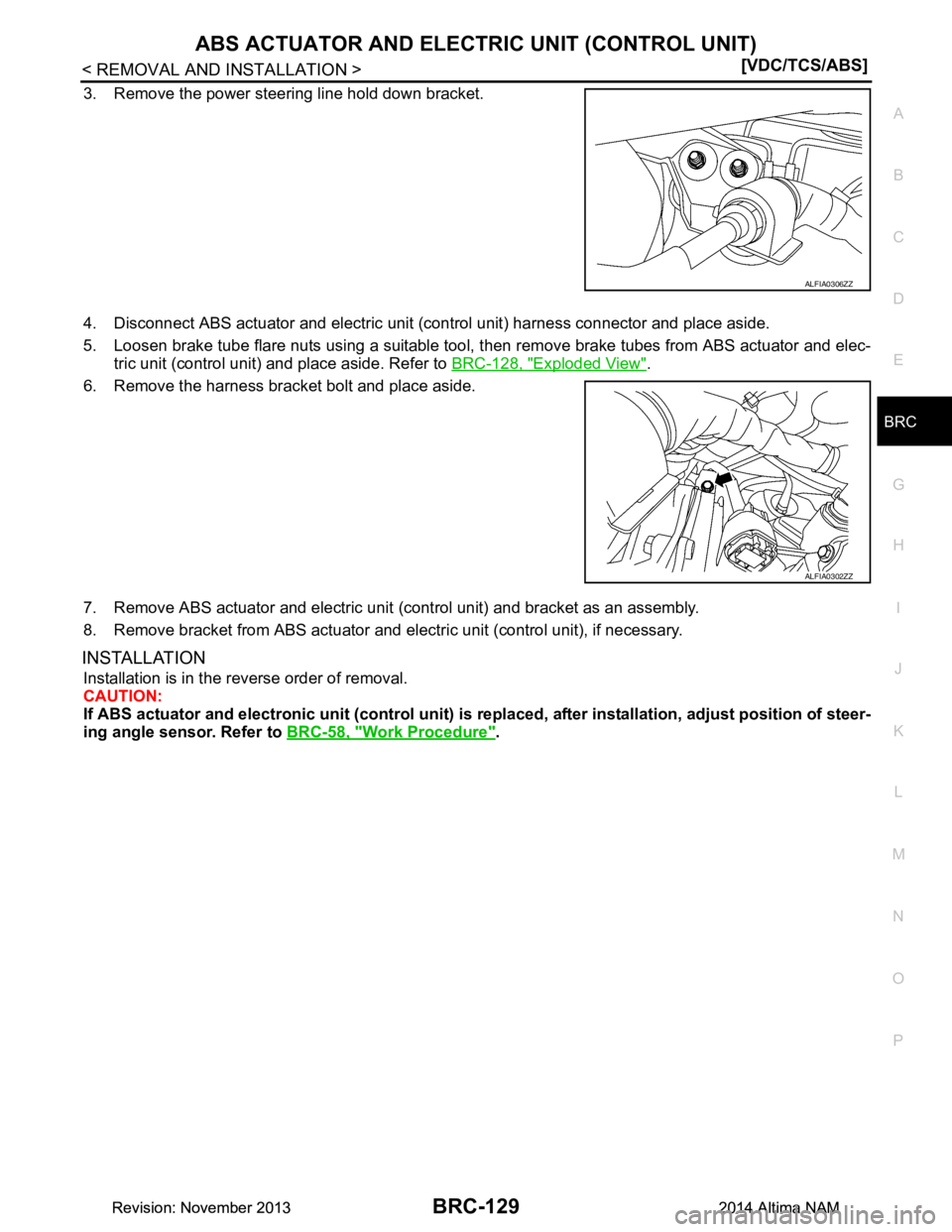

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-129
< REMOVAL AND INSTALLATION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
3. Remove the power steering line hold down bracket.
4. Disconnect

Page 276 of 4801

NISSAN TEANA 2014  Service Manual
BRC-130
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]

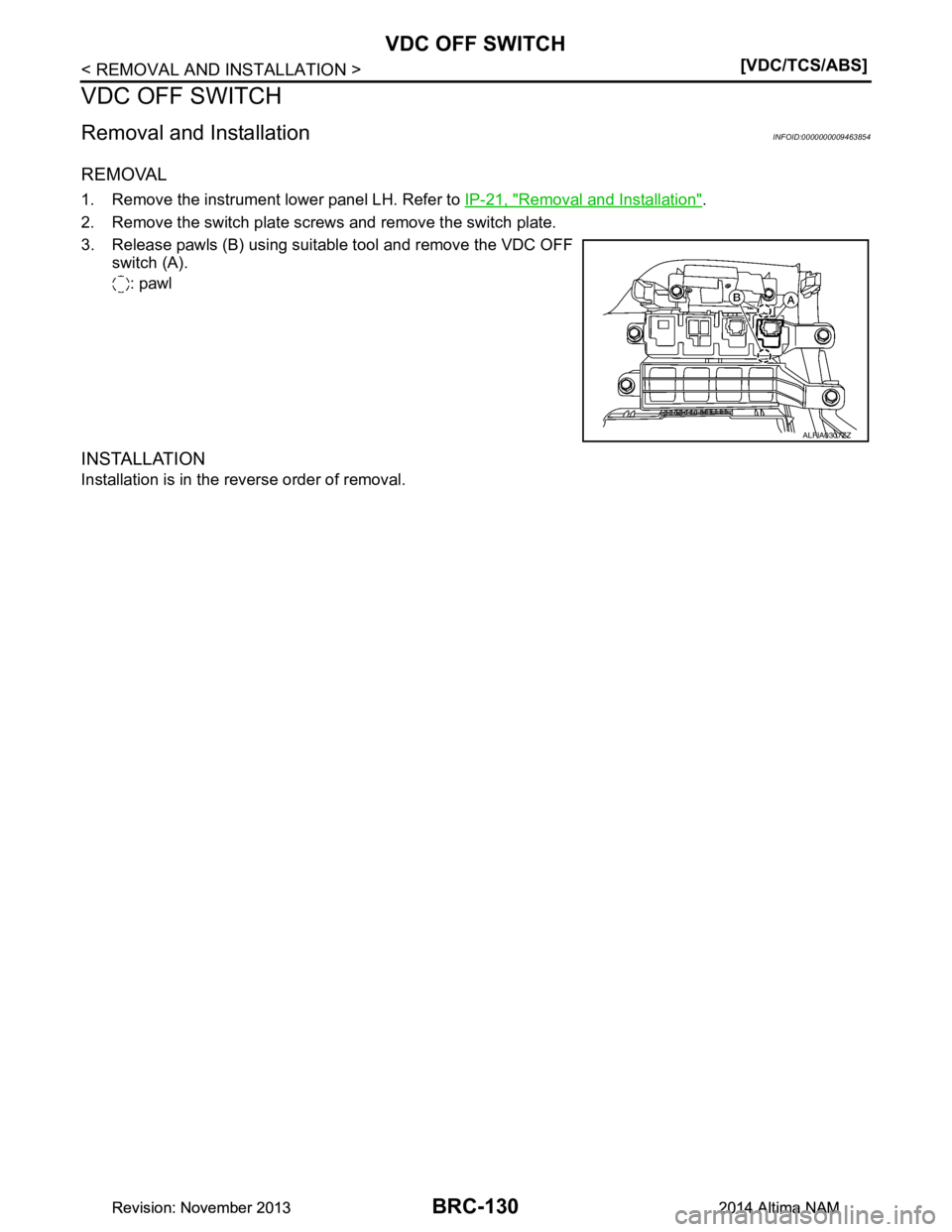

VDC OFF SWITCH
VDC OFF SWITCH
Removal and InstallationINFOID:0000000009463854
REMOVAL
1. Remove the instrument lower panel LH. Refer to
IP-21, "Remo

Page 277 of 4801

NISSAN TEANA 2014  Service Manual
YAW RATE/SIDE/DECEL G SENSORBRC-131
< REMOVAL AND INSTALLATION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
YAW RATE/SIDE/DECEL G SENSOR
Removal and InstallationINFOID:0000000009463855
The yaw

Page 278 of 4801

NISSAN TEANA 2014  Service Manual
BRC-132
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
STEERING ANGLE SENSOR
STEERING ANGLE SENSOR
Exploded ViewINFOID:0000000009463856
Removal and InstallationINFOID:0000000009463857
REMOVAL
1. Remove sp

Page 279 of 4801

NISSAN TEANA 2014  Service Manual
BRM-1
BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
D E
F
G H
I
J
L
M
SECTION BRM
A
B
BRM
N
O P
CONTENTS
BODY REPAIR
VEHICLE INFORMATION ... ..........................2
BODY EXTERIOR PAINT COLOR

Page 280 of 4801

NISSAN TEANA 2014  Service Manual
BRM-2
< VEHICLE INFORMATION >
BODY EXTERIOR PAINT COLOR

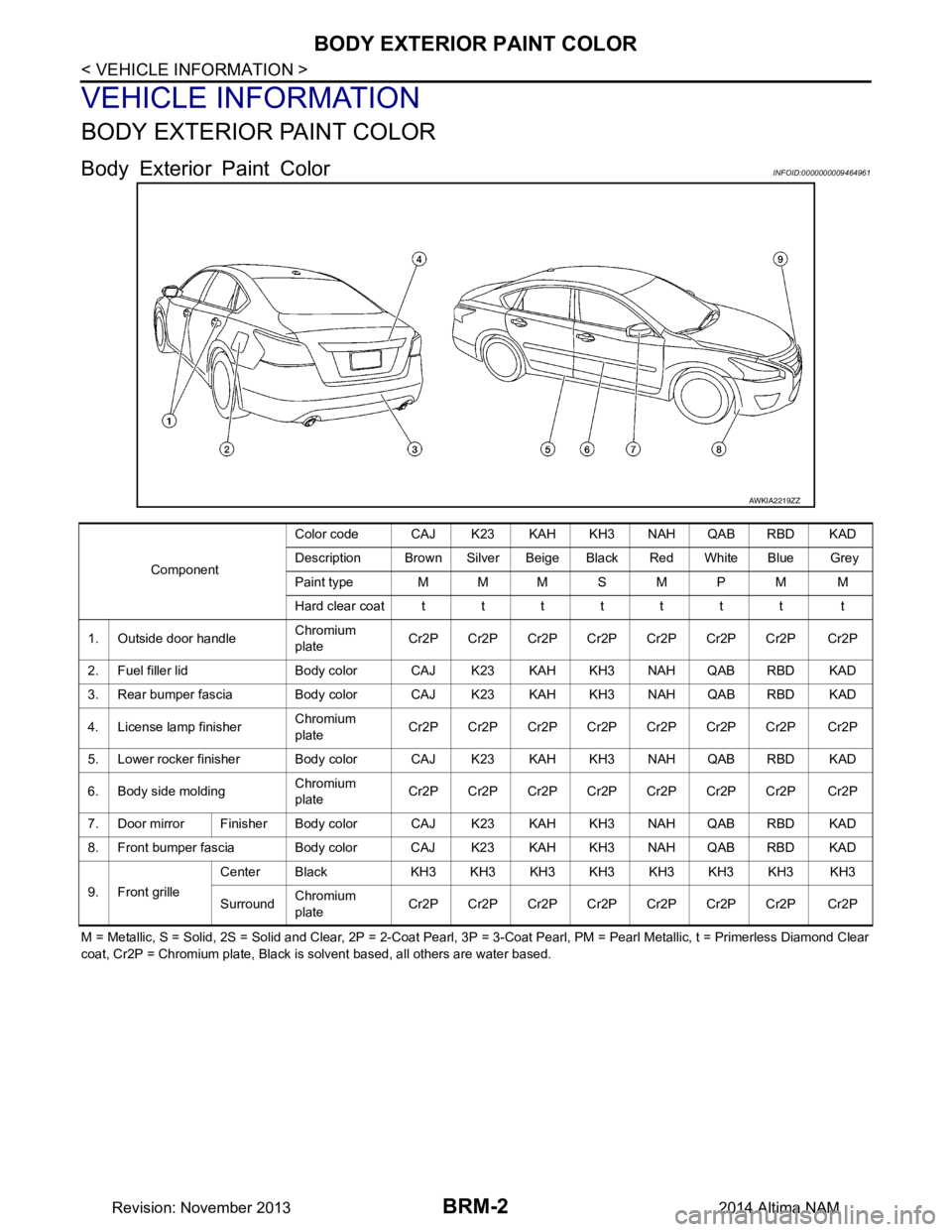

VEHICLE INFORMATION
BODY EXTERIOR PAINT COLOR
Body Exterior Paint ColorINFOID:0000000009464961
M = Metallic, S = Solid, 2S = Solid and Clear, 2
