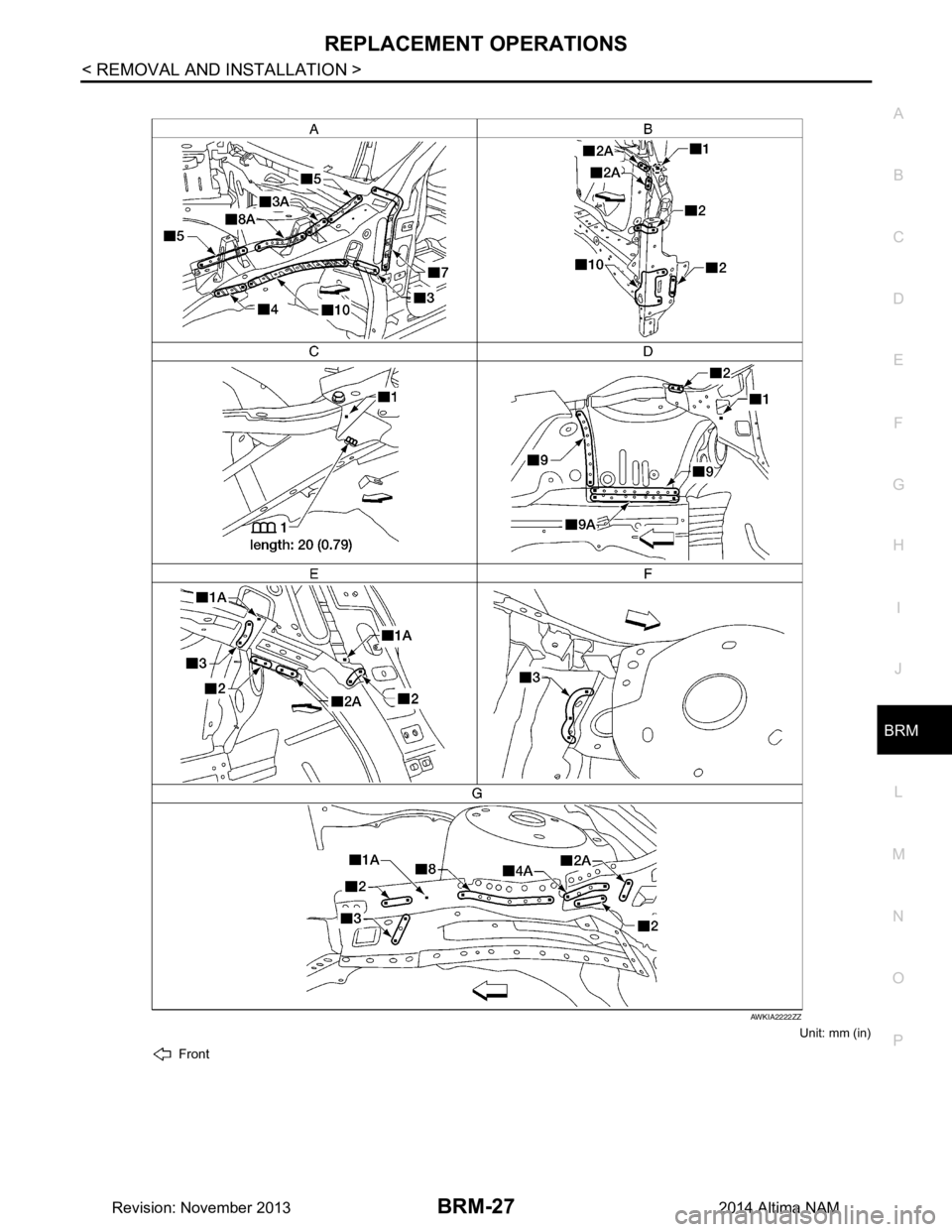

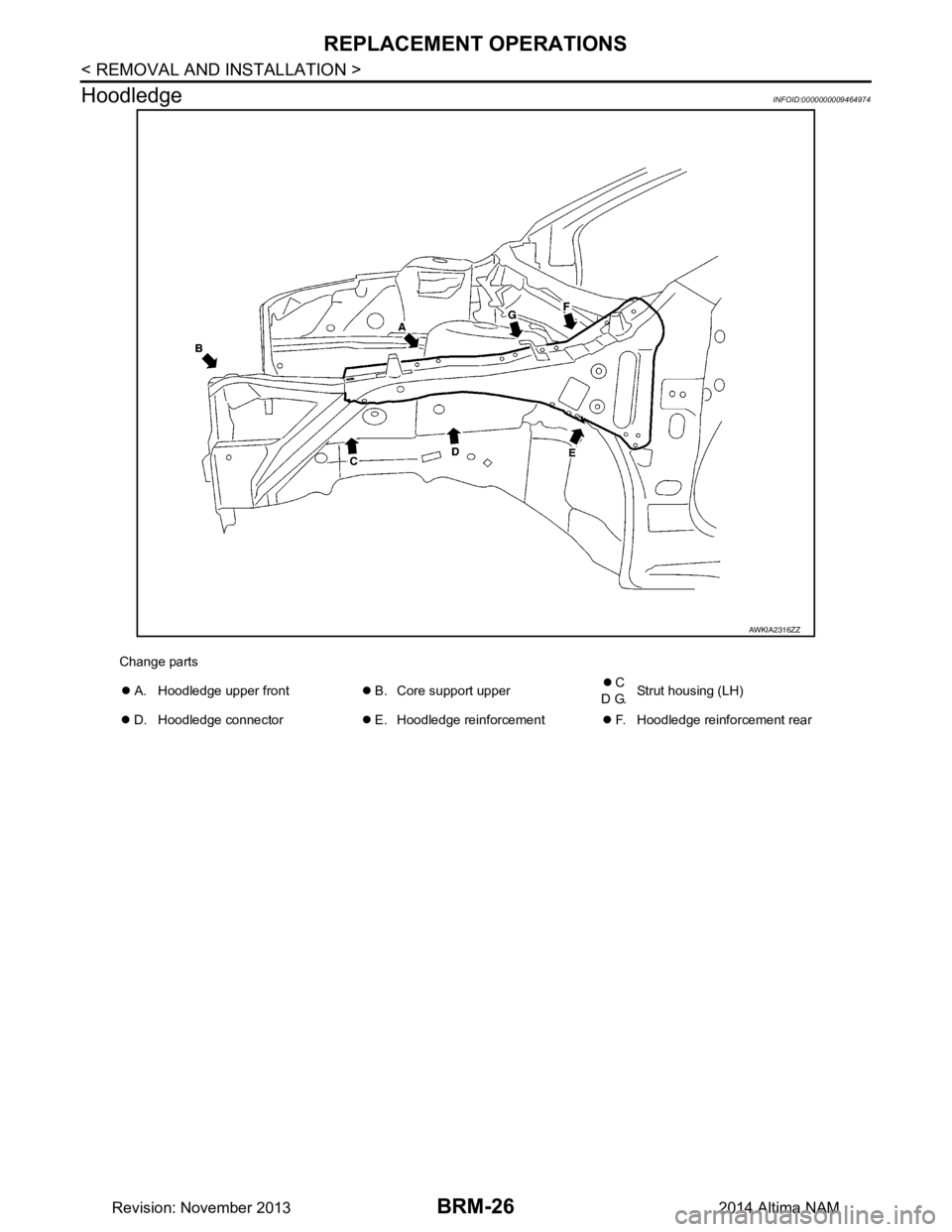

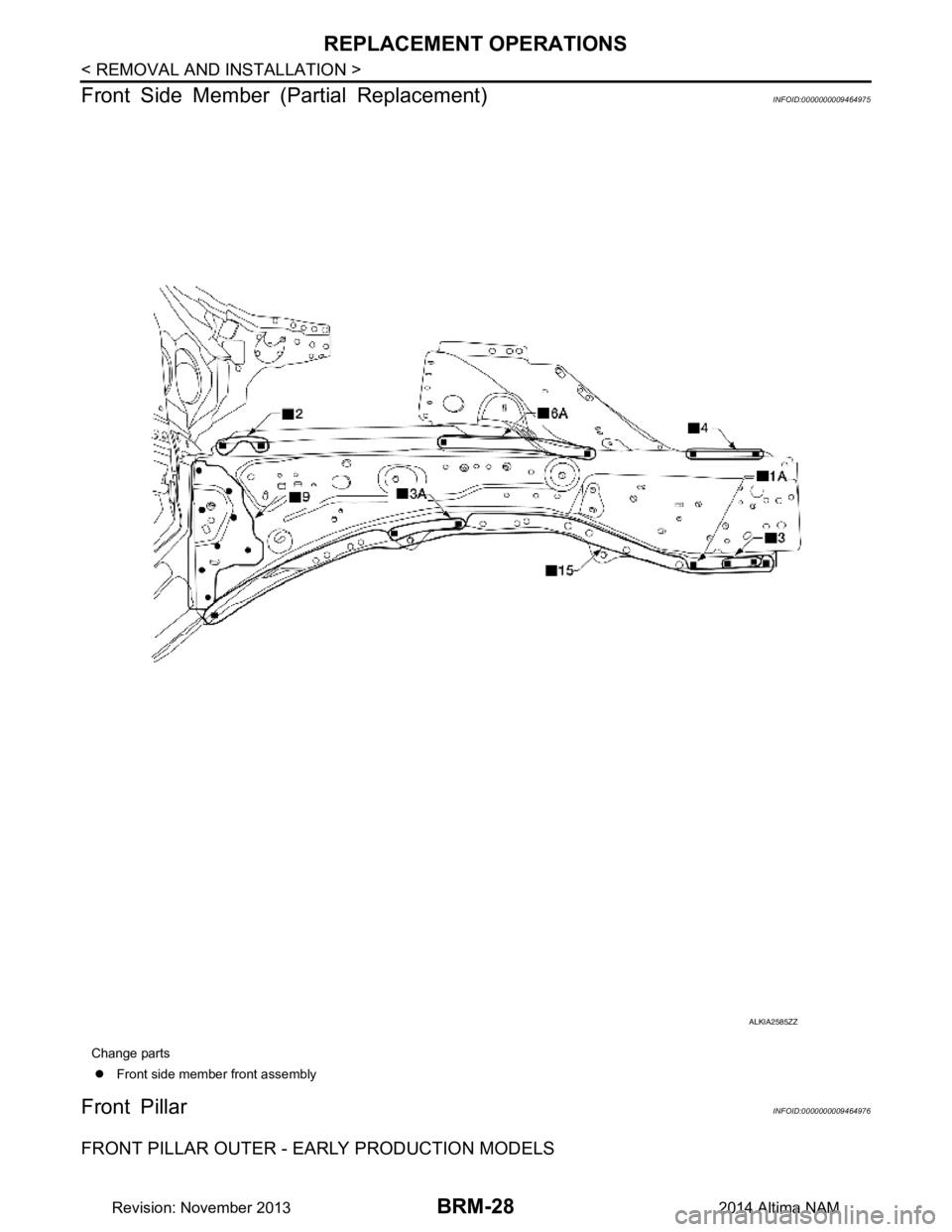

REPLACEMENT OPERATIONS
DescriptionINFOID:0000000009464973

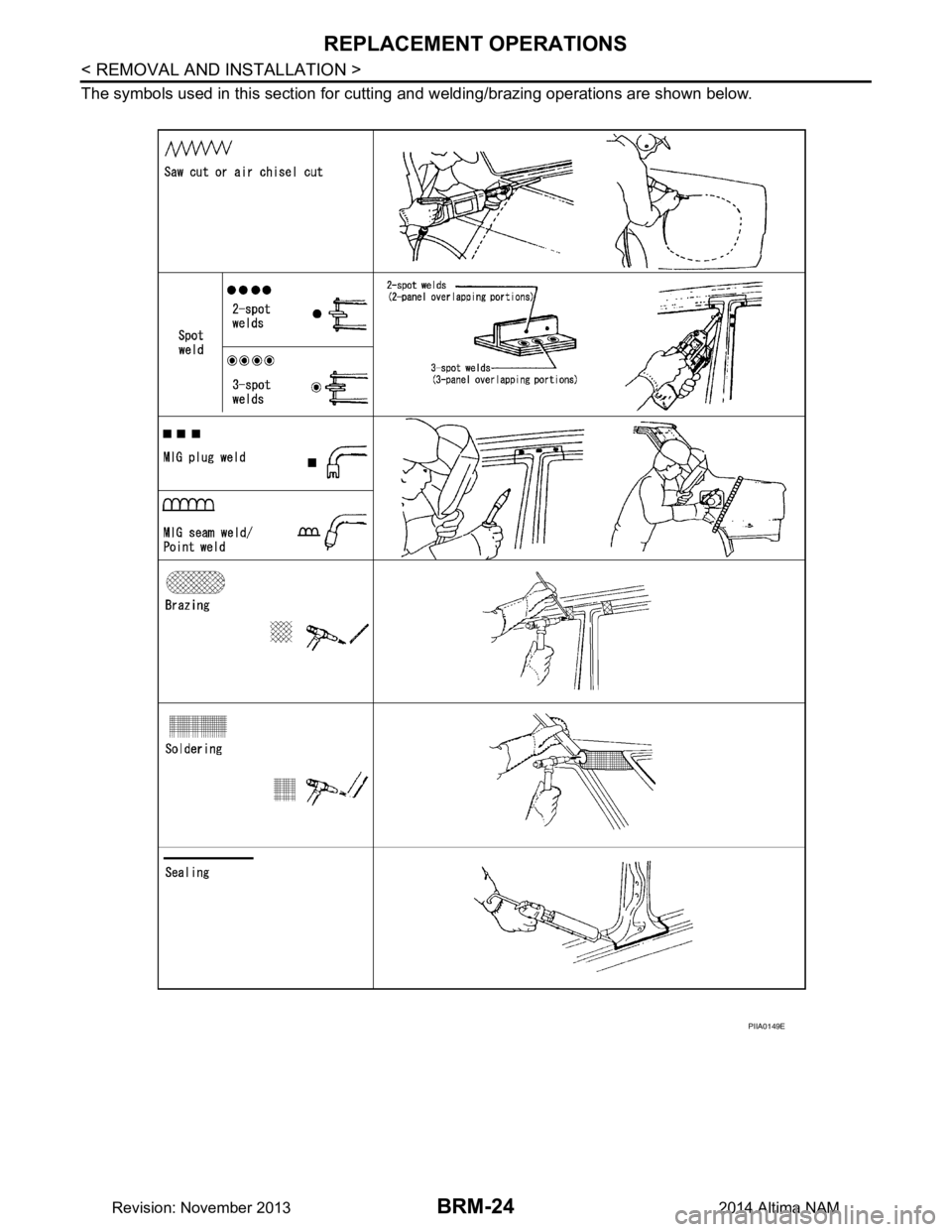

This section is prepared for technicians who have attai ned a high level of skill and experience in repairing col-
lision-damaged vehicles and also use modern servic e tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.
Technicians are also encouraged to read Body Repair M anual (Fundamentals) in order to ensure that the orig-
inal functions and quality of the vehicle can be mainta ined. The Body Repair Manual (Fundamentals) contains
additional information, including cautions and warning, that are not including in this manual. Technicians
should refer to both manuals to ensure proper repairs.
Please note that these information are prepared for wo rldwide usage, and as such, certain procedures might
not apply in some regions or countries.
Revision: November 20132014 Altima NAM
REPLACEMENT OPERATIONSBRM-25
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
BRM
N
O P

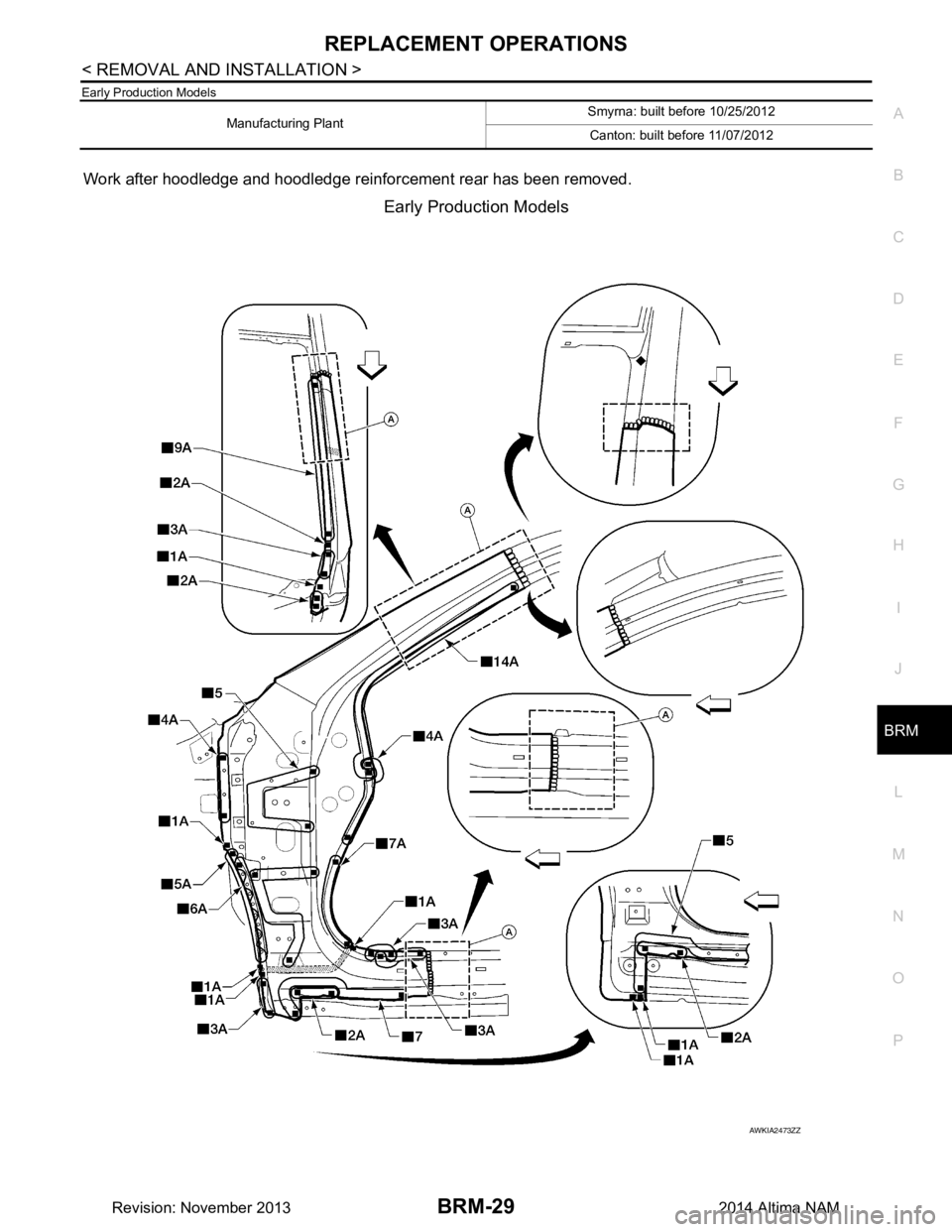

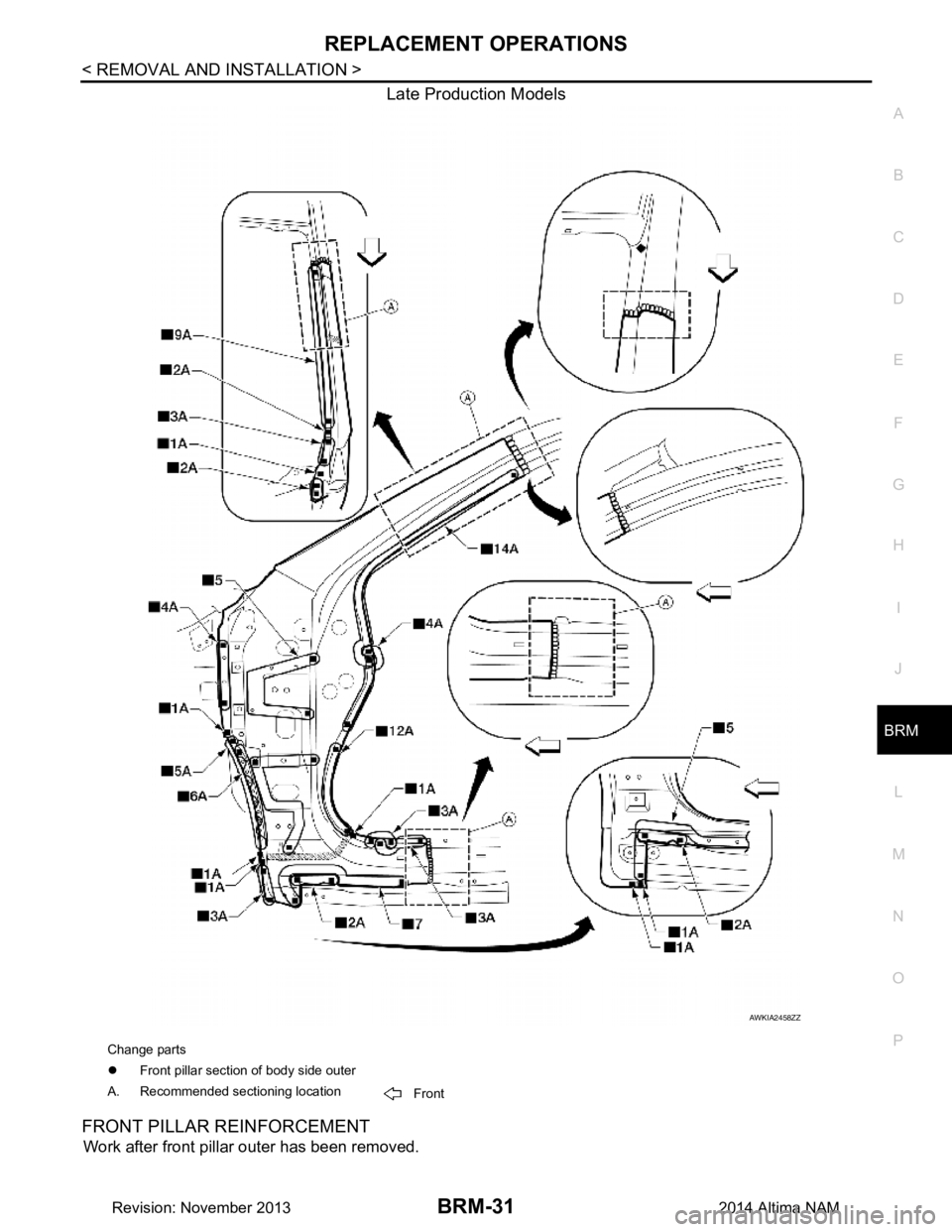

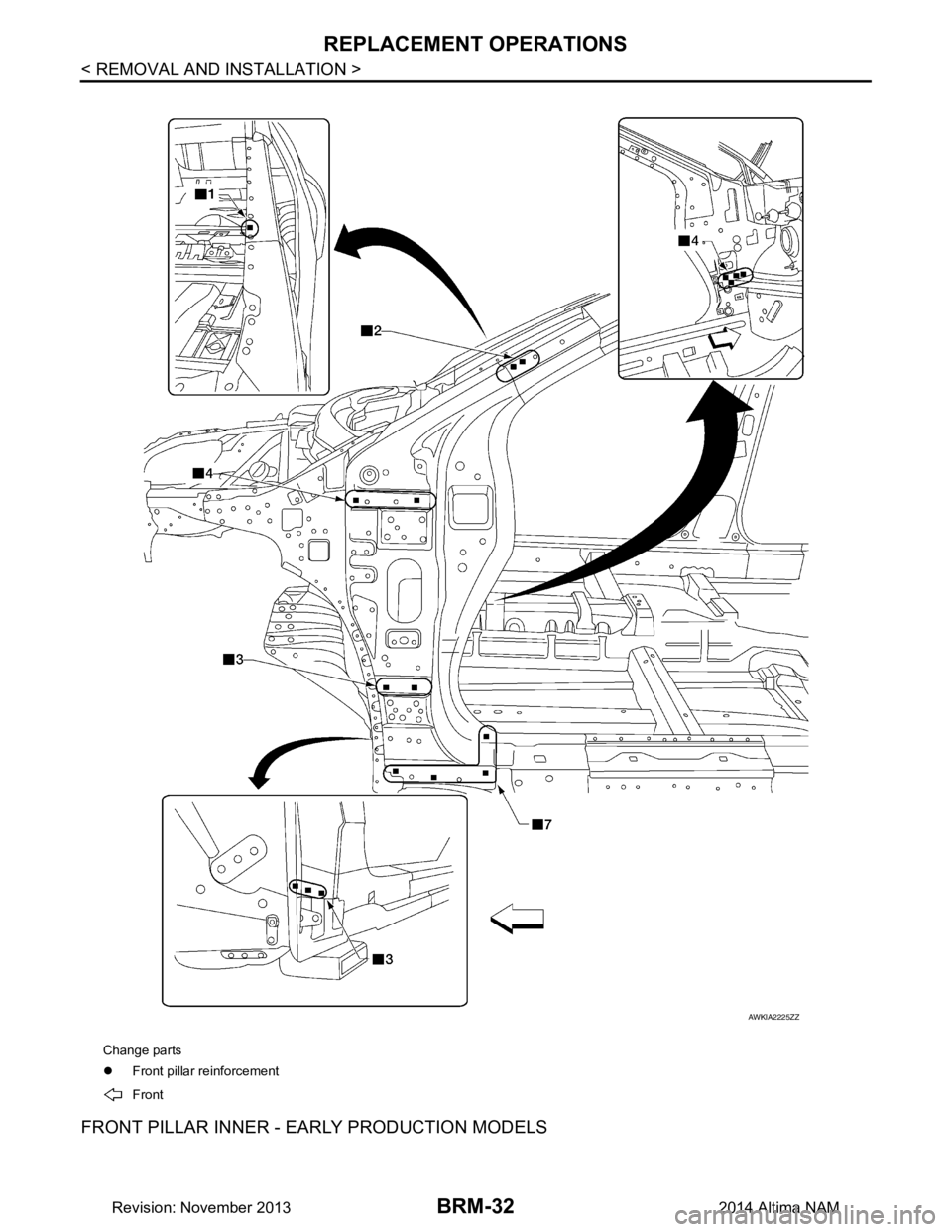

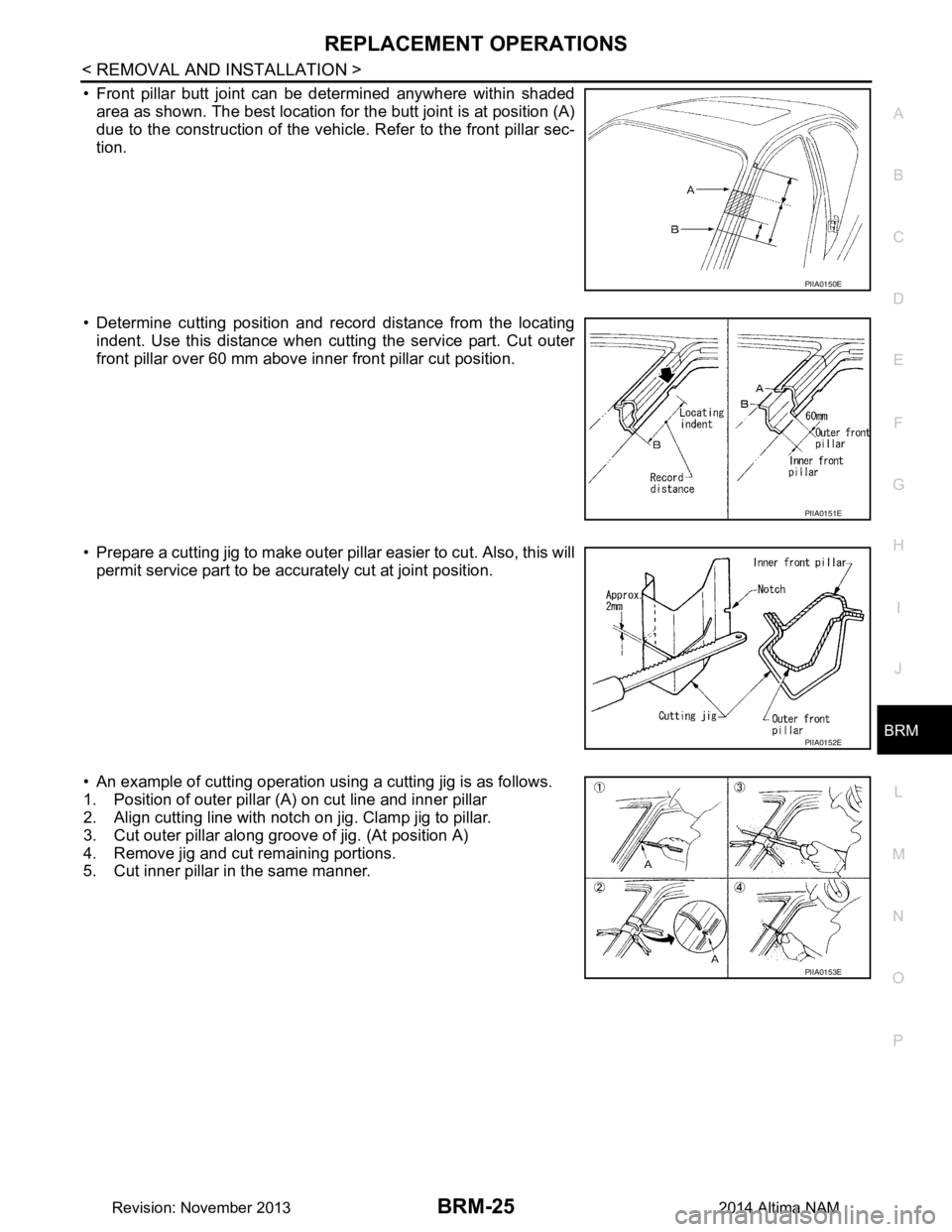

• Front pillar butt joint can be determined anywhere within shaded area as shown. The best location for the butt joint is at position (A)
due to the construction of the vehicle. Refer to the front pillar sec-
tion.
• Determine cutting position and record distance from the locating indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm above inner front pillar cut position.
• Prepare a cutting jig to make outer pillar easier to cut. Also, this will permit service part to be accurately cut at joint position.
• An example of cutting operation using a cutting jig is as follows.
1. Position of outer pillar (A) on cut line and inner pillar
2. Align cutting line with notch on jig. Clamp jig to pillar.
3. Cut outer pillar along groove of jig. (At position A)
4. Remove jig and cut remaining portions.
5. Cut inner pillar in the same manner.
PIIA0150E
PIIA0151E
PIIA0152E
PIIA0153E
Revision: November 20132014 Altima NAM
