BODY SIDE TRIM
BODY SIDE TRIM

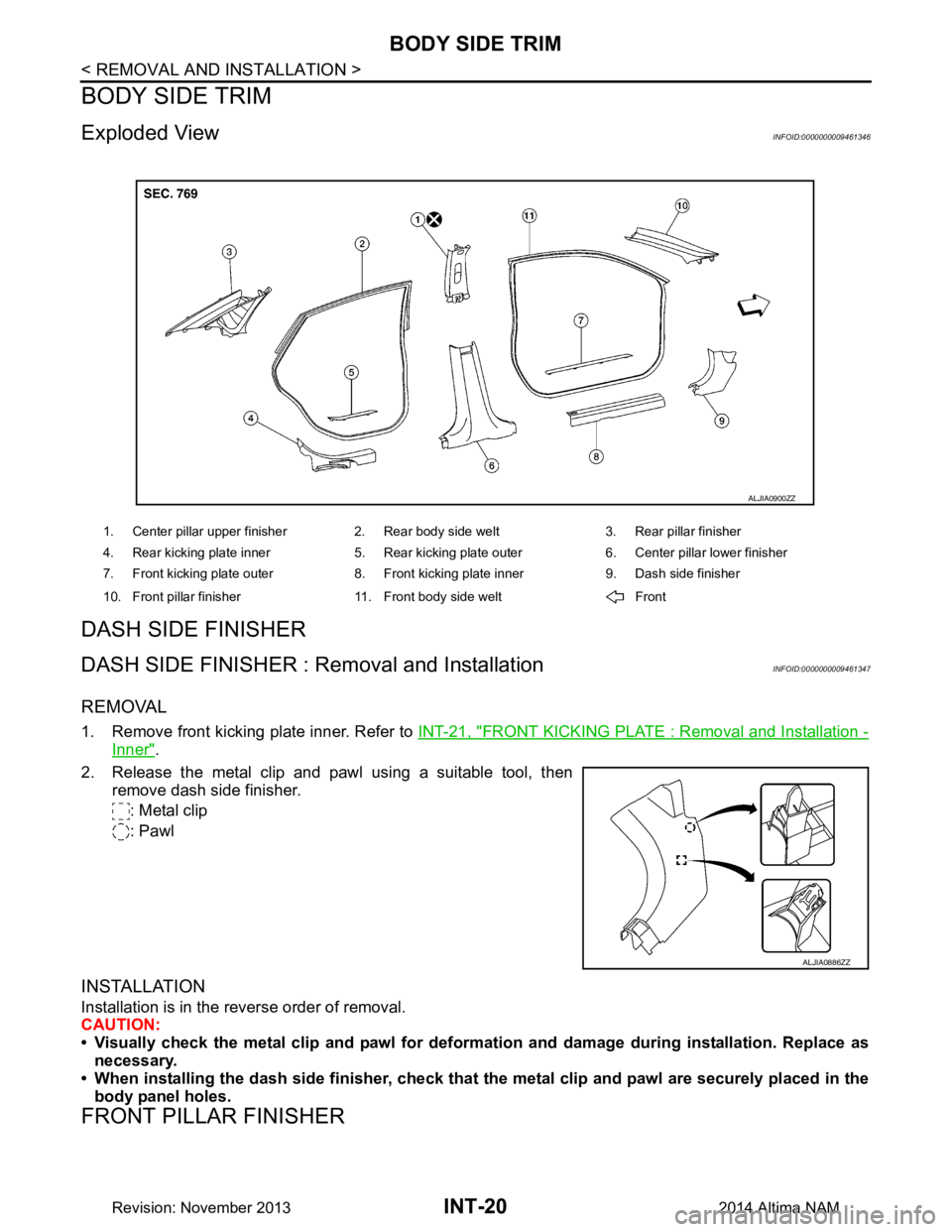

Exploded ViewINFOID:0000000009461346
DASH SIDE FINISHER
DASH SIDE FINISHER : Removal and InstallationINFOID:0000000009461347
REMOVAL
1. Remove front kicking plate inner. Refer to INT-21, "FRONT KICKING PLATE : Removal and Installation -
Inner".
2. Release the metal clip and pawl using a suitable tool, then remove dash side finisher.
: Metal clip
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Visually check the metal clip and pawl for defo rmation and damage during installation. Replace as
necessary.
• When installing the dash side fini sher, check that the metal clip and pawl are securely placed in the
body panel holes.
FRONT PILLAR FINISHER
1. Center pillar upper finisher 2. Rear body side welt 3. Rear pillar finisher
4. Rear kicking plate inner 5. Rear kicking plate outer 6. Center pillar lower finisher
7. Front kicking plate outer 8. Front kicking plate inner 9. Dash side finisher
10. Front pillar finisher 11. Front body side welt Front
ALJIA0900ZZ
ALJIA0886ZZ
Revision: November 20132014 Altima NAM

BODY SIDE TRIMINT-21
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
FRONT PILLAR FINISHER : Removal and InstallationINFOID:0000000009461348
REMOVAL
1. Partially remove the front body side welt. Refer to INT-23, "BODY SIDE WELT : Removal and Installation
- Front Body Side Welt".

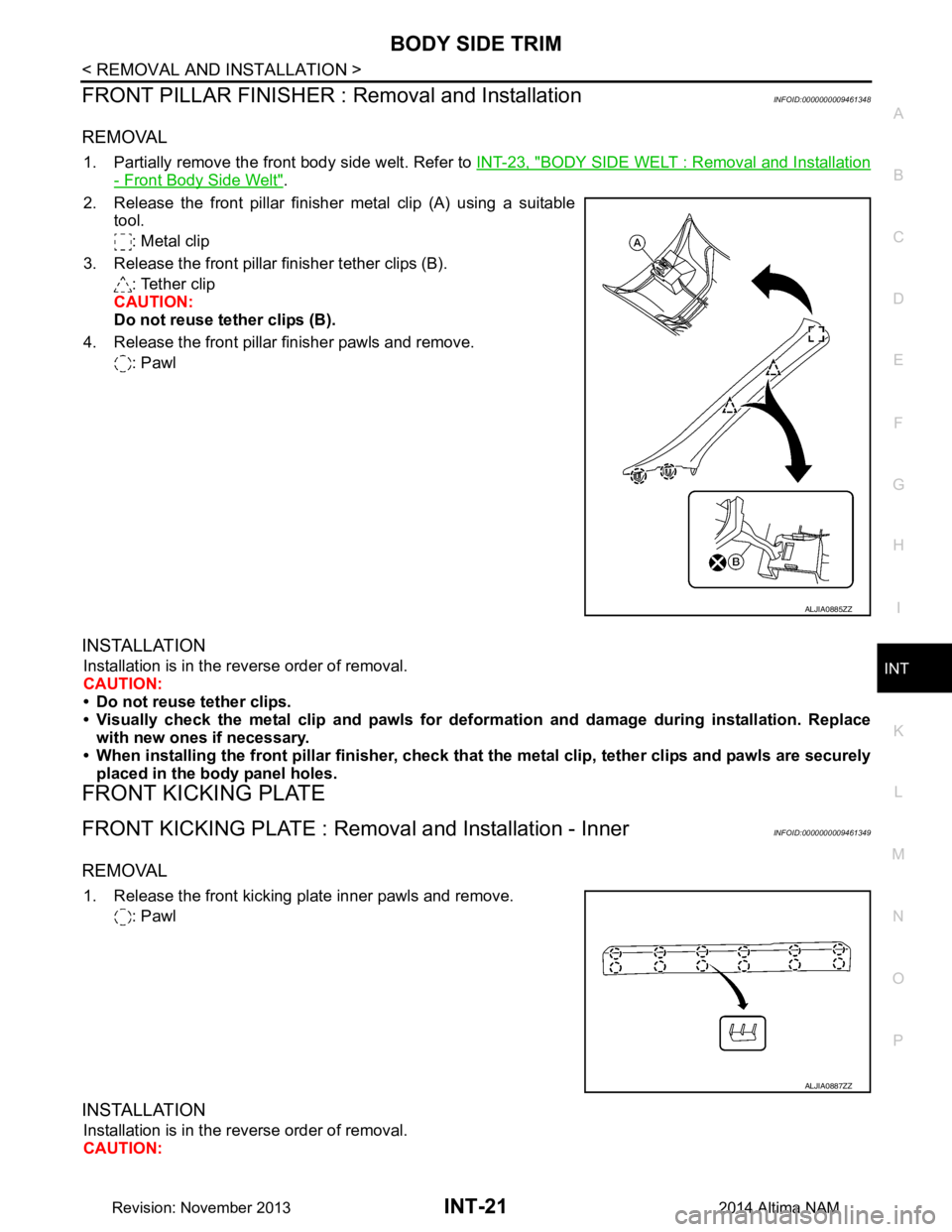

2. Release the front pillar finisher metal clip (A) using a suitable tool.
: Metal clip
3. Release the front pillar finisher tether clips (B). : Tether clip
CAUTION:
Do not reuse tether clips (B).
4. Release the front pillar finisher pawls and remove. : Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse tether clips.
• Visually check the metal clip and pawls for defo rmation and damage during installation. Replace
with new ones if necessary.
• When installing the front pillar finisher, check that the metal clip, tether clips and pawls are securely
placed in the body panel holes.
FRONT KICKING PLATE
FRONT KICKING PLATE : Remova l and Installation - InnerINFOID:0000000009461349
REMOVAL
1. Release the front kicking plate inner pawls and remove.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
ALJIA0885ZZ
ALJIA0887ZZ
Revision: November 20132014 Altima NAM

INT-22
< REMOVAL AND INSTALLATION >
BODY SIDE TRIM
When installing the front kicking plate inner, check that the pawls are securely placed in the body
panel holes.
FRONT KICKING PLATE : Remova l and Installation - OuterINFOID:0000000009461350
REMOVAL

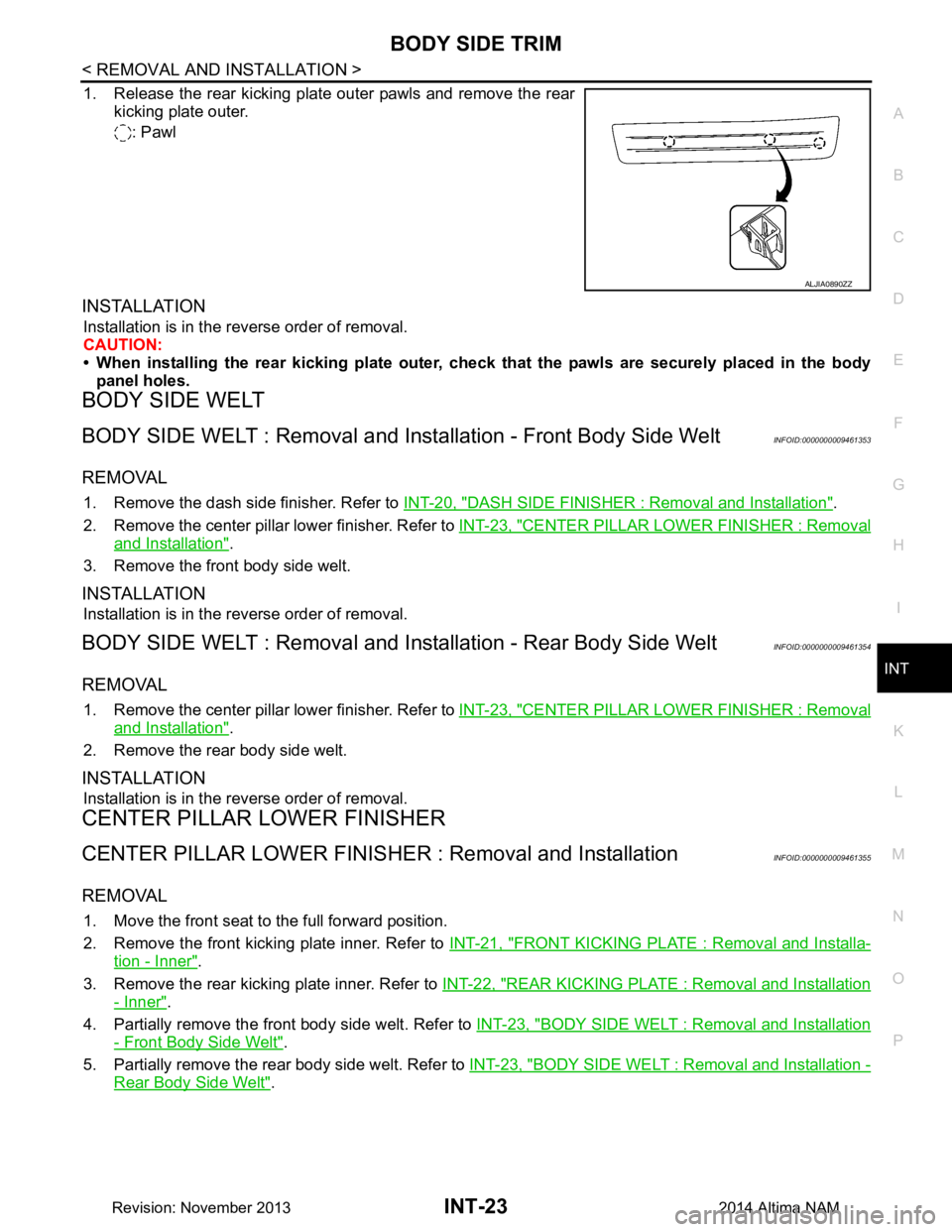

1. Release the front kicking plate outer pawls and remove the front
kicking plate outer.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When installing the front kicking plate outer, ch eck that the pawls are securely placed in the body
panel holes.

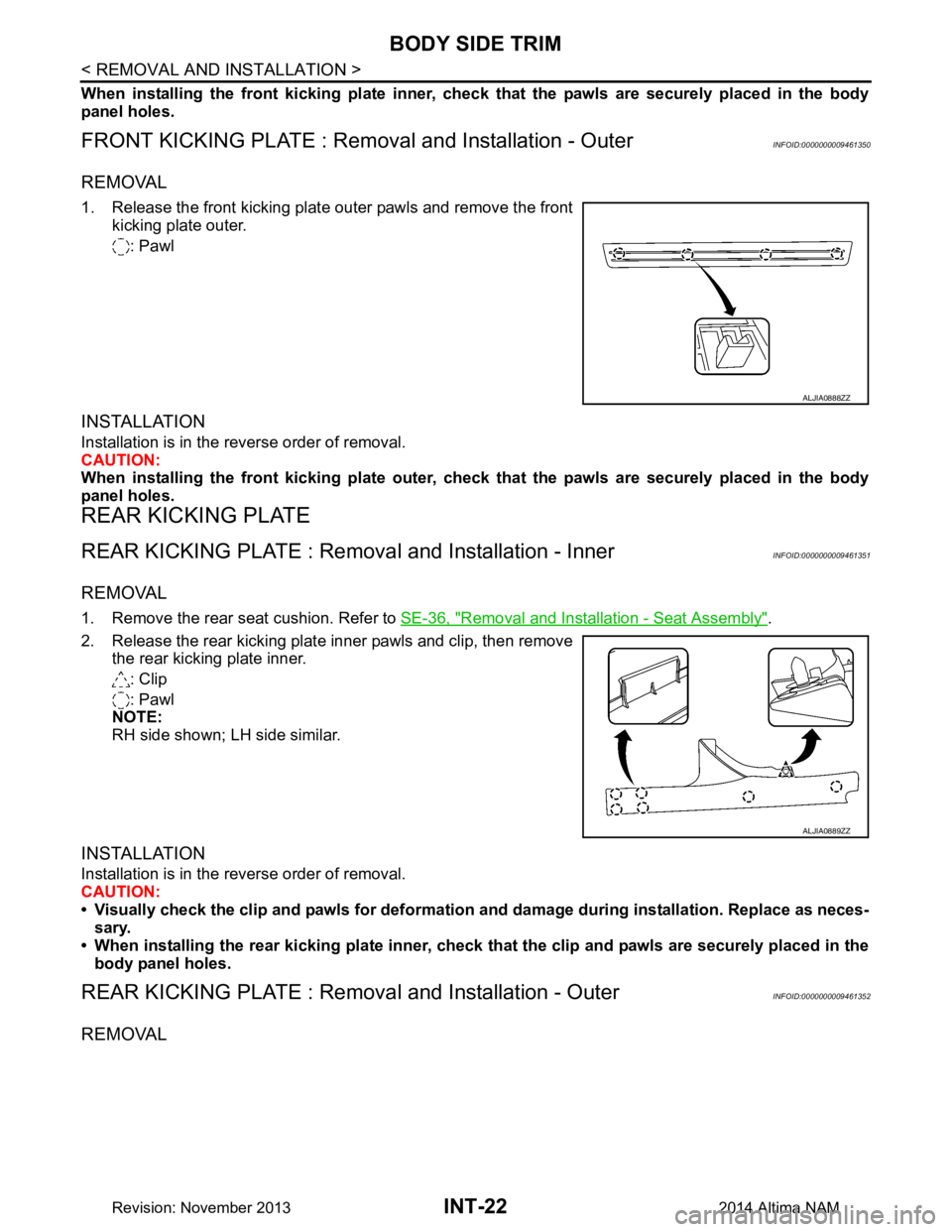

REAR KICKING PLATE
REAR KICKING PLATE : Remova l and Installation - InnerINFOID:0000000009461351
REMOVAL
1. Remove the rear seat cushion. Refer to SE-36, "Removal and Installation - Seat Assembly".
2. Release the rear kicking plate inner pawls and clip, then remove the rear kicking plate inner.
: Clip
: Pawl
NOTE:
RH side shown; LH side similar.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Visually check the clip and pawls for deformation and damage during installation. Replace as neces-
sary.
• When installing the rear kicking plate inner, check that the clip and pawls are securely placed in the
body panel holes.
REAR KICKING PLATE : Remova l and Installation - OuterINFOID:0000000009461352
REMOVAL
ALJIA0888ZZ
ALJIA0889ZZ
Revision: November 20132014 Altima NAM

BODY SIDE TRIMINT-23
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
1. Release the rear kicking plate outer pawls and remove the rear kicking plate outer.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• When installing the rear kicking plate outer, ch eck that the pawls are securely placed in the body
panel holes.
BODY SIDE WELT
BODY SIDE WELT : Removal and Inst allation - Front Body Side WeltINFOID:0000000009461353
REMOVAL
1. Remove the dash side finisher. Refer to INT-20, "DASH SIDE FINISHER : Removal and Installation".
2. Remove the center pillar lower finisher. Refer to INT-23, "CENTER PILLAR LOWER FINISHER : Removal
and Installation".
3. Remove the front body side welt.
INSTALLATION
Installation is in the reverse order of removal.
BODY SIDE WELT : Removal and In stallation - Rear Body Side WeltINFOID:0000000009461354
REMOVAL
1. Remove the center pillar lower finisher. Refer to INT-23, "CENTER PILLAR LOWER FINISHER : Removal
and Installation".
2. Remove the rear body side welt.
INSTALLATION
Installation is in the reverse order of removal.
CENTER PILLAR LOWER FINISHER
CENTER PILLAR LOWER FINISHER : Removal and InstallationINFOID:0000000009461355
REMOVAL
1. Move the front seat to the full forward position.
2. Remove the front kicking plate inner. Refer to INT-21, "FRONT KICKING PLATE : Removal and Installa-
tion - Inner".
3. Remove the rear kicking plate inner. Refer to INT-22, "REAR KICKING PLATE : Removal and Installation
- Inner".
4. Partially remove the front body side welt. Refer to INT-23, "BODY SIDE WELT : Removal and Installation
- Front Body Side Welt".
5. Partially remove the rear body side welt. Refer to INT-23, "BODY SIDE WELT : Removal and Installation -
Rear Body Side Welt".
ALJIA0890ZZ
Revision: November 20132014 Altima NAM

INT-24
< REMOVAL AND INSTALLATION >
BODY SIDE TRIM
6. Release the center pillar lower finisher clips.: Clip
7. Remove the seat belt from the center pillar lower fi nisher, then remove the center pillar lower finisher.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Visually check the clips for deformation and dama ge during installation. Replace with new ones if
necessary.
• When installing the center pillar lower finisher, check that the clips are securely placed in the body
panel holes.
CENTER PILLAR UPPER FINISHER
CENTER PILLAR UPPER FINISHER : Removal and InstallationINFOID:0000000009461356
REMOVAL
1. Move the front seat to the full forward position.
2. Remove the center pillar lower finisher. Refer to INT-23, "CENTER PILLAR LOWER FINISHER : Removal
and Installation".

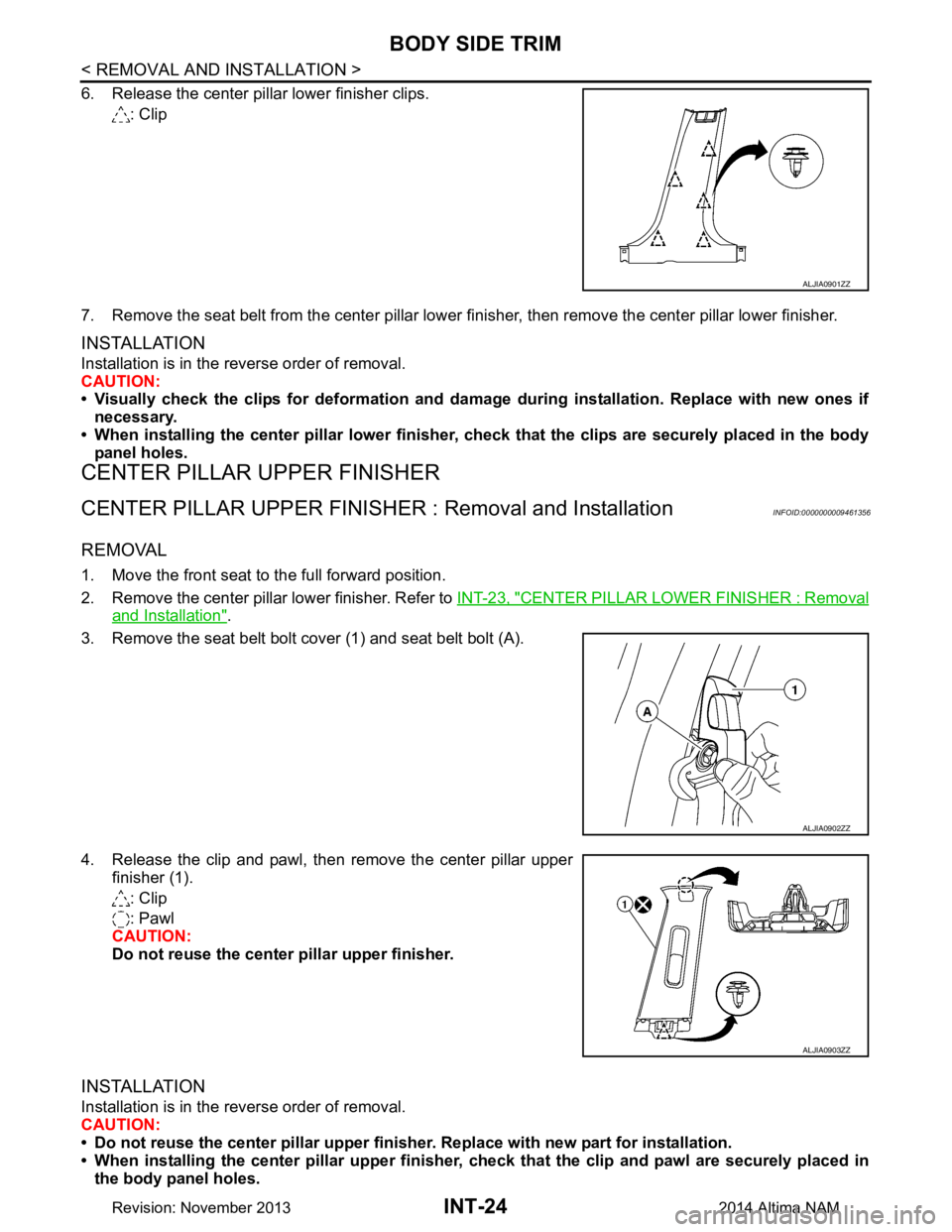

3. Remove the seat belt bolt cover (1) and seat belt bolt (A).
4. Release the clip and pawl, then remove the center pillar upper finisher (1).
: Clip
: Pawl
CAUTION:
Do not reuse the center pillar upper finisher.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse the center pillar upper finisher. Replace with new part for installation.
• When installing the center pillar upper finisher, check that the clip and pawl are securely placed in
the body panel holes.
ALJIA0901ZZ
ALJIA0902ZZ
ALJIA0903ZZ
Revision: November 20132014 Altima NAM

BODY SIDE TRIMINT-25
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
REAR PILLAR FINISHER
REAR PILLAR FINISHER : Removal and InstallationINFOID:0000000009461357
REMOVAL
1. Remove the rear seat bolster. Refer to SE-38, "Removal and Installation - Rear Seat Bolster".
2. Partially remove the rear body side welt. Refer to INT-23, "BODY SIDE WELT : Removal and Installation -
Rear Body Side Welt".

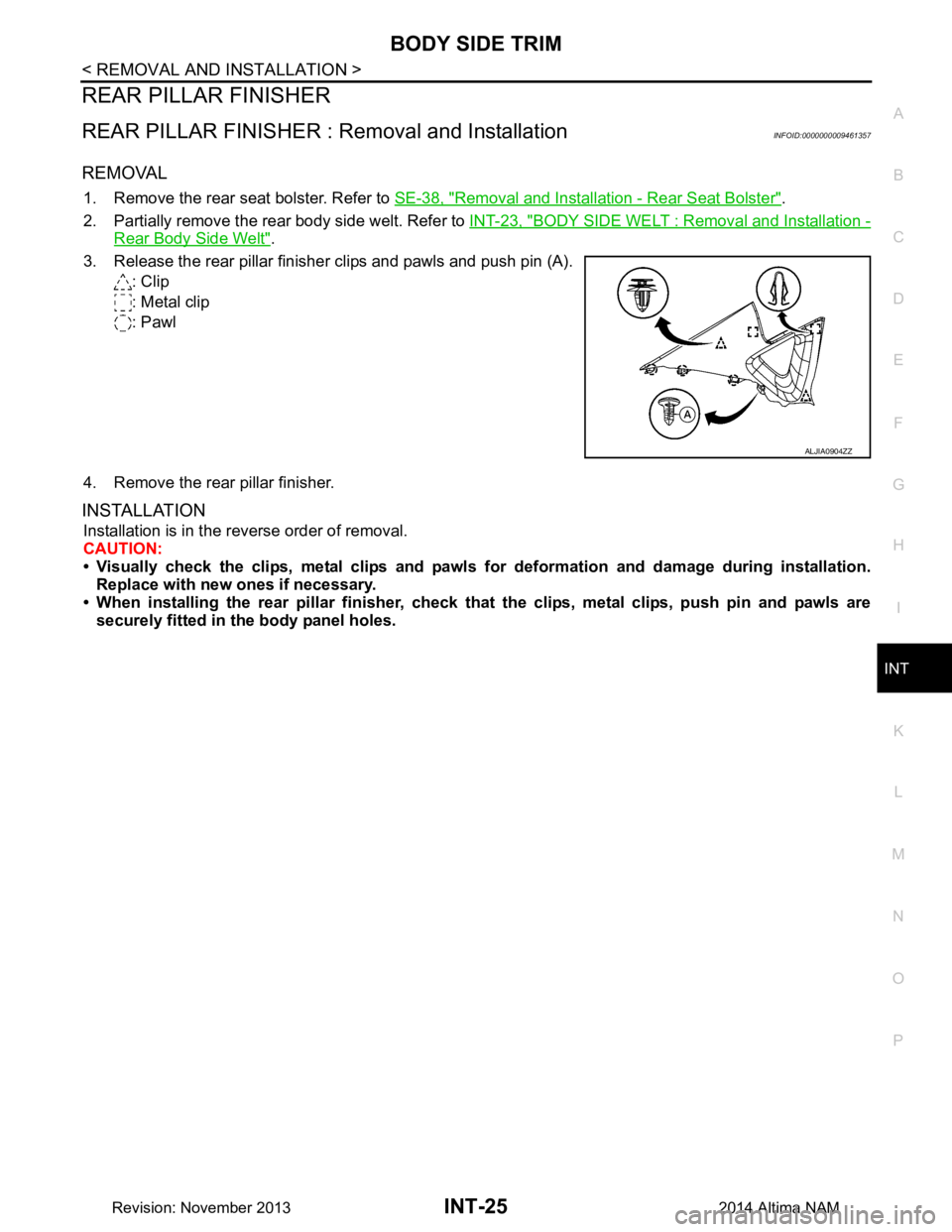

3. Release the rear pillar finisher clips and pawls and push pin (A). : Clip
: Metal clip
: Pawl
4. Remove the rear pillar finisher.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Visually check the clips, metal clips and pawls for deformation and damage during installation.
Replace with new ones if necessary.
• When installing the rear pillar finisher, check that the clips, metal clips, push pin and pawls are
securely fitted in the body panel holes.
ALJIA0904ZZ
Revision: November 20132014 Altima NAM

INT-26
< REMOVAL AND INSTALLATION >
REAR PARCEL SHELF FINISHER
REAR PARCEL SHELF FINISHER

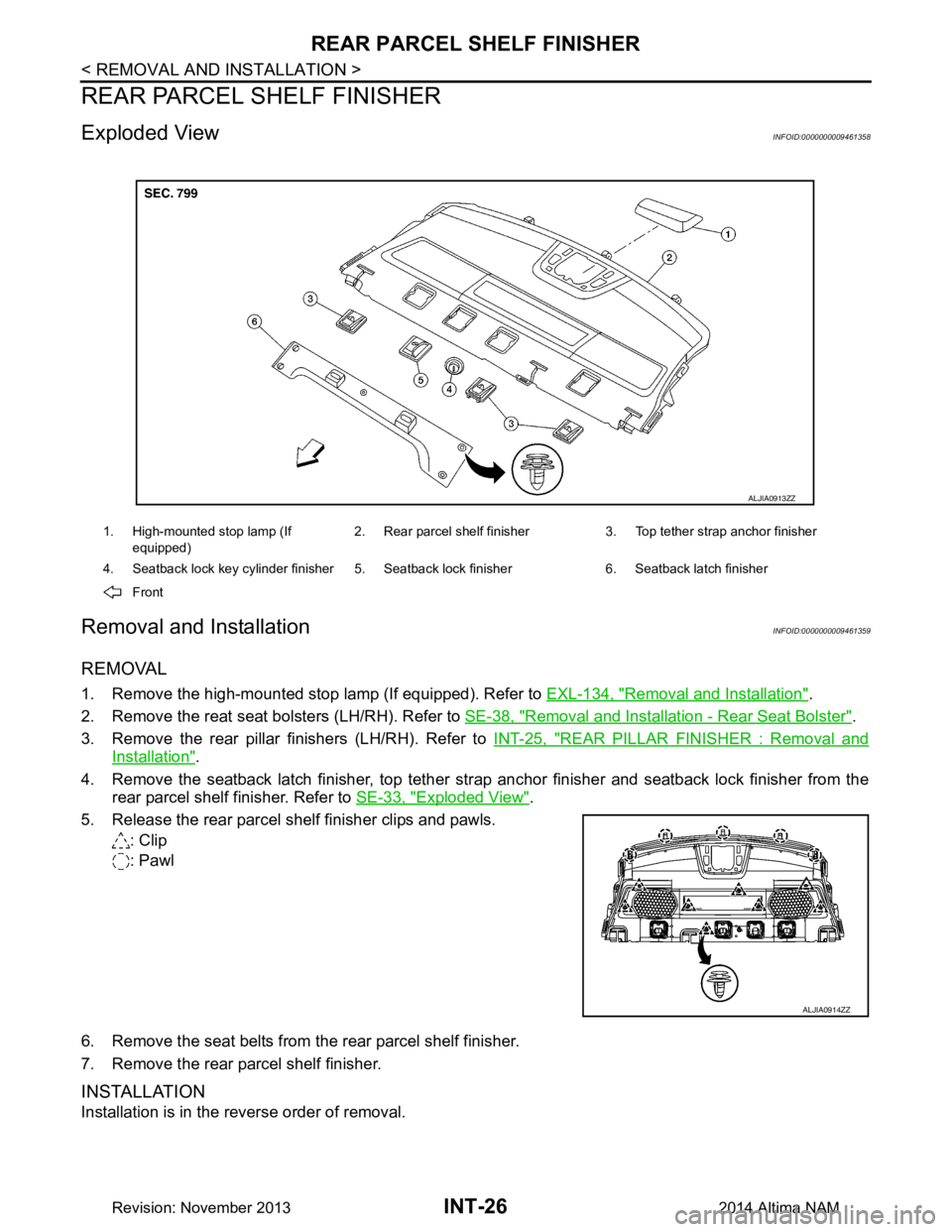

Exploded ViewINFOID:0000000009461358
Removal and InstallationINFOID:0000000009461359
REMOVAL
1. Remove the high-mounted stop lamp (If equipped). Refer to EXL-134, "Removal and Installation".
2. Remove the reat seat bolsters (LH/RH). Refer to SE-38, "Removal and Installation - Rear Seat Bolster"
.
3. Remove the rear pillar finishers (LH/RH). Refer to INT-25, "REAR PILLAR FINISHER : Removal and
Installation".
4. Remove the seatback latch finisher, top tether str ap anchor finisher and seatback lock finisher from the
rear parcel shelf finisher. Refer to SE-33, "Exploded View"
.
5. Release the rear parcel shelf finisher clips and pawls. : Clip
: Pawl
6. Remove the seat belts from the rear parcel shelf finisher.
7. Remove the rear parcel shelf finisher.
INSTALLATION
Installation is in the reverse order of removal.
1. High-mounted stop lamp (If equipped) 2. Rear parcel shelf finisher 3. Top tether strap anchor finisher
4. Seatback lock key cylinder finisher 5. Seatback lock finisher 6. Seatback latch finisher Front
ALJIA0913ZZ
ALJIA0914ZZ
Revision: November 20132014 Altima NAM

FLOOR TRIMINT-27
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
FLOOR TRIM

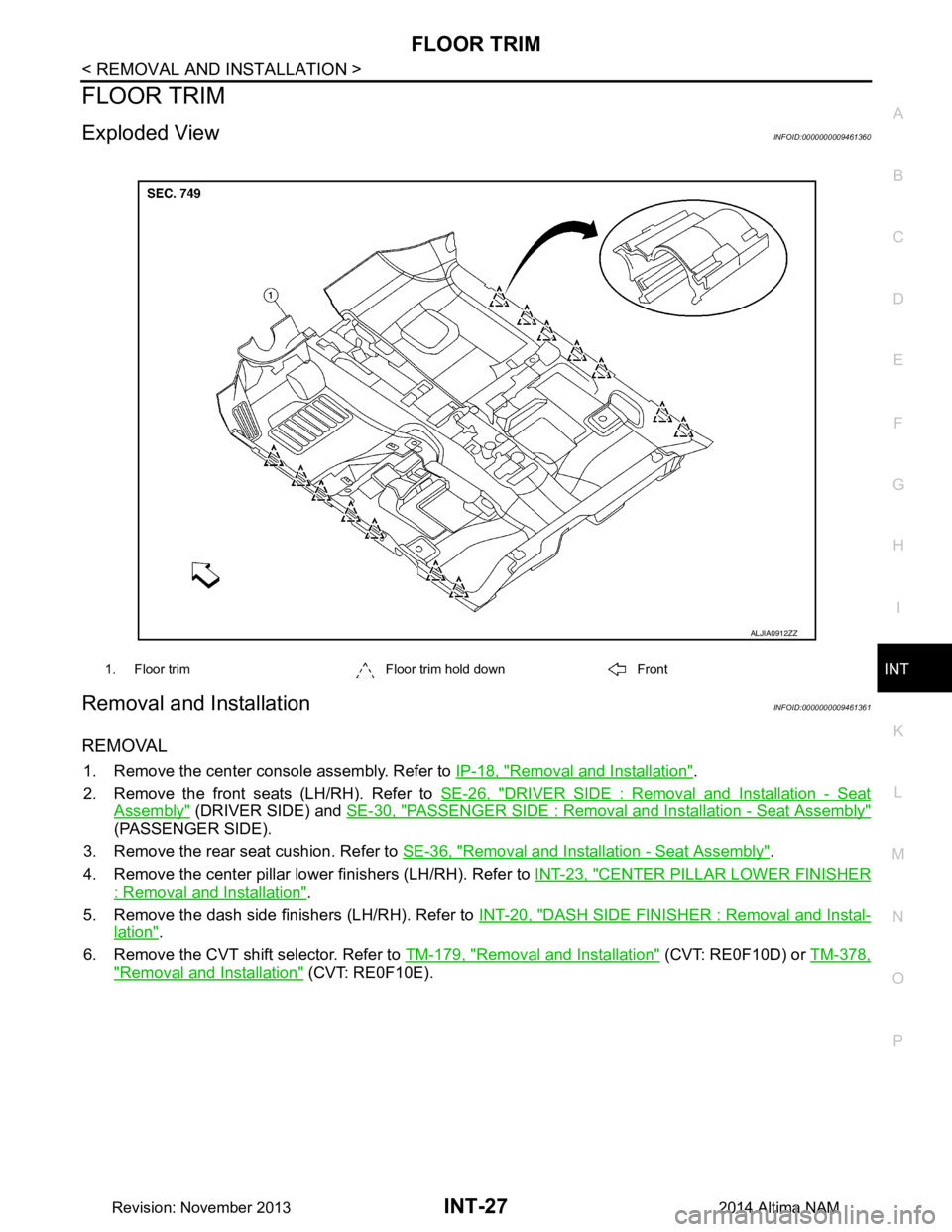

Exploded ViewINFOID:0000000009461360
Removal and InstallationINFOID:0000000009461361
REMOVAL
1. Remove the center console assembly. Refer to IP-18, "Removal and Installation".
2. Remove the front seats (LH/RH). Refer to SE-26, "DRIVER SIDE : Removal and Installation - Seat
Assembly" (DRIVER SIDE) and SE-30, "PASSENGER SIDE : Removal and Installation - Seat Assembly"
(PASSENGER SIDE).
3. Remove the rear seat cushion. Refer to SE-36, "Removal and Installation - Seat Assembly"
.
4. Remove the center pillar lower finishers (LH/RH). Refer to INT-23, "CENTER PILLAR LOWER FINISHER
: Removal and Installation".
5. Remove the dash side finishers (LH/RH). Refer to INT-20, "DASH SIDE FINISHER : Removal and Instal-
lation".
6. Remove the CVT shift selector. Refer to TM-179, "Removal and Installation"
(CVT: RE0F10D) or TM-378,
"Removal and Installation" (CVT: RE0F10E).
1. Floor trim Floor trim hold down Front
ALJIA0912ZZ
Revision: November 20132014 Altima NAM

INT-28
< REMOVAL AND INSTALLATION >
FLOOR TRIM
7. Release all floor trim hold downs (A).
8. Remove the floor trim.
INSTALLATION
Installation is in the reverse order of removal.
ALJIA0911ZZ
Revision: November 20132014 Altima NAM

HEADLININGINT-29
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
HEADLINING

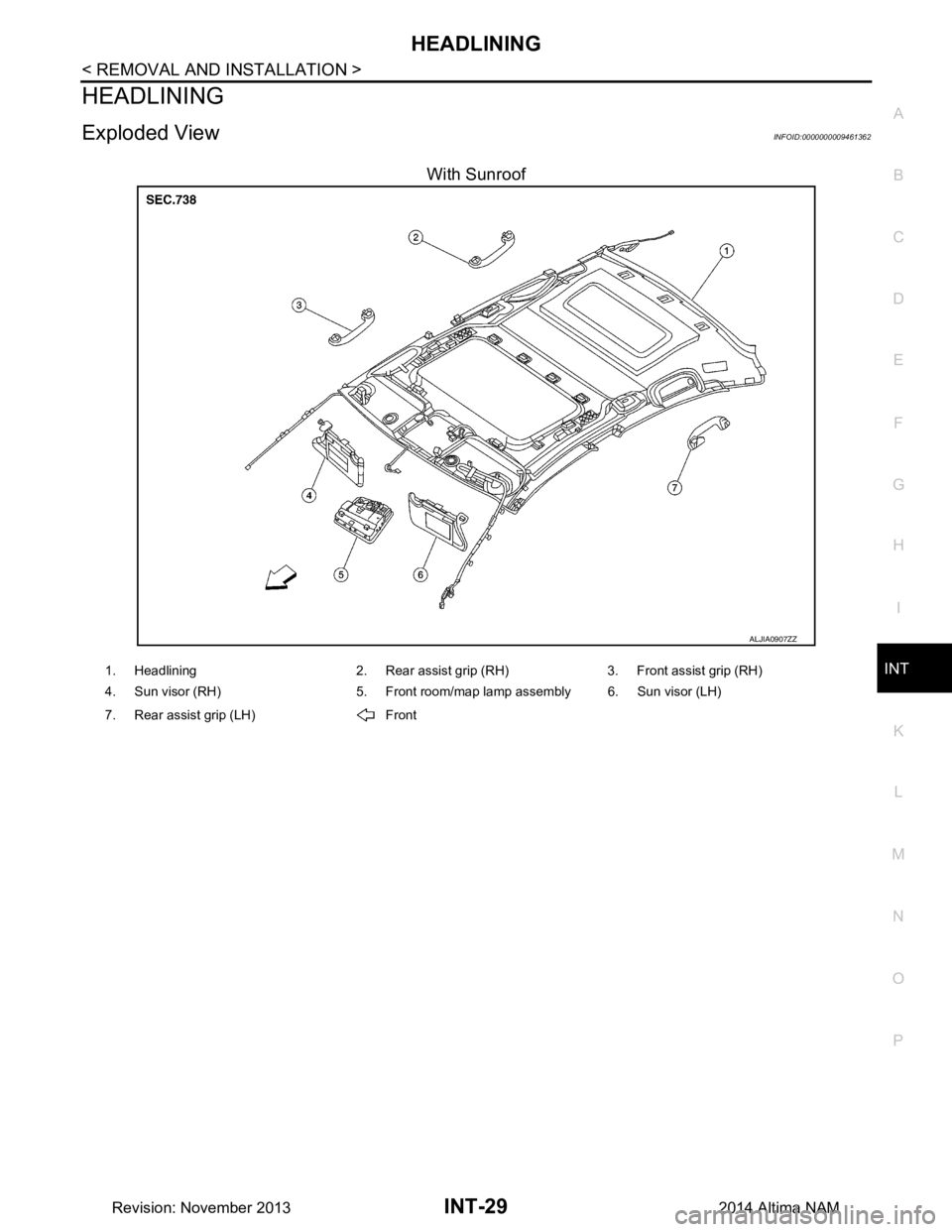

Exploded ViewINFOID:0000000009461362
