NISSAN TEANA 2014 Service Manual

MIR-1
DRIVER CONTROLS
C
D E
F
G H
I
J
K
M
SECTION MIR
A
B
MIR
N
O P
CONTENTS
MIRRORS
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Work ..................................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tools .......................................... ......3
Commercial Service Tools .......................................3
WIRING DIAGRAM .......................................4
INSIDE MIRROR ............................................ .....4
Wiring Diagram - With Homelink Universal Trans-
ceiver ................................................................... ......
4
Wiring Diagram - Without Homelink Universal
Transceiver ......................................................... ......
6
DOOR MIRROR ...................................................8
Wiring Diagram ................................................... ......8
SYMPTOM DIAGNOSIS ..............................13
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
13
Work Flow ............................................................ ....13
Generic Squeak and Rattle Troubleshooting ...........14
Diagnostic Worksheet ..............................................17
REMOVAL AND INSTALLATION ...............19
INSIDE MIRROR ...............................................19
Exploded View ..................................................... ....19
Removal and Installation .........................................19
DOOR MIRROR ................................................20
Exploded View .........................................................20
Removal and Installation .........................................20
DOOR MIRROR GLASS ...................................22
Removal and Installation .........................................22
DOOR MIRROR REAR FINISHER ...................23
Removal and Installation .........................................23
DOOR MIRROR ACTUATOR ...........................24
Removal and Installation .........................................24
DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................
25
Removal and Installation ..................................... ....25
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

MIR-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951574
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000009463520
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a s hop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PREPARATIONMIR-3
< PREPARATION >
C
D E
F
G H
I
J
K
M A
B
MIR
N
O P
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000009895301
The actual shapes of the tools may differ from those illustrated here.
Commercial Service ToolsINFOID:0000000009463522
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-46534)
Trim Tool Set Removing trim components
—
(J-50397)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
SIIA0993E
AWJIA0483ZZ
ALJIA1232ZZ
(TechMate No.)
Tool name Description
(J-39565)
Engine Ear Locating the noise
SIIA0995E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

MIR-4
< WIRING DIAGRAM >
INSIDE MIRROR
WIRING DIAGRAM
INSIDE MIRROR
Wiring Diagram - With Homelink Universal TransceiverINFOID:0000000009463523
AALWA0465GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INSIDE MIRRORMIR-5
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
MIR
N
O P

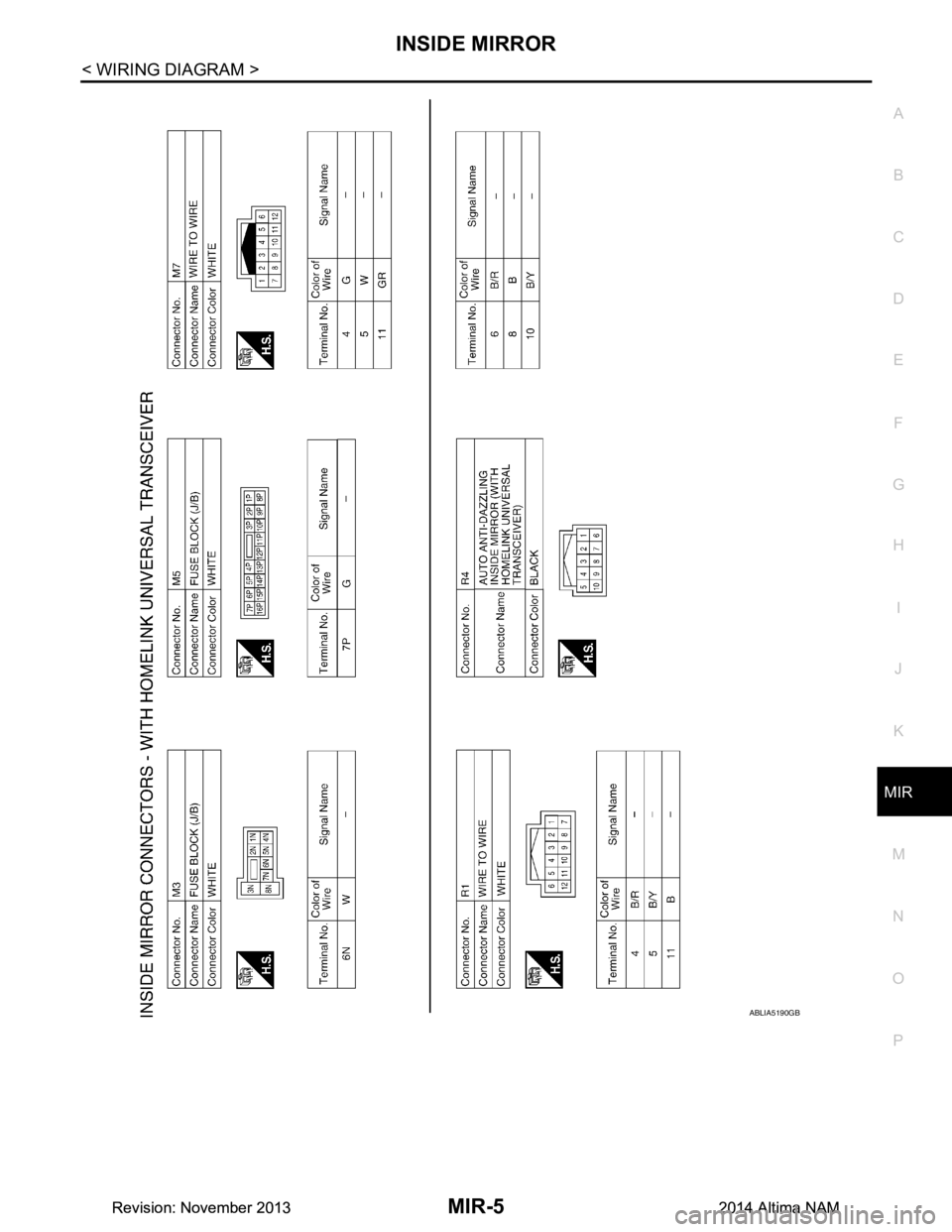

ABLIA5190GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

MIR-6
< WIRING DIAGRAM >
INSIDE MIRROR
Wiring Diagram - Without Home link Universal Transceiver
INFOID:0000000009463524
AALWA0464GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INSIDE MIRRORMIR-7
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
MIR
N
O P
ABLIA5191GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

MIR-8
< WIRING DIAGRAM >
DOOR MIRROR
DOOR MIRROR
Wiring Diagram INFOID:0000000009463525
ABLWA2248GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DOOR MIRRORMIR-9
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
MIR
N
O P

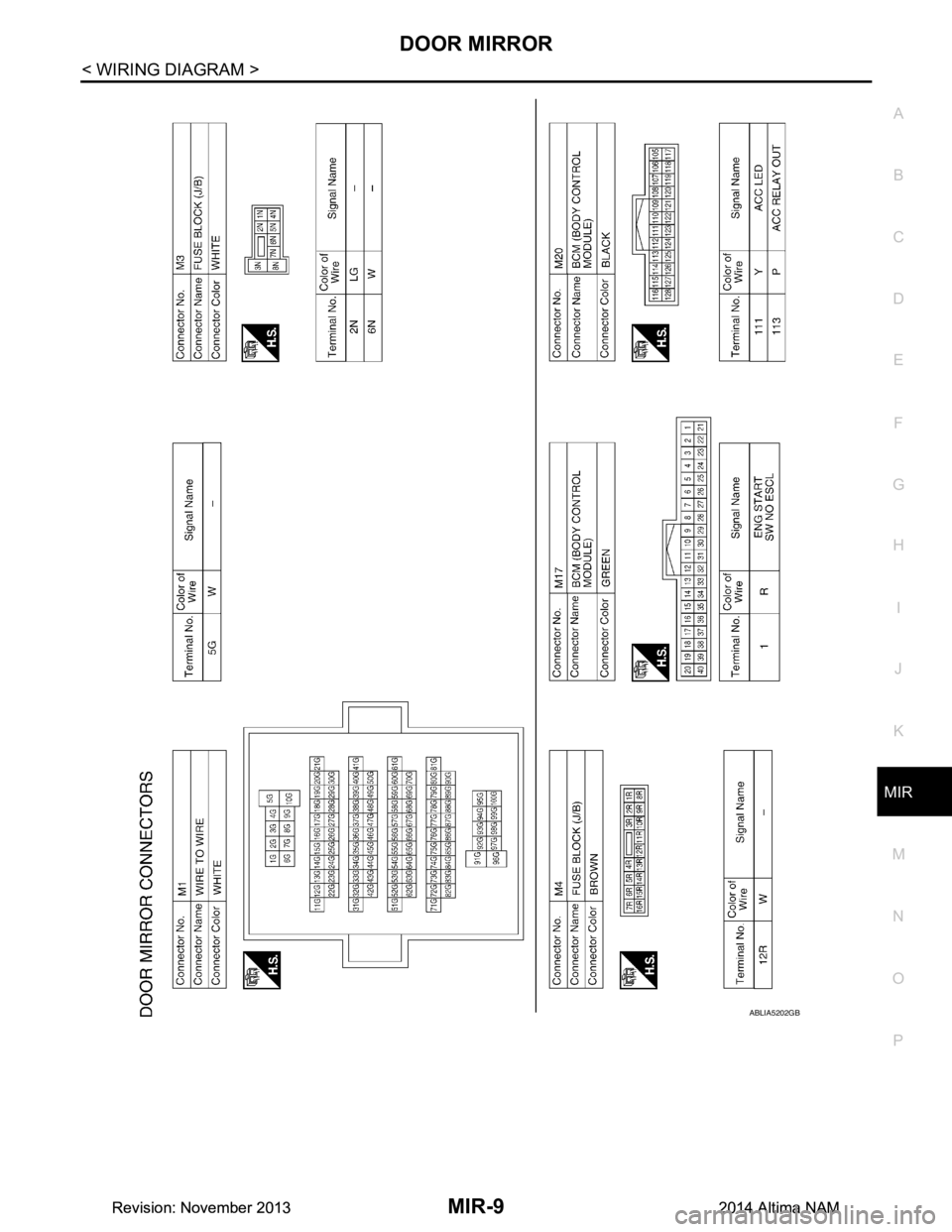

ABLIA5202GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

MIR-10
< WIRING DIAGRAM >
DOOR MIRROR
ABLIA5192GB
