NISSAN TEANA 2014 Service Manual

RAX-4
< SYMPTOM DIAGNOSIS >
NOISE, VIBRATION, AND HARSHNESS(NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS
NOISE, VIBRATION, AND HARSHNESS(NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000009460674
Use the chart below to help you find the cause of the sy mptom. If necessary, repair or replace these parts.
×: ApplicableReference page
RAX-6, "Removal and Installation"RAX-6, "Removal and Installation"RAX-6, "Removal and Installation"WT-52, "NVH Troubleshooting Chart"WT-52, "NVH Troubleshooting Chart"
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Parts interference
Wheel bearing damage
TIRES
ROAD WHEEL
Symptom REAR AXLE Noise
×× ××
Shake ×× ××
Vibration ×× ×
Shimmy ×× ××
Shudder ×××
Poor quality ride or handling × × ×××
Revision: November 20132014 Altima NAM

WHEEL HUBRAX-5
< PERIODIC MAINTENANCE >
CEF
G H
I
J
K L
M A
B
RAX
N
O P
PERIODIC MAINTENANCE
WHEEL HUB
On-vehicle ServiceINFOID:0000000009460676
Check axle and suspension parts for excessive play, wear or damage.
• Shake each rear wheel to check for excessive play.
Wheel Hub Bearing
If the following conditions are not met or not with in specification, replace the wheel hub and bearing.
• Check that wheel hub and bearing rotates smoothly.
• Check wheel hub and bearing axial end play.
• Check wheel hub and bearing runout. NOTE:
• Make sure the area between the disc brake rotor and wheel hub
and bearing are free from dirt or debris.
• Place the dial gauge on smooth su rface, free from scratches or
dents.
• Make sure the disc brake rotor is securely fastened to the wheel hub and bearing.
SMA525A
Axial end play : Refer to RAX-8, "Wheel
Hub Bearing".
Runout : Refer to RAX-8, "Wheel
Hub Bearing".
ALEIA0153ZZ
Revision: November 20132014 Altima NAM

RAX-6
< REMOVAL AND INSTALLATION >
WHEEL HUB
REMOVAL AND INSTALLATION
WHEEL HUB
Exploded ViewINFOID:0000000009460677
Removal and InstallationINFOID:0000000009460678
REMOVAL
1. Remove the rear wheel and tire using power tool. Refer to WT-55, "Adjustment".
2. Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with
wire. Refer to BR-39, "BRAKE CALIPER AS SEMBLY : Exploded View"
.
CAUTION:
Do not depress brake pedal while caliper assembly is removed.
3. Put alignment marks on the disc brake rotor and rear wheel hub and bearing, then remove the disc rotor.
4. Remove the rear wheel sensor (1) from the knuckle and position
it aside.

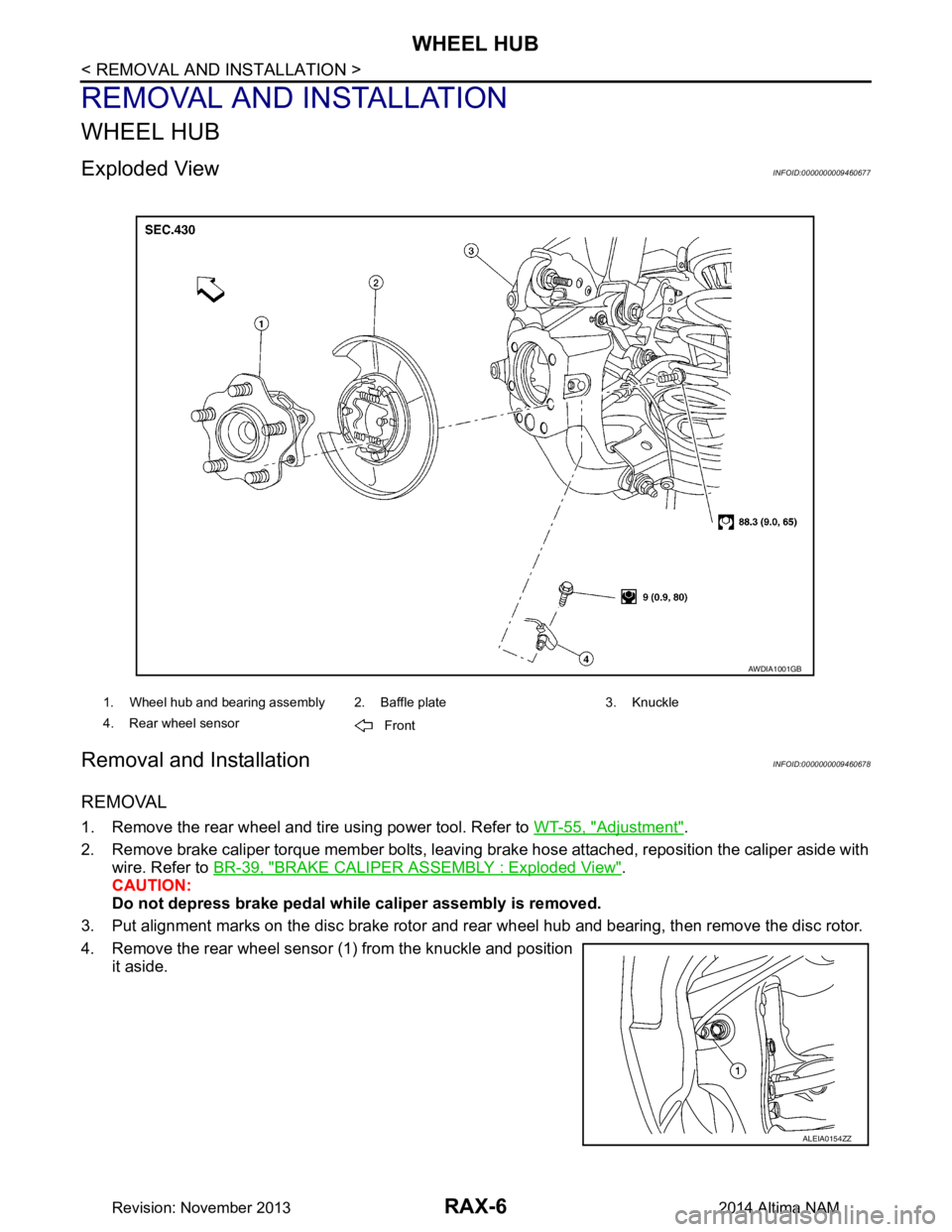

1. Wheel hub and bearing assembly 2. Baffle plate 3. Knuckle
4. Rear wheel sensor Front
AWDIA1001GB
ALEIA0154ZZ
Revision: November 20132014 Altima NAM

WHEEL HUBRAX-7
< REMOVAL AND INSTALLATION >
CEF
G H
I
J
K L
M A
B
RAX
N
O P
5. Remove the bolts (A) from the wheel hub and bearing assembly.
6. Remove the wheel hub and bearing assembly from knuckle.
7. Remove the wheel hub and bearing assembly dust cap.
INSTALLATION
Installation is in the reverse order of removal.
• Check that the wheel hub and beari ng assembly operates smoothly.
• Align the marks made on the rotor and wheel hub and bearing assembly.
ALDIA0295ZZ
Revision: November 20132014 Altima NAM

RAX-8
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Wheel Hub BearingINFOID:0000000009460679
Axial end play0.1 mm (0.004 in) or less
Runout 0.05 (0.002 in) or less
Revision: November 20132014 Altima NAM

RF-1
BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
D E
F
G H
I
J
L
M
SECTION RF
A
B
RF
N
O P
CONTENTS
ROOF
PRECAUTION ................ ...............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Work ..................................................3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tools ........................................ ......4
Commercial Service Tools .......................................4
SYSTEM DESCRIPTION ..............................5
COMPONENT PARTS ................................... .....5
MOONROOF .......................................................... ......5
MOONROOF : Component Parts Location .............5
MOONROOF : Component Description ...................5
SYSTEM ..............................................................6
MOONROOF .......................................................... ......6
MOONROOF : System Diagram ..............................6
MOONROOF : System Description ...........................6
DIAGNOSIS SYSTEM (BCM) .............................8
COMMON ITEM ..................................................... ......8
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) ................................................. ......
8
RETAINED PWR ................................................... ......8
RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR) ............................................... ......
9
ECU DIAGNOSIS INFORMATION ..............10
BCM (BODY CONTROL MODULE) ............... ....10
List of ECU Reference ........................................ ....10
MOONROOF MOTOR ASSEMBLY ...................11
Reference Value .................................................. ....11
WIRING DIAGRAM ......................................12
MOONROOF SYSTEM .....................................12
Wiring Diagram .................................................... ....12
BASIC INSPECTION ...................................18
DIAGNOSIS AND REPAIR WORKFLOW ........18
Work Flow ............................................................ ....18
INSPECTION AND ADJUSTMENT ..................20
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT .................................................... ....
20
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description ............................. ....
20
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement .. ....
20
DTC/CIRCUIT DIAGNOSIS .........................21
POWER SUPPLY AND GROUND CIRCUIT ....21
BCM ....................................................................... ....21
BCM : Diagnosis Procedure ....................................21
MOONROOF MOTOR ASSEMBLY ...........................21
MOONROOF MOTOR ASSEM BLY : Description ....21
MOONROOF MO TOR ASSEMBLY :
Component Function Check .............................. ....
22
MOONROOF MOTOR ASSEMBLY :
Diagnosis Procedure .......................................... ....
22
MOONROOF MOTOR ASSEMBLY : Component
Inspection ............................................................ ....
24
MOONROOF MOTOR ASSEMBLY : Special Re-
pair Requirement ................................................. ....
25
MOONROOF SWITCH ......................................26
Description ...............................................................26
Diagnosis Procedure ..............................................26
Component Inspection .............................................27
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

RF-2
DOOR SWITCH .................................................28
Description ........................................................... ...28
Component Function Check .................................28
Diagnosis Procedure ..............................................28
Component Inspection ............................................29
SYMPTOM DIAGNOSIS .............................30
MOONROOF DOES NOT OPERATE PROP-
ERLY ............................................................... ...
30
Diagnosis Procedure ........................................... ...30
AUTO OPERATION DOES NOT OPERATE .....31
Diagnosis Procedure ........................................... ...31
MOONROOF DOES NOT OPERATE ANTI-
PINCH FUNCTIO N .......................................... ...
32
Diagnosis Procedure ........................................... ...32
DOES NOT STOP FULLY-OPEN OR FULLY-
CLOSED POSITION ....................................... ...
33
Diagnosis Procedure ........................................... ...33
RETAINED POWER OPERATION DOES NOT
OPERATE PROPERLY .................................. ...
34
Diagnosis Procedure ........................................... ...34
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ......................... ......................................
35
Work Flow ............................................................ ...35
Generic Squeak and Rattle Troubleshooting ....... ...37
Diagnostic Worksheet .............................................39
REMOVAL AND INSTALLATION ..............41
GLASS LID ..................................................... ...41
Removal and Installation .........................................41
MOONROOF MOTOR ASSEMBLY ............... ...42
Removal and Installation .........................................42
MOONROOF UNIT ASSEMBLY .................... ...43
Inspection ............................................................. ...43
Exploded View ........................................................46
Removal and Installation .........................................46
SUNSHADE .................................................... ...48
Removal and Installation .........................................48
WIND DEFLECTOR ........................................ ...49
Removal and Installation .........................................49
MOONROOF SWITCH ................................... ...50
Removal and Installation .........................................50
UNIT DISASSEMBLY AND ASSEMBLY ...51
MOONROOF UNIT ASSEMBLY .................... ...51
Exploded View ..................................................... ...51
Disassembly and Assembly ....................................51
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PRECAUTIONSRF-3
< PRECAUTION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951570
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for WorkINFOID:0000000009461288
• When removing or disassembling each component, be ca reful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusabl e part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
-Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

RF-4
< PREPARATION >
PREPARATION
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000009461289
The actual shapes of the tools may differ from those illustrated here.
Commercial Service ToolsINFOID:0000000009461290
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-43980)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
—
(J-46534)
Trim Tool Set Removing trim components
SIIA0993E
SIIA0994E
AWJIA0483ZZ
(TechMate No.)
Tool name Description
(J-39565)
Engine Ear Locating the noise
(—)
Power tool Loosening nuts, screws and bolts
SIIA0995E
PIIB1407E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSRF-5
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
RF
N
O P
SYSTEM DESCRIPTION
COMPONENT PARTS
MOONROOF
MOONROOF : Component Parts LocationINFOID:0000000009461291
MOONROOF : Component DescriptionINFOID:0000000009461292
AWBIA1289ZZ
1. BCM (view with combinat ion meter removed) 2. Moonroof switch 3. Moonroof motor assembly (view with
headliner removed)
4. Front door switch LH (RH similar) 5. Combination meter
Component Function
BCM Supplies the power supply to moonroof motor assembly.
Moonroof switch Transmits tilt up/down & slides open/close operation signal to moonroof motor assembly.
Moonroof mo tor assembly The moonroof motor and CPU are integrated into one unit that enables tilt up/down & slide open/
close by moonroof switch operation.
Front door switch Detects door open/close condition and transmits to BCM.
Combination meter Transmits vehicle speed signal to moonroof motor assembly.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
