NISSAN TEANA 2014 Service Manual

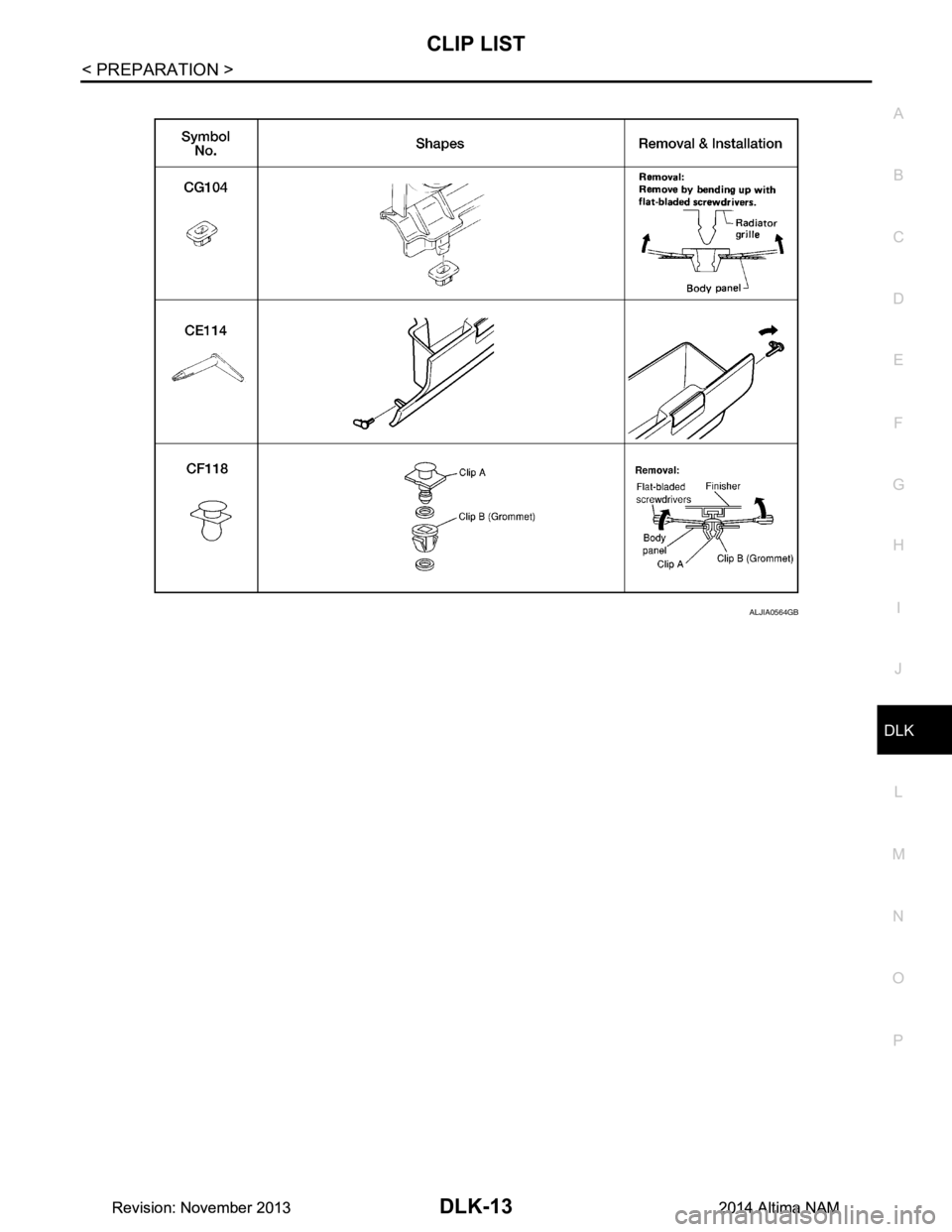

CLIP LISTDLK-13
< PREPARATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
ALJIA0564GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-14
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
POWER DOOR LOCK SYSTEM

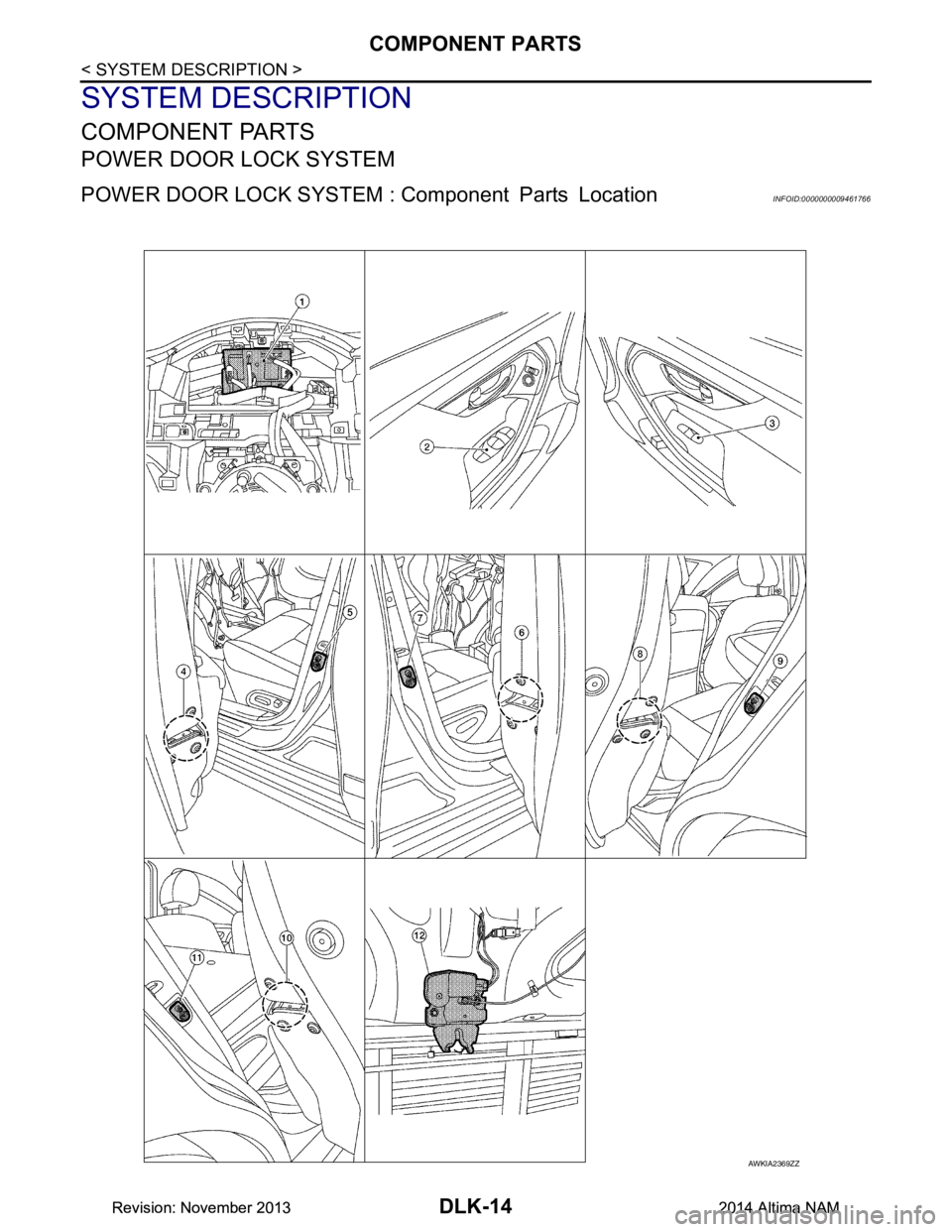

POWER DOOR LOCK SYSTEM : Component Parts LocationINFOID:0000000009461766
AWKIA2369ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSDLK-15
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
POWER DOOR LOCK SYSTEM : Component DescriptionINFOID:0000000009461767
INTELLIGENT KEY SYSTEM
1. BCM (view with combination meter
removed) 2. Main power window and door lock/
unlock switch 3. Power window and door lock/unlock
switch RH
4. Front door lock actuator LH 5. Front door switch LH 6. Front door lock actuator RH
7. Front door switch RH 8. Rear door lock actuator LH 9. Rear door switch LH
10. Rear door lock actuator RH 11. Rear door switch RH 12. Trunk lamp switch and trunk release solenoid
Item Function
BCM Controls the door lock system
Door switch Inputs door open/close condition to BCM
Door lock and unlock switch • Detects if door lock and unlock switch is press/release
• Integrated in the main power window and door lock/unlock switch and power window and
door lock/unlock switch (RH)
Door lock actuator Output lock/unlock signal from BCM and locks/unlocks each door
Trunk lamp switch and release so-
lenoid Output release signal from BCM and release trunk lid
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-16
< SYSTEM DESCRIPTION >
COMPONENT PARTS

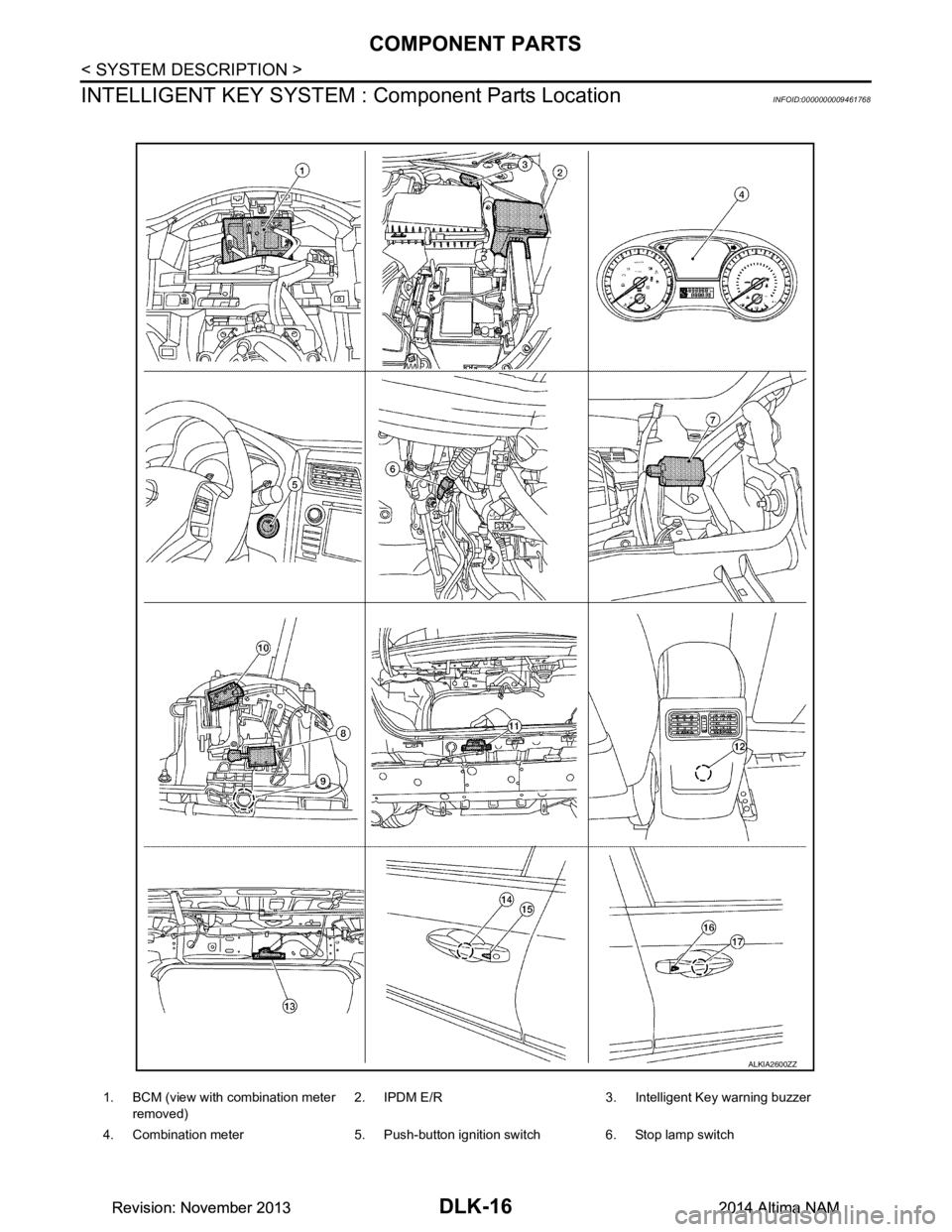

INTELLIGENT KEY SYSTEM : Component Parts Location
INFOID:0000000009461768
1. BCM (view with combination meter
removed) 2. IPDM E/R 3. Intelligent Key warning buzzer
4. Combination meter 5. Push-button ignition switch 6. Stop lamp switch
ALKIA2600ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSDLK-17
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
7. Remote keyless entry receiver (view from RH side of dash with dash pad
removed) 8. CVT shift selector (shift lock sole-
noid) 9. CVT shift selector [park position
switch (shift selector)]
10. CVT shift selector (park position switch) 11. Outside key antenna (rear bumper)
(view with rear bumper cover re-
moved) 12. Inside key antenna (console)
13. Inside key antenna (rear parcel shelf) 14. Outside key antenna (LH) 15. Door request switch (LH) (if
equipped)
16. Door request switch (RH) (if equipped) 17. Outside key antenna (RH)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-18
< SYSTEM DESCRIPTION >
COMPONENT PARTS
18. Trunk lid opener switch 19. Trunk lamp switch and trunk release solenoid 20. Front door switch LH
21. Front door lock assembly LH 22. Front door switch RH 23. Rear door switch LH
24. Rear door switch RH 25. Hood latch (hood switch) 26. Horn (high and low)
AWKIA2688ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSDLK-19
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
INTELLIGENT KEY SYSTEM : Component DescriptionINFOID:0000000009461769
INTEGRATED HOMELINK TRANSMITTER
INTEGRATED HOMELINK TRANSMI TTER : Component Parts LocationINFOID:0000000009461770
INTEGRATED HOMELINK TRANSM ITTER : Component DescriptionINFOID:0000000009461771
TRUNK LID OPENER SYSTEM
Item Function
BCM Controls the Intelligent Key system.
Trunk lamp switch Inputs trunk lid open/close condition to BCM.
Door lock actuator Output lock/unlock signal from BCM and locks/unlocks each door.
Stop lamp switch Inputs the brake pedal position condition to BCM.
Push-button ignition switch Inputs the push-button ignition switch ON/OFF condition to BCM.
Hood switch Inputs hood open/close condition to BCM.
Door switch Inputs door open/close condition to BCM.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.
Request switch (if equipped) Inputs lock/unlock operation to BCM.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Outside key antenna Detects if Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Combination meter Display, buzzer (combination meter) and KEY warning lamp are installed to combination meter.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.
1. Auto anti-dazzling inside mirror
ALKIA2461ZZ
Item Function
Homelink universal transceiver A maximum of 3 radio signals can be stored and transmitted to operate the garage door, etc.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-20
< SYSTEM DESCRIPTION >
COMPONENT PARTS

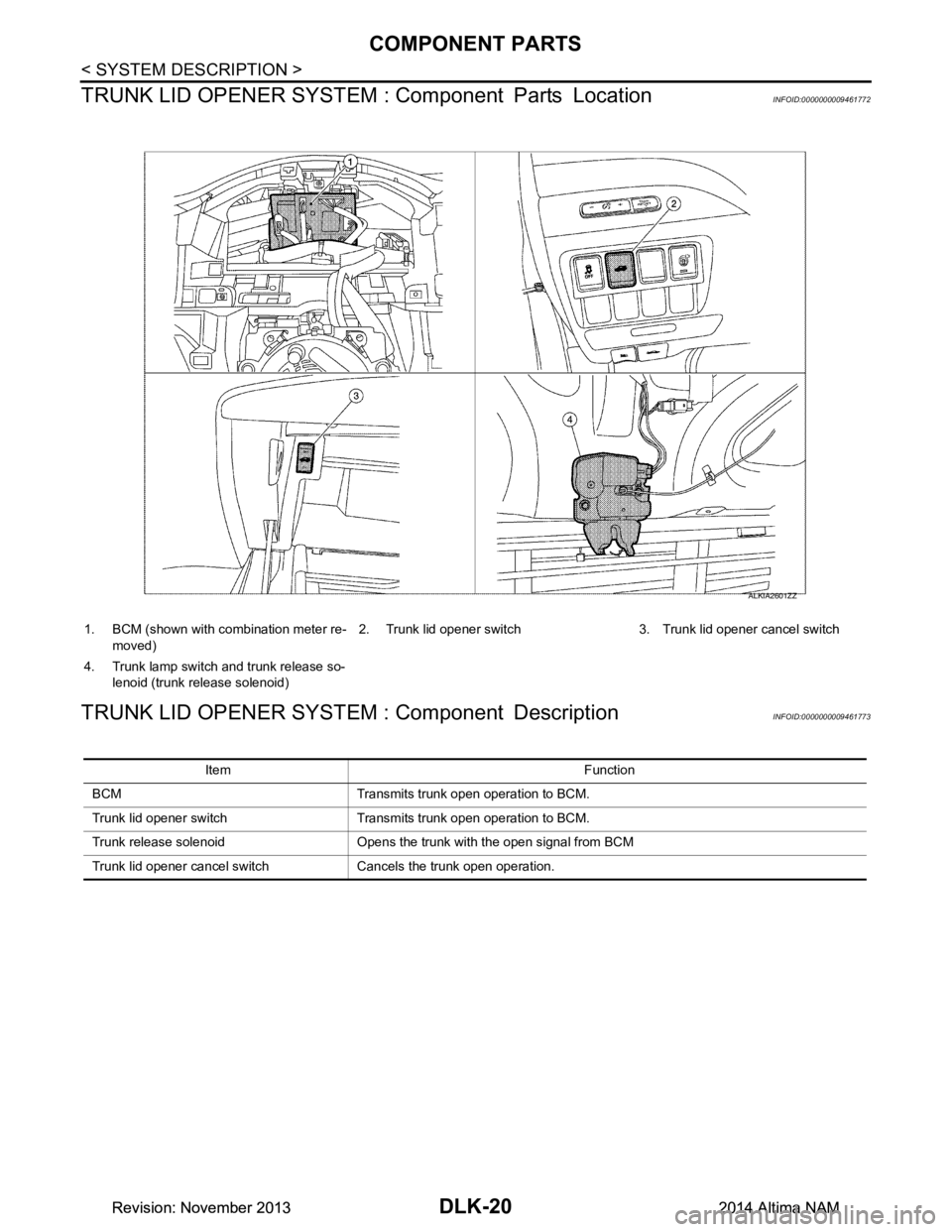

TRUNK LID OPENER SYSTEM : Component Parts Location
INFOID:0000000009461772
TRUNK LID OPENER SYSTEM : Component DescriptionINFOID:0000000009461773
ALKIA2601ZZ
1. BCM (shown with combination meter re-
moved) 2. Trunk lid opener switch 3. Trunk lid opener cancel switch
4. Trunk lamp switch and trunk release so- lenoid (trunk release solenoid)
Item Function
BCM Transmits trunk open operation to BCM.
Trunk lid opener switch Transmits trunk open operation to BCM.
Trunk release solenoid Opens the trunk with the open signal from BCM
Trunk lid opener cancel switch Cancels the trunk open operation.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEM (POWER DOOR LOCK SYSTEM)DLK-21
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
SYSTEM (POWER DOOR LOCK SYSTEM)

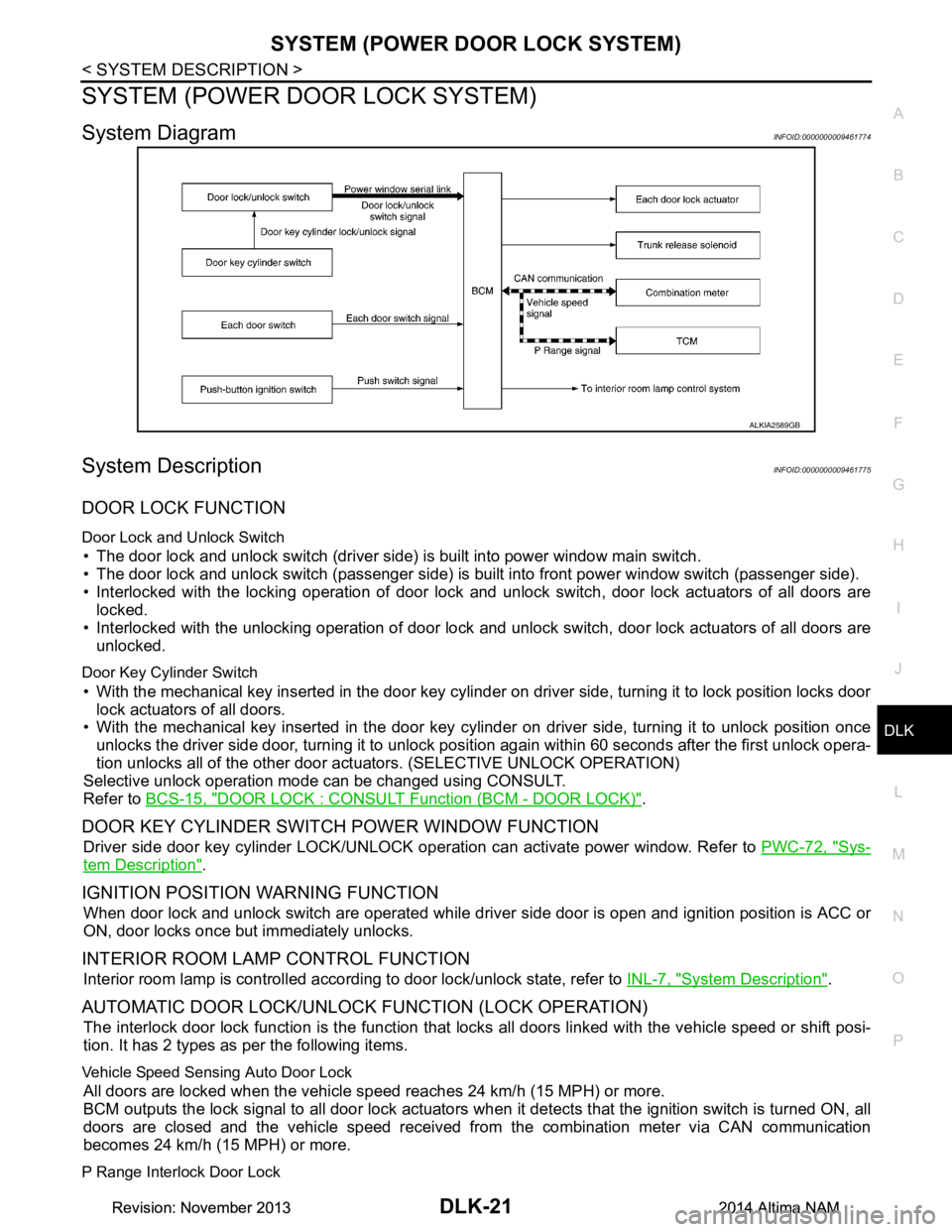

System DiagramINFOID:0000000009461774
System DescriptionINFOID:0000000009461775
DOOR LOCK FUNCTION
Door Lock and Unlock Switch
• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are
locked.
• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are
unlocked.
Door Key Cylinder Switch
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position locks door
lock actuators of all doors.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position once
unlocks the driver side door, turning it to unlock pos ition again within 60 seconds after the first unlock opera-
tion unlocks all of the other door act uators. (SELECTIVE UNLOCK OPERATION)
Selective unlock operation mode can be changed using CONSULT.
Refer to BCS-15, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"
.
DOOR KEY CYLINDER SWIT CH POWER WINDOW FUNCTION
Driver side door key cylinder LOCK/UNLOCK operat ion can activate power window. Refer to PWC-72, "Sys-
tem Description".
IGNITION POSITION WARNING FUNCTION
When door lock and unlock switch are operated while driv er side door is open and ignition position is ACC or
ON, door locks once but immediately unlocks.
INTERIOR ROOM LAMP CONTROL FUNCTION
Interior room lamp is controlled according to door lock/unlock state, refer to INL-7, "System Description".
AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)
The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-
tion. It has 2 types as per the following items.
Vehicle Speed Sensing Auto Door Lock
All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.
BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all
doors are closed and the vehicle speed received from the combination meter via CAN communication
becomes 24 km/h (15 MPH) or more.
P Range Interlock Door Lock
ALKIA2589GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-22
< SYSTEM DESCRIPTION >
SYSTEM (POWER DOOR LOCK SYSTEM)
All doors are locked when shifting the selector lever from the P (Park) position to any position other than P
(Park).
BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is in the ON posi-
tion, all doors are closed and the shift signal received fr om the TCM via CAN communication shifted from the
P (Park) position to any position other than P (Park).
Setting change of Automatic Door Lock/Unlock Function
The lock operation setting of the automatic door lock/unlock function can be changed.
With CONSULT
The ON/OFF switching of the automat ic door lock function and the type selection of the automatic door lock/
unlock function can be performed at the WORK SUPPORT setting of CONSULT.
Without CONSULT
The automatic door lock function ON/OFF can be switched by performing the following operation.
1. Close all doors (door switch OFF)
2. Ignition switch: OFF →ON
3. Press and hold the door lock and unlock switch for 5 se conds or more in the lock direction within 20 sec-
onds after turning the ignition switch ON.
4. The switching complete when the hazard lamp blinks.
AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)
The automatic door lock/unlock functi on is the function that unlocks all doors linked with the key position or
shift position. It has 2 types as per the following items.
IGN OFF Interlock Door Unlock
All doors are unlocked when the power supply position is changed from ON to OFF.
BCM outputs the unlock signal to all door lock actuator s when it detects that the power supply position is
changed from ignition switch ON to OFF.
P Range Interlock Door Unlock
All doors are unlocked when shifting the selector lever from any position other than the P to P position.
BCM outputs the unlock signal to all door lock actuators w hen it detects that the ignition switch is in the ON
position and the shift signal received from TCM via CAN communication is shifted from any position other than
the P to P position.
Setting change of Automatic Door Lock/Unlock Function
The unlock operation setting of the automat ic door lock/unlock function can be changed.
With CONSULT
The ON/OFF switching of the automatic door lock/unlo ck function and the type selection of the automatic door
lock/unlock function can be performed at the WORK SUPPORT setting of CONSULT.
Without CONSULT
The automatic door lock/unlock function ON/OFF c an be switched by performing the following operation.
1. Close all doors (door switch OFF)
2. Ignition switch: OFF →ON
3. Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20 seconds after turning the power supply position ON.
4. The switching is complete when the hazard lamp blinks.
OFF → ON : 2 blinks
ON → OFF : 1 blink
OFF → ON : 2 blinks
ON → OFF : 1 blink
