NISSAN TIIDA 2007 Service Repair Manual

EC-722
< FUNCTION DIAGNOSIS >[MR18DE]
AIR CONDITIONING CUT CONTROL
 When refrigerant pressure is excessively low or high.

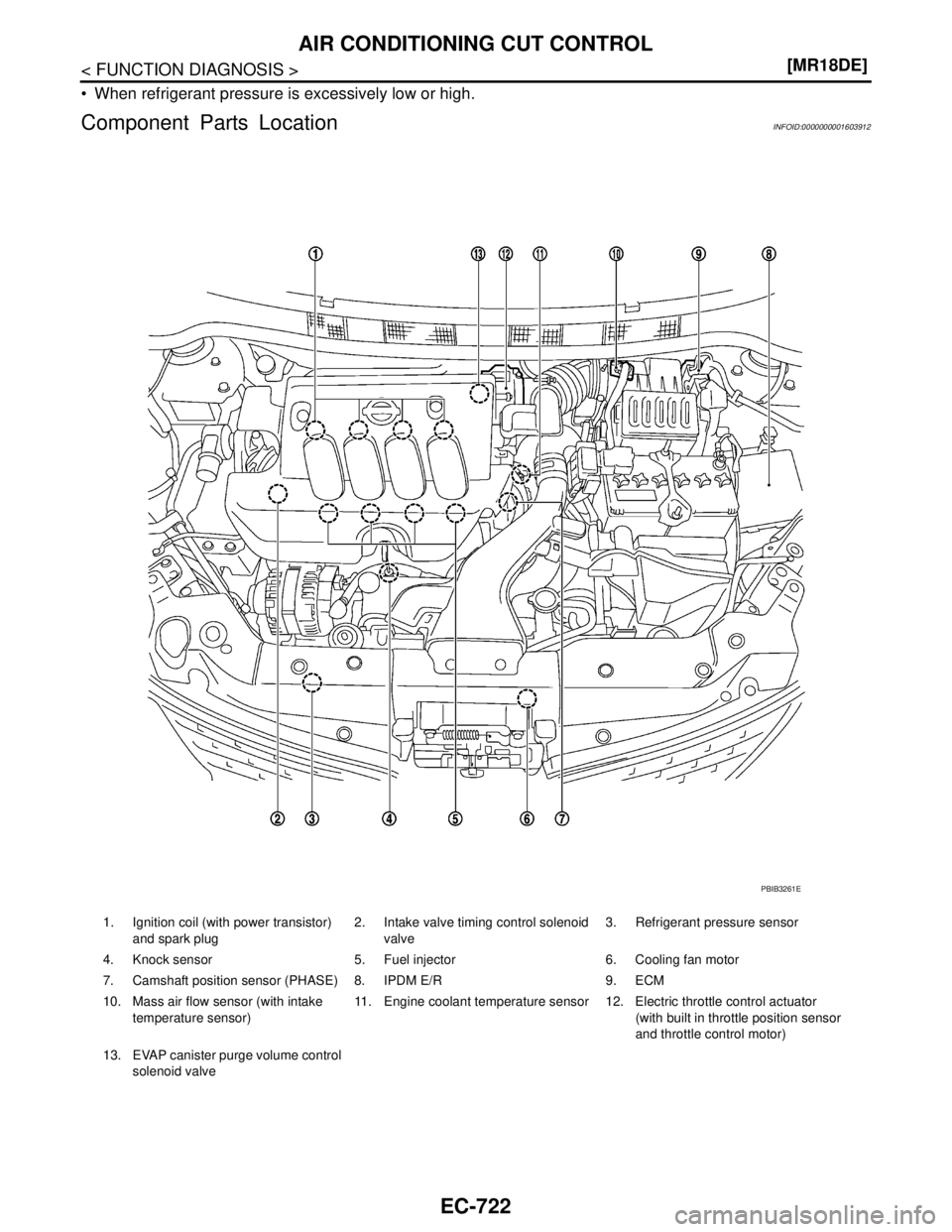

Component Parts LocationINFOID:0000000001603912
1. Ignition coil (with power transistor)
and spark plug2. Intake valve timing control solenoid
valve3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
PBIB3261E

AIR CONDITIONING CUT CONTROL
EC-723
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

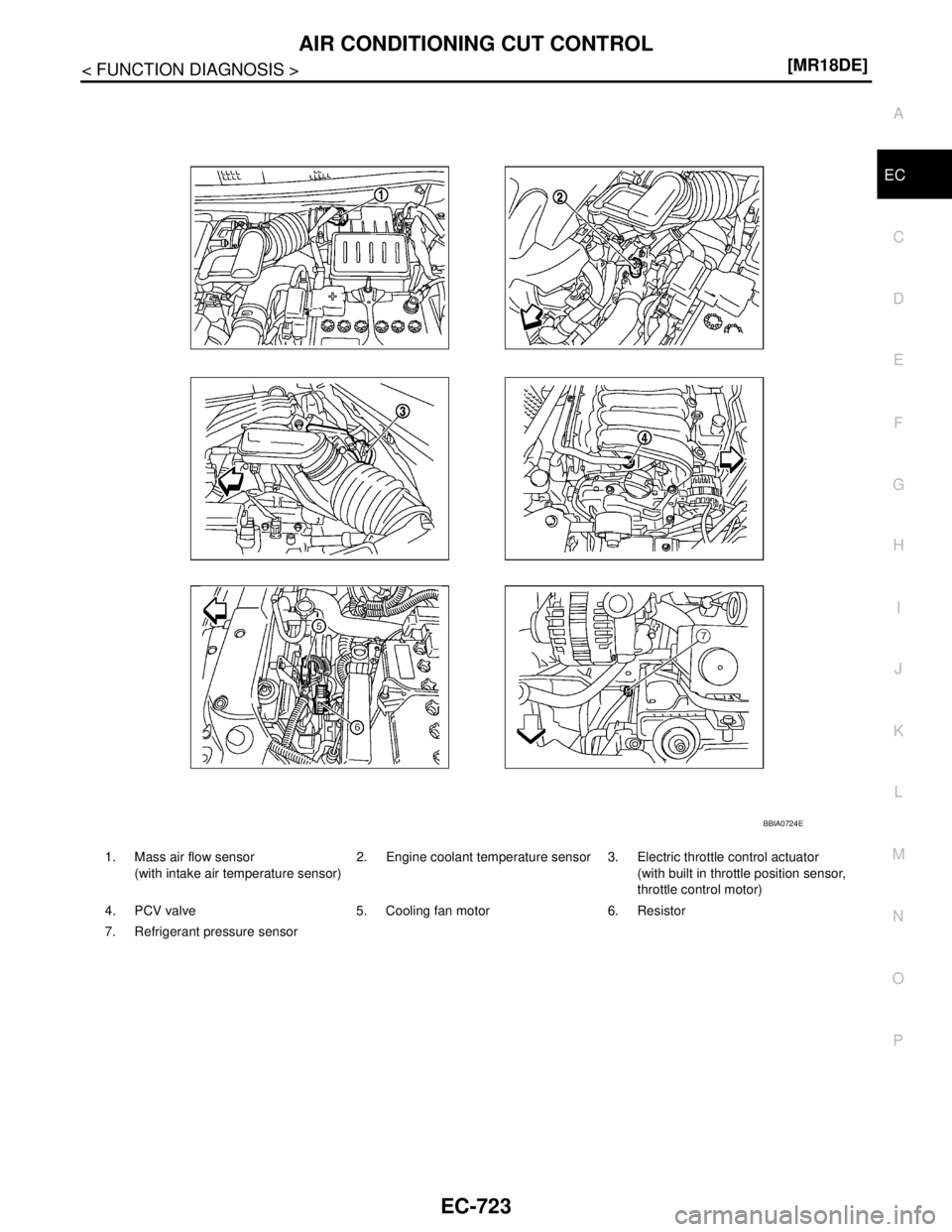

1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)
4. PCV valve 5. Cooling fan motor 6. Resistor
7. Refrigerant pressure sensor
BBIA0724E

EC-724
< FUNCTION DIAGNOSIS >[MR18DE]
AIR CONDITIONING CUT CONTROL

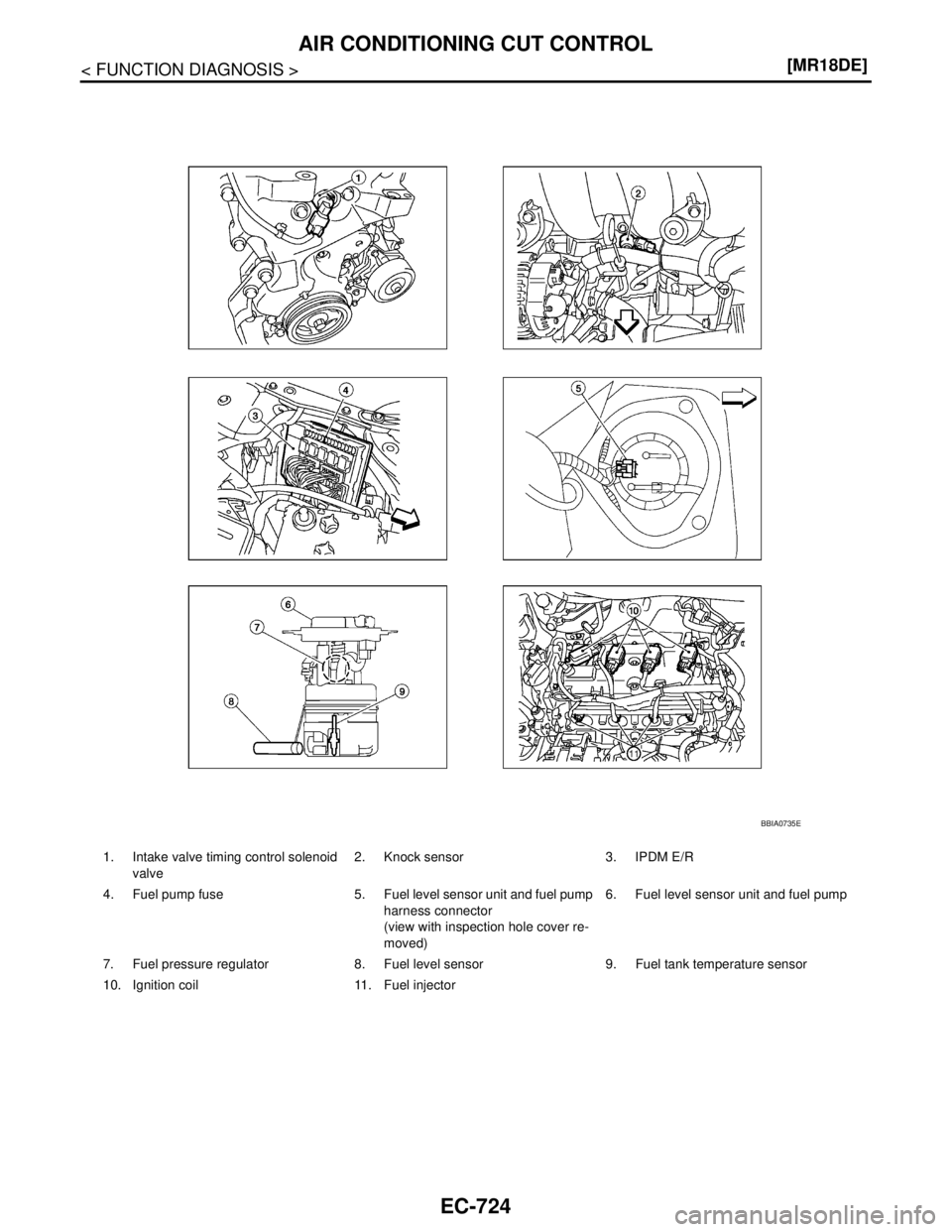

1. Intake valve timing control solenoid
valve2. Knock sensor 3. IPDM E/R
4. Fuel pump fuse 5. Fuel level sensor unit and fuel pump
harness connector
(view with inspection hole cover re-
moved)6. Fuel level sensor unit and fuel pump
7. Fuel pressure regulator 8. Fuel level sensor 9. Fuel tank temperature sensor
10. Ignition coil 11. Fuel injector
BBIA0735E

AIR CONDITIONING CUT CONTROL
EC-725
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

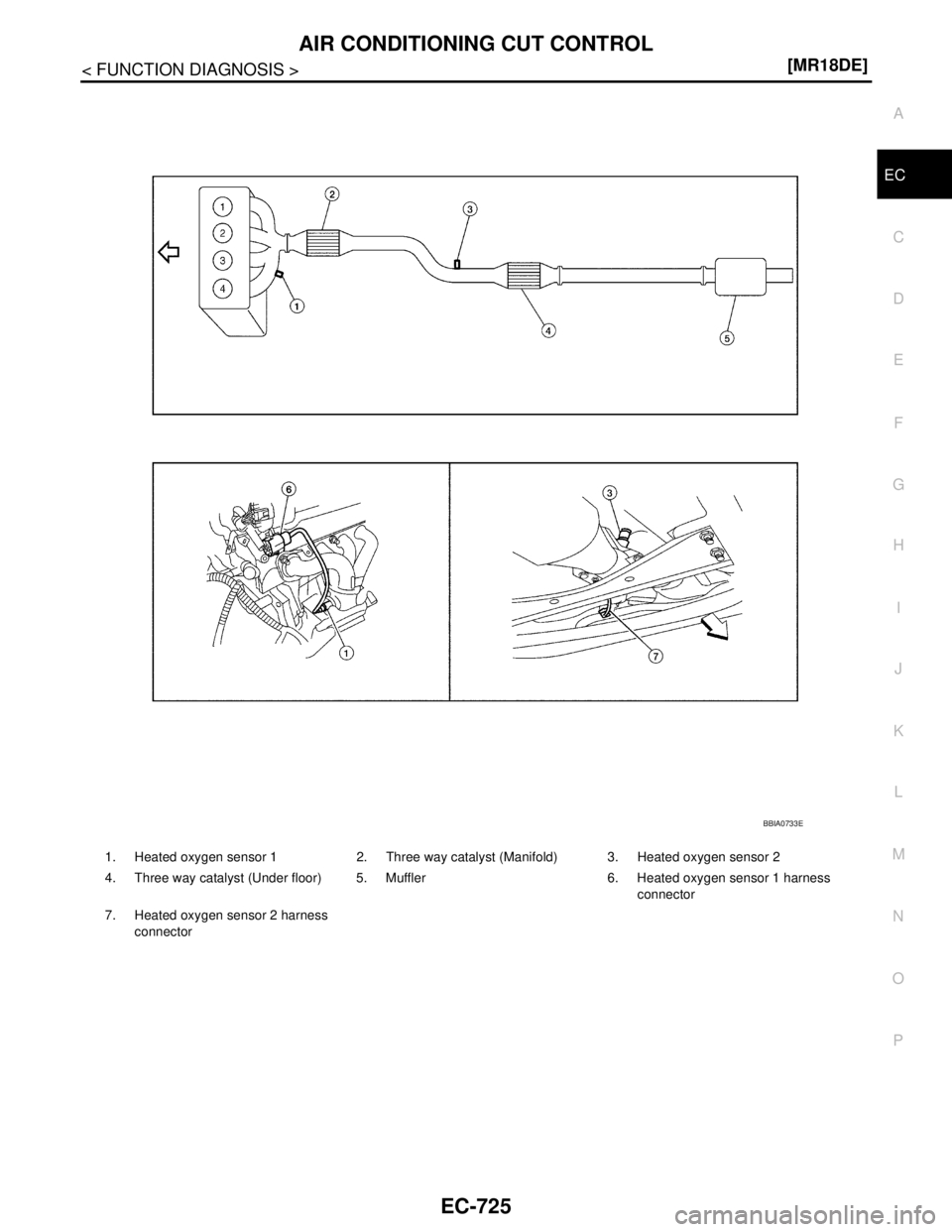

1. Heated oxygen sensor 1 2. Three way catalyst (Manifold) 3. Heated oxygen sensor 2
4. Three way catalyst (Under floor) 5. Muffler 6. Heated oxygen sensor 1 harness
connector
7. Heated oxygen sensor 2 harness
connector
BBIA0733E

EC-726
< FUNCTION DIAGNOSIS >[MR18DE]
AIR CONDITIONING CUT CONTROL

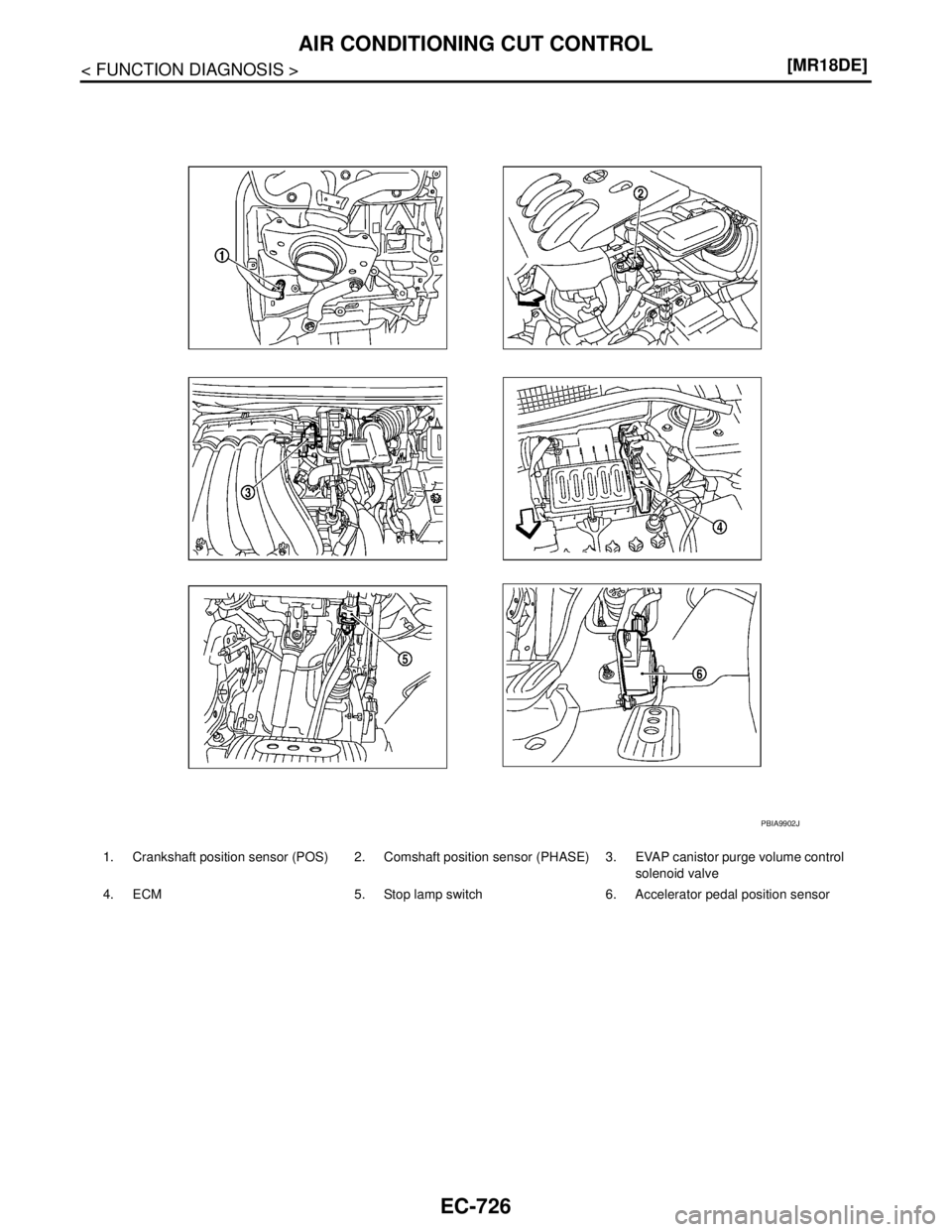

1. Crankshaft position sensor (POS) 2. Comshaft position sensor (PHASE) 3. EVAP canistor purge volume control
solenoid valve
4. ECM 5. Stop lamp switch 6. Accelerator pedal position sensor
PBIA9902J

AIR CONDITIONING CUT CONTROL
EC-727
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component DescriptionINFOID:0000000001161734

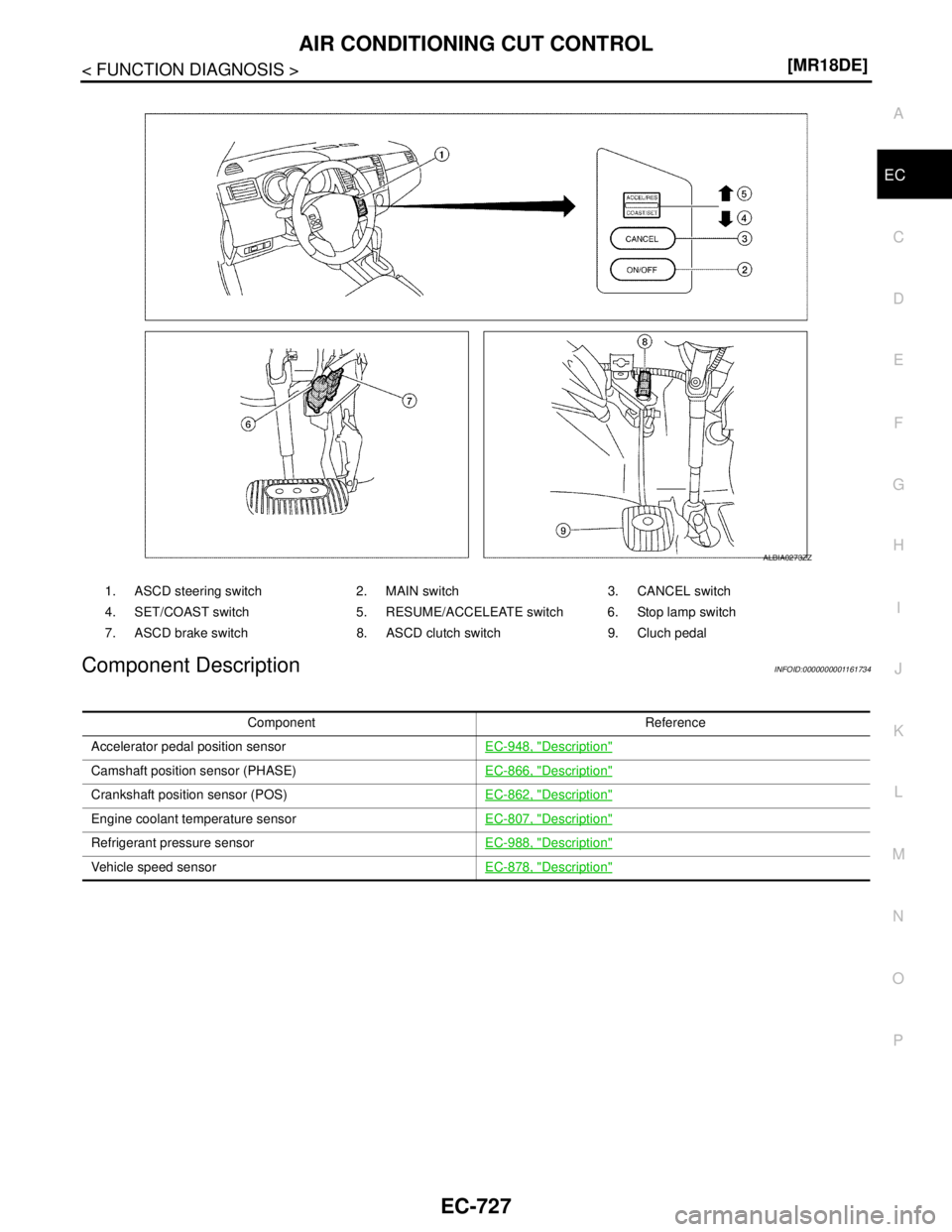

1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELEATE switch 6. Stop lamp switch
7. ASCD brake switch 8. ASCD clutch switch 9. Cluch pedal
ALBIA0273ZZ
Component Reference
Accelerator pedal position sensorEC-948, "
Description"
Camshaft position sensor (PHASE)EC-866, "Description"
Crankshaft position sensor (POS)EC-862, "Description"
Engine coolant temperature sensorEC-807, "Description"
Refrigerant pressure sensorEC-988, "Description"
Vehicle speed sensorEC-878, "Description"

EC-728
< FUNCTION DIAGNOSIS >[MR18DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (ASCD)

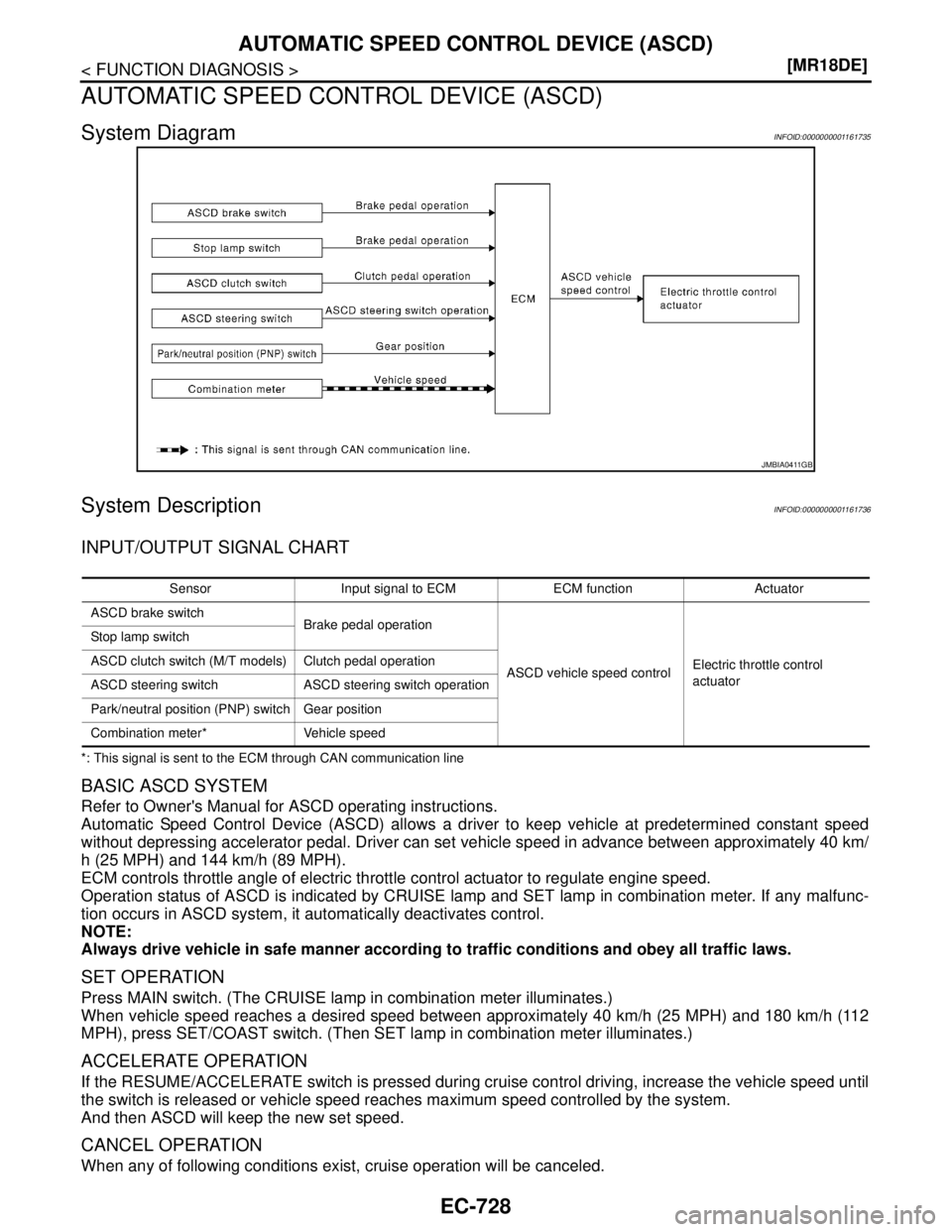

System DiagramINFOID:0000000001161735
System DescriptionINFOID:0000000001161736
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE lamp and SET lamp in combination meter. If any malfunc-
tion occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE lamp in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 180 km/h (112
MPH), press SET/COAST switch. (Then SET lamp in combination meter illuminates.)
ACCELERATE OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
JMBIA0411GB
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch
Brake pedal operation
ASCD vehicle speed controlElectric throttle control
actuator Sto p l am p s w it ch
ASCD clutch switch (M/T models) Clutch pedal operation
ASCD steering switch ASCD steering switch operation
Park/neutral position (PNP) switch Gear position
Combination meter* Vehicle speed

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-729
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
 CANCEL switch is pressed
 More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)
 Brake pedal is depressed
 Clutch pedal is depressed or gear position is changed to neutral position.
 Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
 TCS system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.
 Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by pressing SET/COAST switch or RESUME/
ACCELERATE switch.
 Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is pressed after cancel operation other than pressing MAIN switch
is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition must
meet following conditions.
 Brake pedal is released
 Clutch pedal is released
 Vehicle speed is greater than 40 km/h (25 MPH) and less than 180 km/h (112 MPH)

EC-730
< FUNCTION DIAGNOSIS >[MR18DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)

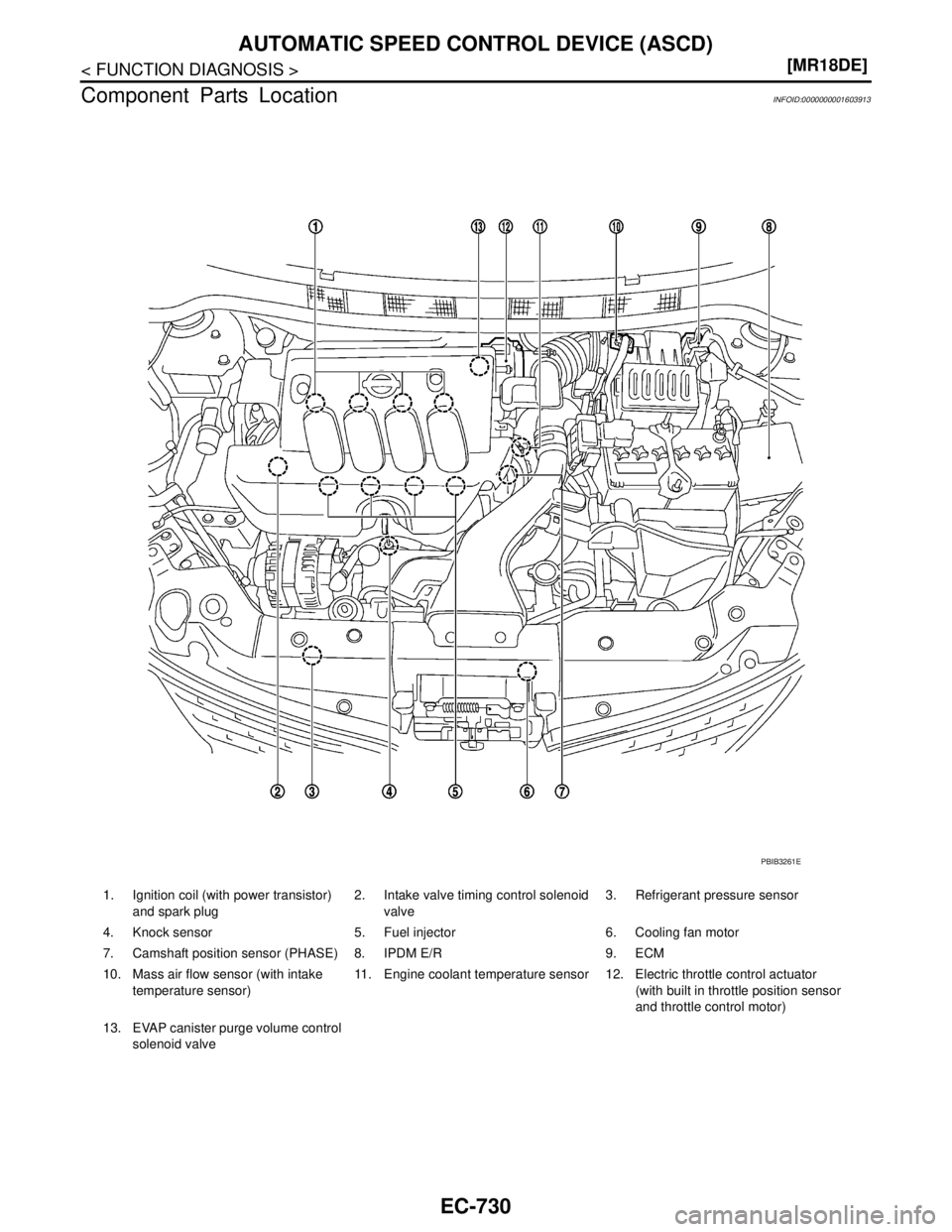

Component Parts Location
INFOID:0000000001603913
1. Ignition coil (with power transistor)
and spark plug2. Intake valve timing control solenoid
valve3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
PBIB3261E

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-731
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)
4. PCV valve 5. Cooling fan motor 6. Resistor
7. Refrigerant pressure sensor
BBIA0724E
