EC-682
< ON-VEHICLE MAINTENANCE >[HR16DE (WITHOUT EURO-OBD)]
FUEL PRESSURE
4. Connect fuel hose for fuel pressure check (1) to fuel tube
(engine side) with clamp (2) as shown in the figure.
 No.2 spool (5)
 Wipe off oil or dirt from hose insertion part using cloth moist-
ened with gasoline.
 Apply proper amount of gasoline between top of the fuel tube
(3) and No.1 spool (4).
 Insert fuel hose for fuel pressure check until it touches the
No.1 spool on fuel tube.
 Use NISSAN genuine hose clamp (part number: 16439 N4710
or 16439 40U00).
 When reconnecting fuel line, always use new clamps.
 Use a torque driver to tighten clamps.
 Install hose clamp to the position within 1 - 2 mm (0.04 - 0.08 in).
 Make sure that clamp screw does not contact adjacent parts.
5. Connect fuel tube adapter to quick connector.
 A: Fuel pressure gauge
 B: Fuel hose for fuel pressure check
6. After connecting fuel hose for fuel pressure check, pull the hose
with a force of approximately 98 N (10 kg, 22 lb) to confirm fuel
tube does not come off.
7. Turn ignition switch ON and check for fuel leakage.
8. Start engine and check for fuel leakage.
9. Read the indication of fuel pressure gauge.
 Do not perform fuel pressure check with system operating.
Fuel pressure gauge may indicate false readings.
 During fuel pressure check, confirm for fuel leakage from fuel connection every 3 minutes.
10. If result is unsatisfactory, go to next step.
11. Check the following.
 Fuel hoses and fuel tubes for clogging
 Fuel filter for clogging
 Fuel pump
 Fuel pressure regulator for clogging
If OK, replace fuel pressure regulator.
If NG, repair or replace.Tightening torque: 1 - 1.5 N·m (0.1 - 0.15 kg-m, 9 - 13 in-lb)
At idling:
Approximately 350 kPa (3.5 bar, 3.57 kg/cm
2, 51 psi)
PBIB2983E
PBIB2984E

EVAPORATIVE EMISSION SYSTEM
EC-683
< ON-VEHICLE MAINTENANCE >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
EVAPORATIVE EMISSION SYSTEM
InspectionINFOID:0000000001161697
1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.
2. Check EVAP canister as follows:
a. Block port (B). Orally blow air through port (A).
Check that air flows freely through port (C).
b. Block port (A). Orally blow air through port (B).
Check that air flows freely through port (C).
3. Visually inspect the fuel check valve for cracks, damage, loose connections chafing and deterioration.
4. Check fuel check valve as follows:
a. Blow air through connector on the fuel tank side. A considerable
resistance should be felt and a portion of air flow should be
directed toward the EVAP canister side.
b. Blow air through connector on EVAP canister side. Air flow
should be smoothly directed toward fuel tank side.
c. If fuel check valve is suspected or not properly functioning in
step 1 and 2 above, replace it.
5. Inspect fuel tank filler cap vacuum relief valve for clogging, stick-
ing, etc.
a. Wipe clean valve housing.
b. Check valve opening pressure and vacuum.
c. If out of specification, replace fuel filler cap as an assembly.
PBIB0663E
SEF552Y
SEF989X
Pressure:15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/
cm2, 2.22 - 2.90 psi)
Va c u u m :–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –
0.035 kg/cm
2, –0.87 to –0.49 psi)
SEF943S

EC-684
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE (WITHOUT EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Idle SpeedINFOID:0000000001161698
*: Under the following conditions
 A/C switch: OFF
 Electric load: OFF (Lights, heater fan & rear window defogger)
 Steering wheel: Kept in straight-ahead position
Ignition TimingINFOID:0000000001161699
*: Under the following conditions
 A/C switch: OFF
 Electric load: OFF (Lights, heater fan & rear window defogger)
 Steering wheel: Kept in straight-ahead positionTransmission Condition Specification
M/T No load* (in Neutral position) 650 ±50 rpm
Transmission Condition Specification
M/T No load* (in Neutral position) 15 ± 5° BTDC

DIAGNOSIS AND REPAIR WORKFLOW
EC-685
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
BASIC INSPECTION

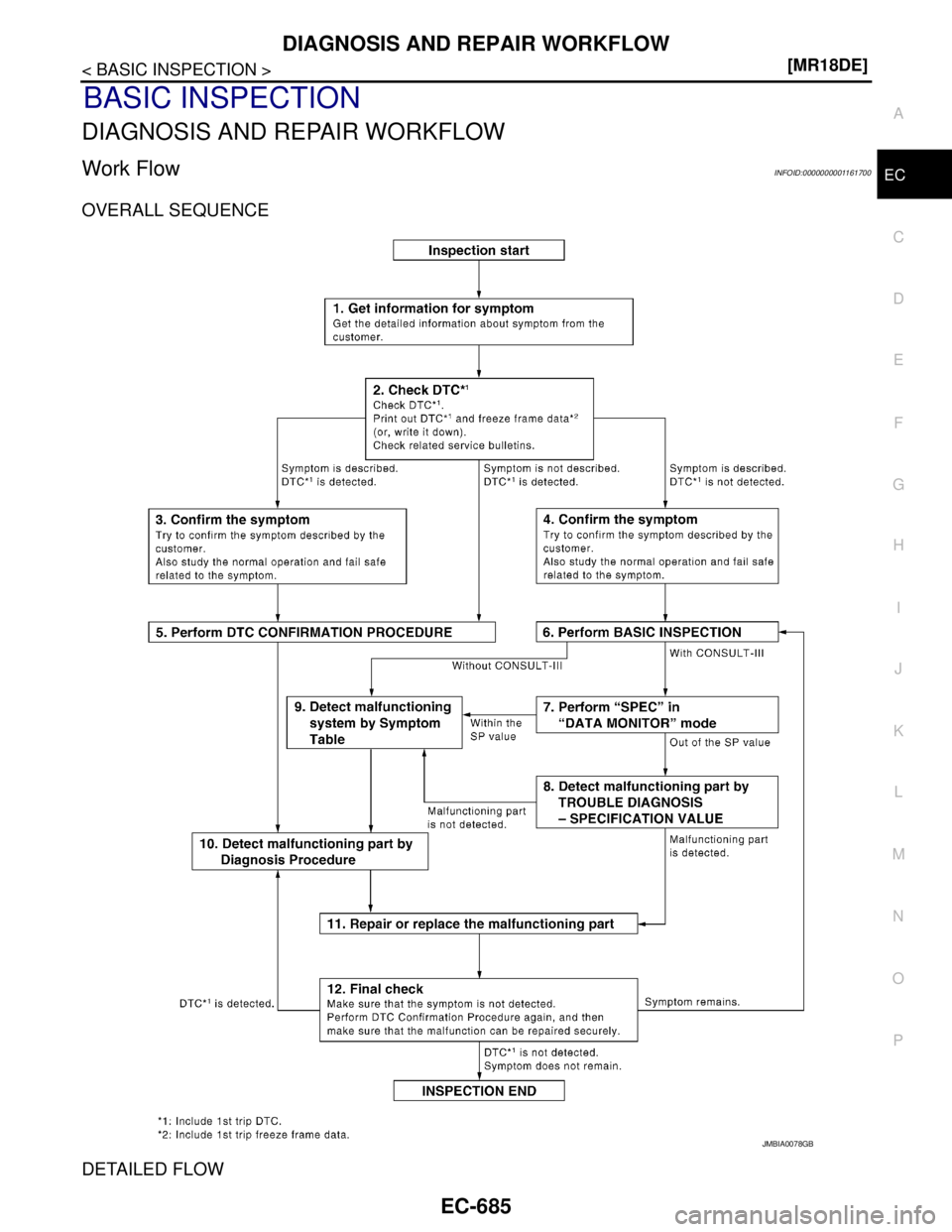

DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001161700
OVERALL SEQUENCE
DETAILED FLOW
JMBIA0078GB

EC-686
< BASIC INSPECTION >[MR18DE]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to EC-687, "
Diagnostic Work
Sheet".)
>> GO TO 2.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data. (Print them out with CONSULT-III or GST.)
- Erase DTC. (Refer to EC-760, "
Diagnosis Description".)
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
(Symptom Table is useful. Refer to EC-1024, "
Symptom Table".)
3. Check related service bulletins for information.
Is any symptom described and is any DTC detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MI ON).
Also study the normal operation and fail safe related to the symptom. Refer to EC-1028, "
Description" and EC-
1017, "FailSafe".
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fail safe related to the symptom. Refer to EC-1028, "
Description" and EC-
1017, "FailSafe".
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then make sure that DTC is
detected again.
If two or more DTCs are detected, refer to EC-1019, "
DTCInspectionPriorityChart" and determine trouble
diagnosis order.
NOTE:
 Freeze frame data is useful if the DTC is not detected.
 Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.
Is DTC detected?
YES >> GO TO 10.
NO >> Check according to EC-1020, "
DTCIndex".
6.PERFORM BASIC INSPECTION
Perform EC-689, "
BASIC INSPECTION : Special Repair Requirement".
Do you have CONSULT-III?

DIAGNOSIS AND REPAIR WORKFLOW
EC-687
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 7.
NO >> GO TO 9.
7.PERFORM SPEC IN DATA MONITOR MODE
With CONSULT-III
Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are within the SP value using CON-
SULT-III in “SPEC” of “DATA MONITOR” mode. Refer to EC-781, "
Component Function Check".
Is the measurement value within the SP value?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-782, "
Diagnosis Procedure".
Is malfunctioning part detected?
YES >> GO TO 11.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to EC-1024, "
Symptom Table" based on the confirmed symptom in
step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 10.
10.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to Circuit Inspection in GI-
58, "Circuit Inspection".
Is malfunctioning part detected?
YES >> GO TO 11.
NO >> Monitor input data from related sensors or check the voltage of related ECM terminals using CON-
SULT-III. Refer to EC-990, "
Reference Value".
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it. Refer to EC-760, "
Diagnosis Description".
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function
Check again, and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
NO >> Before returning the vehicle to the customer, make sure to erase unnecessary DTC in ECM and
TCM (Transmission Control Module). (Refer to EC-760, "
Diagnosis Description".) If the comple-
tion of SRT is needed, drive vehicle under the specific DRIVING PATTERN in EC-1021,
"HowtoSetSRTCode".

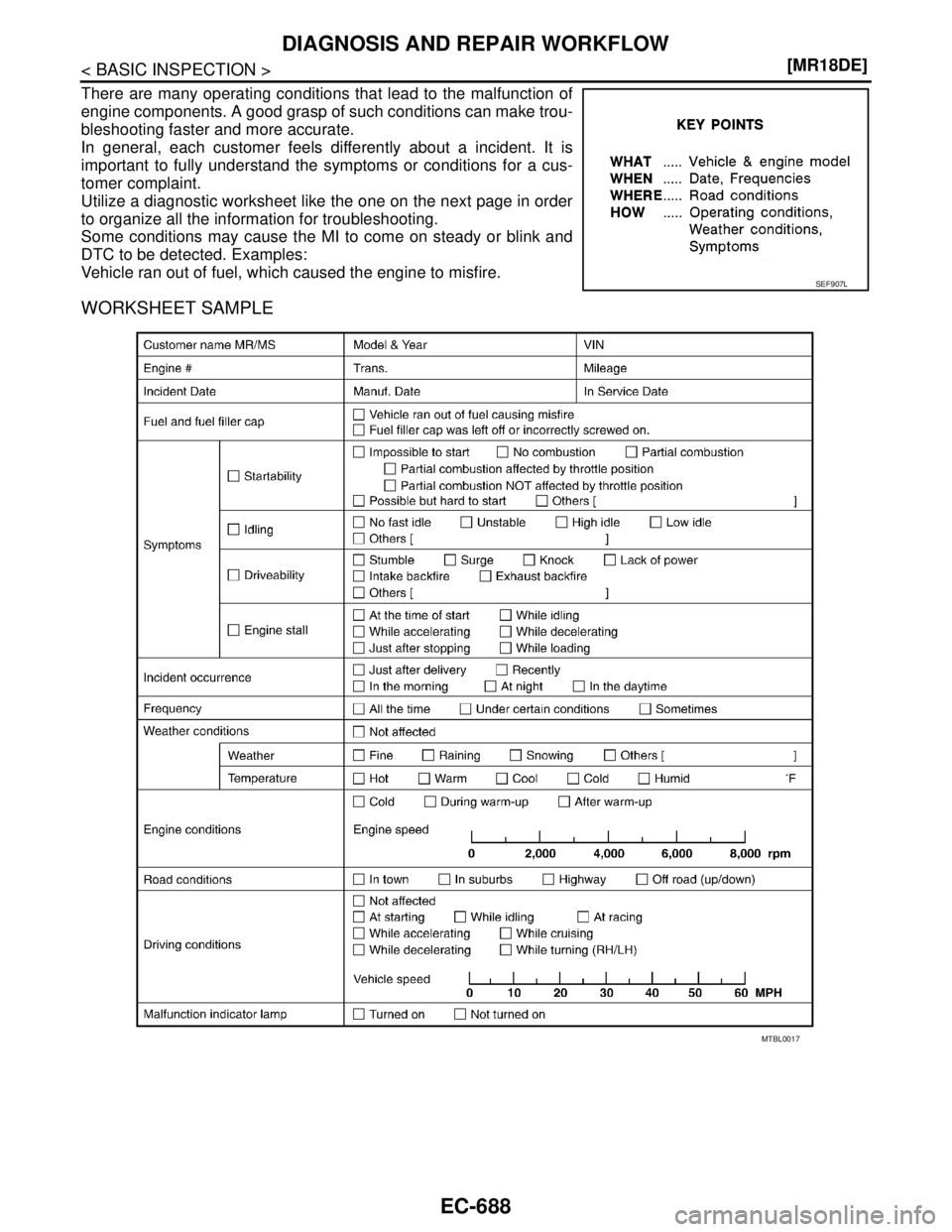

Diagnostic Work SheetINFOID:0000000001161701
DESCRIPTION

EC-688
< BASIC INSPECTION >[MR18DE]
DIAGNOSIS AND REPAIR WORKFLOW
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about a incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the one on the next page in order
to organize all the information for troubleshooting.
Some conditions may cause the MI to come on steady or blink and
DTC to be detected. Examples:
Vehicle ran out of fuel, which caused the engine to misfire.
WORKSHEET SAMPLE
SEF907L
MTBL0017

INSPECTION AND ADJUSTMENT
EC-689
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
INSPECTION AND ADJUSTMENT
BASIC INSPECTION
BASIC INSPECTION : Special Repair RequirementINFOID:0000000001161702
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
- Harness connectors for improper connections
- Wiring harness for improper connections, pinches and cut
- Vacuum hoses for splits, kinks and improper connections
- Hoses and ducts for leaks
- Air cleaner clogging
- Gasket
3. Confirm that electrical or mechanical loads are not applied.
- Headlamp switch is OFF.
- Air conditioner switch is OFF.
- Rear window defogger switch is OFF.
- Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no
load.
6. Make sure that no DTC is displayed with CONSULT-III or GST.
Is any DTC detected?
YES >> GO TO 2.
NO >> GO TO 3.
2.REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3.

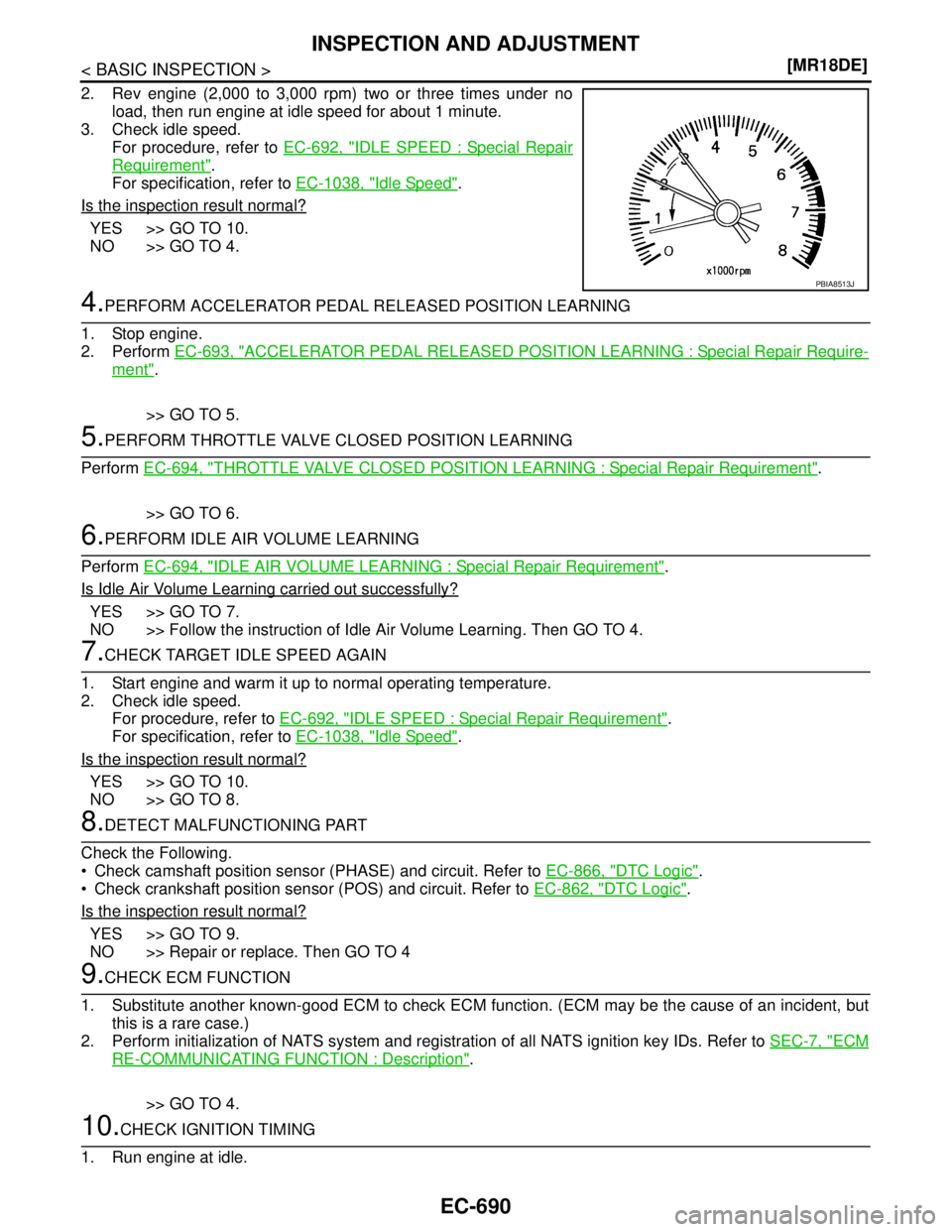

3.CHECK TARGET IDLE SPEED
1. Run engine at about 2,000 rpm for about 2 minutes under no load.
SEF983U
SEF976U
SEF977U

EC-690
< BASIC INSPECTION >[MR18DE]
INSPECTION AND ADJUSTMENT
2. Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idle speed for about 1 minute.
3. Check idle speed.
For procedure, refer to EC-692, "
IDLE SPEED : Special Repair
Requirement".
For specification, refer to EC-1038, "
Idle Speed".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 4.
4.PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-693, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-
ment".
>> GO TO 5.
5.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-694, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 6.
6.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-694, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
Is Idle Air Volume Learning carried out successfully?
YES >> GO TO 7.
NO >> Follow the instruction of Idle Air Volume Learning. Then GO TO 4.
7.CHECK TARGET IDLE SPEED AGAIN
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
For procedure, refer to EC-692, "
IDLE SPEED : Special Repair Requirement".
For specification, refer to EC-1038, "
Idle Speed".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the Following.
 Check camshaft position sensor (PHASE) and circuit. Refer to EC-866, "
DTC Logic".
 Check crankshaft position sensor (POS) and circuit. Refer to EC-862, "
DTC Logic".
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair or replace. Then GO TO 4
9.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to SEC-7, "
ECM
RE-COMMUNICATING FUNCTION : Description".
>> GO TO 4.
10.CHECK IGNITION TIMING
1. Run engine at idle.
PBIA8513J

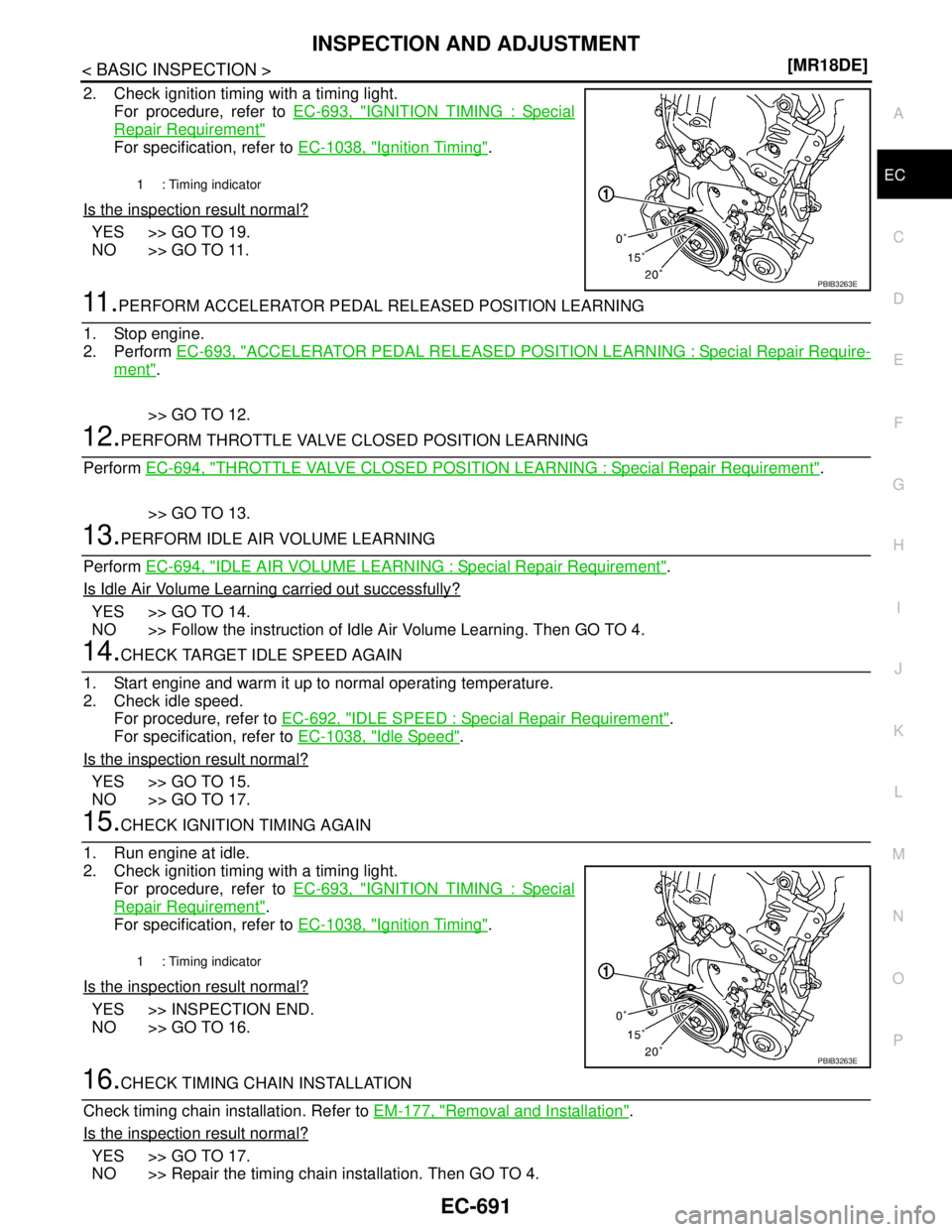

INSPECTION AND ADJUSTMENT
EC-691
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Check ignition timing with a timing light.
For procedure, refer to EC-693, "
IGNITION TIMING : Special
Repair Requirement"
For specification, refer to EC-1038, "Ignition Timing".
Is the inspection result normal?
YES >> GO TO 19.
NO >> GO TO 11.
11 .PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-693, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-
ment".
>> GO TO 12.
12.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-694, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 13.
13.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-694, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
Is Idle Air Volume Learning carried out successfully?
YES >> GO TO 14.
NO >> Follow the instruction of Idle Air Volume Learning. Then GO TO 4.
14.CHECK TARGET IDLE SPEED AGAIN
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
For procedure, refer to EC-692, "
IDLE SPEED : Special Repair Requirement".
For specification, refer to EC-1038, "
Idle Speed".
Is the inspection result normal?
YES >> GO TO 15.
NO >> GO TO 17.
15.CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.
For procedure, refer to EC-693, "
IGNITION TIMING : Special
Repair Requirement".
For specification, refer to EC-1038, "
Ignition Timing".
Is the inspection result normal?
YES >> INSPECTION END.
NO >> GO TO 16.
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-177, "
Removal and Installation".
Is the inspection result normal?
YES >> GO TO 17.
NO >> Repair the timing chain installation. Then GO TO 4.
1 : Timing indicator
PBIB3263E
1 : Timing indicator
PBIB3263E
