NISSAN TIIDA 2007 Service Repair Manual

EM-264
< ON-VEHICLE MAINTENANCE >[K9K]
DRIVE BELTS
4. Remove drive belt.
 Turn drive belt auto-tensioner adjusting bolt clockwise to
release drive belt tension.
INSTALLATION
1. Install the drive belt.
CAUTION:
 Make sure drive belt is correctly engaged with the pulley
groove.
 Check for oil and coolant on drive belt and each pulley
groove.
 Certain drive belts have five teeth whereas the air condi-
tioning compressor pulley, power-assisted steering pump
pulley, and generator pulley all have six teeth.In this case,
it is essential to check that inner tooth (O) of the pulleys
remains free when fitting the drive belt.
Never turn the engine in the opposite direction to its nor-
mal operating direction.
Use a brush to remove any deposits from the crankshaft
pulley V grooves.
2. Release drive belt auto-tensioner, and apply tension to drive belt.
3. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
MBIB0353E
MBIB0516E

AIR CLEANER FILTER
EM-265
< ON-VEHICLE MAINTENANCE >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
AIR CLEANER FILTER
Removal and InstallationINFOID:0000000001528961
REMOVAL
1. Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).
2. Pull up the air cleaner cover (1) and remove it (C).
3. Remove air cleaner filter (1) and holder (2) assembly from the
air cleaner case.
4. Remove the air cleaner filter (1) from the holder (2).
INSPECTION AFTER REMOVAL
It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
conditions. Refer to MA-7, "
Periodic Maintenance".
 Blow air into the back side of air cleaner filter until no objects spray
out.
INSTALLATION
Installation is in the reverse order of removal.
 Install the air cleaner cover (1) in the direction shown.
PBIC3557J
PBIC3558J
SMA384C
2 : Air cleaner filter
3 : Holder
PBIC3559J

EM-266
< ON-VEHICLE MAINTENANCE >[K9K]
CAMSHAFT VALVE CLEARANCE
CAMSHAFT VALVE CLEARANCE
Inspection and AdjustmentINFOID:0000000001381465
INSPECTION
1. Place the valves of the cylinder concerned at the “end of
exhaust - beginning of intake” position and inspect the clearance
(X).
NOTE:
Dimension (Y) corresponds to the tappet thickness sizes (there
are 25 sizes available).
2. Compare the values recorded with the values specified, then
replace the tappets which are not within tolerance.
ADJUSTMENT
1. The camshaft must be removed to replace the tappets after
determining dimension (Y).
2. Set up the following assembly using dial gauge stand
[KV113B0050 (Mot. 252-01) (commercial service tool) or equiva-
lent tool] and dial gauge, then calibrate the gauge.
3. Raise the gauge extension (without modifying the position of the
magnetic support/gauge assembly), then slide in the tappet to
be measured.
Note dimension (Y) and repeat the operation for the tappets
where the valve clearance is not within tolerance.
Select the various thicknesses of the tappet(s). 25 sizes of sin-
gle-piece tappets are available. Refer to EM-333, "
Camshaft". Clearance when the
engine is cold: Refer to EM-333, "
Cam-
shaft".MBIB0333E
MBIB0334E
MBIB0335E

COMPRESSION PRESSURE
EM-267
< ON-VEHICLE MAINTENANCE >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
COMPRESSION PRESSURE
InspectionINFOID:0000000001381466
1. Warm up engine thoroughly. Then stop.
2. Remove glow plug.
3. Disconnect high-pressure supply pump harness connector to avoid fuel injection during measurement.
4. Connect compression gauge attachment hose [SST:
KV113B0400 (Mot. 1592)] (A) to the hole for glow plug.
5. Connect compression gauge (B) to attachment hose (A).
6. Turn ignition switch to START for cranking and check compres-
sion gauge.
7. Perform the same procedure for the other cylinders.
 If compression pressure is below minimum value, check valve
clearances and parts associated with combustion chamber (valve, valve seat, piston, piston ring, cylin-
der bore, cylinder head, cylinder head gasket). After checking, measure compression pressure again.
 If any cylinder has low compression pressure, pour a small amount of engine oil into the glow plug hole
of the cylinder to re-check it for compression.
- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-
ton rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.
 If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, cylinder head gaskets are leaking. In this case, replace cylinder
head gaskets.
8. Disconnect compression gauge (B) and attachment hose (A).
9. After inspection is completed, install removed parts.
10. Start the engine, and make sure that the engine runs smoothly.
11. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-1043, "
BASIC INSPECTION : Descrip-
tion". Compres-
sion pres-
sure: Refer to EM-333,
"GeneralSpecification".
E1BIA0052ZZ

EM-268
< ON-VEHICLE REPAIR >[K9K]
DRIVE BELT AUTO-TENSIONER
ON-VEHICLE REPAIR
DRIVE BELT AUTO-TENSIONER
Exploded ViewINFOID:0000000001381467
Removal and InstallationINFOID:0000000001381468
CAUTION:
 Replace any drive belt that has been removed with a new one.
 Auto-tensioner must be replaced with new one when the drive belt is replaced.
 Do not run the engine without the drive belt to avoid damaging the crankshaft pulley.
REMOVAL
1. Remove engine undercover using power tool.
2. Remove RH front wheel.
3. Remove right side splash cover.
4. Remove drive belt. Refer to EM-263, "
Removal and Installation".
5. Remove drive belt auto-tensioner.
INSTALLATION
1. Install drive belt auto-tensioner.
NOTE:
Align the notch and tighten drive belt auto-tensioner bolt.
2. Install the drive belt. Refer to EM-263, "
Removal and Installa-
tion".
3. Release drive belt auto-tensioner, and apply tension to drive
belt.
4. Turn crankshaft pulley clockwise several times to equalize ten-
sion between each pulley.
1. Drive belt auto-tensioner 2. Drive belt 3. Multifunction bracket
E1BIA0020GB
40.0 N·m (4.1 kg-m, 30 ft-lb)
MBIB0558E

AIR CLEANER AND AIR DUCT
EM-269
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

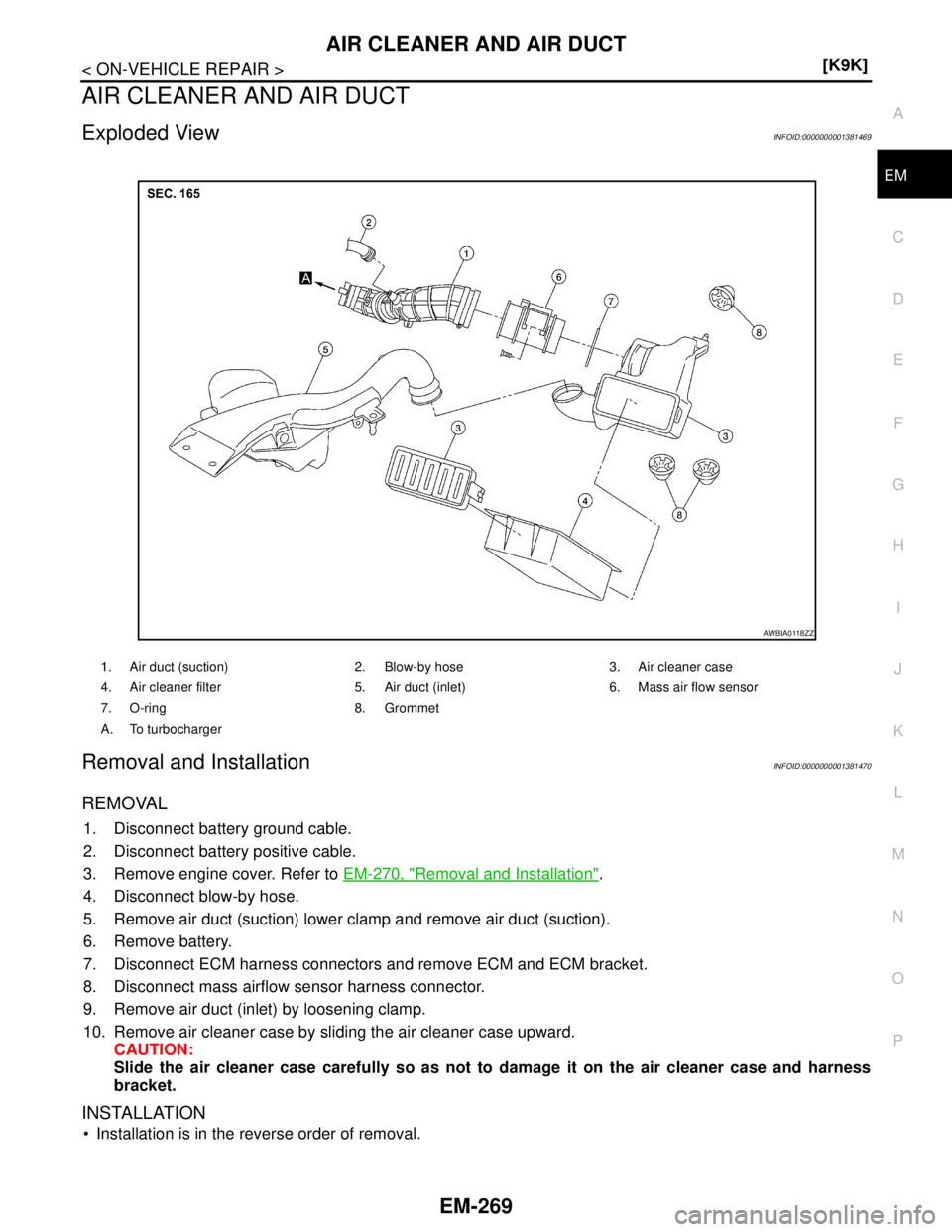

AIR CLEANER AND AIR DUCT
Exploded ViewINFOID:0000000001381469
Removal and InstallationINFOID:0000000001381470
REMOVAL
1. Disconnect battery ground cable.
2. Disconnect battery positive cable.
3. Remove engine cover. Refer to EM-270, "
Removal and Installation".
4. Disconnect blow-by hose.
5. Remove air duct (suction) lower clamp and remove air duct (suction).
6. Remove battery.
7. Disconnect ECM harness connectors and remove ECM and ECM bracket.
8. Disconnect mass airflow sensor harness connector.
9. Remove air duct (inlet) by loosening clamp.
10. Remove air cleaner case by sliding the air cleaner case upward.
CAUTION:
Slide the air cleaner case carefully so as not to damage it on the air cleaner case and harness
bracket.
INSTALLATION
 Installation is in the reverse order of removal.
1. Air duct (suction) 2. Blow-by hose 3. Air cleaner case
4. Air cleaner filter 5. Air duct (inlet) 6. Mass air flow sensor
7. O-ring 8. Grommet
A. To turbocharger
AWBIA0118ZZ

EM-270
< ON-VEHICLE REPAIR >[K9K]
CHARGE AIR COOLER
CHARGE AIR COOLER

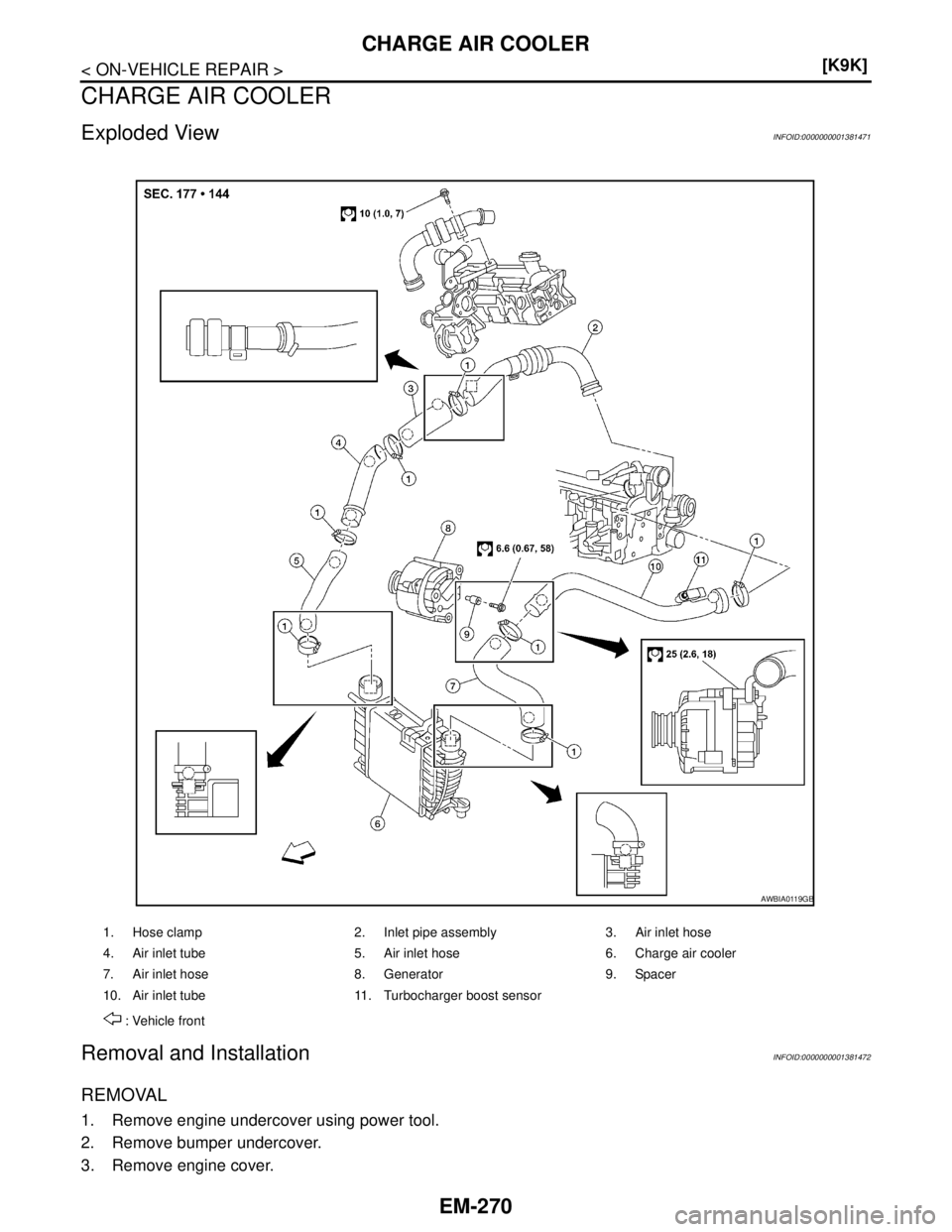

Exploded ViewINFOID:0000000001381471
Removal and InstallationINFOID:0000000001381472
REMOVAL
1. Remove engine undercover using power tool.
2. Remove bumper undercover.
3. Remove engine cover.
1. Hose clamp 2. Inlet pipe assembly 3. Air inlet hose
4. Air inlet tube 5. Air inlet hose 6. Charge air cooler
7. Air inlet hose 8. Generator 9. Spacer
10. Air inlet tube 11. Turbocharger boost sensor
: Vehicle front
AWBIA0119GB

CHARGE AIR COOLER
EM-271
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

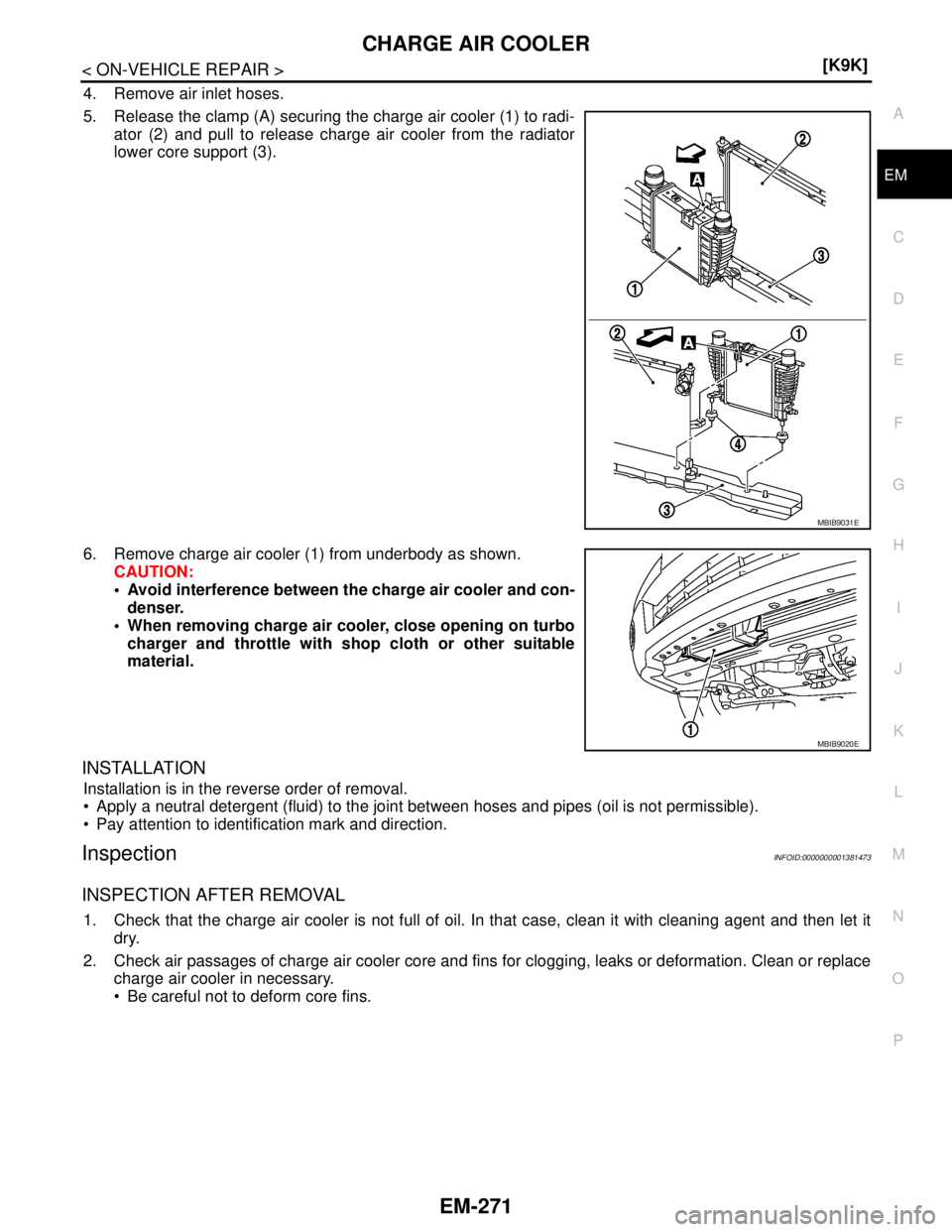

4. Remove air inlet hoses.
5. Release the clamp (A) securing the charge air cooler (1) to radi-
ator (2) and pull to release charge air cooler from the radiator
lower core support (3).
6. Remove charge air cooler (1) from underbody as shown.
CAUTION:
 Avoid interference between the charge air cooler and con-
denser.
 When removing charge air cooler, close opening on turbo
charger and throttle with shop cloth or other suitable
material.
INSTALLATION
Installation is in the reverse order of removal.
 Apply a neutral detergent (fluid) to the joint between hoses and pipes (oil is not permissible).
 Pay attention to identification mark and direction.
InspectionINFOID:0000000001381473
INSPECTION AFTER REMOVAL
1. Check that the charge air cooler is not full of oil. In that case, clean it with cleaning agent and then let it
dry.
2. Check air passages of charge air cooler core and fins for clogging, leaks or deformation. Clean or replace
charge air cooler in necessary.
 Be careful not to deform core fins.
MBIB9031E
MBIB9020E

EM-272
< ON-VEHICLE REPAIR >[K9K]
EGR SYSTEM
EGR SYSTEM

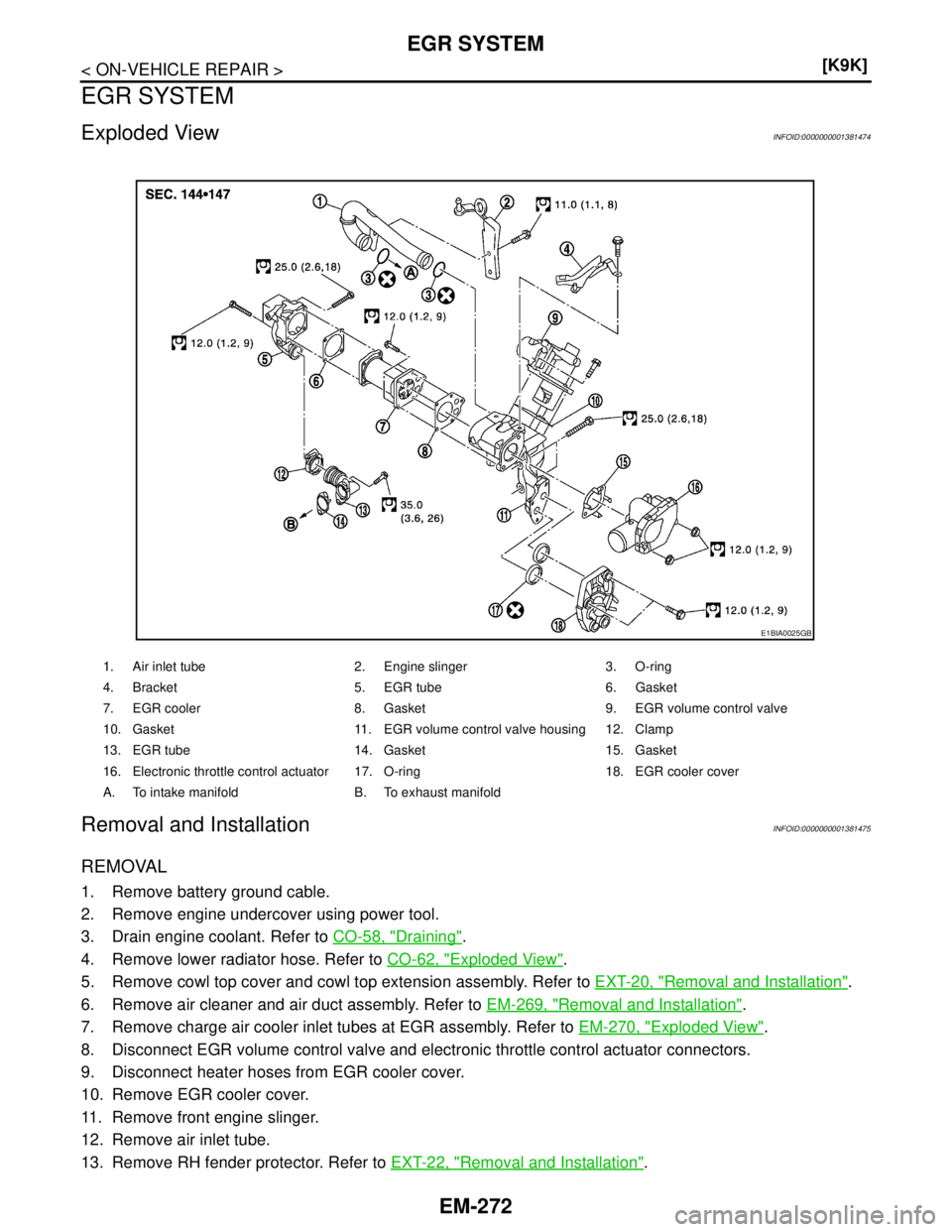

Exploded ViewINFOID:0000000001381474
Removal and InstallationINFOID:0000000001381475
REMOVAL
1. Remove battery ground cable.
2. Remove engine undercover using power tool.
3. Drain engine coolant. Refer to CO-58, "
Draining".
4. Remove lower radiator hose. Refer to CO-62, "
Exploded View".
5. Remove cowl top cover and cowl top extension assembly. Refer to EXT-20, "
Removal and Installation".
6. Remove air cleaner and air duct assembly. Refer to EM-269, "
Removal and Installation".
7. Remove charge air cooler inlet tubes at EGR assembly. Refer to EM-270, "
Exploded View".
8. Disconnect EGR volume control valve and electronic throttle control actuator connectors.
9. Disconnect heater hoses from EGR cooler cover.
10. Remove EGR cooler cover.
11. Remove front engine slinger.
12. Remove air inlet tube.
13. Remove RH fender protector. Refer to EXT-22, "
Removal and Installation".
1. Air inlet tube 2. Engine slinger 3. O-ring
4. Bracket 5. EGR tube 6. Gasket
7. EGR cooler 8. Gasket 9. EGR volume control valve
10. Gasket 11. EGR volume control valve housing 12. Clamp
13. EGR tube 14. Gasket 15. Gasket
16. Electronic throttle control actuator 17. O-ring 18. EGR cooler cover
A. To intake manifold B. To exhaust manifold
E1BIA0025GB

EGR SYSTEM
EM-273
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
14. Remove front driveshaft assembly RH. Refer to FA X - 11 , "Removal and Installation (Right Side)".
15. Remove electronic throttle control actuator.
16. Remove driveshaft center bearing bracket. Refer to FA X - 11 , "
Removal and Installation (Right Side)".
17. Remove front exhaust tube. Refer to EX-5, "
Component".
18. Remove catalytic converter. Refer to EM-274, "
Exploded View".
19. Remove EGR tube.
20. Remove EGR assembly.
INSTALLATION
Installation is in the reverse order of removal.
