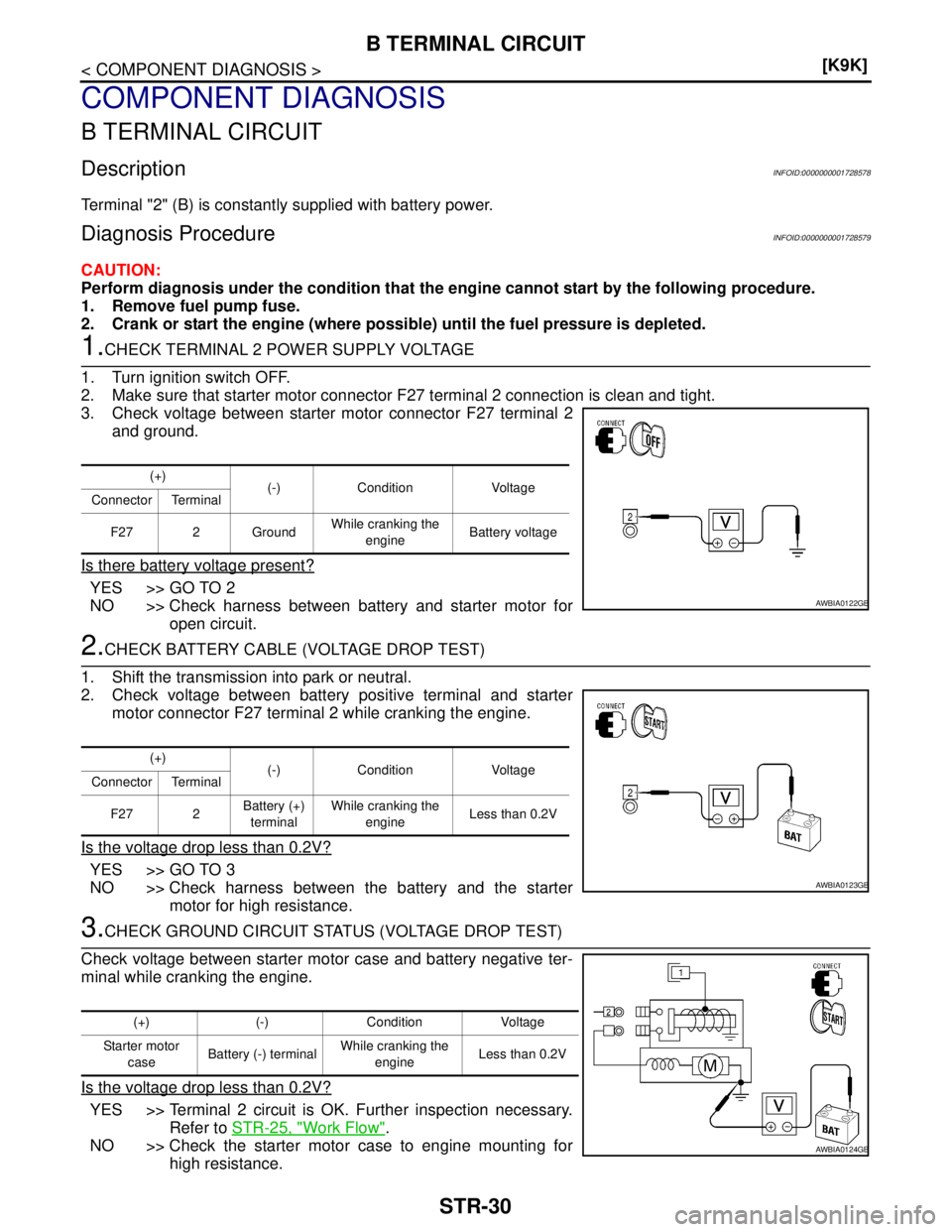

NISSAN TIIDA 2007 Service Repair Manual

STR-30
< COMPONENT DIAGNOSIS >[K9K]
B TERMINAL CIRCUIT
COMPONENT DIAGNOSIS
B TERMINAL CIRCUIT
DescriptionINFOID:0000000001728578
Terminal "2" (B) is constantly supplied with battery power.
Diagnosis ProcedureINFOID:0000000001728579
CAUTION:
Perform diagnosis under the condition that the engine cannot start by the following procedure.
1. Remove fuel pump fuse.
2. Crank or start the engine (where possible) until the fuel pressure is depleted.
1.CHECK TERMINAL 2 POWER SUPPLY VOLTAGE
1. Turn ignition switch OFF.
2. Make sure that starter motor connector F27 terminal 2 connection is clean and tight.
3. Check voltage between starter motor connector F27 terminal 2
and ground.
Is there battery voltage present?
YES >> GO TO 2
NO >> Check harness between battery and starter motor for
open circuit.
2.CHECK BATTERY CABLE (VOLTAGE DROP TEST)
1. Shift the transmission into park or neutral.
2. Check voltage between battery positive terminal and starter
motor connector F27 terminal 2 while cranking the engine.
Is the voltage drop less than 0.2V?
YES >> GO TO 3
NO >> Check harness between the battery and the starter
motor for high resistance.
3.CHECK GROUND CIRCUIT STATUS (VOLTAGE DROP TEST)
Check voltage between starter motor case and battery negative ter-
minal while cranking the engine.
Is the voltage drop less than 0.2V?
YES >> Terminal 2 circuit is OK. Further inspection necessary.
Refer to STR-25, "
Work Flow".
NO >> Check the starter motor case to engine mounting for
high resistance.
(+)
(-) Condition Voltage
Connector Terminal
F27 2 GroundWhile cranking the
engineBattery voltage
AWBIA0122GB
(+)
(-) Condition Voltage
Connector Terminal
F27 2Battery (+)
terminalWhile cranking the
engineLess than 0.2V
AWBIA0123GB
(+) (-) Condition Voltage
Starter motor
caseBattery (-) terminalWhile cranking the
engineLess than 0.2V
AWBIA0124GB

S CONNECTOR CIRCUIT
STR-31
< COMPONENT DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O

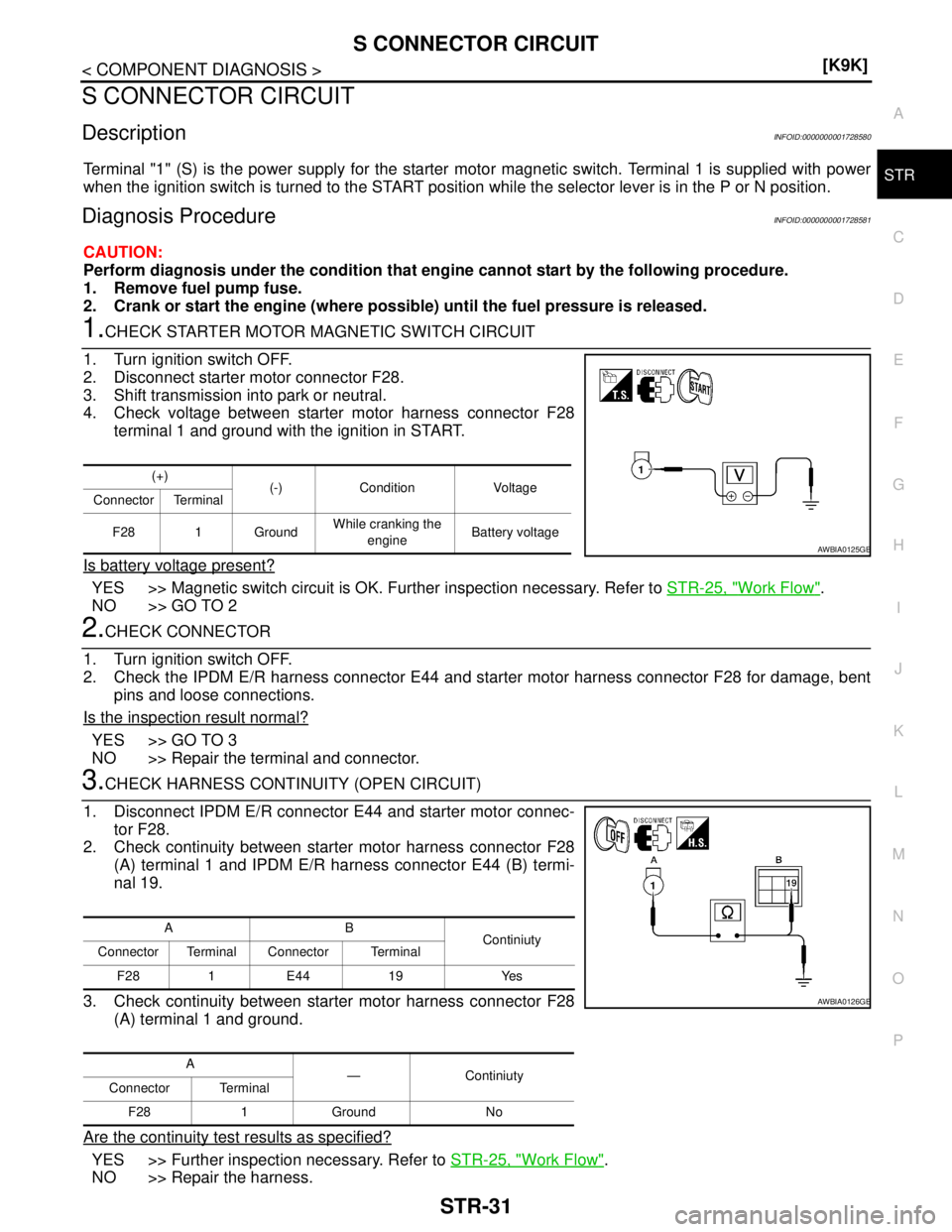

S CONNECTOR CIRCUIT
DescriptionINFOID:0000000001728580
Terminal "1" (S) is the power supply for the starter motor magnetic switch. Terminal 1 is supplied with power
when the ignition switch is turned to the START position while the selector lever is in the P or N position.
Diagnosis ProcedureINFOID:0000000001728581
CAUTION:
Perform diagnosis under the condition that engine cannot start by the following procedure.
1. Remove fuel pump fuse.
2. Crank or start the engine (where possible) until the fuel pressure is released.
1.CHECK STARTER MOTOR MAGNETIC SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect starter motor connector F28.
3. Shift transmission into park or neutral.
4. Check voltage between starter motor harness connector F28
terminal 1 and ground with the ignition in START.
Is battery voltage present?
YES >> Magnetic switch circuit is OK. Further inspection necessary. Refer to STR-25, "Work Flow".
NO >> GO TO 2
2.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Check the IPDM E/R harness connector E44 and starter motor harness connector F28 for damage, bent
pins and loose connections.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair the terminal and connector.
3.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect IPDM E/R connector E44 and starter motor connec-
tor F28.
2. Check continuity between starter motor harness connector F28
(A) terminal 1 and IPDM E/R harness connector E44 (B) termi-
nal 19.
3. Check continuity between starter motor harness connector F28
(A) terminal 1 and ground.
Are the continuity test results as specified?
YES >> Further inspection necessary. Refer to STR-25, "Work Flow".
NO >> Repair the harness.
(+)
(-) Condition Voltage
Connector Terminal
F28 1 GroundWhile cranking the
engineBattery voltage
AWBIA0125GB
AB
Continiuty
Connector Terminal Connector Terminal
F28 1 E44 19 Yes
A
— Continiuty
Connector Terminal
F28 1 Ground No
AWBIA0126GB

STR-32
< COMPONENT DIAGNOSIS >[K9K]
STARTING SYSTEM
STARTING SYSTEM
Wiring DiagramINFOID:0000000001728582
AWBWA0020GB

STARTING SYSTEM
STR-33
< SYMPTOM DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
SYMPTOM DIAGNOSIS
STARTING SYSTEM
Symptom TableINFOID:0000000001728583
Symptom Reference
No normal cranking
Refer to STR-25, "
Work Flow".
Starter motor does not rotate

STR-34
< PRECAUTION >[K9K]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001689456
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

STARTER MOTOR
STR-35
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O

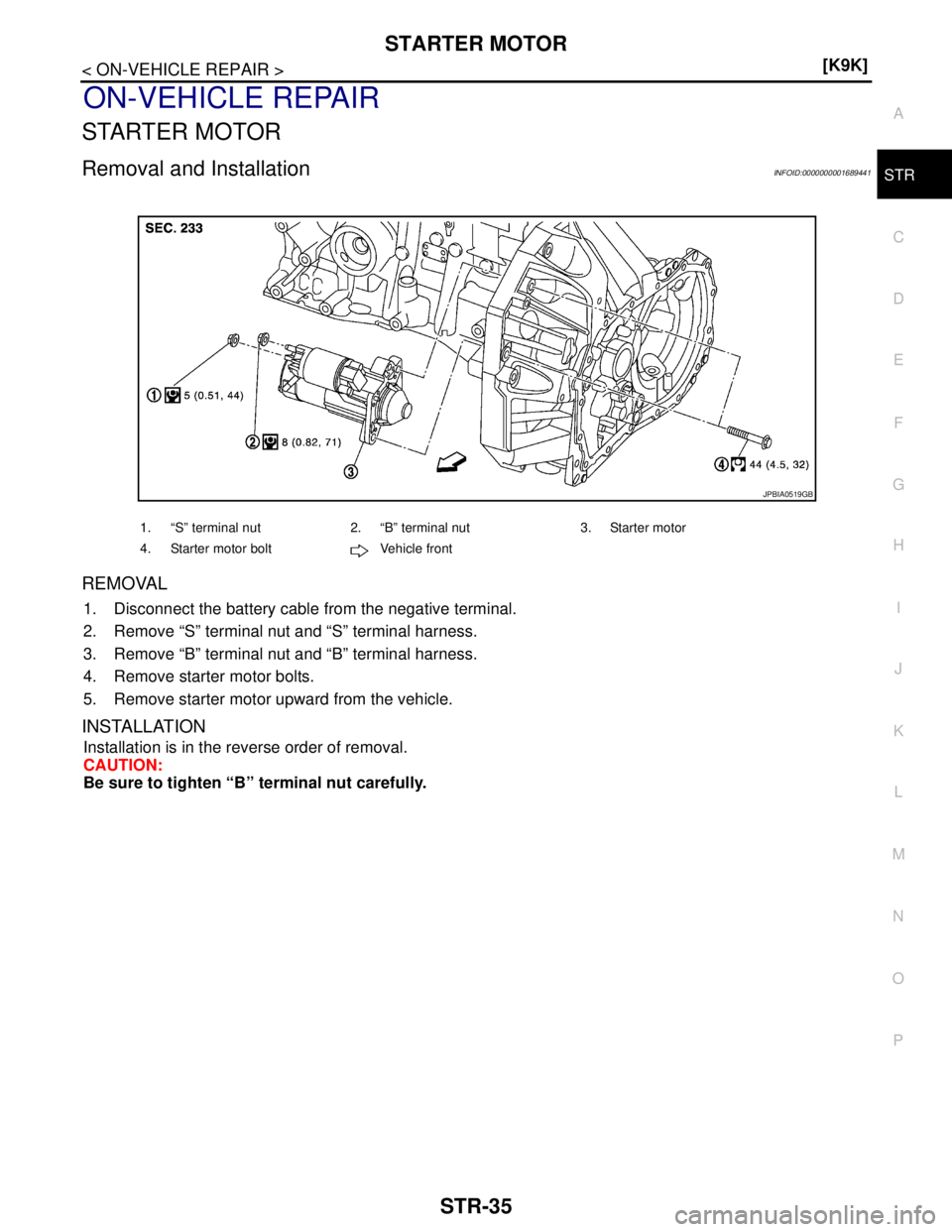

ON-VEHICLE REPAIR
STARTER MOTOR
Removal and InstallationINFOID:0000000001689441
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove “S” terminal nut and “S” terminal harness.
3. Remove “B” terminal nut and “B” terminal harness.
4. Remove starter motor bolts.
5. Remove starter motor upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Be sure to tighten “B” terminal nut carefully.
1. “S” terminal nut 2. “B” terminal nut 3. Starter motor
4. Starter motor bolt Vehicle front
JPBIA0519GB

TM-1
TRANSMISSION & DRIVELINE
C
E
F
G
H
I
J
K
L
M
SECTION TM
A
B
TM
N
O
P
CONTENTS
TRANSAXLE & TRANSMISSION
TYPE 1 (4AT: RE4F03B)
BASIC INSPECTION ...................................
10
DIAGNOSIS AND REPAIR WORKFLOW .........10
Work Flow ...............................................................10
Diagnostic Work Sheet ............................................11
FUNCTION DIAGNOSIS ..............................13
A/T CONTROL SYSTEM ....................................13
Cross-Sectional View ..............................................13
Shift Mechanism ......................................................14
TCM Function ..........................................................21
CAN Communication ...............................................22
Input/Output Signal of TCM .....................................22
Line Pressure Control .............................................23
Shift Control ............................................................24
Lock-up Control .......................................................25
Engine Brake Control (Overrun Clutch Control) ......26
Control Valve ...........................................................28
Centrifugal Cancel Mechanism ...............................28
Component Parts Location ......................................30
A/T SHIFT LOCK SYSTEM ................................31
System Description .................................................31
Component Parts Location ......................................31
ON BOARD DIAGNOSTIC (OBD) SYSTEM ......32
Introduction .............................................................32
OBD Function for A/T System .................................32
One or Two Trip Detection Logic of OBD ................32
OBD Diagnostic Trouble Code (DTC) .....................32
Malfunction Indicator Lamp (MIL) ............................33
DIAGNOSIS SYSTEM (TCM) .............................35
CONSULT-III Function (TRANSMISSION) .............35
Diagnosis Procedure without CONSULT-III ............38
COMPONENT DIAGNOSIS .........................43
DTC U1000 CAN COMMUNICATION LINE .......43
Description ...............................................................43
On Board Diagnosis Logic .......................................43
Possible Cause ........................................................43
DTC Confirmation Procedure ..................................43
Diagnosis Procedure ...............................................43
DTC P0705 PARK/NEUTRAL POSITION
(PNP) SWITCH ..................................................
44
Description ...............................................................44
CONSULT-III Reference Value in Data Monitor
Mode ........................................................................
44
On Board Diagnosis Logic .......................................44
Possible Cause ........................................................44
DTC Confirmation Procedure ..................................44
Diagnosis Procedure ...............................................44
Component Inspection .............................................46
DTC P0710 A/T FLUID TEMPERATURE SEN-
SOR CIRCUIT ...................................................
48
Description ...............................................................48
CONSULT-III Reference Value in Data Monitor
Mode ........................................................................
48
On Board Diagnosis Logic .......................................48
Possible Cause ........................................................48
DTC Confirmation Procedure ..................................48
Diagnosis Procedure ...............................................48
Component Inspection .............................................50
DTC P0720 VEHICLE SPEED SENSOR·A/T
(REVOLUTION SENSOR) .................................
52
Description ...............................................................52
CONSULT-III Reference Value in Data Monitor
Mode ........................................................................
52
On Board Diagnosis Logic .......................................52
Possible Cause ........................................................52
DTC Confirmation Procedure ..................................52
Diagnosis Procedure ...............................................53
DTC P0725 ENGINE SPEED SIGNAL .............56
Description ...............................................................56

TM-2
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
56
On Board Diagnosis Logic ......................................56
Possible Cause .......................................................56
DTC Confirmation Procedure .................................56
Diagnosis Procedure ..............................................56
DTC P0731 A/T 1ST GEAR FUNCTION ...........59
Description ..............................................................59
On Board Diagnosis Logic ......................................59
Possible Cause .......................................................59
DTC Confirmation Procedure .................................59
Diagnosis Procedure ..............................................60
DTC P0732 A/T 2ND GEAR FUNCTION ...........62
Description ..............................................................62
On Board Diagnosis Logic ......................................62
Possible Cause .......................................................62
DTC Confirmation Procedure .................................62
Diagnosis Procedure ..............................................63
DTC P0733 A/T 3RD GEAR FUNCTION ...........65
Description ..............................................................65
On Board Diagnosis Logic ......................................65
Possible Cause .......................................................65
DTC Confirmation Procedure .................................65
Diagnosis Procedure ..............................................66
DTC P0734 A/T 4TH GEAR FUNCTION ...........68
Description ..............................................................68
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
68
On Board Diagnosis Logic ......................................68
Possible Cause .......................................................68
DTC Confirmation Procedure .................................68
Diagnosis Procedure ..............................................69
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE ............................................
73
Description ..............................................................73
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
73
On Board Diagnosis Logic ......................................73
Possible Cause .......................................................73
DTC Confirmation Procedure .................................73
Diagnosis Procedure ..............................................73
Component Inspection ............................................75
DTC P0744 A/T TCC S/V FUNCTION (LOCK-
UP) .....................................................................
76
Description ..............................................................76
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
76
On Board Diagnosis Logic ......................................76
Possible Cause .......................................................76
DTC Confirmation Procedure .................................76
Diagnosis Procedure ..............................................77
DTC P0745 LINE PRESSURE SOLENOID
VALVE ...............................................................
81
Description ..............................................................81
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
81
On Board Diagnosis Logic ......................................81
Possible Cause .......................................................81
DTC Confirmation Procedure ..................................81
Diagnosis Procedure ...............................................81
Component Inspection ............................................84
DTC P0750 SHIFT SOLENOID VALVE A .........85
Description ..............................................................85
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
85
On Board Diagnosis Logic ......................................85
Possible Cause .......................................................85
DTC Confirmation Procedure ..................................85
Diagnosis Procedure ...............................................85
Component Inspection ............................................87
DTC P0755 SHIFT SOLENOID VALVE B .........89
Description ..............................................................89
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
89
On Board Diagnosis Logic ......................................89
Possible Cause .......................................................89
DTC Confirmation Procedure ..................................89
Diagnosis Procedure ...............................................89
Component Inspection ............................................91
DTC P1760 OVERRUN CLUTCH SOLENOID
VALVE ...............................................................
93
Description ..............................................................93
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
93
On Board Diagnosis Logic ......................................93
Possible Cause .......................................................93
DTC Confirmation Procedure ..................................93
Diagnosis Procedure ...............................................93
Component Inspection ............................................95
DTC VEHICLE SPEED SENSOR MTR .............97
Description ..............................................................97
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
97
On Board Diagnosis Logic ......................................97
Possible Cause .......................................................97
DTC Confirmation Procedure ..................................97
Diagnosis Procedure ...............................................97
DTC BATT/FLUID TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE) ...........................................................
99
Description ..............................................................99
CONSULT-III Reference Value in Data Monitor
Mode .......................................................................
99
On Board Diagnosis Logic ......................................99
Possible Cause .......................................................99
DTC Confirmation Procedure ..................................99
Diagnosis Procedure ...............................................99
Component Inspection ..........................................102

TM-3
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC TURBINE REVOLUTION SENSOR .........104
Description ............................................................104
CONSULT-III Reference Value in Data Monitor
Mode .....................................................................
104
On Board Diagnosis Logic ....................................104
Possible Cause .....................................................104
DTC Confirmation Procedure ................................104
Diagnosis Procedure .............................................104
CONTROL UNIT (RAM), CONTROL UNIT
(ROM) ...............................................................
108
Description ............................................................108
On Board Diagnosis Logic ....................................108
Possible Cause .....................................................108
DTC Confirmation Procedure ................................108
Diagnosis Procedure .............................................108
MAIN POWER SUPPLY AND GROUND CIR-
CUIT ..................................................................
109
Description ............................................................109
On Board Diagnosis Logic ....................................109
Possible Cause .....................................................109
DTC Confirmation Procedure ................................109
Diagnosis Procedure .............................................109
PNP, OD SWITCH AND CLOSED THROT-
TLE, WIDE OPEN THROTTLE POSITION
SIGNAL CIRCUIT .............................................
111
CONSULT-III Reference Value in Data Monitor
Mode .....................................................................
111
TCM Terminal and Reference Value .....................111
Diagnosis Procedure .............................................111
Component Inspection ..........................................115
A/T SHIFT LOCK SYSTEM ..............................116
Wiring Diagram - A/T Shift Lock System - .............116
Terminals And Reference Values .........................116
Diagnosis Procedure .............................................117
ECU DIAGNOSIS .......................................119
TCM ..................................................................119
Reference Value ...................................................119
Wiring Diagram - A/T CONTROL SYSTEM - ........123
Fail-Safe ................................................................123
DTC Inspection Priority Chart ...............................125
DTC Index .............................................................125
DTC Alphabetical Index ........................................126
SYMPTOM DIAGNOSIS ............................127
SYSTEM SYMPTOM ........................................127
Symptom Chart .....................................................127
OD OFF Indicator Lamp Does Not Come On .......138
Engine Cannot Be Started in "P" and "N" Position ..140
In "P" Position, Vehicle Moves Forward or Back-
ward When Pushed ...............................................
140
In "N" Position, Vehicle Moves ..............................141
Large Shock "N" → "R" Position ...........................142
Vehicle Does Not Creep Backward in "R" Position ..142
Vehicle Does Not Creep Forward in "D", "2" or "1"
Position ..................................................................
144
Vehicle Cannot Be Started from D1 .......................145
A/T Does Not Shift: D1→ D2or Does Not Kick-
down: D
4→ D2 .......................................................146
A/T Does Not Shift: D2→ D3 ..................................148
A/T Does Not Shift: D3→ D4 ..................................149
A/T Does Not Perform Lock-up .............................151
A/T Does Not Hold Lock-up Condition ...................151
Lock-up Is Not Released .......................................152
Engine Speed Does Not Return to Idle (Light
Braking D
4→ D3) ...................................................153
A/T Does Not Shift: D4→ D3, When OD OFF ........154
A/T Does Not Shift: D3→ 22, When Selector Lever
"D" → "2" Position .................................................
155
A/T Does Not Shift: 22→ 11, When Selector Lever
"2" → "1" Position ..................................................
156
Vehicle Does Not Decelerate by Engine Brake .....158
TCM Self-Diagnosis Does Not Activate .................161
PRECAUTION ............................................163
PRECAUTIONS ...............................................163
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................
163
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .................................
163
Precaution for On Board Diagnosis (OBD) System
of A/T and Engine (For Type1 Only) ......................
163
Precaution .............................................................164
Service Notice or Precaution .................................165
Wiring Diagram and Trouble Diagnosis .................165
PREPARATION .........................................166
PREPARATION ...............................................166
Special Service Tool ..............................................166
Commercial Service Tool ......................................169
ON-VEHICLE MAINTENANCE ..................171
A/T FLUID .......................................................171
Checking A/T Fluid ................................................171
Changing A/T Fluid ................................................171
A/T Fluid Cooler Cleaning .....................................172
STALL TEST ...................................................175
Inspection and Judgment ......................................175
LINE PRESSURE TEST ..................................178
Inspection and Judgment ......................................178
ROAD TEST ....................................................180
Description .............................................................180
Check Before Engine Is Started ............................180
Check at Idle ..........................................................181
Cruise Test - Part 1 ...............................................183
Cruise Test - Part 2 ...............................................185
Cruise Test - Part 3 ...............................................186
Vehicle Speed When Shifting Gears .....................188

TM-4
Vehicle Speed When Performing and Releasing
Complete Lock-up .................................................
188
ON-VEHICLE REPAIR ...............................189
TRANSMISSION CONTROL MODULE ..........189
Exploded View .......................................................189
Removal and Installation .......................................189
CONTROL SYSTEM ........................................191
Control Valve Assembly and Accumulators ...........191
PARK/NEUTRAL POSITION (PNP) SWITCH .195
Park/Neutral Position (PNP) Switch ......................195
REVOLUTION SENSOR ..................................197
Revolution Sensor .................................................197
Turbine Revolution Sensor (Power Train Revolu-
tion Sensor) ...........................................................
197
DIFFERENTIAL SIDE OIL SEAL ....................199
Differential Side Oil Seal ........................................199
SHIFT CONTROL SYSTEM ............................200
Control Device Removal and Installation ...............200
Control Device Disassembly and Assembly ..........203
Selector Lever Knob Removal and Installation ......203
Adjustment of A/T Position ....................................204
Checking of A/T Position .......................................204
KEY INTERLOCK CABLE ...............................206
Removal and Installation .......................................206
AIR BREATHER HOSE ...................................209
Removal and Installation .......................................209
REMOVAL AND INSTALLATION ..............210
TRANSAXLE ASSEMBLY ..............................210
Exploded View .......................................................210
Removal and Installation .......................................210
DISASSEMBLY AND ASSEMBLY ............213
OVERHAUL .....................................................213
Component ............................................................213
Oil Channel ............................................................219
Location of Adjusting Shims, Needle Bearings and
Thrust Washers .....................................................
220
Location of Snap Rings .........................................221
DISASSEMBLY ...............................................222
Disassembly ..........................................................222
REPAIR FOR COMPONENT PARTS ..............237
Manual Shaft .........................................................237
Oil Pump ................................................................240
Control Valve Assembly ........................................243
Control Valve Upper Body .....................................252
Control Valve Lower Body .....................................255
Reverse Clutch ......................................................258
High Clutch ............................................................262
Forward and Overrun Clutches .............................267
Low & Reverse Brake ...........................................273
Rear Internal Gear and Forward Clutch Hub ........278
Output Shaft, Output Gear, Idler Gear, Reduction
Pinion Gear and Bearing Retainer ........................
281
Band Servo Piston Assembly ................................287
Final Drive .............................................................292
ASSEMBLY ......................................................297
Assembly (1) .........................................................297
Adjustment (1) .......................................................298
Assembly (2) .........................................................303
Adjustment (2) .......................................................307
Assembly (3) .........................................................311
SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................
319
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................
319
General Specification ............................................319
Vehicle Speed at Which Gear Shifting Occurs .....319
Vehicle Speed at When Lock-up Occurs/Releases
.
319
Stall Speed ............................................................319
Line Pressure ........................................................319
Adjusting shims, Needle Bearings, Thrust Wash-
ers and Snap Rings ..............................................
320
Control Valves .......................................................321
Accumulator ..........................................................321
Clutches and Brakes .............................................321
Final Drive .............................................................323
Planetary Carrier ...................................................323
Oil Pump ...............................................................323
Input Shaft .............................................................323
Reduction Pinion Gear ..........................................323
Band Servo ...........................................................323
Output Shaft ..........................................................323
Bearing Retainer ...................................................324
Total End Play .......................................................324
Reverse Clutch End Play ......................................324
Removal and Installation .......................................324
Shift Solenoid Valves ............................................324
Solenoid Valves ....................................................324
A/T Fluid Temperature Sensor ..............................325
Revolution Sensor .................................................325
Dropping Resistor .................................................325
Turbine Revolution Sensor (Power Train Revolu-
tion Sensor) ...........................................................
325
TYPE 2 (4AT: RE4F03B)
BASIC INSPECTION .................................
326
DIAGNOSIS AND REPAIR WORKFLOW ........326
Work Flow .............................................................326
Diagnostic Work Sheet .........................................327
FUNCTION DIAGNOSIS ...........................329
A/T CONTROL SYSTEM ..................................329
