SYSTEM SYMPTOM
TM-135
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Slips/Will Not EngageRaces extremely fast
or slips in changing
from D
3 to D2 when
depressing accelera-
tor pedal. ON vehicle1. A/T fluid levelTM-171
2. Accelerator pedal position sensor EC-297
3. Line pressure testTM-178
4. Line pressure solenoid valveTM-81
5. Shift solenoid valve BTM-89
6. Control valve assemblyTM-191
OFF vehicle7. Brake bandTM-2878. High clutchTM-262
Races extremely fast
or slips in changing
from D
4 or D3 to D 1
when depressing ac-
celerator pedal.ON vehicle1. A/T fluid levelTM-171
2. Accelerator pedal position sensorEC-297
3. Line pressure testTM-178
4. Line pressure solenoid valveTM-81
5. Shift solenoid valve ATM-85
6. Shift solenoid valve BTM-89
7. Control valve assemblyTM-191
OFF vehicle8. Forward clutchTM-2679. Forward one-way clutchTM-278
10. Low one-way clutchTM-222
Vehicle will not run in
any position.ON vehicle1. A/T fluid levelTM-171
2. Control cable adjustmentTM-204
3. Line pressure testTM-178
4. Line pressure solenoid valveTM-81
OFF vehicle5. Oil pumpTM-240
6. High clutchTM-262
7. Brake bandTM-287
8. Low & reverse brakeTM-273
9. Torque converterTM-222
10. Parking componentsTM-213
OthersEngine cannot be
started in “P” and “N”
positions.
TM-140
ON vehicle1. Ignition switch and starterSTR-62. Control cable adjustmentTM-204
3. PNP switch adjustmentTM-195
Engine starts in posi-
tions other than “P”
and “N”.ON vehicle1. Control cable adjustmentTM-204
2. PNP switch adjustmentTM-195
Items Symptom Condition Diagnostic item Reference page

TM-136
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
SYSTEM SYMPTOM
OthersTransaxle noise in“ P”
and “N” positions.ON vehicle1. A/T fluid levelTM-171
2. Line pressure testTM-178
3. Accelerator pedal position sensorEC-297
4. Vehicle speed sensor·A/T (Revolution sensor)
and vehicle speed sensor·MTRTM-52 and TM-97
OFF vehicle5. Oil pumpTM-2406. Torque converterTM-222
Vehicle moves when
changing into “P” po-
sition or parking gear
does not disengage
when shifted out of “P”
position.ON vehicle 1. Control cable adjustmentTM-204
OFF vehicle 2. Parking componentsTM-213
Vehicle runs in “N” po-
sition.
TM-141
ON vehicle 1. Control cable adjustmentTM-204
OFF vehicle2. Forward clutchTM-2673. Reverse clutchTM-258
4. Overrun clutchTM-267
Vehicle braked when
shifting into “R” posi-
tion.ON vehicle1. A/T fluid levelTM-171
2. Control cable adjustmentTM-204
3. Line pressure testTM-178
4. Line pressure solenoid valveTM-81
5. Control valve assemblyTM-191
OFF vehicle6. High clutchTM-2627. Brake band TM-287
8. Forward clutchTM-267
9. Overrun clutchTM-267
Excessive creep. ON vehicle 1. Engine idling speedEC-26
Engine stops when
shifting lever into “R”,
“D”, “2” and “1” posi-
tions.ON vehicle1. Engine idling speedEC-262. A/T fluid levelTM-171
3. Torque converter clutch solenoid valveTM-73
4. Control valve assemblyTM-191
OFF vehicle 5. Torque converterTM-222
Vehicle braked by
gear change from D
1
to D
2.ON vehicle 1. A/T fluid levelTM-171OFF vehicle2. Reverse clutchTM-2583. Low & reverse brakeTM-273
4. High clutchTM-262
5. Low one-way clutchTM-222
Vehicle braked by
gear change from D
2
to D
3.ON vehicle 1. A/T fluid levelTM-171OFF vehicle 2. Brake bandTM-287
Items Symptom Condition Diagnostic item Reference page

SYSTEM SYMPTOM
TM-137
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
OthersVehicle braked by
gear change from D
3
to D
4.ON vehicle 1. A/T fluid levelTM-171OFF vehicle2. Overrun clutchTM-2673. Forward one-way clutchTM-278
4. Reverse clutchTM-258
Maximum speed not
attained. Poor accel-
eration.ON vehicle1. A/T fluid levelTM-171
2. PNP switch adjustmentTM-195
3. Overdrive control switchT M - 111
4. Accelerator pedal position sensorEC-297
5. Vehicle speed sensor·A/T (Revolution sensor)
and vehicle speed sensor·MTRTM-52 and TM-97
6. Shift solenoid valve ATM-85
7. Shift solenoid valve BTM-89
8. Control valve assemblyTM-191
OFF vehicle9. Reverse clutchTM-258
10. High clutchTM-262
11. Brake bandTM-287
12. Low & reverse brakeTM-273
13. Oil pumpTM-240
14. Torque converterTM-222
Transaxle noise in
“D”, “2”, “1” and “R”
positions.ON vehicle 1. A/T fluid levelTM-171
OFF vehicle 2. Torque converterTM-222
Engine brake does
not operate in “1” po-
sition.ON vehicle1. PNP switch adjustmentTM-195
2. Control cable adjustmentTM-204
3. Vehicle speed sensor·A/T (Revolution sensor)
and vehicle speed sensor·MTRTM-52 and TM-97
4. Control valve assemblyTM-191
5. Overrun clutch solenoid valveTM-93
OFF vehicle6. Overrun clutchTM-2677. Low & reverse brakeTM-273
Items Symptom Condition Diagnostic item Reference page

TM-138
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
SYSTEM SYMPTOM
OD OFF Indicator Lamp Does Not Come On
INFOID:0000000001696242
SYMPTOM:
OD OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to ON.
1.CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to TM-35, "
CONSULT-III Function (TRANSMISSION)" or TM-350, "Diagnosis
Procedure without CONSULT-III".
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to TM-43, "Description" (type 1) or TM-391, "Description"
(type 2).
NO >> GO TO 2.
2.CHECK TCM POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OthersTransaxle overheats.ON vehicle1. A/T fluid levelTM-171
2. Engine idling speedEC-26
3. Accelerator pedal position sensorEC-297
4. Line pressure testTM-178
5. Line pressure solenoid valveTM-81
6. Control valve assemblyTM-191
OFF vehicle7. Oil pumpTM-240
8. Reverse clutchTM-258
9. High clutchTM-262
10. Brake bandTM-287
11. Forward clutchTM-267
12. Overrun clutchTM-267
13. Low & reverse brakeTM-273
14. Torque converterTM-222
ATF shoots out during
operation.
White smoke emitted
from exhaust pipe
during operation.ON vehicle 1. A/T fluid levelTM-171
OFF vehicle2. Reverse clutchTM-258
3. High clutchTM-262
4. Brake bandTM-287
5. Forward clutchTM-267
6. Overrun clutchTM-267
7. Low & reverse brakeTM-273
Unusual smell at A/T
fluid charging pipe.ON vehicle 1. A/T fluid levelTM-171
OFF vehicle2. Torque converterTM-222
3. Oil pumpTM-240
4. Reverse clutchTM-258
5. High clutchTM-262
6. Brake bandTM-287
7. Forward clutchTM-267
8. Overrun clutchTM-267
9. Low & reverse brakeTM-273
Items Symptom Condition Diagnostic item Reference page

SYSTEM SYMPTOM
TM-139
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
.
3. Turn ignition switch OFF.
4. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING ITEM
Check the following.
 Harness for short or open between ignition switch and TCM connector terminals 10, 19
 Harness for short or open between battery and TCM connector terminal 28
 10A fuse (No.13, located in the fuse block) and 10A fuse (No.49, located in the IPDM E/R)
 Ignition switch.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
5.DETECT MALFUNCTIONING ITEM
Check the following.
 Harness for short or open between ignition switch and combination meter
 Combination meter.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK SYMPTOM

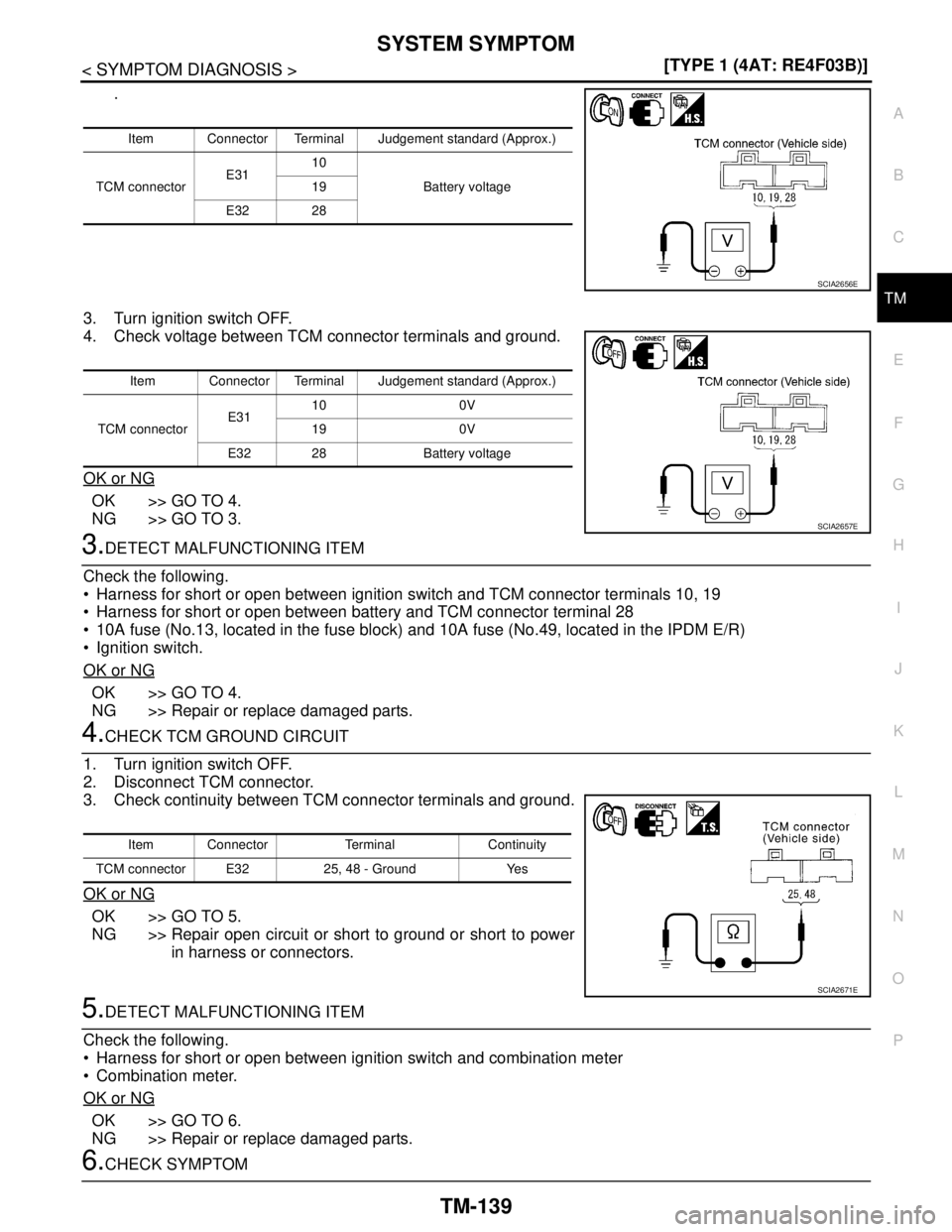

Item Connector Terminal Judgement standard (Approx.)
TCM connectorE3110
Battery voltage 19
E32 28
SCIA2656E
Item Connector Terminal Judgement standard (Approx.)
TCM connectorE3110 0V
19 0V
E32 28 Battery voltage
SCIA2657E
Item Connector Terminal Continuity
TCM connector E32 25, 48 - Ground Yes
SCIA2671E

TM-140
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
SYSTEM SYMPTOM
Check again. Refer to TM-180, "Check Before Engine Is Started".
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7.CHECK TCM
1. Check TCM input/output. Refer to TM-119, "
Reference Value" (Type 1) or TM-422, "Reference Value"
(Type 2).
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started in "P" and "N" PositionINFOID:0000000001696243
SYMPTOM:
Engine cannot be started with selector lever in “P” or “N” position.
Engine can be started with selector lever in “D”, “2”, “1” or “R” position.
1.CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to TM-35, "
CONSULT-III Function (TRANSMISSION)" or TM-38, "Diagnosis
Procedure without CONSULT-III".
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to TM-35, "CONSULT-III Function (TRANSMISSION)" or
TM-38, "
Diagnosis Procedure without CONSULT-III".
NO >> GO TO 2.
2.CHECK PNP SWITCH

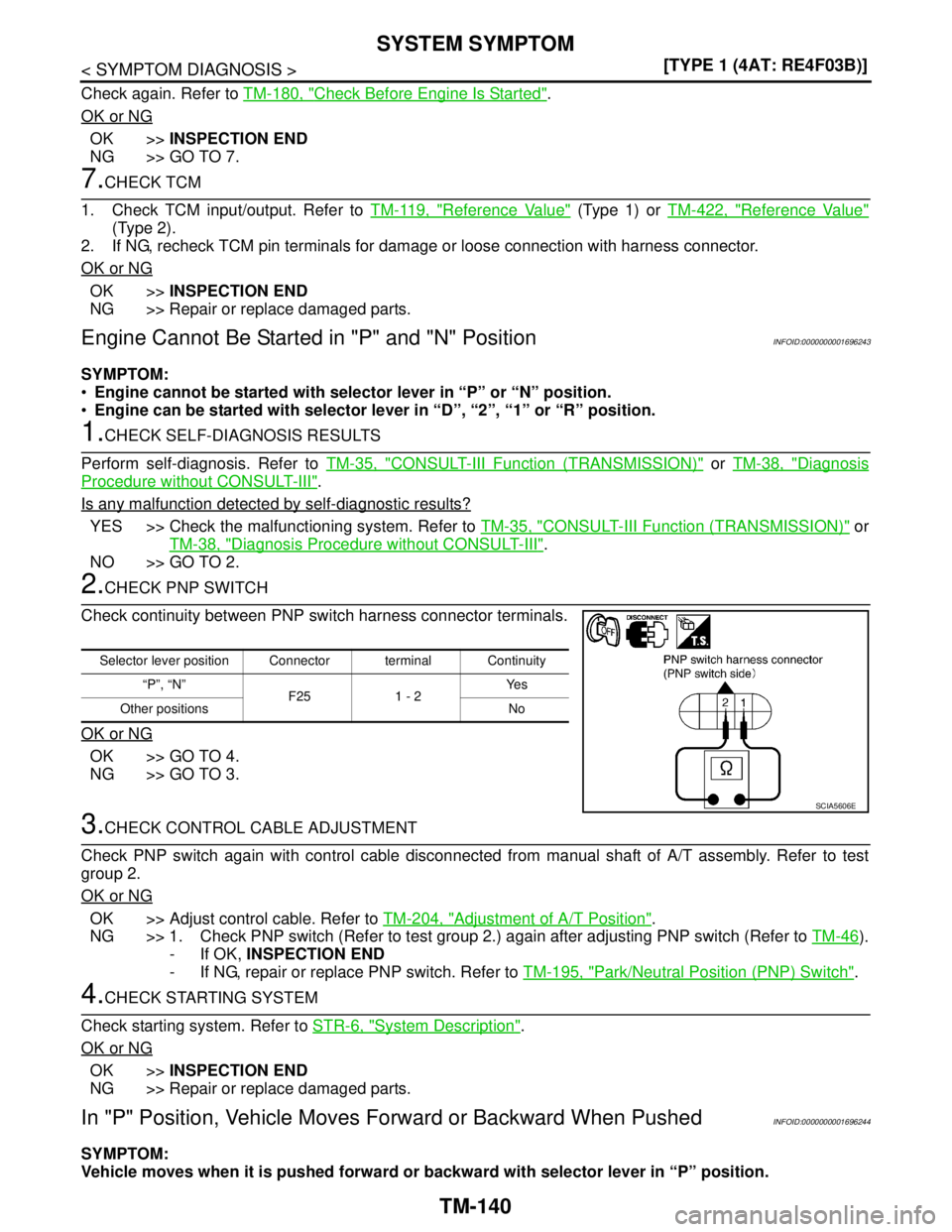

Check continuity between PNP switch harness connector terminals.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.CHECK CONTROL CABLE ADJUSTMENT
Check PNP switch again with control cable disconnected from manual shaft of A/T assembly. Refer to test
group 2.
OK or NG
OK >> Adjust control cable. Refer to TM-204, "Adjustment of A/T Position".
NG >> 1. Check PNP switch (Refer to test group 2.) again after adjusting PNP switch (Refer to TM-46
).
- If OK, INSPECTION END
- If NG, repair or replace PNP switch. Refer to TM-195, "
Park/Neutral Position (PNP) Switch".
4.CHECK STARTING SYSTEM
Check starting system. Refer to STR-6, "
System Description".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In "P" Position, Vehicle Moves Forward or Backward When PushedINFOID:0000000001696244
SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.
Selector lever position Connector terminal Continuity
“P”, “N”
F25 1 - 2Ye s
Other positions No
SCIA5606E

SYSTEM SYMPTOM
TM-141
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
1.CHECK A/T POSITION
Check A/T position. Refer to TM-204, "
Checking of A/T Position".
OK or NG
OK >> GO TO 2.
NG >> Adjust A/T position. Refer to TM-204, "
Adjustment of A/T Position".

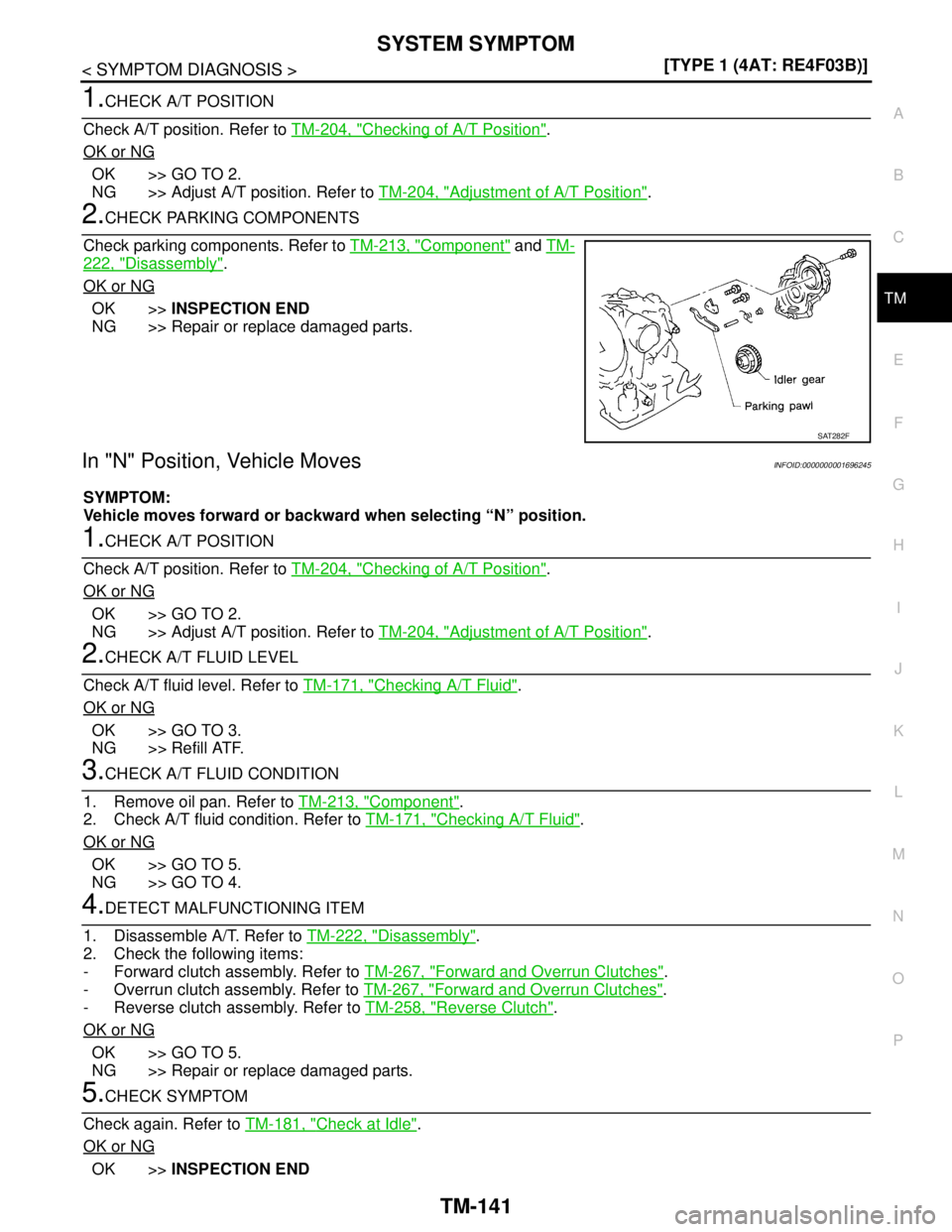

2.CHECK PARKING COMPONENTS
Check parking components. Refer to TM-213, "
Component" and TM-
222, "Disassembly".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In "N" Position, Vehicle MovesINFOID:0000000001696245
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
1.CHECK A/T POSITION
Check A/T position. Refer to TM-204, "
Checking of A/T Position".
OK or NG
OK >> GO TO 2.
NG >> Adjust A/T position. Refer to TM-204, "
Adjustment of A/T Position".
2.CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to TM-171, "
Checking A/T Fluid".
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3.CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to TM-213, "
Component".
2. Check A/T fluid condition. Refer to TM-171, "
Checking A/T Fluid".
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to TM-222, "
Disassembly".
2. Check the following items:
- Forward clutch assembly. Refer to TM-267, "
Forward and Overrun Clutches".
- Overrun clutch assembly. Refer to TM-267, "
Forward and Overrun Clutches".
- Reverse clutch assembly. Refer to TM-258, "
Reverse Clutch".
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK SYMPTOM
Check again. Refer to TM-181, "
Check at Idle".
OK or NG
OK >>INSPECTION END
SAT282F

TM-142
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
SYSTEM SYMPTOM
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signals. Refer to TM-22, "
Input/Output Signal of TCM".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Large Shock "N" → "R" PositionINFOID:0000000001696246
SYMPTOM:
There is a large shock when changing from “N” to “R” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to TM-35, "
CONSULT-III Function (TRANSMISSION)" or TM-38, "Diagnosis
Procedure without CONSULT-III".
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to TM-38, "Diagnosis Procedure without CONSULT-III".
NO >> GO TO 2.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer to TM-178, "
Inspection and Judgment".
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
2. Check the following items:
- Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)
- Line pressure solenoid valve
- Oil pump assembly. Refer to TM-240, "
Oil Pump".
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again. Refer to TM-181, "
Check at Idle".
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
5.CHECK TCM
1. Check TCM input/output signals. Refer to TM-22, "
Input/Output Signal of TCM".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Vehicle Does Not Creep Backward in "R" PositionINFOID:0000000001696247
SYMPTOM:
Vehicle does not creep backward when selecting “R” position.
1.CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to TM-171, "
Checking A/T Fluid".
OK or NG

SYSTEM SYMPTOM
TM-143
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
OK >> GO TO 2.
NG >> Refill ATF.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “R” position. Refer to TM-178, "
Inspection and Judgment".
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
2. Check the following items:
- Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)
- Line pressure solenoid valve
3. Disassemble A/T. Refer to TM-222, "
Disassembly".
4. Check the following item:
- Oil pump assembly. Refer to TM-240, "
Oil Pump".
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK STALL REVOLUTION
Check stall revolution with selector lever in “1” and “R” positions. Refer to TM-175, "
Inspection and Judgment".
OK or NG
OK >> GO TO 6.
OK in “1” position, NG in “R” position>>GO TO 5.
NG in both “1” and “R” positions>>GO TO 7.
5.DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to TM-222, "
Disassembly".
2. Check the following items:
- Low & reverse brake assembly. Refer to TM-273, "
Low & Reverse Brake".
- Reverse clutch assembly. Refer to TM-258, "
Reverse Clutch".
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to TM-213, "
Component".
2. Check A/T fluid condition. Refer to TM-171, "
Checking A/T Fluid".
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to TM-222, "
Disassembly".
2. Check the following items:
- Reverse clutch assembly. Refer to TM-258, "
Reverse Clutch".
- High clutch assembly. Refer to TM-262, "
High Clutch".
- Low & reverse brake assembly. Refer to TM-273, "
Low & Reverse Brake".
- Forward clutch assembly. Refer to TM-267, "
Forward and Overrun Clutches".
- Overrun clutch assembly. Refer to TM-267, "
Forward and Overrun Clutches".
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8.CHECK SYMPTOM

TM-144
< SYMPTOM DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
SYSTEM SYMPTOM
Check again. Refer to TM-181, "Check at Idle".
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
9.CHECK TCM
1. Check TCM input/output signals. Refer to TM-22, "
Input/Output Signal of TCM".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Vehicle Does Not Creep Forward in "D", "2" or "1" PositionINFOID:0000000001696248
SYMPTOM:
Vehicle does not creep forward when selecting “D”, “2” or “1” position.
1.CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to TM-171, "
Checking A/T Fluid".
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer to TM-178, "
Inspection and Judgment".
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
2. Check the following items:
- Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)
- Line pressure solenoid valve
3. Disassemble A/T. Refer to TM-222, "
Disassembly".
4. Check the following item:
- Oil pump assembly. Refer to TM-240, "
Oil Pump".
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK STALL REVOLUTION
Check stall revolution with selector lever in “D” position. Refer to TM-175, "
Inspection and Judgment".
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to TM-222, "
Disassembly".
2. Check the following items:
- Oil pump assembly. Refer to TM-240, "
Oil Pump".
- Forward clutch assembly. Refer to TM-267, "
Forward and Overrun Clutches".
- Forward one-way clutch. Refer to TM-278, "
Rear Internal Gear and Forward Clutch Hub".
- Low one-way clutch. Refer to TM-222, "
Disassembly".
- Torque converter. Refer to TM-222, "
Disassembly".
OK or NG
OK >> GO TO 7.
