ASSEMBLY
TM-315
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Completely remove all moisture, oil and old sealant, etc. from the transaxle case and converter
housing mating surfaces.
22. Install converter housing on transaxle case.
23. Install bracket on converter housing.
24. Tighten converter housing bolts (1), (2) and (3) to the specified
torque.
*: Tighten with bracket.
25. Install O-ring to plug.
CAUTION:
Do not reuse O-ring.
Apply ATF to O-ring.
26. Install plug to converter housing.
27. Tighten plug fitting bolt to the specified torque.
28. Install accumulator pistons.
a. Install O-rings (1) on servo release accumulator piston (2) and
N-D accumulator piston (3). Refer to TM-321, "
Accumulator".
b. Install return springs (1), servo release accumulator piston (2)
and N-D accumulator piston (3) into transaxle case (4). Refer to
TM-321, "
Accumulator".
29. Install lip seals (1) for band servo oil holes on transaxle case.
Bolt 1 2 3*
Bolt length
[mm (in)]30 (1.18) 40 (1.57)
Number of bolts 10 9 1
SCIA6956E
SCIA6033J
SCIA6042J
SCIA5895J
Page 5262 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-316
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
ASSEMBLY
30. Install control valve assembly on transaxle case.
a. Install O-ring on terminal body.
CAUTION:
Do not reuse O-ring.
Apply AT NISSAN TIIDA 2007 Service Repair Manual TM-316
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
ASSEMBLY
30. Install control valve assembly on transaxle case.
a. Install O-ring on terminal body.
CAUTION:
Do not reuse O-ring.
Apply AT](/img/5/57395/w960_57395-5261.png)
TM-316
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
ASSEMBLY
30. Install control valve assembly on transaxle case.
a. Install O-ring on terminal body.
CAUTION:
Do not reuse O-ring.
Apply ATF to O-ring.
b. Insert manual valve into control valve assembly.
CAUTION:
Do not drop manual valve.
c. Set manual shaft in “N” position.
d. Install control valve assembly on transaxle case while aligning
manual valve (2) with manual plate (1).
e. Install terminal body (2) into transaxle case by pushing it.
f. Install snap ring (1) to terminal body (2).
g. Tighten bolts (A), (B) and (C) to the specified torque.
Bolt length, number and location:

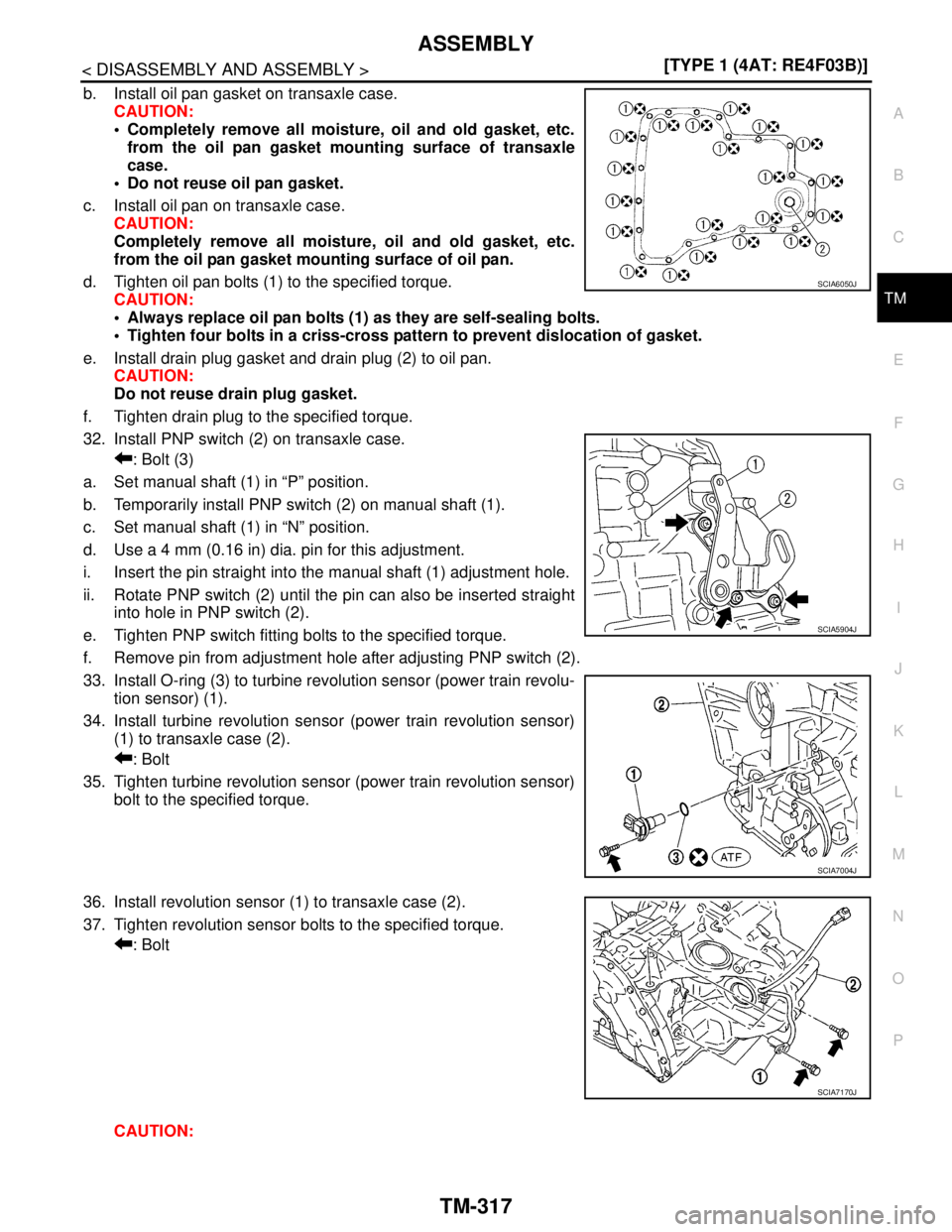

31. Install oil pan.
a. Attach magnets on oil pan.
SCIA3999E
SCIA7090E
SCIA6030J
Bolt symbol A B C
Bolt length “ ” [mm (in)]
40.0 mm
(1.575 in)33.0 mm
(1.299 in)43.5 mm
(1.713 in)
Number of bolts 5 6 2
SCIA5911J
Page 5263 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ASSEMBLY
TM-317
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
b. Install oil pan gasket on transaxle case.
CAUTION:
Completely remove all moisture, oil and old NISSAN TIIDA 2007 Service Repair Manual ASSEMBLY
TM-317
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
b. Install oil pan gasket on transaxle case.
CAUTION:
Completely remove all moisture, oil and old](/img/5/57395/w960_57395-5262.png)
ASSEMBLY
TM-317
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
b. Install oil pan gasket on transaxle case.
CAUTION:
Completely remove all moisture, oil and old gasket, etc.
from the oil pan gasket mounting surface of transaxle
case.
Do not reuse oil pan gasket.
c. Install oil pan on transaxle case.
CAUTION:
Completely remove all moisture, oil and old gasket, etc.
from the oil pan gasket mounting surface of oil pan.
d. Tighten oil pan bolts (1) to the specified torque.
CAUTION:
Always replace oil pan bolts (1) as they are self-sealing bolts.
Tighten four bolts in a criss-cross pattern to prevent dislocation of gasket.
e. Install drain plug gasket and drain plug (2) to oil pan.
CAUTION:
Do not reuse drain plug gasket.
f. Tighten drain plug to the specified torque.
32. Install PNP switch (2) on transaxle case.
: Bolt (3)
a. Set manual shaft (1) in “P” position.
b. Temporarily install PNP switch (2) on manual shaft (1).
c. Set manual shaft (1) in “N” position.
d. Use a 4 mm (0.16 in) dia. pin for this adjustment.
i. Insert the pin straight into the manual shaft (1) adjustment hole.
ii. Rotate PNP switch (2) until the pin can also be inserted straight
into hole in PNP switch (2).
e. Tighten PNP switch fitting bolts to the specified torque.
f. Remove pin from adjustment hole after adjusting PNP switch (2).
33. Install O-ring (3) to turbine revolution sensor (power train revolu-
tion sensor) (1).
34. Install turbine revolution sensor (power train revolution sensor)
(1) to transaxle case (2).
: Bolt
35. Tighten turbine revolution sensor (power train revolution sensor)
bolt to the specified torque.
36. Install revolution sensor (1) to transaxle case (2).
37. Tighten revolution sensor bolts to the specified torque.
: Bolt
CAUTION:
SCIA6050J
SCIA5904J
SCIA7004J
SCIA7170J
Page 5264 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-318
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
ASSEMBLY
Ensure revolution sensor harness is firmly secured with
bolt.
(1): Revolution sensor
: Bolt

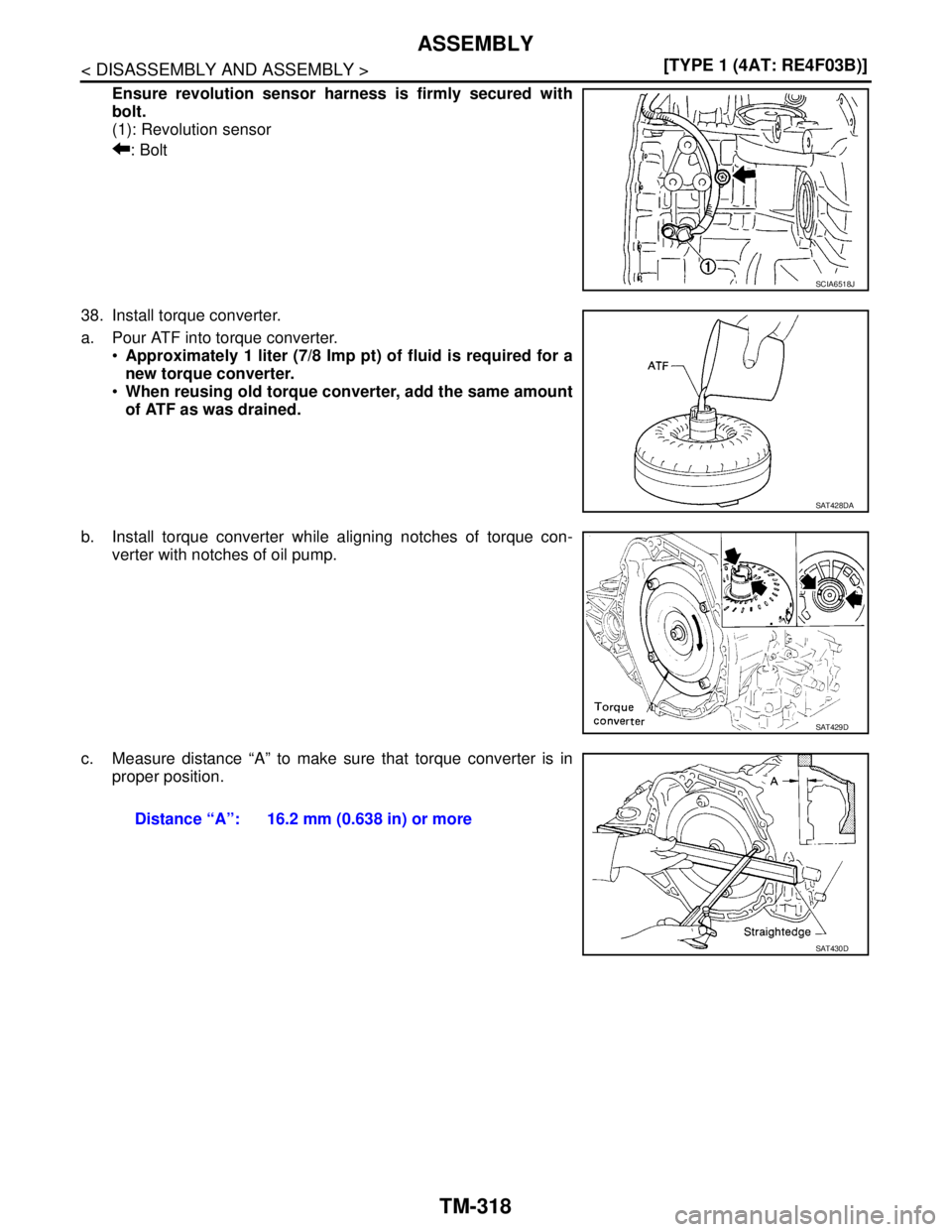

38. Install torque converter.
a. Pour AT NISSAN TIIDA 2007 Service Repair Manual TM-318
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
ASSEMBLY
Ensure revolution sensor harness is firmly secured with
bolt.
(1): Revolution sensor
: Bolt
38. Install torque converter.
a. Pour AT](/img/5/57395/w960_57395-5263.png)
TM-318
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
ASSEMBLY
Ensure revolution sensor harness is firmly secured with
bolt.
(1): Revolution sensor
: Bolt
38. Install torque converter.
a. Pour ATF into torque converter.
Approximately 1 liter (7/8 Imp pt) of fluid is required for a
new torque converter.
When reusing old torque converter, add the same amount
of ATF as was drained.
b. Install torque converter while aligning notches of torque con-
verter with notches of oil pump.
c. Measure distance “A” to make sure that torque converter is in
proper position.
SCIA6518J
SAT428DA
SAT429D
Distance “A”: 16.2 mm (0.638 in) or more
SAT430D
Page 5265 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TM-319
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPEC NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TM-319
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPEC](/img/5/57395/w960_57395-5264.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
TM-319
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000001730959
*: Refer to MA-19, "Fluids and Lubricants".
Vehicle Speed at Which Gear Shifting OccursINFOID:0000000001730960
At half throttle, the accelerator opening is 1/2 of the full opening.
Vehicle Speed at When Lock-up Occurs/ReleasesINFOID:0000000001730961
Stall SpeedINFOID:0000000001730962
Line PressureINFOID:0000000001730963
EngineHR16DE
Automatic transaxle modelRE4F03B
Automatic transaxle assembly Model code number 3CX3C
Transaxle gear ratio1st 2.861
2nd 1.562
3rd 1.000
4th 0.697
Reverse 2.310
Final drive 4.072
Recommended fluid Genuine NISSAN Matic J ATF or equivalent
*
Fluid capacity [ (Imp qt)]7.7 (6-3/4)
Throttle positionVehicle speed km/h (MPH)
D1 → D2D2 → D3D3 → D4D4 → D3D3 → D2D2 → D1
Full throttle51 - 59
(32 - 37)97 - 105
(60 - 65) 154 - 162
(96 - 101)150 - 158
(93 - 98)87 - 95
(54 - 59)41 - 49
(25 - 30)
Half throttle31 - 39
(19 - 24)60 - 68
(37 - 42)122 - 130
(76 - 81)63 - 71
(39 - 44)36 - 44
(22 - 27)5 - 13
(3 - 8)
Throttle position Selector lever positionVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
2.0/8“D” position 76 - 84 (47 - 52) 56 - 64 (35 - 40)
“D” position (OD OFF) 86 - 94 (53 - 58) 83 - 91 (52 - 57)
Stall revolution (rpm)2,250 - 2,700
Engine speedLine pressure kPa (bar, kg/cm
2, psi)
“D”, “2” and “1” positions “R” position
Idle speed 500 (5.0, 5.1, 73) 778 (7.8, 7.9, 113)
Stall speed 1,159 (11.6, 11.8, 168) 1,804 (18.0, 18.4, 262)
Page 5266 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-320
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings
INFOID:0000000001731392
NOT NISSAN TIIDA 2007 Service Repair Manual TM-320
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings
INFOID:0000000001731392
NOT](/img/5/57395/w960_57395-5265.png)
TM-320
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings
INFOID:0000000001731392
NOTE:
Refer to XX-XX, "*****"
or XX-XX, "*****".
OUTER DIAMETER AND INNER DIAMETER OF NEEDLE BEARINGS
Unit: mm (in)
OUTER DIAMETER AND INNER DIAMETER OF THRUST WASHERS
Unit: mm (in)
OUTER DIAMETER AND INNER DIAMETER OF BEARING RACES AND ADJUSTING SHIMS
Unit: mm (in)
OUTER DIAMETER OF SNAP RINGS
Unit: mm (in)
INNER DIAMETER OF SNAP RINGS
Unit: mm (in)
Location Outer diameter Inner diameter
A 47.0 (1.850) 32.0 (1.260)
B 35.0 (1.378) 20.1 (0.791)
C 60.0 (2.362) 42.0 (1.654)
D 60.0 (2.362) 45.0 (1.772)
E 47.0 (1.850) 30.0 (1.181)
F 42.6 (1.677) 26.1 (1.028)
G 48.0 (1.890) 33.5 (1.319)
H 58.99 (2.3224) 42.1 (1.657)
Location Outer diameter Inner diameter
I 72.0 (2.835) 55.5 (2.185)
J, K 82.0 (3.228) 59.0 (2.323)
L 78.5 (3.091) 62.4 (2.457)
Location Outer diameter Inner diameter
M 48.0 (1.890) 33.0 (1.299)
N 29.0 (1.142) 25.0 (0.984)
O 34.3 (1.350) 26.1 (1.028)
P 79.5 (3.130) 72.0 (2.835)
Location Outer diameter
1
142.0 (5.59)
2
3
162.3 (6.39) 4
5
7 113.0 (4.45)
8 135.4 (5.33)
9 126.0 (4.96)
Location Inner diameter
6 32.0 (1.260)
10 63.5 (2.500)
Page 5267 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TM-321
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Control ValvesINFOID:0000000001731393
CONTROL VALVE SPRINGS NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TM-321
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Control ValvesINFOID:0000000001731393
CONTROL VALVE SPRINGS](/img/5/57395/w960_57395-5266.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
TM-321
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Control ValvesINFOID:0000000001731393
CONTROL VALVE SPRINGS
Unit: mm (in)
AccumulatorINFOID:0000000001731394
RETURN SPRINGS
Unit: mm (in)
Unit: mm (in)
O-RINGS
Unit: mm (in)
Clutches and BrakesINFOID:0000000001731395
REVERSE CLUTCH
Location spring designation Free length (l) Outer diameter (D)
Upper bodyL14 Pilot valve spring 38.98 (1.5346) 8.9 (0.350)
L151–2 accumulator valve spring 20.5 (0.807) 6.95 (0.2737)
1–2 accumulator piston spring 55.66 (2.1913) 19.5 (0.768)
L16 1st reducing valve spring 27.0 (1.063) 7.0 (0.276)
L17 3–2 timing valve spring 23.0 (0.906) 6.65 (0.2618)
L18 Overrun clutch reducing valve spring 37.5 (1.476) 7.0 (0.276)
L19 Torque converter relief valve spring 33.3 (1.311) 9.0 (0.354)
L20 Torque converter clutch control valve spring 53.01 (2.0870) 6.5 (0.256)
L21 Cooler check valve spring 28.04 (1.1039) 7.15 (0.2815)
Lower bodyL3 Pressure regulator valve spring 45.0 (1.772) 15.0 (0.591)
L4 Overrun clutch control valve spring 21.7 (0.854) 7.0 (0.276)
L5 Accumulator control valve spring 22.0 (0.866) 6.5 (0.256)
L6 Shift valve A spring 21.7 (0.854) 7.0 (0.276)
L7 Shuttle valve spring 51.0 (2.008) 5.65 (0.2224)
L12 Shift valve B spring 21.7 (0.854) 7.0 (0.276)
L13Pressure modifier valve spring 32.0 (1.260) 6.9 (0.272)
Pressure modifier piston spring 30.5 (1.201) 9.8 (0.386)
— Line pressure relief valve spring 17.02 (0.6701) 8.0 (0.315)
— Torque converter pressure holding spring 9.0 (0.354) 7.3 (0.287)
Location Free length (L1)
Servo release accumulator 62.8 (2.472)
Location Length (L2)
N-D accumulator46.5 (1.831)
Location Inner diameter (Small) Inner diameter (Large)
Servo release accumulator 26.9 (1.059) 44.2 (1.740)
N-D accumulator 34.6 (1.362) 39.4 (1.551)
Number of drive plates2
Number of driven plates2
Drive plate thickness [mm (in)]Standard 2.0 (0.079)
Allowable limit 1.8 (0.070)
Page 5268 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-322
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
HIGH CLUTCH
FORWARD CLUTCH
OVERRUN CLUTCH
LOW & REVERSE BRAKE
BRAKE BAND
Driven plate thick NISSAN TIIDA 2007 Service Repair Manual TM-322
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
HIGH CLUTCH
FORWARD CLUTCH
OVERRUN CLUTCH
LOW & REVERSE BRAKE
BRAKE BAND
Driven plate thick](/img/5/57395/w960_57395-5267.png)
TM-322
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
HIGH CLUTCH
FORWARD CLUTCH
OVERRUN CLUTCH
LOW & REVERSE BRAKE
BRAKE BAND
Driven plate thickness [mm (in)] Standard 2.0 (0.079)
Clearance [mm (in)]Standard 0.5 - 0.8 (0.020 - 0.031)
Allowable limit 1.2 (0.047)
Number of drive plates3
Number of driven plates6 (1
*1 + 5*2)
Drive plate thickness [mm (in)]Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)
Driven plate thickness [mm (in)] Standard
*1 *2
1.5 (0.059) 2.0 (0.079)
Clearance [mm (in)]Standard 1.4 - 1.8 (0.055 - 0.070)
Allowable limit 2.4 (0.094)
Number of drive plates5
Number of driven plates5
Drive plate thickness [mm (in)]Standard 1.8 (0.070)
Allowable limit 1.6 (0.063)
Driven plate thickness [mm (in)] Standard 2.0 (0.079)
Clearance [mm (in)]Standard 0.45 - 0.85 (0.0177 - 0.0335)
Allowable limit 1.85 (0.0728)
Number of drive plates3
Number of driven plates4
Drive plate thickness [mm (in)]Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)
Driven plate thickness [mm (in)] Standard 2.0 (0.079)
Clearance [mm (in)]Standard 1.0 - 1.4 (0.039 - 0.055)
Allowable limit 2.0 (0.079)
Number of drive plates4
Number of driven plates4
Drive plate thickness [mm (in)]Standard 2.0 (0.079)
Allowable limit 1.8 (0.070)
Driven plate thickness [mm (in)] Standard 2.0 (0.079)
Clearance [mm (in)]Standard 1.4 - 1.8 (0.055 - 0.070)
Allowable limit 2.6 (0.102)
Anchor end pin tightening torque [N·m (kg-m, in-lb)] 4.9 (0.50, 43)
Number of returning revolutions for anchor end pin 2.5
Lock nut tightening torque [N·m (kg-m, ft-lb)] 33.9 (3.5, 25)
Page 5269 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TM-323
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Final DriveINFOID:0000000001731396
DIFFERENTIAL SIDE GEAR C NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TM-323
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Final DriveINFOID:0000000001731396
DIFFERENTIAL SIDE GEAR C](/img/5/57395/w960_57395-5268.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
TM-323
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Final DriveINFOID:0000000001731396
DIFFERENTIAL SIDE GEAR CLEARANCE
DIFFERENTIAL SIDE BEARING END PLAY
Planetary CarrierINFOID:0000000001731397
Oil PumpINFOID:0000000001731398
Input ShaftINFOID:0000000001731399
SEAL RING CLEARANCE
SEAL RING
Unit: mm (in)
Reduction Pinion GearINFOID:0000000001731400
TURNING TORQUE
Band ServoINFOID:0000000001731401
RETURN SPRINGS
Unit: mm (in)
Output ShaftINFOID:0000000001731402
SEAL RING CLEARANCE
Clearance between side gear and differential case with washer [mm (in)] 0.1 - 0.2 (0.004 - 0.008)
Differential side bearing end play [mm (in)] 0 - 0.15 (0 - 0.0059)
Clearance between planetary carrier and pinion washer [mm (in)]Standard 0.15 - 0.70 (0.0059 - 0.0276)
Allowable limit 0.80 (0.0315)
Oil pump side clearance0.02 - 0.04 (0.0008 - 0.0016)
Clearance between oil pump housing and outer gear [mm (in]Standard 0.08 - 0.15 (0.0031 - 0.0059)
Allowable limit 0.15 (0.0059)
Oil pump cover seal ring clearance [mm (in)]Standard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Input shaft seal ring clearance [mm (in)]Standard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.098)
Outer diameter Inner diameter Width
24 (0.94) 20.4 (0.803) 1.97 (0.0776)
Turning torque of reduction pinion gear [N·m (kg-m, in-lb)] 0.11 - 0.69 (0.02 - 0.07, 1 - 6)
Return spring Free length
2nd servo return spring 32.5 (1.280)
OD servo return spring 38.52 (1.5165)
Page 5270 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-324
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
SEAL RING
Unit: mm (in)
TURNING TORQUE
Bearing RetainerINFOID:0000000001731403
SEAL RING CL NISSAN TIIDA 2007 Service Repair Manual TM-324
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
SEAL RING
Unit: mm (in)
TURNING TORQUE
Bearing RetainerINFOID:0000000001731403
SEAL RING CL](/img/5/57395/w960_57395-5269.png)
TM-324
< SERVICE DATA AND SPECIFICATIONS (SDS) [TYPE 1 (4AT: RE4F03B)]
SERVICE DATA AND SPECIFICATIONS (SDS)
SEAL RING
Unit: mm (in)
TURNING TORQUE
Bearing RetainerINFOID:0000000001731403
SEAL RING CLEARANCE
Total End PlayINFOID:0000000001731404
Reverse Clutch End PlayINFOID:0000000001731405
Removal and InstallationINFOID:0000000001731406
Shift Solenoid ValvesINFOID:0000000001731407
Solenoid ValvesINFOID:0000000001731408
Output shaft seal ring clearance [mm (in)]Standard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Outer diameter Inner diameter Width
29.5 (1.161) 26.2 (1.031) 1.95 (0.0768)
Turning torque of output shaft [N·m (kg-m, in-lb)] 0.25 - 0.88 (0.03 - 0.08, 3 - 7)
Bearing retainer seal ring clearance [mm (in)]Standard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Total end play [mm (in)] 0.25 - 0.55 (0.0098 - 0.0217)
Reverse clutch end play [mm (in)] 0.65 - 1.0 (0.0256 - 0.039)
Distance between end of converter housing and torque converter [mm (in)] 16.2 (0.638)
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed)ON (Closed) OFF (Open) OFF (Open)
Solenoid valve designation Resistance (Approx.) Terminal
Shift solenoid valve A 20 - 30 Ω2
Shift solenoid valve B 5 - 20 Ω1
Overrun clutch solenoid valve 20 - 30 Ω3
Line pressure solenoid valve 2.5 - 5.0 Ω4
Torque converter clutch solenoid valve 5 - 20 Ω5
