DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)
Vehicle CAN Diagnosis
 CAN communication status and error counter is displayed.
 Error counter displays 0 if any malfunction is not detected in the
past. It displays 40 if the malfunction is detected. It displays 39
when turning the ignition switch ON and it is normal. The lower
limit of the counter is 1.
 The error counter displays 0 if it resets.
NOTE:
“???” indicates UNKWN.
AV COMM Diagnosis
Front Display Connection Error Display unit power supply and
ground circuit malfunction is detect-
ed.
 Malfunction is detected on communi-
cation circuit between display unit
and NAVI control unit.
 Malfunction is detected on communi-
cation signal between display unit
and NAVI control unit. Display unit power supply and ground
circuit
 Communication circuit between display
unit and NAVI control unit
GPS Antenna ErrorGPS antenna connection malfunction
is detected. GPS antenna feeder
 GPS antenna
FLASH-ROM Error Of Control UnitNAVI control unit malfunction is detect-
ed.NAVI control unit
Connection Of GyroNAVI control unit malfunction is detect-
ed.NAVI control unit
GPS Communication Error
GPS malfunction is detected.Intermittent malfunction caused by strong
radio interference may be detected if the
symptoms such as the GPS receipt mal-
function occur.
Replace NAVI control unit if the malfunc-
tion always occurs. GPS ROM Error
GPS RAM Error
GPS RTC Error
DVD-ROM Communication Error
 Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit.
 There is dirt and damage on the map
disc.Map disc
NAVI control unit DVD-ROM Read Error
DVD-ROM Disc Error
DVD-ROM Mechanism not Detected
DVD-ROM Mechanism Error
DVD-ROM Focus Error
DVD-ROM TOC Error
DVD-ROM Seek Error
DVD-ROM Error Correction Error
DVD-ROM Data Transfer Error
DVD-ROM Data Error
DVD-ROM Time-out
DVD-ROM Loading / Eject Error
CAN Controller Memory Error
NAVI control unit malfunction is detect-
ed.NAVI control unit
Bluetooth Module Connection ErrorError item Description Possible cause/Action to take
Items Display (Current)Malfunction counter
(Past)
Rx (ECM) OK / ??? 0 – 40
Rx (Cluster) OK / ??? 0 – 40
JPNIA0170GB

AV
DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)
AV-47
< FUNCTION DIAGNOSIS >[AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
 Displays the communication status between NAVI control unit
(master unit) and each unit.
 The error counter displays 0 if any malfunction was not detected in
the past. It displays 40 if the malfunction is detected. It displays 39
when turning the ignition switch ON and it is normal. The lower
limit of the counter is 1.
 The error counter is erased if it resets.
ITM: NAVI control unit
NOTE:
“???” indicates UNKWN.
Handsfree Phone
The hands-free phone reception volume adjustment, microphone
and speaker test, and memory erase functions are also available.
Bluetooth
Confirmation/Change Passkey
 The passkey of Bluetooth can be confirmed and changed.
 The passkey can be changed by four digits within 0 to 9.
Confirmation/Change Device Name

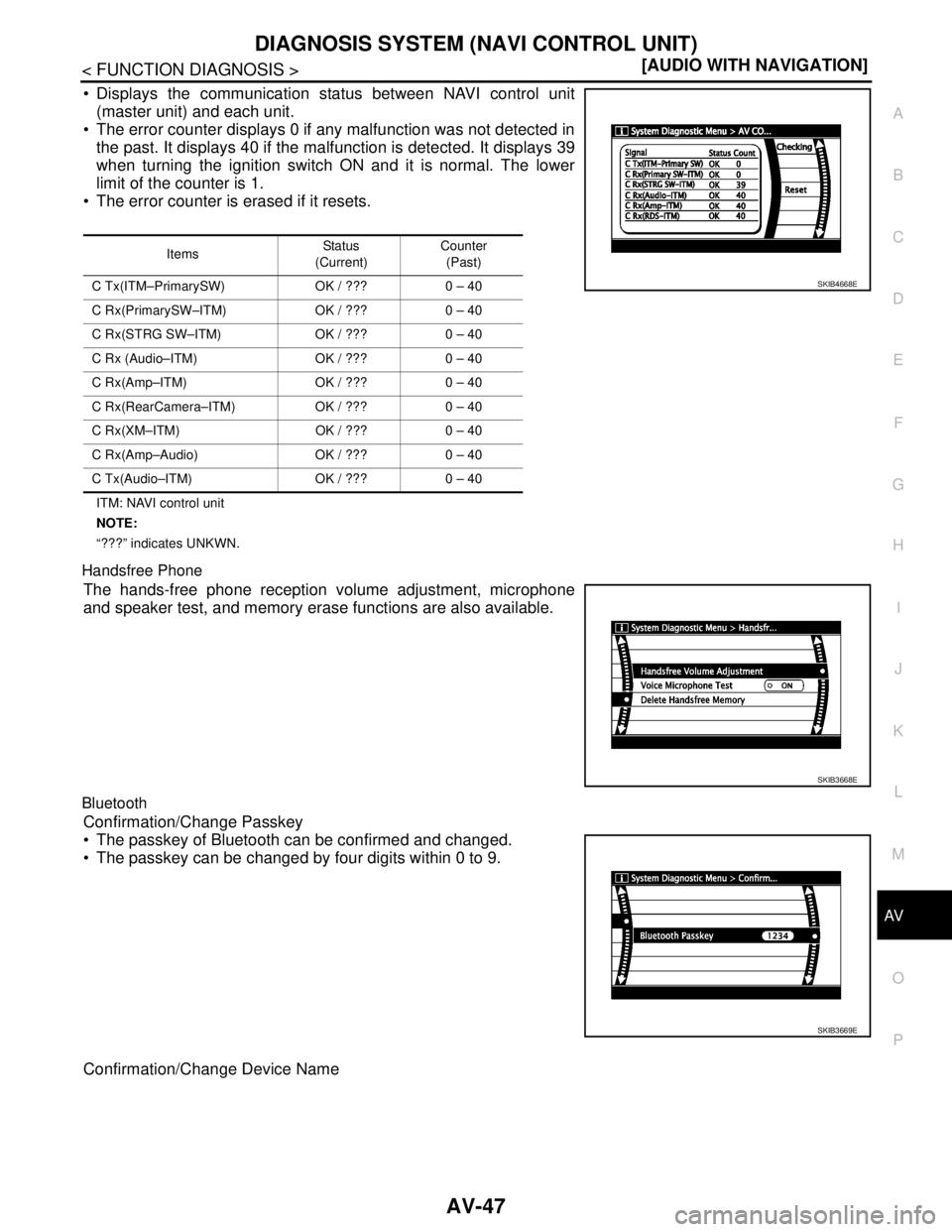

ItemsStatu s
(Current)Counter
(Past)
C Tx(ITM–PrimarySW) OK / ??? 0 – 40
C Rx(PrimarySW–ITM) OK / ??? 0 – 40
C Rx(STRG SW–ITM) OK / ??? 0 – 40
C Rx (Audio–ITM) OK / ??? 0 – 40
C Rx(Amp–ITM) OK / ??? 0 – 40
C Rx(RearCamera–ITM) OK / ??? 0 – 40
C Rx(XM–ITM) OK / ??? 0 – 40
C Rx(Amp–Audio) OK / ??? 0 – 40
C Tx(Audio–ITM) OK / ??? 0 – 40
SKIB4668E
SKIB3668E
SKIB3669E

AV-48
< FUNCTION DIAGNOSIS >[AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)
 The device name of Bluetooth can be confirmed and changed.
 The device name can be changed by sixteen digits within A to Z
(small character can be used) and - (hyphen).
Delete Unit Connection Log
Deletes any unit connection records and error records from the NAVI
control unit memory. (Clear the records of the unit that has been
removed.)
Feature Restriction Setting
Operations of navigation system that are performed while driving
can be restricted by using this function.
CAUTION:
Once operational restrictions are imposed, they can not be can-
celled even when the software is updated or the language-
switching program is loaded.
CONSULT - III Function (MULTI AV)INFOID:0000000001728644
CONSULT-III functions
CONSULT-III performs the following functions via the communication with the NAVI control unit.
Self-diagnosis results
 In CONSULT-III self-diagnosis, self-diagnosis results and error history are displayed collectively.
 The current malfunction indicates “CRNT”. The past malfunction indicates “PAST”.
 The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.
The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.
Self-diagnosis results display item
JPNIA0171GB
JPNIA0172GB
JSNIA0345GB
Diagnosis mode Description
SELF-DIAG RESULTSPerforms a diagnosis on the NAVI control unit and a connection diagnosis for the communica-
tion circuit of the Multi AV system, and displays the current and past malfunctions collectively.
DATA MONITOR The diagnosis of vehicle signal that is input to the NAVI control unit can be performed.
AV COMM MONITOR Allows the technician to monitor the status of the Multi AV system communication signals.
ECU PART NUMBER The part number of NAVI control unit can be checked.

AV
DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)
AV-49
< FUNCTION DIAGNOSIS >[AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
DATA MONITOR
Error item Description Possible cause/Action to take
CAN COMM CIRCUIT[U1000]CAN communication malfunction is de-
tected.Perform the diagnosis using CONSULT-III,
and then repair the malfunctioning parts
based on diagnostic results.
Refer to AV- 5 2 , "
DiagnosisProcedure".
CONTROL UNIT (CAN) [U1010] CAN initial diagnosis malfunction is de-
tected.NAVI control unit
CONTROL UNIT (AV) [U1310]AV communication circuit initial diagno-
sis malfunction is detected.NAVI control unit
 AV COMM CIRCUIT [U1300]
 SWITCH CONN [U1240]
 AUDIO H/U CONN [U1249]
 AMP CONN [U124E]
 RDS CONN [U124F] Audio unit power supply and ground
circuit malfunction is detected.
 Malfunction is detected on communi-
cation circuit between audio unit and
NAVI control unit.
 Malfunction is detected on communi-
cation signal between audio unit and
NAVI control unit. Audio unit power supply and ground cir-
cuit
 Communication circuit between audio
unit and NAVI control unit
FRONT DISP CONN [U1243] Display unit power supply and
ground circuit malfunction is detect-
ed.
 Malfunction is detected on communi-
cation circuit between display unit
and NAVI control unit.
 Malfunction is detected on communi-
cation signal between display unit
and NAVI control unit. Display unit power supply and ground
circuit
 Communication circuit between display
unit and NAVI control unit
GPS ANTENNA CONN [U1244]GPS antenna connection malfunction
is detected. GPS antenna feeder
 GPS antenna
Control Unit FLASH-ROM [U1200]NAVI control unit malfunction is detect-
ed.NAVI control unit
Gyro NO CONN [U1201]NAVI control unit malfunction is detect-
ed.NAVI control unit
GPS COMM [U1204]
GPS malfunction is detected.Intermittent malfunction caused by strong
radio interference may be detected if the
symptoms such as the GPS receipt mal-
function occur.
Replace NAVI control unit if the malfunc-
tion always occurs. GPS ROM [U1205]
GPS RAM [U1206]
GPS RTC [U1207]
DVD-ROM COMM [U1208]
 Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit.
 There is dirt and damage on the map
disc.Map disc
NAVI control unit DVD-ROM READ [U1209]
DVD-ROM DISC [U120A]
DVD-ROM MECHA DETECT [U120C]
DVD-ROM DRIVE MECHA [U120D]
DVD-ROM FOCUS [U120E]
DVD-ROM TOC [U120F]
DVD-ROM SEEK [U1210]
DVD-ROM ERR CORRECTION [U1211]
DVD-ROM DATA FORWARD [U1212]
DVD-ROM DATA [U1213]
DVD-ROM TIMEOUT [U1214]
DVD-ROM LOAD [U1215]
CAN CONT [U1216]
NAVI control unit malfunction is detect-
ed.NAVI control unit
BLUETOOTH CONN [U1217]

AV-50
< FUNCTION DIAGNOSIS >[AUDIO WITH NAVIGATION]
DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)
ALL SIGNALS
 Displays the status of the following vehicle signals inputted to the NAVI control unit.
 For each signal, actual signal can be compared with the condition recognized on the system.
SELECTION FROM MENU
Allows the technician to select which vehicle signals should be displayed and displays the status of the
selected vehicle signals.
AV communication monitor
AV&NAVI C/U
 Displays the communication status from NAVI control unit to each unit as well as the error counter.
 The error counter displays “OK” if no malfunction was detected in the past and displays “0” if a malfunction is
detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of
the counter is 39.
AUDIO
 Displays the NAVI control unit communication status and the error counter.
Display ItemDis-
playVehicle status Remarks
VHCL SPD SIGON Vehicle speed >0 km/h (0 MPH)
Changes in indication may be delayed. This is
normal.
OFF Vehicle speed =0 km/h (0 MPH)
PKB SIGON Parking brake is applied.
Changes in indication may be delayed. This is
normal.
OFF Parking brake is released.
ILLUM SIGON Lighting switch ON
—
OFF Lighting switch OFF
IGN SIGON Ignition switch ON
—
OFF Ignition switch in ACC position
REV SIGON Selector lever in R position
Changes in indication may be delayed. This is
normal.
OFFSelector lever in any position other
than R
Item to be selected Description
VHCL SPD SIG
The same as when “ALL SIGNALS”
is selected. PKB SIG
ILLUM SIG
IGN SIG
REV SIG
Items Display (Current)Malfunction
counter
(Past)
TRANSMIT DIAG OK / UNKWN OK / 0 – 39
PANEL SWITCH OK/ UNKWN OK / 0 – 39
SW SECONDARY — —
RR CONTROL SW — —
STEERING SW OK / UNKWN OK / 0 – 39
AUDIO OK / UNKWN OK / 0 – 39
SPEAKER AMP OK / UNKWN OK / 0 – 39
FM MULTI OK / UNKWN OK / 0 – 39

AV
DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)
AV-51
< FUNCTION DIAGNOSIS >[AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
 The error counter displays “OK” if no malfunction was detected in the past and displays “0” if a malfunction is
detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of
the counter is 39.
ECU PART NUMBER
The part number of NAVI control unit is displayed.
Items Display (Current)Malfunction
counter
(Past)
TRANSMIT DG OK / UNKWN OK / 0 – 39

AV-52
< COMPONENT DIAGNOSIS >[AUDIO WITH NAVIGATION]
U1000 CAN COMM CIRCUIT
COMPONENT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000001728646
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to XX-XX, "*****"
.
DTC LogicINFOID:0000000001728647
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000001728648
1.PERFORM SELF DIAGNOSTIC
1. Turn ignition switch ON and wait for 2 second or more.
2. Check “Self Diagnostic Result” of “MULTI AV”.
Is
“CAN COMM CIRCUIT” displayed?
YES >> Refer to “LAN system”. Refer to XX-XX, "*****".
NO >> Refer to GI section. Refer to XX-XX, "*****"
.
DTCDisplay contents of CON-
SULT-IIIDiagnostic item is detected when... Probable malfunction location
U1000CAN COMM CIRCUIT
[U1000]NAVI control unit does not transmit or receive
CAN communication signal for 2 seconds or
more.CAN communication system

AV
U1010 CONTROL UNIT (CAN)
AV-53
< COMPONENT DIAGNOSIS >[AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000001728649
Initial diagnosis of NAVI control unit.
DTC LogicINFOID:0000000001728650
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000001728651
1.REPLACE NAVI CONTROL UNIT
Replace NAVI control unit when DTC U1010 is detected.
>> INSPECTION END
DTCDisplay contents of CON-
SULT-IIIDiagnostic item is detected when... Probable malfunction location
U1010CONTROL UNIT (CAN)
[U1010]CAN initial diagnosis malfunction is detected. NAVI control unit

AV-54
< COMPONENT DIAGNOSIS >[AUDIO WITH NAVIGATION]
U1310 NAVI CONTROL UNIT
U1310 NAVI CONTROL UNIT
DescriptionINFOID:0000000001728652
Replace the NAVI control unit if this DTC is displayed. Refer to XX-XX, "*****".
DTC LogicINFOID:0000000001728653
Part name Description
NAVI CONTORL UNIT Map data can be read from the map DVD-ROM by installing map DVD-ROM.
 It is the master unit of the MULTI AV system, and it is connected to each control
unit by means of communication. It operates each system according to com-
munication signals from the NAVI control unit.
 The NAVI control unit includes the audio, hands-free phone, navigation, and
vehicle information functions.
 It is connected to ECM and combination meter via CAN communication to ob-
tain necessary information for the vehicle information function.
 It inputs the illumination signals that are required for the display dimming con-
trol.
 It inputs the signals for driving status recognition (vehicle speed, reverse and
parking brake).
DTCDisplay contents of
CONSULT-IIIDTC Detection Condition Action to take
U1310CONTROL UNIT (AV)
[U1310]An initial diagnosis error is detected in AV communication
circuit.Replace NAVI control unit.

AV
U1200 NAVI CONTROL UNIT
AV-55
< COMPONENT DIAGNOSIS >[AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
U1200 NAVI CONTROL UNIT
DescriptionINFOID:0000000001728654
Replace the NAVI control unit if this DTC is displayed. Refer to XX-XX, "*****".
DTC LogicINFOID:0000000001728655
Part name Description
NAVI CONTORL UNIT Map data can be read from the map DVD-ROM by installing map DVD-ROM.
 It is the master unit of the MULTI AV system, and it is connected to each control
unit by means of communication. It operates each system according to com-
munication signals from the NAVI control unit.
 The NAVI control unit includes the audio, hands-free phone, navigation, and
vehicle information functions.
 It is connected to ECM and combination meter via CAN communication to ob-
tain necessary information for the vehicle information function.
 It inputs the illumination signals that are required for the display dimming con-
trol.
 It inputs the signals for driving status recognition (vehicle speed, reverse and
parking brake).
DTCDisplay contents of
CONSULT-IIIDTC Detection Condition Action to take
U1200Cont Unit
FLASH- ROM
[U1200]An internal malfunction is detected in NAVI control unit
(FLASH-ROM).Replace NAVI control unit.
