NISSAN TIIDA 2007 Service Repair Manual

DLK-12
FUEL FILLER LID OPENER ...........................598
Removal and Installation of Fuel Filler Lid Opener ..598
FRONT DOOR LOCK ......................................600
Component Parts Location ....................................600
Removal and Installation .......................................600
REAR DOOR LOCK ........................................603
Component Parts Location ....................................603
Removal and Installation .......................................603
BACK DOOR LOCK ........................................606
Removal and Installation .......................................606
TRUNK LID ......................................................607
Fitting Adjustment ..................................................607
Trunk Lid Assembly ...............................................607
Trunk Lid Lock .......................................................608
Trunk Lid Striker ....................................................608
WITHOUT I-KEY, WITH SUPER LOCK

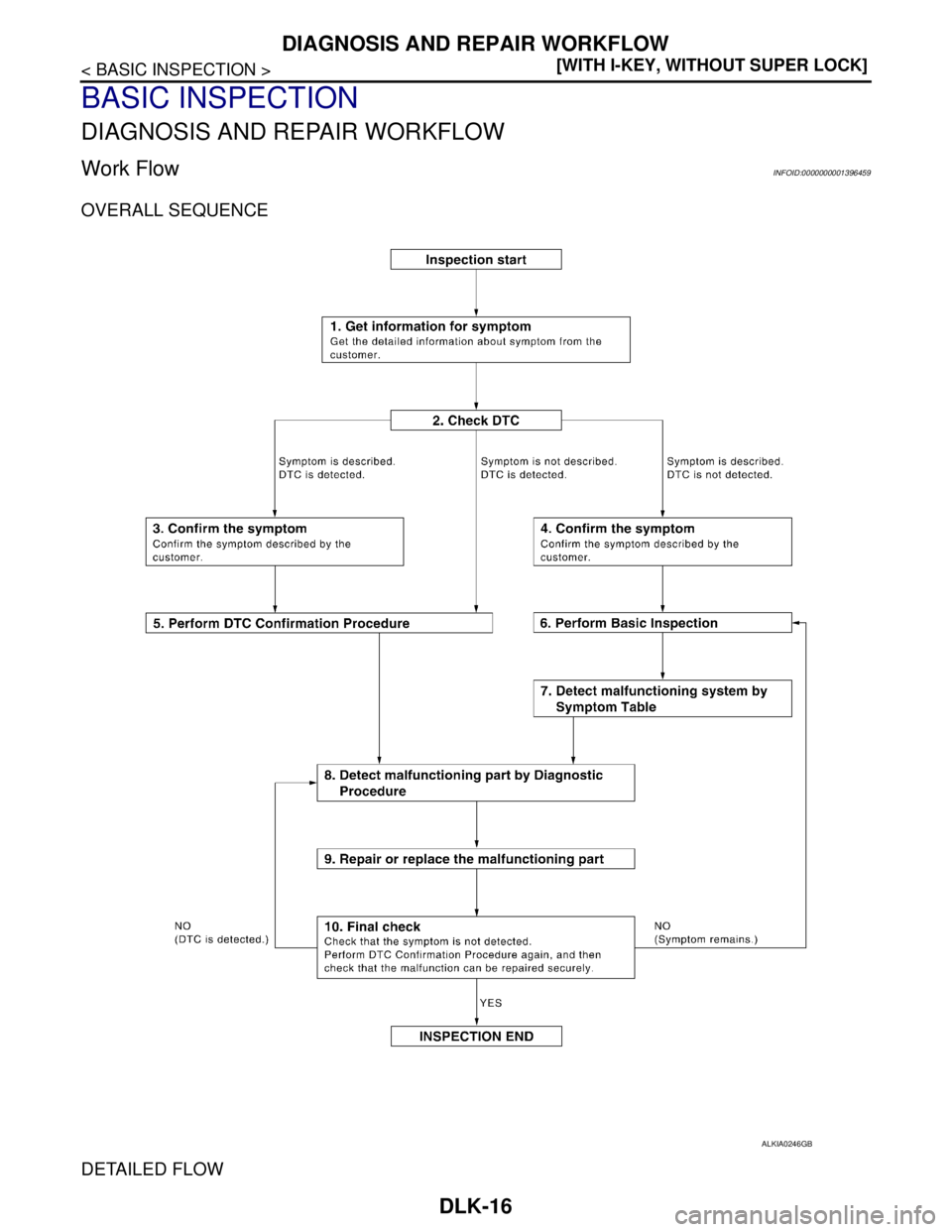

BASIC INSPECTION ..................................
610
DIAGNOSIS AND REPAIR WORKFLOW .......610
Work Flow ..............................................................610
INSPECTION AND ADJUSTMENT .................613
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT .......................................................
613
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description ...............................
613
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement ....
613

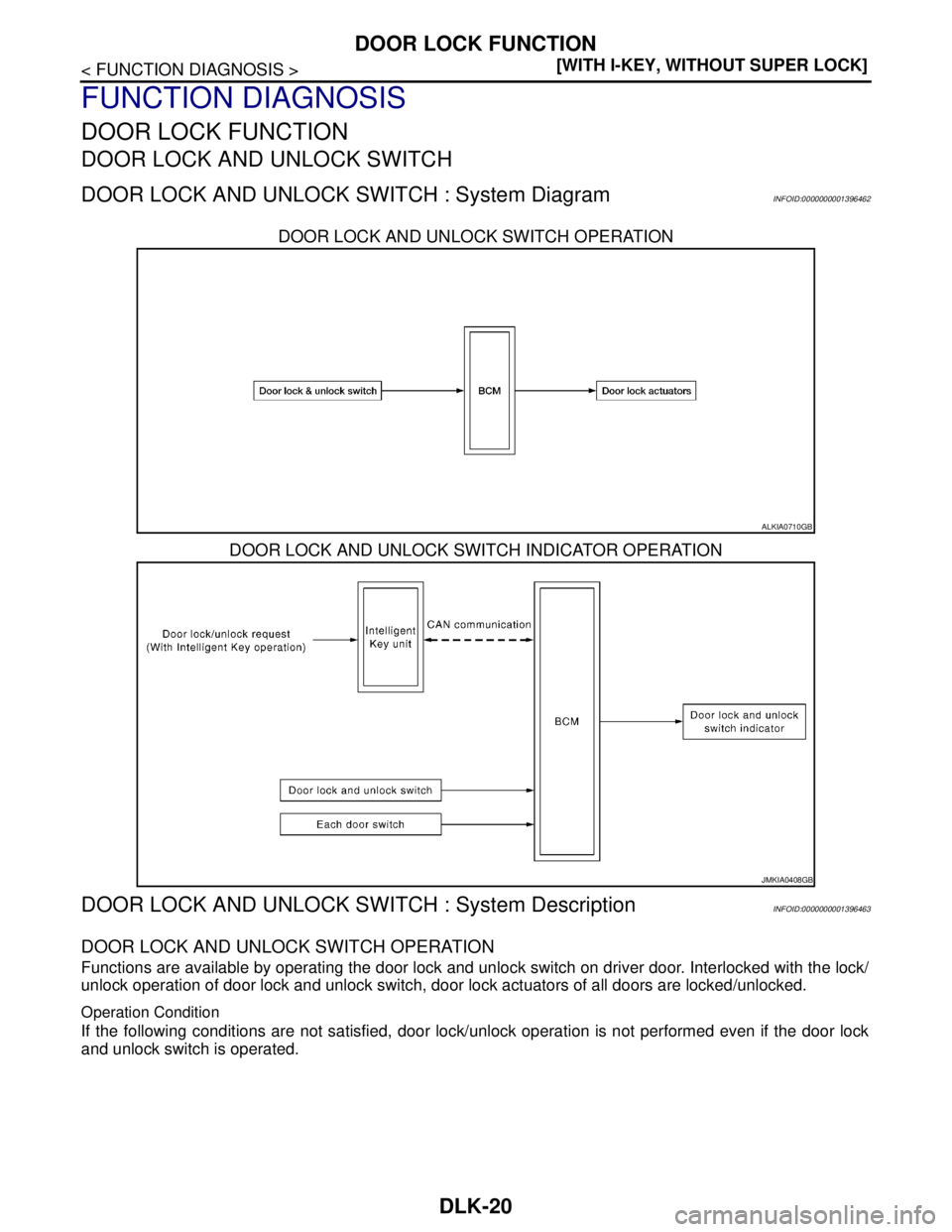

FUNCTION DIAGNOSIS ............................614
DOOR LOCK FUNCTION ................................614
DOOR LOCK AND UNLOCK SWITCH ...................614
DOOR LOCK AND UNLOCK SWITCH : System
Diagram .................................................................
614
DOOR LOCK AND UNLOCK SWITCH : System
Description .............................................................
614
DOOR LOCK AND UNLOCK SWITCH :
Component Parts Location ..................................
616
DOOR LOCK AND UNLOCK SWITCH :
Component Description ........................................
617
REMOTE KEYLESS ENTRY ...................................617
REMOTE KEYLESS ENTRY : System Diagram ...617
REMOTE KEYLESS ENTRY : System Descrip-
tion .........................................................................
617
REMOTE KEYLESS ENTRY :
Component Parts Location ..................................
618
REMOTE KEYLESS ENTRY :
Component Description ........................................
618
BACK DOOR OPENER FUNCTION ...............619
BACK DOOR OPENER SWITCH ............................619
BACK DOOR OPENER SWITCH : System Dia-
gram ......................................................................
619
BACK DOOR OPENER SWITCH : System De-
scription .................................................................
619
BACK DOOR OPENER SWITCH :
Component Parts Location ..................................
620
BACK DOOR OPENER SWITCH :
Component Description ........................................
620
TRUNK LID OPENER .......................................621
TRUNK LID OPENER SWITCH ..............................621
TRUNK LID OPENER SWITCH : System Diagram
.
621
TRUNK LID OPENER SWITCH : System Descrip-
tion ........................................................................
621
TRUNK LID OPENER SWITCH :
Component Parts Location ..................................
621
TRUNK LID OPENER SWITCH :
Component Description ........................................
622
WARNING FUNCTION .....................................623
System Diagram ...................................................623
System Description ...............................................623
Component Parts Location ..................................624
Component Description ........................................624
HAZARD REMINDER FUNCTION ...................625
System Diagram ...................................................625
System Description ...............................................625
Component Parts Location ..................................626
Component Description ........................................626
DIAGNOSIS SYSTEM (BCM) ...........................627
COMMON ITEM .......................................................627
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) ..................................................
627
DOOR LOCK ...........................................................627
DOOR LOCK : CONSULT-III Function (BCM -
DOOR LOCK) .......................................................
627
MULTIREMOTE ENT ..............................................628
MULTIREMOTE ENT : CONSULT-III Function
(BCM - MULTIREMOTE ENT) ..............................
628
TRUNK ....................................................................629
TRUNK : CONSULT-III Function (BCM - TRUNK) .629
COMPONENT DIAGNOSIS ......................631
U1000 CAN COMM CIRCUIT ...........................631
Description ............................................................631
DTC Logic .............................................................631
Diagnosis Procedure .............................................631
U1010 CONTROL UNIT (CAN) ........................632
Description ............................................................632
DTC Logic .............................................................632
Diagnosis Procedure .............................................632
Special Repair Requirement .................................632

DLK-13
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
POWER SUPPLY AND GROUND CIRCUIT ....633
BCM .........................................................................633
BCM : Diagnosis Procedure ..................................633
DOOR LOCK AND UNLOCK SWITCH ............634
DRIVER SIDE ..........................................................634
DRIVER SIDE : Description ..................................634
DRIVER SIDE : Component Function Check ......634
DRIVER SIDE : Diagnosis Procedure ...................634
DRIVER SIDE : Component Inspection ................636
PASSENGER SIDE .................................................637
PASSENGER SIDE : Description .........................637
PASSENGER SIDE :
Component Function Check ................................
637
PASSENGER SIDE : Diagnosis Procedure ..........637
PASSENGER SIDE : Component Inspection .......640
INSTRUMENT PANEL WARNING LAMP AS-
SEMBLY ...........................................................
641
Description ............................................................641
Component Function Check ................................641
Diagnosis Procedure .............................................641
DOOR SWITCH ................................................644
DRIVER SIDE ..........................................................644
DRIVER SIDE : Description ..................................644
DRIVER SIDE : Component Function Check ......644
DRIVER SIDE : Diagnosis Procedure ...................644
DRIVER SIDE : Component Inspection ................645
PASSENGER SIDE .................................................645
PASSENGER SIDE : Description .........................646
PASSENGER SIDE :
Component Function Check ................................
646
PASSENGER SIDE : Diagnosis Procedure ..........646
PASSENGER SIDE : Component Inspection .......647
REAR LH .................................................................647
REAR LH : Description ..........................................648
REAR LH : Component Function Check .............648
REAR LH : Diagnosis Procedure ..........................648
REAR LH : Component Inspection ........................649
REAR RH .................................................................649
REAR RH : Description .........................................650
REAR RH : Component Function Check .............650
REAR RH : Diagnosis Procedure ..........................650
REAR RH : Component Inspection .......................651
BACK DOOR ...........................................................651
BACK DOOR : Description ....................................652
BACK DOOR : Component Function Check .......652
BACK DOOR : Diagnosis Procedure ....................652
BACK DOOR : Component Inspection ..................654
KEY SWITCH ...................................................656
Description ............................................................656
Component Function Check ..................................656
Diagnosis Procedure .............................................656
Component Inspection ...........................................658
TRUNK LID UNLOCK SWITCH ......................659
Description .............................................................659
Component Function Check ................................659
Diagnosis Procedure .............................................659
Component Inspection ...........................................661
BACK DOOR OPENER SWITCH ...................663
Description .............................................................663
Component Function Check ................................663
Diagnosis Procedure .............................................663
Component Inspection ...........................................665
TRUNK LID OPENER SWITCH ......................666
Description .............................................................666
Component Function Check ................................666
Diagnosis Procedure .............................................666
Component Inspection ...........................................668
DOOR LOCK ACTUATOR ..............................669
DRIVER SIDE ...........................................................669
DRIVER SIDE : Description ...................................669
DRIVER SIDE : Component Function Check ......669
DRIVER SIDE : Diagnosis Procedure ...................669
PASSENGER SIDE ..................................................670
PASSENGER SIDE : Description ..........................670
PASSENGER SIDE :
Component Function Check ................................
670
PASSENGER SIDE : Diagnosis Procedure ..........670
REAR LH ..................................................................672
REAR LH : Description ..........................................672
REAR LH : Component Function Check ..............672
REAR LH : Diagnosis Procedure ...........................672
REAR RH .................................................................673
REAR RH : Description .........................................673
REAR RH : Component Function Check .............673
REAR RH : Diagnosis Procedure ..........................674
BACK DOOR ...........................................................675
BACK DOOR : Description ....................................675
BACK DOOR : Component Function Check ........675
BACK DOOR : Diagnosis Procedure .....................675
BACK DOOR : Component Inspection ..................677
SUPER LOCK ACTUATOR ............................678
DRIVER SIDE ...........................................................678
DRIVER SIDE : Description ...................................678
DRIVER SIDE : Component Function Check ......678
DRIVER SIDE : Diagnosis Procedure ...................678
PASSENGER SIDE ..................................................679
PASSENGER SIDE : Description ..........................679
PASSENGER SIDE :
Component Function Check ................................
679
PASSENGER SIDE : Diagnosis Procedure ..........679

DLK-14
REAR LH ..................................................................681
REAR LH : Description ..........................................681
REAR LH : Component Function Check ..............681
REAR LH : Diagnosis Procedure ...........................681
REAR RH .................................................................682
REAR RH : Description .........................................682
REAR RH : Component Function Check .............682
REAR RH : Diagnosis Procedure ..........................683
TRUNK LID OPENER ACTUATOR .................685
Description .............................................................685
Component Function Check ................................685
Diagnosis Procedure .............................................685
Component Inspection ...........................................686
BUZZER (COMBINATION METER) ................688
Description .............................................................688
Component Function Check ................................688
Diagnosis Procedure .............................................688
HAZARD WARNING LAMPS ..........................689
Description .............................................................689
Component Function Check ................................689
Diagnosis Procedure .............................................689
VEHICLE SPEED SIGNAL CIRCUIT ..............690
Description .............................................................690
Component Function Check ................................690
Diagnosis Procedure .............................................690
KEYFOB BATTERY AND FUNCTION ............691
Description .............................................................691
Component Function Check ................................691
Diagnosis Procedure .............................................691
Component Inspection ...........................................691
Special Repair Requirement ..................................691
ECU DIAGNOSIS .......................................692
BCM (BODY CONTROL MODULE) ................692
Reference Value ....................................................692
Wiring Diagram - POWER DOOR LOCK SYSTEM
- .............................................................................
693
Wiring Diagram - REMOTE KEYLESS ENTRY
SYSTEM - ..............................................................
703
Wiring Diagram - BACK DOOR OPENER SYS-
TEM - .....................................................................
709
Wiring Diagram - TRUNK LID OPENER SYSTEM
- .............................................................................
713
Fail Safe ................................................................715
DTC Inspection Priority Chart .............................716
DTC Index .............................................................716
SYMPTOM DIAGNOSIS ............................718
DOOR LOCK FUNCTION SYMPTOMS ..........718
DOOR LOCK AND UNLOCK SWITCH ...................718
DOOR LOCK AND UNLOCK SWITCH : Symptom
Table ......................................................................
718
KEYFOB ..................................................................718
KEYFOB : Symptom Table ...................................719
BACK DOOR OPEN FUNCTION SYMPTOMS
..
720
BACK DOOR OPENER SWITCH ...........................720
BACK DOOR OPENER SWITCH : Symptom Ta-
ble .........................................................................
720
TRUNK OPEN FUNCTION SYMPTOMS .........721
TRUNK LID OPENER SWITCH ..............................721
TRUNK LID OPENER SWITCH : Symptom Table .721
WARNING FUNCTION SYMPTOMS ...............722
BACK DOOR ...........................................................722
BACK DOOR : Symptom Table ............................722
HAZARD REMINDER FUNCTION ...................723
HAZARD WARNING LAMP ....................................723
HAZARD WARNING LAMP : Symptom Table ......723
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
724
Work Flow .............................................................724
Inspection Procedure ............................................726
Diagnostic Worksheet ...........................................728
PRECAUTION ...........................................730
PRECAUTIONS ................................................730
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................
730
Procedure without Cowl Top Cover ...................730
Steering Wheel Rotation after Battery Disconn
ect .........................................................................
730
Work ......................................................................731
PREPARATION .........................................732
PREPARATION ................................................732
Commercial Service Tool ......................................732
ON-VEHICLE MAINTENANCE .................733
PRE-INSPECTION FOR DIAGNOSTIC ...........733
Basic Inspection ....................................................733
REMOVAL AND INSTALLATION .............734
HOOD ...............................................................734
Fitting Adjustment .................................................734
Removal and Installation .......................................735
Removal and Installation of Hood Lock Control ....736
Hood Lock Control Inspection ...............................738
RADIATOR CORE SUPPORT .........................740
Removal and Installation .......................................740

DLK-15
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT FENDER ..............................................742
Removal and Installation .......................................742
DOOR ...............................................................743
Fitting Adjustment .................................................743
Removal and Installation .......................................746
FUEL FILLER LID OPENER ............................749
Removal and Installation of Fuel Filler Lid Opener ..749
FRONT DOOR LOCK .......................................751
Component Parts Location ....................................751
Removal and Installation .......................................751
REAR DOOR LOCK ........................................754
Component Parts Location ....................................754
Removal and Installation .......................................754
BACK DOOR LOCK .......................................757
Removal and Installation .......................................757
TRUNK LID .....................................................758
Fitting Adjustment ..................................................758
Trunk Lid Assembly ...............................................758
Trunk Lid Lock .......................................................759
Trunk Lid Striker ....................................................759

DLK-16
< BASIC INSPECTION >[WITH I-KEY, WITHOUT SUPER LOCK]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001396459
OVERALL SEQUENCE
DETAILED FLOW
ALKIA0246GB

DIAGNOSIS AND REPAIR WORKFLOW
DLK-17
< BASIC INSPECTION >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2.
2.CHECK DTC
1. Check DTC for Intelligent Key unit and BCM.
2. Perform the following procedure if DTC is displayed.
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.
3.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real-time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real-time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
If two or more DTCs are detected, refer to DLK-171, "
DTCInspectionPriorityChart" (Intelligent Key unit),
DLK-189, "
DTCInspectionPriorityChart" (BCM) and determine trouble diagnosis order.
Is DTC detected?
YES >> GO TO 8.
NO >> Refer to XX-XX, "*****"
.
6.PERFORM BASIC INSPECTION
Perform Basic Inspection. Refer to DLK-211, "
Basic Inspection".
>> GO TO 7.
7.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to Symptom Table based on the confirmed symptom in step 4.
>> GO TO 8.
8.DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure is described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.
>> GO TO 9.

DLK-18
< BASIC INSPECTION >[WITH I-KEY, WITHOUT SUPER LOCK]
DIAGNOSIS AND REPAIR WORKFLOW
9.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it.
>> GO TO 10.
10.FINAL CHECK
When DTC was detected in step 9, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunctions have been fully repaired.
When symptom was described by the customer, refer to the confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Does the symptom reappear?
YES (DTC is detected)>>GO TO 8.
YES (Symptom remains)>>GO TO 6.
NO >>INSPECTION END

INSPECTION AND ADJUSTMENT
DLK-19
< BASIC INSPECTION >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000001396460
Perform the system initialization when replacing Intelligent Key unit, replacing Intelligent Key or registering an
additional Intelligent Key.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000001396461
Refer to the CONSULT-III Operation Manual-NATS.

DLK-20
< FUNCTION DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
DOOR LOCK FUNCTION
FUNCTION DIAGNOSIS
DOOR LOCK FUNCTION
DOOR LOCK AND UNLOCK SWITCH
DOOR LOCK AND UNLOCK SWITCH : System DiagramINFOID:0000000001396462
DOOR LOCK AND UNLOCK SWITCH OPERATION
DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION
DOOR LOCK AND UNLOCK SWITCH : System DescriptionINFOID:0000000001396463
DOOR LOCK AND UNLOCK SWITCH OPERATION
Functions are available by operating the door lock and unlock switch on driver door. Interlocked with the lock/
unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.
Operation Condition
If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.
ALKIA0710GB
JMKIA0408GB

DOOR LOCK FUNCTION
DLK-21
< FUNCTION DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
NOTE:
When the door lock is locked with Intelligent Key or door request switch, door lock and unlock switch operation
will be invalid until either of the following conditions is satisfied.
 Turn ignition switch ON.
 Unlock with Intelligent Key or door request switch.
DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION
Door lock and unlock switch indicator indicates door lock status. The indicator turns ON while ignition switch is
ON and each door lock is locked. If any door is opened, the indicator will turn OFF.
1 Minute Timer
A timer must be running to turn OFF the indicator. The timer will run for 1 minute after locking with Intelligent
Key, door request switch or auto door lock.
30 Minutes Timer
A timer must be running to turn OFF the indicator. The timer will run for 30 minutes after locking with door lock
and unlock switch.
NOTE:
1 minute timer condition is satisfied while the 30 minutes timer is active, however the 30 minutes timer does
not change to 1 minute timer condition.
Door lock and unlock switch Operation condition
Lock operationAll of the following conditions are satisfied.
 Except driver side doors are closed.
 Doors are not locked with Intelligent Key or door request switch.
Unlock operationAll of the following conditions are satisfied.
 Doors are not locked with Intelligent Key or door request switch.
