DLK-52
< FUNCTION DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
DIAGNOSIS SYSTEM (BCM)
CONSULT-III performs the following functions via CAN communication with BCM.
DATA MONITOR
TRUNK
TRUNK : CONSULT-III Function (BCM - TRUNK)INFOID:0000000001396505
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
DATA MONITOR
ACTIVE TEST
Diagnosis mode Function Description
DATA MONITOR The BCM input/output signals are displayed.
Monitor Item Condition
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
PUSH SW Indicates [ON/OFF] condition of ignition knob switch.
I-KEY LOCK Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
Diagnosis mode Function Description
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from Intelligent Key unit.
Monitor Item Condition
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
PUSH SW Indicates [ON/OFF] condition of ignition knob switch.
TRNK OPNR SW Indicates [ON/OFF] condition of back door/trunk opener switch.
VEHICLE SPEEDDisplays the vehicle speed signal received from combination meter by numerical value
[km/h].
Test item Description
TRUNK/GLASS HATCH This test is able to check back door actuator/trunk release solenoid operation [ON/OFF].

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)
DLK-53
< FUNCTION DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)
CONSULT-III Function (INTELLIGENT KEY)INFOID:0000000001396506
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with Intelligent Key unit.
WORK SUPPORT
SELF-DIAG RESULT
Refer to DLK-171, "DTCIndex".
DATA MONITOR
Diagnosis mode Function Description
WORK SUPPORT Changes the setting for each system function.
SELF-DIAG RESULTS Displays the diagnosis results judged by Intelligent Key unit.
CAN DIAG SUPPORT MNTR Monitors the reception status of CAN communication viewed from Intelligent Key unit.
DATA MONITOR The Intelligent Key unit input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from Intelligent Key unit.
ECU IDENTIFICATION The Intelligent Key unit part number is displayed.
Support item Description Selection item Condition
CONFIRM KEY FOB IDIt can check whether Intelligent Key ID code
is registered or not.——
TAKE OUT FROM WINDOW WARNTake away warning chime (from window)
mode can be changed.ON Active
OFF Inactive
LOW BATT OF KEY FOB WARNIntelligent Key low battery warning mode can
be changed.ON Active
OFF Inactive
KEYLESS FUNCTIONDoor lock function with Intelligent Key can be
changed.ON Active
OFF Inactive
ANSWER BACK FUNCTION Buzzer reminder operation can be changed.ON Active
OFF Inactive
SELECTIVE UNLOCK FUNCTION Anti-hijack mode can be changed.ON Active
OFF Inactive
HAZARD ANSWER BACKHazard reminder operation mode can be
changed.Refer to DLK-45
.
ANSWER BACK WITH I-KEY LOCKBuzzer reminder operation (lock operation)
mode by each door request switch can be
changed. BUZZER Active
OFF Inactive
ANSWER BACK WITH I-KEY UNLOCKBuzzer reminder operation (unlock operation)
mode by each door request switch can be
changed.BUZZER Active
OFF Inactive
AUTO RELOCK TIMERAuto door lock operation mode can be
changed.OFF Inactive
2 min Active
ENGINE START BY I-KEYEngine start function (by Intelligent Key)
mode can be changed. ON Active
OFF Inactive
LOCK/UNLOCK BY I-KEYDoor lock function by door request switch can
be changed. ON Active
OFF Inactive

DLK-54
< FUNCTION DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)
ACTIVE TEST
Monitor Item Condition
PUSH SW Indicates [ON (pressed)/OFF (released)] condition of ignition knob switch.
KEY SW Indicates [ON (inserted)/OFF (removed)] condition of key switch.
DR REQ SW Indicates [ON (pressed)/OFF (released)] condition of door request switch (driver side).
AS REQ SW Indicates [ON (pressed)/OFF (released)] condition of door request switch (passenger side).
BD/TR REQ SW Indicates [ON (pressed)/OFF (released)] condition of back door/trunk request switch.
IGN SWIndicates [ON (ON or START position)/OFF (other than ON and START position)] condition of
ignition switch ON position.
ACC SW Indicates [ON/OFF] condition of ignition switch ACC position.
STOP LAMP SW Indicates [ON/OFF] condition of stop lamp switch.
DOOR LOCK SIG Indicates [ON/OFF] condition of LOCK signal from Intelligent Key.
DOOR UNLOCK SIG Indicates [ON/OFF] condition of UNLOCK signal from Intelligent Key.
DOOR SW DRIndicates [OPEN/CLOSE] condition of front door switch (driver side) from BCM via CAN com-
munication.
DOOR SW ASIndicates [OPEN/CLOSE] condition of front door switch (passenger side) from BCM via CAN
communication.
DOOR SW RRIndicates [OPEN/CLOSE] condition of rear door switch (RH) from BCM via CAN communica-
tion.
DOOR SW RLIndicates [OPEN/CLOSE] condition of rear door switch (LH) from BCM via CAN communica-
tion.
DOOR BK SW Indicates [OPEN/CLOSE] condition of back door switch from BCM via CAN communication.
VEHICLE SPEED Displays the vehicle speed signal received from combination meter by numerical value [km/h].
Test item Description
DOOR LOCK/UNLOCKThis test is able to check door lock/unlock operation.
 ALL UNLK: All door lock actuators are unlocked.
 DR UNLK: Door lock actuator (driver side) is unlocked.
 AS UNLK: Door lock actuator (passenger side) is unlocked.
 BK UNLK: This item is indicated, but inactive.
 LOCK: All door lock actuator is locked.
ANTENNAThis test is able to check Intelligent Key antenna operation.
When the following condition are met, hazard warning lamps flash.
 ROOM ANT1: Inside key antenna (console) detects Intelligent Key, when “ROOM
ANT1” is selected.
 ROOM ANT2: Inside key antenna (instrument center/rear seat) detects Intelligent
Key, when “ROOM ANT2”is selected.
 DRIVER ANT: Outside key antenna (driver side) detects Intelligent Key, when “DRIV-
ER ANT” is selected.
 ASSIST ANT: Outside key antenna (passenger side) detects Intelligent Key, when
“ASSIST ANT” is selected.
 BK DOOR ANT: Outside key antenna (rear bumper) detects Intelligent Key, when “BK
DOOR ANT” is selected.
OUTSIDE BUZZERThis test is able to check Intelligent Key warning buzzer(s) operation.
ON
OFF
INSIDE BUZZERThis test is able to check warning chime in combination meter operation.
 TAKE OUT: Take away warning chime sounds.
 KNOB: Ignition knob switch warning chime sounds.
 KEY: Key warning chime sounds.
OFF

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)
DLK-55
< FUNCTION DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
*1: The item is only for M/T model.INDICATORThis test is able to check warning lamp operation.
 BLUE ON: Key warning lamp (green) illuminates.
 RED ON: Key warning lamp (red) illuminates.
 KNOB ON: Lock warning lamp illuminates.
 BLUE IND: Key warning lamp (green) flashes.
 RED IND: Key warning lamp (red) flashes.
 KNOB IND: Lock warning lamp flashes.
OFF
KEY LOCK SOLENOID
*1This test is able to check key interlock operation.
 LOCK: Key interlock is active.
 UNLOCK: Key interlock is inactive. Test item Description

DLK-56
< COMPONENT DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
U1000 CAN COMM CIRCUIT
COMPONENT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000001396507
CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart, refer to XX-XX, "*****"
.
DTC LogicINFOID:0000000001396508
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000001396509
1.PERFORM SELF DIAGNOSTIC
1. Turn ignition switch ON and wait for 2 seconds or more.
2. Check “Self Diagnostic Result”.
Is
“CAN COMM CIRCUIT” displayed?
YES >> Refer to XX-XX, "*****".
NO >> Refer to XX-XX, "*****"
.
DTCCONSULT-III display
descriptionDTC Detection Condition Possible cause
U1000 CAN COMM CIRCUITWhen Intelligent Key unit cannot communi-
cate CAN communication signal continuous-
ly for 2 seconds or more.In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
Transmission
 Receiving (BCM)
 Receiving (ECM)
 Receiving (METER/M&A)

U1010 CONTROL UNIT (CAN)
DLK-57
< COMPONENT DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000001396510
CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart, refer to XX-XX, "*****"
.
DTC LogicINFOID:0000000001396511
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000001396512
1.REPLACE INTELLIGENT KEY UNIT
When DTC [U1010] is detected, replace Intelligent Key unit.
>> Replace Intelligent Key unit. Refer to SEC-79, "
Removal and Installation".
Special Repair RequirementINFOID:0000000001396513
1.REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT
Initialize control unit. Refer to CONSULT-III Operation Manual.
>> Work end.
DTCCONSULT-III display de-
scriptionDTC Detection Condition Possible cause
U1010 CONTROL UNIT (CAN)When detecting error during the initial diagnosis of CAN control-
ler of Intelligent Key unit.Intelligent Key unit

DLK-58
< COMPONENT DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
B2552 INTELLIGENT KEY
B2552 INTELLIGENT KEY
DescriptionINFOID:0000000001396514
Intelligent key unit performs engine start operation and steering lock control by crosschecking ID with the Intel-
ligent key.
DTC LogicINFOID:0000000001396515
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Refer to DLK-58, "Diagnosis Procedure".
NO >> INSPECTION END.
Diagnosis ProcedureINFOID:0000000001396516
1.REPLACE INTELLIGENT KEY UNIT
1. Replace Intelligent Key unit. Refer to SEC-79, "
Removal and Installation".
2. Perform initialization with CONSULT-III. Re-register all mechanical keys. Refer to “CONSULT-III operation
manual NATS-IVIS/NVIS”.
3. Start the engine.
Does the engine start?
YES >> INSPECTION END
NO >> Perform “DTC confirmation procedure”. Refer to DLK-58, "
DTC Logic".
Special Repair RequirementINFOID:0000000001396517
1.REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT
Initialize control unit. Refer to CONSULT-III Operation Manual.
>> Work end.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
B2552INTELLIGENT KEY
UNITMalfunction is detected inside Intelligent
key unit.Intelligent Key unit

POWER SUPPLY AND GROUND CIRCUIT
DLK-59
< COMPONENT DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

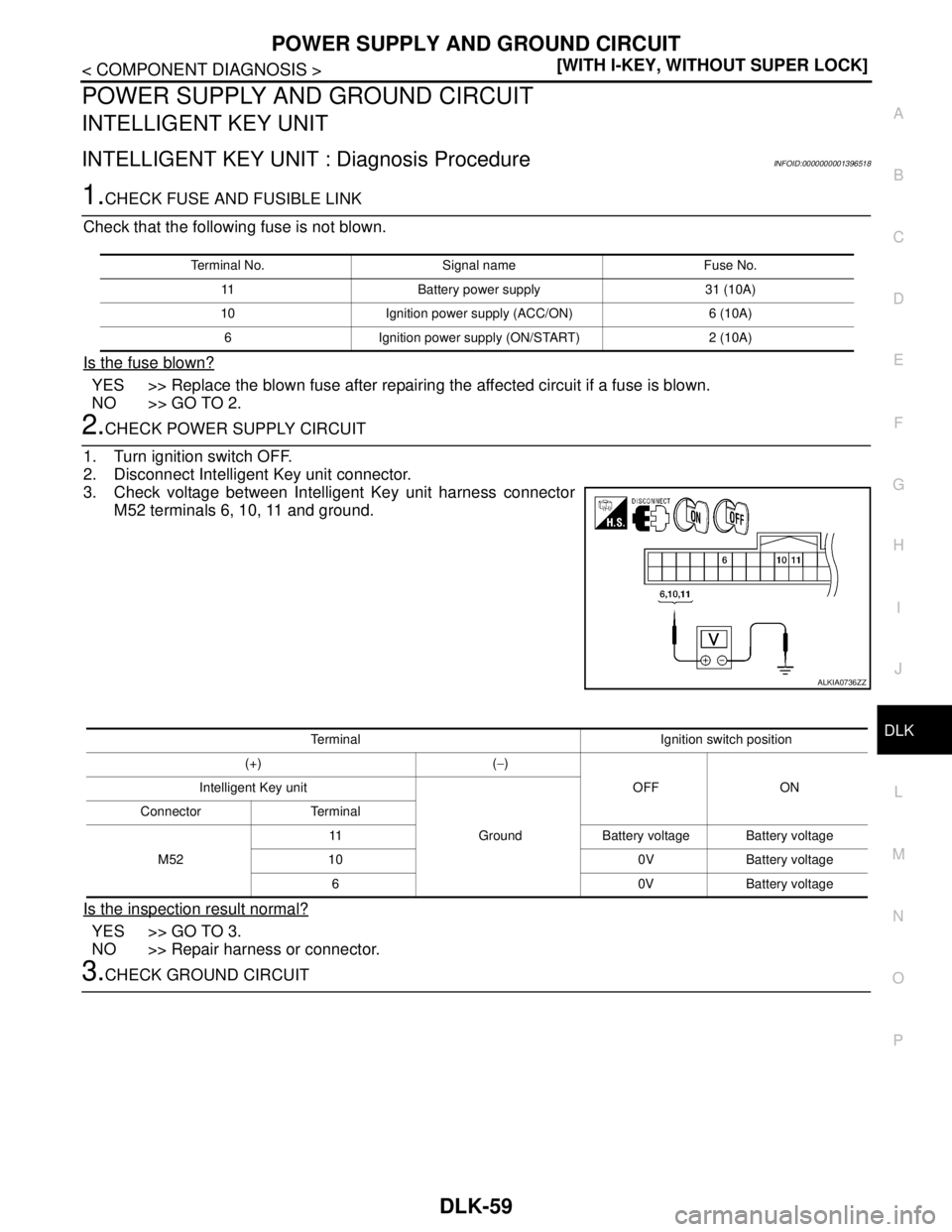

POWER SUPPLY AND GROUND CIRCUIT
INTELLIGENT KEY UNIT
INTELLIGENT KEY UNIT : Diagnosis ProcedureINFOID:0000000001396518
1.CHECK FUSE AND FUSIBLE LINK
Check that the following fuse is not blown.
Is the fuse blown?
YES >> Replace the blown fuse after repairing the affected circuit if a fuse is blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect Intelligent Key unit connector.
3. Check voltage between Intelligent Key unit harness connector
M52 terminals 6, 10, 11 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Terminal No. Signal name Fuse No.
11 Battery power supply 31 (10A)
10 Ignition power supply (ACC/ON) 6 (10A)
6 Ignition power supply (ON/START) 2 (10A)
ALKIA0736ZZ
Terminal Ignition switch position
(+) (−)
OFF ON Intelligent Key unit
Ground Connector Terminal
M5211 Battery voltage Battery voltage
10 0V Battery voltage
6 0V Battery voltage

DLK-60
< COMPONENT DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
POWER SUPPLY AND GROUND CIRCUIT
Check continuity between Intelligent Key unit harness connector and
ground.
Is the inspection result normal?
YES >> Intelligent Key unit power supply and ground circuit are OK.
NO >> Repair harness or connector.
BCM
BCM : Diagnosis ProcedureINFOID:0000000001396519
Refer to BCS-30, "Diagnosis Procedure".
WIIA1172E
Intelligent Key unit
GroundContinuity
Connector Terminal
M52 12 Yes

DOOR LOCK AND UNLOCK SWITCH
DLK-61
< COMPONENT DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR LOCK AND UNLOCK SWITCH
DescriptionINFOID:0000000001396520
Transmits door lock/unlock operation to BCM.
Component Function CheckINFOID:0000000001396521
1.CHECK FUNCTION
With CONSULT-III
Check “CDL LOCK SW ”and “CDL UNLOCK SW” in “Data Monitor” mode with CONSULT-III.
Is the inspection result normal?
YES >> Door lock and unlock switch is OK.
NO >> Refer to DLK-61, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001396522

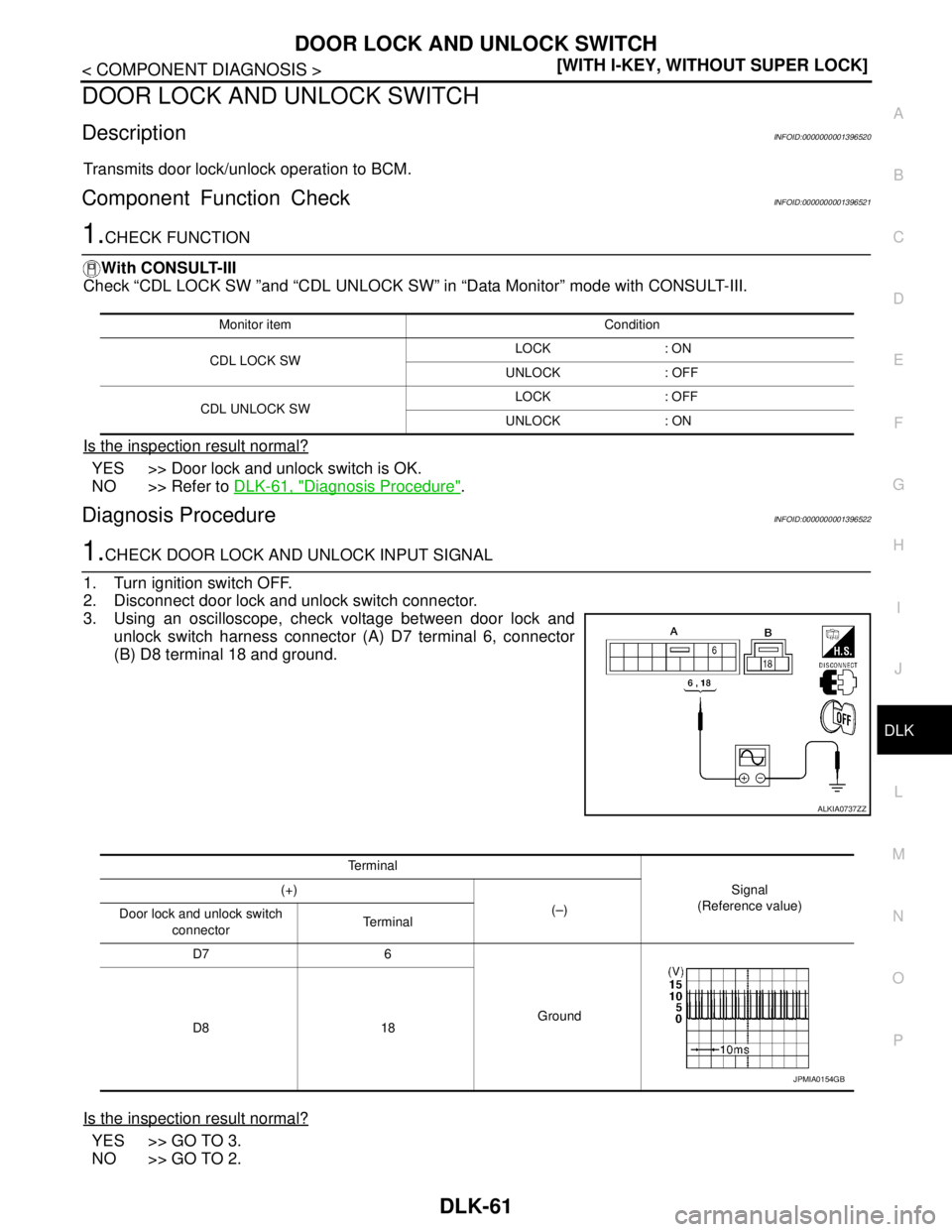

1.CHECK DOOR LOCK AND UNLOCK INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect door lock and unlock switch connector.
3. Using an oscilloscope, check voltage between door lock and
unlock switch harness connector (A) D7 terminal 6, connector
(B) D8 terminal 18 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
Monitor item Condition
CDL LOCK SW LOCK : ON
UNLOCK : OFF
CDL UNLOCK SW LOCK : OFF
UNLOCK : ON
ALKIA0737ZZ
Te r m i n a l
Signal
(Reference value) (+)
(–)
Door lock and unlock switch
connectorTe r m i n a l
D7 6
Ground
D8 18
JPMIA0154GB
