NISSAN TIIDA 2007 Service Repair Manual

DLK-172
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000001396643
VALUES ON THE DIAGNOSIS TOOL
Refer to BCS-35, "Reference Value".
Wiring Diagram - POWER DOOR LOCK SYSTEM -INFOID:0000000001396637
ALKWA0102GB

BCM (BODY CONTROL MODULE)
DLK-173
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
ALKWA0103GB

DLK-174
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
BCM (BODY CONTROL MODULE)

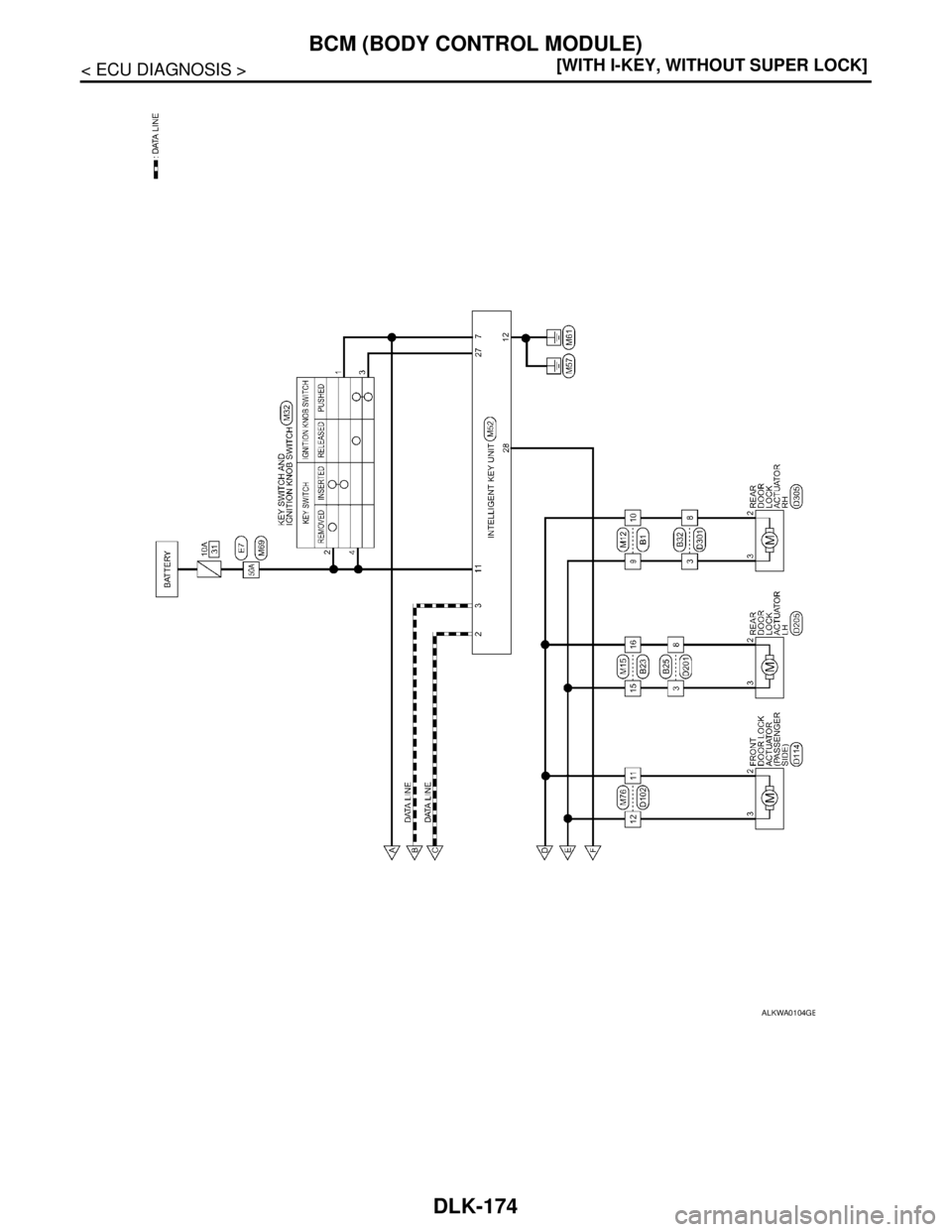

ALKWA0104GB

BCM (BODY CONTROL MODULE)
DLK-175
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

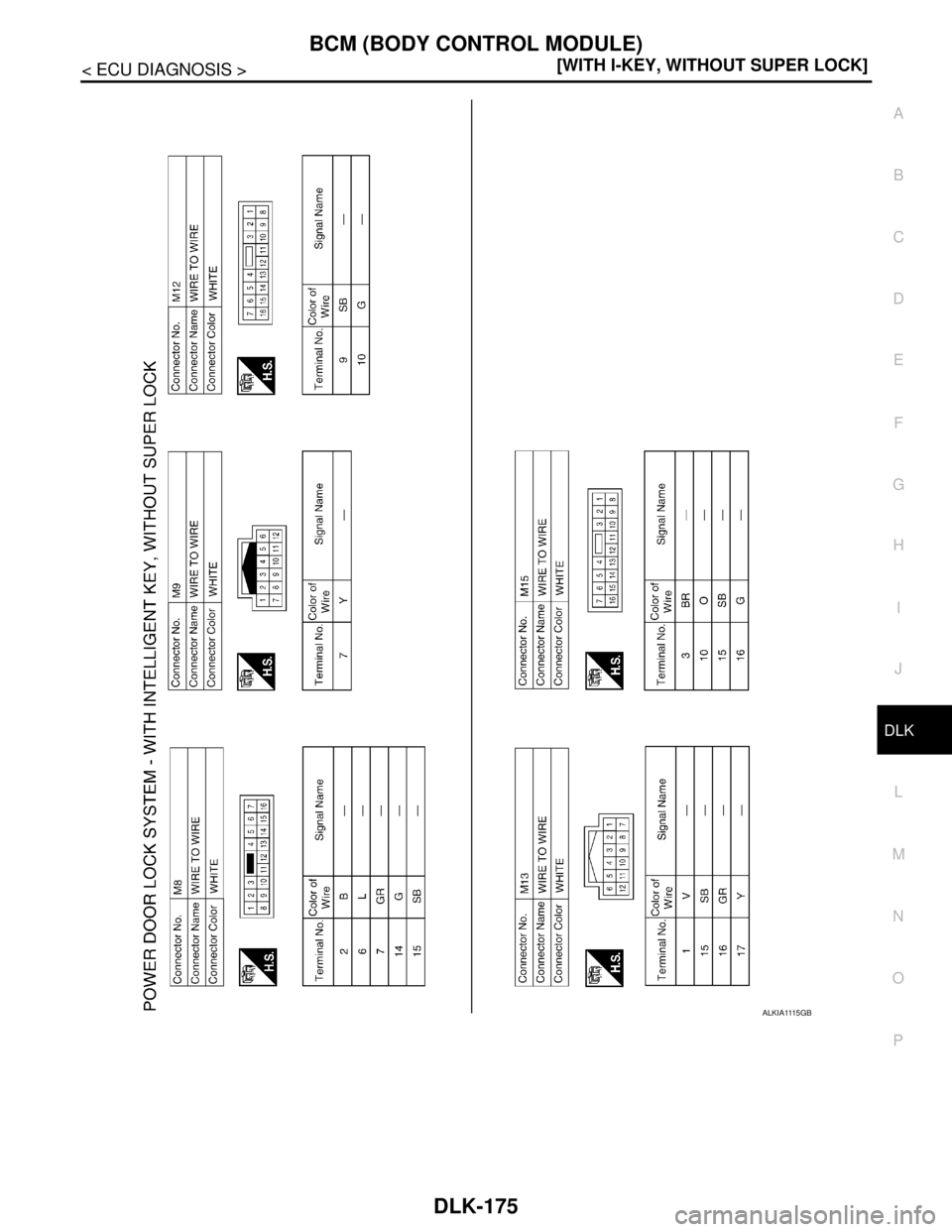

ALKIA1115GB

DLK-176
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
BCM (BODY CONTROL MODULE)
ALKIA1116GB

BCM (BODY CONTROL MODULE)
DLK-177
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

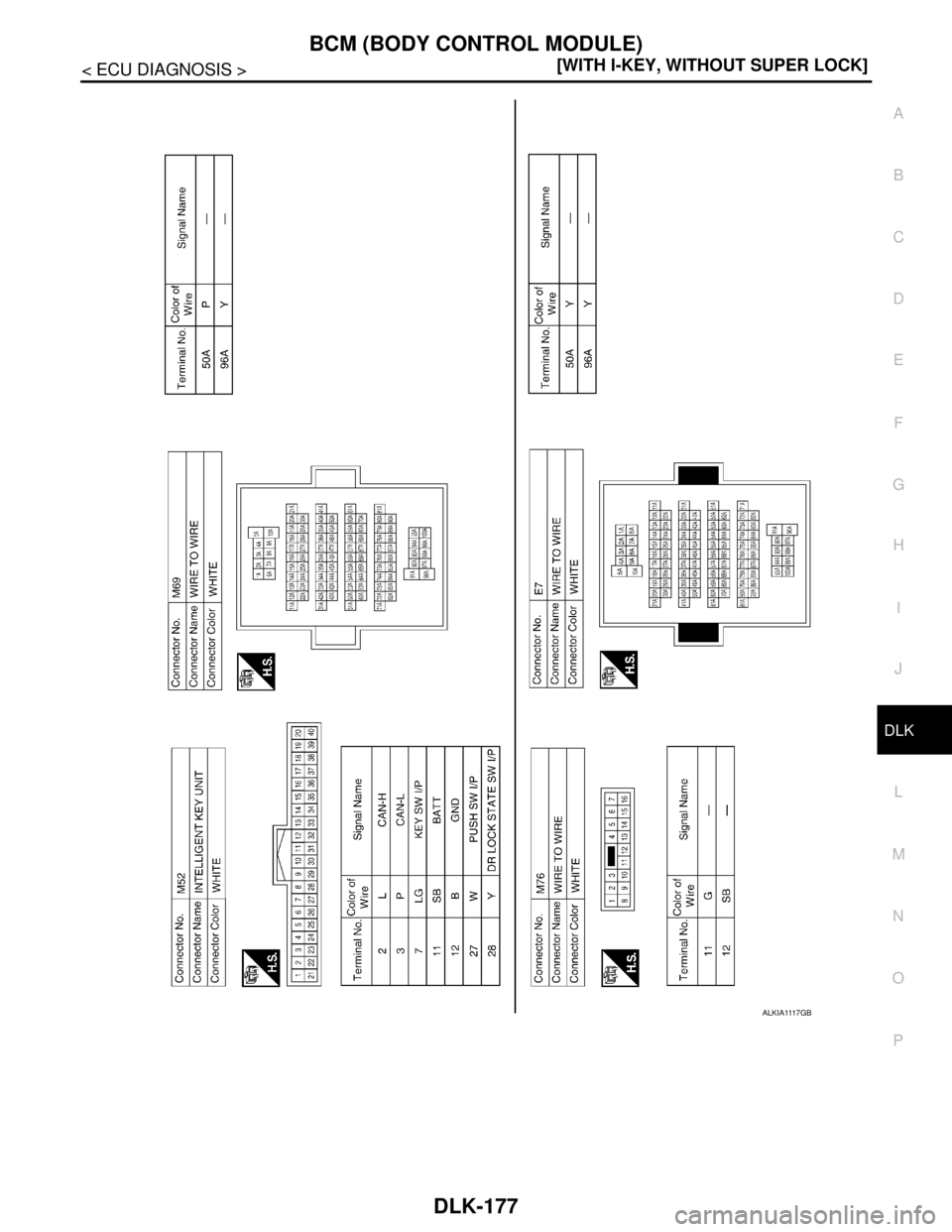

ALKIA1117GB

DLK-178
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
BCM (BODY CONTROL MODULE)

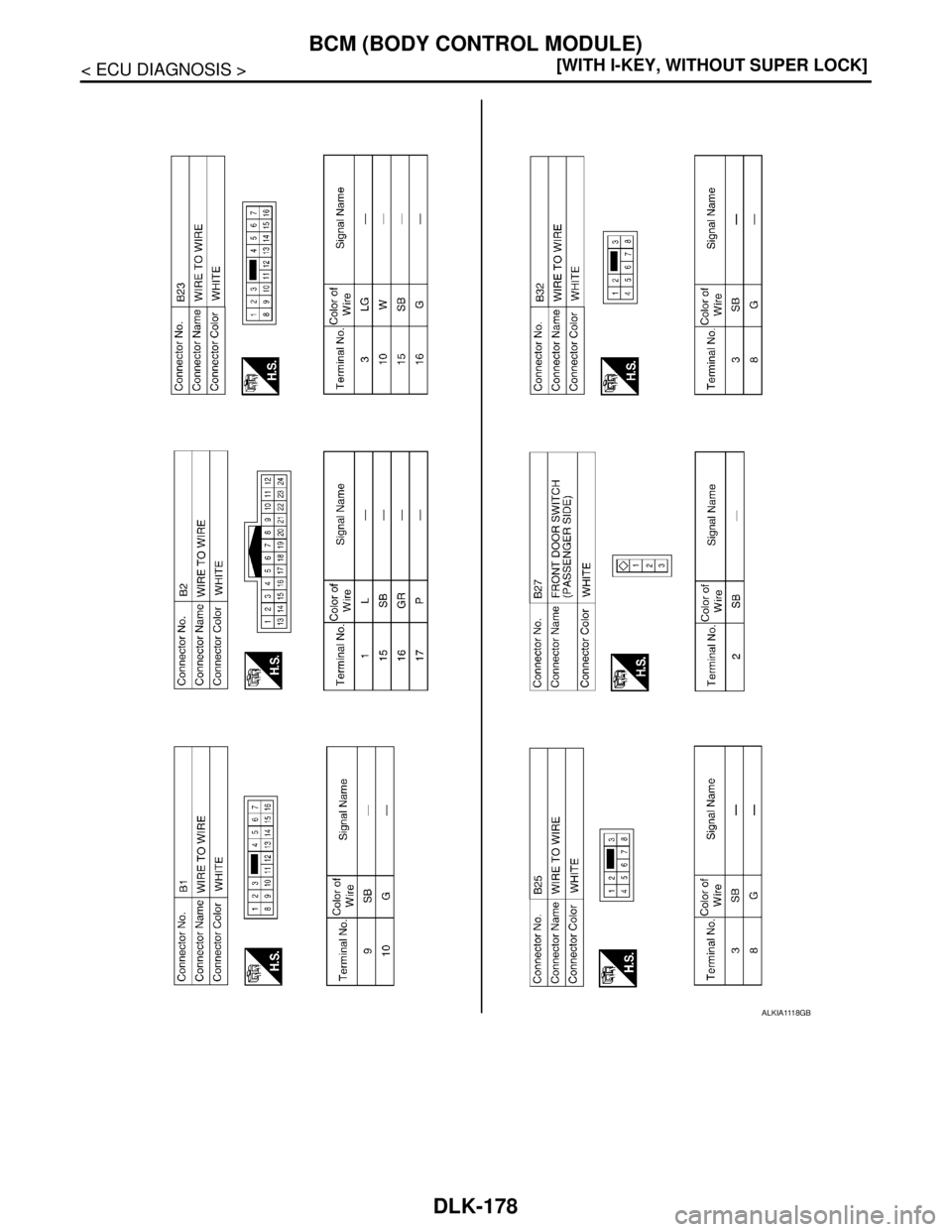

ALKIA1118GB

BCM (BODY CONTROL MODULE)
DLK-179
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
ALKIA1119GB

DLK-180
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
BCM (BODY CONTROL MODULE)

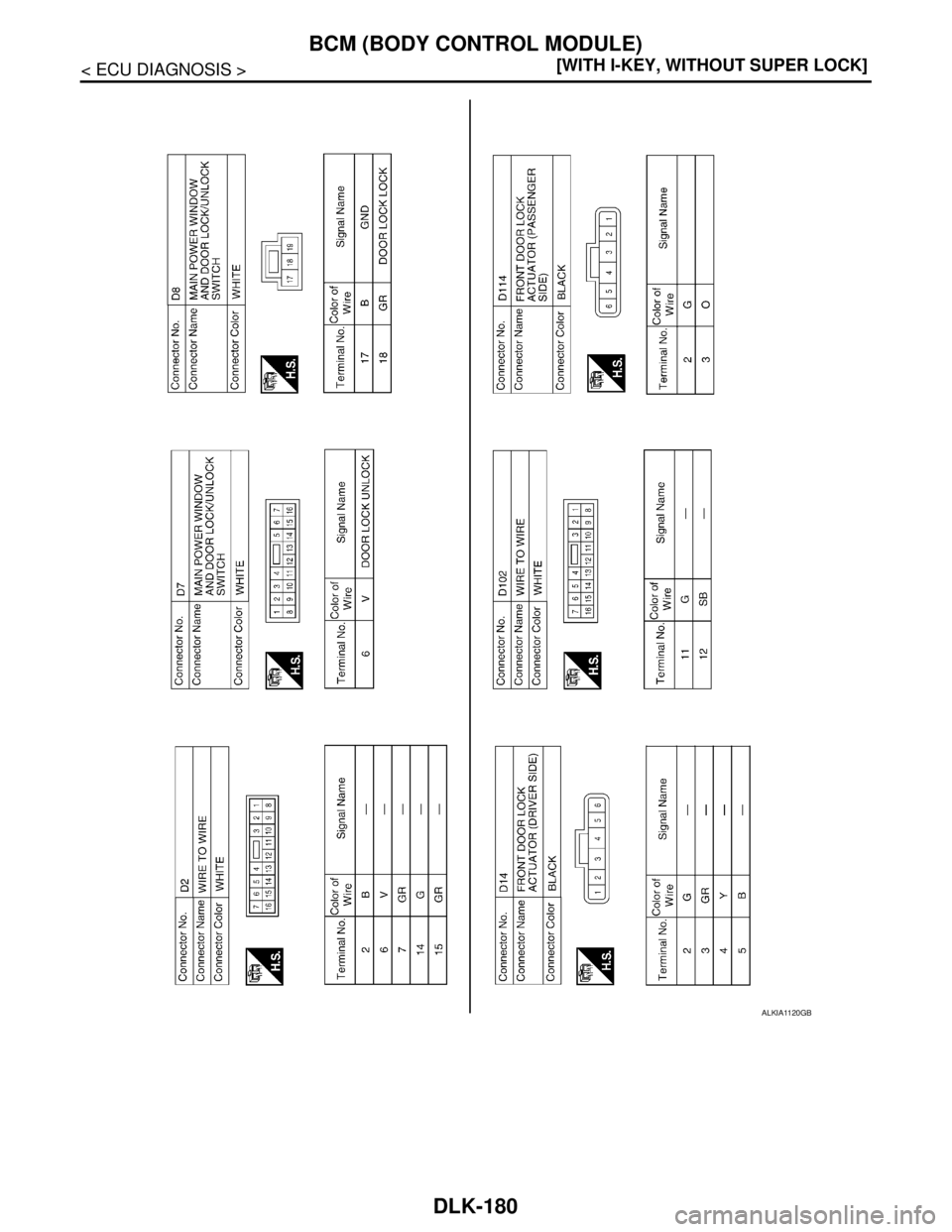

ALKIA1120GB

BCM (BODY CONTROL MODULE)
DLK-181
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

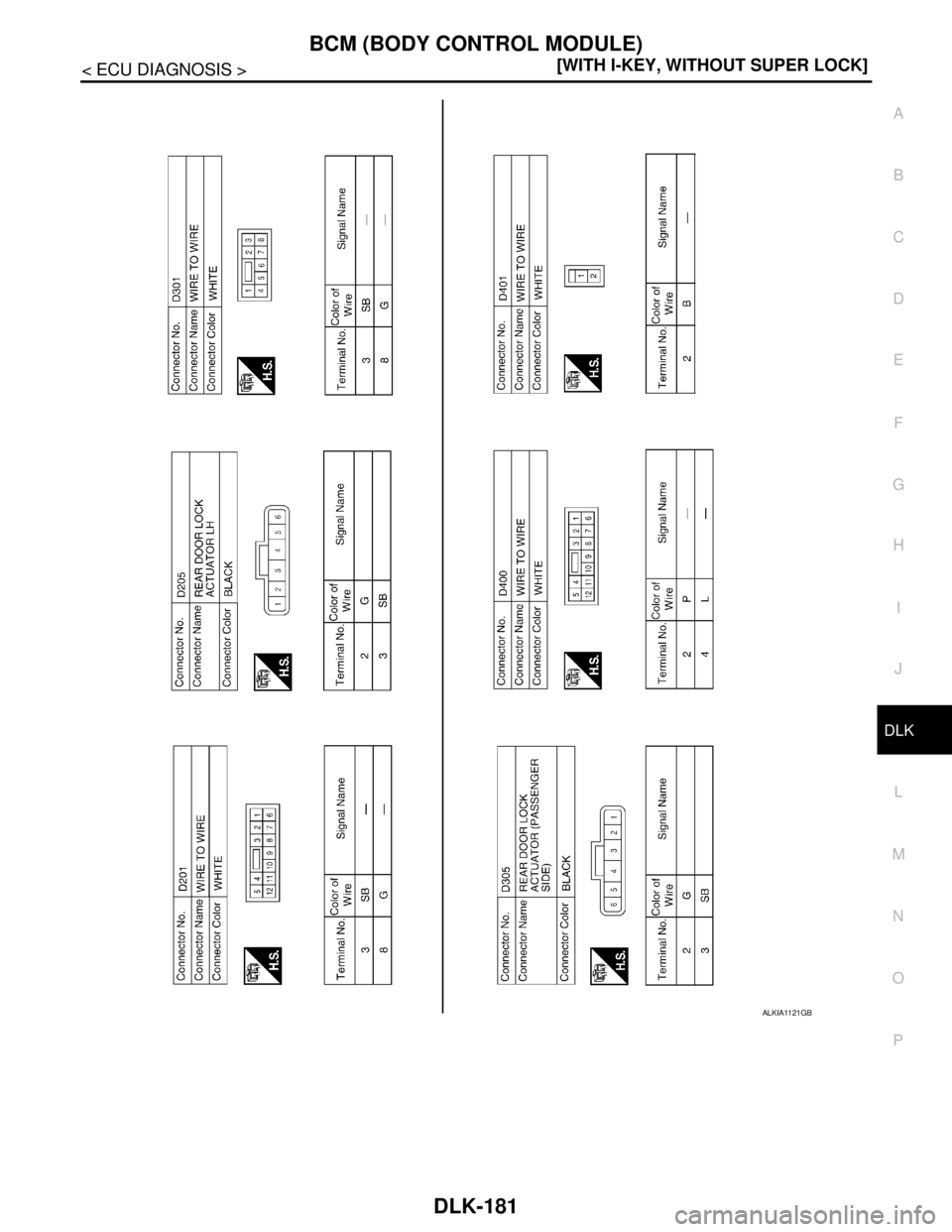

ALKIA1121GB
